1007E-0907
CV-L108CL
3CCD High Speed Color
Line Scan Camera
Document Version: 1.2
CV-L108CL_V.1.2_Nov2010
User's Manual
CV-L108CL
2
Notice
The material contained in this manual consists of information that is proprietary to JAI Ltd., Japan
and may only be used by the purchasers of the product. JAI Ltd., Japan makes no warranty for the
use of its product and assumes no responsibility for any errors which may appear or for damages
resulting from the use of the information contained herein. JAI Ltd., Japan reserves the right to
make changes without notice.
Company and product names mentioned in this manual are trademarks or registered trademarks of
their respective owners.
Warranty
For information about the warranty, please contact your factory representative.
Certifications
CE compliance
As defined by the Directive 2004/108/EC of the European Parliament and of the Council, EMC
(Electromagnetic compatibility), JAI Ltd., Japan declares that CV-108CL complies with the
following provisions applying to its standards.
EN 61000-6-3 (Generic emission standard part 1)
EN 61000-6-2 (Generic immunity standard part 1)
FCC
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
Warning
Changes or modifications to this unit not expressly approved by the party
responsible for FCC compliance could void the user’s authority to operate the
equipment.
CV-L108CL
Supplement
The following statement is related to the regulation on “ Measures for the Administration
of the control of Pollution by Electronic Information Products “ , known as “ China RoHS “.
The table shows contained Hazardous Substances in this camera.
mark shows that the environment-friendly use period of contained Hazardous
Substances is 15 years.
嶷勣廣吭並㍻
嗤蕎嗤墾麗嵎賜圷殆兆各式根楚燕
功象嶄鯖繁酎慌才忽佚連恢匍何〆窮徨佚連恢瞳麟半陣崙砿尖一隈〇云恢瞳ゞ 嗤蕎嗤
墾麗嵎賜圷殆兆各式根楚燕 〃泌和
桟隠聞喘豚㍉
窮徨佚連恢瞳嶄根嗤議嗤蕎嗤墾麗嵎賜圷殆壓屎械聞喘議訳周和音氏窟伏翌
亶賜融延、窮徨佚連恢瞳喘薩聞喘乎窮徨佚連恢瞳音氏斤桟廠夛撹冢嶷麟半
賜斤児繁附、夏恢夛撹冢嶷鱒墾議豚㍉。
方忖仝15々葎豚㍉15定。
CV-L108CL
3
- Contents –
1. General ........................................................................................................ 5
2. Standard composition ....................................................................................... 5
3. Main features ................................................................................................. 5
4. Locations and functions ..................................................................................... 6
5. Connectors .................................................................................................... 7
5.1. 12-Pin Connector (Hirose) ............................................................................ 7
5.2. Digital Output / Interface Connectors for Camera Link ......................................... 7
5.3. Input and output circuits ............................................................................. 8

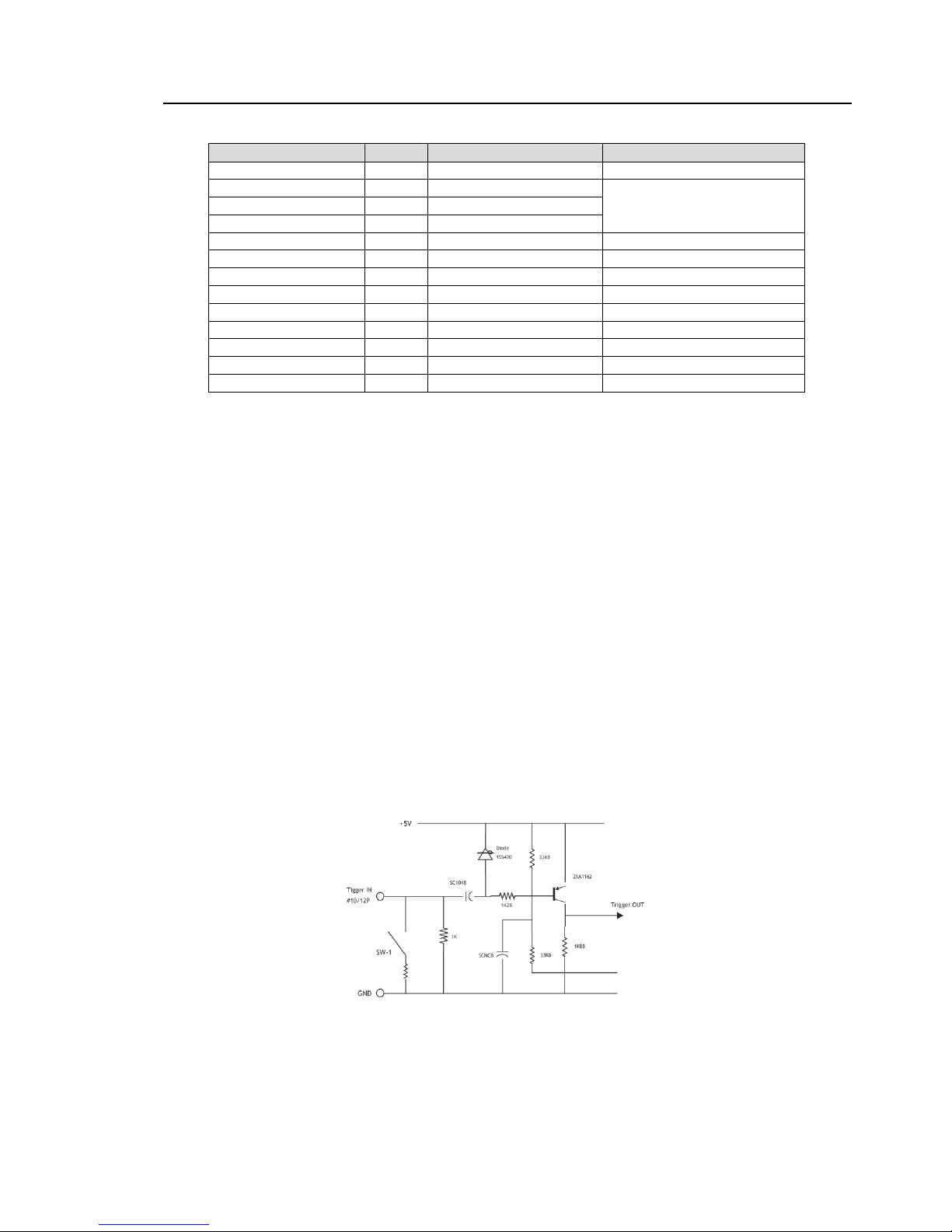

5.3.1. Trigger input ........................................................................................ 8
5.3.2. EEN / XEEN output (Exposure ENable) ......................................................... ９
6. Functions and Operation .................................................................................. 10
6.1. Basic functions ....................................................................................... 10

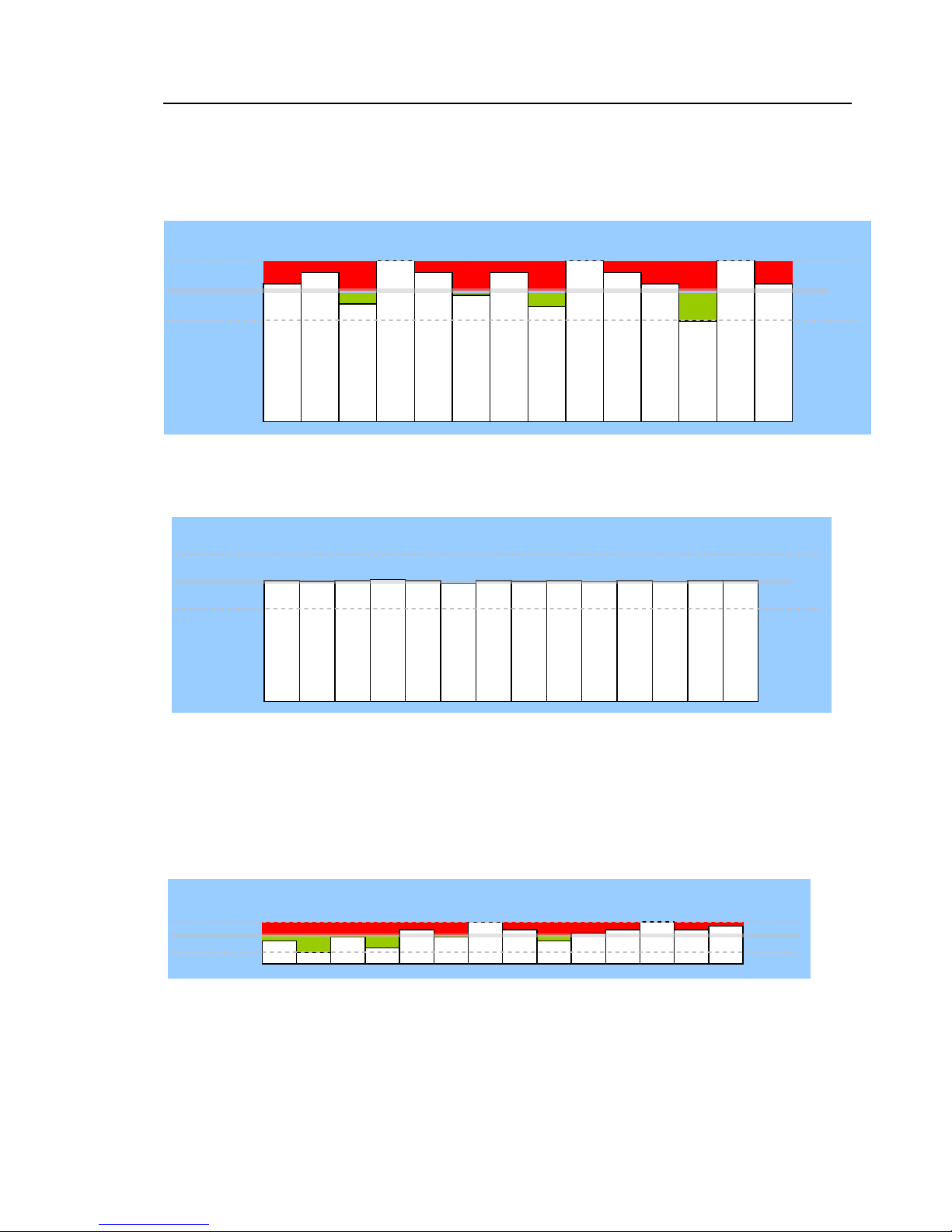

6.2. Pixel Gain (flat-field) correction (PRNU correction) ........................................... 11
6.3. Pixel black level correction (DSNU / FPN correction) ......................................... 11

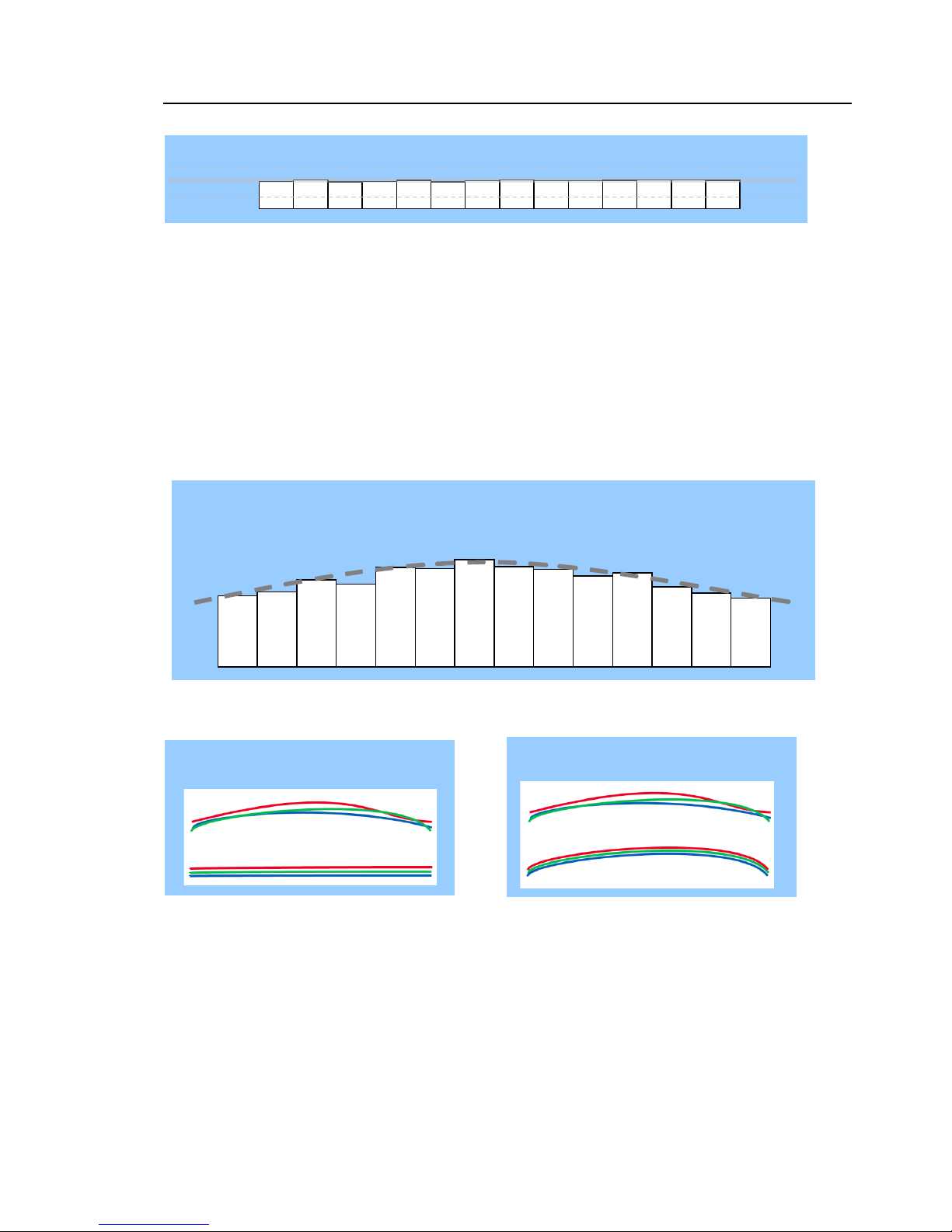

6.4. Shading correction .................................................................................. 12
6.5. Binning ................................................................................................ 12
6.6. Operation modes .................................................................................... 13
6.6.1. No-Shutter mode with Internal line rate generator ........................................ 14
6.6.2. No-Shutter mode with External Trigger ...................................................... 15
6.6.3. Shutter-Select mode with Internal line rate generator .................................... 16
6.6.4. Shutter-Select mode with External trigger .................................................. 17
6.6.5. Pulse Width Control (PWC) mode.............................................................. 18
6.6.6. Auto Reset mode ................................................................................. 19
6.7. Scan rate and exposure time range .............................................................. 19
6.7.1. Minimum cycle time of external trigger ...................................................... 19
6.7.2. Minimum trigger pulse width. .................................................................. 19
6.8. Relationship between Trigger and LVAL ......................................................... 20
6.9. Compatibility of trigger modes and functions .................................................. 20
6.10. Rear panel indicator ................................................................................ 20
7. Configuring the camera ................................................................................... 21
7.1. CV-L108CL Command list ........................................................................... 21
8. Functions listed alphabetically by command acronyms ............................................. 25
8.1 Command AHRS – Request status after One-Push AWB ........................................ 25
8.2 Command AL – Automatic Line Rate Reference Level ......................................... 25
8.3 Command AR – Automatic Line Rate setting .................................................... 25
8.4 Command ARST – Auto Reset Mode ............................................................... 25
8.5 Command AW – Activate One-push Auto White Balance (AWB) - Gain ...................... 25
8.6 Command AH - Activate One-push Auto White Balance (AWB) - Shutter ................... 26
8.7 Command BA – Bit Allocation ...................................................................... 26
8.8 Command BI – Binning (Horizontal only) ......................................................... 26
8.9 Command BL – Master Black Level ................................................................ 27
8.10 Commands BLR and BLR – Black level red and black level blue .............................. 27
8.11 Command EI – Interlocked R, G and B exposure ................................................ 27
8.12 Command GA – Master Gain Level ................................................................ 27
8.13 Commands GAR and GAB – Gain level red and gain level blue. .............................. 27
8.14 Command NK – Knee function enable/disable .................................................. 27
8.15 Commands KSR, KSG and KSB – Knee slope for R, G and B .................................... 28
8.16 Commands KPR, KPG and KPG – Knee point for R, G and B ................................... 28
8.17 Command LR - Line Rate (Scan Rate) ............................................................ 28
8.18 Command PBC – Enable pixel black (FPN) correction .......................................... 29
8.19 Command PBR – Run pixel black correction and store to user area ......................... 29
8.20 Command PER – Programmable exposure – Red ................................................ 29
8.21 Command PEG – Programmable exposure – Green ............................................. 29
8.22 Command PEB – Programmable exposure – Blue ................................................ 30
8.23 Command PGC – Enable Flat-field correction (Pixel gain) .................................... 30
CV-L108CL
4
8.24 Command PGR – Run Flat-field correction and store in user area ........................... 30
8.25 Command SDC – Select shading correction mode .............................................. 30
8.26 Command SDR – Run shading correction ......................................................... 30
8.27 Command SDS – Request status after executing shading correction command ............ 32
8.28 Command TG – Trigger Origin ..................................................................... 32
8.29 Command TI – Trigger input ....................................................................... 32
8.30 Command TP – Trigger polarity ................................................................... 32
8.31 Command TR – Trigger Mode....................................................................... 32
8.32 Command TS – Test pattern ....................................................................... 33
8.33 Command WB – White Balance .................................................................... 34
8.34 Factory default settings ............................................................................ 34
8.35 Serial communication ............................................................................... 35
9 Camera Control Tool for CV-L108CL .................................................................... 36
9.1 Control Tool Windows ................................................................................. 37
9.2 Camera Control Tool Interface ....................................................................... 38
9.3 Using Camera Control Tool ........................................................................... 40
10 External appearance and Dimensions ................................................................... 41
11 Specifications ............................................................................................... 42
11.1 Typical data ........................................................................................... 42
11.2 Spectral sensitivity ................................................................................... 44
12 Appendix ..................................................................................................... 45
12.1 Precautions ............................................................................................ 45
12.2 Typical Sensor Characteristics ...................................................................... 45
12.3. Caution when mounting a lens on the camera .................................................. 45
12.4. Exportation ........................................................................................... 45
12.5 References ............................................................................................. 45
Change History ................................................................................................... 46
User's Record ..................................................................................................... 47
CV-L108CL
5
1. General
CV-L108CL is a 3CCD line scan camera using three 512 pixel line sensors mounted on a prism, for the
R, G and B channels. It operates with a 40 MHz pixel clock, resulting in a maximum line rate of
70,922 lines per second.
The camera outputs digital data in 3 x 8 bits or 3 x 10 bits format via Camera Link. The camera is
configured by software through the serial communication port of the Camera Link interface, or via
RS-232C through a 12-pin Hirose connector.
The camera accepts F-mount lenses and can optionally be ordered with a P-mount (M42x1) lens
adapter
The latest version of this operation manual can be downloaded from www.jai.com .
The latest camera control tool for the CV-L108CL can be downloaded from www.jai.com .
For camera revision history, please contact your local JAI distributor
2. Standard composition
The standard camera composition consists of the camera body. A lens is not included with the
delivery.
The camera is available in the following versions:
CV-L108CL with F-mount
3. Main features
3CCD line scan camera with 512 pixel resolution
Dichroic RGB beam splitter prism
70,922 lines per second scan rate
40 MHz pixel clock
3 x 8 bits or 3 x 10 bits output through Camera Link interface
F-mount lens adapter
Flat-field correction. Two point pixel-by-pixel compensation on each RGB channel
Flat shading compensation
Color shading compensation
One-push white balance
Pixel binning
Test pattern generator( color bar, gray, white ) for set-up and troubleshooting
Electronic shutter (for selected modes)
Built-in diagnostics
Short ASCII commands for set-up via RS 232C or Camera Link
Setup by Windows 2000/XP/Vista software
CV-L108CL
6
4. Locations and functions

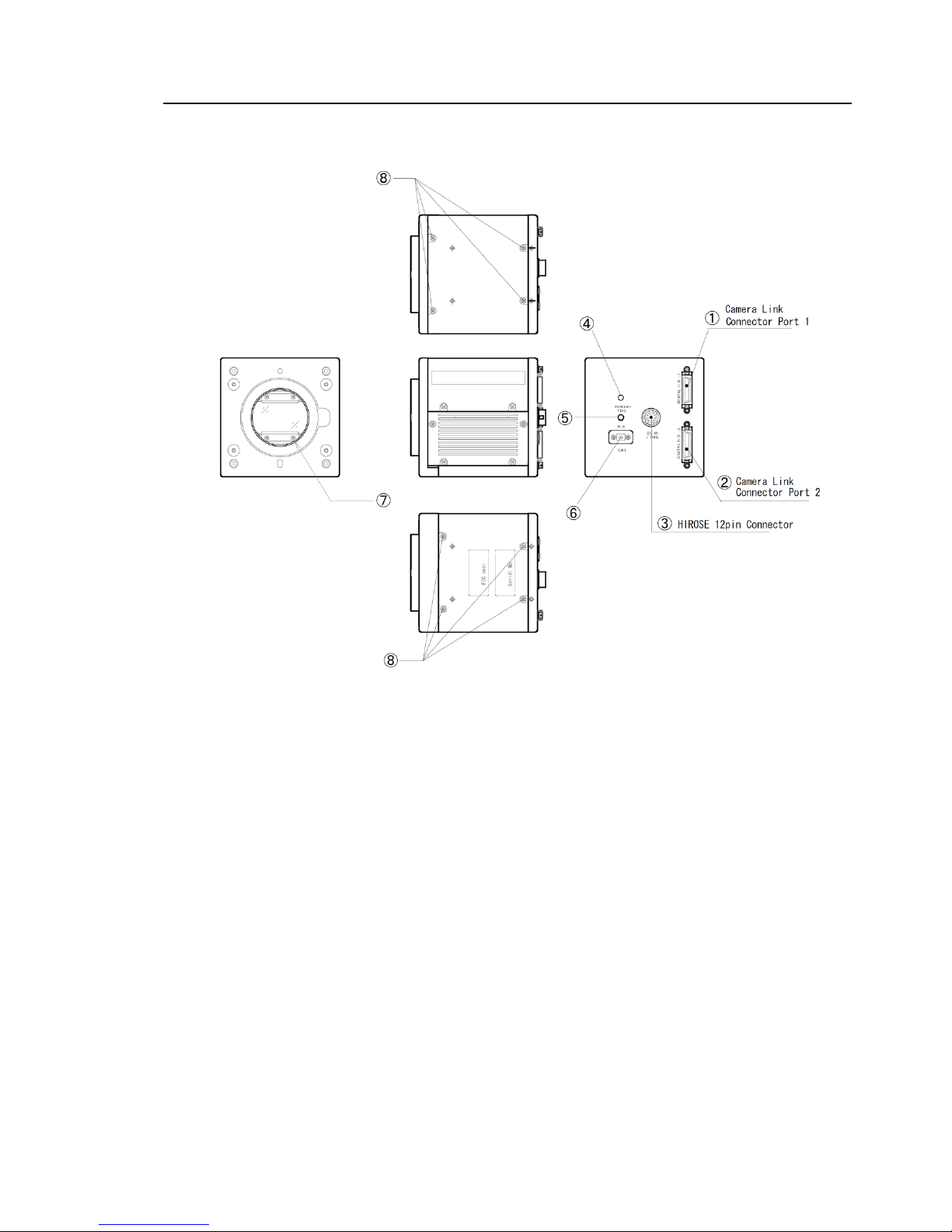

Fig. 1 Location of external features
1 Camera Link base connector (1) (*Note)
2 Camera Link medium connector (2) (*Note)
3 12-pin Hirose connector for DC +12, External trigger and RS-232C
4 LED indicator Orange, steady: Initializing or one-push operation
Green, steady: Operating, but not receiving external trigger
Green, flashing: Operating and receiving external trigger
5 One-push auto white balance button
6 SW-1
7 Nikon F-Mount lens adapter
8 Mounting holes 8 x M3, depth 5mm
*Note: When a Camera Link cable is connected to the camera, please do not excessively tighten
screws by using driver. The Camera Link receptacle on the camera might be damaged.
For security, the strength to tighten screws is less than 0.291 Newton Meter (Nm).
Tightening by hand is sufficient in order to achieve this.
CV-L108CL
7
5. Connectors

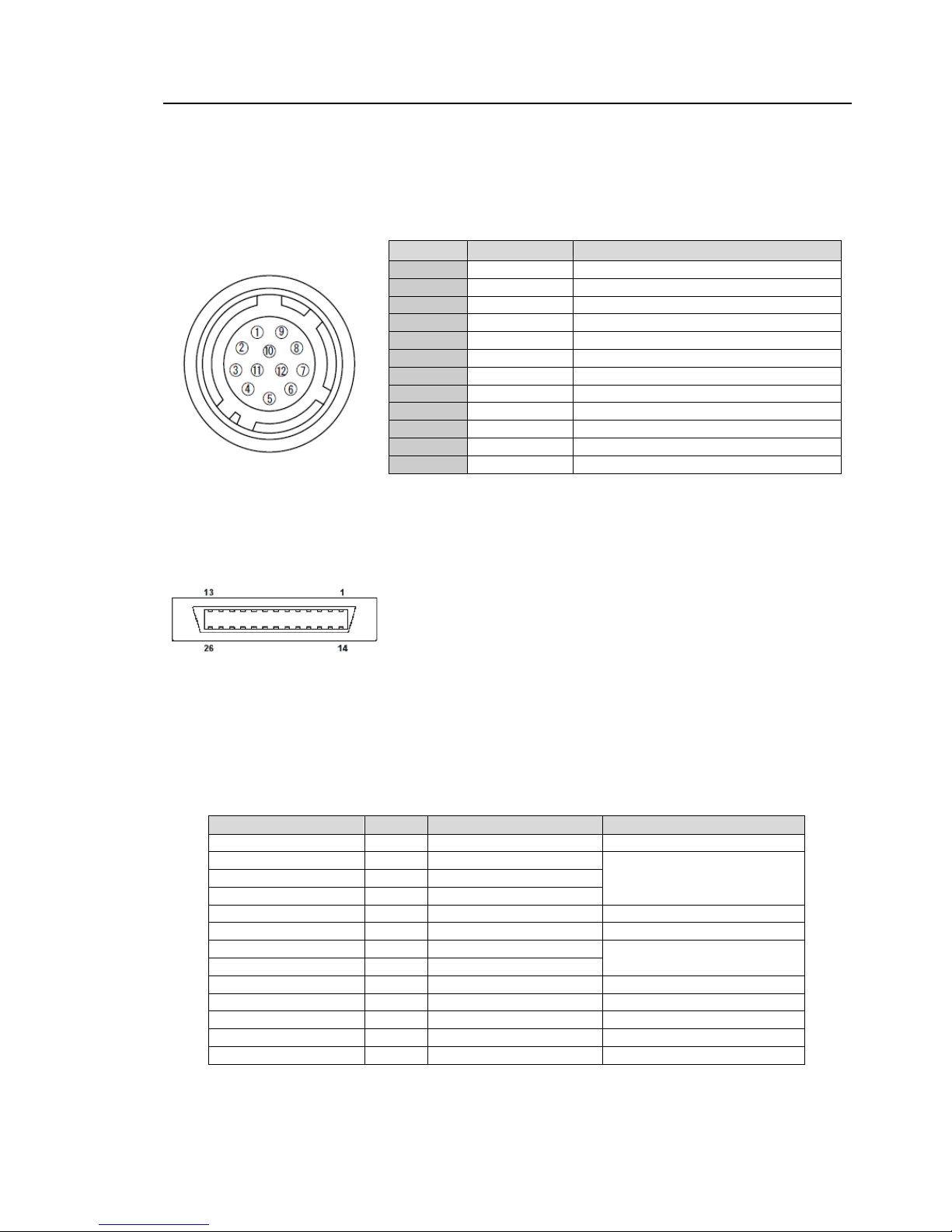

5.1. 12-Pin Connector (Hirose)
Type: HR10A-10R-12PB-01 Hirose (Male)
Use the part number HR10A-10P-12S for the cable side
Pin No.
Signal
Remarks
1
GND
2
+12V DC in
3
GND
4
Reserved
Do not connect
5
GND
6
RxD in
RS-232C
7
TxD out
RS-232C
8
GND
9
XEEN out
10
Trigger in
TI=1, or set TI=0 for input via CL
11
+12V DC in
Option
12
GND
5.2. Digital Output / Interface Connectors for Camera Link
Type: 26P MRD Connector 3M 10226-1A10JL
Fig. 3 Camera Link connector
This camera can be used with all Camera Link products that comply with the AIA Camera Link
standard. Cables, transmission systems and frame grabbers/acquisition boards that do not comply
with the Camera Link standard may work with this camera, but JAI Camera Solutions cannot be held
responsible for loss in performance or damage of equipment, including the camera.
Connector 1 (24Bit, 30 Bit)
Pin No
In/Out
Name
Note
1,14 Shield
GND
2(-),15(+)
O
TxOUT0
Data out
3(-),16(+)
O
TxOUT1
4(-),17(+)
O
TxOUT2
5(-),18(+)
O
TxClk
Clock for CL
6(-),19(+)
O
TxOUT3
Data out
7(+),20(-)
I
SerTC (RxD)
LVDS Serial Control
8(-),21(+)
O
SerTFG (TxD)
9(-),22(+)
I
CC1 (Trigger)
Trigger
10(+),23(-)
I
CC2(Reserved)
11,24 N.C
12,25 N.C
13,26
Shield
GND
Fig. 2 12-pin Hirose connector
CV-L108CL
8
Connector 2 ( Used only for 3 x 10 Bit output)
Pin No
In/Out
Name
Note
1,14 Shield
GND
2(-),15(+)
O
TxOUT0
Data out
3(-),16(+)
O
TxOUT1
4(-),17(+)
O
TxOUT2
5(-),18(+)
O
TxClk
Clock for CL
6(-),19(+)
O
TxOUT3
Data out
7(+),20(-)
N.C
8(-),21(+)
N.C
9(-),22(+)
N.C
10(+),23(-)
N.C
11,24 N.C
12,25 N.C
13,26
Shield
GND
The CV-L108CL follows the Camera Link standard in all respects.
Please refer to the Camera Link version 1.1 specifications for detailed information on bit
assignments of 24-bit RGB and 30-bit bit output.
5.3. Input and output circuits
5.3.1. Trigger input
The External Trigger signal can be applied either through the Camera Link connector or at pin 10 of
the 12-pin Hirose connector. The command to change this setting is TI (Trigger Input). TI=0 for
Camera Link connector (factory default) and TI=1 for 12-pin Hirose connector. The input via the
12-pin Hirose connector is AC coupled.
To allow long pulses, which may be required when using the Pulse Width Control (PWC) trigger
mode, the input circuit is designed as a flip-flop circuit. The leading and trailing edges of the trigger
pulse activate the circuit.
The trigger input polarity can be changed by the command TP. At the 12-pin Hirose connector the
External Trigger input is 4V ± 2V (TTL). It can be changed to 75 ohm termination by an internal
switch setting (SW 801-2).

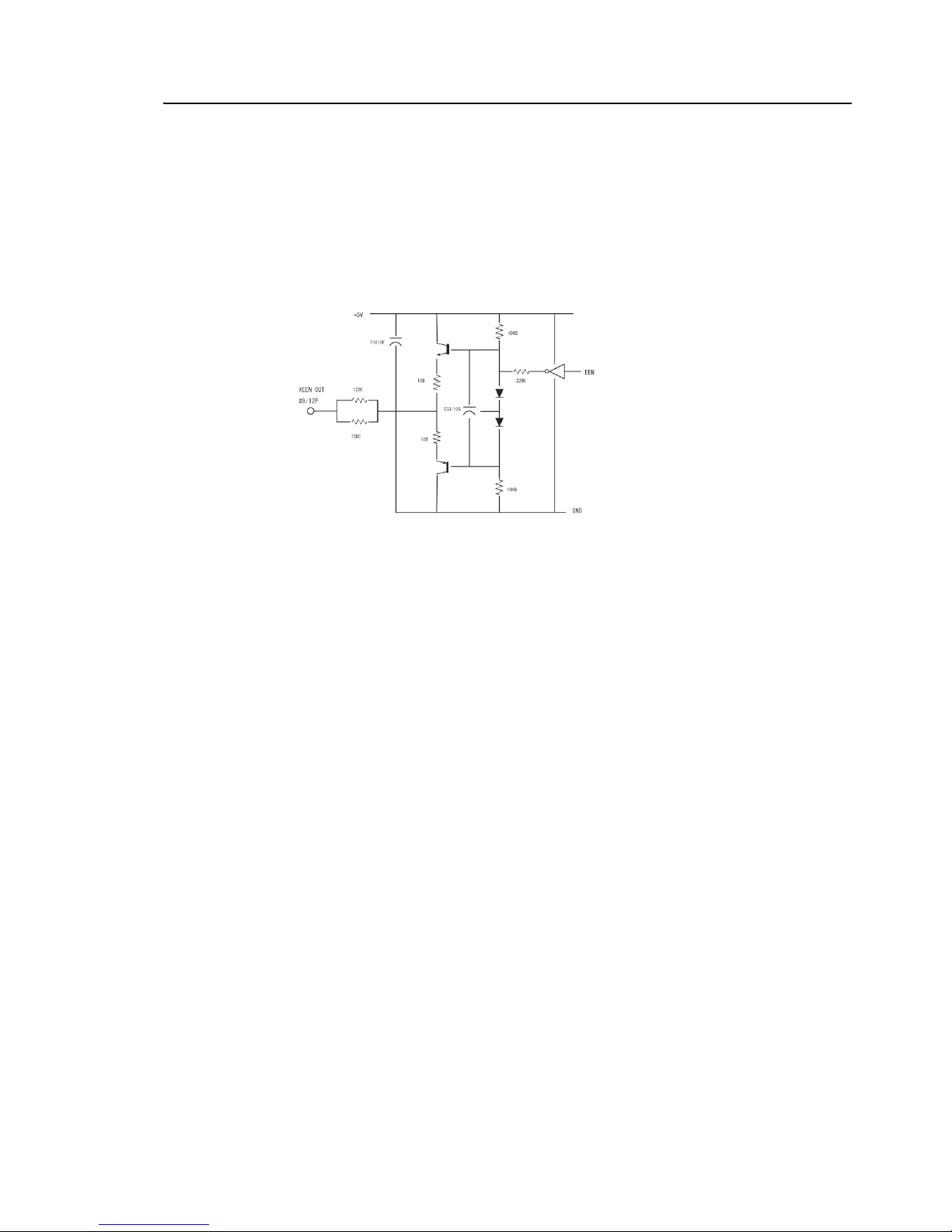

Fig. 4 Trigger input (12-pin Hirose)
CV-L108CL
９
5.3.2. EEN / XEEN output (Exposure ENable)
This output corresponds to the exposure (accumulation) time of the camera. It works together with
all operation modes. It is, however, not active when the test pattern function is enabled.
The EEN signal is available at the Camera Link connector and at the 12-pin Hirose connector at the
same time.
At the Camera Link connector this signal has positive logic.
At pin 9 of the 12-pin Hirose connector the signal has negative logic, and is therefore named XEEN.
The output circuit is a 75 ohm complementary emitter follower. The circuit is powered from the 5V
supply, resulting in an output level of more than 4V. It is not terminated.
Fig. 5 XEEN Circuit (12-pin Hirose)
CV-L108CL
10
6. Functions and Operation
6.1. Basic functions
The CV-L108CL is built around three high-performance CCD line scan image sensors mounted on a
prism block, as illustrated in Figure 6.
During exposure, the incoming light is converted to electrons (electric charge) in the photodiodes
(active pixels). The transfer gate controls the transfer of charge from photodiodes to the shift
register. Activating the transfer gate terminates the exposure cycle, transfers the charge to the
Horizontal Shift Register (2-phase buried channel CCD shift register) and starts a new exposure
cycle. The line is subsequently read out in a single sequence starting with pixel 1.
The exposure time is normally the same as the cycle time (in No-Shutter mode). By using the
Exposure Control Gate (in Shutter-Select or Pulsed Width Control trigger modes) the exposure time
can be individually set to be shorter than the cycle time (the inverse of line rate). This also allows a
fixed exposure time, independent of the line rate. In the CV-L108CL the exposure time can be set
individually for all three channels.
Fig.7 Sensor block diagram
Fig. 6 Principle of a 3CCD line scan camera
Red channel CCD sensor
Green channel CCD sensor
Blue channel CCD sensor
Y-axis
Motion of object
X-axis
Sensor scanning
IR-cut filter
TP1
TP0
OB9
OB8
OB7
O
B6
OB5
OB4
OB3
OB2OB1
OB0
Anti bloomi ng / Exposure Contr ol Gate
Transfar Gate
Output
3
10 2 2 10
AP0
AP1
AP2
A
P
3
・・・・・・・・・
TP : Transi ti on Pi xels
AP : Acti ve Pixel s
OB : Opti cal Bl ack Pi xel s
I so : I sol ati on St ages
I so1
I so2
I so0
2-Phase Buri ed Channel CCD Shi ft Regi ster
・ ・ ・・ ・ ・ ・・
TP2
TP3
512
AP511
AP510
AP509
AP508
539
DM0
DM1
DM2
DM3
DM4
DM5
DM6
DM7
DM8
DM9
。
Note: The camera output is 564 pixels as dummy 25 pixels are added.
CV-L108CL
11
6.2. Pixel Gain (flat-field) correction (PRNU correction)
Pixel Response Non-Uniformity is, as the name expresses, a non-uniformity of the response of each
individual pixel. This means that for a fixed light level each pixel will have a slightly different
output level (response).
To correct for PRNU, the camera‟s internal correction circuit captures one or several lines of data
under non-saturated illuminated conditions (not more than 80% of maximum - recommend level is
half of maximum), and the average across the line is calculated. Based on this average, coefficients
are then generated for each individual pixel. The coefficient has the function of multiplying the
pixel output with factor greater or less than 1. These coefficients are stored in a non-volatile
memory, and are therefore maintained after power down.
6.3. Pixel black level correction (DSNU / FPN correction)
Dark Signal Non-Uniformity or Fixed Pattern Noise is, as the name expresses, fixed pattern on the
sensor output, which is not dependent on the incoming light.
To correct for DSNU/FPN, the camera-internal correction circuit captures one or several lines of
data under dark conditions (the lens must be covered by a lens cap), and the average across the line
is calculated. Based on the average, coefficients are then generated for each individual pixel. The
coefficient has the function of adding or subtracting a value to the pixel output. These coefficients
are stored in a non-volatile memory, and are therefore maintained after power down.
As the dark signal is highly dependent on the exposure time, this correction must be performed
under the operating conditions (exposure time and line rate) that will be used by the application.
Max
Min
Multiply by
Factor > 1
Multiply by
Factor < 1
Before correction: Non-uniform response from pixel to pixel
Average
After correction: flat response from pixel to pixel
Average
Max
Before correction: dark signal non-uniformity from pixel to pixel
Subtract factor
Add factor
Min
Average
CV-L108CL
12
6.4. Shading correction
Shading is caused either by illumination with uneven distribution of light across the surface, or by
vignetting towards the edges of a lens.
The shading correction incorporated in the camera will compensate for this effect by as much as
20% of the brightest signal.
Shading is not compensated for each individual pixel. The signal is averaged across groups of 8
pixels in relation to the whole line. The pixel response non-uniformity will be superimposed on the
output also after shading correction has been performed. Therefore, it is recommended to perform
a pixel gain (flat-field) correction after shading correction.
The Pixel Gain (flat-field) correction function is also used to compensate for shading, but it cannot
handle a very wide dynamic range.
The shading correction can be configured to compensate each channel separately or can track the
green channel.
6.5. Binning
The binning function in this camera combines the charge collected in two adjacent pixels. This
halves the effective resolution to 256 pixels, but doubles the sensitivity. The line rate is not
affected by binning.
Average
After correction: Flat dark signal response from pixel to pixel
Shading caused by uneven illumination or vignetting at the edges of the lens.
Pixel response non-uniformity will be superimposed on the output signal
Individual shading correction
per channel
Shading correction tracking
the green channel
CV-L108CL
13
6.6. Operation modes
The CV-L108CL provides three basic modes of operation: No-shutter, Shutter-Select and Pulse Width
Control (PWC). The Shutter-Select and PWC modes also allow the user to set the exposure time
independently from the scan rate, by making use of the electronic shutter (the Exposure Control
Gate of the CCD sensor).
The following sections describe these modes. The detailed timing of the video output, shown in
figure 8, is common to all modes.

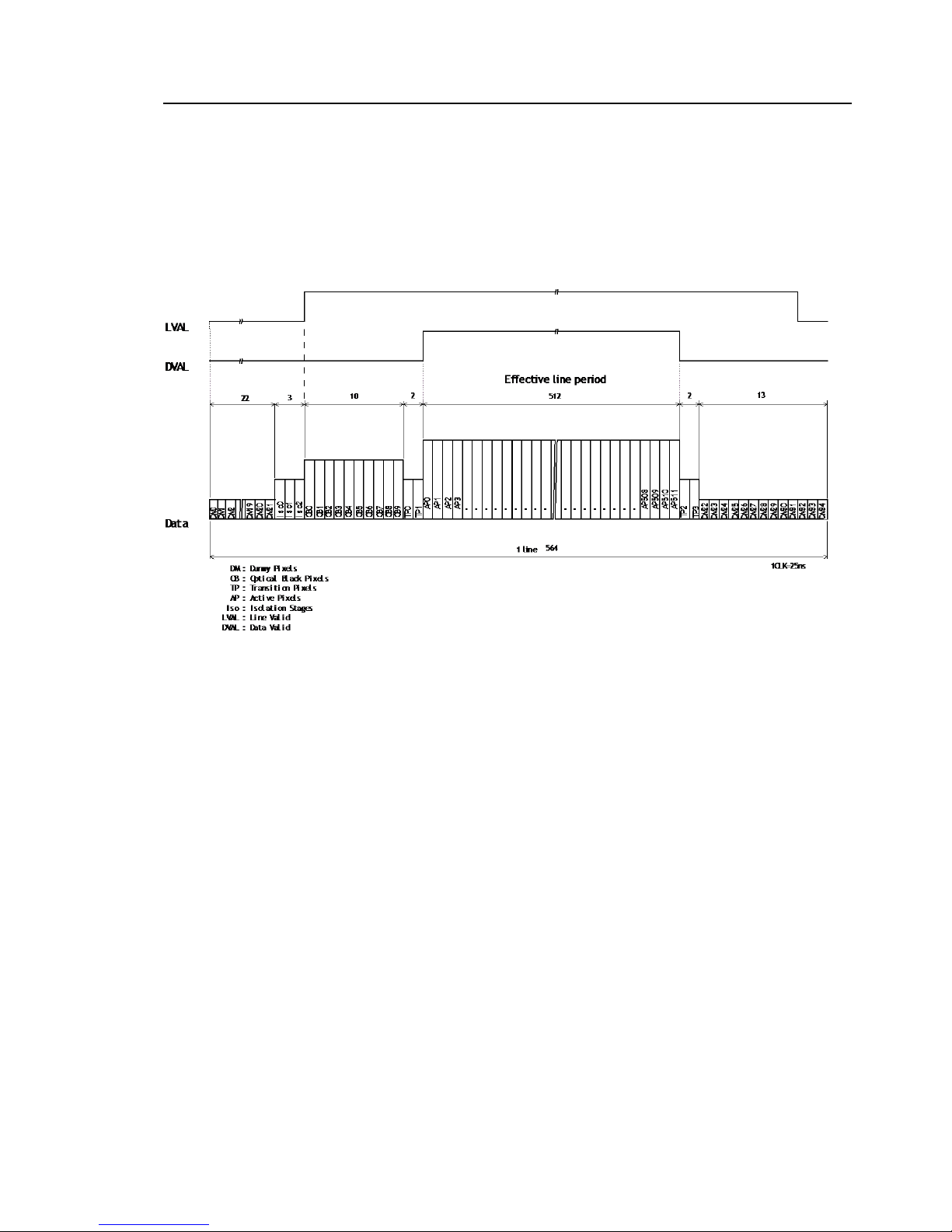

Fig.8 Video output timing
CV-L108CL
14
6.6.1. No-Shutter mode with internal line rate generator
In this mode the camera does not accept an external trigger signal, as the line rate is generated
from an internal clock (user programmable, command LR). The exposure time is directly
proportional to the line rate (T
exp
= 1/line rate). This mode is used when there is no external trigger
signal available, and the speed of the object is fixed or can be pre-determined.
The line rate can be varied from 1 line period (L) to 1024L in 1 clock (25ns) steps, 14.1μs to 14.438
ms. When using this mode, a special function called “One-push auto line rate” is available. This
mode automatically maintains a constant output level by changing the line rate. See chapter 7
(configuring the camera) for further details on this function. The line rate is automatically adjusted
in order maintain sensitivity without reducing the S/N ratio.
To use this mode:
Set function Trigger mode, No-Shutter TR=0
Trigger origin, internal TG=0
Line rate LR=564 to 577536
(14.10 µs to 14.438 ms in 25ns increments)
Optional functions when using this mode:
One-push auto line rate AR=0
Auto line rate reference AL=0 to 1023
One-push white balance WB
Fig. 9 No-Shutter mode with internal line rate generator
Important Note
The “one-push auto line rate” function is not recommended for continuous web applications, as
the speed of motion needs to be adjustable in order to maintain the aspect ratio of the image.
Only gain based One-push white balance functions (WB) is available with this mode.
CV-L108CL
15
6.6.2. No-Shutter mode with external trigger
In this mode, the exposure time is directly proportional to the line rate. The line rate is generated
externally by a trigger signal. This mode is used when an external trigger signal is available, e.g.
from an encoder, and the scan rate can be controlled by this signal. The camera can accept an
external trigger through the Camera Link connector or though the 12-pin Hirose connector.
To use this mode:
Set function Trigger mode, No-Shutter TR=0
Trigger origin, external TG=1
Trigger input TI=0 or 1
Important note:
When the one-push white balance has been initiated and the rear panel LED shows orange, the
camera must receive continuous external trigger pulses corresponding to the frequency and duty
cycle used in the application.
Minimum trigger interval is 14.2 μs
Fig. 10 No-Shutter mode with external trigger
CV-L108CL
16
6.6.3. Shutter-Select mode with internal line rate generator
This mode allows the user to have full control of the line rate and the exposure time individually, by
programming separate timing generators. Subsequently the camera does not accept an external
trigger signal in this mode.
To use this mode:
Set function Trigger mode, Shutter-Select TR=1
Line rate LR=14.2 μs to 14.438 ms
Trigger origin, internal TG=0
Individual R, G and B exposure EI=0(individual)
EI=1(tracking with G)
Programmable exposure PER/PEG/PEB=2 to 577536
(50 ns to 14.438 ms in 25ns steps)
Important note:
If using individual exposure, the EEN signal represents the channel with the longest exposure time
The maximum exposure time is that of setting line rate.
Fig. 11 Shutter-Select mode with internal line rate generator (and individual exposure)
CV-L108CL
17
6.6.4. Shutter-Select mode with external trigger
This mode allows the user to have full control of the exposure time, by programming a timing
generator, while the line rate is controlled by an external trigger signal. The camera can accept an
external trigger through the Camera Link connector or though the 12-pin Hirose connector.
To use this mode:
Set function Trigger TR=1
Trigger origin, external TG=1
Individual R, G and B exposure EI=0(individual)
EI=1(tracking with G)
Programmable exposure PER/PEG/PEB=2 to 577536
(50 ns to 14.438 ms in 25ns steps)
Important note:
If using individual exposure, the EEN signal represents the channel with the longest exposure time
The minimum trigger interval is 14.2 μs
The maximum exposure time is the interval of trigger.
Note: Minimum period T1 is 30 clk.
Fig. 12 Shutter-Select mode with external trigger (and individual exposure)
CV-L108CL
18
6.6.5. Pulse Width Control (PWC) mode
In this mode, the user has full control of both the line rate and the exposure time of each line via
the External Trigger input.
At the falling edge of the External Trigger signal, the exposure is initiated, and at the rising edge
the exposure is terminated and read out. The camera can accept an external trigger through the
Camera Link connector or through the 12-pin Hirose connector.
To use this mode:
Set function Trigger mode, PWC TR=2
Important Note:
Possible pulse width:
TTL input (HIROSE 12-pin) 50 μs to 1 sec.
CC1 input (Camera link) 2 μs to 1sec.
The minimum trigger interval is “exposure time + 14.2 μs”.
One-push white balance by gain setting only.
When the one-push white balance has been initiated and the rear panel LED shows orange, the
camera must receive continuous external trigger pulses corresponding to the frequency and duty
cycle used in the application.
Fig. 13 Pulse Width Control mode
CV-L108CL
19
6.6.6. Auto Reset mode
In this mode, when the interval of the trigger pulse is more than 55ms, the CV-L108CL automatically
returns to continuous operation with the line rate of 14.10μs . At this time, DVAL and Video OUTPUT
are disabled in order to prohibit charge due to dark current to add up in the sensor in standby
periods.
While the Auto Reset mode is “ON”, if the trigger interval becomes less than 55ms, CV-L108CL
operates in the original trigger mode selected.
Note: CV-L108CL functions properly according the selected operation mode while the Auto
Reset mode is “ON”. However, if the system uses LVAL, it is recommended to set the Auto
Reset at “OFF” as LVAL is always output.
For this mode, CV-L108CL provides Auto Reset mode command “ARST”.
In the default setting, “ARST” is set at “0” (OFF). In order to activate this mode, “ARST” should be
set at “1”.
The following is the concept of the Auto Reset Mode.
Trigger
LVAL
Exposure
EEN
DVAL
> 55ms < 53.7ms <53.7ms
＜55ms：
Normal Trigger
operation
＞55ms： Auto reset operation
DVAL & Video Out disable
Normal Trigger operation
Auto Reset Mode
6.7. Scan rate and exposure time range
6.7.1. Minimum cycle time of external trigger
Mode
Minimum trigger cycle
No-Shutter
C1 + 14.10μs
Shutter-Select
C1 + 14.10μs
PWC
Exposure + C2
C1 =0.1 μs; C2= 14.2 μs
6.7.2. Minimum trigger pulse width.
Mode
Via Camera Link
Via Hirose 12P
No-Shutter
500ns
5 μs
Shutter-Select
500ns
5 μs
PWC
2 µs
50 µs
CV-L108CL
20
6.8. Relationship between Trigger and LVAL
Mode
Trigger
Trigger and LVAL mode
Relations
No-Shutter
Internal
External
Synchronous
Shutter-Select
Internal
External
Synchronous
Asynchronous
PWC
External
Asynchronous
6.9. Compatibility of trigger modes and functions
Mode
Functions
Trigger
Binning
Pixel gain
& black
correction
Shading
correction
One-Push WB
Gain &
black
level ctr.
Program
line rate
Program
exposure
time
Gain
Shutter
No-Shutter
Internal
Yes
Yes
Yes
Yes
No
Yes
Yes(*1)
No
External
Yes
Yes
Yes
Yes
No
Yes
Yes(*1)
No
Shutter-Select
Internal
Yes
Yes
Yes
Yes
Yes
Yes
Yes(*2)
Yes
External
Yes
Yes
Yes
Yes
Yes
Yes
Yes(*2)
Yes
PWC
External
Yes
Yes
Yes
Yes
No
Yes
No
No
*1: Exposure time is trigger interval.
*2: Exposure time can be set but the maximum exposure time is trigger interval.
6.10. Rear panel indicator
There is a multi-color LED on the rear panel of the camera. It has the following functions:
Green (Steady)
Operating, but not receiving external trigger input
Green (Flashing)
Operating and receiving external trigger input.
Note that the flashing frequency does not correspond to the frequency of the trigger
signal.
Orange
Initializing or busy calculating White Balance, Flat-Field or Shading correction parameters.
Rear panel indicator LED
CV-L108CL
21
7. Configuring the camera
All the modes and functions of this camera are controlled by serial communication, via the Camera
Link connector or via RS-232C on the Hirose 12-pin connector.
Chapter 7.1 shows the complete list of ASCII commands. Chapter 7.2 describes the commands in
detail, in alphabetical order (sorted by command the acronym)
7.1. CV-L108CL Command list
Command
Name
Format
Parameter
Remarks
A – General settings and useful commands.
EB
Echo Back
EB=[Param.]<CR><LF>
EB?<CR><LF>
0=Echo off, 1=Echo on
Returns character
sent to the camera.
Off at power up
ST
Camera Status
Request
ST?<CR><LF>
Display current
settings of all
functions
HP
Online Help
Request
HP?<CR><LF>
Get a list of available
commands
VN
Firmware
Program
Version
Request
VN?<CR><LF>
3 digits
Example:
100 = Version 1.00
PV
FPGA Program
Version
Request
PV?<CR><LF>
3 digits
Example:
100 = Version 1.00
ID
Camera ID
Request
ID?<CR><LF>
Returns the camera‟s
ID (?). Factory
setting.
MD
Model Name
Request
MD?<CR><LF>
Returns the camera‟s
model name. Factory
setting.
UD
User ID
UD=[Param.]<CR><LF>
UD?<CR><LF>
User definable field.
Up to 16 characters.
B - Line Rate, Exposure
LR
Line Rate
LR=[Param.]<CR><LF>
LR?<CR><LF>
564 to 577536, in 25ns
increments
Only valid for TG=0
TG
Trigger origin
TG=[Param.]<CR><LF>
TG?<CR><LF>
0=Internal clock generator
1=External signal
Only valid for TR=0,
or 1
AR
One-push auto
line rate set
AR=[Param.]<CR><LF>
AR?<CR><LF>
0=Activate one-push auto line
rate set
Only valid for TR=0
and TG=0
AL
Auto line rate
reference
level
AL=[Param.]<CR><LF>
AL?<CR><LF>
0 to 1023
Only valid for TG=0
EI
RB Exposure
interlocked
with G
EI=[Param.]<CR><LF>
EI?<CR><LF>
0=Off (independent)
1=On (interlocked)
Only valid for TR=1
PER
Programmable
Exposure - Red
PER=[Param.]<CR><LF
>
PER?<CR><LF>
2 to 577536, in 25ns
increments
Only valid for TR=1
CV-L108CL
22
PEG
Programmable
Exposure Green
PEG=[Param.]<CR><LF
>
PEG?<CR><LF>
2 to 577536, in 25ns
increments
Only valid for TR=1
PEB
Programmable
Exposure Blue
PEB=[Param.]<CR><LF
>
PEB?<CR><LF>
2 to 577536, in 25ns
increments
Only valid for TR=1
AH
One-push AWB
shutter
AH=[Param.]<CR><LF>
0=Activate one-push AWB
shutter
Only valid for TR=1
AHRS
Get status
after one-push
AWB shutter
AHRS?<CR><LF>
<One of following values will
be replied from the camera>
0=Succeeded.
1=AWB has not been finished
yet.
2=Error1. Green image was
too bright.
3=Error2. Green image was
too dark.
4=Error3. Timeout-error
occurred.
C - Trigger mode
TR
Trigger Mode
TR=[Param.]<CR><LF>
TR?<CR><LF>
0=No-Shutter mode
1=Shutter-Select mode
2=Pulse Width Control
mode
TI
Trigger Input
TI=[Param.]<CR><LF>
TI?<CR><LF>
0=Camera-Link
1=Hirose12pin
TP
Trigger
Polarity
TP=[Param.]<CR><LF>
TP?<CR><LF>
0=Active-Low
1=Active-High
D - Image format
BI
Binning
BI=[Param.]<CR><LF>
BI?<CR><LF>
0=Binning Off, 1=Binning On
BA
Bit allocation
BA=[Param.]<CR><LF>
BA?<CR><LF>
0=24bit, 1=30bit
TS
Test Pattern
TS=[Param.]<CR><LF>
TS?<CR><LF>
0=Off
1=Color Bar
2=Gray Pattern 1
3=Gray Pattern 2
4=White
Off at power up
E - Gain, white balance and signal settings
GA
Gain Level Master
GA=[Param.]<CR><LF>
GA?<CR><LF>
-132 to 429
0=0dB
GAR
Gain Level Red
GAR=[Param.]<CR><LF>
GAR?<CR><LF>
-231 to 231
GAB
Gain Level Blue
GAB=[Param.]<CR><LF>
GAB?<CR><LF>
-231 to 231
BL
Black Level Master
BL=[Param.]<CR><LF>
BL?<CR><LF>
0 to 127
BLR
Black Level Red
BLR=[Param.]<CR><LF>
BLR?<CR><LF>
-64 to 63
CV-L108CL
23
BLB
Black Level Blue
BLB=[Param.]<CR><LF>
BLB?<CR><LF>
-64 to 63
WB
White Balance
WB=[Param.]<CR><LF>
WB?<CR><LF>
0=Manual/One push AWB
1=4000K
2=4600K
3=5600K
AW
Activate
One-push AWB
AW=[Param.]<CR><LF>
0=Activate one-push AWB
AWRS
Inquire the
status after
one-push AWB
AWRS?<CR><LF>
<Camera replies >
0=AWB has not been
finished yet.
1=Succeeded.
2=Error1. Green image was
too bright.
3=Error2. Green image was
too dark.
4=Error3. Timeout-error
occurred.
KN
Knee On/Off
KN=[Param.]<CR><LF>
KN?<CR><LF>
0=Off, 1=On
KSR
Knee Slope Red
KSR=[Param.]<CR><LF>
KSR?<CR><LF>
0 to 16383
KSG
Knee Slope Green
KSG=[Param.]<CR><LF>
KSG?<CR><LF>
0 to 16383
KSB
Knee Slope Blue
KSB=[Param.]<CR><LF>
KSB?<CR><LF>
0 to 16383
KPR
Knee Point Red
KPR=[Param.]<CR><LF>
KPR?<CR><LF>
0 to 1023
KPG
Knee Point Green
KPG=[Param.]<CR><LF>
KPG?<CR><LF>
0 to 1023
KPB
Knee Point Blue
KPB=[Param.]<CR><LF>
KPB?<CR><LF>
0 to 1023
GAR2
Fine gain – red
GAR2=[Param.]<CR><LF>
GAR2?
31768 to 33768
32768=1
31768/32768(0.97) to
33768/32768(1.03)
GAB2
Fine gain Blue
GAB2=[Param.]<CR><LF>
GAB2?
31768 to 33768
32768=1
31768/32768(0.97) to
33768/32768(1.03)
NOSR
Noise
reduction
NOSR=[Param.]<CR><LF>
NOSR?
0 = OFF, 1= ON
F - Shading correction, pixel gain and pixel black correction
SDC
Select shading
correction
mode
SDC=[Param.]<CR><LF>
SDC?<CR><LF>
0=Off (Bypass)
1=Factory area
2=User area
SDR
Run shading
correction,
store to user
area
SDR=[Param.]<CR><LF>
0=Run flat shading
correction, store to user
area
1=Run color shading
correction, store to user
area
Store in user setting.
SDS
Inquire the
status after
SDS?<CR><LF>
0=Shading correction not
yet completed.
CV-L108CL
24
shading
correction
1=Succeeded.
2=Error1 - Timeout error
occurred.
PGC
Select pixel
gain
correction
mode
PGC=[Param.]<CR><LF>
PGC?<CR><LF>
0=Off (Bypass)
1=Factory area
2=User area
Only valid for SHC=0.
PGR
Run pixel gain
correction,
store to user
area
PGR=[Param.]<CR><LF>
PGR?<CR><LF>
0=Run pixel gain
correction, store to user
area
Store in user setting.
PGS
Inquire the
status after
pixel gain
correction
PGS?<CR><LF>
0=Pixel gain correction not
yet completed.
1=Succeeded.
2=Error1 - Timeout error
occurred.
PBC
Select pixel
black
correction
mode
PBC=[Param.]<CR><LF>
PBC?<CR><LF>
0=Off (Bypass)
1=Factory area
2=User area
PBR
Run pixel
black
correction,
store to user
area
PBR=[Param.]<CR><LF>
PBR?<CR><LF>
0=Run pixel black
correction, store to user
area
Store in user setting.
PBS
Inquire the
status after
pixel black
correction
PBS?<CR><LF>
0=Pixel black correction has
not been funished yet.
1=Succeeded.
2=Error1 - Timeout error
occurred.
ARST
Auto Reset
mode
ARST=[Param.]<CR><LF>
ARST?<CR><LF>
0=OFF 1=ON
G - Saving and loading data in EEPROM
LD
Load Setttings
(from Camera
EEPROM)
LD=[Param.]<CR><LF>
0=Factory area
1=User area1
2=User area2
Latest used DATA
AREA will become
default at next
power up.
SA
Save Settings
(to Camera
EEPROM)
SA=[Param.]<CR><LF>
1=User area1
2=User area2
Note the parameter 0 is
not allowed.
EA
EEPROM
Current Area
No. Request.
EA?<CR><LF>
0=Factory area
1=User area1
2=User area2
The camera returns
latest used DATA
AREA.
Note: To avoid malfunction, do not attempt writing commands not shown in the above list.
CV-L108CL
25
8. Functions listed alphabetically by command acronyms
8.1 Command AHRS – Request status after One-Push AWB
This command returns the status of the One-Push AWB function, with the following
parameters:
0=AWB not completed yet
1=Succeeded
2=Error1: Green image too bright
3=Error2: Green image too dark
4=Error3: Timeout occurred
8.2 Command AL – Automatic Line Rate Reference Level
Settings: 0 to 1023
Applicable modes: No-Shutter with Internal line rate generator
Associated functions: Command AR
8.3 Command AR – Automatic Line Rate setting
This function will calculate and set the line rate of the camera based on the Automatic
Line Rate Reference Level (as set in command AL) and the scene illumination. Please note
that the aspect ratio of the scanned object will change as the line rate is changed.
Settings: 0 (activate automatic process)
Applicable modes: No-Shutter with internal line rate generator
Associated functions: Command AL
Important note
The data can be stored in the camera memory for next start up.
8.4 Command ARST – Auto Reset Mode
This function enables/disables the Auto Reset mode, which prevents offset rising in special
case where line triggers are not received for long period of time.
Settings 0 (off) and 1 (on). Factory default is 0(off).
8.5 Command AW – Activate One-push Auto White Balance (AWB) - Gain
By sending this command via the serial communication, the gain based One-Push AWB
function is activated. This function can also be initiated by pressing the rear panel button.
The white balance function takes approximately 3 seconds to complete. During this time
the rear panel LED will show orange.
This function operates in two steps. First the Red-to-Green channel difference and the
Blue-to-Green channel difference is calculated separately. Then the gain of the Blue and
Red channel is automatically adjusted, to obtain the same output level on all three
channels.
Settings: 0 = activate automatic process
Applicable modes: All
Associated functions: Command WB
Rear panel One-push WB button.
CV-L108CL
26
Important Note:
When color temperature of used illumination exceeds the range of adjustment, proper
white balance may not be obtained.
The data can be stored in camera memory for use at next start up.
This function can work on external trigger mode.
Please refer Chapter 7.5 operation mode for the details.
The S/N ratio of the output will change as a result of this function.
8.6 Command AH - Activate One-push Auto White Balance (AWB) - Shutter
By sending this command via the serial communication, the shutter based One-Push AWB
function is activated. The white balance function takes approximately 3 seconds to
complete. During this time the rear panel LED will show orange.
This function operates in two steps. First the Red-to-Green channel difference and the
Blue-to-Green channel difference is calculated separately. Then the exposure time of the
Blue and Red Channel is automatically adjusted, to obtain the same output level on all
three channels.
Settings: 0 = activate automatic process
Applicable modes: Shutter-Select mode only
Associated functions: Command WB
Important Note:
When color temperature of used illumination exceeds the range of adjustment, proper
white balance may not be obtained.
The data can be stored in camera memory for use at next start up.
This function can work on external trigger mode.
Please refer Chapter 7.5 operation mode for the details.
The S/N ratio of the output will remain constant for all channels
8.7 Command BA – Bit Allocation
This function lets the user select whether the video data is presented as 3 x 8 (24)-bit or 3
x 10 (30)-bit on the Camera Link output. The internal processing in the camera is based on
a 12 bit A/D signal. The 24-bit and 30-bit function removes the least significant bits from
the 12 bit signal.
Settings: 0=24-bit, 1=30-bit
Applicable modes: All
8.8 Command BI – Binning (Horizontal only)
This function reduces the number of pixels to 256 without affecting the line rate. Two
adjacent pixels are combined at the output stage and read out as one pixel. Sensitivity is
doubled as a result of binning.
Settings: 1=binning on, 0=binning off
Applicable modes: All
Important Note:
Setting data is stored in camera memory for use at next start up
This function is available for all modes.
CV-L108CL
27
8.9 Command BL – Master Black Level
This command is a global black level adjustment for all channels. The adjustable range for
master black is 0LSB to 64 (16) LSB. The number in parenthesis is valid for 24-bit output.
Settings: 0 to 127
Associated functions: Command BLR - black level for the red channel.
Command BLB – black level for the blue channel.
8.10 Commands BLR and BLR – Black level red and black level blue
In conjunction with Command BL, these commands allow individual setting of the black
level in all channels.
Settings: -64 to 63
Associated functions: Command BL
8.11 Command EI – Interlocked R, G and B exposure
When this function enabled (interlocked), exposure time for all three is selected by
setting the Green channel and the Red and Blue channels will track.
To obtain white balance, adjust Red and Blue channels, PER and PEB. It is thereafter
possible to adjust overall exposure time by using the command PEG. The Red and Blue
channels will track the Green channel proportionally, thus maintaining white balance
settings.
Settings: 0= independent R, G and B settings
1= R and G channel tracking with G
Associated functions: Commands PER, PEG, PEB – Programmable Exposure
Applicable modes: Shutter-select mode only
8.12 Command GA – Master Gain Level
This function is a global gain adjustment for all channels.
Settings: -123 to 429
Associated functions: Commands GAR and GAB - Gain level red and gain level blue.
8.13 Commands GAR and GAB – Gain level red and gain level blue.
In conjunction with the Command GA, this function allows the individual setting of gain for
all channels. It is important to note that increasing the gain will lead to an increased noise
level and reduced S/N-Ratio.
Settings: -231 to 231
Associated function: Command GA – Master gain level
Applicable modes: All modes
8.14 Commands GAR2 and GAB2 – Fine gain (R ch and B ch)
Fine gain can be digitally controlled.
Settings: 31768 to 33768
x0.969 (31768/32768) to x1.03(33768/32768) (R ch and B ch)
8.15 Command NK – Knee function enable/disable
This command turns the knee function on or off.
The sensor output is digitized to 4095LSB of dynamic range. When input (CCD output) and
output (Camera link data) relations is set at linear, the output is clipped at 1023 LSB and
CV-L108CL
28
the details above 1023 are not visible. This function changes the gain signal from CCD over
100% video output level and compress signal up to 4095 LSB. The knee point is the upper
limit of linear relations between CCD output and input to Camera Link. The knee slope
decides how much of the signal above 100% video output is compressed. Knee point and
Knee slope can be set on R, G and B respectively.
Fig. 14 Principle of Knee function
Settings: 0=off, 1=on
Associated functions: Commands KSR, KSG and KSB – Knee slope for R, G and B
Commands KPR, KPG and KPG – Knee point for R, G and B
8.16 Commands KSR, KSG and KSB – Knee slope for R, G and B
See command KN for description of this function
Settings: -8192 to 8191
Associated functions Command KN, Commands KPR, KPG and KPG
8.17 Commands KPR, KPG and KPG – Knee point for R, G and B
See command KN for description of this function
Settings: 0 to 1023
Associated functions: Command KN, Commands KSR, KSG and KSB
8.18 Command LR - Line Rate (Scan Rate)
This function is used only when there is no external trigger pulse (e.g. from an encoder)
available. It allows the user to program the line rate, in order to match the speed of the
object being scanned. In the No-Shutter mode, the exposure time is directly proportional
to the line rate (T
exp
= 1/line rate)
Settings: 564 to 577536, 14.1μs to 14.438ms in 25ns increments
Associated functions: Trigger origin, TG=0
Applicable modes: No-Shutter with internal line rate generator (TR=0)
Shutter-Select with internal line rate generator (TR=1)
Important note
The data can be stored in the camera memory for next start up.
CV-L108CL
29
8.19 Command NOSR – Noise reduction
This function deletes the noise component of less than 16LSB composed in the signal.
This circuit used in the CV-L107CL minimizes the deterioration of the spatial frequency.
The improvement depends on the object and it will be approx. 3dB.
Settings 0=ON, 1=OFF
8.20 Command PBC – Enable pixel black (FPN) correction
This command enables (or disables) the “pixel black level” correction function, which
compensates for Dark Signal Non Uniformity / Fixed Pattern Noise (DSNU / FPN) for
individual pixels.
Settings: 0 = Off
1 = Factory setting
2 = user area
Associated functions: Command PBR
Applicable modes: All
8.21 Command PBR – Run pixel black correction and store to user area
This command initiates the “pixel black level” correction function, and stores the settings
in the user area. When this function is activated, lens must be capped.
Settings: 0 = Run this function
Associated functions: Command PBC must be set to 2
Important note:
This function requires that no light reaches the image sensors. The lens must therefore
be covered by a lens cap, or put the F-mount protective cover on the camera, when
executing this function.
As the black level is influenced by the exposure time (especially for long exposure time,
at slow scan rates) it is recommended to perform the pixel black correction at the
exposure time and line rate at which the camera will be operated.
8.22 Command PER – Programmable exposure – Red
This command allows individual setting of the exposure time of the Red channel. It is only
valid for the Shutter-Select mode (see chapter 6.2)
Settings: 2 to 577536, 50 ns to 14.438 ms in 25ns steps
Associated functions: EI (R and G exposure interlocked with G)
The actual Exposure time (ns) is calculated as follows:
T
exp
= 25ns x (Repetition period ([Parameter]) – (T1 ([Parameter]) +21 [Parameter]) )
8.23 Command PEG – Programmable exposure – Green
This command allows individual setting of the exposure time of the Green channel. It is
only valid for the Shutter-Select mode (see chapter 6.2)
Settings: 2 to 577536, 50 ns to 14.438 ms in 25ns steps
Associated functions: EI (R and G exposure interlocked with G)
CV-L108CL
30
8.24 Command PEB – Programmable exposure – Blue
This command allows individual setting of the exposure time of the Blue channel. It is only
valid for the Shutter-Select mode (see chapter 6.2)
Settings: 2 to 577536, 50 ns to 14.438 ms in 25ns steps
Associated functions: EI (R and G exposure interlocked with G)
8.25 Command PGC – Enable Flat-field correction (Pixel gain)
This command enables (or disables) the “pixel gain” (flat-field) correction function, which
compensates for Pixel Response Non Uniformity (PRNU) for individual pixels.
Settings: 0=Off
1=Factory Setting (default)
2=User area
Associated functions: Command PGR
Applicable modes: All
8.26 Command PGR – Run Flat-field correction and store in user area
This command initiates the flat-field correction function, and stores the settings in the
user area.
Settings: 0= activate automatic process
Associated functions: Command PGC must be set to 2
Important note:
The image sensors must not be saturated when executing this function.
When executing this function, the exposure time and line rate should be the same as
when the camera is operated in the application.
Operating procedure for individual R, G and B channel shadings correction:
1. Before making adjustment, it is required approximately 30 minutes warming up.
2. Make sure the output signal is not saturated (80% of full output is recommended)
3. Set command PGC=2 .
4. Set command PGR to 0 to initiate shading correction.
5. If desired, set command SDR to 0 or 1 to activate shading correction to correct the
shading caused by lens or lighting. When the shading correction is performed, the flatfield correction must be activated before the shading correction is performed.
8.27 Command SDC – Select shading correction mode
This function enables (or disables) the shading correction.
Settings: 0 = off (Bypass)
1 = Factory setting (default)
2 = User area
Associated functions: Commands PGR, SDR and SDS
8.28 Command SDR – Run shading correction
This function initiates automatic shading correction, and stores the result to the user area.
This function should be used together with the flat-field correction (commands PGC and
PGR). There are two types of shading correction: Individual R, G and B channel correction
and chromatic shading correction.
(A) Individual R, G and B channel correction (SDR=0)
Shading is calculated and individually compensated for R, G and B channels respectively.
CV-L108CL
31
The calculation is based on the average value of 8 consecutive pixels. The maximum
deviation that can be compensated is -20% of the highest signal level (brightness) of the
line.
Important note:
Depending on the optics and/or illumination used together with the camera, it may not
be possible to fully compensate for shading.
Operating procedure for individual R, G and B channel shadings correction:
1. Before making adjustment, it is required approximately 30 minutes warming up.
2. Make sure the output signal is not saturated (80% of full output is recommended)
3. Set command PGC=2 and SDC=2.
4. Set command SDR to 0 to initiate shading correction.
5. If desired, set command PGR to 0 to activate flat-field (pixel gain) correction to
correct for pixel response non-uniformity.
6. Again set SDR=0 after running the flat-field (pixel gain) correction
(B) Chromatic shading correction (SDR=1)
In this mode, shading correction of R and B signals is referenced to the G signal which is the
reference. When the Green channel detects “undulating” or “parabolic” type shading, R
and B channels are compensated to follow the same curve.
The calculation is based on the average value of 8 consecutive pixels
Important Note:
For this function, no reference value is stored in the camera.
Operating procedure for individual R, G and B channel shadings correction:
1. Before making adjustment, it is required approximately 30 minutes warming up.
2. Make sure the output signal is not saturated (80% of full output is recommended)
3. Set command PGC=2 and SDC=2.
4. Set command SDR to 1 to initiate shading correction.
5. If desired, set command PGR to 0 to activate flat-field (pixel gain) correction to
correct for pixel response non-uniformity.
6. Again set SDR=1 after running the flat-field (pixel gain) correction
Individual shading correction
per channel
Shading correction tracking
the green channel
CV-L108CL
32
8.29 Command SDS – Request status after executing shading correction command
This command returns the status of the shading correction function, with the following
parameters:
0=Shading correction not completed yet
1=Successful
3=Error1 – Timeout occurred
8.30 Command TG – Trigger Origin
Selects whether an external signal or an internal clock generator is used as a trigger
source.
Settings: 0=Internal clock generator
1=External signal
Associated commands: TI
TP
8.31 Command TI – Trigger input
Selects whether the External Trigger input signal is taken from the Camera Link connector,
or from the 12-pin Hirose connector.
Settings: 0=Camera Link connector
1=12-pin Hirose connector
Important Note
The 12-pin Hirose connector trigger input can be
terminated for 75 ohm. This is selected by a rear
panel DIP-switch (SW1).
Fig.15 DIP switch
8.32 Command TP – Trigger polarity
Settings: 0=Active Low (factory default)
1=Active High
8.33 Command TR – Trigger Mode
Selects the trigger mode of the camera. Depending on the mode used, it allows the scan
rate to either be programmed by an internal timing generator or by and external trigger
pulse. See chapter 6 for details on the operation modes.
Settings: 0=No-Shutter mode
1=Shutter-Select mode
2=Pulse Width Control (PWC) mode
Associated functions: Command TG (trigger origin)
Command TI (trigger input)
Command TP (trigger polarity)
1
2
Serial Comm. HR ⇔ CL
７５Ω ON ⇔ OFF
Factory default settings
CV-L108CL
33
8.34 Command TS – Test pattern
This allows the camera to output a number of test patterns for set-up and troubleshooting.
Settings: 0=off
1=Color bar
2=Gray wedge
3=Gray bars
4=White (890LSB)
Fig. 17 Grey wedge test pattern
890 (222)
10bit (8-bit)
0
511
Signal (RGB)
Pixel count
32 (8)
10bit (8-bit)
0
Fig. 18 Grey bars test pattern
890 (222)
10bit (8-bit)
0
511
Signal (RGB)
Pixel count
32 (8)
10bit (8-bit)
0
B
64
R
64
Mg
64
G
64
Cy
64
Y
64
W
64
Fig. 16 Color bar test pattern
0
511
Signal
Pixel count
32 (8)
10bit (8-bit)
0
32 32
CV-L108CL
34
8.35 Command WB – White Balance
The white balance function can be used for manual setting, One-Push automatic white
balance (AWB) and fixed color temperatures (3 selections)
Settings: 0=Manual / On-Push AWB
1=4000K
2=4600K
3=5600K
Applicable modes: All
Associated functions: Command AW (Gain)
Command AH (Shutter)
Command GAR – Manual gain Red channel
Command GAB – Manual gain Blue channel
Adjustment range: One-Push AWB: -6dB to +6dB
Manual white balance: -6dB to +6dB
8.36 Factory default settings
Line Rate (LR) 564
Auto LR set (AR) Ref. 600
Shutter mode (SM) OFF (SM=0)
Bit allocation (BA ) 30 bit (BA=1)
Binning (BI) OFF (BI=0)
Test Pattern (TS) OFF (TS=0)
Trigger (TR) No-Shutter (TR=0)
Trigger Input (TI) Camera Link (TI= 0)
Trigger Polarity ( TP ) Active low (TP=0)
Gain (GA,GAR,GAB) Master(0), Red(0) ,Blue (0)
White Balance mode (WB) Manual/One-push Auto AWB (WB=0)
Black level (BL,BLR,BLB) Master (0), Red (0), Blue (0)
Knee function(KN) ON (KN=1)
Knee point (KPR,KPG,KPB) 890
Knee Slope (KSR,KSG,KSB) 8192
Fig. 19 White level test pattern
890 (222)
10bit (8-bit)
0
511
Signal (RGB)
Pixel count
32 (8)
10bit (8-bit)
0
CV-L108CL
35
8.37 Serial communication
The CV-L108CL can communicate by serial communication via the Camera Link connector
or via RS232C in the 12-pin Hirose connector. The Baud Rate is fixed at 9600 bps.
Switch SW1 at the rear panel of the camera is used to select which way the serial
communication is set up.
SW1
No
Function
Setting
OFF
ON
1
Select serial communication path
Hirose 12Pin
Camera link
2
External trigger input termination
75 ohm
TTL
Note: HIROSE 12 Pin and Camera Link can not be used simultaneously.
Communication setting:
Protocol.
Transmit setting to camera:
NN=[Parameter]<CR><LF> (NN is any kind of command. Capital or small letters.)
The camera answers:
COMPLETE<CR><LF>
To have all communication visible on the emulator screen, start with:
EB=1<CR><LF>
The camera answers:
COMPLETE<CR><LF>
Transmit request command to camera:
NN?<CR><LF> (NN is any kind of command.)
The camera answers:
NN=[Parameter]<CR><LF>
Transmit the following to have the camera actual setting:
ST?<CR><LF>
The camera answers:
A complete list of the current settings
Baud Rate
9600
Data Length
8bit
Start Bit
1bit
Stop Bit
1bit
Parity
Non
Xon/Xoff Control
Non
1
2
Serial comm.
HR ⇔ CL
７５Ω
ON ⇔ OFF
1
2
CV-L108CL
36
Transmit the following to have a command list:
HP?<CR><LF>
The camera answers:
A list with all commands and possible settings
Invalid parameters send to camera: (99 is an invalid parameter)
SH=99<CR><LF>
The camera answers:
02 Bad Parameters!!<CR><LF>
To see firmware number.
VN?<CR><LF>
To see camera ID. It shows the manufacturing lot number.
ID?<CR><LF>
9 Camera Control Tool for CV-L108CL
From www.jai.com a Camera Control Tool for Windows 2000/XP/Vista can be downloaded.
The control tool contains a camera control program and tools for making your own program.
For the integrator and experienced user, the Camera Control Tool is much more than a program
with a window interface. It also provides an easy and efficient ActiveX interface built for MS
Windows 2000/XP/Vista. The OCX interface has the ability to connect to the camera using the serial
interface of the PC by reading and writing properties for the camera. This integration requires
simple programming skills within Visual Basic, Visual C++ or similar languages in a Microsoft
Windows environment.
CV-L108CL
37
9.1 Control Tool Windows
CV-L108CL
38
9.2 Camera Control Tool Interface
The Camera Control Tool Software is based on a main Tool Bar and a number of associated Tool
Windows. Each button in the Tool Bar pops up a separate Tool Window when pressed. The layout of
the program can be adjusted by arranging the windows the way it is preferred. The program will
store this information and recreate this layout, when the program is restarted.
All Camera Control Tools have a Communication Window and an About Window. The other
window(s) contains camera control commands.
The About window
The about window contains a picture of the camera and
information about the version of the program, Internet
connection to JAI A/S and access to the help
documents.
The List box that contains the help documents will list
all files.
It is possible to download updated operation manuals
from the jai website:
http://www.jai.com
An updated manual can be saved in the folder address
mentioned above .
For newer camera models the About Window also shows
Model Name, camera ID and User ID. It is possible to
edit and save free text in User ID.
At the bottom of the windows (all windows but the Communication Window is a colored bar. The bar
is green when the Camera Control Tool is connected to
a camera and the camera is turned on.
The bar is red when the Camera Control Tool is not
connected to a camera or when the camera is turned off.
The Communication Window
The Communication Window is used to connect the
Camera Control Tool with the JAI camera. Depending on
the camera there are 2 possible ways to communicate
with a JAI camera.
RS-232:
Select the communication port, where the serial cable
is connected from the list box in the „Communication
Port‟ field, or click the „Auto‟ button to search for a
camera on communication port 1 to 16. The camera
control program automatically sends a camera request
on every communication port. The user is prompted to
use a communication port if a camera answers the
request.
RS-232 and Camera Link:
The Communication Window looks a bit different when
it is possible to communicate with the camera using Camera Link and RS-232 com port. The
Communication area contains 2 list boxes now.
CV-L108CL
39
RS-232 communication:
1. Select ‟COM-ports‟ from the ‟CL
Manufacturer/COM-ports‟ list Box.
2. Select the communication port, where the
serial cable is connected to the camera from the ‟Serial Port‟ list box or click the „Auto‟
button to search for a camera on communication port 1 to 16.
The Serial Port list box and the Auto search button are only active when COM-ports is selected.
Camera Link communication:
The „CL Manufacturer/COM-ports‟ list box also
contains DLL file names (or frame grabber names) for
all Camera Link frame grabbers that are installed in
the pc. This is done by using a DLL file called
"clserial.dll" to upload all frame grabber DLLs that are
found in the pc.
Just select the option for the frame grabber that is installed in the pc.
Auto search
Click the auto button to search for a camera on communication ports 1 to 16. The camera control
program automatically sends a camera request on every communication port. The user is prompted
to use a communication port if a camera answers the request.
This button is only used for RS-232 communication.
Off/On-line mode
The Camera Control Tool Application can run Offline (without a camera attached)
and all functions are fully functional in offline mode.
Off line mode is indicated in The Communication Window, where a status field
with graphic and text indicates the on/off-line status.
Changing the selected communication port (from the communication window)
changes the online/off-line status. If a camera is found on the selected communication port the
application runs online otherwise offline.
Changing the settings in the application will automatically update the camera settings when the
application is online.
If the application loses connection with the camera it will automatically go to offline mode and it is
indicated in the communication window.
Synchronize program and camera
The Camera Control software has the ability to synchronize either the camera or
the program. Click Synchronize camera to write all settings from the program to
the camera or click the Synchronize program to load all settings from the
camera to the program.
Files
When clicking the Write to File or Read from File button, the user is prompted for a file using a
standard file dialog. New files are created if they do not already exist.
Files for camera settings have the extension cam. Information about the communication port is not
stored in the files. All settings are automatically sent to the camera when a file has been loaded (if
the camera is online).
CV-L108CL
40
Factory and User Settings
Use the Store button to store the current camera settings into the user settings area in EEPROM.
Current camera settings are not saved when the camera is turned off. To save current camera
settings you have to save them in the available user areas.
Use the Load button to restore previously saved camera settings from either the Factory or the User
EEPROM area.
Write All Camera Data to File.
Click the “Write Camera Data” button to save all camera settings into a
text file. The information that can be saved is:
Model Name, Camera ID, User ID, Firmware Version, Current Settings,
Factory Settings and the available User Areas.
EEPROM Current Area.
Click the „Get Area‟ button to read the power up settings area number.
9.3 Using Camera Control Tool
Here is some practical information about the Camera Control Tool:
1. The Camera Control Tool bar is always on top of other windows.
2. When you minimize the Camera Control Tool bar all open windows will close.
3. It is possible to work with the Camera Control Tool when the camera is online and
when the camera is offline.
4. The newer JAI cameras always start up with the last used user area (but for some old
models it will start up with the last saved user area.)
5. The Camera Control Tool saves the last used settings (not the user area), which don‟t
have to be the same as for the last saved user area.
6. The setup file „CameraName.ini‟ stores all information about camera settings. When
the program is started, the last settings for the program are loaded from the file
„CameraName.ini‟
7. When you turn on the camera and the Camera Control Tool, it is possible that the
Camera Control Tool does not show the actual camera settings (see 4. and 5.).
a. To obtain the camera settings click “Synchronize Program”.
b. To send the settings that are saved in the Camera Control Tool (last used
settings) to the camera click “Synchronize Camera”.
c. To see which area the camera has started up in click “Get Area”.
CV-L108CL
41
10 External appearance and Dimensions
Out si de s i ze t ol erance：± 0. 3mm
70
50
907 6.34-M3 depth3. 5
4 × 6 depth3.5
+0.012
0
70
( depth0.14)
( depth0.14)
90
( 3.54)
depth3.5φ 4
+0.012
0
(depth0.14)
( 2.76)
( 2.76)
( 1.97)
90
( 3.54)
( 0.28) ( 3.54)
( 0.25)
SW1
/TRIG
DC IN
W.B.
TRIG
POWER/
DIGITALI /O -2 DIGITALI/ O -1
Camera Li nk Connector Port 2
Camera Li nk Connector Port 1
U4-40: Fi xed s crew
HIROSE 12pi n Connector
40
25.5( 7)
4-M3 depth5
( depth0.20)
( 1.00)( 0.28)
32.5 60
( 1.28)
( 2.36)
( 1.57)
40
25.5( 7)
4-M3 depth5
( depth0.20)
( 0.28) ( 1.00)
32.5 60
( 1.28) (2.36)
( 1. 57)
Seri al No.
FCC seal
Outside size tolerance : ±0.3mm
Fig.20 External Appearance and Dimensions
CV-L108CL
42
11 Specifications
11.1 Typical data
Scanning system
Line Scan
Pixel clock
40.00 MHz
Line Rate
( Standard )
Line rate: 14.10 μs (No-Shutter mode with Internal trigger)
Line Frequency: 70.922 kHz
(total number of pixels per line: 564
Programmable line
rate (internal trigger)
Adjustable range: 14.10 μs(1L) to 14.438 ms(1024L)
Increments : 25 ns
Image Sensor
Effective pixels : 512 pixels
Pixel Size : 14.0μm × 14.0 μm
Effective image length : 7.168 mm
Sensitivity of sensor
Radiometric: 27nJ / cm2
Sensitivity on sensor
162 lux (4000K)
(Line rate:600μs, Gain=0dB,Shutter =OFF, 100% video)
S/N
58 dB (Green channel, Gain=-3dB）
Video output
Digital 8-Bit x 3 or 10-Bit x 3 (Camera link)
Gain range
Master(Green): -3dB to +12dB
White balance
Adjustable range : 2800K to 9000K
Standard color temperature : 4000K
Flat field correction
Corrects for pixel response non-uniformity and pixel dark signal
non-uniformity (FPN) - (individual pixel, two-point correction)
Shading correction
Corrects for shading caused by illumination or lens vignetting. Can
also be configured to compensate for chromatic shading.
Knee control
Slope and Knee point compensation
Electronic shutter
Available for Shutter-Select and Pulse Width Control (PWC) modes
Adjustable range : 50ns(2 clk) to 14.483ms (Note 1)
Adjustment increments : 25ns(1 clk)
Binning
Horizontal binning
Global Black level
Master Reference : 32(8) LSB (Note 2)
Adjustable range :-64 to 64(16) LSB (Note 2)
Test pattern generator
Color bar, gray 1, 2 and white, 890 LSB
Synchronization
By external trigger pulse, or internal clock
Operation mode
No-Shutter, Shutter-Select, Pulse Width Control (PWC)
Trigger input
Hirose12Pin : 4.0±2.0Vp-p TTL or
Camera link : LVDS (CC1)
Possible to change Negative Logic or Positive Logic
Minimum trigger width : more than 500ns(SHUTTER-SELECT) I,
50μs(PWC)
CV-L108CL
43
Sync output
(open termination)
Camera link LVAL, DVAL, EEN
Hirose 12Pin XEEN (Negative logic) 4.0 Vp-p (no termination)
Communication
interface
Via Camera Link connector or RS-232C (Hirose 12-Pin connector)
Baud rate : 9600bps
Interface is switched by SW1 located rear panel.
Camera Link and Hirose 12P cannot be used at the same time.
Power
DC +12V±10% 1100mA (max 1200mA)
Note: Use a power supply capable of providing more than 3A.
Lens Mount
Nikon F-Mount
Maximum allowed rear protrusion on lenses:
Nikon F-Mount: 13 mm
Flange back
Nikon F-Mount : 46.5mm tolerance: 0 ～ -0.05mm
Optical axis
Center ±0.1mm(Max)
Operating
temperature
/Humidity
- 5C to +45C / 20 to80% ( non-condensing)
Storage temperature
/humidity
-25C to +60C, 20 to 80% ( non-condensing)
Vibration
3G (20Hz to 200Hz XYZ direction)
Shock
50G
Regulation
CE (EN61000-6-2+EN61000-6-3)
IEC61000-4-2 Conforming to Level 4 (Note 3)
FCC Part15 Class B
RoHS
Dimensions
90(W) x 90(H) x 90(D) mm (without connector and lens mount
protrusion)
Weight
830 g (Both F-Mount and P-Mount)
Connectors
Camera Link : 10226-1A10JL x2
Hirose 12Pin : HR10A-10R-12PB
Note 1: This is maximum accumulation time at minimum line cycle ( 14.10μ s)
If the line rate is set at 14.438ms, the maximum accumulation is 14.438 ms.
The maximum accumulation depends on the line rate setting (Shutter-select/Internal
trigger) or the trigger interval (Shutter-select/External).
Note 2: LSB numbers shown in parenthes are for 8 bit output.
Note 3: This is effective only when specified connector or cable is used.
Refer to chapter 5. Connectors.
CV-L108CL
44
11.2 Spectral sensitivity
Fig. 21 Spectral Response
CV-L108CL
45
12 Appendix
12.1 Precautions
Personnel not trained in dealing with similar electronic devices should not service this camera.
The camera contains components sensitive to electrostatic discharge. The handling of these devices
should follow the requirements of electrostatic sensitive components.
Do not attempt to disassemble this camera.
Do not expose this camera to rain or moisture.
Do not face this camera towards the sun, extreme bright light or light reflecting objects.
When this camera is not in use, put the supplied protective cap on the lens mount.
Handle this camera with the maximum care.
Operate this camera only from the type of power source indicated on the camera.
Remove power from the camera when changing switch settings.
12.2 Typical Sensor Characteristics
The image sensors used in the CV-L108CL have been chosen for their superior performance. There
may, however, always be artifacts visible in the scanned image originating from pixel imperfections
in the camera. The Pixel Gain and Pixel Black correction functions will allow the user to compensate
for such artifacts, producing an essentially “flat” image.
12.3. Caution when mounting a lens on the camera
When mounting a lens on the camera dust particles in the air may settle on the surface of the lens
or the image sensor of the camera. It is therefore important to keep the protective caps on the lens
and on the camera until the lens is mounted. Point the lens mount of the camera downward to
prevent dust particles from landing on the optical surfaces of the camera. This work should be done
in a dust free environment. Do not touch any of the optical surfaces of the camera or the lens.
12.4. Exportation
When exporting this product, please follow the export regulation of your own country.
12.5 References
1. This manual for CV-L108CL can be downloaded from www.jai.com
2. Datasheet for CV-L108CL can be downloaded from www.jai.com
3. The camera control software can be downloaded from www.jai.com
CV-L108CL
46
Change History
Month/Year
Revision
Changes
July 2009
1.0
New release
Nov.2010
1.2
Correct the video timing on the figure 8.
Add GAR2,GAB2 and NOSR in the command list in Chapter
7.1. Add the descriptions for GAR2 and GAB2 in Chpter
8.14 and NOSR in the Chapter 8.19.
Correct the drawing for DIP SW-1 in the chapter 8.31 and
37.
CV-L108CL
47
User's Record
Camera type: CV-L108CL
Revision: ……………..
Serial No. ……………..
Firmware version. ……………..
For camera revision history, please contact your local JAI distributor.
User's Mode Settings.
User's Modifications.
Company and product names mentioned in this manual are trademarks or registered trademarks of their respective owners.
JAI A-S cannot be held responsible for any technical or typographical errors and reserves the right to make changes to products and
documentation without prior notification.
Europe, Middle East & Africa
Asia Pacific
Americas
Phone +45 4457 8888
Fax +45 4491 3252
Phone +81 45 440 0154
Fax +81 45 440 0166
Phone (toll-free) +1 800 445 5444
Phone +1 408 383 0300
Visit our web site at www.jai.com
Loading...
