TABLE OF CONTENTS
Introduction
Accuracy and precautions for use
Water-resistance
“1000 Hours Control” test
Compression keys
Technical speci cations
Movement
Use
Adjusting the wristlet
International Guarantee
Limited Guarantee
(United States of America and Canada)
Guarantee for Australia
25
25
25
26
27
28
28
28
32
36
38
40
English
24
1
4
5
2
2
3
9
6
7
8
10
11
1 Minute hand
2 Chronograph push-pieces
3 Crown A (at 3 o’clock)
4 Chronograph minute counter
5 Date
6 Second time zone hand
7 Movement operating indicator
8 Chronograph hour counter
9 Hour hand
10 Day/night indicator for second time zone
11 Chronograph seconds hand
25
Introduction
We congratulate you on the acquisition of your Jaeger-LeCoultre watch, and
thank you for your con dence.
We invite you to consult the operating instructions and hope your Jaeger-LeCoultre
timepiece brings you great enjoyment.
Accuracy and precautions for use
Manually-wound or automatic mechanical watches
Accuracy is ensured by the balance, which completes 28,800 vibrations per hour.
Despite all the care that the master-watchmakers of the Manufacture JaegerLeCoultre have lavished on building and assembling your watch, its accuracy is
subject to the in uence of gravity, magnetic elds, impacts, as well as ageing of
the oils. The precision of a watch is measured by its regularity of rate in various
positions.
Your individual temperament and your activities may result in slight irregularities. If you observe a discrepancy in the running of your watch, we advise you
to entrust it to an authorised Jaeger-LeCoultre retailer who will perform the
necessary adjustments. Watches with mechanical movements must not be used
while practicing sports which may involve impacts or abrupt actions, such as golf
or tennis for example.
Water-resistance
Jaeger-LeCoultre watches are water-resistant from 3 to 10 bar/atm, depending
on the model (see technical specications). This property can be identied by
the symbol engraved on the case-back. This means that your timepiece has been tested at an immersion pressure corresponding to between
30 and 100 metres, according to the number of bar appearing next to the abovementioned symbol (1 bar = approx. 10 metres).
In accordance with the ISO 22810/NIHS 92-20 standards, in order to guarantee the durability of the watch’s characteristics over time and as the waterresistant sealant may be affected by certain activities, it is recommended that
the user:
- have the water-resistance of the watch checked by an approved JaegerLeCoultre dealer, in accordance with the recommendations of the Jaeger-
English
26
LeCoultre Manufacture and at any event after each opening of the case, in which
case it is recommended that the test be carried out with increased air pressure
- check when making the purchase that the bracelet is suitable for the intended use
- avoid subjecting the watch to excessively abrupt temperature changes
- protect the watch from being dropped or suffering other shocks (having the
watch checked after any violent impact)
- avoid the use of the controls, push-piece or time-setting crown while under
water or before the watch has dried after immersion
- be sure to restore the time-setting crown and the push-pieces to their normal position (or, where applicable, close the compression key) after every manipulation
- rinse the watch with fresh water after use in seawater.
You may use your watch during short swims, and when jumping in from the edge
of a swimming pool, but not from a diving board. Your watch must not be used for
scuba diving, nor for sports involving signi cant risk of impact, such as windsur ng
or water-skiing. Also note that leather straps are not suited to aquatic activities.
Furthermore, it is vital to have your watch’s water-resistance checked by an authorised Jaeger-LeCoultre retailer at least once every two years and, in all cases, before
any period during which it is liable to undergo prolonged and/or regular immersions.
“1000 Hours Control” test
Jaeger-LeCoultre submits all its watches to the stringent “1000 Hours Control”,
a unique battery of comprehensive and rigorous internal tests lasting a full 1000 hours.
The “1000 Hours Control” seal or legend placed or engraved on the back of your
watch certi es that the latter has undergone this programme of observation in
our laboratories and has successfully passed all the tests relating to regularity
of rate, temperature, atmospheric pressure, resistance to shocks and magnetic
elds, as well as water-resistance trials. Your watch is thus capable of withstanding
the daily stresses and strains that await it when worn on your wrist.
The criteria of the “1000 Hours Control” programme considerably exceed the
standards of of cial timing tests, which deal only with part of the movement.
Jaeger-LeCoultre tests not only the movement prior to its being cased up in the
watch, but also the watch as a whole.
27
Compression keys
The compression key tted on the crowns of Master Compressor line watches is
a patented system enabling additional compression of one of the 4 crown gaskets,
which boosts your watch’s long-term water-resistance.
The “open” or “closed” position of the compression key at 3 o’clock is indicated
by the arrow symbols (viewed from the front):
- The compression key is in the compressed gasket position (“closed”) if the
indicator shows only one arrow; the keys must be closed when you wear your
watch and when you are taking part in sports. You must not make any adjustments or set the time in this position, since this might damage the gaskets.
- The compression key is in the non-compressed gasket position (“open”) if
the indication is represented by two arrows; in this conguration, you can
start the watch and set the functions as per the explanations below.
The switch from “closed” to “open” position, or vice-versa, is made by turning the
key using the wing-nuts in the direction indicated by the arrow(s).
Note
The water-resistance function of the compression key is separate from the operation of the crown itself. Even in the closed position, the key does not lock the
crown. So in practice it is possible to operate the crown when the key is in the
compressed gasket position. However, as mentioned earlier, it is extremely inadvisable to make adjustments in this position, since this might damage the gaskets.
We recommend that you rst turn the compression key to the “open” position
before making any adjustments to your watch.

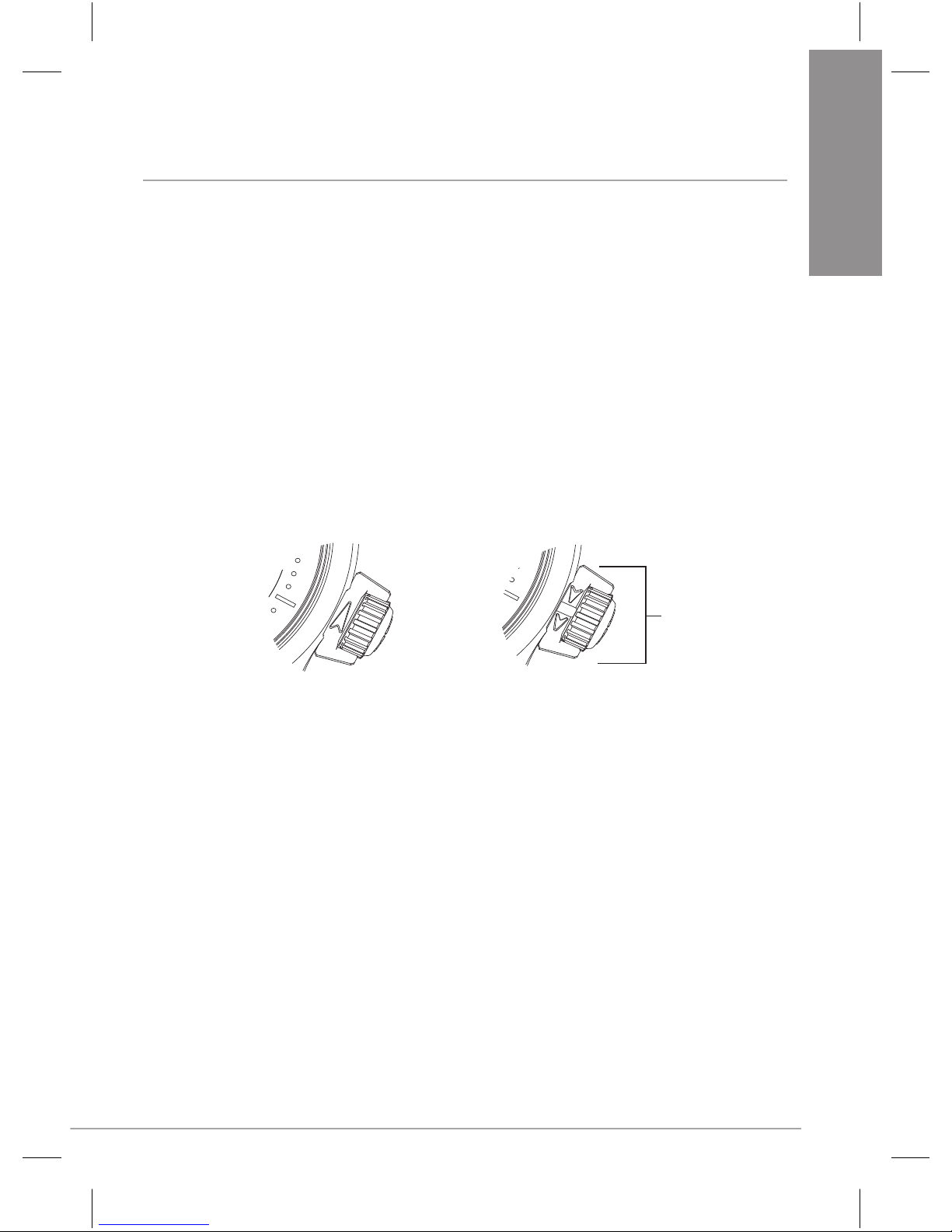

Compressed gasket position or
“closed” position
Non-compressed gasket position or
“open” position
Wing-nuts
English
28
Master Compressor Diving, divers’ watches meeting
the NIHS 92-11 (ISO 6425) standards
Master Compressor Diving line watches that bear the title “diving watches”
satisfy the requirements of the Swiss Watchmaking Industry Standard (NIHS)
92-11, reproducing the European standard ISO 6425.
Warning
As a precaution, we draw your attention to the following two recommendations:
- You must not adjust the crowns in water,
- You must not use Master Compressor Diving watches for deep dives (diving with a gas mixture, with the diver spending alternating periods between
the water and a pressurised chamber), or dives to a depth greater than that
indicated.
Technical speci cations
- Automatic movement, Jaeger-LeCoultre Calibre 757.
- 28,800 vibrations/hour.
- Power reserve: approximately 65 hours.
- Crown with compression key.
- Water resistance from 3 to 10 bar, according to the materials.
Movement
Jaeger-LeCoultre Calibre 757.
Use
Starting the watch
Crown A
29
Turn the compression key to the “open” position in the direction of the arrow.
Crown A will then be in position 1. A few clockwise turns of the crown will sufce
to start the watch. It will then automatically wind up when you wear it. Please note
that the crown does not lock on winding, even when the watch is fully wound.
Once the operation is complete, turn the compression key to the “closed”
position in the direction of the arrows.
Setting the hour and minute
Crown A
Turn the compression key to the “open” position in the direction of the arrow.
Then pull crown A out to position 3.
The movement will be locked and the operating indicator will stop. Move the
hands clockwise until the desired time is displayed. Once the operation is complete, push the crown back into position 1. The watch will start running again.
Then turn the compression key to the “closed” position in the direction of the
arrows.
Operating indicator
The seconds disc completes one revolution in 60 seconds. It also shows you that
the watch is running.
Setting the date
Crown A
123
English
30
Turn the compression key to the “open” position in the direction of the arrow.
Then pull crown A out to position 2. This timepiece features a date display window at 4 o’clock and a rapid correction system. If you have to move the date one
day forward, turn crown A (in position 2) anti-clockwise. Repeat the operation
until the desired date is displayed. For months with less than 31 days, follow the
same procedure to move on to the 1st of the month.
Once the operation is complete, push crown A back into position 1 and turn the
compression key to the “closed” position in the direction of the arrows. NB: date
correction should not be performed between 10.30 p.m. and 3.30 a.m. During
this period the automatic date change mechanism is already in action.
Setting the second time zone
Crown A
Turn the compression key to the “open” position in the direction of the arrow.
Then pull crown A out to position 2.
Turn crown A (in position 2) clockwise. The second time zone hour hand
will make one-hour jumps. This mechanism actuates the day/night indicator at
12 o’clock. Move the hand forward to the desired time, taking into account the
day/night indicator.
Once the operation is complete, push the crown back into position 1. The watch
will start running again. Then turn the compression key to the “closed” position
in the direction of the arrows.
Chronograph operation
The central seconds hand on the Master Compressor Diving Chronograph
GMT Navy SEALs® watch displays the chronograph seconds with an eighthof-a-second denition. A counter located at 3 o’clock tallies the minutes up to
30 minutes (after 1 revolution it will start counting another 30 minutes). Another
counter at 9 o’clock tallies the hours up to 12 hours (after one revolution it will
start counting another 12 hours).
- Pushpiece at 2 o’clock: this pushpiece starts and stops the chronograph function.
- Pushpiece at 4 o’clock: this pushpiece resets the counters and the central seconds hand. When timing is in progress, pressing this push-piece has no effect.
Each of these 2 push-pieces features a wing-nut with patented compression
system. This enables additional compression of one of the 3 push-piece gaskets,
31
to ensure optimum water-resistance. Another benet of this system: it enables
the push-pieces to be locked in the closed position, thereby preventing any
unintentional operation of the chronograph.
To enable use of the chronograph functions, move the push-pieces into the
“open” position by turning the wing-nuts a quarter-turn downward. The noncompressed gasket position (“open”) will be indicated by an arrow (front view
of watch).
Timing
- The chronograph is activated by pressing the push-piece at 2 o’clock once.
The central seconds hand will turn, and the minute and hour timing counters
will run. Pressing the push-piece at 2 o’clock again will stop the chronograph,
enabling the timing measurement to be read.
- Reset by pressing the push-piece at 4 o’clock to make another timing measurement.
- It is possible to add together several timing measurements by pressing the
push-piece at 2 o’clock again (without resetting the counters). Timing is restarted, and is added to the previous measurement.
Once the timing operation is complete, move the push-pieces to the compressed
gasket (“closed”) position by turning the wing-nuts a quarter-turn upward, in the
direction shown by the single arrow.
Diving bezel
Your Master Compressor Diving Chronograph GMT Navy SEALs® watch features a unidirectional rotating bezel (i.e. one that can only be turned anti-clockwise), with a mark every minute.
It can measure a particular time using the luminescent white triangular marker as
a reference point in relation to the hour hand or minute hand.
Compressed gasket position or
“closed” position
Non-compressed gasket position or
“open” position
English
32
To move the diving bezel, you need only grip it with two ngers and turn it anticlockwise to the desired position.
Adjusting the wristlet
Note: The wristlet illustrations below may not correspond to either your
wristlet or your watch, but the demonstration illustrated is completely identical and valid.
Adjusting the clasp
The clasp on metal bracelets and articulated rubber straps is tted with an adjustment system enabling you to lengthen or shorten your wristlet by 4 mm on
either side, for greater wearer comfort.
Using the ne adjustment system
Transition from the long position to the short position:
Remove your watch.
Hold your clasp open between the thumb and forenger of one hand, with the
wristlet section in your other hand (g. 1).
Fig. 1
33
Lift up the clasp cover so as to release the
hinged part of the wristlet section from
its groove (g. 2).
Fig. 2 Long position
Push down the hinged part of your wristlet section and place it in its groove, facing
the opposite way to its initial position (g. 3).
Fig. 3 Shortened position
The switch from the short to the long
position is made in the same way, but in
reverse order (g. 4).
Fig. 4 Extended position
English
34
Removing and re tting wristlets
To alter the wristlet of your Master Compressor Diving Chronograph GMT
Navy SEALs
®
, you can remove and ret the wristlet sections.
Removing the wristlet
Hold the case in one hand, with the watch
placed crystal down on a support.
With the other hand grip the “fork” tool supplied with the watch and slide it between the
horn and wristlet, in order to grip the wristlet bar between the teeth of the fork.
Make sure that the tool is correctly positioned on the bar, on the retractable end of
its spindle.
The bar is equipped with a spindle mounted
on a spring, which needs to be released. To
do so, press the tool onto the bar’s retractable end, sliding it on laterally (from the opposite side of the horn) to act on the spring.
Retractable
end of bar
35
Once the spring has been released, take out
the bar, and pull the wristlet section towards
you to extract it.
Insert one end of the bar into the hole in the
horn of the case, and hold it rmly.
Take the tool supplied, and position it on the
free retractable end of the bar. Holding the
tool in this position, press sideways (from
the opposite side of the horn) to push the
spring back inside the bar.
Move the retracted bar to over the housing hole in the horn, and release it so as to
engage the spring.
Re tting the wristlet
Make sure that the wristlet is properly tted by pulling gently on the section.
English
36
Jaeger-LeCoultre watches
In order to bene t from the International Guarantee and/or the Limited Guarantee and/or the Manufacturer’s Guarantee for Australia, Jaeger-LeCoultre products must be purchased exclusively from authorised Jaeger-LeCoultre retailers or
from Jaeger-LeCoultre Boutiques. Maintenance and repair work must be entrusted to an authorised Jaeger-LeCoultre retailer, or a Jaeger-LeCoultre Boutique or
an authorised Jaeger-LeCoultre Service Centre. If these conditions are not met,
the manufacturer’s guarantee does not apply. Please contact Jaeger-LeCoultre to
obtain the list of authorised Jaeger-LeCoultre retailers all over the world.
International Guarantee
The International Guarantee applies to Jaeger-LeCoultre products sold or
presented for guarantee repairs in all countries, except the United States of
America and Canada (for these two countries, see the Limited Guarantee)
and Australia (for this country, refer to the Guarantee for Australia).
Terms and conditions of the Jaeger-LeCoultre International Guarantee
Your Jaeger-LeCoultre watch is guaranteed against all manufacturing defects for
two years from the date of purchase, subject to the following conditions.
Any part found by our technical services to be defective as a result of a manufacturing defect will, at the sole discretion of Jaeger-LeCoultre, be repaired or
replaced free of charge. The Jaeger-LeCoultre International Guarantee is valid
only if the guarantee certi cate enclosed with this booklet has been duly completed, dated, stamped and signed by the authorised Jaeger-LeCoultre retailer or
the Jaeger-LeCoultre Boutique who sold you your watch.
This Jaeger-LeCoultre International Guarantee does not cover defects resulting
from accidents, mishandling or incorrect or abusive use (for example, knocks,
dents, crushing, excessive temperatures, powerful magnetic elds), the use of or
effect of using batteries other than those designated by Jaeger-LeCoultre, unauthorised alteration or repair or the consequences of normal wear and ageing of
the watch, the strap or the glass, the loss of water-resistance after two years from
the date of purchase if your watch is water-resistant, or any defect resulting from
contact with water if your watch is not water-resistant.
Jaeger-LeCoultre water-resistant watches may be identi ed by the symbol
engraved on the back. Their water-resistance is guaranteed for two years
from the date of purchase, provided that the glass, the bezel, the back, the middle
37
English
part and the crown have not been damaged. It is nevertheless essential to have
the water-resistance of your watch checked at least once every two years, and
in any event, prior to any period of intensive use, either by an authorised JaegerLeCoultre retailer or by a Jaeger-LeCoultre Boutique or by an authorised JaegerLeCoultre Service Centre (for further information please see your User
Manual).
For quartz watches, this guarantee does not cover the battery life.
As a consumer, you may have legal rights under applicable national legislation
governing the sale of consumer goods; those rights are not affected by this
guarantee.
38
Limited Guarantee (United States of America and Canada)
The following Limited Warranty applies to Jaeger-LeCoultre products sold or
presented for warranty repairs in the United States of America and Canada
only.
Terms and conditions of the Jaeger-LeCoultre Limited Warranty
Your Jaeger-LeCoultre watch is guaranteed against all manufacturing defects for
two years from the date of purchase, subject to the following conditions.
Any part found by our technical services to be defective as a result of a manufacturing defect will, at the sole discretion of Jaeger-LeCoultre, be repaired or
replaced free of charge. The Jaeger-LeCoultre Limited Warranty is valid only if
the warranty certi cate enclosed with this booklet has been duly completed,
dated, stamped and signed by the authorised Jaeger-LeCoultre retailer or the
Jaeger-LeCoultre Boutique who sold you your watch.
This Jaeger-LeCoultre Limited Warranty does not cover defects resulting from
accidents, mishandling or incorrect or abusive use (for example, knocks, dents,
crushing, excessive temperatures, powerful magnetic elds), the use of or effect
of using batteries other than those designated by Jaeger-LeCoultre, unauthorised
alteration or repair or the consequences of normal wear and ageing of the
watch, the strap or the glass, the loss of water-resistance after two years from
the date of purchase if your watch is water-resistant, or any defect resulting from
contact with water if your watch is not water-resistant.
Jaeger-LeCoultre water-resistant watches may be identi ed by the symbol
engraved on the back. Their water-resistance is guaranteed for two years from the
date of purchase, provided that the glass, the bezel, the back, the middle part and
the crown have not been damaged. It is nevertheless essential to have the waterresistance of your watch checked at least once every two years, and in any event,
prior to any period of intensive use, either by an authorised Jaeger-LeCoultre
retailer or by a Jaeger-LeCoultre Boutique or by an authorised Jaeger-LeCoultre
Service Centre (for further information please see your User Manual).
For quartz watches, this guarantee does not cover the battery life.
Except insofar as prohibited by applicable law, this Limited Warranty shall be
the exclusive manufacturer warranty. Neither this Limited Warranty nor any
other warranties, whether expressed or implied, including, but not limited to,
39
English
any implied warranty of merchantability or of tness for any particular purpose, shall extend beyond the period of two years from the date of purchase.
The liability of Jaeger-LeCoultre is limited solely and exclusively to repair or
replacement under the terms and conditions stated herein. Jaeger-LeCoultre
shall not be liable, by virtue of this Limited Warranty or otherwise, for any loss
or damage arising out of the use of or inability to use this watch nor for any
incidental or consequential damages relating in any way to this watch.
Some States, Provinces and Territories do not allow limitations on how long
an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to
you.
This Limited Warranty grants you specic legal rights, in addition to which
you may have other legal rights that vary from one Country, State, Province
or Territory to another.
40
Guarantee for Australia
This Guarantee for Australia applies to Jaeger-LeCoultre products sold or
presented for guarantee repairs in Australia only.
Terms and conditions of the Jaeger-LeCoultre Guarantee for
Australia
Mandatory Statutory Rights. Our goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if goods fail to be of acceptable quality and the failure does not amount
to a major failure.
Jaeger-LeCoultre Guarantee. This Jaeger-LeCoultre Guarantee gives you additional rights provided by Jaeger-LeCoultre. Every Jaeger-LeCoultre product is
made and tested to meet the Jaeger-LeCoultre quality standards. Nevertheless,
should your Jaeger-LeCoultre product prove defective, please contact the JaegerLeCoultre retailer or the Jaeger-LeCoultre Boutique indicated on your guarantee certi cate; only authorised Jaeger-LeCoultre retailers or Jaeger-LeCoultre
Boutiques are entitled to provide guarantee service as de ned in this JaegerLeCoultre Guarantee. In order to bene t from this guarantee you will be required to present this Jaeger-LeCoultre guarantee certi cate duly completed,
dated, stamped and signed by an authorised Jaeger-LeCoultre retailer or by a
Jaeger-LeCoultre Boutique.
This Jaeger-LeCoultre Guarantee covers defects of materials or workmanship of
your Jaeger-LeCoultre product. Jaeger-LeCoultre will remedy these identi ed defects free of charge for up to two (2) years from the date of purchase. Thereafter,
Jaeger-LeCoultre will repair any defective product or part subject to a service
charge. The Jaeger-LeCoultre Guarantee does not cover defects and damage
caused by accident, improper use (including knocks, dents, crushing, etc.), normal
wear or tear, alteration, dismantling or repair by persons other than authorised
Jaeger-LeCoultre repair specialists or the use of components other than those
recommended by Jaeger-LeCoultre, watches with the serial number removed or
the strap or glass altered, the loss of water resistance after two years after the
date of purchase if your watch is water-resistant, and any defect resulting from
the contact with water if your watch is not water-resistant.
41
Jaeger-LeCoultre water-resistant watches may be identi ed by the symbol
engraved on the back. Their water resistance is guaranteed for two
years from the date of purchase, provided that the glass, the bezel, the back, the
middle part and the crown have not been damaged. It is essential to have the
water resistance checked by an authorised Jaeger-LeCoultre retailer, a JaegerLeCoultre Boutique or an authorised Jaeger-LeCoultre Service Centre at least
every two years, and in any event, prior to any period of intensive use. Please
refer to the operating instructions for further details.
For quartz watches, this guarantee does not cover the battery life.
English
42
Jaeger-LeCoultre Customer Service
A Jaeger-LeCoultre timepiece is a high-precision instrument that operates 24
hours a day, or 8,760 hours a year. It is therefore essential to have it serviced
once every three years in order to guarantee its good working order and its
durability. If signi cant variations occur in the settings, it may be necessary to have
the movement serviced.
It is also necessary to have the water-resistance of the watch checked once
every two years, or prior to any period during which it will be subjected to
prolonged and/or regular immersion.
Maintenance and repair work must be entrusted to an authorised JaegerLeCoultre retailer, or to a Jaeger-LeCoultre Boutique or authorised JaegerLeCoultre Service Centre. The list of our points of sale and service centres is
available on our website: www.jaeger-lecoultre.com. You will also nd this information at the end of this document, under the heading “Where to entrust my
timepiece for maintenance?”
Our authorised Service Centres are staffed by watchmakers trained at the
Jaeger-LeCoultre Manufacture, and have the workshops, tools and parts required
for the repair and maintenance of Jaeger-LeCoultre watches and clocks.
In certain cases, especially for operations requiring special tools and parts, the
Service Centres will send your watch to the Jaeger-LeCoultre Manufacture in
Switzerland to have the necessary work carried out.
Loading...
