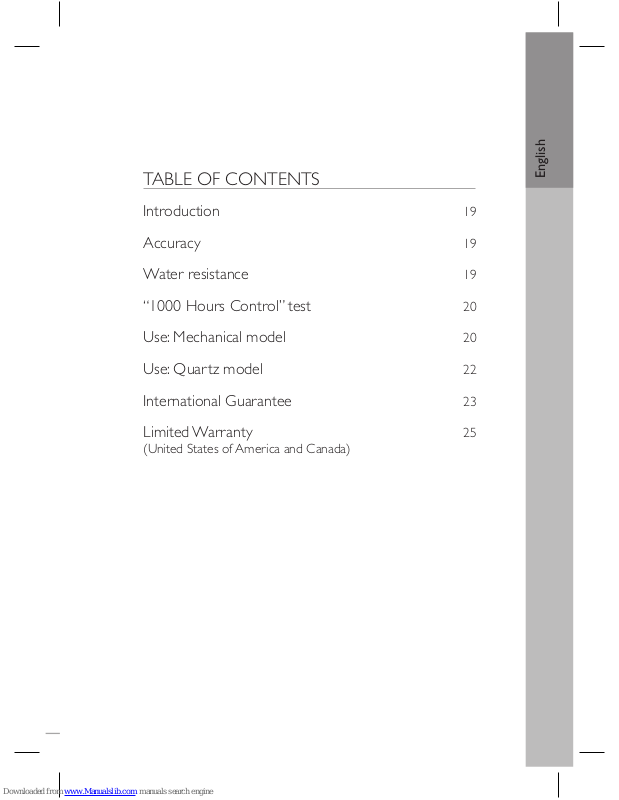

TABLE OF CONTENTS
Introduction
Accuracy
Water resistance
“1000 Hours Control” test
Use: Mechanical model
Use: Quartz model
International Guarantee
Limited Warranty
(United States of America and Canada)
19
19
19
20
20
22
23
25
Page 2
18
1
2
3
1 Hour hand
2 Minute hand
3 Crown
Page 3
19
English
Introduction
We congratulate you on the acquisition of your Jaeger-LeCoultre watch, and
thank you for your con dence.
We invite you to consult the operating instructions and hope your JaegerLeCoultre timepiece brings you great enjoyment.
Accuracy
Mechanical manually-wound or automatic watches
The precision of watch models with mechanical movements is determined by
the balance. The latter oscillates at a rate of 21,600 or 28,800 vibrations per
hour. Despite all the care that the master-watchmakers of the Manufacture JaegerLeCoultre have lavished on building and assembling your watch, its accuracy is
subject to the in uence of gravity, magnetic elds, impacts, as well as ageing of
the oils. The precision of a watch is measured by its regularity of rate in various
positions.
Your individual temperament and your activities may result in slight irregularities.
If you were to observe a discrepancy in the running of your watch, we would
advise you to entrust it to an authorised Jaeger-LeCoultre retailer who will perform the necessary adjustments.
Quartz models
Quartz models are accurate to within 2 to 3 minutes a year. Jaeger-LeCoultre
quartz watches contain a battery and electronic elements. When perform-
ing a maintenance service, your Jaeger-LeCoultre authorised Technical
Assistance Centre or your authorised Jaeger-LeCoultre retailer will
recover such components and ensure they are eliminated in accordance with the prevailing standards.
Water resistance
Your Jaeger-LeCoultre watch is water-resistant to 3 atm. The water resistance of
your watch is identi able by a symbol engraved on the back. This means
that your timepiece has been tested at an immersion pressure corresponding to
30 metres, according to the number of atmospheres appearing next to the abovementioned symbol (1 atm = approx. 10 metres).
Page 4
20
You may use your watch during short swims and when jumping in from the edge of a
swimming pool, but not from a diving board. Your watch must not be used for scuba
diving, nor for sports involving signi cant risk of impact, such as windsur ng or waterskiing. Also note that leather straps are not suited to aquatic activities.
It is vital to have the water resistance of your watch checked by an authorised JaegerLeCoultre retailer before any period during which it is liable to undergo prolonged
and/or regular immersions.
“1000 Hours Control” test
Jaeger-LeCoultre submits all its watches to the stringent “1000 Hours Control”, a
unique battery of comprehensive and rigorous tests lasting a full 1000 hours.
The “1000 Hours Control” seal or legend placed or engraved on the back of your
watch certi es that the latter has undergone this programme of observation in
our laboratories and has successfully passed all the tests relating to regularity
of rate, temperature, atmospheric pressure, resistance to shocks and magnetic
elds, as well as water-resistance trials. Your watch is thus capable of withstanding
the daily stresses and strains that await it when worn on your wrist.
The criteria of the “1000 Hours Control” programme considerably exceed the
standards of of cial timing tests, which deal only with part of the movement.
Jaeger-LeCoultre tests not only the movement prior to its being cased up in the
watch, but also the watch as a whole.
MECHANICAL MODEL
Technical characteristics
- Manually-wound mechanical movement, Calibre 846.
- 21,600 vibrations/hour.
- Power reserve: approximately 40 hours.
Page 5
21
English
Movement
Jaeger-LeCoultre Calibre 846.
Use
Winding
Crown in position 1.
Winding is performed by turning the crown clockwise. The watch is fully wound
when the crown locks.
Do not attempt to wind a manually-wound watch beyond the locking point.
To ensure good operating accuracy, it is advisable to wind your watch regularly,
at least once a day.
Setting the hour and minute
Pull the crown out to position 2.
Move the hands clockwise until the desired time is displayed.
When the operation is completed, push the crown back to position 1.
1 2
Page 6
22
QUARTZ MODEL
Technical characteristics
- Quartz movement, Calibre 608.
- 32,768 Hz.
- The battery reference is 321.
Movement
Jaeger-LeCoultre Calibre 608.
Use
Setting the hour and minutes
Pull the crown out to position 2.
Move the hands clockwise until the desired time is displayed.
When the operation is completed, push the crown back to position 1.
1 2
Page 7
23
English
International Guarantee
This International Guarantee applies to Jaeger-LeCoultre products sold or
presented for guarantee repairs in all countries except the United States of
America and Canada (for those two countries, see the Limited Warranty on
pages 25 to 27).
The manufacturer’s International Guarantee applies only to Jaeger-LeCoultre
products purchased from authorised Jaeger-LeCoultre retailers. In addition, all
maintenance and repair works must be carried out either by an authorised
Jaeger-LeCoultre retailer or by an of cial Jaeger-LeCoultre Service Centre. If
these conditions are not met, the manufacturer’s guarantee does not apply.
For a list of authorised Jaeger-LeCoultre retailers worldwide, please contact
Jaeger-LeCoultre or its Distributors.
Jaeger-LeCoultre watches
The terms and conditions of the Jaeger-LeCoultre International
Guarantee
The following terms and conditions of the Jaeger-LeCoultre International Guarantee apply to watches sold or presented for guarantee repairs in all countries
except the United States of America and Canada (for those two countries, see
the Limited Warranty on pages 25 to 27).
Your Jaeger-LeCoultre watch is guaranteed against all manufacturing defects for
two years from the date of purchase, subject to the following conditions.
Any part found by our technical services to be defective as a result of a manufacturing defect will, at the sole discretion of Jaeger-LeCoultre, be repaired or
replaced free of charge. The Jaeger-LeCoultre International Guarantee is valid only if
the guarantee certi cate enclosed with this booklet has been duly completed, dated,
stamped and signed by the authorised Jaeger-LeCoultre retailer who sold your watch.
This International Guarantee does not cover defects resulting from accidents,
mishandling or incorrect or abusive use (for example, knocks, dents, crushing,
excessive temperatures, powerful magnetic elds), the use of or effect of using
batteries other than those designated by Jaeger-LeCoultre, unauthorised alteration or repair or the consequences of normal wear and ageing of the watch, the
strap or the glass, the loss of water resistance after two years after the date of
purchase if your watch is water-resistant, and any defect resulting from the contact with water if your watch is not water-resistant.
Page 8
24
Jaeger-LeCoultre water-resistant watches may be identi ed by the symbol
engraved on the back. Their water resistance is guaranteed for two
years from the date of purchase, provided that the glass, the bezel, the back,
the middle part and the crown have not been damaged. It is essential to have
the water resistance checked by an authorised Jaeger-LeCoultre retailer or an
of cial Jaeger-LeCoultre Service Centre at least once a year, and in any event,
prior to any period of intensive use. Please refer to the operating instructions
for further details.
For quartz watches, this guarantee does not cover the battery life.
As a consumer, you may have legal rights under applicable national legislation
governing the sale of consumer goods; those rights are not affected by this
guarantee.
Customer service at Jaeger-LeCoultre
The movement of a mechanical watch requires regular maintenance (servicing,
lubrication, etc.) to ensure a long operating life. Should your watch need
servicing or repairs, please send it, together with its guarantee certi cate, to the
authorised Jaeger-LeCoultre retailer who sold it to you.
Alternatively, you may send it to one of the of cial Jaeger-LeCoultre Service
Centres listed at the end of this booklet, or to any authorised Jaeger-LeCoultre
retailer – a list is available on the “www.jaeger-lecoultre.com” website.
Our of cial Service Centres employ watchmakers trained at the Jaeger-LeCoultre
Manufacture and possess the tools and parts necessary to repair and maintain all
Jaeger-LeCoultre watches and clocks.
In certain cases, especially for operations requiring special tools and parts, the
Service Centres will send your watch to the Jaeger-LeCoultre Manufacture in
Switzerland to have the necessary work carried out.
In any case, or if you live in a country which is not indicated in our lists, please do
not hesitate to contact Manufacture Jaeger-LeCoultre in Switzerland, Rue de la
Golisse 8, 1347 Le Sentier, telephone +41 21 845 02 02, fax +41 21 845 05 50,
which will inform you of the procedure to follow. We also invite you to visit our
website “www.jaeger-lecoultre.com” for an updated list of of cial Jaeger-LeCoultre
Service Centres.
Page 9
25
English
Limited Warranty (United States and Canada)
The following Limited Warranty applies to Jaeger-LeCoultre products sold or
presented for warranty repairs in the United States of America and Canada
only.
The manufacturer’s Limited Warranty applies only to Jaeger-LeCoultre products
purchased from authorised Jaeger-LeCoultre retailers. In addition, all maintenance
and repair works must be carried out either by an authorised Jaeger-LeCoultre
retailer or by an of cial Jaeger-LeCoultre Service Centre. If these conditions
are not met, the manufacturer’s Limited Warranty does not apply. For a list of
authorised Jaeger-LeCoultre retailers worldwide, please contact Jaeger-LeCoultre or its Distributors.
Jaeger-LeCoultre watches
The terms and conditions of the Jaeger-LeCoultre Limited
Warranty
The following terms and conditions of the Jaeger-LeCoultre Limited Warranty
apply only to watches sold or presented for warranty repairs in the United
States of America and Canada.
Your Jaeger-LeCoultre watch is guaranteed against all manufacturing defects for
two years from the date of purchase, subject to the following conditions.
Any part found by our technical services to be defective as a result of a manufacturing defect will, at the sole discretion of Jaeger-LeCoultre, be repaired or
replaced free of charge. The Jaeger-LeCoultre Limited Warranty is valid only if
the warranty certi cate enclosed with this booklet has been duly completed,
dated, stamped and signed by the authorised Jaeger-LeCoultre retailer who sold
your watch.
This Limited Warranty does not cover defects resulting from accidents, mishandling or incorrect or abusive use (for example, knocks, dents, crushing, excessive
temperatures, powerful magnetic elds), the use of or effect of using batteries
other than those designated by Jaeger-LeCoultre, unauthorised alteration or repair or the consequences of normal wear and ageing of the watch, the strap or
the glass, the loss of water resistance after two years from the date of purchase if
your watch is water-resistant, or any defect resulting from the contact with water
if your watch is not water-resistant.
Page 10
26
Jaeger-LeCoultre water-resistant watches may be identi ed by the symbol
engraved on the back. Their water resistance is guaranteed for two
years from the date of purchase, provided that the glass, the bezel, the back,
the middle part and the crown have not been damaged. It is essential to have
the water resistance checked by an authorised Jaeger-LeCoultre retailer or an
of cial Jaeger-LeCoultre Service Centre at least once a year, and in any event,
prior to any period of intensive use. Please refer to the operating instructions
for further details.
For quartz watches, this guarantee does not cover the battery life.
Except insofar as prohibited by applicable law, this Limited Warranty shall be
the exclusive manufacturer’s warranty. Neither this Limited Warranty nor any
other warranties, whether express or implied, including, but not limited to, any
implied warranty of merchantability or of tness for any particular purpose,
shall extend beyond the period of two yaears from the date of purchase.
The liability of Jaeger-LeCoultre is limited solely and exclusively to repair or
replacement under the terms and conditions stated herein. Jaeger-LeCoultre
shall not be liable, by virtue of this Limited Warranty or otherwise, for any loss
or damage arising out of the use of or inability to use this watch nor for any
incidental or consequential damages relating in any way to this watch.
Some States, Provinces and Territories do not allow limitations on how long
an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to
you.
This Limited Warranty grants you specic legal rights, in addition to which you
may have other legal rights which vary from one Country, State, Province or
Territory to another.
Customer service at Jaeger-LeCoultre
The movement of a mechanical watch requires regular maintenance (servicing, lubrication, etc.) to ensure a long operating life. Should your watch need
servicing or repairs, please send it, together with its warranty certi cate, to the
authorised Jaeger-LeCoultre retailer who sold it to you.
Alternatively, you may send it to one of the of cial Jaeger-LeCoultre Service
Centres listed at the end of this booklet, or to any authorised Jaeger-LeCoultre
retailer – a list is available on the “www.jaeger-lecoultre.com” website.
Page 11
27
English
Our of cial Service Centres employ watchmakers trained at the Jaeger-LeCoultre
Manufacture and possess the tools and parts necessary to repair and maintain all
Jaeger-LeCoultre watches and clocks.
In certain cases, especially for operations requiring special tools and parts, the
Service Centres will send your watch to the Jaeger-LeCoultre Manufacture in
Switzerland to have the necessary work carried out.
In any case, or if you live in a country which is not indicated in our lists, please
do not hesitate to contact Manufacture Jaeger-LeCoultre in Switzerland, Rue de
la Golisse 8, 1347 Le Sentier, telephone +41 21 845 02 02, fax +41 21 845 05
50, which will inform you of the procedure to follow. We also invite you to visit
our website “www.jaeger-lecoultre.com” for an updated list of of cial JaegerLeCoultre Service Centres.
Loading...
