Hatteras
5
13
2
3
4
1
14
12
10
11
7
6
8
9
15
17
16
®

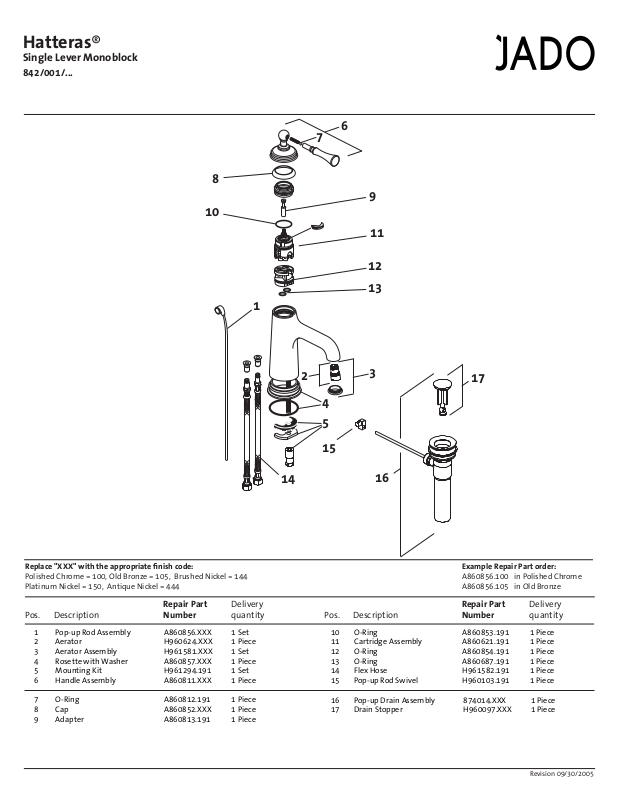

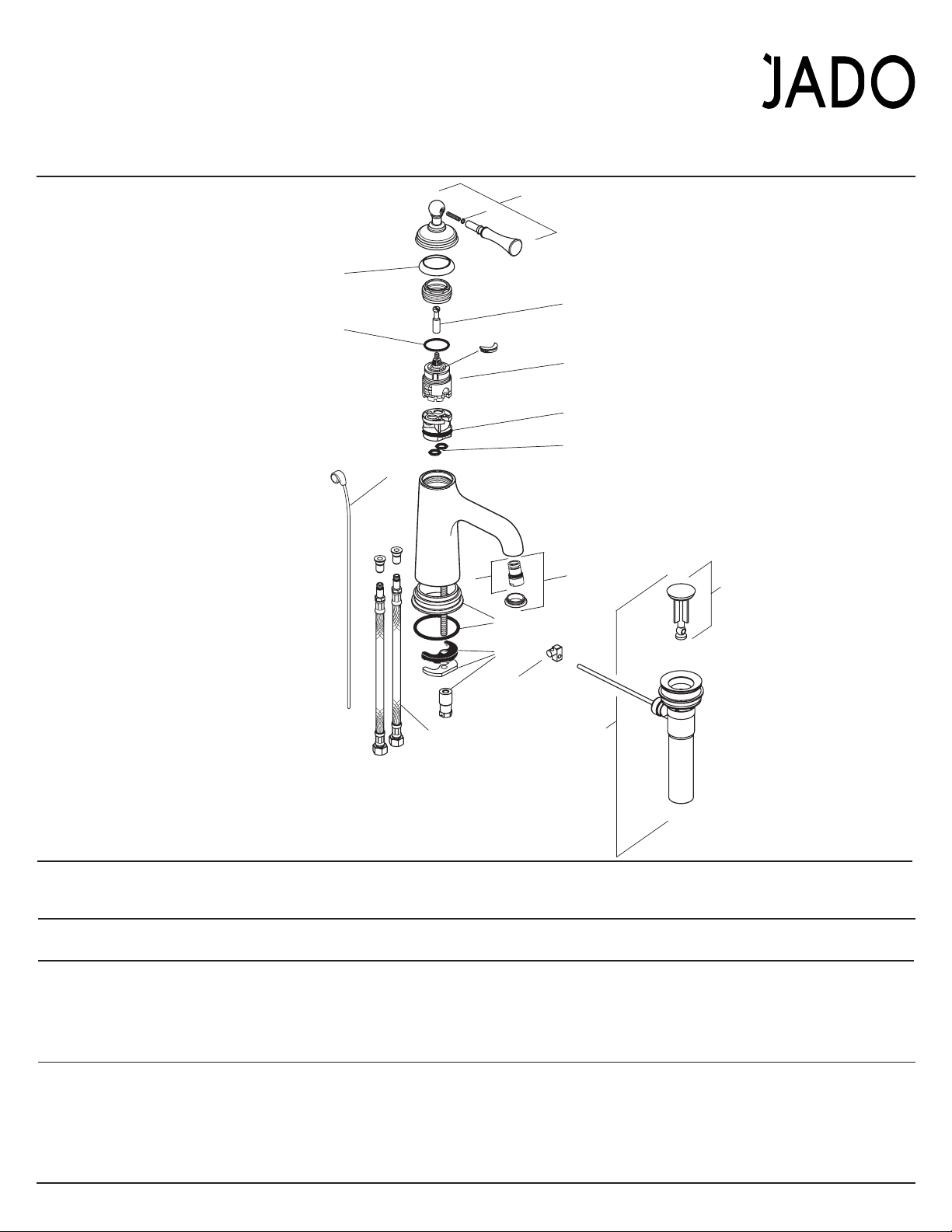

Single Lever Monoblock
842/001/...
Replace "XXX" with the appropriate nish code:
Polished Chrome = 100, Old Bronze = 105, Brushed Nickel = 144
Platinum Nickel = 150, Antique Nickel = 444
Repair Part Delivery
Pos. Description Number quantity
1 Pop-up Rod Assembly A860856.XXX 1 Set
2 Aerator H960624.XXX 1 Piece
3 Aerator Assembly H961581.XXX 1 Set
4 Rosette with Washer A860857.XXX 1 Piece
5 Mounting Kit H961294.191 1 Set
6 Handle Assembly A860811.XXX 1 Piece
7 O-Ring A860812.191 1 Piece
8 Cap A860852.XXX 1 Piece
9 Adapter A860813.191 1 Piece
Example Repair Part order:
A860856.100 in Polished Chrome
A860856.105 in Old Bronze
Repair Part Delivery
Pos. Description Number quantity
10 O-Ring A860853.191 1 Piece
11 Cartridge Assembly A860621.191 1 Piece
12 O-Ring A860854.191 1 Piece
13 O-Ring A860687.191 1 Piece
14 Flex Hose H961582.191 1 Piece
15 Pop-up Rod Swivel H960103.191 1 Piece
16 Pop-up Drain Assembly 874014.XXX 1 Piece
17 Drain Stopper H960097.XXX 1 Piece
Revision 09/30/2005
