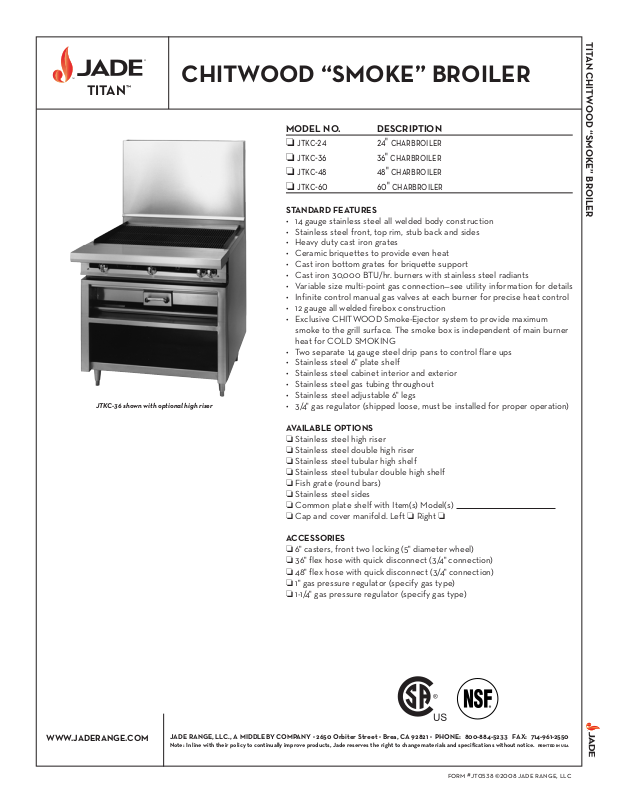

Jade Range Co JTKC-24 User Manual

TITAN CHITWOOD “SMOKE” BROILER

®

TM

TITAN

™

JTKC-36 shown with optional high riser

CHITWOOD “SMOKE” BROILER

MODEL NO. DESCRIPTION

jtkc-24 24" charbroiler

o
o

jtkc-36 36" charbroiler

o

jtkc-48 48" charbroiler

o

jtkc-60 60" charbroiler

STANDARD FEATURES

• 14 gauge stainless steel all welded body construction

• Stainless steel front, top rim, stub back and sides

• Heavy duty cast iron grates

• Ceramic briquettes to provide even heat

• Cast iron bottom grates for briquette support

• Cast iron 30,000 BTU/hr. burners with stainless steel radiants

• Variable size multi-point gas connection—see utility information for details

• Infinite control manual gas valves at each burner for precise heat control

• 12 gauge all welded firebox construction

• Exclusive CHITWOOD Smoke-Ejector system to provide maximum
smoke to the grill surface. The smoke box is independent of main burner
heat for COLD SMOKING

• Two separate 14 gauge steel drip pans to control flare ups

• Stainless steel 6" plate shelf

• Stainless steel cabinet interior and exterior

• Stainless steel gas tubing throughout

• Stainless steel adjustable 6" legs

• 3/4" gas regulator (shipped loose, must be installed for proper operation)

AVAILABLE OPTIONS

o Stainless steel high riser
o Stainless steel double high riser
o Stainless steel tubular high shelf
o Stainless steel tubular double high shelf
o Fish grate (round bars)
o Stainless steel sides
o Common plate shelf with Item(s) Model(s)
o Cap and cover manifold. Left o Right o

ACCESSORIES

o 6" casters, front two locking (5" diameter wheel)
o 36" flex hose with quick disconnect (3/4" connection)
o 48" flex hose with quick disconnect (3/4" connection)
o 1" gas pressure regulator (specify gas type)
o 1-1/4" gas pressure regulator (specify gas type)

WWW.JADERANGE.COM

JADE RANGE, LLC., A MIDDLEBY COMPANY • 2650 Orbiter Street • Brea, CA 92821 • PHONE: [phone] FAX: [phone]

Note: In line with their policy to continually improve products, Jade reserves the right to change materials and specifications without notice. printed in usa

form #jt0538 ©2008 jade range, llc

®

CURB

[ ] = MILLIMETERS

RISER TO MATCH

SINGLE DECK SHELF

WIDTH

DOUBLE DECK SHELF

RISER TO MATCH

30 1/2" [775]

6" [152]

1 1/4"[32] MANIFOLD

38" [965]

STUB BACK

6" [152]

3" [76]

34" [864]

34 3/4" [883]

55" [1397]

66 1/2" [1689]

1 1/2" [38]

REAR GAS CONNECTION

REAR GAS

CONNECTION

2 1/2" [64]

24 3/8" [619]

TM

TITAN

™

CHITWOOD “SMOKE” BROILER

TITAN CHITWOOD “SMOKE” BROILER

model main burners smoke ejectors width depth btus appx. shp. wt.
jtkc-24 2 1 24" 38" 60,000 300 lbs.
jtkc-36 3 1 36" 38" 90,000 350 lbs.
jtkc-48 4 2 48" 38" 120,000 400 lbs.

jtkc-60 5 2 60" 38" 150,000 500 lbs.

DESCRIPTION:

CHITWOOD range match “Smoke” charbroiler. To be model
#JTKC manufactured by Jade Range. Furnished
with 14 gauge all welded body construction and stainless steel
front, sides, top rim, stub back and bottom. Provide with heavy
duty cast iron grates. One cast iron burner with stainless steel
radiants each 12" of broiler. Provide ceramic briquettes for
even heat and 12 gauge firebox with all welded construction.
Include exclusive Smoke Ejector system, heavy gauge smoke
drawer with independent control for cold smoke applications.
Furnish two separate 14 gauge drip pans. To have 6" stainless
steel adjustable legs.

SPECIFY TYPE OF GAS WHEN ORDERING.

SPECIFY ALTITUDE WHEN ABOVE 2,000 ft.

NOTE: SPECIFY TYPE OF GAS WHEN ORDERING.

UTILITY INFORMATION:

• Ranges are supplied with 1-1/4" front manifold connection
and a 1" or 3/4" capped rear manifold connection. For rear
manifold connection, remove cap. Ranges are supplied
with 3/4" gas pressure regulator. For 1-1/4" or 1" gas
pressure regulator, see accessories. (Specify required
front manifold cap and cover when ordering.)

• Required operating pressure:
Natural Gas 5" W.C. minimum
Propane Gas 10" W.C. minimum

14" W.C. maximum

Note: This unit must be connected with the gas appliance

regulator supplied.
