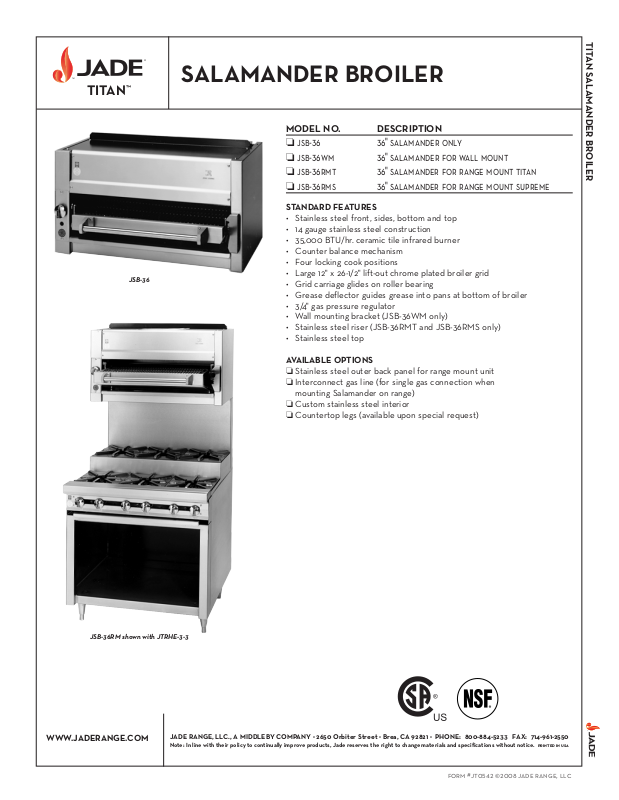

Jade Range Co JSB-36 User Manual

TITAN SALAMANDER BROILER

®

TM

TITAN

™

JSB-36

SALAMANDER BROILER

MODEL NO. DESCRIPTION

jsb-36 36" salamander only

o
o

jsb-36wm 36" salamander for wall mount

o

jsb-36rmt 36" salamander for range mount titan

o

jsb-36rms 36" salamander for range mount supreme

STANDARD FEATURES

• Stainless steel front, sides, bottom and top

• 14 gauge stainless steel construction

• 35,000 BTU/hr. ceramic tile infrared burner

• Counter balance mechanism

• Four locking cook positions

• Large 12" x 26-1/2" lift-out chrome plated broiler grid

• Grid carriage glides on roller bearing

• Grease deflector guides grease into pans at bottom of broiler

• 3/4" gas pressure regulator

• Wall mounting bracket (JSB-36WM only)

• Stainless steel riser (JSB-36RMT and JSB-36RMS only)

• Stainless steel top

AVAILABLE OPTIONS

o Stainless steel outer back panel for range mount unit
o Interconnect gas line (for single gas connection when

mounting Salamander on range)

o Custom stainless steel interior
o Countertop legs (available upon special request)

JSB-36RM shown with JTRHE-3-3

WWW.JADERANGE.COM

JADE RANGE, LLC., A MIDDLEBY COMPANY • 2650 Orbiter Street • Brea, CA 92821 • PHONE: [phone] FAX: [phone]

Note: In line with their policy to continually improve products, Jade reserves the right to change materials and specifications without notice. printed in usa

form #jt0542 ©2008 jade range, llc

®

1 1/4" [32] MANIFOLD

4" LEGS (JSB-36CM)
OPTIONAL

WALL BRACKET

3/4" GAS MANIFOLD

C

L

MANIFOLD

6" [152]

1 1/2" [38]

2 1/2" [64]

19" [483]

69 1/2" [1765]

49" [1244]

18" [457]

36" [914]

1 3/4" [44]

30 1/2" [775]

38" [965]

18 1/2" [470]

24 3/8" [619]

1 1/2" [38]

REAR GAS CONNECTION

6" [152]

TM

TITAN

™

SALAMANDER BROILER

TITAN SALAMANDER BROILER

model btus width depth height appx. shp. wt.

jsb-36 35,000 36" 18" 20-1/2" 240 lbs.

jsb-36wm 35,000 36" 18" 20-1/2" 240 lbs.
jsb-36rmt 35,000 36" 18" see drawing 310 lbs.
jsb-36rms 35,000 36" 18" see drawing 310 lbs.

DESCRIPTION:

Gas infrared broiler. To be model #JSB
manufactured by Jade Range. Unit to be the following:
freestanding, WM for wall mount and RM for range mount.
To have stainless steel top, front, sides and bottom, (and
riser on RM). Heavy gauge chrome plated cooking grid to
measure 12" x 26-1/2" multi-action positioning handle
mounted to carriage. Carriage to have roller bearings and
four locking positions. Provide deflector to guide grease into
bottom drip pan. To have 35,000 BTU/hr. infrared burner.
Provide gas pressure regulator for use with natural or
propane.

SPECIFY TYPE OF GAS WHEN ORDERING.

SPECIFY ALTITUDE WHEN ABOVE 2,000

WWW.JADERANGE.COM

NOTE: SPECIFY TYPE OF GAS WHEN ORDERING.

UTILITY INFORMATION:

• Ranges are supplied with 1-1/4" front manifold connection
and a 1" or 3/4" capped rear manifold connection. For rear
manifold connection, remove cap. Ranges are supplied
with 3/4" gas pressure regulator. For 1-1/4" or 1" gas
pressure regulator, see accessories. (Specify required
front manifold cap and cover when ordering.)

FT.

• Required operating pressure:

Natural Gas 5" W.C. minimum
Propane Gas 10" W.C. minimum

14" W.C. maximum

Note: This unit must be connected with the gas appliance

regulator supplied.
