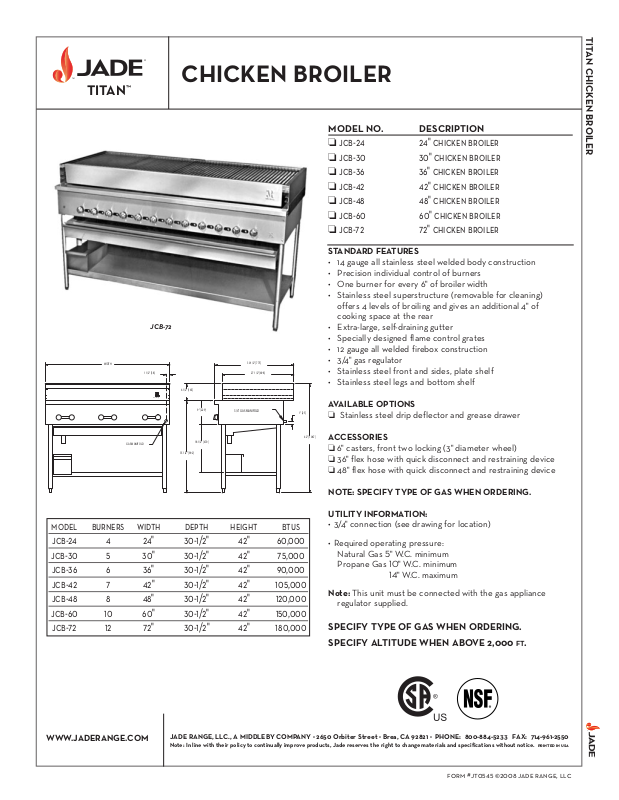

TITAN CHICKEN BROILER
Jade Range
WIDTH
30 1/2" [775]
27 1/2" [698]
9" [229]
18 1/2" [470]
6 1/2" [165]
35 1/2" [902]
GAS MANIFOLD
1 1/2" [38]
3/4" GAS MANIFOLD
42" [1067]
1" [25]
®
TM
TITAN
™
CHICKEN BROILER
MODEL NO. DESCRIPTION
jcb-24 24" chicken broiler
o
o
jcb-30 30" chicken broiler
o
jcb-36 36" chicken broiler
o
jcb-42 42" chicken broiler
o
jcb-48 48" chicken broiler
o
jcb-60 60" chicken broiler
o
jcb-72 72" chicken broiler
STANDARD FEATURES
• 14 gauge all stainless steel welded body construction
• Precision individual control of burners
• One burner for every 6" of broiler width
• Stainless steel superstructure (removable for cleaning)
offers 4 levels of broiling and gives an additional 4" of
JCB-72
cooking space at the rear
• Extra-large, self-draining gutter
• Specially designed flame control grates
• 12 gauge all welded firebox construction
• 3/4" gas regulator
• Stainless steel front and sides, plate shelf
• Stainless steel legs and bottom shelf
model burners width depth height btus
jcb-24 4 24" 30-1/2" 42" 60,000
jcb-30 5 30" 30-1/2" 42" 75,000
jcb-36 6 36" 30-1/2" 42" 90,000
jcb-42 7 42" 30-1/2" 42" 105,000
jcb-48 8 48" 30-1/2" 42" 120,000
jcb-60 10 60" 30-1/2" 42" 150,000
jcb-72 12 72" 30-1/2" 42" 180,000
AVAILABLE OPTIONS
o Stainless steel drip deflector and grease drawer
ACCESSORIES
o 6" casters, front two locking (3" diameter wheel)
o 36" flex hose with quick disconnect and restraining device
o 48" flex hose with quick disconnect and restraining device
NOTE: SPECIFY TYPE OF GAS WHEN ORDERING.
UTILITY INFORMATION:
• 3/4" connection (see drawing for location)
• Required operating pressure:
Natural Gas 5" W.C. minimum
Propane Gas 10" W.C. minimum
14" W.C. maximum
Note: This unit must be connected with the gas appliance
regulator supplied.
SPECIFY TYPE OF GAS WHEN ORDERING.
SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.
WWW.JADERANGE.COM
JADE RANGE, LLC., A MIDDLEBY COMPANY • 2650 Orbiter Street • Brea, CA 92821 • PHONE: 800-884-5233 FAX: 714-961-2550
Note: In line with their policy to continually improve products, Jade reserves the right to change materials and specifications without notice. printed in usa
form #jt0545 ©2008 jade range, llc
