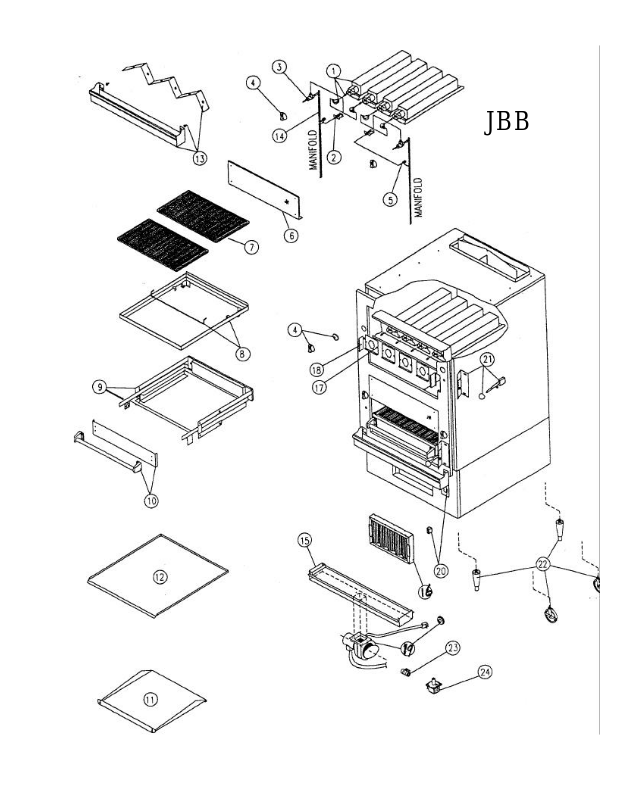

Jade Range Co JBB Parts List

JBB

JBB – DESCRIPTION PART NO.

BURNER, INFRARED W/ NG.ORIFICE 120 153 000
ORIFICE # 45 NG. 460 209 000

1

ORIFICE #55, L.P. 460 163 000
ELBOW, ADAPTER (HOLDS ORIFICE) 460 276 000
PILOT ASSY. W/BRACKET 460 166 000

2

GAS PILOT DEFLECTOR SHIELD 890 265 570
VALVE, 3 POSITION 1/4" 460 286 A00
BUSHING, 3/8” X 1/4” 180 272 000
COUPLING, 1/2” X 3/8”

3

TUBING, S/S 3/8" X 60" 560 127 000
NUT, 3/8" COMP. 180 330 000
SLEEVE, (FERRULE) 3/8" COMP. 180 169 000
KNOB, CHROME 300 231 000
PLUG STEEL 300 513 000 4
PLUG STEEL, 1 3/4 300 514 000
VALVE, SINGLE PILOT 440 104 000
TUBING, S/S PILOT 1/4" X 60" 560 128 000

5

NUT, 1/4" X 60" 180 307 000
SLEEVE, (FERRULE) 3/8" COMP. 180 322 000
AIR PLENUM COVER 890 265 645

6

RACK, WIRE 140 229 000

7

HORIZONTAL FRAME, ASSY. (W/O WIRE SUPP.) 89Y 325 690

8

WIRE SUPPORT (ONLY) 890 225 693
VERTICAL FRAME, ASSY. (W/BEARINGS) 89Y 325 670

9

BEARING (ONLY) 300 519 000
CARRIAGE FRONT COVER 890 265 575
HANDLE 890 565 696 10
BRACKET, W/OUT SCREWS 300 104 000
SCREW, BRACKET 340 154 000
GREASE CATCHER 890 385 586

11

LARGE TRAY 890 385 590

12

GREASE CAN 890 265 581
STUD, GREASE CAN 890 265 584

13

SPLASH DIVIDER 890 265 580
MANIFOLD, ASSY. (W/VALVES) 940 158 B00

14

AIR PLENUM, ASSY 89Y 521 522

15

FILTER 200 612 000

16

BURNER AIR INLET SEAL PLATE 890 325 551

17

VERTICAL FLUE SEPARATOR BRKT. 890 385 595

18

MOTOR, BLOWER (135 CFM) 200 619 000
CORD, ELECTRIC ( 3 PRONG - 9" LONG) 200 439 000

19

CABLE, ELECTRIC (16/3 SJO. 36" LONG) 200 381 000
GROMMET, RUBBER 1 1/4" 340 136 000
SWITCH, POWER ON/OFF (W/LIGHT) 200 394 000

20

LABEL, ON/OFF SWITCH 240 488 000
INDEX, (RACHET) PLATE 890 265 650
KNOB, BLACK BALL (5/8"-18 THREAD) 300 485 000 21
HANDLE, CARRIAGE 890 265 680
LEG,6" 300 127 000
CASTER, NON-LOCKING 5" DIA. 300 191 000

22

CASTER, LOCKING 5" DIA. 300 302 000
VALVE, GAS SHUT OFF 3/4" 440 146 000

23

REGULATOR, 3/4" NG 460 135 000

24

REGULATOR, 3/4" LP. 460 134 000
