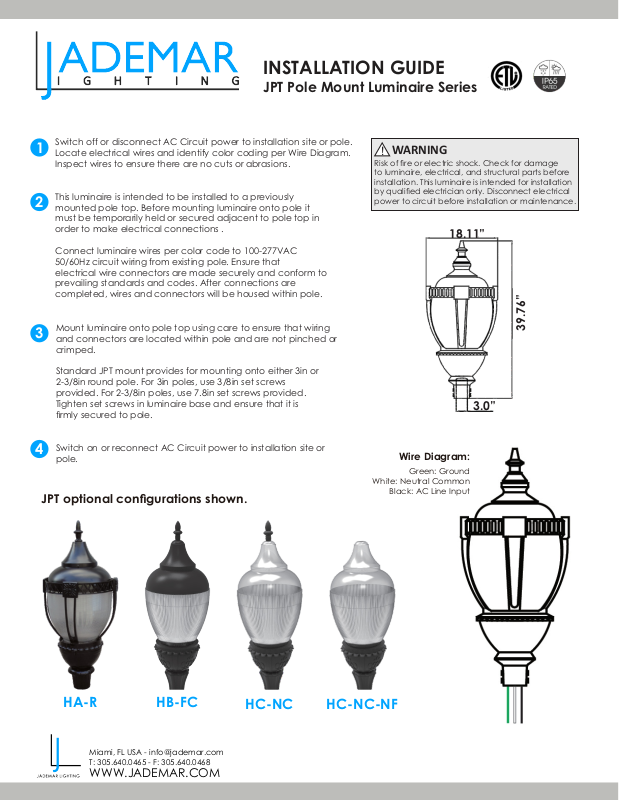

Jademar Lighting JPT User Manual

INSTALLATION GUIDE

JPT Pole Mount Luminaire Series

Switch off or disconnect AC Circuit power to installation site or pole.

1

Locate electrical wires and identify color coding per Wire Diagram.
Inspect wires to ensure there are no cuts or abrasions.

This luminaire is intended to be installed to a previously

2

mounted pole top. Before mounting luminaire onto pole it
must be temporarily held or secured adjacent to pole top in
order to make electrical connections .

Connect luminaire wires per color code to 100-277VAC
50/60Hz circuit wiring from existing pole. Ensure that
electrical wire connectors are made securely and conform to
prevailing standards and codes. After connections are
completed, wires and connectors will be housed within pole.

WARNING

!

Risk of re or electric shock. Check for damage
to luminaire, electrical, and structural parts before
installation. This luminaire is intended for installation
by qualied electrician only. Disconnect electrical
power to circuit before installation or maintenance.

18.11”

Mount luminaire onto pole top using care to ensure that wiring

3

and connectors are located within pole and are not pinched or
crimped.

Standard JPT mount provides for mounting onto either 3in or
2-3/8in round pole. For 3in poles, use 3/8in set screws
provided. For 2-3/8in poles, use 7.8in set screws provided.
Tighten set screws in luminaire base and ensure that it is
rmly secured to pole.

Switch on or reconnect AC Circuit power to installation site or

4

pole.

JPT optional congurations shown.

39.76”

3.0”

Wire Diagram:

Green: Ground

White: Neutral Common

Black: AC Line Input

HA-R HB-FC
