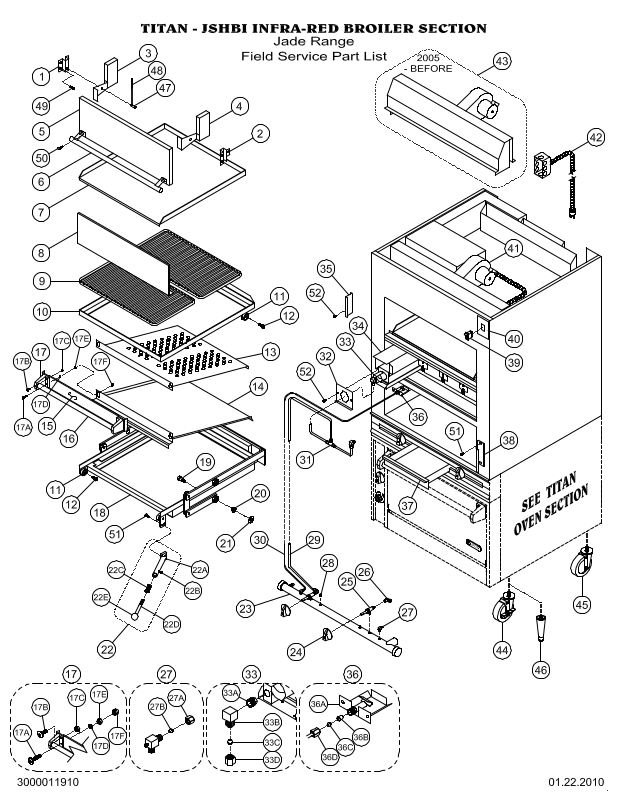

JSHBI - INFRA-RED BROILER SECTION
ITEM PART # LIST
1 8916900000
2 8916910000
3 2500010172
4 2500010173
5 8958100090
6 8957100090
7 8921400000
8 8926400000
9 1422900000
10 8957200090
11 3051900000
12 3452200000
13 2100002876
14 2100002875
15 8923900000
16 8935100000
17
3010400100
A BOLT, 1/4-20 x 1" 3425600000
B BOLT, 1/4-20 x 3/4" 3423100000
C NUT, SELF LOCKING, 1/4-20 3474100000
D WASHER, LOCK, EXTERNAL TOOTH 3474200000
E NUT, 1/4-20 3426200000
F NUT, ACORN, 1/4-20 3473900000
18 8957300090
19 3452100000
20 8930500000
21 2100000081
22
2500127432
A HANDLE WELD ASSY 2500127433
B SCREW, SHOULDER 3/8 DIA x 3/4" 3461800000
C CENT. SPRING #S-412 3052800000
D HANDLE, ROD 8928000000
E KNOB, PLASTIC BL #604 (5/8"-18 THREAD) 3048500000
23 9414700200
24 3023100200
1184265
25 3000011171
26 1831400000
27
4410400000
A SLEEVE, (FERRULE) 1/4" COMP. 1832200000
B NUT, 1/4" COMP. 1830700000
28 1813000000
29 5612500000
30 5612600000
31 1831100000
32 8923300000
33
1215300100
A ORIFICE #40, NAT 4610300000
ORIFICE #52, LP 4631400000
B ELBOW ADAPTER (HOLDS ORIFICE) 4627600000
C SLEEVE, (FERRULE) 3/8" COMP. 1816900000
D NUT, 3/8" COMP. 1833000000
TUBING, 1/4" x .028 RIGID S/S (SOLD BY THE INCH)
TEE, COMP 3/8
GREASE CATCHER, TRAVELING
CARRIAGE FRONT COVER
HANDLE, BAR
SPACER, BUSHING
HANDLE, CARRIAGE, ASSY
HANDLE BRACKET
VERTICAL (elevator) FRAME, ASSY W/BEARING
HANDLE W/BRACKET (WARMING OVEN)
DRIP TRAY FILTER
BOTTOM PAN (WARMING OVEN)
AIR PLENUM COVER
RACK, WIRE (cooking grid)
HORIZONTAL (drawer) FRAME, ASSY
BALL BEARING
SHOULDER BOLT (small)
DESCRIPTION
BRACKET, DOOR RIGHT SIDE
DOOR HINGE W/WEIGHT, ASSY LEFT
DOOR HINGE W/WEIGHT, ASSY RIGHT
BRACKET, DOOR LEFT SIDE
DOOR, WARMING OVEN
ADAPTER ELBOW 3/8" x 1/4 FNPT
VALVE, SINGLE PILOT - ADJUSTABLE (1/4CC x 1/8 NPT)
BOLT, SHD, SOCKET 3/4 x 5/8
BUSHING 5/8
MANIFOLD - T (JTRH-4-36)
KNOB, CHROME (JADE)
KNOB, CHROME, NEW STYLE (RED STRIPE)
TUBING, S/S 3/8" (SOLD BY THE INCH)
BURNER, INFRA-RED W/NG. ORIFICE
GAS VALVE, 2 POSITION 1/4"
PLUG, 1/8 HX HD BLK
BURNER AIR INLET SEAL PLATE
Continue next page
JSHBI - INFRA-RED BROILER SECTION
ITEM PART # LIST
34 8937100000
35 8929500000
36
2500128145
A GAS PILOT DEFLECTOR SHIELD 8923800000
B ORIFICE BELL, NAT #18 4617900000
ORIFICE BELL, LP #10 4623700000
C SLEEVE, (FERRULE) 1/4" COMP. 1832200000
D NUT, 1/4" COMP. 1830700000
37 8931600000
38 8926500000
39 2039200000
40 2448800000
41 3000010267
42 2500129081
43 8400104000
44 3000011271
45 3000011272
46 3012700000
47 3459600000
48 3429400000
49 3444200000
50 3463400000
51 3423100000
52 3412300000
02.12.2010
SCREW, #10 x 1/2 HX ZN TK
SCREW, 1/4-20 x 3/4 PH FILL ZN
BOLT, 1/4-20 x 3/4 HCS ZN
LEG 6"
BLOWER, MOTOR ONLY (75 CFM)
BOLT, 1/4-20 x 1/2 HX ZN
BLOWER KIT W/PLENTUM ADAPTER (for units 2005 & before)
CORD / PLUG ASSY
SWITCH LABEL, ON/OFF
PILOT ASSY W/BRACKET
DESCRIPTION
LATCH PLATE (FOR CARRIAGE)
SHIELD
GREASE DRAWER
3000011910
PIN, 1/8 x 1 1/2, COTTER
ON/OFF SWITCH, BLOWER W/LIGHT
CASTER, LOCKING 5" DIA
CASTER, NON-LOCKING 5" DIA
CLEVIS PIN 1/2 DIA. x 1"
HEAT SHIELD, BURNER
