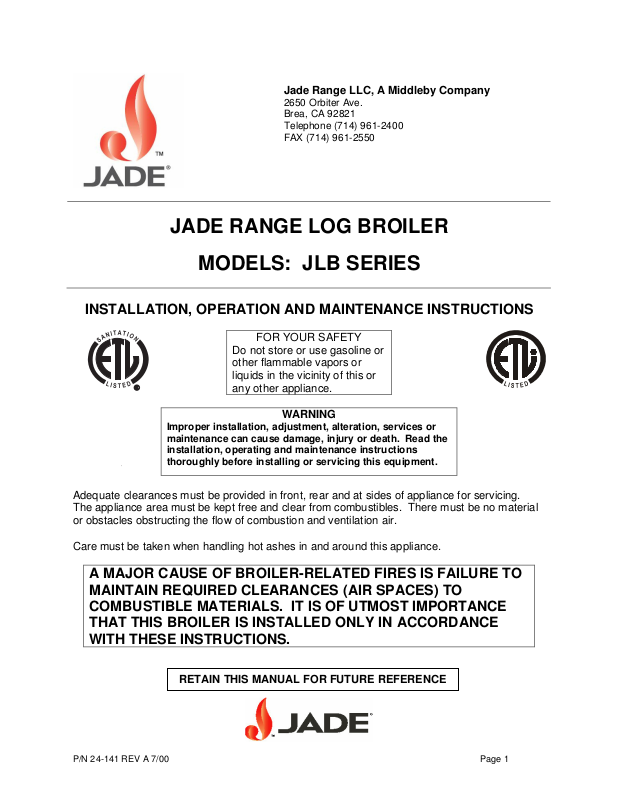

Jade Range LLC, A Middleby Company
2650 Orbiter Ave.
Brea, CA 92821
Telephone (714) 961-2400
FAX (714) 961-2550
JADE RANGE LOG BROILER
MODELS: JLB SERIES
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
FOR YOUR SAFETY
Do not store or use gasoline or
other flammable vapors or
liquids in the vicinity of this or
any other appliance.
WARNING
Improper installation, adjustment, alteration, services or
maintenance can cause damage, injury or death. Read the
installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
Adequate clearances must be provided in front, rear and at sides of appliance for servicing.
The appliance area must be kept free and clear from combustibles. There must be no material
or obstacles obstructing the flow of combustion and ventilation air.
Care must be taken when handling hot ashes in and around this appliance.
A MAJOR CAUSE OF BROILER-RELATED FIRES IS FAILURE TO
MAINTAIN REQUIRED CLEARANCES (AIR SPACES) TO
COMBUSTIBLE MATERIALS. IT IS OF UTMOST IMPORTANCE
THAT THIS BROILER IS INSTALLED ONLY IN ACCORDANCE
WITH THESE INSTRUCTIONS.
P/N 24-141 REV A 7/00 Page 1
RETAIN THIS MANUAL FOR FUTURE REFERENCE
INSERT FULL PAGE DIAGRAM
P/N 24-141 REV A 7/00 Page 2
INSERT FULL PAGE DIAGRAM
P/N 24-141 REV A 7/00 Page 3
INSTALLATION
WARNING: FOR ANY TYPE OF INSTALLATION, THIS UNIT
MUST NOT BE
IF THIS BROILER IS NOT PROPERLY INSTALLED, A FIRE MAY RESULT. TO REDUCE
THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS.
TO THE INSTALLER: Please contact local building or fire officials concerning any
installation restrictions or need for inspection of the broiler installation.
The broiler, when installed, must conform to all local and national solid fuel burning
equipment codes.
This cooking equipment is to be provided with an exhaust hood tested for compliance with
the standard for ventilation control and fire protection of commercial cooking operations,
NPFA 96, or with the requirements in the standard for exhaust hoods for commercial
cooking equipment, UL 710.
WARNING: THE BROILER IS NOT TO BE ON CASTERS.
1. Uncrate the unit and put into place.
2. For combustible or noncombustible surface installations, follow clearances and instructions
specified in this manual. Unit should not be installed next to a Deep Fat Fryer.
3. Adequate combustion/make-up air must be provided to replace the air that is being
exhausted by the hood system.
4. Only steel baffle-type grease extractors are to be used.
5. DO NOT USE MESH-TYPE FILTERS.
INSTALLED OR MAINTAINED AT LESS THAN THE MINIMUM CLEARANCES.
The unit must be installed on a noncombustible floor and below a noncombustible ceiling only.
For purposes of this manual, “Noncombustible Material” means consisting entirely of brick,
concrete, cinder block, or metal. For more details, refer to NFPA Code ANSI Z223.1-1992,
NFPA S4-1992.
Installation instruction for converting combustible to modified combustible surfaces using
Marinite board, steel studs and stainless steel sheets are as follows.
• Metal studs must run vertically, approximately 20 inch on centers. The Marinite board must
terminate 1 inch beyond the metal studs at all joints behind the unit (see Figure 1).
P/N 24-141 REV A 7/00 Page 4
Insert Figure 1
a. The Marinite board to be used is Marinite Type I, ½ inch thick. It is to cover the back
and side walls of installation, and extends a minimum of 24 inches beyond each side of
the unit. It must start 6 inches above the floor and continue up into the attic space. It
must be ventilated along the bottom and top.
b. The Marinite board is to be covered by stainless steel. The stainless steel sheets must
connect with a joint that faces outward, away from the wall. The stainless steel must not
wrap around the edges of each Marinite panel at its joint (see Figure 3).
The side wall terminations of the Marinite must be fully protected by the stainless. The
stainless, in this location only, is to wrap around the edge of the Marinite and continue to
the wall (90° bend over the edge and continue to the wall).
Note that in some area, the health codes may not allow the 6-inch opening along bottom.
In such cases, it will be acceptable to extend the stainless steel protector totally to the
floor, but the top of Marinite wall must remain open for ventilation.
1. The ceiling is to be noncombustible (as defined by NFPA 54, National Fuel Gas Code) or, if
the unit is to be installed in an island, the noncombustible ceiling must extend a minimum of
4 feet beyond all sides of the unit.
2. The base of the hood is to be located a maximum of 48 inches above the top of the unit. It
must be a Type I hood and installed per the Uniform Mechanical Code. The hood can only
serve the wood-burning appliance. Per the NFPA, the minimum clearance to the face of the
filters shall be 48 inches as measured from the cooking surface.
INSERT FIGURE 2
Attachment of the Marinite to the steel studs can be made with 1” drywall screws
as follows: 1) along the bottom edge, 2) any location up to 36 inches above the
floor, and 3) 2 inches from the top.
P/N 24-141 REV A 7/00 Page 5
The stainless steel is to be secured to the Marinite using a clip at the top. Some
screws can be used up to 36 inches above the floor.
Examples of how the back corner can be made.
INSERT FIGURE 3
Examples of how the bottom edge of the stainless steel might be made.
INSERT FIGURE 4
Examples of how the top of the stainless steel might be made.
INSERT FIGURE 5
P/N 24-141 REV A 7/00 Page 6
OPERATING INSTRUCTIONS
WARNING: Read all instructions carefully. Improper use of this appliance may result in a
building fire or personal injury. Instructions must be read and thoroughly understood by all
operating and supervising personnel.
Exhaust hood must be in operation during firing of broiler.
This unit is designed as a wood or charcoal-burning broiler for cooking food products only.
Do not use broiler for any other purpose. Install and use only in accordance with installation
and operating instructions.
During operation the broiler surfaces and body may reach high temperatures. Extreme
caution should be taken to prevent burns.
For use with solid wood or charcoal fuel only.
Keep a proper fire extinguisher close to the broiler at all times. Extinguisher must be rated
for use on wood fires. Instruct all personnel about location and use of the fire extinguisher
and proper fire emergency procedures.
Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or similar
liquids to start or “freshen up” a fire in this broiler. Keep all such liquids away from the
broiler while it is in use.
Keep feed doors closed except when adding fuel.
OPERATION
1. Burn only seasoned or dried solid wood fuel in the broiler. DO NOT BURN OTHER FUELS
IN THE BROILER. DO NOT BURN TRASH OR GARBAGE.
2. Firewood stored in the vicinity of the broiler must be kept in a tightly covered metal
container. See Maintenance Instructions.
Keep firewood container closed at all times when not adding or removing firewood. Keep
container a considerable distance from the broiler and far away from sources of heat or
ignition. DO NOT store matches, paper or other easily ignited items with the firewood.
EXTREME CAUTION MUST BE TAKEN TO KEEP COALS, HOT ASHES, AND OTHER
SOURCES OF COMBUSTION AWAY FROM THE FIREWOOD. IF COALS OR ASHES
FALL INTO THE FIREWOOD, BRUSH AWAY ASHES IMMEDIATELY AND THEN
REMOVE AFFECTED FIREWOOD FROM THE BUILDING AND PLACE AWAY FROM ALL
COMBUSTIBLES.
3. Provisions must be made to supply sufficient combustion air into the structure when using
this appliance. Make-up air supply and vent hood must be “ON” at all times during firing of
the broiler. If hood blower fails, spread the fire out over the entire hearth to reduce the
P/N 24-141 REV A 7/00 Page 7
intensity of the fire in order to prevent the activation of the emergency fire suppression
CAUTION
LIQUI
DS AWAY FROM THE BRO
ILER WHILE IT IS IN
USE.
system. DO NOT ADD ADDITIONAL FUEL UNTIL THE EXHAUST SYSTEM IS BACK IN
OPERATION.
4. Use only noncombustible hearth tools and cooking implements inside the broiler. Store
implements well away from all combustible materials in a proper fixture that will capture any
ashes or hot coals, which may be carried out of the broiler on the implements.
5. Starting A Fire
a. Before starting, turn exhaust system and make-up air supply “ON.”
b. Place a small amount of wadded paper or a fire starter at the bottom center of the unit.
Place kindling over the starter. Light with match.
KEROSENE, CHARCOAL LIGHTER FLUID, OR SIMILAR LIQUIDS TO
START OR “FRESHEN UP” A FIRE IN THIS BROILER. KEEP ALL SUCH
: NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL,
c. When the kindling is burning well, add larger pieces of firewood. USE WELL
SEASONED OR DRIED WOOD ONLY.
d. Continue to add wood as needed to maintain the desired heating rate, being careful to
never overfire the unit.
e. When finished cooking, spread remaining wood and coals around back and center of
bottom so that there is space between pieces. Unit must be attended until fire is
completely extinguished. Switch hood system “OFF” only after fire is completely
extinguished.
f. DO NOT OVERFIRE. IF FLAME SPILLS MORE THAN 1 ½ FEET ABOVE BROILER
OR BROILER STARTS GLOWING INSIDE, YOU ARE OVERFIRING.
6. CAUTION: Many structure fires have resulted when a fire has been left unattended such as
when “banking” a fire for a long overnight burn. This broiler is intended for attended
operation only. Trained personnel must attend and closely supervise the broiler at all times
during firing.
DO NOT LEAVE AN UNATTENDED FIRE IN THE BROILER. WAIT UNTIL FIRE IS
EXTINGUISHED BEFORE LEAVING UNIT UNATTENDED.
7. Always keep the area around the unit clear of combustible objects.
A MINMUM CLEARANCE TO COMBUSTIBLE MATERIALS OF 30 INCHES IN FRONT OF
THE BROILER MUST BE MAINTAINED AT ALL TIMES.
P/N 24-141 REV A 7/00 Page 8
8. READ MAINTENANCE INSTRUCTIONS COMPLETELY.
9. File these instructions for future reference.
MAINTENANCE INSTRUCTIONS
WARNING: READ ALL INSTRUCTIONS CAREFULLY AND COMPLETELY. IMPROPER USE
OR IMPROPER MAINTENANCE OF THIS APPLIANCE MAY RESULT IN A BUILDING FIRE
OR PERSONAL INJURY.
1. Always keep the area around the unit clean and clear of all combustible materials. Keep all
furnishings, wood and other combustible objects a considerable distance away from the
broiler.
2. Ashes should be removed when cold if possible. Ashes must be placed in a metal container
with a tight fitting lid. The closed container of ashes must be placed on a noncombustible
floor or on the ground, well away from all combustible materials, pending final disposal. If
the ashes are disposed of by burial in soil or otherwise locally dispersed, they should be
retained in the closed container until all cinders have thoroughly cooked.
DO NOT STORE ASHES BENEATH UNIT OR ADJACENT WOOD STORAGE.
3. Store wood in cool, dry place well away from any source of flame or heat. If stored outside,
keep the wood covered to protect from rain or snow. If stored inside (e.g., same room as
the broiler), wood should be kept in a covered metal container at least 6 inches above the
floor. Keep paper, rags, and other easily ignited materials away from the wood supply.
Small amounts of firewood may be stored in the same room as the broiler during actual
attended use of the broiler only. When storing wood in the same room as the unit, place in a
proper covered metal storage container standing at least 6 inches above the floor. Keep the
container a considerable distance from the unit and far from any source of heat or ignition.
Do not store wood, matches or other combustibles above the unit. Remove the firewood
and container from the building when the broiler is not in use and store in a proper manner
away from other firewood and other combustible materials.
DO NOT STORE FUEL, MATCHES OR OTHER COMBUSTIBLES NEAR FIREWOOD OR
THE BROILER. EXTREME CAUTION MUST BE TAKEN TO KEEP COALS, HOT ASHES,
AND OTHER SOURCES OF COMBUSTION AWAY FROM THE FIREWOOD. IF COALS
OR ASHES FALL INTO THE FIREWOOD, REMOVE ASHES IMMEDIATELY AND THEN
REMOVE AFFECTED FIREWOOD FROM THE BUILDING.
4. At the end of each shift, or sooner if needed, the area around the unit must be thoroughly
cleaned of all wood, wood shavings, coals, ashes and other refuse. All mats (if present,
mats must be noncombustible) must be picked up and the floor and mats carefully swept
during this clean up. After clean-up around the unit, brooms should be wet down thoroughly
to extinguish hot coals, then stored away from combustible materials.
5. The broiler, grease hood and grease extractors should be cleaned on a daily basis. The
filters can be removed and cleaned in a dishwasher or sink.
P/N 24-141 REV A 7/00 Page 9
DO NOT CLEAN UNIT, HOOD OR VENT SYSTEM WHILE HOT OR WHILE THE BROILER
IS BEING FIRED. REFER TO EXHAUST HOOD MANUFACTURER’S
RECOMMENDATIONS FOR INSPECTION, MAINTENANCE AND CLEANING.
6. The entire unit and vent system should be inspected frequently for proper fit, operation and
soundness of parts. If any malfunctioning parts, leakage, deterioration, or other problems
are noted, contact your dealer to inspect and repair the unit, or qualified ventilation repair
service to inspect and repair the vent system. DO NOT OPERATE THE BROILER IF ANY
PART OF THE SYSTEM IS FUNCTIONING IMPROPERLY.
7. IF ANY FIREBRICK IS MISSING, IT SHOULD BE REPLACED BEFORE OPERATING THE
BROILER.
8. Qualified personnel must perform all maintenance only.
9. Do not use products not specified for use with this broiler.
10. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
P/N 24-141 REV A 7/00 Page 10
Loading...
