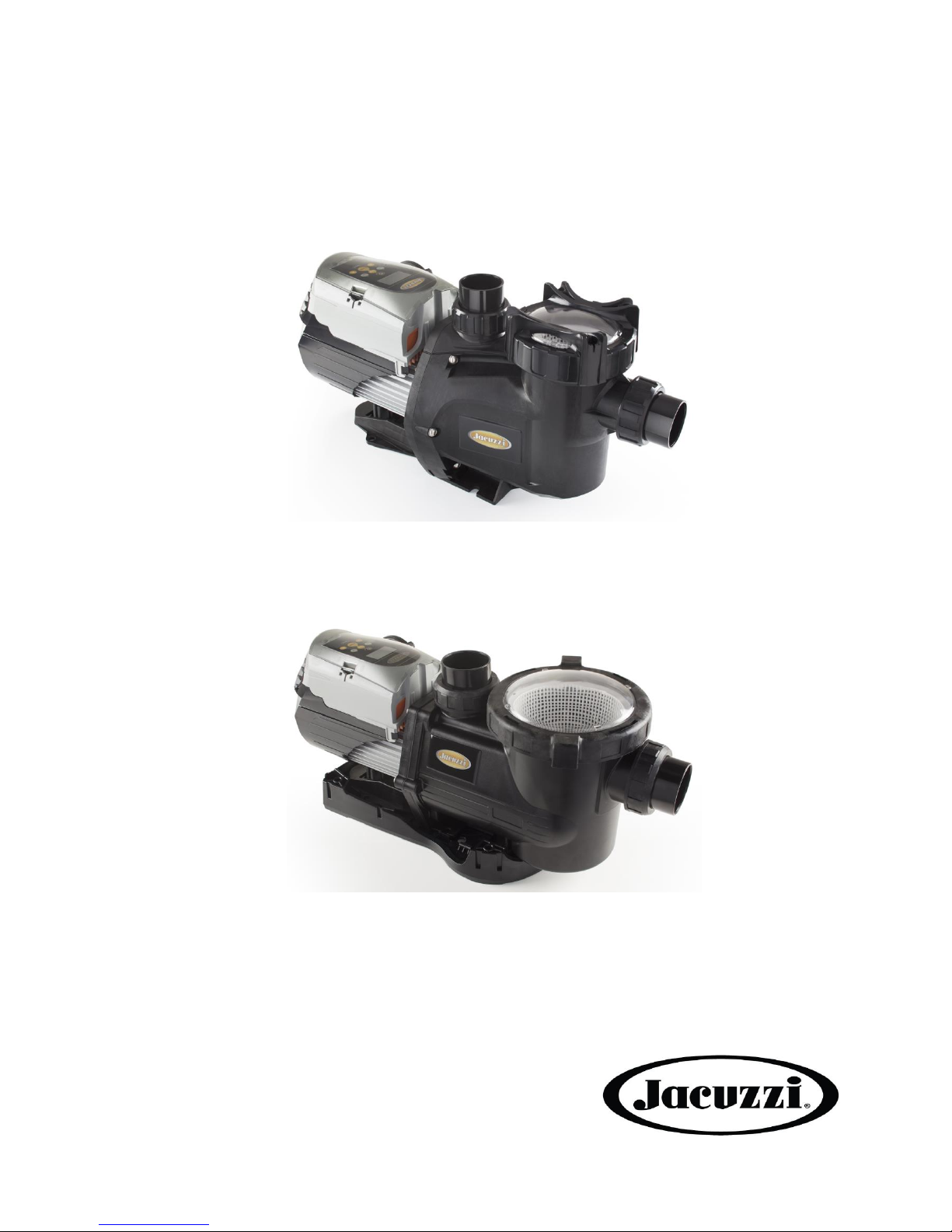

Jacuzzi®
JVX160, JVX300 Pump
Installation and Operating Instructions
INST 448 Jacuzzi® JVX Series Pool pump V10-17
2
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL
WARNING: Before installing this product. Read and follow all warning notices and instructions accompanying
this pump. Failure to follow safety warnings and instructions can result in severe injury, death or property damage
WARNING: To reduce the risk of injury, do not permit children to use this product unless they are closely
supervised at all times.
WARNING: RISK OF ELECTRIC SHOCK.
Connect only to a branch circuit protected by a ground-fault circuit interrupter (GFCI) Contact a qualified electrician, if you
cannot verify that the circuit is protected by a GFCI” and “ATTENTION: CONNECTER UNIQUEMENT A UN CIRCUIT
PROTÉGÉ PAR UN DISJONCTEUR DIFFERENTIEL DE CLASSE A” This marking is to be installed where it is visible during
installation.
The unit must be connected only to a supply circuit that is protected by a ground-fault circuit-interrupter (GFCI). Such a
GFCI should be provided by the installer and should be tested on a routine basis. To test the GFCI, push the test button.
The GFCI should interrupt power. Push the reset button. Power should be restored. If the GFCI fails to operate in this
manner, the GFCI is defective. If the GFCI interrupts power without the test button being pushed, a ground current is
flowing, indicating the possibility of an electric shock. Do not use this pump. Disconnect the pump and have the problem
corrected by a qualified service representative before using.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, REPLACE DAMAGED CORD IMMEDIATELY
CAUTION: This pump is for use with permanently installed pools and may be used with hot tubs and spas if so
marked. Do not use with storable pools, tubs. A permanently installed pool is constructed in or on the ground or in a
building such that it cannot be readily disassembled for storage. A storable pool is constructed so that it may be readily
disassembled for storage and reassembled to its original integrity.
SAVE THESE INSTRUCTIONS
LISTED AND TESTED BASED ON
UL 1081
INST 448 Jacuzzi® JVX Series Pool pump V10-17
3
GENERAL
The Jacuzzi® JVX Series Pool Pumps have a unique variable-speed AC motor combined with an energy efficient
pump wet end. When installed and plumbed correctly, the Jacuzzi® JVX Series Pool Pump will significantly
reduce operating costs, lower noise levels and reduce greenhouse emissions.
When you receive the pump, check the carton for damage. Open the carton and check the pump for concealed damage,
such as cracks, dents, or a bent base. If you find damage, contact the shipper or the distributor where the pump was
purchased.
The pump must be placed on a solid foundation that will not vibrate, Jacuzzi® recommends bolting the pump to the
foundation and providing adequate drainage should any leaks develop.
The Jacuzzi® JVX Series Pool Pump range is available in a variety of models, with the following factory set speeds
which offer approximate flow rates:
Model
Voltage
High
Medium
Low
Jacuzzi®
JVX160
220 VAC
110 VAC
72 gpm
3075 RPM
64 gpm
2850 RPM
49 gpm
2000 RPM
49 gpm
2000 RPM
40 gpm
1325 RPM
40 gpm
1325 RPM
Jacuzzi®
JVX300
220 VAC
110 VAC
82 gpm
3400 RPM
68 GPM
2850 RPM
54 gpm
2000 RPM
54 gpm
2000 RPM
38 gpm
1150 RPM
38 gpm
1150 RPM
(Flow rates based on a maximum speed at 26 feet total dynamic head).
Each speed can be easily changed to suit your pool size, filter, plumbing and application. The Jacuzzi® JVX Series
Pool pump must be installed by a pool professional trained by Jacuzzi® to ensure it has been selected for the
correct application, correctly installed and set up to suit your pool and its operation fully explained to you.
FEATURES
- Continuous duty rated motor
- Timers and pump speed can be controlled using Bluetooth from compatible phones, tablets etc (JVX300
only)
- Precision reinforced moulded high head impeller, giving extra performance
- Single piece moulded body for added strength and longer life
- Rapid priming diffuser quickly corrects loss of water flow
- Quick and easy disassembly for servicing
- Large capacity basket with easily removed ramp on lid
- Ability to adjust factory pre-set speeds for optimum water flow and maximum energy savings for your
pool and its equipment.
WARNING
Jacuzzi® JVX Series Pool pumps include PCB’s and microchips. It is necessary to turn power off completely for 10
seconds before turning pump back on again. Some brands of chlorinators may bleed a small amount of power into the
Jacuzzi® JVX Series Pool pump even when the pump off mode is selected. If this occurs, the Jacuzzi® JVX Series Pool
pump may not reset correctly and may not start until power is disconnected completely. In some cases, the manufacturer
of these chlorinators may be able to remove or change a capacitor in the chlorinator which will completely disconnect
power to the pump when turned off. If not, a suitable chlorinator may be required to be purchased. Jacuzzi® J-SS40
chlorinators completely disconnect power to the pump when the pump off mode is selected.
INST 448 Jacuzzi® JVX Series Pool pump V10-17
4
SAFETY INSTRUCTIONS
GENERAL
When you receive the pump, check the carton for damage. Open the carton and check the pump for concealed damage,
such as cracks, dents, or a bent base. If you find damage, contact the shipper or the distributor where the pump was
purchased.
The pump must be placed on a solid foundation that will not vibrate, Jacuzzi® recommends bolting the pump to the
foundation and providing adequate drainage should any leaks develop.
ELECTRICAL
All electrical work must be performed by a licensed electrician and conform to all federal, state and local codes. When
installing and using this electrical equipment, basic safety precautions should always be followed, including the following:
The correct voltage and frequency as specified on the pump data plate is necessary for proper performance and long motor
life. Make sure that the wiring specification meets or exceeds the motor requirements (220V), see the following for
recommendations.
USE MINIMUM OF 14 GAUGE FOR SUPPLY WIRE SIZE UP TO 150 FT (220 VOLT)?
1. When in doubt, use a heavier gauge (larger diameter) wire, which helps the motor to run cooler and more
efficiently.
2. Make sure all electrical connections are clean and tight.
3. Cut wires to the appropriate length so they don’t overlap or touch when connected to the terminal board, and
insulate all connections carefully to prevent grounding or short circuits.
4. Permanently ground the motor using the green ground terminal located on the inside of the motor canopy, under
the access plate.
5. Use the correct wire size and type specified by the National Electrical Code, “NEC” (or Canadian Electric Code,
“CEC”, for Canada). Make sure the ground wire is connected to an electrical service ground.
6. Electrically bond the motor to the pool structure in accordance with the National Electrical Code) or Canadian
Electric Code for Canada). Use a solid No 8 AWG or larger copper conductor.
7. Additionally, run a wire from the external bonding point to the pool bonding structure following the NEC/CEC.
8. Connect the pump to a permanent/dedicated circuit. Make sure no other lights or appliances are on the same
circuit.
WARNING: make sure all electrical breakers and switches are turned off before wiring the motor
INSTALLATION
Proper ventilation is required for the pump to operate normally. Provide access for future service by leaving a
clear area around the pump. Allow plenty of space above the pump to remove the lid and lint basket for cleaning.
CAUTION: Pump automatically restarts after high limit resets. Disconnect power to pump before any
maintenance or service
INST 448 Jacuzzi® JVX Series Pool pump V10-17
5
This appliance must be installed by a trained pool professional service technician. When installing the appliance,
ensure all parts are installed in the correct zone in accordance with the wiring rules.
A. Plan position of pump so that it will be:
1. Free of water flooding, such as in a sump, garden hollow, ditch or at bottom of bank with run off.
2. On a stable base so that:
a) The pump is not left suspended by its fittings, causing a leak or failure with loss of water.
b) Movement through vibration is restricted
c) No strain is put on attaching pipe or other expensive equipment
3. Accessible for maintenance and easily removed for service.
4. Breathing space. Pump should not be crowded which will prevent cooling airflow from fan.
Overheating due to lack of cooling voids warranty.
5. Within reach of power point without extension/plugs liable to corrosion, shorting, etc.
6. At a minimum height of suction lift of water from pool surface to pump inlet.
B. For best pump performance keep suction pipe length as short as possible with minimum number of
bends and use 2” high pressure PVC suction and return pipe. All equipment such as filters, heaters,
chlorinators must have a minimum of 2”connections.
C. Secure the barrel unions supplied into the attaching pipe work, using approved priming fluid and solvent
cement as normal practice, coating both surfaces. NOTE: Always wear protective gloves when handling
and using glue and priming fluid. Ensure no excess adhesive runs into the union proper affecting the
sealing or removal abilities. Do not drip glue on the pump body as it will mark it. Allow 24 hours to dry
before starting pump.
D. Install isolation valves before the pump section and after equipment, if the pump is below the water level
of the pool.
E. For pump installations 19” above water level, it generally requires a foot valve at the pool or check valve
in the suction line. Suction lines must be installed below water level until just in front of pump location
and vertical riser used to reach pump inlet. Jacuzzi® JVX Series Pool pumps are rated to a maximum
head of 82 feet however refer to your pumps data plate for actual achievable pressure
F. All pumps will operate quieter and perform more efficiently if a straight length of 17” pipe is plumbed
horizontally into the front of the pump.
G. Water temperature not to exceed 113ºF degrees
H. Pumps must be either
- supplied by an isolating transformer, or
- supplied through a residual current device (RCD) with a rated residual operating current not exceeding
30mA.
REPLACEMENT OF EXISTING PUMP
Jacuzzi® JVX Series Pool pumps can easily replace several other pumps including Pentair®,WhisperFlo® and Sta-Rite Max E
Pro®. To replace these pumps or their respected variable speed pumps use the Universal Base. The base increases the total
height of the pump and the height of the suction side of the pump.( WhisperFlo® and Sta-Rite Max E Pro® are registered
trademarks of Pentair® Water Pool and Spa,Inc) See Figure 2 below
(Figure 2) Universal Adjustable Base
