signa
the signa® pure air® II bath takes its name from the medieval central Italian walled city, lastra a signa.
®
6 pure air® II bath
Like the walled city for which it is named,
Signa® 5 was specially developed and
designed for walled surround spaces.
features:
• Exclusive 360º Balanced Airfl ow™ system
• 600 watt variable speed heated air blower
• Thermal Lumbar Comfort™ (TLC)
• Timed purge cycle
• Safely use salts and aromatic oils
• PrO3™ Sanitation System
signa® 6 pure air® II bath
model number: EA90 – RH Blower
exterior dimensions:
72" long x 42" wide x 22" high
interior dimensions (at bottom):
50" long x 24" wide
operating gallons:
81 gallons
Ordering Information
Product Code:
EA90 Signa® 6 Pure Air II Bath
Right Hand
• Center Drain Location
• Accessories / Hardware:
Trip-Lever Drain Kit #X559
Rotary Trip-Lever Drain Kit: #K606
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze
*72"
18-1/2" x 5"
42"
Blower
11 -
1/4"
5"
36"
Signa® 6 Pure Air® II Bath
Model: EA90
Installation Notes
Refer to installation instructions included with fi xture before beginning installation.
Please confi rm product availability and specifi cations before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Technical Specifi cations
Dimensions
72” L x 42” W x 22” H
(1829 mm) L x (1067 mm) W x (559 mm) H
Drain/Overfl ow
A: 16-7/8” (429 mm) B: 14” (356 mm)
Cutout
70” x 40” (1778 mm x 1016 mm)
Total Weight
1287 lb (584 kg)/61.3 lb/ft2 (299 kg/m2)
Operating Gallonage
81 U.S. Gal. (307 Liters)
Min. 62 U.S. gal (235 liters)
Max. 103 U.S. gal (389 liters)
Product Weight
154 lb (70 kg)
Skirt Mounting
Not Available
12" H x 18" L
Service Access
12-1/2"
Opt.
Service Access
Electrical Specifi cations
Requires a dedicated GFCI protected separate circuit.
Blower: 120 VAC, 15 AMP, 60 Hz.
Heater
No water heater is available on this unit. Blower has integral air heater.

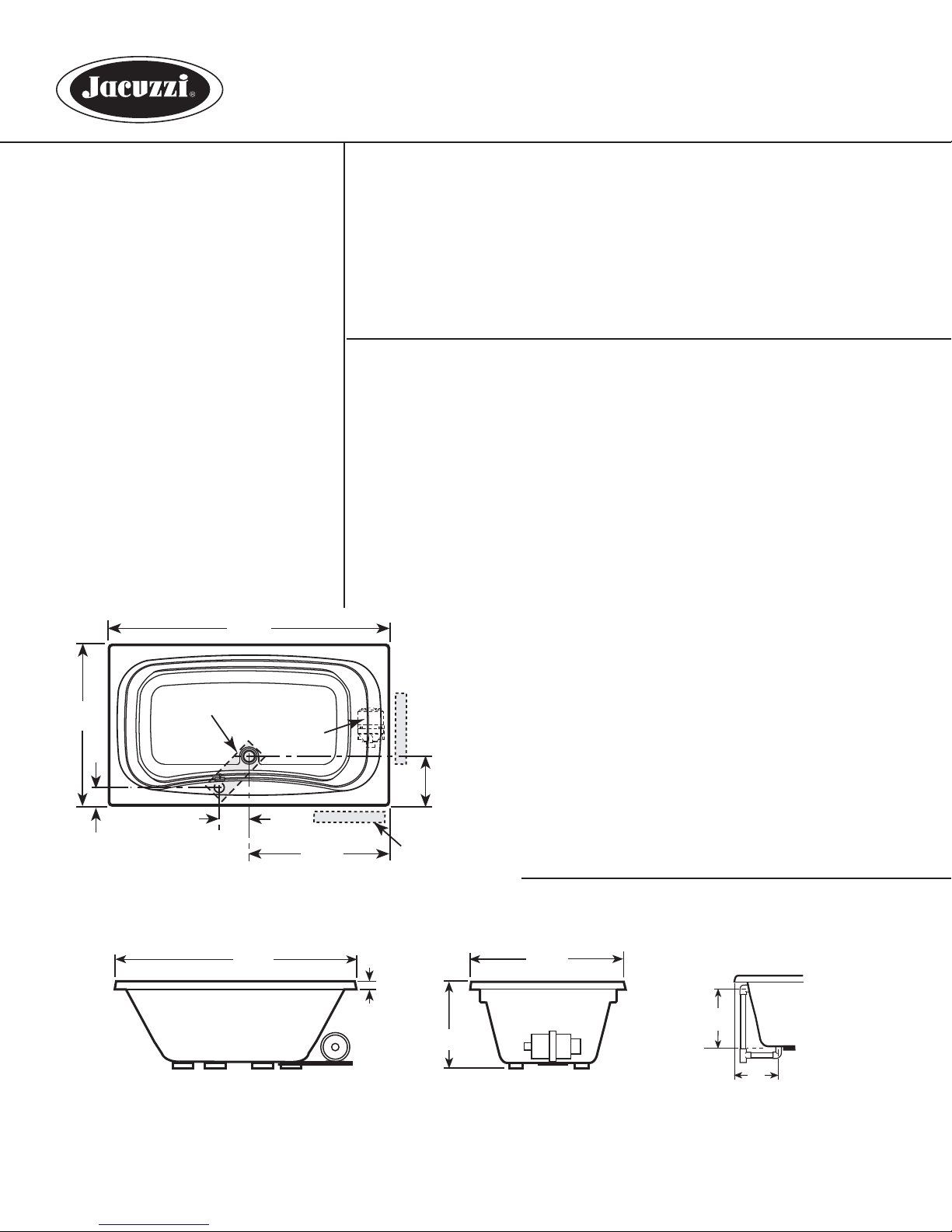

Product Shown: Signa® 6 Pure Air II Bath Right Hand Model: EA90
* Measurements inside unit represent cutout in fl oor to allow for drain/overfl ow.
Minimum Service Access dimensions given.
72
"
SIDE VIEW
SIGNA® 6, RIGHT HAND AIR BATH
#FQ94 06/07
© Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino • CA • 91710 • www.jacuzzi.com
2"
(51 mm)
22"
42
END VIEW
"
A
B
DRAIN/OVERFLOW
