SEDONA™
Steam & Shower Base
INSTALLATION/OPERATING INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
READ ALL INSTALLATION INSTRUCTIONS
Jacuzzi Whirlpool Bath does not recommend prolonged periods of use of the steamer. Prolonged use of the steam
system can raise excessively the internal human body temperature and impair the body’s ability to regulate its internal
temperature (hyperthermia). Consult your physician about your safety and comfort before using the steam system.
Limit your use of steam to 10–15 minutes until you are certain of your body’s reaction. A cooling shower spray can
be used simultaneously with the steam to assist in regulating your body temperature.
Alcohol and certain drugs or medications, such as tranquilizers, affect a person’s ability to withstand high temperatures
and may produce dangerous side effects. Don’t use alcohol or drugs when using steam.
The elderly, the infirm, and children should not use the steamer unattended. Pregnant women and people with heart
conditions should consult their physicians before using the steamer.
The wet surfaces of steam enclosures can be slippery. Use care when entering and exiting.
Do not place or use electrically connected devices, such as television, radio, or stereo speakers, lights, hair dryers,
or telephones, within 1.5 m (5 feet) of a steam enclosure, shower, or bath.
Read and follow manufacturer’s safety information with all optional equipment.
The steam head is hot. Do not touch the steam head or the steam within one foot distance of the head or surfaces
surrounding the steam head.
Do not block or obstruct the steam head in any manner.
Do not store or use flammable liquids near the steam generator.
Note: This is a professional grade product. A good knowledge of construction techniques, plumbing and
electrical installation according to codes are required for proper installation and user satisfaction. We
recommend that a licensed contractor perform the installation of all Jacuzzi Whirlpool Bath products. Our
warranty does not cover improper installation related problems.
Optional Accessories
• Steam Enclosure (U194865 Chrome Finish with Clear Glass, U194866 Brass Finish with Clear Glass.
U195865 Chrome Finish with Frosted Glass, U195866 Brass Finish with Frosted Glass
• Dome (U192000)
• Digital Controller with Timer and Temperature Sensor (S063829 Bright Brass). Chrome Standard with Unit.
• Automatic Drain Down Valve (S066000)
• Steam Nozzle (E203829 Brass). Chrome standard and installed on unit.
• Wall Mount Shower Set (C994959 White, C994829 Bright Brass, C994827 Chrome)
• Optica™ 100 Single Handle Mixer (C997959 White, C997829 Bright Brass, C997827 Chrome)
• Large Tear Drop Handle for Optica 100 (C998959 White, C998829 Bright Brass, C998827 Chrome)
• Bright Brass Strainer (A175829)
CONTENTS
Specifications _________________________________________________________________________ 2
Roughing-in Reference _________________________________________________________________ 2
Framing and Support ___________________________________________________________________ 3
Steam Enclosure _____________________________________________________________________ 4
SteamPro™ Drain Down Configurations ___________________________________________________ 4
Digital Control & Temperature Sensor Rough-in _____________________________________________ 5
Drain Information ______________________________________________________________________ 6
Plumbing and Water Supply ______________________________________________________________ 6
Electrical Connections___________________________________________________________________ 6
Digital Controller Mounting _______________________________________________________________ 7
Temperature Sensor Mounting ____________________________________________________________ 8
Flange Mounting _______________________________________________________________________ 8
Finish Materials ______________________________________________________________________ 8-9
Service Access _______________________________________________________________________ 9
Operation ____________________________________________________________________________ 10
Maintenance __________________________________________________________________________ 10
Troubleshooting _______________________________________________________________________ 11-12
SteamPro™ Wiring Diagram______________________________________________________________ 13
SteamPro™ Warranty __________________________________________________________________ 15-16
Base Warranty ________________________________________________________________________ 17-18
Save These Instructions for Future Use.
Owner's Record
Date Purchased ____________________________________________________________
Purchased From ____________________________________________________________
Installed By ________________________________________________________________
Serial Number (Base) ________________________________________________________
Serial Number (Steam Generator) ______________________________________________
Model ____________________________________________________________________
1
Important: Read complete instructions before beginning installation.
Each shower base is shipped with a drain and stainless steel strainer
Remove the shower base from the carton. Do not destroy the shipping carton until after satisfactory
inspection of the product.
Immediately upon receipt, inspect the base before installing. Should inspection reveal any damage or defect in the
finish, do not install the base. Damage or defect to the finish claimed after the base is installed is excluded from the
warranty. Jacuzzi Whirlpool Bath’s responsibility for shipping damage ceases upon delivery of the products in good
order to the carrier. Refer any claims for damage to the carrier. For definitions of warranty coverage and limitations,
refer to the published warranty information packaged with the product. Jacuzzi Whirlpool Bath is not responsible for
any defect that could have been discovered, repaired, or avoided by following this inspection and testing procedure.
Plan the installation in relation to the finished wall surfaces. Take into account the dimensions of both the shower
base and the shower door enclosure to be used with it.
NOTE: Damage or defects which could have been discovered and repaired prior to installation and which are claimed
after final installation of the product are excluded from our warranty.
SPECIFICATIONS
DIMENSIONS
60" (1524 mm) L
32" ( 813 mm) W
18-5/8" ( 473 mm) H
*SteamPro supplied with NEMA 6-50P plug. NEMA 6-50R receptacle required.
LOCATION FOR
INCOMING WATER
SUPPLY LINE TO
STEAMER (INSTALLED
AND PREPLUMBED
WITH 3/8" COPPER
TUBINGTO STEAM
GENERATOR WITH
SHUT OFF VALVE)
TOTAL WEIGHT/
FLOOR LOADING
310 lbs
(141 kg)
/23 lb/sq. ft.
(112 kg/sq. m)
PRODUCT
WEIGHT
110 lb
(50 kg)
ELECTRICAL
*230 VAC, 60 Hz.
40 AMP, 3 Wire
Requires a
Dedicated Separate
Circuit.
Product specifications are subject to change without notice.
60"
32"
16-5/8"
8-1/2"
45-3/8"
TOP VIEW
1" TILE FLANGE
RECEPTACLE
LOCATION
(RECEPTACLE T O BE
ACCESSIBLE FROM
SERVICE ACCESS)
STEAM
GENERATOR
SHUT OFF
VALVE
STEAM HEAD AND SHIELD
( PRE-INSTALLED AND
CONNECTED TO
STEAM GENERATOR)
(LEFT HAND UNIT SHOWN)
SIDE VIEW
2
18-5/8"
SERVICE
ACCESS
Framing and Support
The drain extends below the bottom of the base. Note that this requires a cutout in the floor.
The floor structure beneath the base must be able to support a total weight of base, and bather. The unit
must be supported from the bottom of the base and not from the tile flange. If the subfloor is level, no other preparation
is necessary. You can proceed to install the base. If the subfloor is not level, you MUST level the entire surface prior
to installing the base. The use of materials that shim or provide a level installation are allowed provided the method
used will ensure a level base that is supported from the bottom. Materials that may be used are a floor leveling
compound, mortar, plaster or minimal expansion structural foam having a minimum density of 5 lbs/cubic ft.; however
the base must remain level in order for it to drain properly and the foam feet must make full contact with the leveling
material. Both sides of a joint or splice of subfloor should be level to each other. When attaching the base flanges
to stud wall, use shims to fill any gaps between the tile flange and studs.
The shower base should be installed after construction of the studwall and after rough plumbing is in place using
the self drilling screws provided with your unit.
It is important that the framed pocket be plumb and square and that the framing members be located as detailed
in the framing illustration.
The protective film liner inside the base is used to prevent damage to the finish from shoes, tools, etc.
during installation. Before installation, remove liner to inspect for any defects, reapply and do not remove
until final cleanup.

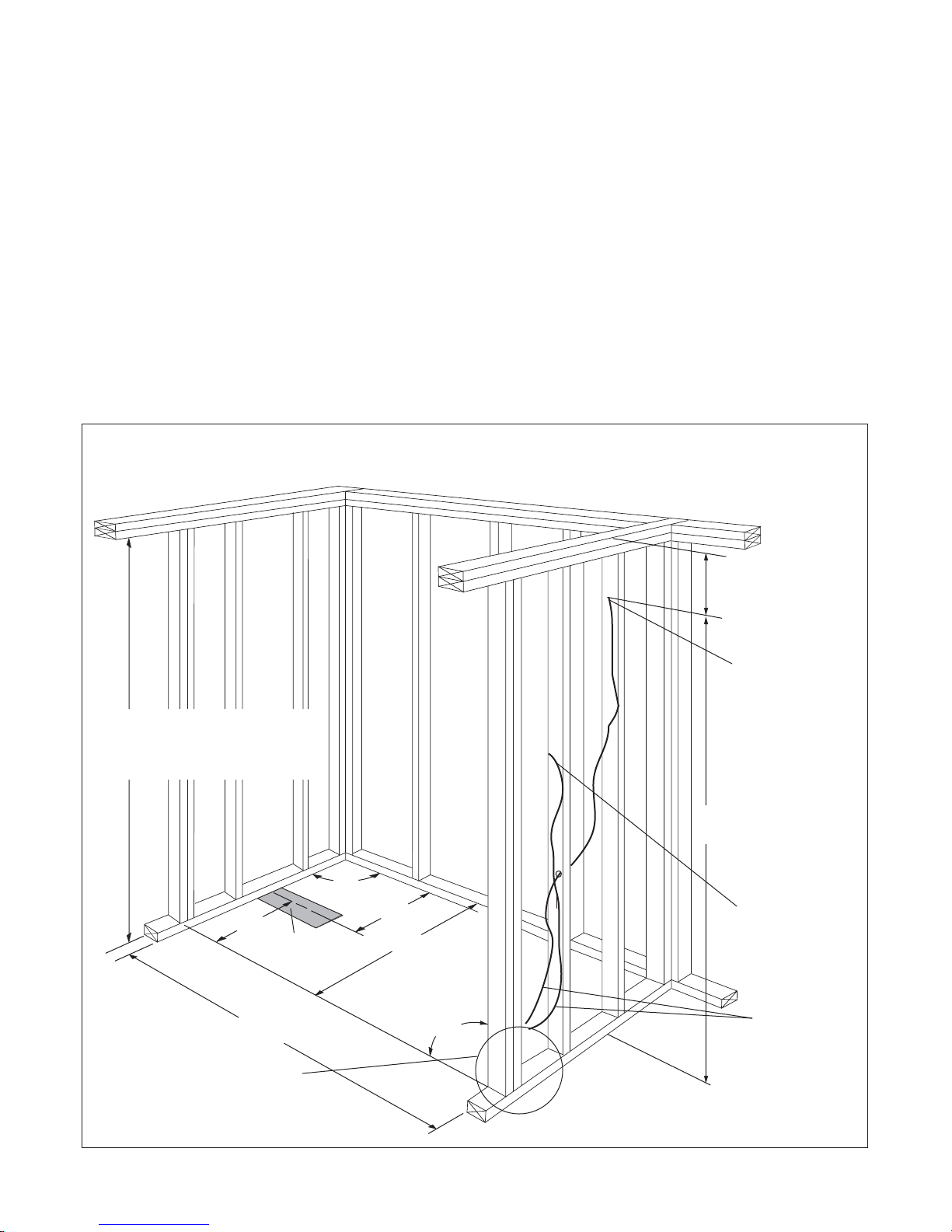

FRAMING AND ROUGH-IN DETAILS
(FOR LEFT HAND UNIT)
HEIGHT OF UNIT WITH
JACUZZI WHIRLPOOL BATH
STEAM ENCLOSURE: 83-3/8" ±1/4".
WITH DOME ADD 2" ±1/4"
17-7/8"
10-1/2" x 5"
DRAIN CUT-OUT
FRONT OF DOUBLE STUDS
60-1/4"
90º
15-3/8"
33-1/4"
SUB-FLOOR
90º
MINIMUM 6"
FROM FINISHED
CEILING
OR BOTTOM OF
OPTIONAL DOME
TO
TEMPERATURE
SENSOR
LOCATION
MAXIMUM 7'
FROM FLOOR
TO DIGITAL
CONTROLLER
LOCATION
FROM STEAM
GENERATOR
AREA FOR DRAIN OF STEAM
GENERAT OR WITH MANUAL OR
OPTIONAL AUTOMA TIC V AL VE.
EXACT LOCATION TO BE
DETERMINED BY INSTALLER
3
DOME
2" DOME HEIGHT
NOTE: ADDITIONAL 2" REQUIRED
TO INSTALL OR REMOVE DOME
TOP OF
ENCLOSURE
HEADER
85-3/8"
UNIT WITH JACUZZI WHIRLPOOL BATH OPTIONAL STEAM ENCLOSURE
77-1/2"
12-3/4"
5-7/8"
TOP OF THRESHOLD
Drain Down Locations
There are several locations (left hand unit shown) where the optional automatic valve may be located when
connecting to a drain line as shown in illustration. Right hand unit is mirror image. Exact location to be determined
by installer.
The manual drain valve can be moved from its current position when connecting to a drain line.
To allow steam generator removal for maintenance or service, use a straight union.
STEAM GENERATOR
DRAIN DOWN VALVE
MOUNTED VERTICALLY
REQUIRES CUT-OUT
IN FLOOR
FLOW DIRECTION
OPTIONAL AUTOMA TIC
DRAIN DOWN VALVE
DRAIN
DOWN
OUTLET
THIS LOCATION MAY REQUIRE
CUT OUT IN STUD WALL
4
