gallery™ corner whirlpool bath and soaking bath
like its namesake, the gallery™ whirlpool bath is a place of reverence—a haven suited for quiet refl ection.
The Gallery™ is a work of art a clean,
stylish well of relaxation, ideal for quiet
contemplation.
whirlpool bath features:
• 4 Fully adjustable TheraPro® jets
• 2 adjustable AccuPro™ jets
• Exclusive Tru-Level™ self-leveling base system
• Slip-resistant bottom
• Sculpted armrest
• Contoured backrest
• Drain included on whirlpool baths
• Patented Fixed Air Flow System
gallery™ 6 corner
whirlpool bath
model number: R230 – RH pump,
R235 – LH pump
exterior dimensions:
60" long x 60" wide x 22½" high
interior dimensions:
45" long x 40" wide
# of Jets/type of Jets:
4 TheraPro® Jets,
2 AccuPro™ Jets
operating gallons:
74 gallons
gallery™ 6 corner
soaking bath
model number: R240
exterior dimensions:
60" long x 60" wide x 22½" high
interior dimensions:
45" long x 40" wide
Installation Notes
Refer to installation instructions included with fi xture before beginning installation.
Please confi rm product availability and specifi cations before commencing with any
installation work.
Ordering Information
Product Code:
R240 Gallery™ Corner Bath
R230 Gallery™ Corner Whirlpool Bath
Right Hand
R235 Gallery™ Corner Whirlpool Bath
Left Hand
• Center Drain Location
• Accessories / Hardware:
TheraPro™ Jet Rings #D095
AccuPro™ Jet Rings #J869
Trip-Lever Drain Kit: #X559
Rotary Drain Kit, 26” Cable: #8730
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze
60"
34"
Motor
19" X 4"
7-1/2"
50-1/4"
13"
Opt.
Service
Access
Service
Access
24"
34"
47-3/4"

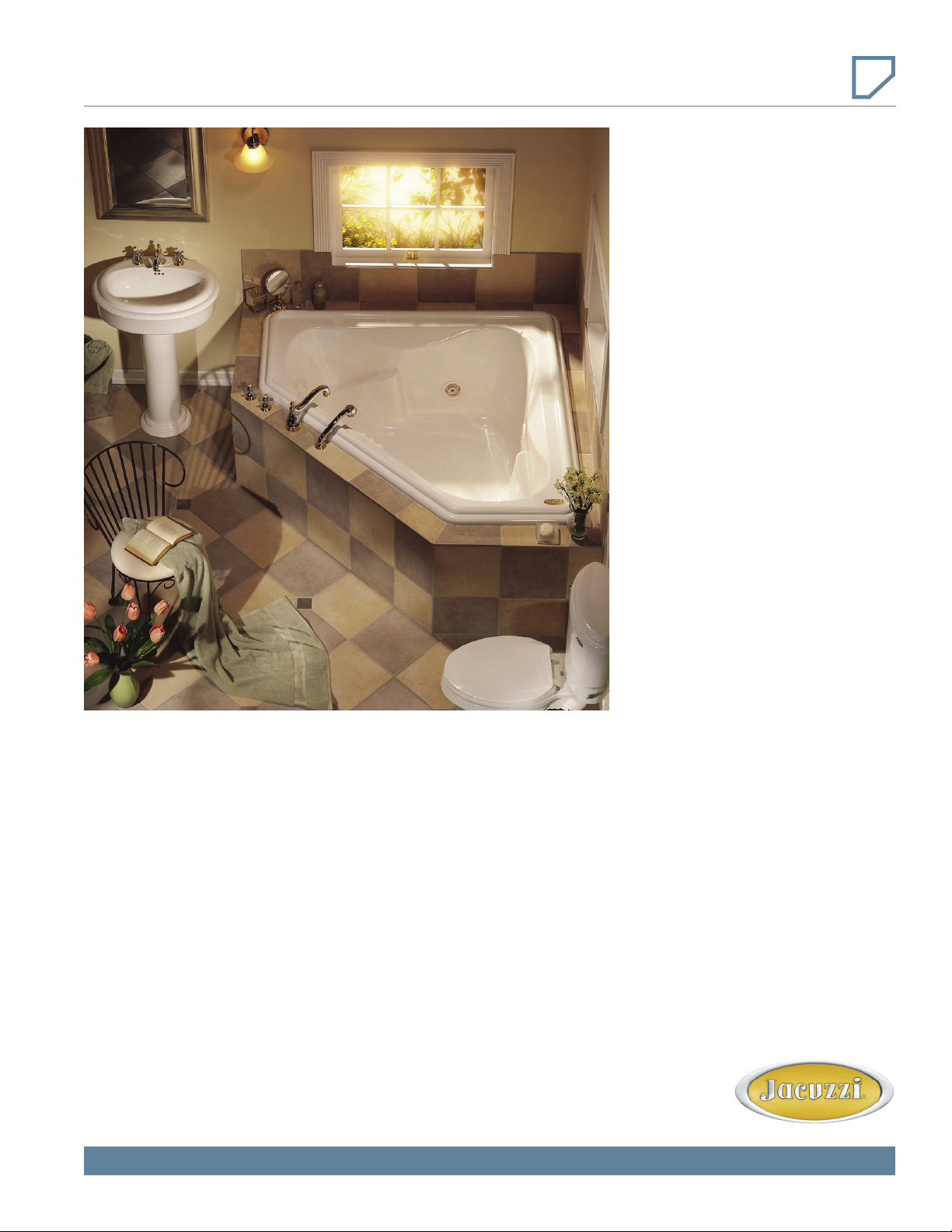

Product Shown: Gallery™ Corner Whirlpool Bath Model: R235
* Measurements inside unit represent cutout in fl oor to allow for drain/overfl ow.
Minimum Service Access dimensions given.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Electrical Components and Electrical Specifi cations do not apply to non-jetted baths.
60"
24"
Gallery™ Corner Whirlpool Bath
Model: R230, R235
Gallery™ Corner Bath
Model: R240

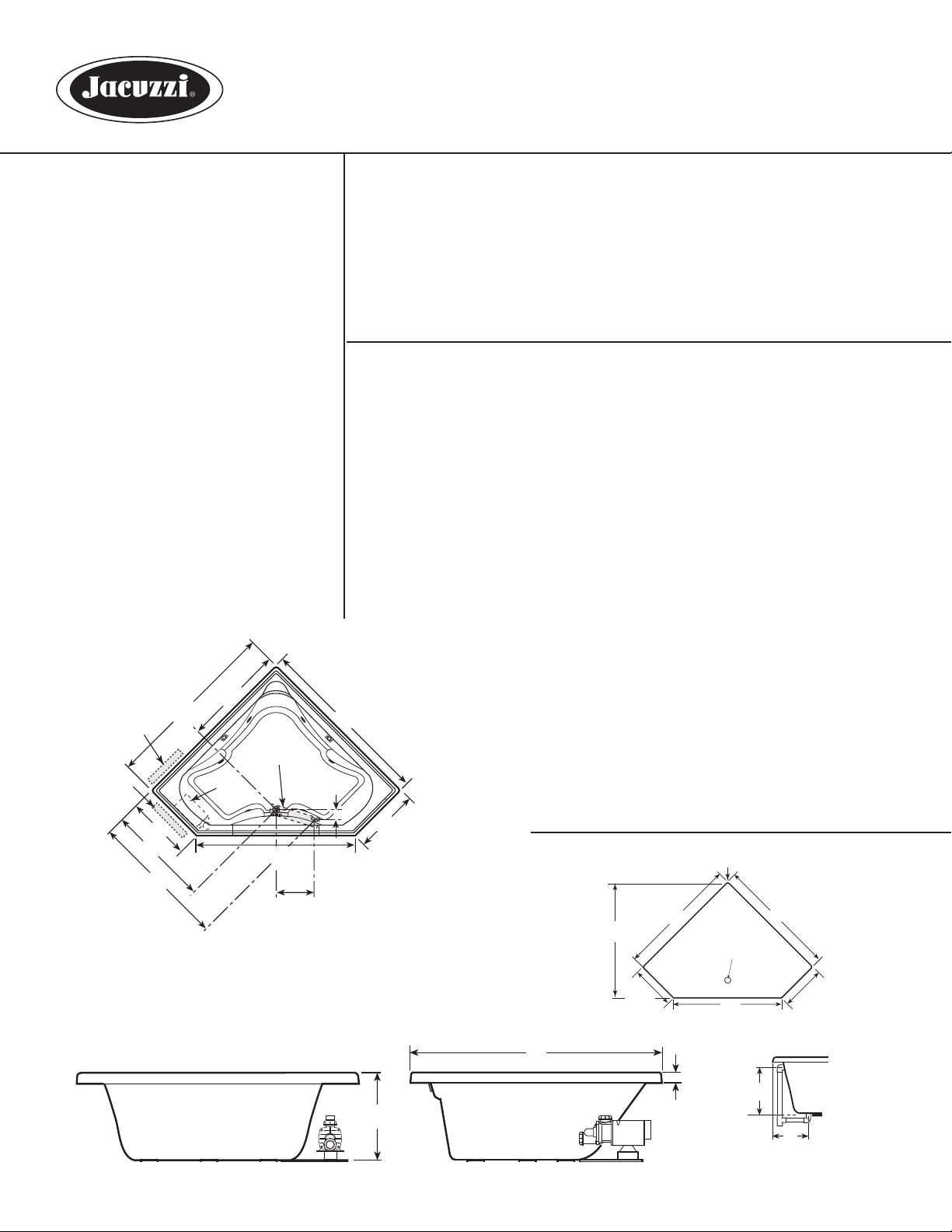

Technical Specifi cations
Dimensions
60” L x 60” L x 22-1/2” H
(1524 mm) L x (1524 mm) L x (572 mm) H
Drain/Overfl ow
A: 18-1/8” (451 mm) B: 12” (305 mm)
Cutout
See illustration below
Total Weight
R230, R235: 984 lb (446 kg) / 39 lb/sq. ft. (192 kg/m2)
R240: 944 lb (428 kg) / 38 lb/sq. ft. (185 kg/m2)
Operating Gallonage
74 U.S. Gal. (280 liters)
Product Weight
R230, R235: 118 lb (54 kg)
R240: 78 lb (35 kg)
Skirt Mounting
Not Available
Electrical Specifi cations Models R230, R235 only
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz
Heater (Optional) Models R230, R235 only
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S75000
3" RADIUS
CORNERS
(5 PLACES)
58"
(1473 mm)
90˚
22-5/8"
(575 mm)
L
57"
Ref.
(1473 mm)
90˚
22-5/8"
(575 mm)
58"
(1270 mm)
CUTOUT
Drain
50"
#FR53 07/07
A
H
2"
B
DRAIN/OVERFLOW
© Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino • CA • 91710 • www.jacuzzi.com
