Post and Rail Style
BATH RIM
(Interior)
SCREWS
(PROVIDED)
7/8"
SHELL CLIP
1

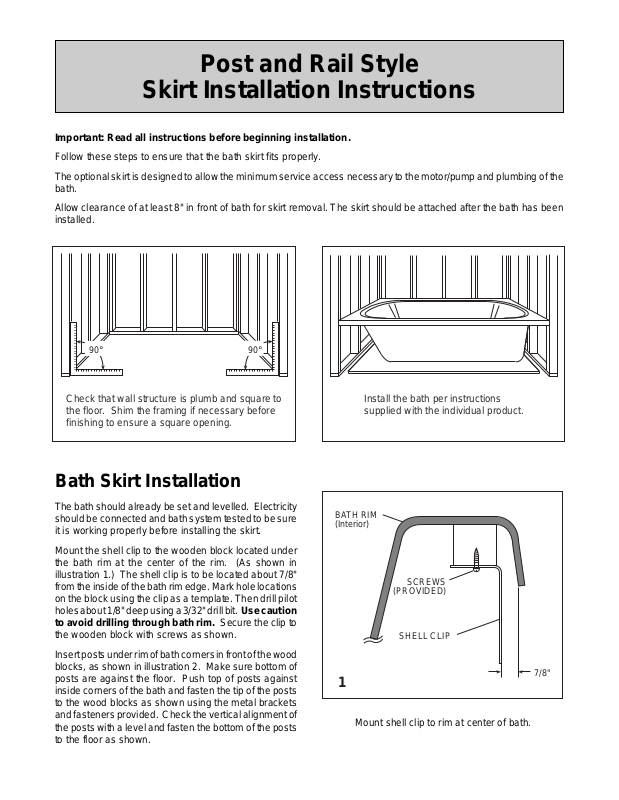

Skirt Installation Instructions
Important: Read all instructions before beginning installation.
Follow these steps to ensure that the bath skirt fits properly.
The optional skirt is designed to allow the minimum service access necessary to the motor/pump and plumbing of the
bath.
Allow clearance of at least 8" in front of bath for skirt removal. The skirt should be attached after the bath has been
installed.
90°
Check that wall structure is plumb and square to
the floor. Shim the framing if necessary before
finishing to ensure a square opening.
90°
Bath Skirt Installation
The bath should already be set and levelled. Electricity
should be connected and bath system tested to be sure
it is working properly before installing the skirt.
Mount the shell clip to the wooden block located under
the bath rim at the center of the rim. (As shown in
illustration 1.) The shell clip is to be located about 7/8"
from the inside of the bath rim edge. Mark hole locations
on the block using the clip as a template. Then drill pilot
holes about 1/8" deep using a 3/32" drill bit. Use caution
to avoid drilling through bath rim. Secure the clip to
the wooden block with screws as shown.
Install the bath per instructions
supplied with the individual product.
Insert posts under rim of bath corners in front of the wood
blocks, as shown in illustration 2. Make sure bottom of
posts are against the floor. Push top of posts against
inside corners of the bath and fasten the tip of the posts
to the wood blocks as shown using the metal brackets
and fasteners provided. Check the vertical alignment of
the posts with a level and fasten the bottom of the posts
to the floor as shown.
Mount shell clip to rim at center of bath.
WOOD BLOCK
REMOVABLE SKIRT
BOTTOM RAIL
VELCRO
®
LOOP
TAPE
CENTER OF RAIL
12"
HOOK TAPE
4
AT CORNER
OF BATH RIM
BRACKET
SPEED
NUT
BRACKET
2
SCREW
POST
(Right Hand
side shown)
SCREW
the bottom of the skirt, 12" from each end and in the
center, so that they will attach to the bottom rail when the
skirt is installed.
Lay the bottom rail on the floor between the two vertical
posts. Locate the front surface of the bottom rail 5/8"
behind the front surface of the vertical posts as shown in
illustration 3. Fasten the bottom rail to the floor using the
screws provided.
FIXED SIDE
PANEL
SCREWS
(PROVIDED)
BOTTOM
RAIL
3
FIXED SIDE
PANEL
5/8"
BOTTOM
RAIL
Lift the top of the skirt up under the rim of the bath, center
the skirt in the opening, then swing bottom of skirt toward
the rail and lower skirt onto rail. The Velcro® on the skirt
and the bottom rail should mesh.
WOODEN
BLOCK
SHELL CLIP
LIFT TOP OF
SKIRT UP
UNDERNEATH
RIM OF BATH
INTERLOCKING
VELCRO® TAPES
With isopropyl alcohol, clean an area 2" long (6 places)
on the rail and bottom edge of the skirt. These locations
should be at the center line and 12" from each end of
both parts; (see illustration 4.) Remove liner from
adhesive backing and apply the strips of Velcro® hook
tape to the bottom rail, 12" from each end and in the
5
center, as illustrated. Apply strips of Velcro® loop tape to
©1991 B243000 C 11/94
Printed on Recycled Paper
Printed in the U.S.A.
