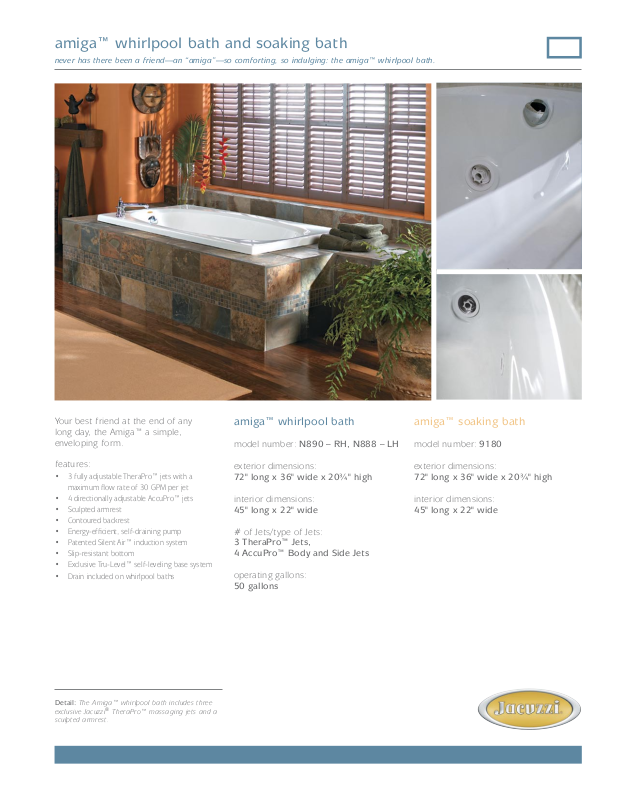

amiga™ whirlpool bath and soaking bath
never has there been a friend—an “amiga”—so comforting, so indulging: the amiga™ whirlpool bath.
Your best friend at the end of any
long day, the Amiga™ a simple,
enveloping form.
features:
• 3 fully adjustable TheraPro™ jets with a
maximum flow rate of 30 GPM per jet
• 4 directionally adjustable AccuPro™ jets
• Sculpted armrest
• Contoured backrest
• Energy-efficient, self-draining pump
• Patented Silent Air™ induction system
• Slip-resistant bottom
• Exclusive Tru-Level™ self-leveling base system
• Drain included on whirlpool baths
Detail: The Amiga™ whirlpool bath includes three
exclusive Jacuzzi® TheraPro™ massaging jets and a
sculpted armrest.
amiga™ whirlpool bath
model number: N890 – RH, N888 – LH
exterior dimensions:
72" long x 36" wide x 20¾" high
interior dimensions:
45" long x 22" wide
# of Jets/type of Jets:
3 TheraPro™ Jets,
4 AccuPro™ Body and Side Jets
operating gallons:
50 gallons
amiga™ soaking bath
model number: 9180
exterior dimensions:
72" long x 36" wide x 20¾" high
interior dimensions:
45" long x 22" wide
Ordering Information
72''
18''
36''
2''
16'' x 4''*
14''
Opt. Service
Access
12" H x 18" L
Service Access
Motor
END VIEW
H
W
SIDE VIEW
L
2"
DRAIN/OVERFLOW
A
B
Amiga™ Whirlpool Bath
Model: N890, N888
Amiga™ Bath
Model: 9180
Installation Notes
Refer to installation instructions included with fixture before beginning installation.
Please confirm product availability and specifications before commencing with any
installation work.
Product Code:
N890 Amiga™ Whirlpool Bath
Right Hand
N888 Amiga™ Whirlpool Bath
Left Hand
9180 Amiga™ Bath
• Right and Left Hand Drain Location
• Accessories / Hardware:
HTC Jet Trim Kit: #D095
2 x BMH Jet Trim Kit: #J869
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Electrical Components and Electrical Specifications do not apply to non-jetted baths.
Technical Specifications
Dimensions
72” L x 36” W x 20-3/4” H
(1829) mm L x (914) mm W x (533) mm H
Drain/Overflow
A: 16-7/8” (429 mm) B: 14” (356 mm)
Cutout
70” x 34”
Total Weight
N890, N888: 772 lb. (351 kg) / 43 lb/sq. ft. (209 kg/m2)
9180: 738 lb. (335 kg) / 41 lb/sq. ft. (200 kg/m2)
Operating Gallonage
50 U.S. Gal. (186 Liters)
Product Weight
N890, N888: 105 lb. (48 kg)
9180: 71 lb. (32 kg)
Skirt Mounting
Optional U-Frame
Electrical Specifications Models N890, N888 only
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
Heater (Optional) Models N890, N888 only
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000
Product Shown: Amiga™ Whirlpool Bath Left Hand Shown M odel: N888
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum Service Access dimensions given.
#FR07 12/06
