JACUZZI JS6530 Specifications

TECHNICAL SPECIFICATIONS

Nova™ 6 Whirlpool Bath

NOV7242 WLR 2XX Nova 6 Whirlpool Bath Left Hand (6800)
NOV7242 WRL 2XX Nova 6 Whirlpool Bath Right Hand (9235)
NOV7242 WLB 2XX Nova 6 Whirlpool Bath Left Hand, Right Back

Pump (DA70)

Nova™ 6 Bath

NOV7242 BUX XXX Nova 6 Bath (7263)

DIMENSIONS
72” L x 42” W x 20-½” H
(1829 mm) L x (1067 mm) W x (521 mm) H
DRAIN/OVERFLOW
A: 14-¾” (375 mm) B: 8-½” (216 mm)
CUTOUT
70” x 40”
TOTAL WEIGHT
6800, 9235, DA70: 876 lb (397 kg) / 42 lb/sq. ft. (204 kg/m2)
7263: 847 lb (384 kg) 40 lb/ / sq. ft. (197 kg/m2)
OPERATING GALLONAGE
62 U.S. Gal. (235 Liters)
Max. 77 U.S. Gal. (291 Liters)
PRODUCT WEIGHT
6800, 9235, DA70: 110 lb (50 kg)
7263: 81 lb (37 kg)
SKIRT MOUNTING
Optional, U-Frame: #F958
ELECTRICAL SPECIFICATIONS MODELS 6800, 9235, DA70
ONLY
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
HEATER (OPTIONAL MODELS 6800, 9235, DA70 ONLY)
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000

Product Shown: Nova 6 Whirlpool Bath Left Hand Model: 6800
* Measurements inside unit represent cutout in oor to allow for
drain/overow.

INSTALLATION NOTES
Refer to installation instructions included with
xture before beginning installation. Please conrm
product availability and specications before
commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY
ARE SUBJECT TO CHANGE WITHOUT NOTICE.

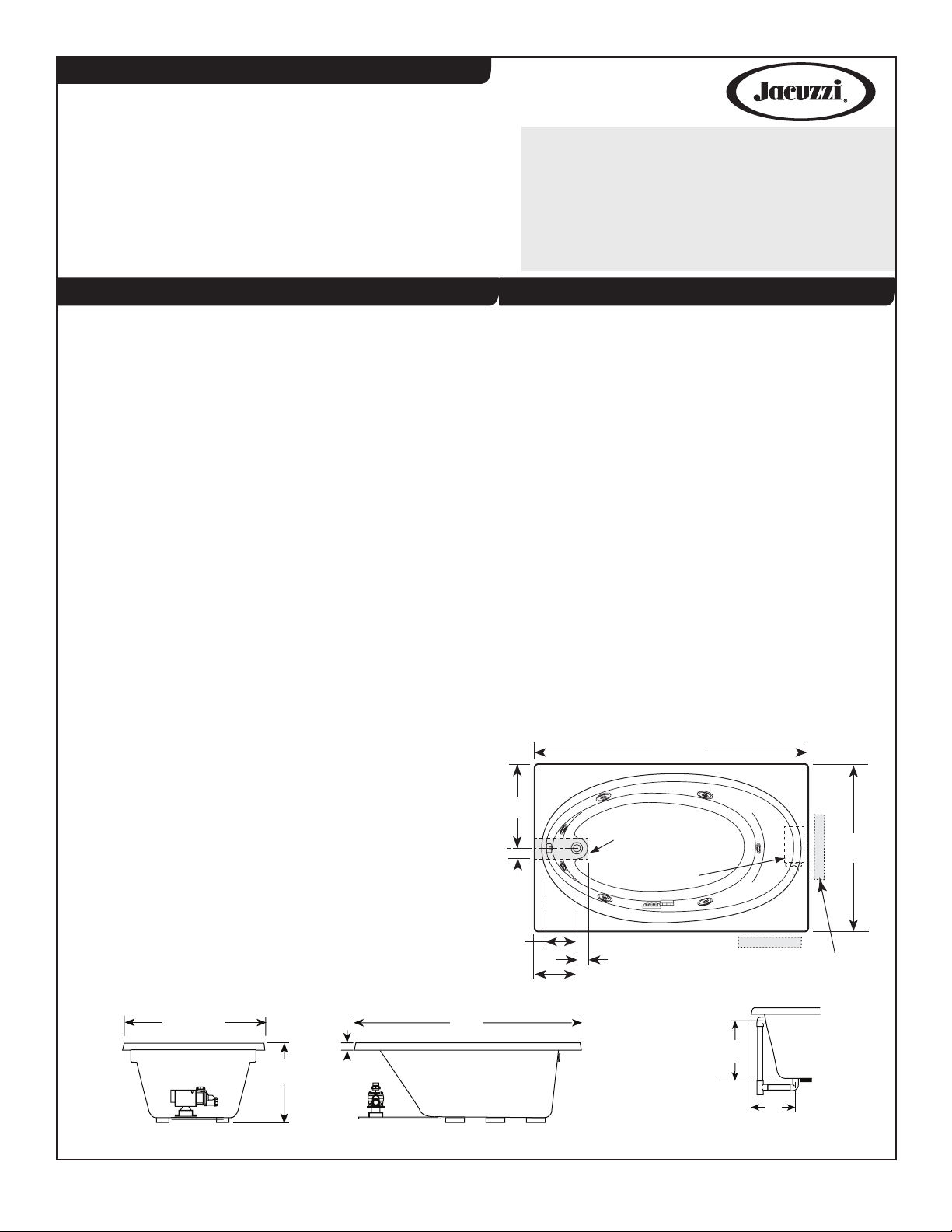

FEATURES, UPGRADES & ACCESSORIESKEY DIMENSIONS

• Left or Right Hand Drain Location

• Accessories / Hardware:
Trip-Lever Drain Kit #X559
Rotary Drain Kit, 26” Cable #8730
TheraPro Jet Trim Kit: #GU44
AccuPro Jet Trim Kit: #GU45 (2 kits required)

• Trim Kit Finishes Available:
(827) – Chrome
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze

72''

21''

14" x 4"*

42''

Motor

2''

8-3/8''

10-7/8''

Opt. Service Access

2''

12" H x 18" L
Service Access

(51 mm)

42"

2"

72"

A

20-1/2"

B

SIDE VIEW

© 2 010 Ja cuz zi Lux ury Ba th • Fo r a ddi tio nal in for mat ion ca ll Cus tom er Ser vic e 8 00- 288 -40 02 • ww w.ja cuz zi. com /te chn ica lsp ecs
Refer to installation instructions included with xture before beginning installation. Please conrm product availability and specications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.

(Motor)

END VIEW

DRAIN/OVERFLOW
