JACUZZI JS6194 Specifications

TECHNICAL SPECIFICATIONS

Amiga® Whirlpool Bath

AMI7236 WRL 2XX Amiga Whirlpool Bath, Right Hand (N890)

AMI7236 WLR 2XX Amiga Whirlpool Bath, Left Hand (N888)

Amiga® Bath

AMI7236 BUX XXX Amiga Soaker Bath (9180)

DIMENSIONS
72” L x 36” W x 20-¾” H
(1829) mm L x (914) mm W x (533) mm H

DRAIN/OVERFLOW
A: 16-⅞” (429 mm) B: 14” (356 mm)

CUTOUT
70” x 34”

TOTAL WEIGHT
N890, N888: 781 lb. (334 kg) / 43 lb/sq. ft. (209 kg/m2)
9180: 738 lb. (335 kg) / 41 lb/sq. ft. (200 kg/m2)

OPERATING GALLONAGE
Min. 42 U.S. Gal. (159 Liters)
Max. 78 U.S. Gal. (295 Liters)

PRODUCT WEIGHT
N890, N888: 105 lb. (48 kg)
9180: 71 lb. (32 kg)

SKIRT MOUNTING
Optional U-Frame: P/N F958

ELECTRICAL SPECIFICATIONS MODELS N890, N888 ONLY
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

INSTALLATION NOTES
Refer to installation instructions included with
xture before beginning installation. Please conrm
product availability and specications before
commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY
ARE SUBJECT TO CHANGE WITHOUT NOTICE.

FEATURES, UPGRADES & ACCESSORIESKEY DIMENSIONS

• Right and Left Hand Drain Location

• Accessories / Hardware:
Rotary Drain Kit, 26” Cable: #8730
TheraPro Jet Trim Kit: #GU44
AccuPro Jet Trim Kit: #GU45 (2 kits required)

• Trim Kit Finishes Available:
(827) – Chrome
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze

HEATER (OPTIONAL) MODELS N890, N888 ONLY
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000

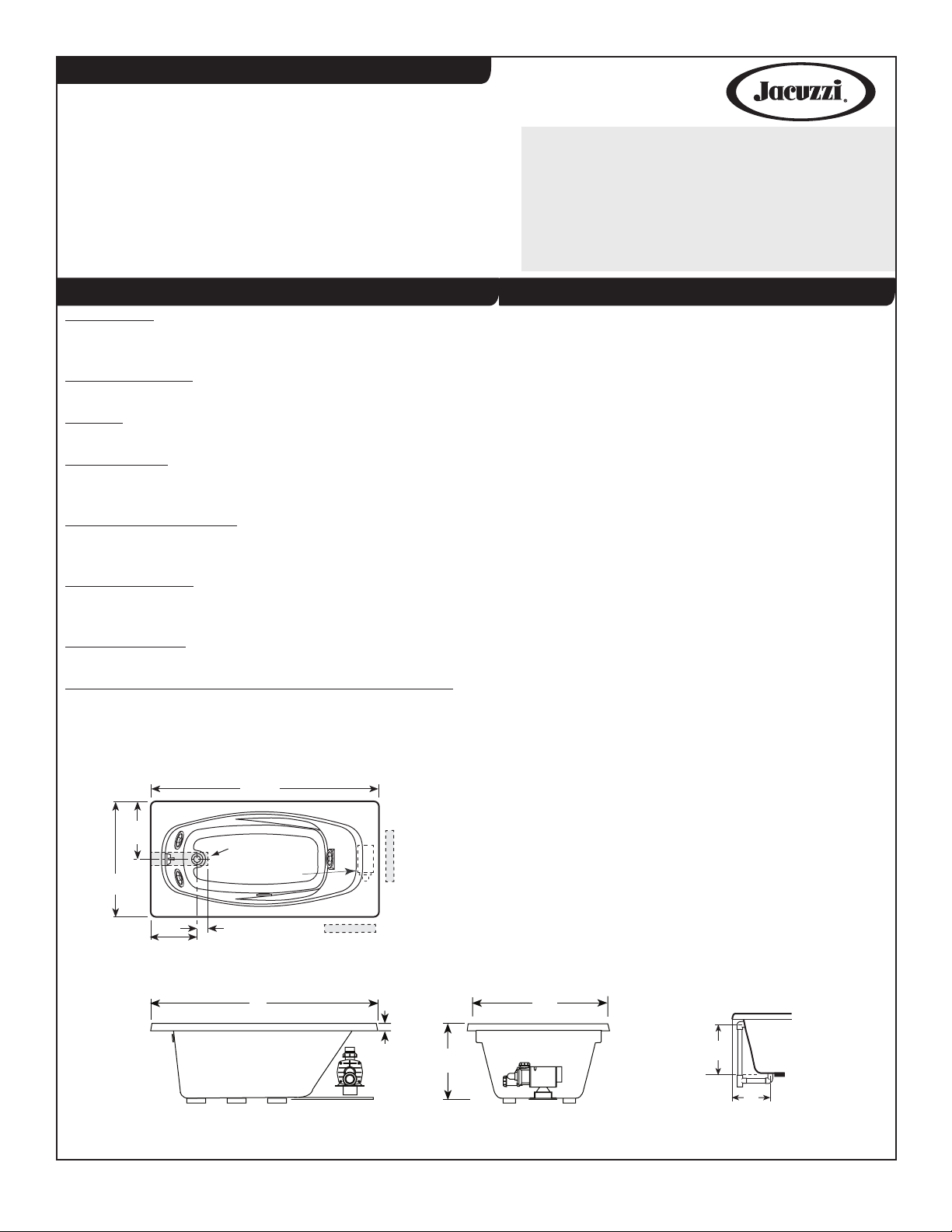

Product Shown: Amiga Whirlpool Bath Left Hand Shown
Model: N888
* Measurements inside unit represent cutout in oor to allow for
drain/overow. Minimum Service Access dimensions given.

36''

18''

72''

16'' x 4''*

Motor

12" H x 18" L

Service Access

2''

14''

L

SIDE VIEW

© 2 010 Ja cuz zi Lux ury Ba th • Fo r a ddi tio nal in for mat ion ca ll Cus tom er Ser vic e 8 00- 288 -40 02 • ww w.ja cuz zi. com /te chn ica lsp ecs
Refer to installation instructions included with xture before beginning installation. Please conrm product availability and specications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Opt. Service

Access

2"

H

W

END VIEW

A

B

DRAIN/OVERFLOW
