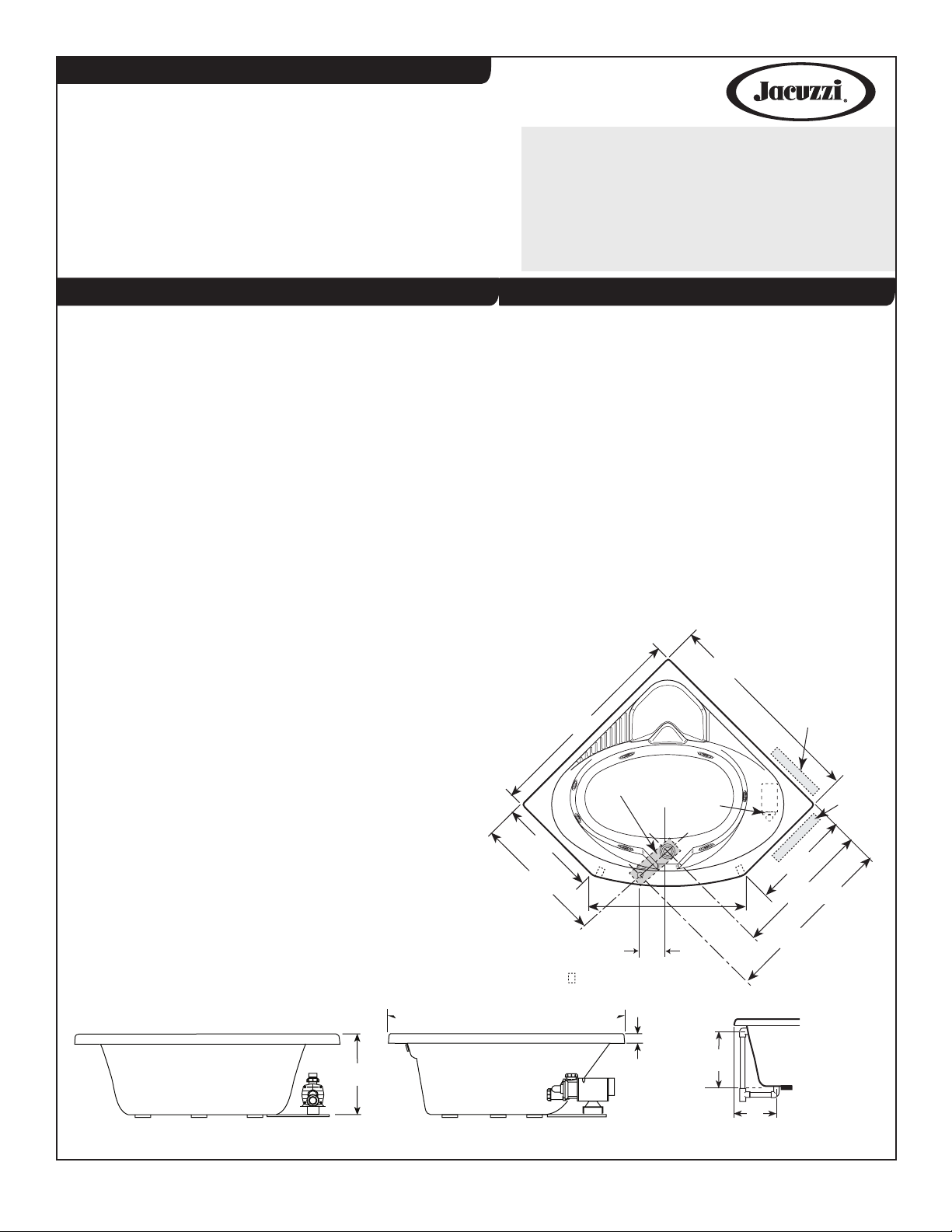

JACUZZI JS6190 Specifications

TECHNICAL SPECIFICATIONS

Capella® 55 Whirlpool Bath

CAP5555 WCR 2XX Capella 55 Whirlpool Bath, Right Hand

(9590)

Capella® 55 Bath

CAP5555 BCX XXX Capella 55 Bath (C800)

DIMENSIONS
55” L x 55” L x 20-¼” H
(1397 mm) L x (1397 mm) L x (514 mm) H
DRAIN/OVERFLOW
A:17-½” (445 mm) B: 9-⅝” (245 mm)
CUTOUT
Template Provided: P/N EX79000
TOTAL WEIGHT
9590: 791 lb (359 kg) / 38 lb/sq. ft. (184 kg/m2)
C800: 760 lb (345 kg) / 36 lb/sq. ft. (177 kg/m2)
OPERATING GALLONAGE
51 U.S. Gal. (204 Liters)
Max. 72 U.S. Gal. (273 Liters)
PRODUCT WEIGHT
9590: 116 lb (53 kg)
C800: 85 lb (39 kg)
SKIRT MOUNTING
Optional
ELECTRICAL SPECIFICATIONS MODEL 9590 ONLY
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz
HEATER (OPTIONAL) MODEL 9590 ONLY
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000

Product Shown: Capella 55 Corner Whirlpool Bath Model: 9590
* Measurements inside unit represent cutout in oor to allow for
drain/overow. Minimum Service Access dimensions given.

INSTALLATION NOTES
Refer to installation instructions included with
xture before beginning installation. Please conrm
product availability and specications before
commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY
ARE SUBJECT TO CHANGE WITHOUT NOTICE.

FEATURES, UPGRADES & ACCESSORIESKEY DIMENSIONS

• Center Drain Location

• Accessories / Hardware:
Trip-Lever Drain Kit: #X559
Rotary Drain Kit, 26” Cable: #8730
Trim Kit: TheraPro Jet Rings #GU44
Trim Kit: AccuPro Jet Rings #GU45 (2 kits required)

• Trim Kit Finishes Available:
(827) – Chrome
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze

55"

12" H x 18" L

55"

12" x 4"

Motor

Service Access

Opt.

Service

Access

27"

27"

36 1/2"

39 1/2"

5 1/4"

36 1/2"

44 1/2"

- 2" x 4" Stud

L

H

SIDE VIEW

© 2 010 Ja cuz zi Lux ury Ba th • Fo r a ddi tio nal in for mat ion ca ll Cus tom er Ser vic e 8 00- 288 -40 02 • ww w.ja cuz zi. com /te chn ica lsp ecs
Refer to installation instructions included with xture before beginning installation. Please conrm product availability and specications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.

END VIEW

2"

A

B

DRAIN/OVERFLOW
