JACUZZI JS5878 Specifications

Elara® Technical Specications for 6042

Letter Description SOAKING PURE AIR® BATH WHIRLPOOL SALON® SPA

Drain/Blower/Motor Location LH/RH Drain

-

Drop-in Cutout Dimensions

-

(L x W)

Total Weight 1173 lbs (532 kg) 1219 lbs (553 kg) 1231 lbs (558 kg) 1241 lbs (563 kg)

-

Floor Loading 67 lb/ft2 (327 kg/m2) 70 lb/ft2 (340 kg/m2) 70 lb/ft2 (343 kg/m2) 71 lb/ft2 (346 kg/m2)

-

Product Weight 85 lbs (39 kg) 131 lbs (59 kg) 143 lbs (65 kg) 153 lbs (69 kg)

-

Operating Gallons (Max) 100 Gal (378.5 L)

-

Soaking Depth 18.6" (472.1 mm)

-

Outer Length 60" (1524 mm)

L

Outer Width 42" (1067 mm)

W

Overall Height 26˝ (660 mm)

H

Overow Height 18.9" (480 mm)

A

Long Edge to Drain Center 10.63" (270 mm)

B

Short Edge to Drain Center 21" (533 mm)

C

Drain Shoe Length 8.5" (216 mm)

D

Deck Height 0.63" (16 mm)

E

Deck Width 4" (102 mm)

F

Service Access Dimensions 12" x 18" (305 mm x 457 mm)

G

Floor Cutout for Drain 12" x 6" (305 mm x 152 mm)

I

Interior Dimensions

J

(bottom of bath) L x W

LH/RH Drain/Right or

Left Side Blower

58" x 40" (1473 mm x 1016 mm)

38" x 26.8" (965 mm x 681 mm)

LH/RH Drain/Right

or Left Side Motor

LH/RH Drain/Right

or Left Side Blower/

Motor

Technical Specications

Each component requires
a seperate, dedicated GFCI
protected circuit

Model with
components

Soaker only None

Soaker w/

SOAKING

Chromatherapy

Blower 120V/15A

Chromatherapy
(if available)

PURE AIR® BATH

Motor/Pump 120V/20A

Heater

WHIRLPOOL

(if available*)

Motor/Pump
and Heater

Blower 120V/15A

SALON® SPA

*Heater circuit not requird on
units equipped with Whisper+

Technology™.

GFCI
Outlet

(60Hz)

120V/15A

120V/15A

120V/15A

240V/20A

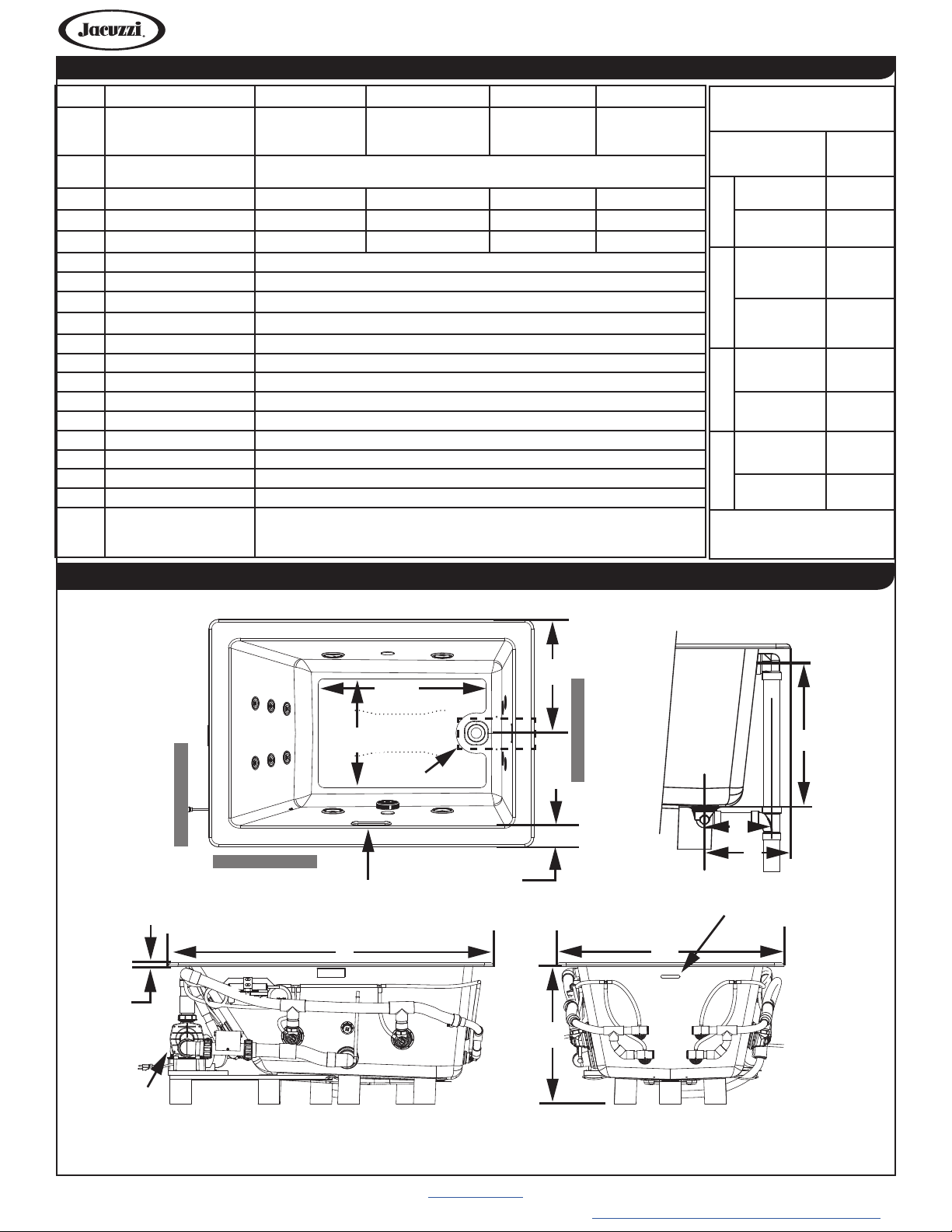

KEY DIMENSIONS* [NOTE: The overall dimensions are nominal with a tolerance of +0 and -.25" (6mm).]

*Right hand model shown. Left hand model is exact opposite.

C

J (L)

G

J (W)

Additional
Service
Access

A

I

G

Primary
Service
Access

D

B

Additional

G

Service
Access

Control
Panel

L

F

Overflow

W

E

H

Motor

Refer to installation instructions included with xture before beginning installation. Please conrm product availability and specications before

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE

LG33000B www.jacuzzi.com Page 4

©2017 Jacuzzi Luxury Bath ● For additional information call Customer Service 800-288-4002 ● www.jacuzzi.com/baths/support/specs-and-manuals/

commencing with any installation work.
