Elara 7242 Soaking Bath
Product Codes beginning with: ELA7242BUX
Also applies to products sold under part numbers: JY00, JY05
TECHNICAL SPECIFICATIONS
English Metric
Outer Dimensions 72” L x 42” W x 26” H 1829 mm L x 1067 mm W x 660 mm H
Interior Dimensions
(bottom of bath) L x W (Mid) x W (End) 49” L x 26 1/2” W x 26 1/2” W 1245 mm L x 673 mm W x 673 mm W
Drain Confi guration End drain End drain
Bath Weight (empty) 100 lbs 45.4 kg
Total Weight/Floor Loading 1,325 lbs 63.1 lbs/ft
2
601 kg 307.9 kg/m
Operating Gallonage (min-max) 117 (max) U.S. Gals 443 (max) L
Electrical Specifi cations Each component requires a separate, dedicated GCFI protected circuit(s)
Chromatherapy (if selected) 120V 15A 60HZ
FEATURES, UPGRADES & ACCESSORIES
2
Material Type: High-Gloss Acrylic
Install Type: Drop-in or Undermount
Available Colors: White (W), Almond (A), Oyster (Y), Black (B)
Cut-out: 70” x 40” or Undermount Template BZ50000
Available Control Systems:
Chromatherapy lighting
*Control panel installation is done by installer, location optional
Available Upgrades:
Chromatherapy lighting

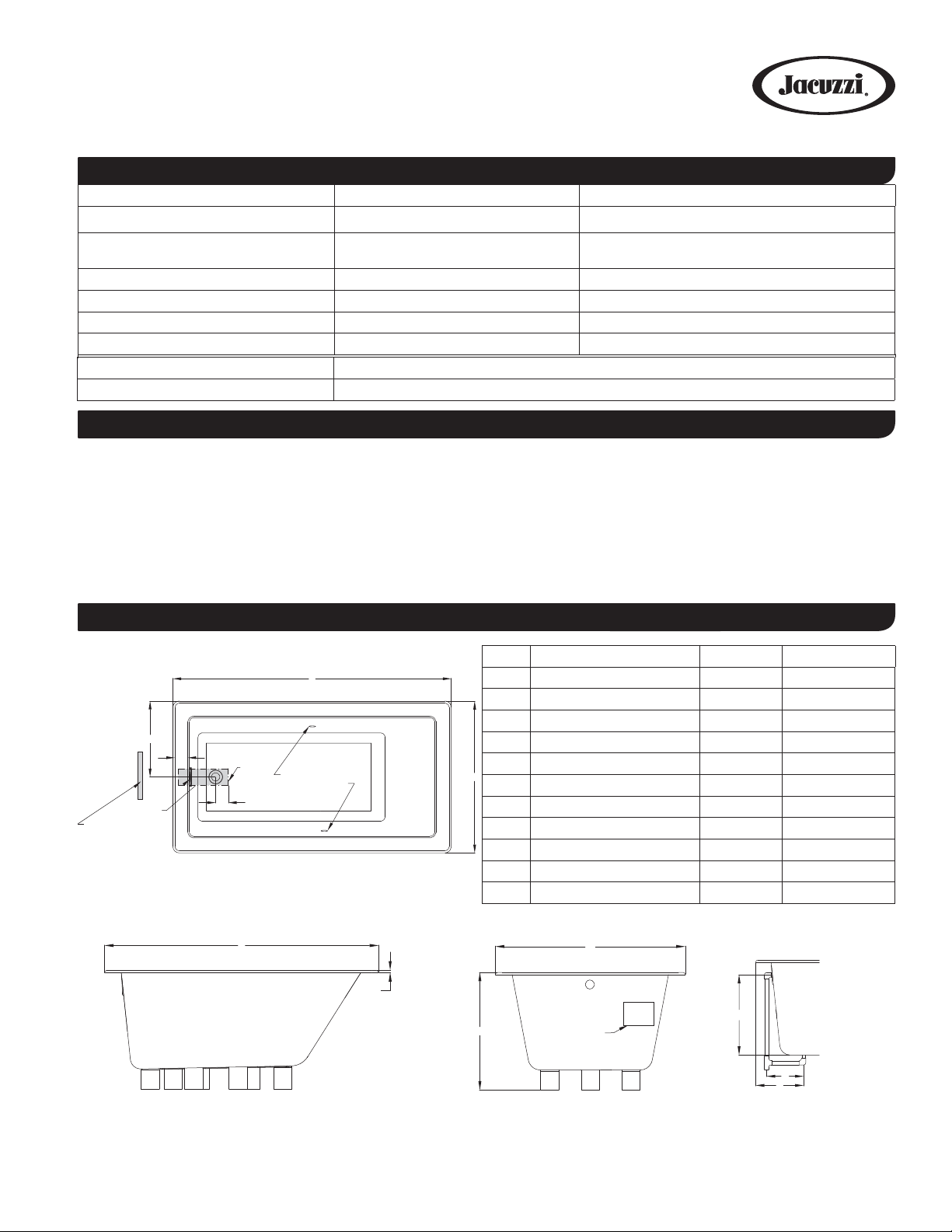

KEY DIMENSIONS
Reverse image for RH installation.
L
C
F
Overfl ow
(G) Service Access
For Chromatherapy
*Deck width refl ects only area indicated on detail.
I
Chromatherapy
Light Locations
3”
Available Accessories:
DA34 Rotary Drain Kit PVC (specify metal fi nish)
HP55 Rotary Drain Kit (specify metal fi nish)
G864 Hand Rails (specify metal fi nish)
827: Chrome, 826: Brushed Nickel, 845: Oil Rubbed Bronze
EK91 21” Straight Pillow (specify color) 959: White. 958: Almond,
969: Oyster
GD56 Light Chromatherapy Control Kit (for JY00)
GQ88 Light Chromatherapy Add-on Kit
Letter Description English Metric
L Outer Length 72” 1829 mm
W Outer Width 42” 1067 mm
H Overall Height 26” 660 mm
A Overfl ow Height 18 1/2” 470 mm
B Long Edge to Drain Center 10 5/8” 269 mm
W
C Short Edge to Drain Center 21” 533 mm
D Drain Shoe Length 6” 152 mm
E Deck Height 1/2” 13 mm
F Deck Width* 4 1/4” 107 mm
G Service Access Dimensions 12” H x 18” L 305 mm x 457 mm
I Floor Cut-out for Drain 12” x 4” 305 mm x 102 mm
L
E
H
Side View
NOTE: Graphics May Not be to Scale
© 2010 Jacuzzi Luxury Bath • For additional information call Customer Service 800-288-4002 • www.jacuzzi.com/technicalspecs
Refer to installation instructions included with fi xture before beginning installation. Please confi rm product availability and specifi cations before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Light Control Box
(For JY05)
W
End View
A
Drain/Overfl ow
D
B
HD11000 REL 03/10
