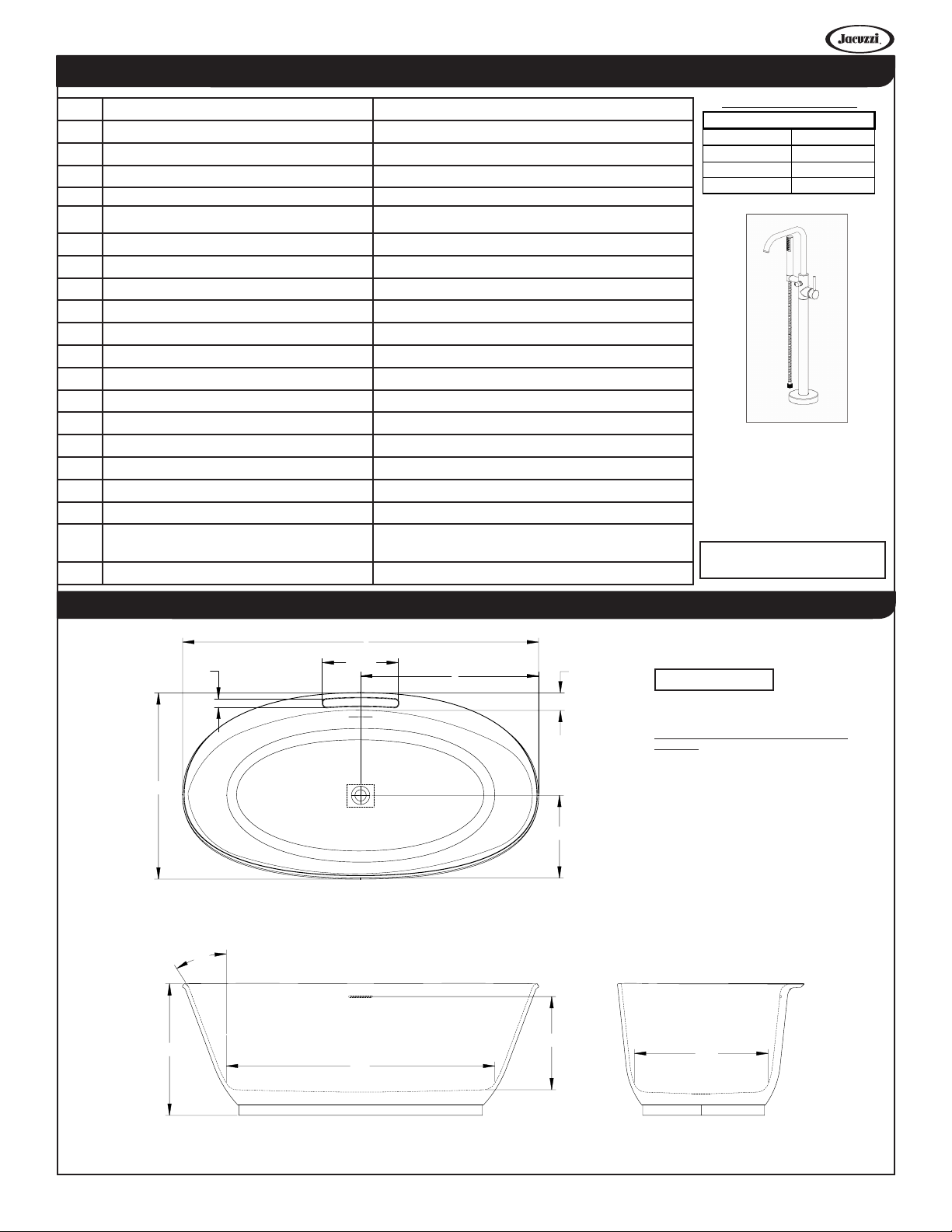

JACUZZI JS11040 Specifications

Technical Specications

Tub Filler Finish Bundle Part No.

Chrome

KAB6534BCXXXXG

Brushed Nickel

KAN6534BCXXXXG

Matte Black

KAM6534BCXXXXG

Brushed Bronze

KAZ6534BCXXXXG

Tub/PT62 Filler Bundle Available

Karina™ 6534 Freestanding Bathtub

Letter Description

Soaking

- Drain Location Center Drain

- Cutout N/A

- Total Weight 1,341 lbs (609 kg)

- Floor Loading 84.9 lb/ft

2

(415 kg/m2)

- Operating Gallons (Min/Max) 82 Gal. (310 L)

- Product Weight 420 lbs (190 kg)

- Soaking Depth 17-1/2” (444.5 mm)

L Outer Length 65” (1651 mm)

W Outer Width 34.6” (879 mm)

H Overall Height 24” (609.6 mm)

A Overow Height 17-3/4” (450.85mm)

B Short Edge to Drain Center 15” (381 mm)

C Long Edge to Drain Center 32-1/2” (825.5 mm)

D Drain Shoe Length N/A

E Flange Height N/A

F Deck Width 4” (101.6 mm)

G Service Access Dimensions N/A

I Floor Cutout for Drain 4” x 4” (101 x 101 mm)

J Interior Dimensions (W x L)

48-7/8” x 24-3/8”

(1241.4 mm x 619.1 mm)

M Backrest Angle 20°

PT62 Tub Filler Faucet

Warning: Do not use handle to
lift or move bathtub

Key Dimensions

1 1/2"

W

20°

H

L

13 7/8"

J (L)

C

F

NOTE

The overall dimensions are nominal with a
tolerance of +0 and -.25" (6mm).

*Deck width reects only area indicated
on detail.

B

A

J (W)

©2018 Jacuzzi Luxury Bath • For additional information call Customer Service 800-288-4002 • www.jacuzzi.com/baths/
Refer to installation instructions included with xture before beginning installation. Please conrm product availability and specications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.
