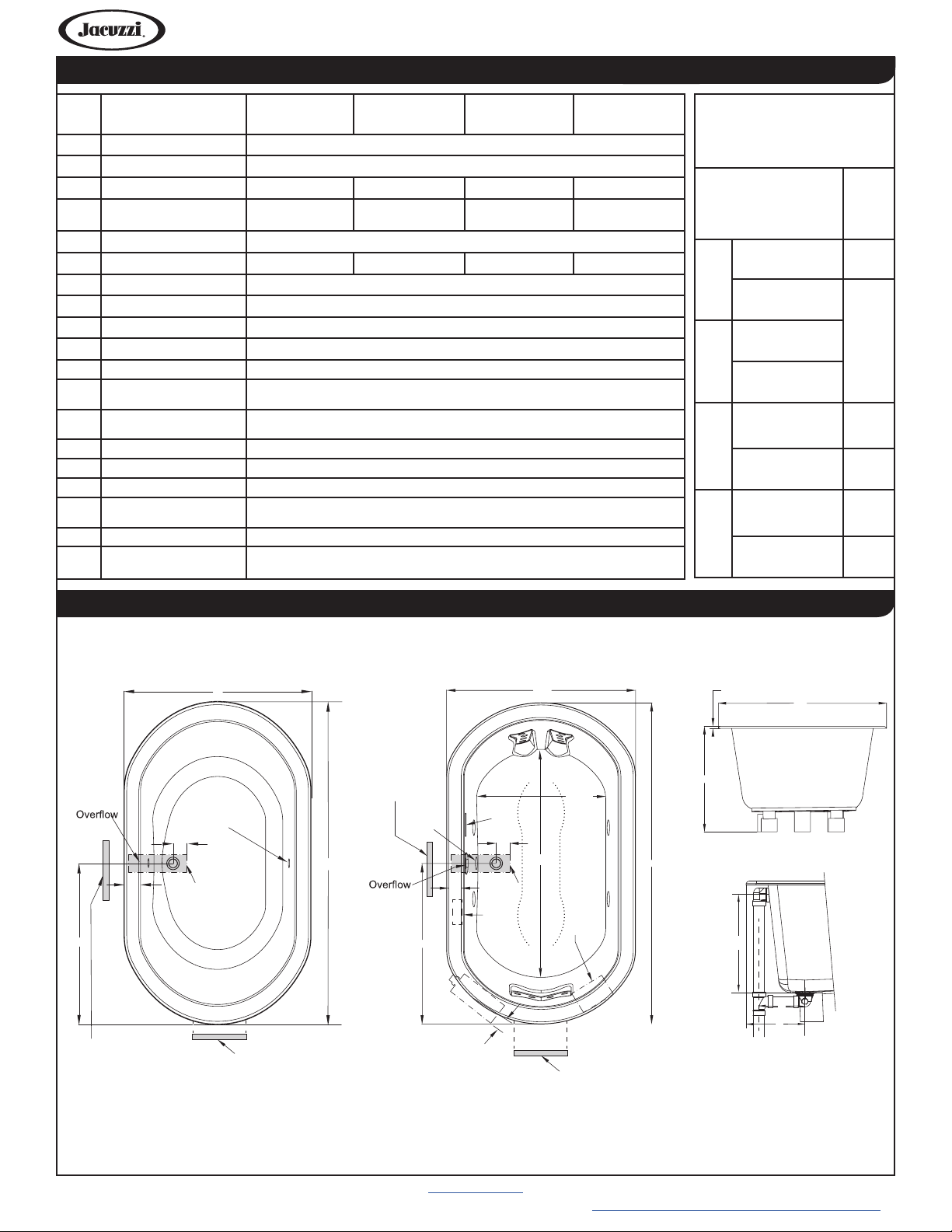

Anza™ - Techncial Specications for 6642 Models
Technical Specications
Letter Description SOAKING PURE AIR®
WHIRLPOOL SALON® SPA
BATH
- Drain/Motor Location Center Drain/Right Side Motor And/Or Blower
- Cutout Template T
emplate Provided P/N DA07000
- Total Weight 1143 lbs (518 kg) 1182 lbs (536 kg) 1195 lbs (542 kg) 1220 lbs (533 kg)
- Floor Loading
59 lb/ft²
(290 kg/m²)
61 lb/ft²
(300 kg/m²)
62 lb/ft²
(303 kg/m²)
63 lb/ft²
(309 kg/m²)
- Operating Gallons (Max) 97 gallons (367.1 liters)
- Product Weight 85 lbs (39 kg) 124 lbs (56 kg) 137 lbs (62 kg) 162 lbs (73 kg)
- Soaking Depth 16.7" (422.91 mm)
L Outer Length 66" (1676 mm)
W Outer Width 42" (1067 mm)
H Overall Height 26" (660 mm)
A Overow Height 17.9" (455 mm)
Long Edge to Drain
B
Center
Short Edge to Drain
C
Center
11" (279 mm)
33" (838 mm)
D Drain Shoe Length 7.25" (184 mm)
E Deck Height 0.50" (13 mm)
F Deck Width 3.875" (98 mm)
Service Access
G
Dimensions
12" x 18" (305 mm x 457 mm)
I Floor Cutout for Drain 12" x 6" (305 mm x 152 mm)
Interior Dimensions
J
(bottom of bath) L x W
43" x 28" (1092 mm x 711 mm)
Each component requires
a seperate, dedicated GFCI
protected circuit
Model with
components
GFCI
Outlet
(60Hz)
Soaker only None
Soaker w/
SOAKING
Chromatherapy
Blower
BATH
Chromatherapy
(if available)
PURE AIR®
Motor/Pump
Heater (if
available)
WHIRLPOOL
Motor/Pump/
Heater
SPA
SALON®
Blower
120V
15A
120V
20A
120V
15A
240V
20A
120V
15A
KEY DIMENSIONS* [NOTE: The overall dimensions are nominal with a tolerance of +0 and -.25" (6mm).]
Anza™ Soaking And Pure Air® Bath Models
(Soaking Bath Shown)
W
Chromatherapy
Light Locations
3" 3"
F
C
(G) Service Access
I
Top View Top View
(G) Service Access
For Blower (Pure Air®
Bath Models)
Anza™ Whirlpool And Salon® Spa Models
(Salon® Spa Shown)
W
(G) Service
Access
Suction
Fitting
L
C
Motor Extends
3" Beyond Lip
F
Motor
Control
Panel
Heater
I
J (L)
J (W)
Blower
(G) Service
Access
L
Note: Drain
installation
is non-standard.
Vertical overflow
connection
requires offset.
H
All Models
W
End View
A
D
B
Drain/Overflow
Refer to installation instructions included with xture before beginning installation. Please conrm product availability and specications before
commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE
LG58000 www.jacuzzi.com
©2015 Jacuzzi Luxury Bath ● For additional information call Customer Service 800-288-4002 ● www.jacuzzi.com/baths/support/specs-and-manuals/
