JACUZZI JS10456 Specifications

TECHNICAL SPECIFICATIONS

Nova™ 5 Whirlpool Bath

NOV6042 WRL 2XX Nova 5 Whirlpool Bath Right Hand (9230)

NOV6042 WRG 2XX Nova 5 Whirlpool Bath Right Hand, Left

Front Pump (DA55)

NOV6042 WLR 2XX Nova 5 Whirlpool Bath Left Hand (4480)

NOV6042 WLB 2XX Nova 5 Whirlpool Bath Left Hand,

Right Back Pump (DA50)

Nova™ 5 Bath

NOV6042 BUX XXX Nova 5 Bath (4481)

DIMENSIONS
60” L x 42” W x 18-½” H
(1524 mm) L x (1067 mm) W x (470 mm) H
DRAIN/OVERFLOW
A: 14-¾” (375 mm) B: 8-½” (216 mm)
CUTOUT
58” x 40”
TOTAL WEIGHT
4480, 9230, DA50, DA55: 800 lb (363 kg) / 46 lb/ft2 (225 kg/m2)
4481: 774 lb (351 kg) / 44 lb/ft2 (215 kg/m2)
OPERATING GALLONAGE
Min. 42 U.S. Gal. (159 Liters)
Max. 54 U.S. Gal. (204 Liters)
PRODUCT WEIGHT
4480, 9230, DA50, DA55: 100 lb (44 kg)
4481: 74 lb (34 kg)
SKIRT MOUNTING
Optional, U-Frame: P/N P953
ELECTRICAL SPECIFICATIONS (MODELS 4480, 9230 ONLY)
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
HEATER (OPTIONAL MODELS 4480, 9230 ONLY)
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000

INSTALLATION NOTES
Refer to installation instructions included with
xture before beginning installation. Please conrm
product availability and specications before
commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY
ARE SUBJECT TO CHANGE WITHOUT NOTICE.

FEATURES, UPGRADES & ACCESSORIESKEY DIMENSIONS

• Right and Left Hand Drain Location

• Accessories / Hardware:
Trip-Lever Drain Kit #X559
Rotary Drain Kit, 26” Cable #8730
TheraPro™ Jet Rings Kit: #GU44
AccuPro™ Jet Rings Kit: #GU45

• Trim Kit Finishes Available:
(827) – Chrome
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze

12" H x 18" L
Service Access

*60"

11" x 4"

21"

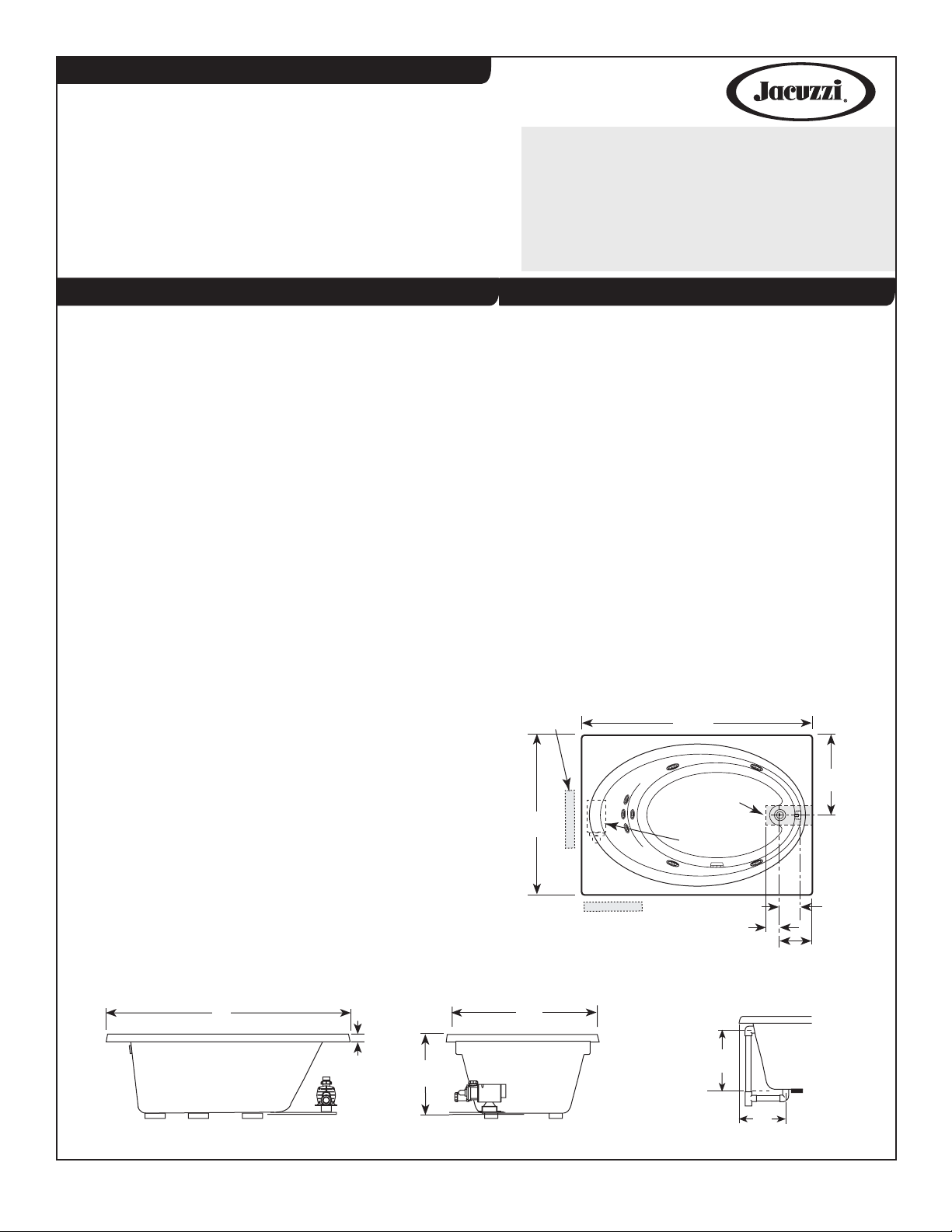

Product Shown: Nova 5 Whirlpool Bath Right Hand Model: 9230
* Measurements inside unit represent cutout in oor to allow for
drain/overow. Minimum Service Access dimensions given.

L

2"

(51 mm)

(Motor)

SIDE VIEW

© 2 010 Ja cuz zi Lux ury Ba th • Fo r a ddi tio nal in for mat ion ca ll Cus tom er Ser vic e 8 00- 288 -40 02 • ww w.ja cuz zi. com /te chn ica lsp ecs
Refer to installation instructions included with xture before beginning installation. Please conrm product availability and specications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.

H

END VIEW

42"

Opt. Service Access

W

Motor

2''

A

B

DRAIN/OVERFLOW

5-3/8''

8-1/2''
