OWNER’S MANUAL

Assembly, Installation

& Operating Instructions

J-DREAM II

Shower System

IMPORTANT SAFETY INFORMATION

READ ALL INSTALLATION INSTRUCTIONS

Jacuzzi Whirlpool Bath does not recommend prolonged periods of use of the steamer. Prolonged use of the steam system can raise the internal human body temperature excessively and impair the body's ability to regulate its internal temperature (resulting in hyperthermia). Consult your physician about your safety and comfort before using the steam system; limit your use of steam to 10-15 minutes until you are certain of your body's reaction. A cooling shower spray can be used simultaneously with the steam to assist in regulating your body temperature.

Alcohol, certain drugs or medications such as tranquilizers affect a person's ability to withstand high temperatures and may produce dangerous side effects. Do not use alcohol or drugs when using the J-Dream II.

The elderly, the infirm, and children should not use the J-Dream II unattended. Pregnant women and people with heart conditions should consult their physicians before using the steamer.

The wet surface of the J-Dream II can be slippery. Use care when entering and exiting. When using the J-Dream II, basic safety precautions should always be followed: This unit is to be connected to a Ground Fault Circuit Interrupter (GFCI). This is also known as an Earth Leakage Circuit

Breaker (ELCB). Check at least once a month to be sure this is operational. With the unit operating, push in the test button. The unit should stop operating and the trip indicator should appear. Restore the power; push to OFF, then turn ON. The unit should now operate normally. If the interrupter fails to operate in this manner, there is a fault in the electrical system or the GFCI and you may not be protected from an electrical shock. Turn off the power and have a qualified electrician check the circuit before using it again.

Do not use electrically connected devices such as television, radio, or stereo speakers, lights, hair dryers, or telephones within 1.5 m (5 feet) of the J-Dream II while in use.

Read manufacturer's safety information with all optional equipment.

Note: This is a professional grade product. A good knowledge of construction techniques, plumbing and electrical installation according to codes are required for proper installation and user satisfaction. We recommend that a licensed contractor perform the installation of all Jacuzzi Whirlpool Bath products. Our warranty does not cover improper installation related problems.

Save These Instructions for Future Use.

Owner's Record

Date Purchased ____________________________________________________________

Purchased From ____________________________________________________________

Installed By ________________________________________________________________

Serial Number ___________________________

(See page 2 for location of serial number.)

Contents

Part I Assembly & Installation

Specifications _______________________________________________________________________ 2 General Information __________________________________________________________________ 3-4 Packaging __________________________________________________________________________ 5 Hardware Identification ________________________________________________________________ 6 Rough-in ___________________________________________________________________________ 7 Base and Drain ______________________________________________________________________ 8-9 Installation of Panels __________________________________________________________________ 10-16 Door Frame _________________________________________________________________________ 17 Top Frame__________________________________________________________________________ 18 Hose and Electrical Connections ________________________________________________________ 19-21 Bonding ____________________________________________________________________________ 22 Final Plumbing ______________________________________________________________________ 23 Front Panels ________________________________________________________________________ 24 Cover______________________________________________________________________________ 25 Completing the Installation _____________________________________________________________ 26

Part II Operation and Maintenance _______________________________ 27-30

Warranty _____________________________________________________________ 33-34

Inspection and Shipping Claim

Check for shipping damage upon receipt of the J-Dream II. Jacuzzi Whirlpool Bath is not responsible for damage to the J-Dream II sustained during shipping. If damage is evident before unpacking, see instructions regarding shipping claims on the outside of the carton and immediately file a claim with the carrier.

Once the J-Dream II has been removed from the carton and before it is permanently installed, check the parts completely for damage resulting from shipping or handling. All Jacuzzi Whirlpool Bath products are factory tested for proper operation and watertight connections prior to shipping. If problems are detected, immediately notify your Jacuzzi Whirlpool Bath dealer or Authorized Service Agent, or call Jacuzzi Whirlpool Bath, (800) 288-4002, for Warranty Service.

NOTE: Damage or defects which could have been discovered and repaired prior to installation and which are claimed after final installation of the J-Dream II, are excluded from our warranty.

J-Dream II Owner's Manual

FRONT VIEW

3" (76 mm) CLEARANCE

TO REMOVE DOME

WHIRLPOOL

BATH

81"

(2057mm)

21 1/2"

(546mm)

11 5/8"

(295mm)

83"

(2108mm)

60"

(1524 mm)

TOP VIEW

60"

(1524mm)

SERIAL NUMBER LOCATION (AT TOP) ON BACK OF EQUIPMENT SEAT WALL

42"

(1067mm)

SPECIFICATIONS

DIMENSIONS

60" (1524mm)L 42" (1067mm)W 83" (2108mm)H

TOTAL WEIGHT/ FLOOR LOADING

833 lb (379 kg)

47.6 lb/ft (233 kg/m2)

* Unit supplied with a 240 VAC, 20 Amp, 3 wire plug (NEMA 6-20P).

REQUIRED WATER SUPPLY

6 gpm (23 liter/min) @ 30-65 psi (2.1-4.6 Bar)

PRODUCT WEIGHT

525 lb (239 kg)

ELECTRICAL REQUIREMENTS*

240 VAC, 3-Wire 20 Amp, 50-60 Hz (Must be GFCI Protected)

PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

SHIPPING WEIGHT

849 lb (386 kg)

J-Dream II Owner's Manual

Read all instructions before beginning assembly and installation.

General Assembly Information

The J-Dream II shower unit is installed into a niche with the drain towards the left hand side of the unit as you face the shower door. This manual details the assembly, installation and operation. After the drain, water supply stub-out, and electrical supply are provided, the shower unit should be assembled freestanding away from the walls of the room. Next connect and static test the water supply lines. The electrical connections should then be completed before the unit is moved into final position, drain fit is rechecked, and assembly is completed before final testing.

Room Construction: Important

The room where the shower unit is to be located must be constructed of materials that can withstand excessive amounts of moisture and condensation. Large amounts of steam can be released into the room when the shower door is opened. Providing natural or forced ventilation of the room will help maintain comfort and minimize moisture damage to the building. Jacuzzi Whirlpool Bath is not responsible for damages resulting from excess moisture or water spillage. Consult an architect or engineer for aid in designing your interior structure. Do not install heat lamps directly above the shower unit. The clear

top will deform from excess heat.

Water Supply Required

The water supply must be capable of delivering 6 gallons per minute minimum to the unit within a pressure range of 30-65 PSI (2.1-4.6 BAR). Pressures in excess of 65 PSI (4.6 BAR) must be reduced with a regulator in the supply line. This is the amount of water and pressure required to ensure adequate performance of the J-Dream II, it is not the water consumption rate.

NOTE: DO NOT provide less than minimum flow specified. Negative pressure under certain conditions could cause a health hazard by fouling of the house potable water supply.

Electrical Power Required

See Specifications for power required. Power supplied to the unit must be through a *GFCI protected, dedicated circuit with proper bonding and grounding. The GFCI must be located in an area that will allow access for frequent testing.

* GFCI ( Ground Fault Circuit Interrupter) is also known as an ELCB ( Earth Leakage Circuit Breaker.) This device must be a type approved by electrical codes and standards to protect users from potential electrical hazards.

J-Dream II Owner's Manual

Electrical requirements

Your J-Dream II, as it comes from the factory, requires a GFCI protected 240 VAC 3- wire 20 AMP 50-60 Hz circuit (2 conductor with ground) for single (1) phase electrical service, and must be in a separate circuit having no other appliance connected in that circuit. If you do not have this kind of circuit, a qualified electrician should be called in to install the necessary wiring. Inadequately sized wiring or locating the unit too far from the main service panel may cause a voltage drop. A drop in voltage can cause the unit to malfunction and bring about permanent damage to the shower's electrical system. The circuit ground wire must be provided to take advantage of the designed-in safety features of the J-Dream II. Bond according to procedure described on page 23. Caution: Without proper grounding and bonding, a system malfunction may cause fatal shock.

Electrical precautions

Lighting and electrical receptacles must be located at least 5 feet (1.5 meters) from the J-Dream II. Lighting located between 5 feet and 10 feet (1.5 meters and 3 meters) from the J-Dream II must be on a circuit protected by a GFCI. Do not use electrically connected devices, such as television, radio, telephones, stereo speakers, lights or cooking devices within 5 feet of the JDream II while it is in use.

Ventilation

Water which drips on the floor during exit from the J-Dream II may cause a walking hazard and/or structural damage unless proper waterproof building materials are used in the area surrounding the unit. Take into consideration, also, the high room humidity which will exist due to use of the steamer. Providing natural or forced ventilation of the room will help maintain comfort and minimize moisture damage to the building. Jacuzzi Whirlpool Bath is not responsible for damages resulting from excess moisture or water spillage. Consult an architect or engineer for aid in designing your installation.

Maintenance

Cleaning the J-Dream II

To clean your J-Dream II, simply use a mild nonabrasive liquid detergent or commercially prepared bathtub cleaners. Do not use abrasive cleaners. You can protect and restore the gloss to a dulled surface by applying a plastic polish specifically

designed for use on acrylic finishes (methylmethacrylate). If an acrylic polish is not available, an automotive paste wax will do.

Repairs to the surface

Minor scratches which do not penetrate the color finish (acrylic) can be removed with 600-grit wet/dry sandpaper. Restore the glossy finish with an acrylic polish or a comparable automotive paste wax.

Major scratches or gouges which penetrate the acrylic surface will require refinishing. Ask your dealer for special instructions.

J-Dream II Owner's Manual

J-Dream II Packaging

6 cartons packed together on a wooden crate.

Contents of cartons:

• Wall Panels

• Door Frame

• Base/Cover (includes product accessory pack and owners manual)

• Back Wall

• Seat Wall

• Equipment/Seat Wall

J-Dream II Owner's Manual

Letters (A) are used in the illustrations of the assembly procedure.

CLIP

WASHER

SCREW

NUT

U-CLIP 10-24

PAN HEAD SCREW #10-24 x 3/4"

FLAT WASHER 1/4"

LOCK NUT 10-24

FLAT HEAD SCREW M4x10mm

NUT

WASHER

SCREW

SIDE BRACKET

1/4-20 LOCK NUT

FLAT WASHER #10

PAN HEAD SCREW #6-32 x .38

WASHER

SCREW

BOLT

PAN HEAD SCREW #12 x 1/2

HEX BOLT 1/4-20 x 1.5"

SELF-TAPPING M6x50mm

EXTERNAL TOOTH LOCK-WASHER 1/4

L BRACKET

LAG SCREW

CLAMP

J-Dream II Owner's Manual

Rough-in

HOSE BIBB (2)

WASHING

MACHINE OUTLET BOX

(2) 1/2 " HOT & COLD WATER SUPPLY LINES

IMPORTANT: This is the installed position of the waste stub-out when connected to the shower drain. If the stub-out is installed before the shower unit, leave enough flex in the waste line to allow the end of the stub-out to be blocked temporarily (see page 10) in a position under flush to the floor surface. This will allow the shower unit to slide across the floor into position without having to lift it.

IMPORTANT: The shower drain is designed to connect to a 2 inch (50mm) ABS or PVC (as approved by local codes/standards) waste stubout.

End of 2 inch (50 mm) waste stubout must be located to these dimensions within 1/4 inch (6mm).

FINISHED WALLS

CONNECT #8 GAUGE (10mm2) MINIMUM SOLID COPPER BOND WIRE TO THE HOUSE ELECTRICAL PANEL OR APPROVED LOCAL GROUND. AN APPROVED GROUND MAY BE AN 8 FOOT LONG GROUND ROD (3 METER LONG EARTH ROD), A PLATE ELECTRODE, OR OTHER ACCEPTABLE BOND. CHECK YOUR LOCAL BUILDING CODE FOR REQUIREMENTS. (SEE PAGE 22 FOR BONDING INSTRUCTIONS).

ELECTRICAL OUTLET 3 WIRE 240V 20A RATING TO BE ON A GFCI PROTECTED CIRCUIT

40 "

FINISHED WALL

SURFACE

21-1/2"

11-5/8"

FINISHED WALL

SURFACE

42"

FINISHED FLOOR

MATERIAL

2 " WASTE STUBOUT

60" FINISHED MINIMUM

J-Dream II Owner's Manual

Locate Base to provide assembly access to all sides

Remove Base from carton labeled Base/Top. Place Clear Top in carton to prevent damage. (The Clear Top will not be installed until the unit has been fully assembled and plumbed).

Position the J-Dream base on the floor so that you have work access to all four sides of the unit during assembly. (Allow a minimum of 24" (600 mm) of access on each side of base.) Before starting assembly, position the base pointing in the same direction as it will be in the final installation position so no unnecessary turning of the unit is required.

Niche where J-Dream II is to be finally installed.

Notice Base is positioned in the same direction as it will be in the final installation position.

Silicone Sealant

Base

Floor cut-out for drain pipe.

Drain Fitting

RubberWasher

Flange

J-Dream II Owner's Manual

Drain Fitting (provided with unit)

Leave enough flexibility in the waste line to allow the end of the stub-out to be blocked temporarily in a position under flush with the floor surface. This will allow the shower unit to slide across the floor into position without having to lift the shower unit.

Studwall

Temporary Wood Block

Floor

Remove the block and pull the drain assembly up to insert the stub into the drain. The drain fitting is a non-caulk type (compression fitting) drain. Make certain that the locking ring is loose to allow the drain stub to insert easily inside the rubber compression sleeve. If necessary, lubricate the sleeve with a mild soap solution. The drain stub must extend well into the rubber sleeve before the locking ring is tightened. Use a screwdriver and the assembly tool provided to tighten the locking ring.

Drain Compression Fitting

Drain Assembly

Screwdriver

Locking Ring

Broken Line Represents Drain Stub

Assembly Tool

Tighten Locking Ring Clockwise

Rubber Compression Sleeve

J-Dream II Owner's Manual

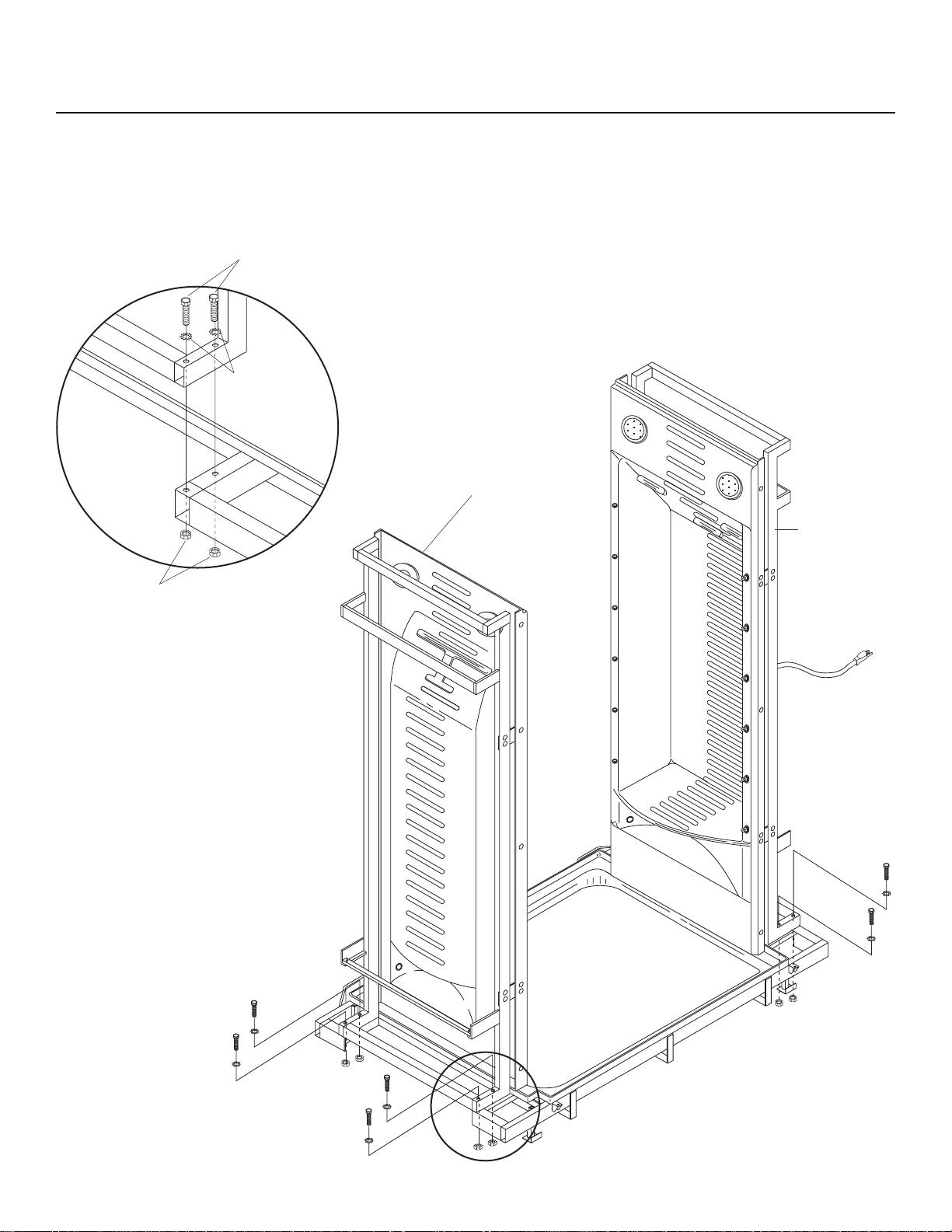

Attach Seat Walls to Base (J-Dream II with stereo shown)

Bolts (8)

Washers (8)

Align four holes on seat wall frame over base and insert bolts and tighten nuts from underneath.

Non-Equipment Seat Wall

Equipment Seat Wall

Nuts (8)

J-Dream II Owner's Manual

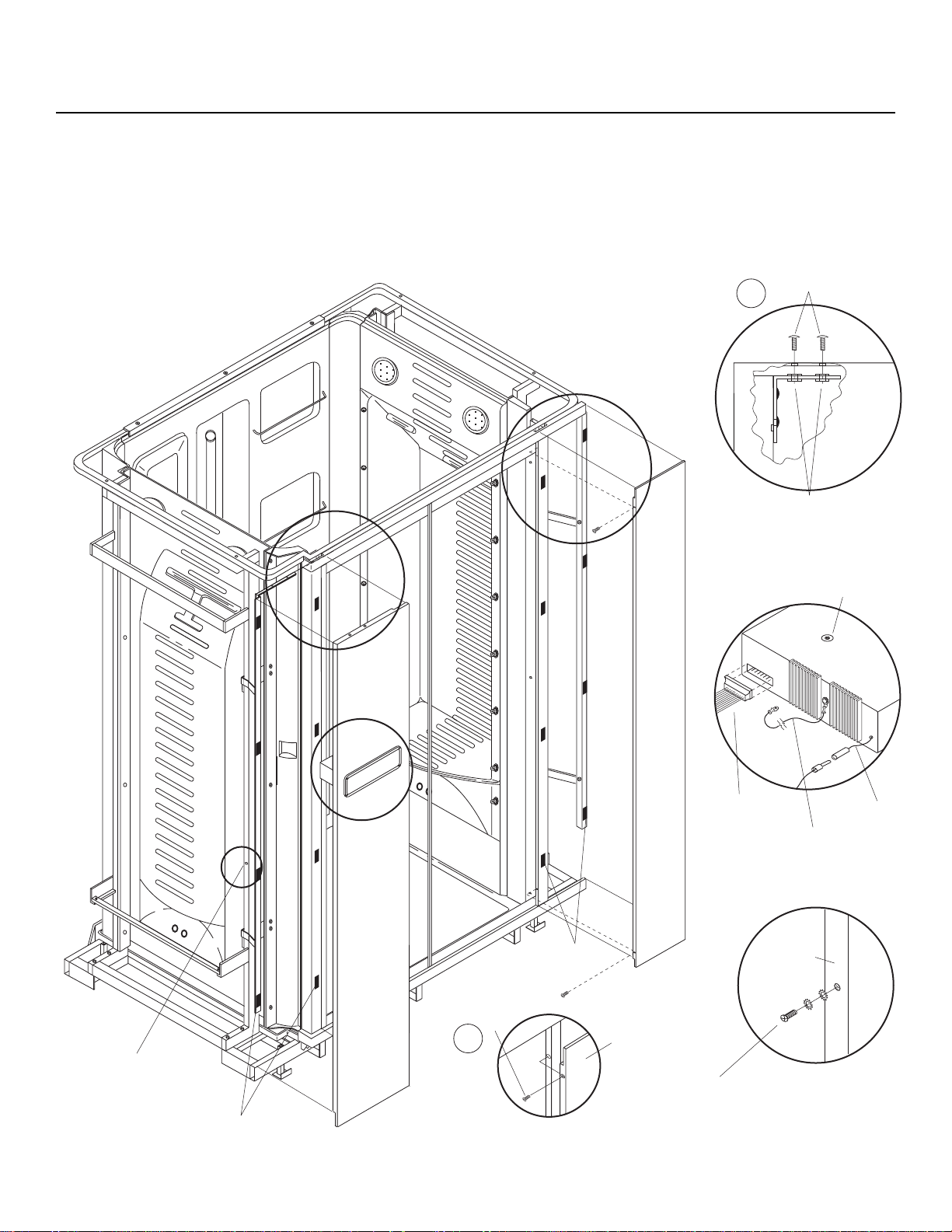

Attach Panel #2 to Seat Wall Frame

Slide in panel feeding between frame and edge of seat wall. Align to frame and fasten panel to frame. Important: do not caulk panel to seat wall as the seat wall is hinged and designed to swing open.

You may want to swing the hinged seat wall open to get better access to the installation of the screws.

Panel #2

Remove these 4 screws to swing the seat wall open.

Washer (4)

Screw (4)

Move

Seat Wall

Seals

Top View

Frame

When Panel #2 is installed and put in position the seals will be as shown.

J-Dream II Owner's Manual

Attach Panel #3 to Seat Wall Frame

Slide in panel feeding between frame and edge of seat wall. Align to frame and fasten panel to frame. Important: do not caulk panel to seat wall as the seat wall is hinged and designed to swing open.

You may want to swing the hinged seat wall open to get better access to the installation of the screws.

Washer (4)

Screw (4)

Panel #3

Remove these 4 screws to swing the seat wall open.

Move

Frame

Seat Wall

Seals

Top View

When Panel #3 is installed and put in position the seals will be as shown.

J-Dream II Owner's Manual

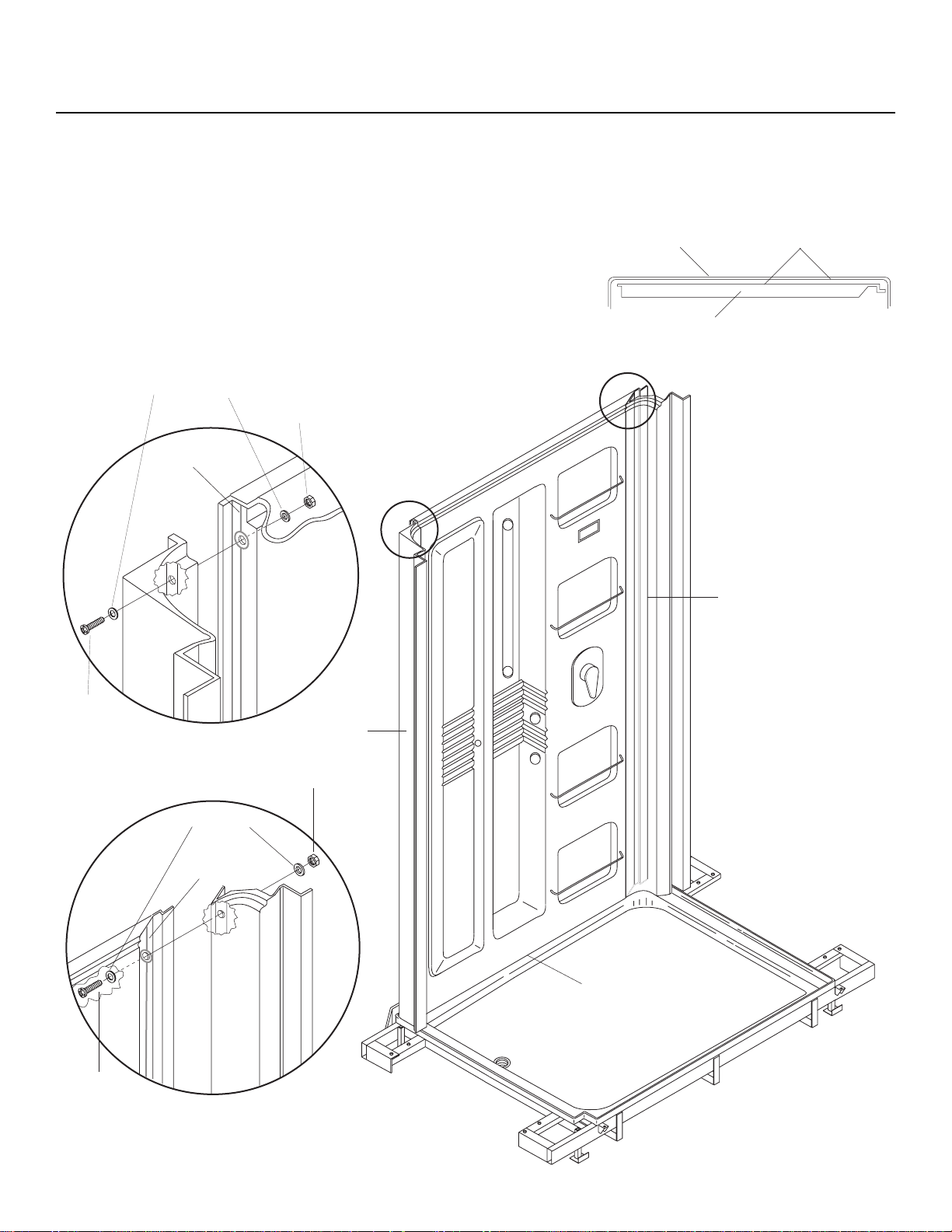

Install Back Wall

Caulk the bottom and sides of back wall where indicated in the illustrations below. Install fasteners. Now align the back wall parallel to the pan lip to center the back wall between the seat walls.

Washer (8)

Caulk

Pan lip

Back wall

Nut (4)

Parallel

Screw (4)

Washer (8)

Caulk

Panel #2

Panel #3

Nut (4)

Seat walls not shown in this illustration for clarity.

Caulk

Screw (4)

J-Dream II Owner's Manual

Attach Panels #1 and #4 to Seat Walls

Remove 4 bolts from seat walls to attach panels # 1 and #4. Caulk along surface of seat walls.

Seat wall attaches to panel #1 and #4 in two places.

Seat wall attaches to panel #1 and #4 in

Caulk

Nut (3)

three places.

Washer (10)

Screw (3)

Caulk

Reinstall bolts (4)

and washers (4) removed from seat wall and bracket

Narrow side of panel faces toward the front

Panel #1

Panel #4

J-Dream II Owner's Manual

Attach Brackets to Seat Wall Frames and L Bracket to left Angle Bracket

Bolt (remove top bolt from seat wall bracket and reinstall). See below dimensions for bolt locations.

Side Bracket

Seat Wall

Nut (2)

Screw (2)

Bolt (remove top bolt from seat wall bracket and reinstall). See below dimensions for bolt locations.

Seat Wall

Panel #1

Frame

Side Bracket

Nut (2)

Screw (2)

Panel #4

U-Clip

L Bracket

Nut (2)

Washer (2)

Angle Bracket with Velcro strips

Note: only the left side has this L bracket installed.

Screw (2)

58-3/8"

TOP OF

FRAME

17"

Panels #1 and #4 not shown in this illustration for clarity.

J-Dream II Owner's Manual

Attach Painted Angle Brackets to Panels #1 and #4

Note that each angle bracket has a notch on the top and bottom. This notch does not get screwed against the side panels but faces out as shown in the side view for both left and right sides. Do not tighten the screws at this time as the angle brackets will have to

be aligned with the door frame holes.

Nut (3)

Top View (right side)

Washer (3)

Screw (3)

Notch

Caulk

Side View (right side)

Nut (3)

Washer (3)

Screw (3)

Top View (left side)

Notch

Side View (left side)

J-Dream II Owner's Manual

Attach Door Frame to Angle Brackets and Base Frame

Before proceeding, make sure the seat walls are closed and fastened. See detail B on page 15. Align door frame

over tabs on base frame and pan lip. Pan lip is to fit into corner posts of door frame. Align holes along sides of door frame with angle brackets and mark this position of the angle brackets. Remove door frame and angle bracket screws. Apply the silicone caulk and reinstall the angle brackets at the marked position. Insert screws and tighten. Reposition the door frame and install screws through angle brackets into door frame post. Then install bolts (2) through frame tabs into door frame. Do not over tighten. Do not silicone caulk angle brackets to door frame as they allow service access to equipment.

Enclosure Post

Panel #1

Screw (3)

Panel #1

Angle Bracket

Panel #4

Angle Bracket

Enclosure Post

Screw (3)

Enclosure Post

Washer (2)

Panel #4

Base Frame

Bolt (2)

J-Dream II Owner's Manual

Attach Top Frame to Door Frame, Back Wall and Seat Wall Frames

Press/tap top frame into door frame, aligning notch in door frame with corner of top of frame while aligning with corners of enclosure. Frame snaps down into door frame and back snaps over back wall. Install bolts (4) through top frame and into left and right seat wall frames.

Bolt (4)

To p Frame

Seat Wall Frame

Washer (4)

Nut (4)

Bracket

(preinstalled)

Back Wall

To p Frame

J-Dream II Owner's Manual

Left Seat Wall

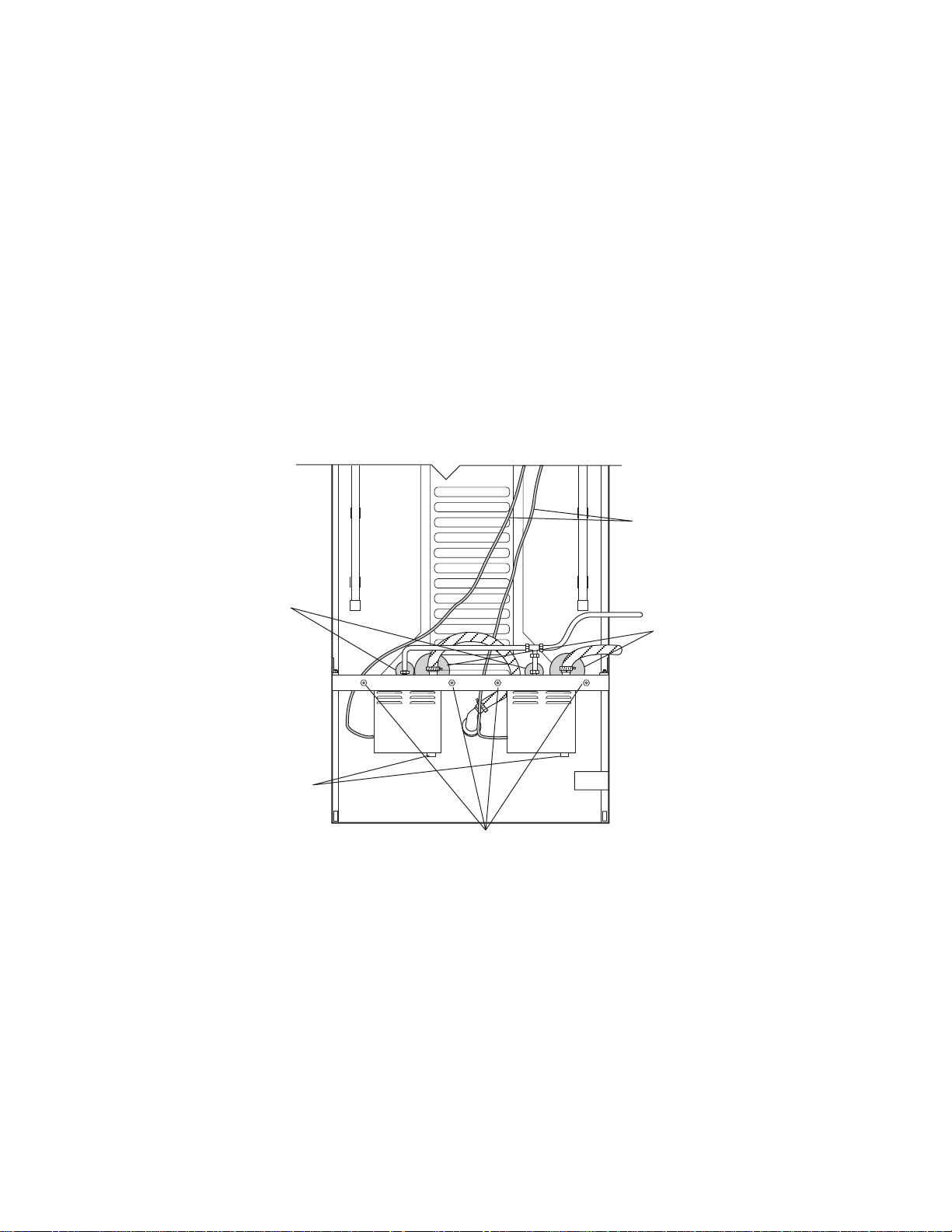

Feed the four hoses and controller cable from the back wall and connect them as shown. The steam hose connection uses a hose clamp while the other hoses use spring clamps that are on the hoses.

Also feed the CD/Radio wire bundle to the back wall. (J-Dream II with stereo only.)

Back of Left Seat Wall

From Backwall (to Cascade Tee on Equipment Seat Wall)

CD/Radio Wire Bundle

From Backwall to Valve 1 to Valve 3 (Valves on Equipment Seat Wall)

Connect to CD Power Supply (Black & Red Wires)

To Speaker (on Equipment Seat Wall)

CD/Radio connector

Steam line (with Black Insulation Cover)

Hose Clamp

J-Dream II Owner's Manual

Back W all

Use cable ties to attach the CD/Radio wire bundle to the cascade hose. The hoses from valves 1 and 3 and the steam hose are loosely attached to their mounting brackets to allow the slack when connecting them and when the hinged seat wall is swung open (like a door) to access equipment. After they have been connected and there is sufficient slack, the cable ties may be tightened. Feed the hot and cold water, valve manifold supply, valve 6 and 7 lines from the equipment side wall and connect as below. Route the water filter line and control cable to the equipment side wall.

CD/Radio Speaker and Power Wires

To Cascade Fitting

To Cascade Tee

Control Cable To Valve 1

To Valve 3

To Valve 6 To Valve 7

From Water Filters

Cold Water Supply (with braided metal sheathing)

Hot Water Supply (with braided metal sheathing)

To Manifold

To Jets

To Steam Head

Steam Line (with black insulation cover)

J-Dream II Owner's Manual

Right Seat Wall (Equipment Wall)

Connect the hoses routed from the back wall as below (grayed lines are pre-attached). Connect the controller line. The red and black leads in the CD/Radio wire bundle must be hooked up to the corresponding colored leads of the power supply. Connect the speaker leads. Connect the two SteamPro power cords after unraveling them.

Red (+) lead

Black (-) lead

Manifold

CD/Radio power supply

From mixer

Adaptor Jack

Bonding

Wire

Back of Right Seat Wall

Valve #

54 2

1367

CD Power and Speaker Wires

From Control Panel From Bottom of Mixer

on Backwall

From Backwall

From Backwall (Diconnect This Hose When Accessing Equipment on This Seat Wall)

Cascade Tee

Power Cords from SteamPros

To Tee on Cold Water Line

Steam Line from Backwall (with black insulation cover)

J-Dream II Owner's Manual

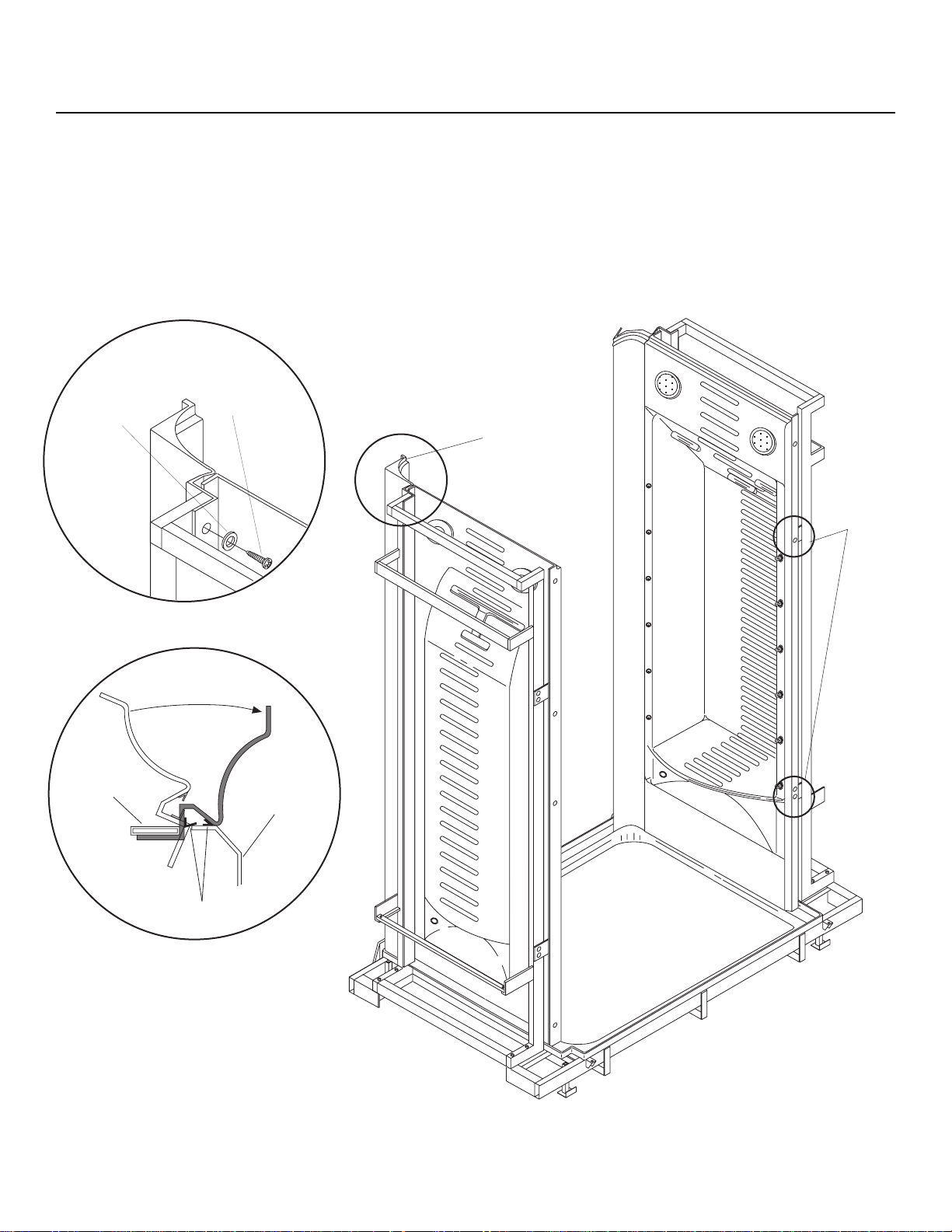

Bonding (top left hand side of right hand equipment seat wall)

Connect a #8 guage (10mm2) minimum solid copper bond wire to the house electrical pannel or an approved local ground. An approved ground may be an 8 foot long ground rod (3 meter long earth rod), a plate electrode or ther acceptable bond location. Check your local building code for requirements. (If necessary, remove one screw in the plastic cover plate on top of seat wall frame and swing plate out of the way for access.)

POWER CORD JUNCTION BOX

J-Dream II Owner's Manual

1. Make sure electric power is OFF at main breaker.

2. Static test water supply hoses for leaks.

3. Plug power cord into GFCI protected wall outlet.

4. Move the assembled J-Dream II into final position.

5. Connect 2" shower drain (see page 9).

6. Adjust the levelling screws in the J-Dream II base feet and lock them in position.

7. Recheck fit of drain plumbing.

8. Secure J-Dream II in position using clamps provided as shown in Figure 1.

9. Connect showerhead hoses to wall outlets, snap drain cover into place.

10. Adjust the Optica mixer rotational limit stop. To adjust, consult the Optica instructions enclosed with this manual.

Secure J-Dream II in position on floor using clamps (provided) on two front feet.

Lag bolt

Floor clamp

FIGURE 1

Adjustable foot

Velcro

J-Dream II Owner's Manual

Attach Front Panels to Unit

Attach both left and right front panels with pre-installed Velcro®. On the left front panel, install 2 screws through the top of the panel. Connect the CD/radio ground wire, speaker/power connector and antenna wire before installing left front panel. Ground wire is bolted to the seat wall frame.

Screw (2)

Front Panel

Tinnerman® Nuts (pre-installed)

Remove this screw before operation

Speaker and power leads

Ground Wire

Rear view of CD/radio

Antenna Wire

Important: Attach CD/Radio ground wire here

Velcro®

Screw (2)

Velcro®

Frame

Front Panel

Screw - to be removed to permit attachment of CD/Radio ground wire. Put ground wire terminal between lockwashers and retighten screw.

J-Dream II Owner's Manual

Top Cover

Place cover on top of unit. Align notch in cover with the corresponding notch in the top metal frame.

J-Dream II Owner's Manual

Turn On Electric Power at Main Breaker Operate Unit and Check for Leaks Attach Bottom Front Panel to Unit

Take the bottom panel at an angle and insert under the bottom of the enclosure frame. Rotate backwards till it is up against the brackets with the pre-installed Velcro®.

Enclosure

Base Frame

Panel

Use finishing strip material (not provided) to cover gap between J-Dream II and finshed wall. Do not attach finishing strips to face panels.

Velcro

Screws

Velcro

Removable Face Panels

Bottom Face Panel fastened with Velcro

Part II: Operating Instructions

HOT

COLD

OFF

CONTROL PANEL

System control is provided by the electronic display located inside the shower cabin (see Figure 1) The display is used to start up the five functions of the unit: the shower, the cascade waterfall, the hydromassage (all jets),

hydromassage (pulsed jets), and the steam bath. The display is composed of clear symbols to identify the five functions.

STEAM

START BUTTON

WHIRLPOOL

HAND HELD SHOWER

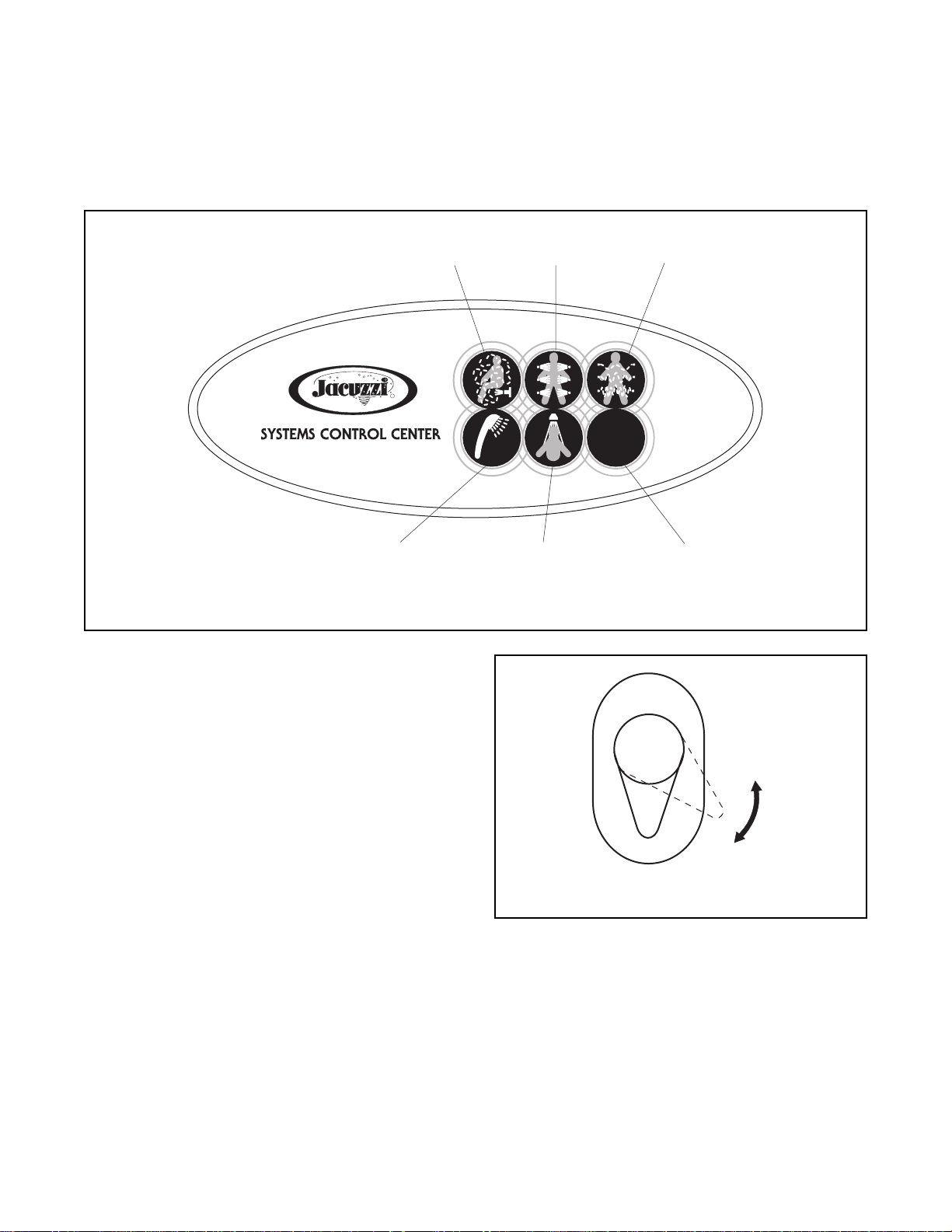

FIGURE 1. CONTROL PANEL AND DISPLAY

BATH

START BUTTON

Starting Any Function

The mixer control valve must be ON for the functions of the control panel to be operational except for the steam function . After the mixer valve has been set and is ON, press any button to start that function. The steam function can be ON with any other function. Other functions can only be ON one at a time. Pressing the OFF button turns all functions OFF.

JETS

START BUTTON

PULSED JETS

START BUTTON

OFF

OFF BUTTONCASCADE

Mixer Control

To adjust the temperature turn the mixer handle as shown in Figure 2. When exiting the J-Dream with all functions OFF, the mixer control must be turned to the OFF position.

FIGURE 2. MIXER CONTROL

Shower

The shower button has four modes: pressing once activates one shower, pressing twice activates the other shower only, pressing a third time activates both showers and pressing a fourth time deactivates both showers. Pressing the OFF button or any other button will turn the shower mode OFF regardless if one or the other or both showers are operating.

Cascade

This feature offers the pleasant sensation of a waterfall lapping over your shoulders and body as you are comfortably seated. To start the cascade, press the CASCADE button on the display (Figure 1) to automatically start water delivery from the nozzles above the seats. To stop the cascade, press the CASCADE button again or OFF button or any other button.

Starting the Hydromassage

The J-Dream allows you to enjoy the benefits of a real hydromassage. The hydromassage is created by the combined action of 16 water jets (four sets of 4 ). The action of each group of jets is either alternated or pulsed.

To start the hydromassage jets, press the JETS button once (Figure 1). This will activate the jets on one wall. Pressing it a second time will shut OFF that wall and activate the other wall. Pressing a third time activates both walls and pressing a fourth time turns the hydromassage OFF. The PULSED JETS button may be pushed with either wall or both walls on. Pressing this button once will increase the rate of the pulses from a default speed. Pressing a second and third time continues to increase the rate of pulsation. Pressing a fourth time reverts to the default rate. To stop the hydromassage in any mode, press the OFF button or any other button.

Starting the Steam Bath

Press the STEAM start button on the display (Figure 1). The steam function has a 60 minute cycle after which it turns off automatically. The steam bath can be turned off at any time by depressing the OFF button. Do NOT operate the

steam generators without the water supply ON as permanent damage to the generators will occur.

CD/RADIO

For operation of the CD/radio consult the manual enclosed. NOTE: In order to hear the TV audio, the Pioneer CD Receiver AUX function must be setup to be ON. To perform this setting:

• If the unit is on, press SOURCE and hold until the unit turns off.

• Press FUNCTION repeatedly until AUX appears in he display

• Select AUX on and off with . The status will be displayed: AUX :ON. If power to the unit is interrupted, the CD Receiver will have to be reset. Note:For units with AM/FM radios, the quality of AM reception will vary by locality. Jacuzzi Whirlpool Bath is not responsible for the quality of AM reception.

Maintenance

Routine Maintenance

The shower head is equipped with a filter which must be occasionally cleaned of limestone and other deposits. The filter is placed between the flexible hose and the shower head. If limestone deposits are on the jet nozzles, the shape of the water jets may be altered. Remove and clean the nozzles occasionally. Unscrew the nozzle to remove. Clean it by soaking it in a moderate vinegar and water solution. Do not use metal tools (such as scissors or screwdrivers, etc.) to clean the nozzle. For routine cleaning of the dome and plastic surfaces, such as the side panel, the shower wall panel, etc., use a mild liquid detergent only. Any normal polish can be used to keep acrylic surfaces shiny. The glass panels can be cleaned with any glass-cleaning product available on the market. Do not use abrasives, alcohol,

acetone, ammonia or other solvents on any part of the J-Dream.

Care and Maintenance of SteamPros

Maintenance of the Steampros includes flushing and visually inspecting for water leaks. To flush the units:

1. Turn OFF power to the unit.

2. To gain access to the SteamPros, the seat wall (equipment wall) must be swung open. To do so, remove the three screws from door frame (refer to page 17, diagram A). Then remove right front panel. Refer to page 11 and remove the four bolts indicated. Swing seat wall open far enough to remove cascade line from cascade tee by loosening spring clamp (refer to page 21). Swing seat wall fully open and turn the water supply OFF. Unplug the SteamPros' power cords and disconnect all plumbing. Remove the SteamPros from their mounting (refer to illustration below).

3. Flush the tanks out; the drain plug can be removed with an 8 mm hexagonal wrench.

4. Reinstall SteamPros. Turn ON the water supply and check for leaks. Reattach cascade line.

5. Close seat wall, reinstall bolts, screws and panel.

6. Turn ON power to the unit.

Disconnect Copper Lines

Drain Plug

Unplug Power Cords

Disconnect Steam Lines

Remove Nuts (Opposite side) and Remove SteamPros from Studs

Troubleshooting Chart

1. Control is on and appears to be functioning, but no steam.

PROBABLE CAUSE PROBLEM REMEDY

A. Steamer heating up.

B. High limit safety switch tripped.

A. Allow 2 minutes for steam to

flow.

B. Replace water filter, drain and

flush out steamer and steam plumbing. Pour six ounces of water into the steam delivery tube. Reset high limit safety switch.

2. Steam generator will fill and produce steam, but will boil water away without refilling and shut itself off.

3. Excess water is exhausted from the steam head.

A. There is a high concentration of

mineral buildup in the tank water because of continued use without draining the tank. This causes faulty water fill operation, and the high temperature safety switch will trip.

A. There is a high concentration of

mineral buildup in the tank.

A. Replace water filter, drain and

flush out steamer and steam plumbing. Pour six ounces of water into the steam delivery tube. Reset high limit safety switch.

A. Replace water filter, drain and

flush out steamer and steam plumbing. Pour six ounces of water into the steam delivery tube.

PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

USE INSTALLATION INSTRUCTIONS SUPPLIED WITH PRODUCT.

Jacuzzi Whirlpool Bath has obtained applicable code (standards) listings generally available on a national basis for products of this type. It is the responsibility of the installer/owner to determine specific local code compliance prior to installation of this product. Jacuzzi Whirlpool Bath makes no representation or warranty regarding, and will not be responsible for any code compliance.

Jacuzzi Whirlpool Bath

P.O. Box 702168, Dallas, TX 75370-2168

Service Support: Call (800) 288-4002

Printed on Recycled Paper

Printed in the U.S.A.

Jacuzzi Whirlpool Bath Limited Warranty

Shower System Product

Jacuzzi Whirlpool Bath (the “Company”) offers the following express limited warranty to the original purchaser of any Jacuzzi Whirlpool Bath Shower System product (“unit”) who purchases the product for personal or single family use (“user”). The Company will repair or replace, at its option, the unit or its equipment in accordance with the following terms and conditions.

ONE YEAR LIMITED WARRANTY ON SHOWER SYSTEM

Our warranty on Shower System products is for one (1) year. Our warranty covers the unit and factory-installed components (e.g., pump, motor) against defects in material or workmanship. Warranty coverage begins on the date the unit was originally purchased by the user.

NINETY DAY (PARTS ONLY) LIMITED WARRANTY ON OPTIONS AND ACCESSORIES

Our warranty on options and accessories manufactured by the Company is for ninety (90) days for parts only. Our warranty covers options and accessories manufactured by the Company (e.g., fill spout kits, trim kits, skirts) against defects of material or workmanship. Warranty coverage begins on the date the option

or accessory was originally purchased by the user.

Our warranty does not cover defects, damage, or failure caused by the common carrier, installer, user, or other person, or resulting from, without limitation, any of the following: careless handling (lifting unit by plumbing, abrading finish, etc.); modification of any type for any reason (including modification to meet local codes); improper installation (including installation not in accordance with instructions and specifications provided with the unit); connections supplied by the installer of the equipment; improper voltage supply or unauthorized electrical modification; misuse; incorrect operation, or lack of proper routine maintenance; operation of the unit without specified minimum amount of water or at inappropriate water temperature; use of abrasive or improper cleaners; or acts of God, such as lightning, floods, earthquakes, etc.

In addition, THE COMPANY WILL NOT BE RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES or losses arising from any cause (e.g., water damage to carpet, ceiling, loss of use, etc.) including its own negligence; damages to, respecting, or resulting from: plated parts when chemicals are used in the unit; optional equipment not manufactured by the Company, supplied by Dealer, installer or the Company; the unit's prior usage as an operational display; or defects that should have been discovered before installation. This limited warranty does not include: labor, transportation, or other costs incurred in the removal and/or reinstallation of the original unit and/or installation of a replacement unit; any costs relating to obtaining access for repair; or loss of use damage, including loss of sales, profit or business advantage of any kind under any circumstances. Units in commercial use are excluded from any warranty coverage whatsoever.

Warranty coverage is provided in the United States of America only.

WARRANTY COVERAGE

WARRANTY LIMITATIONS

Implied warranties of merchantability and fitness for a particular purpose are disclaimed altogether or to the full extent allowed by law.

NOTICE: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. There are no warranties applicable to Jacuzzi Whirlpool Bath products except as expressly stated herein or as implied by applicable state and federal laws. The Company will not be responsible for any statements or representations made in any form that go beyond, are broader than or are inconsistent with any authorized literature or specifications furnished by the Company.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

The attached pre-addressed Warranty Registration Card MUST be filled out by the purchaser within thirty (30) days from purchase and mailed to Jacuzzi Whirlpool Bath in order for this warranty to become effective.

IMPLIED WARRANTIES

RETURN OF WARRANTY CARD

Jacuzzi Whirlpool Bath

P.O. Drawer J Walnut Creek, CA 94596-9885

RESPONSIBILITIES OF OTHERS

Inspecting the unit prior to installation is the responsibility of the installer or building contractor who acts on behalf of the user. They are responsible for ensuring the unit is free of defect or damage. Notices are placed on and in the unit and on the shipping carton advising the installer of this responsibility. In the event of a problem, the unit must not be installed. The Company is not responsible for failures or damage that could have been discovered, repaired, or avoided by proper inspection and testing prior to installation.

Damage occurring in transit is the responsibility of the carrier. The user or installer MUST open the crates and inspect the unit for damage when it is delivered. If damage is discovered, it must be reported immediately to the seller and the carrier in writing, and an inspection requested. Failure of the carrier to respond should be reported to the seller and the carrier. Your freight claims should be filed promptly thereafter.

It is the responsibility of the installer, building contractor, or user to provide access for service. The Company is not responsible for any costs relating to obtaining access for repair. The user shall bear such costs and, if appropriate, must seek recovery from the installer.

Damage occurring to the unit during installation is the responsibility of the installer and/or building contractor and damage occurring thereafter is the responsibility of the user.

Failure of any optional equipment is the sole responsibility of the equipment manufacturer. (Options and accessories manufactured by the Company are warranted for ninety (90) days from the original date of purchase for parts only.)

The Distributor or Dealer is responsible for knowing local code requirements and notifying the installing contractor and/or user of these requirements at the time of purchase. The Company is not responsible for costs to modify any product to obtain any code approval, such as city, county, or state building codes.

WARRANTY SERVICE

For the customer's benefit, the Company maintains a list of independent service personnel to perform required warranty service repairs. Such firms are not agents or

representatives of the Company and cannot bind the Company by words or conduct.

The Company will provide the warranty service described above when the following conditions have been met: the failure is of the nature or type covered by the warranty;

the user has informed an Authorized Jacuzzi Whirlpool Bath Service Agent or Warranty Service Department Representative of the nature of the problem during the warranty period; conclusive evidence (e.g., proof of purchase or installation) is provided to the foregoing by the user proving that the failure occurred or was discovered within the warranty period; an authorized independent service person or Company representative has been permitted to inspect the unit during regular business hours within a reasonable time after the problem was reported by the user.

In order to obtain warranty service, consult your local telephone book for the location of the nearest Jacuzzi Whirlpool Bath Authorized Service Agent. Describe the

problem and the Authorized Service Agent will inspect the unit and provide the required warranty service.

If you are unable to contact a Jacuzzi Whirlpool Bath Authorized Service Agent, call or write:

Jacuzzi Whirlpool Bath

Warranty Service Department

P.O. Box 702168

Dallas, Texas 75370-2168

Call: (800) 288-4002

To obtain warranty replacement for factory-installed components or Company supplied options and accessories manufactured and supplied by the Company, call or write

the above. Provide a description of the problem and proof of purchase. You will be instructed how to obtain replacements and where to return, at your expense, the failed component(s), option(s), or accessory(ies).

All replacement parts, equipment, and repairs shall assume the remaining warranty period of the part(s) replaced.

The Company's warranty obligation shall be discharged upon tender of replacement or repair. The customer's refusal to accept the tender terminates the Company's

warranty obligation.

Limited Warranty

Accessory(ies)

Ninety-Day

Parts Only

Limited Warranty

Accessory(ies)

Ninety-Day

Parts Only

11. Was your purchase process?

12. How technically aware were you of the patented Jacuzzi® jet system prior to ( ) $40,000 to $49,999 ( ) $150,000 and Above

( ) Very easy ( ) Easy ( ) Difficult ( ) Very difficult

your purchase?

( ) Not aware ( ) Somewhat aware ( ) Very aware

10. Approximately how long have you lived in this home? _________________ ( ) 1 month-2months

Please indicate, approximately, the total annual income of your household.

( ) Up to $24,999 ( ) $50,000 to $74,999

( ) $25,000 to $29,999 ( ) $75,000 to $99,999

( ) $30,000 to $39,999 ( ) $100,000 to $149,999

9. How long did you shop before purchasing unit? ( ) Other ___________________________________________________

Please estimate $ _____________________________________________

( ) Eljer ( ) Lasco ( ) Price Pfister ( ) Aqua Glass

( ) Kohler ( ) American Standard ( ) Sterling

( ) Other (Specify) ___________________________________________

( ) 1 day ( ) 2 months-6 months

( ) 2-7 days ( ) 6 months-1year

( ) 1 week-2 weeks ( ) 1 year-2 years

( ) 2 weeks-4 weeks ( ) +2 years

( ) Self/Spouse when remodeling

6. What is the current market value of this property?

7. What is the age of the head of the household? _________________ years

8. What other manufacturers did you consider?

Jacuzzi® is a Federally registered trademark owned by Jacuzzi Inc.

4. Who finally decided which product you would buy?

5. Who installed? ( ) Already installed/New Home ( ) Self ( ) Spouse ( ) Self and Spouse Together

( ) Other Family Member ( ) Designer/Architect

( ) Builder/Plumber/Remodeler ( ) Already Installed

( ) Contractor/Plumber when remodeling

3. What was the main reason for purchase?

( ) Styling ( ) Warranty Service ( ) Product Features

( ) Brand Name ( ) Price ( ) Hydrotherapy

( ) Home Resale _____________________________________________

( ) Other ___________________________________________________

2. Who first gave you specific information about this product (specifications, ( ) Visited Retailer/Home Center Store

( ) Word of Mouth . . . Friend/Relative/Acquaintance

( ) Other . . . Please Describe __________________________________

prices, etc.)?

( ) Dealer/Plumbing Supplier ( ) Builder ( ) Remodeler

( ) Plumbing Contractor ( ) Retailer/Home Center Store

( ) Decorator/Architect ( ) Already Installed

This card must be filled out and returned to the address printed on the

other side within thirty (30) days from date of purchase in order for this

warranty to be come effective.

Purchaser's Name ______________________________________

Purchaser's Address ____________________________________

City __________ State _____ Zip _______

Date of Purchase ______________________________________

Model Name __________________________________________

Serial Number ________________________________________

Dealer's Name ________________________________________

Dealer's Address _______________________________________

1. How did you first hear about this Jacuzzi

( ) Advertisement ( ) Article in Magazine/Newspaper

( ) Visited Dealer/Plumbing Supplier ( ) Yellow Pages

( ) Builder/Plumber/Remodeler ( ) Decorator/Architect

product?

Registration Card

Warranty

K922000

8/13/04

Jacuzzi J-DREAM II User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
