OWNER’S MANUAL

J - 4 0 0

™

S e r i e s

J - 460 J - 465 J - 470 J - 480

2530-442T Rev. A

Attention New Spa Owner!

Congratulations on the purchase of your new Jacuzzi® spa! The following is a list of automated functions performed by your spa. These functions are listed below in an attempt to suppress any operational concerns you may have during the ﬁrst 24 hours of ownership! Also listed below are important maintenance recommendations you should observe on a regular basis to protect your new investment.

Automated Spa Operations

Your new spa is equipped with an automated “blow-out” cycle that clears all plumbing lines daily to promote maximum water sanitation. Each day at 12:00 PM (noon), pump 2 will automatically turn on for a period of one minute, then go off. Then pump 1 will turn on and run for one minute to complete the blowout cycle. Be aware, the factory programmed blow-out cycle cannot be canceled or altered!

Maintain Healthy Spa Water

Always maintain your spa’s water chemistry within the following parameters as deﬁned by the Association of Pool And Spa Professionals/USA:

pH 7.4-7.6

Free chlorine 3.0-4.0 ppm

Free bromine 2.0-4.0 ppm

Total Alkalinity 100-120 ppm

Calcium Hardness 150-250 ppm

Always maintain your spa ﬁlter as outlined below to ensure healthy spa water. Refer to page 44-45 (sec. 13.0) for additional information.

Required Filter Maintenance

Your new spa is equipped with an advanced water ﬁltration system that provides unsurpassed water quality! To ensure maximum water quality at all times, you should clean the skimming ﬁlter cartridge every three months, or as necessary. See page 39-40 (sec. 12.0) for detailed ﬁlter cartridge cleaning instructions.

Required Water Replacement

You should replace the spa’s water every 3 months. The frequency depends on a number of variables including frequency of use, number of users and attention paid to water quality maintenance. You will know it is time for a change when you cannot control sudsing and/or you can no longer get the normal feel or sparkle to the water, even though the key water balance measurements are all within the proper parameters. See page 44-45 (sec. 13.0) for additional information.

1.0 Important Spa Owner Information ................................................................1

2.0 Important Safety Instructions ........................................................................ 2

3.0 Choosing a Location ......................................................................................6

3.1 Outdoor Location ................................................................................................6

3.2 Indoor Location ...................................................................................................7

4.0 General Electrical Safety Instructions ...........................................................8

5.0 Electrical Installation Instructions (240V Service) ........................................9

6.0 Power Requirements ....................................................................................11

7.0 Spa Fill Up Procedure .................................................................................. 12

8.0 Control Functions ........................................................................................17

8.1 Control Panel ....................................................................................................17

8.2 LCD Display ......................................................................................................18

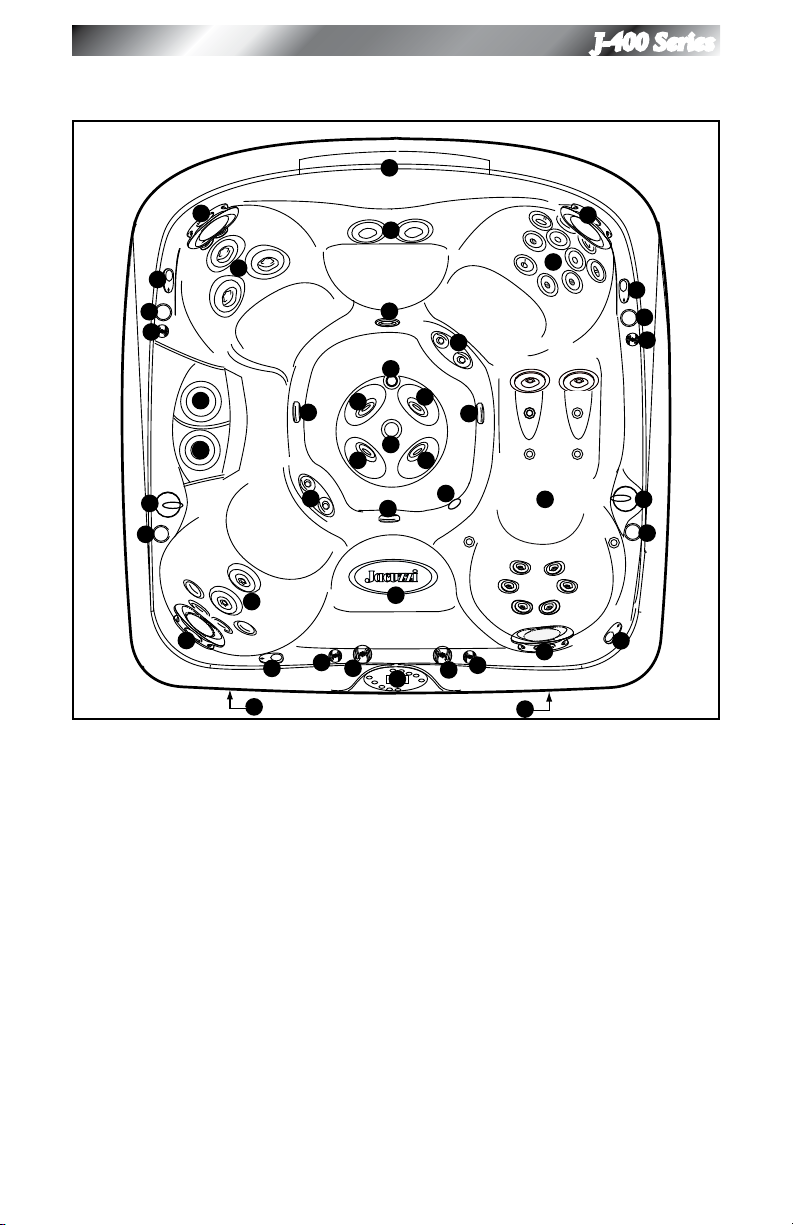

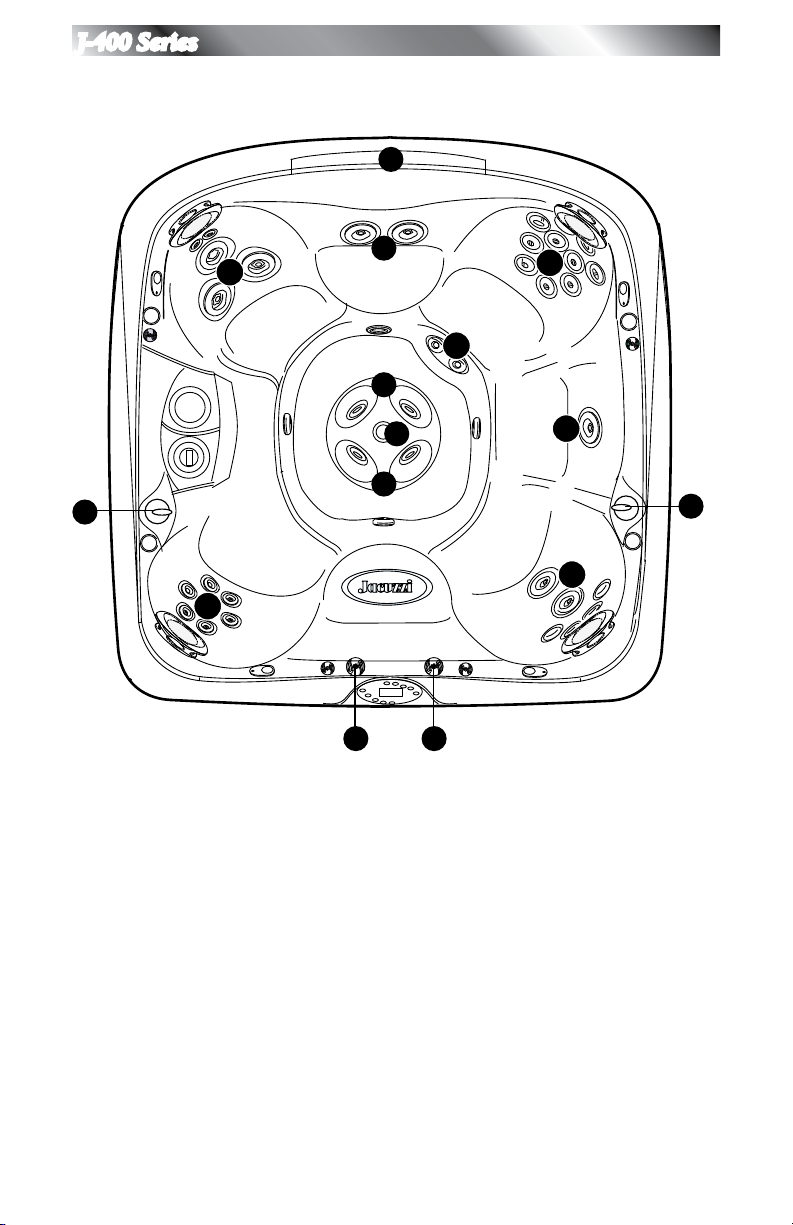

8.3 J-480 Spa Features .............................................................................................19

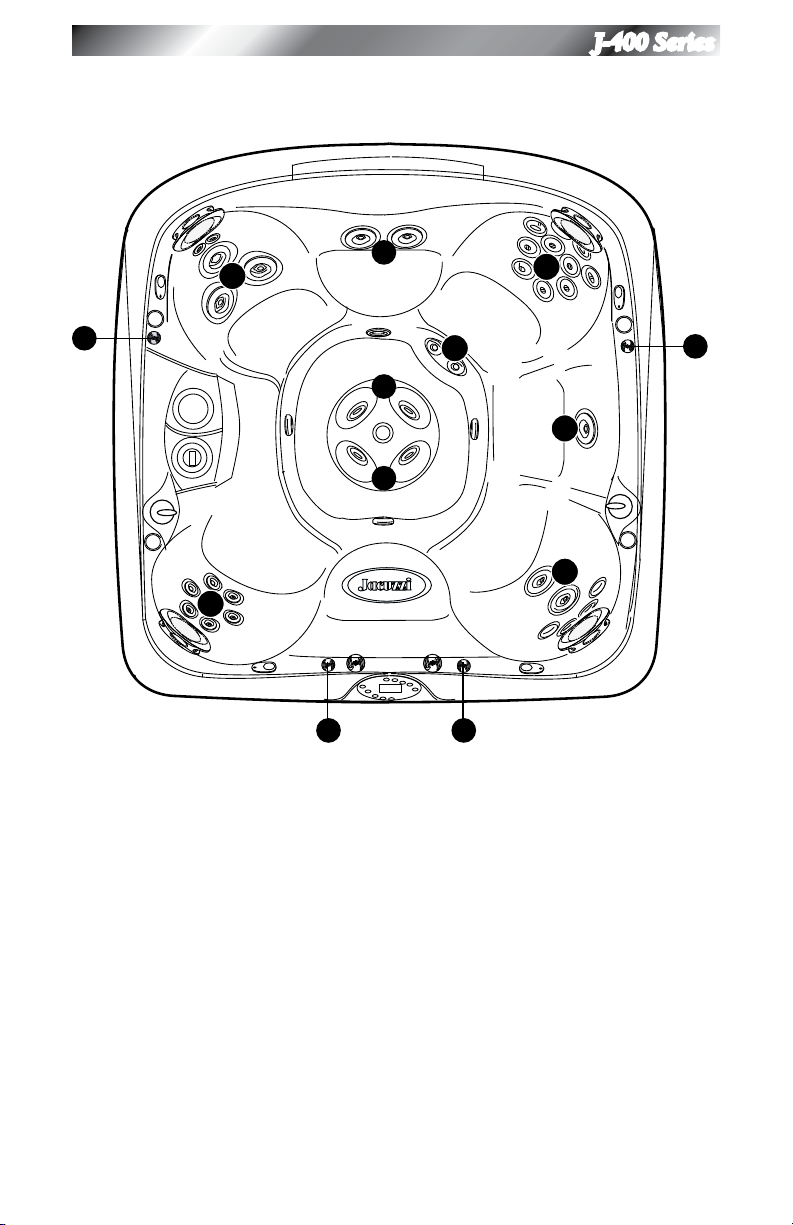

8.4 J-470 Spa Features .............................................................................................20

8.5 J-465 Spa Features .............................................................................................21

8.6 J-460 Spa Features .............................................................................................22

9.0 Operating Instructions .................................................................................23

9.1 View Button .......................................................................................................23

9.2 Activate Jets Pump 1 ..........................................................................................23

9.3 Activate Jets Pump 2 ..........................................................................................23

9.4 Selecting the Desired Massage Action ................................................................23

9.5 Light On/Off Button ..........................................................................................23

9.6 Light Mode Button ............................................................................................24

9.7 Adjusting Individual Jet Flow ............................................................................24

9.8 Adjusting PowerPro™ MX2 Jets ........................................................................25

9.9 Adjusting RX Jets ...............................................................................................25

9.10 WaterColour™ Waterfall Control ......................................................................25

9.11 Air Controls .......................................................................................................25

9.12 Optional AquaSound™ Jacuzzi Audio System ...................................................25

9.13 J-480 Massage/Waterfall Selector Diagram .........................................................26

9.14 J-480 Air Controls Diagram ...............................................................................27

9.15 J-470 Massage/Waterfall Selector Diagram .........................................................28

9.16 J-470 Air Controls Diagram ...............................................................................29

9.17 J-465 Massage/Waterfall Selector Diagram .........................................................30

9.18 J-465 Air Controls Diagram ...............................................................................31

9.19 J-460 Massage/Waterfall Selector Diagram .........................................................32

9.20 J-460 Air Controls Diagram ...............................................................................33

10.0 Heating Modes ............................................................................................. 34

10.1 Standard Mode (Factory Default) .......................................................................34

10.2 Economy Mode .................................................................................................34

10.3 Selecting Standard or Economy Mode ...............................................................34

10.4 Clean-Up “Blow-Out” Cycle ..............................................................................34

11.0 Programming Instructions ...........................................................................35

11.1 Programming Filter/Circulation Pump Run Time ...............................................35

11.2 Programming Filter Cycles ................................................................................35

11.3 Adjusting Time of Day .......................................................................................37

11.4 Main Control Panel Lock ...................................................................................37

11.5 Locking Filter Cycles .........................................................................................38

11.6 Temperature Setting Lock ..................................................................................38

11.7 Programming the Change Filter Reminder .........................................................38

12.0 Spa Maintenance ..........................................................................................39

12.1 Cleaning the Filter Cartridges ............................................................................39

12.2 Draining and Reﬁlling........................................................................................40

12.3 Cleaning the Spa Interior ...................................................................................41

12.4 Pillow Care ........................................................................................................42

12.5 Maintaining the Synthetic Cabinet .....................................................................42

12.6 Maintaining the Cover .......................................................................................42

12.7 Winterizing .......................................................................................................42

12.8 Restarting Your Spa in Cold Weather .................................................................43

13.0 Water Quality Maintenance .........................................................................44

13.1 pH Control ........................................................................................................44

13.2 Sanitizing ..........................................................................................................44

13.3 Other Additives .................................................................................................45

13.4 Ozone Water Maintenance System (Optional) ...................................................45

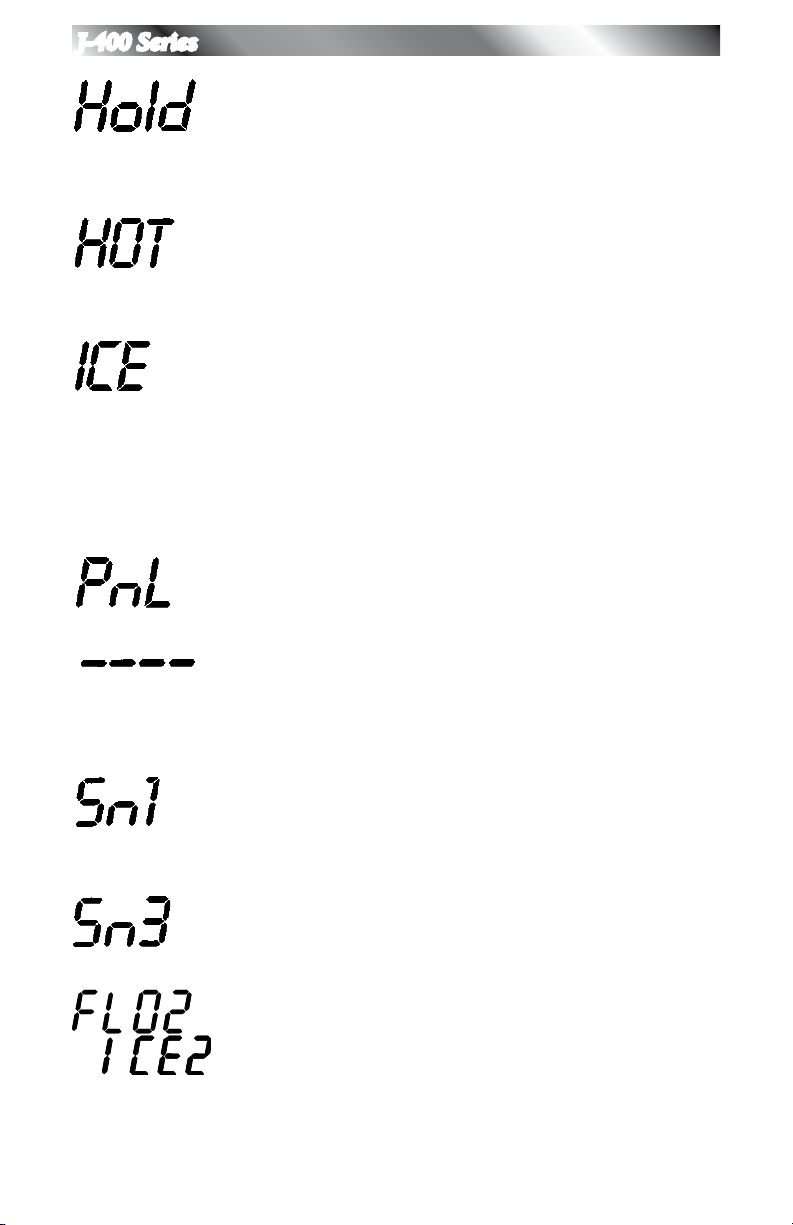

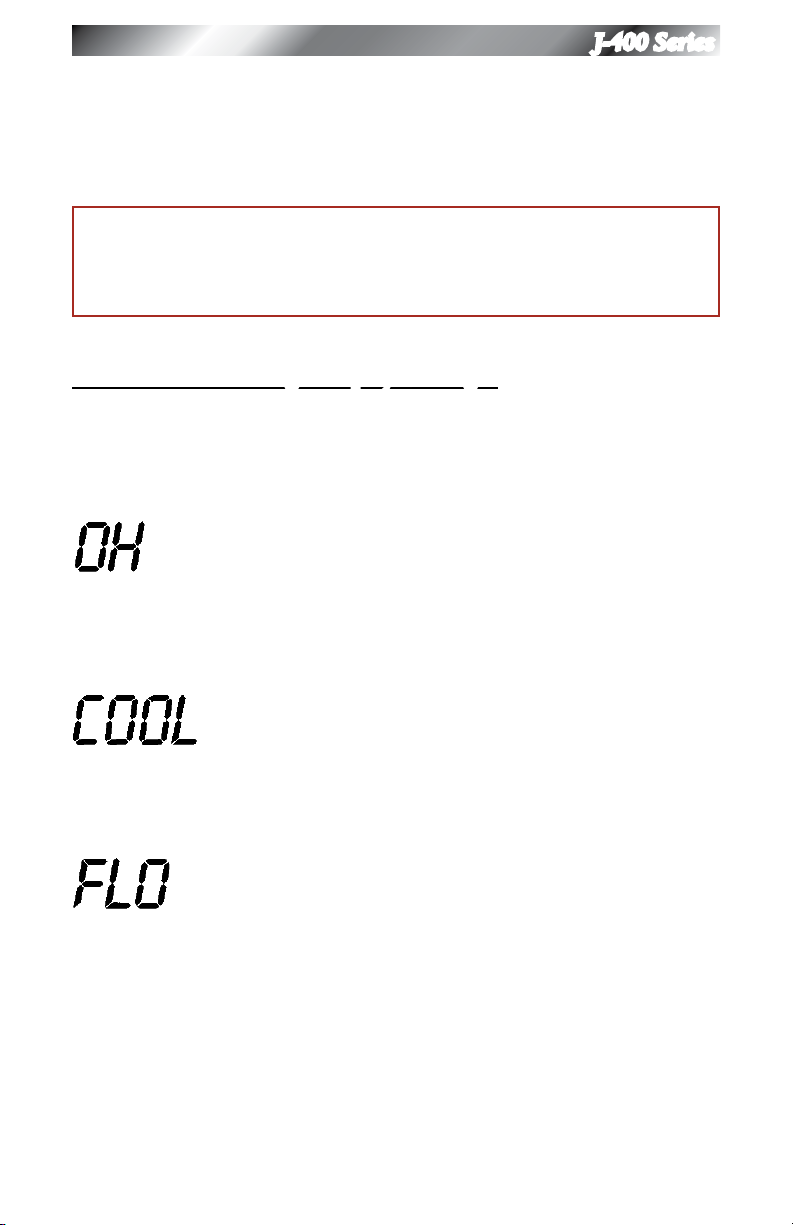

14.0 Troubleshooting - Display Messages ............................................................45

15.0 Troubleshooting - Procedures ......................................................................47

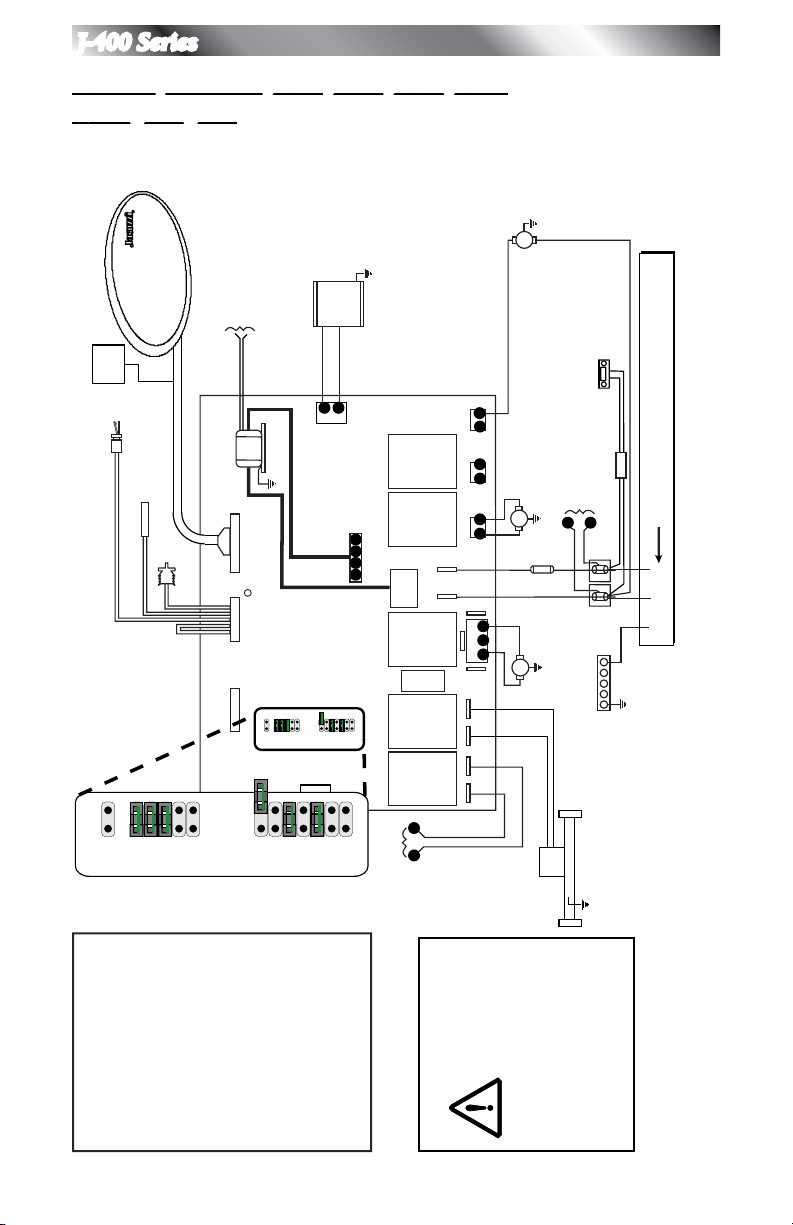

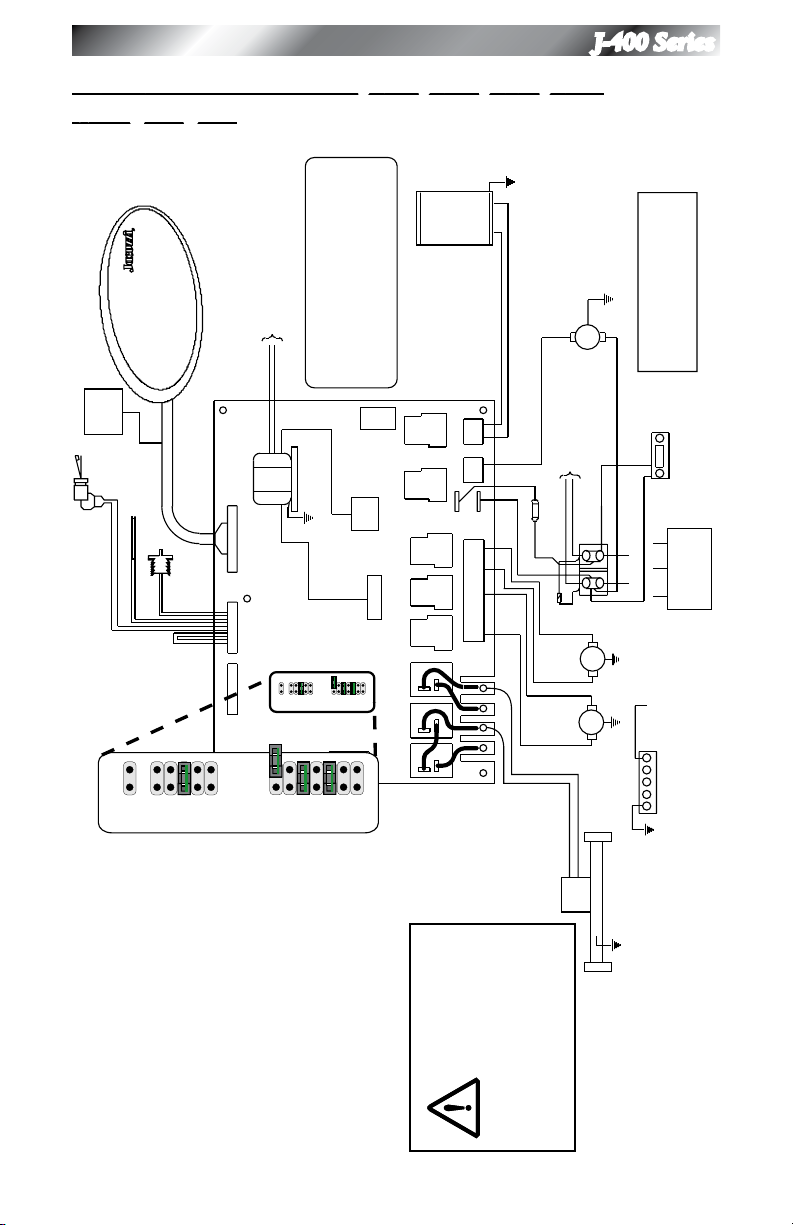

16.0 North American 60Hz J-460/J-465/J-470/J-480 Wiring Diagram .................. 49

17.0 Export 50Hz J-460/J-465/J-470/J-480 Wiring Diagram .................................50

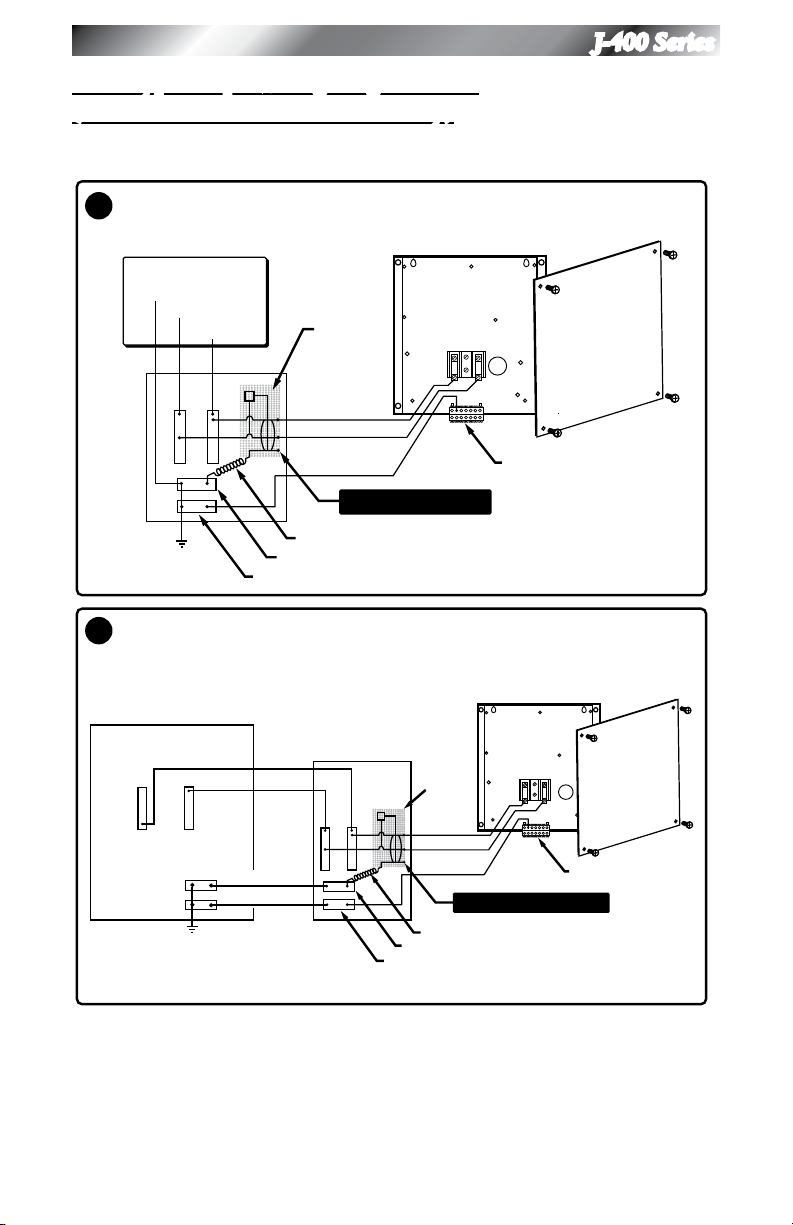

18.0 Typical Spa Wiring Diagrams A-B (North American 60Hz Models Only) ...51

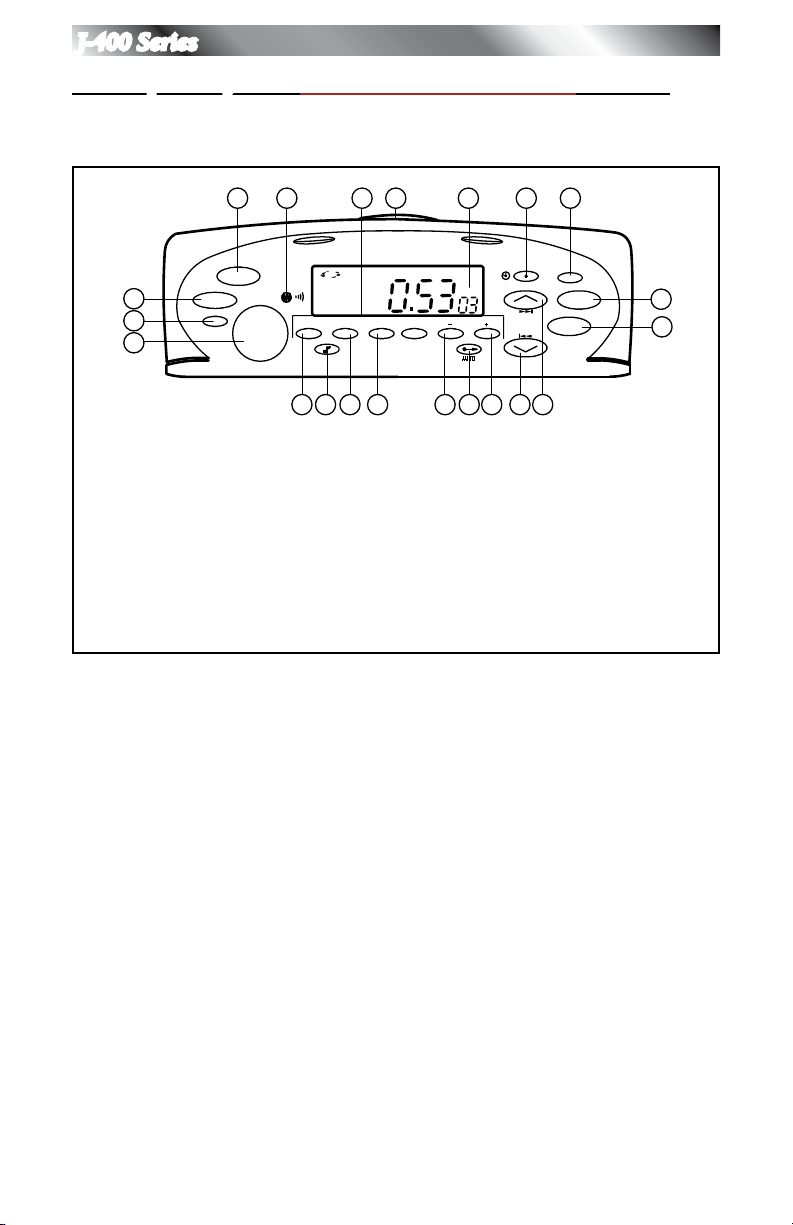

19.0 Optional Jacuzzi AquaSound Stereo System Features ................................. 52

19.1 General Controls ...............................................................................................52

19.2 Radio Operation ................................................................................................53

19.3 CD Player Operation .........................................................................................55

19.4 Speciﬁcations.....................................................................................................57

19.5 iPod Docking Station .........................................................................................59

19.6 Generic MP3 Player Operation ..........................................................................60

19.7 Troubleshooting.................................................................................................60

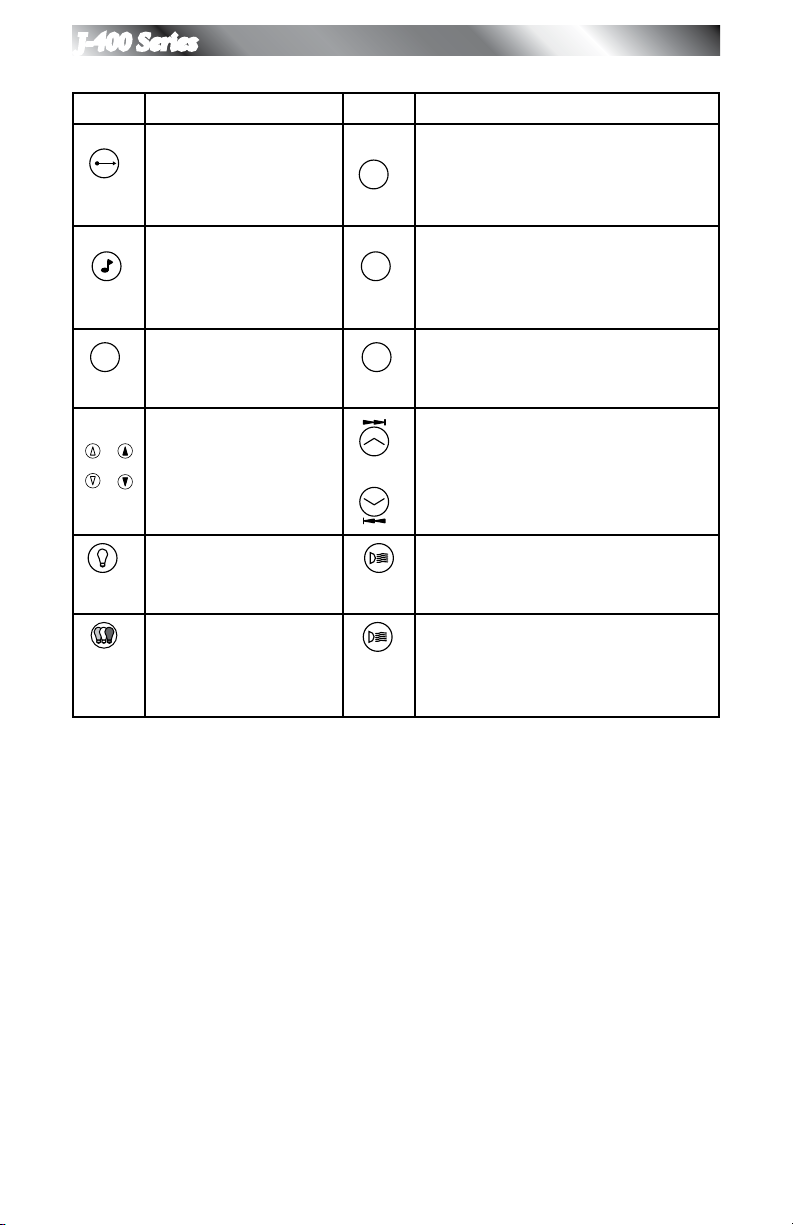

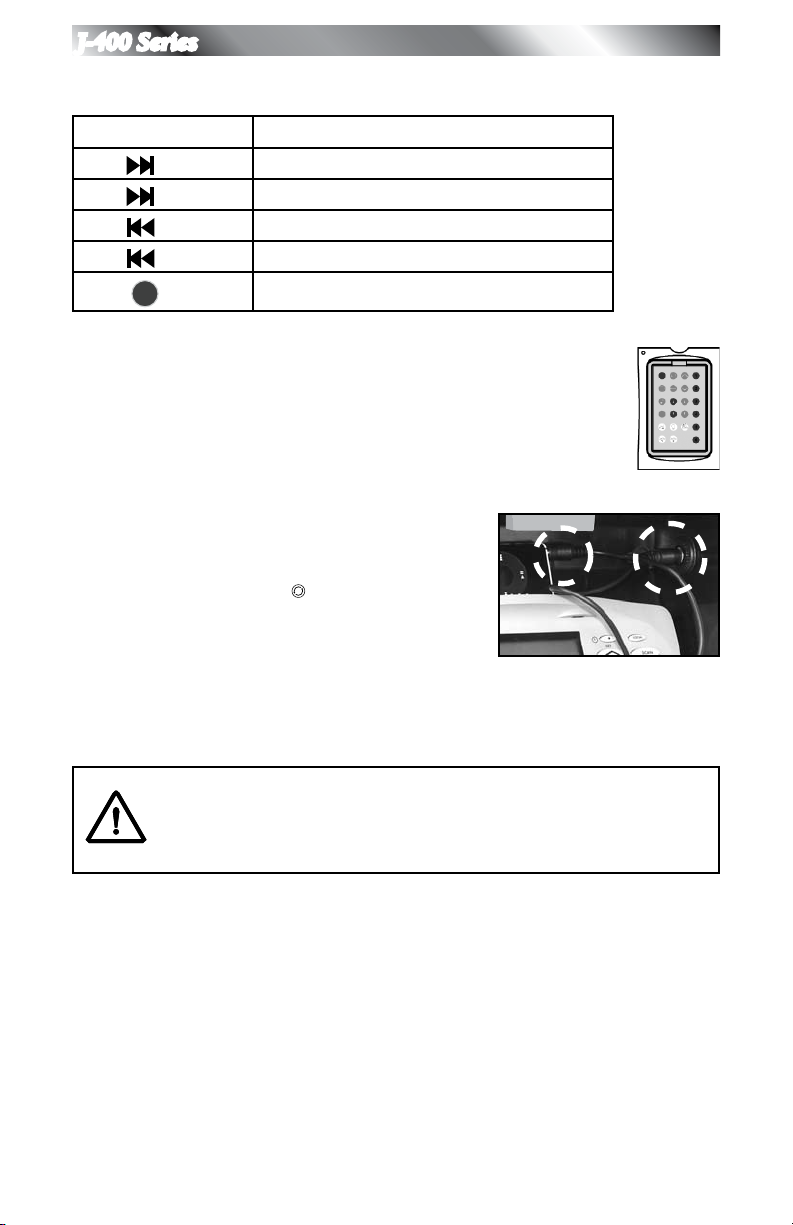

19.8 Standard Wireless Remote Control ....................................................................61

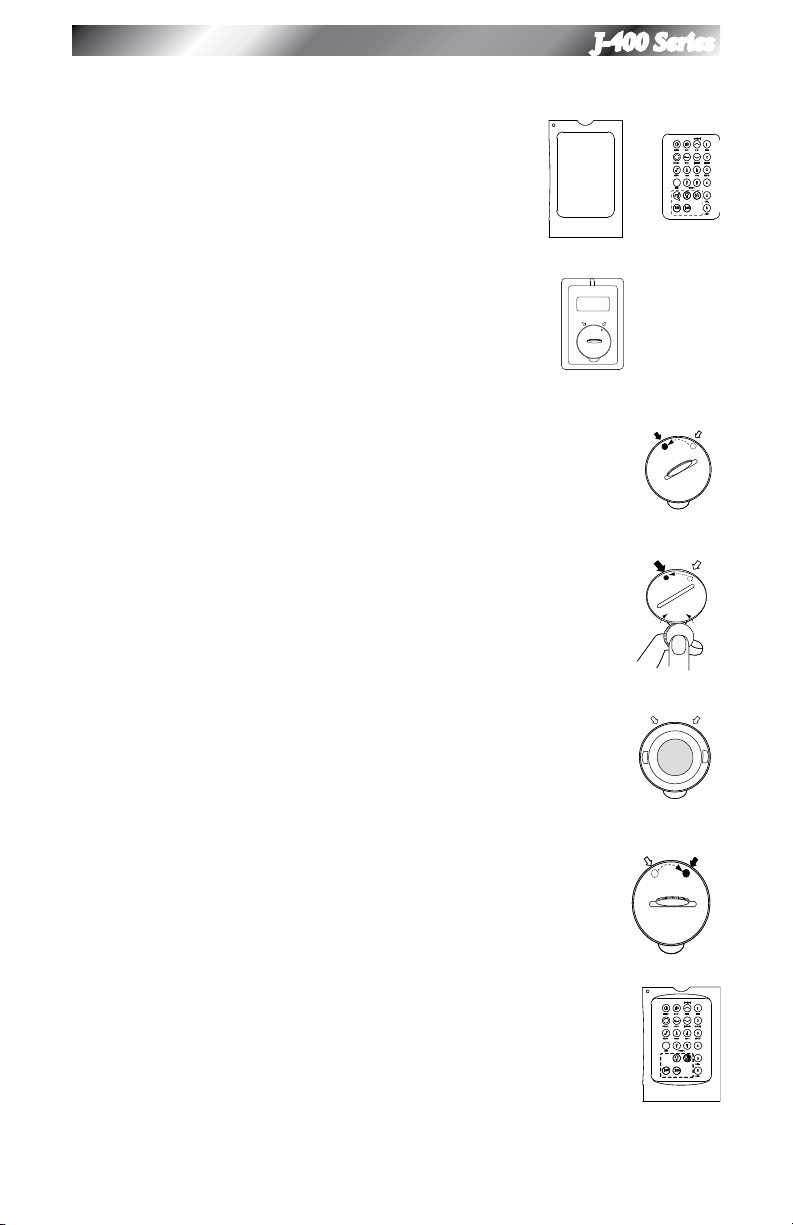

19.9 Wireless Remote Battery Replacement Procedure ...............................................63

J-400 Series

1.0 Important Spa Owner Information

Your Jacuzzi® spa is constructed to the highest standards and is capable of providing many years of trouble-free use. However, because heat retentive materials are utilized to insulate the spa for efﬁcient operation, an uncovered spa surface directly exposed to sunlight and high temperatures for an extended period is subject to permanent damage. Damage caused by exposing the spa to this abuse is not covered under warranty. We recommend that you always keep the spa full of water when it is exposed to direct sunlight and that you keep the Jacuzzi insulating cover in place at all times when the spa is not in use. Read and carefully follow the requirements for your spa’s support base found in the section 3.0 titled, “Choosing a Location” (page 6).

Jacuzzi® spas constantly strives to offer the ﬁnest spas available, therefore, modiﬁcations and enhancements may be made which affect the speciﬁcations, illustrations and/or instructions contained herein.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Rearrange or relocate the receiving antenna;

2. Increase the separation between the equipment and receiver;

3. Connect the equipment into an outlet on a circuit different from the circuit connected;

4. Consult the dealer or an experienced radio/TV technician for help. (Changes or modiﬁcations not expressly approved by the party responsible for FCC compliance could void the user’s authority to operate this equipment.)

Page 1

J-400 Series

2.0 IMPORTANT SAFETY INSTRUCTIONS

READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY

WHEN INSTALLING AND USING THIS ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING:

1. WARNING: To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times.

2. WARNING: A grounding wire connector is provided on this unit to

connect a minimum No. 8 AWG (8.4mm²) solid copper conductor between this unit and any metal equipment, metal enclosures of electrical equipment, metal water pipe, or conduit within 5 feet (1.5m) of the unit.

3. DANGER: Risk of Accidental Drowning. Extreme caution must be exercised to prevent unauthorized access by children. To avoid accidents, ensure that children cannot use this spa unless they are supervised at all times.

4. DANGER: Risk of Injury. The suction ﬁttings in this spa are sized to match the speciﬁc water ﬂow created by the pump. Should the need arise to replace the suction ﬁttings or the pump, be sure that the ﬂow rates are compatible. Never operate the spa if the suction ﬁttings are broken or missing. Never replace a suction ﬁtting with one rated less than the ﬂow rate marked on the original suction ﬁtting.

5. DANGER: Risk of Electric Shock. Install at least 5 feet (1.5m), from all metal surfaces. As an alternative, a spa may be installed within 5 feet of metal surfaces if each metal surface is permanently connected (bonded) by a minimum No. 8 AWG (8.4mm²) solid copper conductor attached to the wire connector on the grounding lug, inside the equipment compartment on the equipment box.

6. DANGER: Risk of Electric Shock. Do not permit any electrical appliances,

such as a lights, telephones, radios, televisions, etc. within 5 feet (1.5m) of a

spa unless such appliances are built-in by the manufacturer.

7. ELECTRICAL SUPPLY: The electrical supply for this product must include a suitably rated switch or circuit breaker to open all ungrounded supply conductors to comply with section 422-20 of the National Electrical Code/ USA, ANSI/NFPA 70. The disconnect must be readily accessible and visible to the spa occupant but installed at least 5 feet (1.5m), from the spa water.

8. WARNING: To Reduce the Risk of Injury:

Page 2

J-400 Series

9. The water in a spa should never exceed 104°F (40°C). Water temperatures between 100°F (38°C) and 104°F (40°C) are considered safe for a healthy adult. Lower water temperatures are recommended for young children and when spa use exceeds 10 minutes.

10. Since excessive water temperatures have a high potential for causing fetal damage during the early months of pregnancy, pregnant or possibly pregnant women should limit spa water temperatures to 100°F (38°C). If pregnant, please consult your physician before using a spa.

11. Before entering the spa, the user should measure the water temperature with an accurate thermometer since the tolerance of water temperatureregulating devices may vary as much as +/- 5°F (2°C).

12. The use of alcohol, drugs, or medication before or during spa use may lead to unconsciousness with the possibility of drowning.

13. Persons suffering from obesity or a medical history of heart disease, low or high blood pressure, circulatory system problems, diabetes, infectious diseases or immune deﬁciency syndromes should consult a physician before using a spa. If you experience breathing difﬁculties in association with using or operating your spa, discontinue use and consult your physician.

14. Persons using medication should consult a physician before using a spa since some medication may induce drowsiness, while other medication may affect heart rate, blood pressure, and circulation.

15. Always shower before and after using your spa. To reduce the possibility of contracting a waterborne illness, always maintain water chemistry within the parameters listed on the inside cover of this manual. If you or other bathers are affected by such a condition, discontinue use and seek medical attention.

IMPORTANT CSA SAFETY INSTRUCTIONS (CANADA ONLY)

When using this electrical equipment, basic safety precautions should always be followed, including the following:

1. READ AND FOLLOW ALL INSTRUCTIONS.

2. A green colored terminal or a terminal marked G, Gr, Ground, Grounding or the symbol* is located inside the supply terminal box or compartment. To reduce the risk of electric shock, this terminal must be connected to the grounding means provided in the electric supply service panel with a continuous copper wire equivalent in size to the circuit conductors that supply this equipment.

Page 3

J-400 Series

*IEC Publication 417, Symbol 5019.

3. At least two lugs marked “Bonding Lugs” are provided on the external surface or on the inside of the supply terminal box/compartment. To reduce the risk of electric shock, connect the local common bonding grid in the area of the spa to these terminals with an insulated or bare copper conductor not smaller than No. 6 AWG (10mm²).

4. All ﬁeld-installed metal components such as rails, ladders, drains or other similar hardware within 10 feet (3m) of the spa shall be bonded to the equipment grounding buss with copper conductors not smaller than No. 6 AWG (10mm²).

5. SAVE THESE INSTRUCTIONS.

WARNING: Children should not use spas without adult supervision.

WARNING: Do not use spas unless all suction guards are installed to prevent

body and hair entrapment.

WARNING: People with infectious diseases should not use a spa.

WARNING: To avoid injury, exercise care when entering or exiting the spa.

WARNING: Do not use drugs or alcohol before or during the use of a spa to

avoid unconsciousness and possible drowning.

WARNING: Pregnant or possibly pregnant women should consult a physician before using a spa.

WARNING: Water temperature in excess of 40°C (104°F) may be injurious to your health.

WARNING: Before entering the spa, measure the water temperature with an accurate thermometer.

WARNING: Do not use a spa immediately following strenuous exercise.

WARNING: Prolonged immersion in a spa may be injurious to your health.

WARNING: Do not permit electric appliances (such as lights, telephone, radio,

television, etc.) within 5 feet (1.5m) of this spa unless such appliances are builtin by the manufacturer.

Page 4

J-400 Series

CAUTION: Maintain water chemistry in accordance with manufacturer’s instructions.

WARNING: The use of alcohol or drugs can greatly increase the risk of fatal hyperthermia in spas.

SAVE THESE INSTRUCTIONS

HYPERTHERMIA

Prolonged immersion in hot water may induce hyperthermia. A description of the causes, symptoms, and effects of hyperthermia are as follows:

Hyperthermia occurs when the internal temperature of the body reaches a level several degrees above the normal body temperature of 98.6°F (37°C). The symptoms of hyperthermia include drowsiness, lethargy, and an increase in the internal temperature of the body. The effects of hyperthermia include:

A. Unawareness of impending hazard; B. Failure to perceive heat; C. Failure to recognize the need to exit spa; D. Physical inability to exit spa; E. Fetal damage in pregnant women; and F. Unconsciousness and danger of drowning.

A warning sign is provided in your warranty packet. Please install it at a location near your spa, where it is visible to the user of the spa. For additional or replacement signs please contact your local Jacuzzi spa dealer and reference item number #6530-082.

CAUTIONS

1. Persons suffering from heart disease, diabetes, high or low blood pressure, and any condition requiring medical treatment, pregnant women, the elderly, or infants should consult with a physician before using a spa.

2. The Consumer Products Safety Commission/USA has stated that the water temperature in a spa should not exceed 104°F (40°C). Immersion in water in excess of 104°F (40°C) can be hazardous to your health.

3. Observe a reasonable time limit when using the spa. Long exposures at higher temperatures can cause high body temperature. Symptoms may include dizziness, nausea, fainting, drowsiness, and reduced awareness. These effects could possibly result in drowning.

4. Do not use the spa under the inﬂuence of alcohol, narcotics, or other drugs. Use of the spa under these conditions may lead to serious consequences.

5. Always test the spa water temperature before entering the spa. Enter and exit the spa slowly. Wet surfaces can be very slippery.

Page 5

J-400 Series

6. Never bring any electrical appliances into or near the spa. Never operate any electrical appliances from inside the spa or when you are wet unless such appliances are built-in by the manufacturer.

7. Proper chemical maintenance of spa water is necessary to maintain safe water and prevent possible damage to spa components.

8. Use the straps and clip tie downs to secure the cover when not in use. This will help to discourage unsupervised children from entering the spa and keep the spa cover secure in high-wind conditions. There is no representation that the cover, clip tie-downs, or actual locks will prevent access to the spa.

3.0 Choosing a Location

IMPORTANT: Because of the combined weight of the spa, water and users, it is

extremely important that the base upon which the spa rests be smooth, ﬂat, level and capable of uniformly supporting this weight, without shifting or settling, for the entire time the spa is in place. If the spa is placed on a surface which does not meet these requirements, damage to the skirt and/or the spa shell may result. Damage caused by improper support is not covered under warranty. It is the responsibility of the spa owner to assure the integrity of the support at all times. We recommend a poured, reinforced concrete slab with a minimum thickness of 4 inches (10cm). Wood decking is also acceptable provided it is constructed so that it meets the requirements outlined above.

The spa must be installed in such a manner as to provide drainage away from it. Placing the spa in a depression without provisions for proper drainage could allow rain, overﬂow and other casual water to ﬂood the equipment and create a wet condition in which it would sit in. For spas which will be recessed into a ﬂoor or deck, install so as to permit access to the equipment, either from above or below, for servicing. Make certain that there are no obstructions which would prevent removal of all side cabinet side panels and access to the jet components, especially on the side with the equipment bay.

3.1 Outdoor Location

In selecting the ideal outdoor location for your spa, we suggest that you take into consideration:

• The proximity to changing area and shelter (especially in colder weather).

• The pathway to and from your spa (this should be free of debris so that dirt and leaves are not easily tracked into the spa).

• The closeness to trees and shrubbery (remember that leaves and birds could create extra work in keeping the spa clean).

• A sheltered environment (less wind and weather exposure can result in lowered operation and maintenance costs).

Page 6

J-400 Series

• The overall enhancement of your environment. It is preferable not to place the spa under an unguttered roof overhang since run-off water will shorten the life expectancy of the spa cover.

3.2 Indoor Location

For indoor installations many factors need to be considered before installing a spa indoors.

• Proper Foundation: Consult a Structural Engineer when considering a foundation that will adequately support the spa the entire time it is in place. Proper support is critical especially if the spa is to rest on a second story or higher. For spas that are to rest on balconies, roofs or other platforms not speciﬁcally tied into the main structural support, you should consult a professional Structural Engineer with experience in this type of application.

• Proper Drainage: It is extremely important to have in place measures to sufﬁciently handle excessive water spillage. Be sure the ﬂooring in which the spa rests on has adequate drainage and can handle the entire contents of the spa. Be sure to make provisions for ceilings and other structures that may be below the spas installation. Areas around your spa can become wet or moist so all ﬂooring and subsequent furniture, walls and adjacent structures should be able to withstand or resist water and moisture.

• Proper Ventilation: Proper ventilation should be discussed with an Engineer or authority competent enough to understand the necessary provisions needed to vent moist or heated air and air associated with chemical odors outdoors. When the spa is in use considerable amounts of moisture will escape, potentially causing mold and mildew over time which can damage certain surfaces and/or surroundings.

• Sufﬁcient Access: In the unlikely event that you should ever need to access or gain entry to any portion of the spa for servicing, it is highly recommended that you plan your indoor installation to provide full access to the entire spa.

• Warranty: Damage caused by not following these guidelines or any improper installation not in accordance to local codes or authorities is not covered under the spas warranty. Please consult your local state or city building ordinances.

Page 7

J-400 Series

WARNING: In addition to maintenance of ﬁlters and water chemistry, proper ventilation is recommended to reduce the risk of exposure to viruses and bacteria that could be present in the air or water. Consult a licensed architect or building contractor to determine your speciﬁc needs if installing your spa indoors.

4.0 General Electrical Safety Instructions

Your new Jacuzzi® spa is equipped with the “state-of-the-art” Sentry™ equipment system. It contains the most advanced safety and self-protective equipment in the industry. Nonetheless, this spa must be installed properly to ensure dependable usage. Please contact your local Jacuzzi dealer or local building department should you have any questions regarding your installation.

Proper grounding is extremely important. Jacuzzi spas are equipped with a current collector system. A pressure wire connector is provided on the surface of the control box, located inside the equipment door (Figure-B, page 10) to permit connection of a bonding wire between this point and any ground metal equipment, metal water pipe or conduit within 5 feet (1.5m) of the spa, or copper clad grounding rod buried within 5 feet (1.5m) of the spa. Bonding wire must be at least No. 8 AWG (8.4mm²) solid copper wire. This is a most important safety assurance feature.

Before installing your spa, check with your local building department to ensure installation conforms to local building codes.

Page 8

J-400 Series

5.0 Electrical Installation Instructions (240V Service)

IMPORTANT NOTICE: The electrical wiring of this spa must meet the

requirements of the National Electrical Code/USA (NEC) and any applicable state or local codes. The electrical circuit must be installed by a qualiﬁed electrician and approved by a local building/electrical inspection authority.

1. This spa must be permanently connected (hard-wired) to the power supply.

No plug-in connections or extension cords are to be used in conjunction with the operation of this spa. Supplying power to the spa which is

not in accordance with these instructions will void both the independent testing agency listing and the manufacturer’s warranty.

2. The power supplied to this spa must be a dedicated circuit with no other appliances or lights sharing the power provided by the circuit.

3. To determine the current, voltage and wire size required, refer to section 6.0 “Power Requirements” (page 11) for your speciﬁc spa model.

• Wire size must be appropriate per NEC and/or local codes.

• We recommend type THHN wire.

• All wiring must be copper to ensure proper connections. Do not use

aluminum wire.

• When using wire larger than #6 (10mm²), add a junction box near the spa and reduce to short lengths of #8 (8.4mm²) wire to connect to the spa.

4. The electrical supply for this product must include a suitably rated switch or circuit breaker to open all ungrounded supply conductors to comply with Section 422-20 of the National Electrical Code/USA, ANSI/NFPA 70. The disconnecting means must be readily accessible to the spa’s occupant but installed at least 5 feet (1.5m) from spa water.

5. The electrical circuit supplied for the spa must include a suitable ground fault circuit interrupter (GFCI) as required by NEC Article 680-42/USA.

6. To gain access to the spa’s power terminal block, remove the four screws securing the center cabinet panel on the side of the spa under the controls. Then remove the four control box door screws and door (Figure-A).

7. Select the power supply entrance you want to use (Figure A) and remove the short cabinet panel from the front of the spa. Then, feed the cable through the large opening provided in the bottom of the control box.

Page 9

J-400 Series

2 2

Flow

Note: Pump Locations Vary by Model

TB1

8. Connect wires, color to color, on terminal blocks TB1 and TB3 (Figure C-D, page 11). TIGHTEN SECURELY! All wires must be hooked up securely or damage could result.

9. Install control box door and reinstall the cabinet side panels.

Figure A

Equipment Area

1. Control Box

2. Power Supply Entrance(s)

3. Jet Pump #1

4. Heater

5. Spa Drain Valve

6. Pump Drain Plugs(s)

7. Jets Pump #2

8. Filter/Circulation Pump

9. Optional CD Ozonator (Purchase Separately)

10. Factory Installed Ozone Injector

11. Control Panel

Figure B

Control Box

1. Terminal Block

2. Bonding Lug

3. Grounding Terminal

Page 10

J-400 Series

BLK

RED

BLK

Figure-C

TB1

to Circuit Board

Power In

Green

TB3

BLUE

BROWN

Figure-D

TB1

to Circuit Board

Power In

Green

TB3

All North American 240V Models:

120/240 VAC, 3-Wire Connection 60Hz

230 VAC, 3-Wire Connection 50Hz

All Export Models:

6.0 Power Requirements

Jacuzzi® spas are designed to provide optimum performance and ﬂexibility of use when connected to their maximum electrical service. They are conﬁgured at the factory. The most common electrical connections are listed below:

• All North American 60Hz Models: 240VAC/50A**

• All Export 50Hz Models: 240VAC/30A**

If you prefer, your qualiﬁed technician can perform a minor circuit board modiﬁcation that allows the hot tub to operate on a different electrical service (see table footnotes below).

North American J-460/J-465/J-470/J-480 Models (60Hz)

Voltage: 240VAC 240VAC 240VAC

Max. Current Draw: 23A 36A 45A

Frequency: 60Hz 60Hz 60Hz

Number of Wires: 3 3 3

Circuit Breaker (2-Pole):

30A* 50A** 60A***

In 30A conﬁguration, the heater will not operate while either jets pump

is running.

In 50A conﬁguration, the heater will not operate while both jets pumps

are running. This is the factory setting.

In 60A conﬁguration the heater will operate while both jets pumps are

***

running.

Page 11

J-400 Series

Export J-460/J-465/J-470/J-480 Models (50Hz)

Voltage: 240VAC 240VAC 240VAC

Max. Current Draw: 16A 21A 29A

Frequency: 50Hz 50Hz 60Hz

Number of Wires: 3 3 3

Circuit Breaker (2-Pole):

In 20A conﬁguration, the heater will not operate while either jets pump

is running.

In 30A conﬁguration, the heater will not operate while both jets pumps

are running. This is the factory setting.

In 40A conﬁguration the heater will operate while both jets pumps are

***

running.

20A* 30A** 40A***

7.0 Spa Fill Up Procedure

FOR BEST RESULTS, READ EACH STEP IN ITS ENTIRETY BEFORE PROCEEDING WITH THIS PROCEDURE.

1. Prepare The Spa For Filling

• Clear all debris from the spa. (Although the spa shell has been polished at the factory, you may want to treat it with a specially formulated spa cleaner. Consult your authorized Jacuzzi dealer for additional information prior to ﬁlling spa.

• Remove both ProClear™ Plus skimmer and polishing ﬁlter lids and ﬁlters as illustrated in section 12.1 (page 39).

2. Fill Spa

• Place the end of your garden hose into empty skimming ﬁlter bucket (ﬁlter bucket on your left) as you stand next to the spa. Fill spa half way, then place the garden hose into the opposite ﬁlter bucket (ﬁlter bucket on your right) while adding the remaining ﬁll water.

CAUTION: Never ﬁll with water from a water softener. If your water is extremely “hard”, it is preferable to ﬁll half-way with hard water and the rest of the way with softened water. Or, you may ﬁll entirely with hard water if you use a special water additive available from your authorized Jacuzzi dealer.

Page 12

J-400 Series

• Fill spa until water level is above all jets and just touching the bottom of each headrest in its lowest position. DO NOT OVERFILL!

IMPORTANT: Always ﬁll your spa through both ﬁlter buckets after draining. Failure to do so may cause air to be trapped in either pump, preventing the pump from circulating water. Remove the hose and replace both ﬁlter cartridges as illustrated in section 12.1 (page 39).

3. Turn On Power

Turn on power to spa at the home’s circuit breaker. The heater and ﬁlter/ circulation pump will automatically activate. If the control panel LCD ﬂashes water temperature and “COOL” or “ICE”, this is normal. Refer to page 45-46 for additional information.

4. Activate Jets Pumps

Turn on all jets(s) pumps when adding chemicals in step 5.

5. Add Start-Up Chemicals Add the spa water chemicals as recommended by your authorized Jacuzzi spa dealer. See section titled “Water Quality Maintenance” (page 44) for general guidance.

6. Establish A Stable Sanitizer Reading

Establish a stable sanitizer reading between 3.0-4.0 ppm chlorine or

2.0-4.0 ppm bromine. To ensure healthy water conditions, always maintain a constant sanitizer reading within the levels recommended by the Association of Pool And Spa Professionals/USA printed on the inside cover of this manual. If sanitizer levels cannot be stabilized, perform

the Decontamination Procedures on the following page. Note: The

“Decontamination Procedure” should also be used after the spa has been “Winterized” (sec. 12.7, page 42) or has been sitting without power for an extended period.

7. Set Spa To Heat To warm spa water to a comfortable temperature, follow these steps:

• The LCD display on the control panel displays the actual temperature of the spa water. Press either the COOLER or WARMER

button once to display the “set” temperature for 5 seconds. If you

want the water to heat to a different temperature, simply press COOLER

or WARMER within 5 seconds. The set temperature increases or

decreases by one degree each time either buttons is pressed.

• The heater will turn off 1 degree above set temperature and turn on 1 degree

below set temperature.

Page 13

J-400 Series

Important Heater Details:

• The maximum temperature for which the spa can be set is 104°F (40°C) and the minimum is 80°F (27°C).

• For North American spas powered by a service of less than 60 amps, turn off jets pump #1 and jets pump #2 to operate heater.

• Setting the thermostat at maximum will not accelerate the heating process. This will only result in a higher ultimate temperature.

• The heater operates until the water reaches 1 degree above the programmed “set temperature”, then turns off. The heater will reactivate after the water cools to approximately 1 degree below the “set temperature.”

8. Place Cover On Spa

• Keeping the insulating cover in place anytime the spa is not in use will reduce the time required for heating, thereby minimizing operating costs.

• The time required for initial heat-up will vary depending on the starting water temperature.

DANGER: Risk of injury! Always check water temperature carefully before entering spa!

Decontamination Procedure

Steps 1-7 below are only required when sanitizer levels are unstable after performing Spa Fill Up Procedures steps 1-6. Disregard Decontamination Procedure below if sanitizer levels remain stable at 3.0-4.0 chlorine or 2.0-4.0 bromine ppm after performing Spa Fill Up Procedures steps 1-6.

1. Add 2.5 ounces of sodium dichlor for every 100 gallons of water. Refer to the table below for approximate water ﬁll volume by model.

CAUTION: Never add chlorine tablets (trichlor) to your spa for any reason! This chemical may damage components within your spa and void the manufacturer warranty.

Water Fill Volume by Model Spa Model Approximate Fill Volume

J-460 320 US Gallons (1,210 Liters) J-465 340 US Gallons (1,287 Liters) J-470 410 US Gallons (1,552 Liters) J-480 450 US Gallons (1,703 Liters)

Page 14

J-400 Series

B C

2. Leave spa cover open during this step to allow excessive chemical vapors to exit spa, protecting pillows and plastic knobs from chemical attack. If spa is indoors, open doors and windows for proper ventilation. Turn on all spa jets pumps for one hour, open all air controls, and place all massage selector knob(s) in their center “combo” position as shown (right).

Note: You will need to press the jets pump button(s) every 20 minutes since these functions have an automatic 20 minute time-out that turns them off.

CAUTION: Never leave your spa unattended for any reason while the cover is open and accessible to small children and animals!

3. Turn off power to the spa at the circuit breaker, then drain tub as outlined in section 12.2 (page 40).

4. Reﬁll spa with clean tap water from garden hose until water covers all jets but does not touch the bottom of the lowest headrest with all headrests in their lowest position (DO NOT OVERFILL!)

5. Consult your authorized Jacuzzi dealer for chemical recommendations, then

6. Turn on all jet pumps when adding chemicals to ensure proper mixing and

add chemicals to spa water to achieve a constant sanitizer reading within the levels recommended by the Association of Pool And Spa Professionals/ USA printed on the inside cover of this manual.

leave your spa cover open until the sanitizer level falls below 4.0 ppm to protect pillows and plastic knobs from chemical attack.

Page 15

J-400 Series

CAUTION: Never leave your spa unattended for any reason while the cover is open and accessible to small children and animals!

CAUTION: To prevent the unlikely possibility of contracting a waterborne illness, maintain water chemistry within step 6 parameters. If you or other bathers experience such a condition, discontinue use and seek medical attention.

7. Establish a sanitizer reading between 3.0-4.0 ppm chlorine or 2.0-4.0 ppm bromine, then allow the spa to set undisturbed for 8 hours. Retest water after 8 hours to determine if sanitizer levels are stable. If sanitizer levels are stable, your spa is ready for use. To ensure healthy water conditions, always maintain a constant sanitizer reading within the levels recommended by the Association of Pool And Spa Professionals/USA printed on the inside cover of this manual. If sanitizer levels are not stable at this time, it will be necessary to repeat this procedure in its entirety until stable sanitizer readings are achieved.

Page 16

J-400 Series

STANDAR D

AM PM

STANDAR D

AM PM

8.0 Control Functions

8.1 Control Panel

A. Select

Button: Filter

cycle programming features.

Pressing the select button also allows you to turn on/off the circulation pump, when it is in an off state. If the circulation pump was turned on automatically, it cannot be manually turned off.

B. Cycle Button: Accesses ﬁlter cycle program mode and next cycle.

C. Mode Button: Switches between standard and economy ﬁltration/

heating modes sections.

D. Display Button: Displays time of day and initiates time setting and

locking functions.

E. Invert Button: Inverts the main 4-digit LCD display.

F. Warmer and Cooler Buttons: Press these to display, increase or

decrease the temperature. They also display other programmable features.

G. Light On/Off Button: Turns waterfall, footwell and logo lights on in

unison. Press once for high intensity; press a second time for medium intensity; press a third time for low intensity; press a fourth time to turn off. The displayed color is changed using the light mode button (H) below.

H. Light Mode Button: Selects one of 5 color modes for waterfall,

footwell, and logo lights. See page 24 for additional information.

I. JETS 1 Button: Controls jets pump #1 (On, Off).

J. JETS 2 Button: Controls jets pump #2 (On, Off).

Page 17

J-400 Series

STAN DARD

AM PM

STAN DARD

AM PM

STANDA RDSTANDA RD

8.2 LCD Display

= Lock: Indicates

panel, set temperature, or ﬁlter cycle programming is locked.

= Heat: Indicates

heater is on.

= Ozone: Indicates

optional CD ozonator is on.

*Display shown for example purposes only, actual

water temperature will vary.

= Adjust Filter Cycle: Indicates ﬁlter cycle programming feature is

accessed.

= Filter Cycle Number: Indicates which programmed ﬁlter cycle is

running.

= Filter Cycle: Indicates programmed ﬁlter cycle is running.

= Filter Cycle Start Time: Indicates ﬁlter cycle start time programming is

accessed.

= Filter Cycle Duration: Indicates ﬁlter cycle duration programming is

accessed.

= Set Temperature: Indicates the current set temperature is displayed.

= Set Time: Indicates current time is displayed.

= Filter Annunicator: Indicates ﬁlter cleaning and/or replacement.

= Jets 1: Indicates jets pump 1 is on.

= Jets 2: Indicates jets pump 2 is on.

= Mode: Indicates selected ﬁlter mode. Note: No icon means Economy mode

is selected.

Page 18

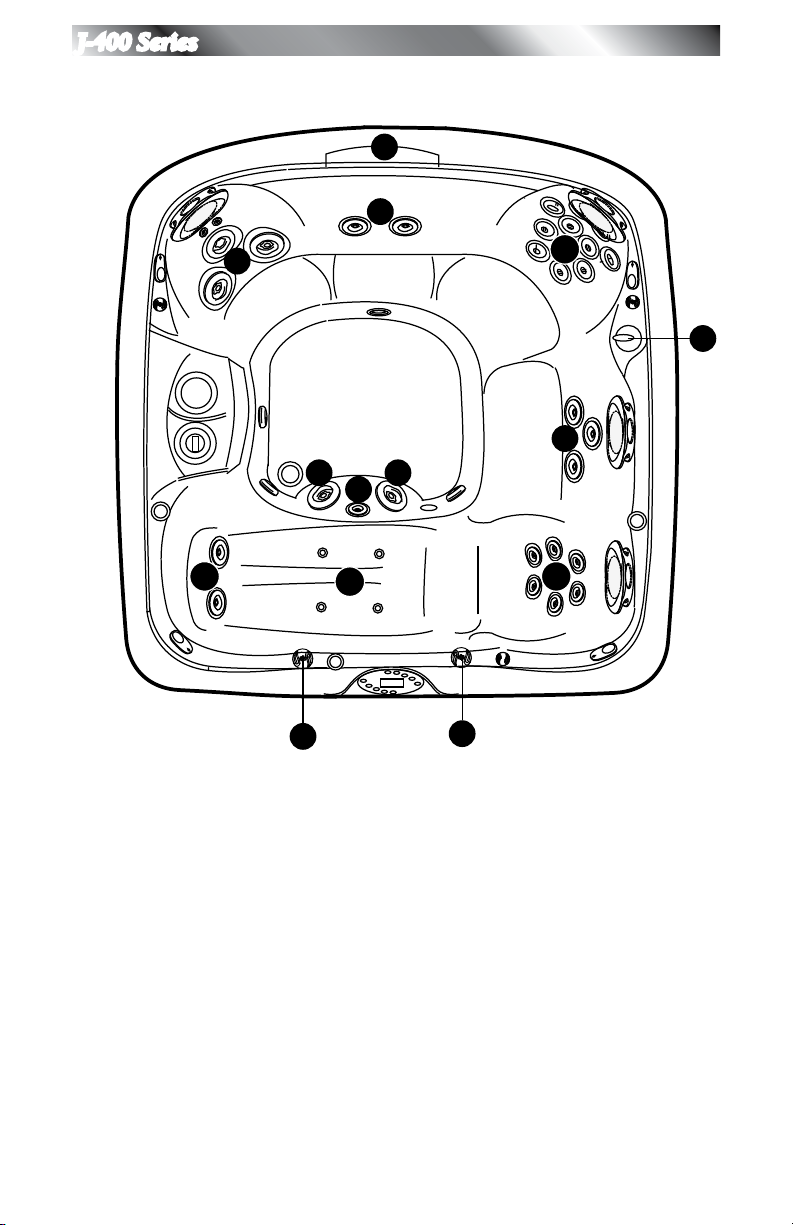

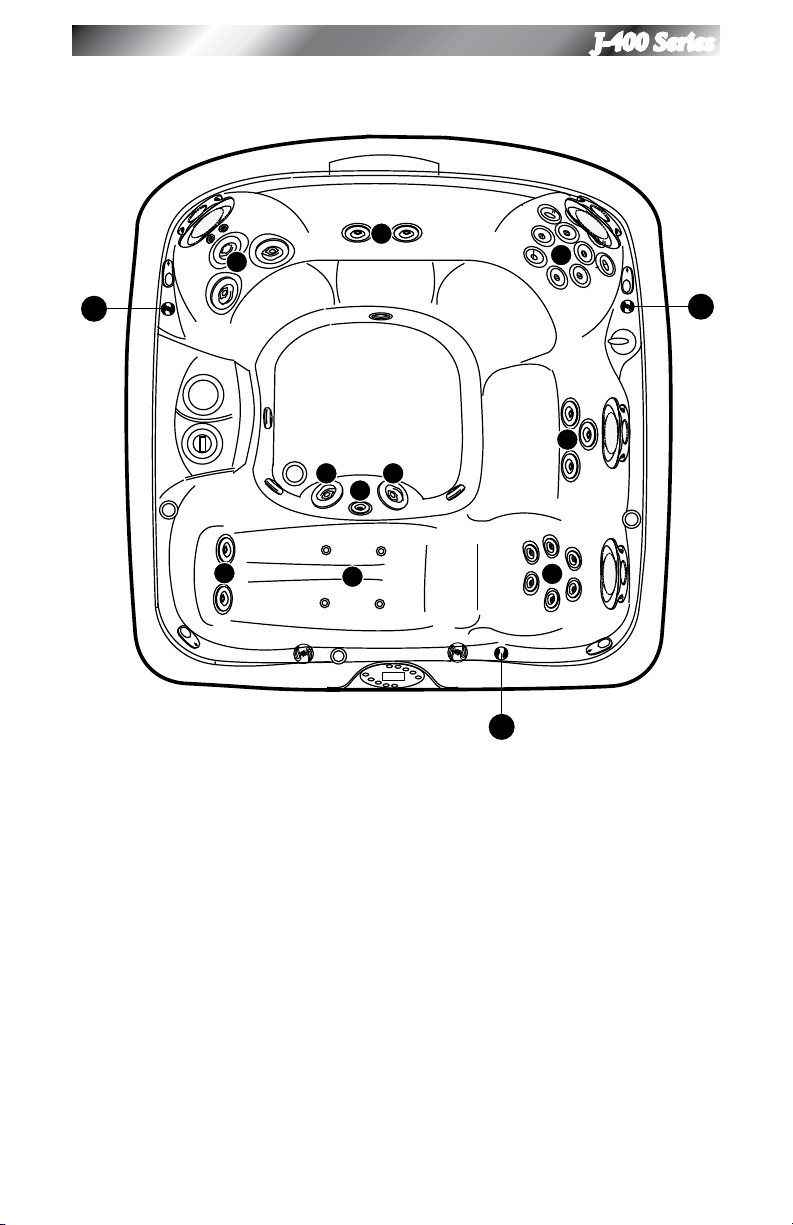

8.3 J-480 Spa Features

V V

J-400 Series

Control Panel

Waterfall Control Valve

Air Control Valves (4 ea.) Introduce

Air to Speciﬁed Jet Groups (Page 27) Optional Audio System Speakers

(4 ea.) Adjustable Pillows (4 ea.)

Lighted Cup Holders (4 ea.)

Massage Selectors (2 ea.) Controls

Speciﬁed Jet Groups (Page 26) Waterfalls (2 ea.)

FX Jets (4 ea.) And FX2 Jets (2 ea.)

ProClear™ Plus Polishing Filter Bag

ProClear™ Floating Skimmer And

Filter Cartridge with Integrated Chemical Dispenser. NX Jets (2 ea.) And MX2 Jets (3 ea.)

FX2 Jets (2 ea.)

Spa features subject to change without notice.

NX Jets (2 ea.) And RX Jets (10 ea.)

Lounge Jets:

FX Back Jets (6 ea.)

SX Jet for Wrists And Calves (6 ea.) iPod Docking Station

Lighted Seat Logo

Footwell Filter Suction Covers (3 ea.)

Bottom Filter Suction Cover

Waterfall Filtration Return

FX Calf Jets (4 ea.)

FX Footwell Jets (4 ea.)

Lighted IX Mass Aspiration Jet

Gravity Drain/Heater Input/Optional

Ozone Return Fitting Lighted Mass Aspiration Jet Flow

Control Valve Optional Audio System Receiver

Page 19

J-400 Series

Y AA

U U

8.4 J-470 Spa Features

Control Panel

Waterfall Control Valve

Air Control Valves (4 ea.) Introduce

Air to Speciﬁed Jet Groups (Page 29) Optional Audio System Speakers

(4 ea.) Adjustable Pillows (4 ea.)

Lighted Cup Holders (4 ea.)

Massage Selectors (2 ea.) Controls

Speciﬁed Jet Groups (Page 28). Waterfalls (2 ea.)

FX Jets (6 ea.)

ProClear™ Plus Polishing Filter Bag

ProClear™ Floating Skimmer And

Filter Cartridge with Integrated Chemical Dispenser. NX Jets (2 ea.) And MX2 Jets (3 ea.)

FX2 Jets (2 ea.)

Page 20

Spa features subject to change without notice.

NX Jets (2 ea.) And RX Jets (10 ea.)

FX2 Jet

Lighted Seat Logo

Footwell Filter Suction Covers (3 ea.)

Bottom Filter Suction Cover

Waterfall Filtration Return

FX Calf Jets (2 ea.)

FX Footwell Jets (4 ea.)

Lighted IX Mass Aspiration Jet

Gravity Drain/Heater Input/Optional

Ozone Return Fitting Lighted Mass Aspiration Jet Flow

Control Valve Optional Audio System Receiver

FX Jets (4 ea.) and FX2 Jets (2 ea.)

AA.

iPod Docking Station

8.5 J-465 Spa Features

J-400 Series

Control Panel

Waterfall Control Valve

Air Control Valves (3 ea.) Introduce

Air to Speciﬁed Jet Groups (Page 31) Optional Audio System Speakers

(4 ea.) Adjustable Pillows (4 ea.)

Lighted Cup Holders (3 ea.)

Massage Selectors (1 ea.) Controls

Speciﬁed Jet Groups (Page 30). Waterfall

FX Jets (14 ea.)

ProClear™ Plus Polishing Filter Bag

ProClear™ Floating Skimmer And

Filter Cartridge with Integrated Chemical Dispenser.

Spa features subject to change without notice.

Footwell Filter Suction Covers (3 ea.)

Bottom Filter Suction Cover

NX Jets (2 ea.)

FX2 Jets (7 ea.)

SX Jets (4 ea.)

RX Jets (4 ea.)

MX Jets (5 ea.)

Lighted IX Mass Aspiration Jet

Gravity Drain/Heater Input/Optional

Ozone Return Fitting

Waterfall Filtration Return

Lighted Mass Aspiration Jet Flow

Control Valve

Optional Audio System Receiver

iPod Docking Station

Page 21

J-400 Series

F F

8.6 J-460 Spa Features

Control Panel

Waterfall Control Valve

Air Control Valves (4 ea.) Introduce

Air to Speciﬁed Jet Groups (Page 33)

Optional Audio System Speakers

(4 ea.)

Adjustable Pillows (4 ea.)

Lighted Cup Holders (2 ea.)

Massage Selector (1 ea.) Controls

Speciﬁed Jet Groups (Page 32).

Waterfall

FX Jets (18 ea.)

FX2 Jets (5 ea.)

ProClear™ Plus Polishing

Filter Bag

Page 22

N. O. P.

Q. R.

S. T.

Spa features subject to change without notice.

ProClear™ Floating Skimmer And Filter Cartridge with Integrated Chemical Dispenser.

SX Jets (4 ea.)

MX2 Jets (5 ea.) Lighted IX Mass Aspiration Jet Footwell Filter Suction Covers (3 ea.) Bottom Filter Suction Cover Gravity Drain/Heater Input/Optional Ozone Return Fitting Waterfall Filtration Return Lighted Mass Aspiration Jet Flow Control Valve Optional Audio System Receiver

iPod Docking Station

J-400 Series

B C

9.0 Operating Instructions

Your Jacuzzi® spa has a touch-sensitive control panel, massage selectors, and air control knobs located on the top rim of the spa (page 19-22). These controls let you operate many of the special functions of your Jacuzzi spa. By familiarizing yourself with the following information, you will be able to gain the full beneﬁt from using your spa .

9.1 View Button

Pressing this button inverts the main four-digit display on the command center’s LCD screen to allow easy reading from either inside or outside the spa.

9.2 Activate Jets Pump 1

The button labeled JETS 1 controls jets pump #1. Pressing this button cycles jets pump #1 on and off.

9.3 Activate Jets Pump 2

The button labeled JETS 2 controls jets pump #2. Pressing this button cycles pump #2 on and off.

Auto Turn Off — Anytime a pump has been manually turned on, it will automatically turn off after approximately 20 minutes. If at this time you desire more jet operation you may simply turn the pump(s) back on.

9.4 Selecting the Desired Massage Action

Your Jacuzzi spa is equipped to allow you to customize the massage action you desire. Each model incorporates a massage selector that allow you to customize the massage and performance by diverting water between various jet systems. Simply turn massage selector to position A (Combo), B, or C to divert water pressure to various jet groups. Note: The massage selector valve(s) is designed to operate in

positions A (Combo), B, and C for optimum performance. It is considered normal for sound levels within the valve to vary between positions due to the large amounts of water ﬂowing through it! For optimum ﬁltration beneﬁts, leave the valve in position A when spa is covered. Select position B or C for maximum jet performance during spa use.

9.5 Light On/Off Button

Pressing this button activates the logo, footwell IX Jet light, waterfall lights, and optional exterior lights in sequence as follows: high - medium - low - off. Note: Interior lights automatically turn off after 1

hour. Exterior lights are photocell activated.

Page 23

J-400 Series

Press

Once

Press

Again

Press

Again

Hold For

3 Seconds

then

release

Press Again

Special Effects Mode (Overrides All Modes):

Displays colors that automatically blend, flash and alter

directions randomly. Four random modes offered.

Solid Color Mode:

Selects one of 7 solid (high-intensity) colors of choice.

AMBER (X7) GREEN (X8) AQUA (X9) NEAR

WHITE (X10)

BLUE (X4) VIOLET (X5) RED (X6)

Freeze Color Blend Mode:

Selects or “freezes” your low speed blending color of choice.

Low-Speed Color Blend Mode:

Displays hundreds of colors in 20 seconds intervals.

High-Speed Color Blend Mode:

Displays hundreds of colors in 5 second intervals.

9.6 Light Mode Button

This button offers 5 light modes for your enjoyment. Press this button to select your favorite lighting effect as follows:

Note: All modes are automatically recalled when the hot tub lights are turned off and back on within 5 minutes, otherwise they default to the high-speed blending mode. Solid color mode is retained indeﬁnitely unless set otherwise or a power outage occurs.

9.7 Adjusting Individual Jet Flow

The water ﬂow to certain jets in your spa can be increased or decreased by rotating the outside jet face. Note: Always keep at least 6

adjustable jets open at all times.

Page 24

J-400 Series

MUTE

POWER

SOURCE

MRD 60

MARI N E

INTRO RANDOM REPEAT DISK

LOCAL

SCAN

BAND

SET

TUNE

1 2 3 4 5 6

AUDIO AUTO

TRACK

DISC IN

MUTE

POWER

SOURCE

MRD 60

MARI N E

INTRO RANDOM REPEAT DISK

LOCAL

SCAN

BAND

SET

TUNE

1 2 3 4 5 6

AUDIO AUTO

TRACK

DISC IN

9.8 Adjusting PowerPro™ MX2 Jets

Tilt PowerPro MX2 Jet nozzle to angle of choice as desired. Rotate nozzle clockwise to reduce ﬂow volume from jet or rotate counterclockwise to increase ﬂow volume. Note: Always keep at least 6

adjustable jets open at all times.

9.9 Adjusting RX Jets

Turn center jet adjustment knob clockwise to decrease or shut off water ﬂow. Turn center jet adjustment knob counterclockwise to turn on or increase water ﬂow. Note: Always keep at least 6 adjust-

able jets open at all times.

9.10 WaterColour™ Waterfall Control

Turn waterfall control valve (page 26-33) counterclockwise to increase waterfall output. Turn control valve clockwise to decrease or turn off waterfalls.

9.11 Air Controls

Certain jet systems have their own air control. Each control introduces air into the water lines that supply that speciﬁc jet group (page 26-33). Simply rotate any air control clockwise to open or rotate counterclockwise to close. To minimize heat loss, all air controls should be closed when the spa is not in use.

9.12 Optional AquaSound™ Jacuzzi Audio System

Jacuzzi models equipped with the optional Jacuzzi sound system offer enhanced spa enjoyment. These models include an integrated AM/FM/CD/MP3 Player receiver with four high-quality marine speakers for unsurpassed sound quality and long-life. The included wireless remote control further enhances spa enjoyment by providing full sound and jets control at your ﬁngertips. Note: Each

speaker has an integrated infrared sensor which responds to commands from the wireless remote control. Refer to section 19.0 (page 52) for complete stereo operation details.

Page 25

J-400 Series

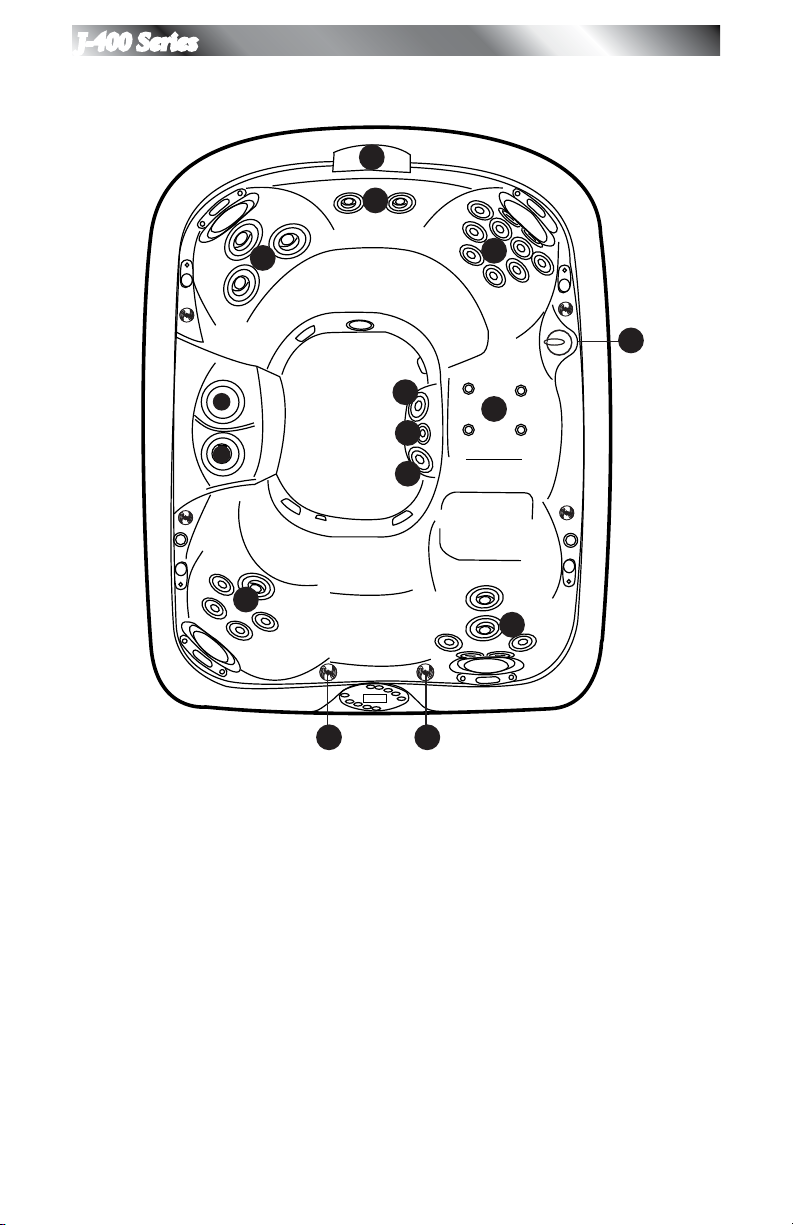

9.13 J-480 Massage/Waterfall Selector Diagram

Massage Selectors (1-2)

• Massage selector 1 diverts pump 2 output between jets groups 1a-1b.

• Massage selector 2 diverts pump 1 output between jet groups 2a-2b.

Waterfall Selector (3)

Spa operation subject to change without notice.

• Waterfall selector 3 controls circulation pump output to waterfalls.

Massage Selector (4)

• Massage selector 4 controls pump 1 output to footwell IX Jet.

Jets Without Massage Selector Controls (5)

• Jets 5 are always on when jets pump 2 is running.

Page 26

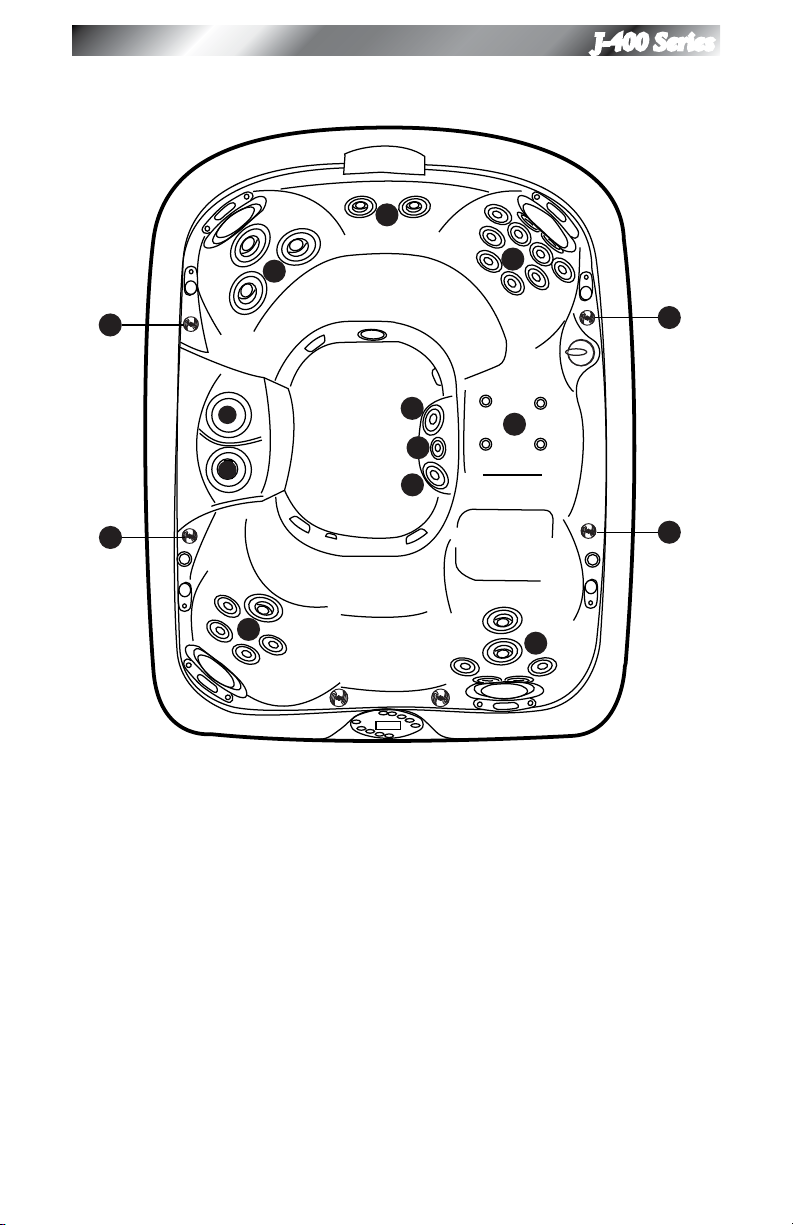

9.14 J-480 Air Controls Diagram

J-400 Series

Air Controls Operation

• Rotate air controls 1-4 to add air to designated jet groups.

• Center footwell IX Jet draws air at all times when jets pump 1 is

Spa operation subject to change without notice.

running. This jet has no air control.

Page 27

J-400 Series

9.15 J-470 Massage/Waterfall Selector Diagram

Massage Selectors (1-2)

Spa operation subject to change without notice.

• Massage selector 1 diverts pump 2 output between jets groups 1a-1b.

• Massage selector 2 diverts pump 1 output between jet groups 2a-2b.

Waterfall Selector (3)

• Waterfall selector 3 controls circulation pump output to waterfalls.

Massage Selector (4)

• Massage selector 4 controls pump 1 output to footwell IX Jet.

Jets Without Massage Selector Controls (5)

• Jets 5 are always on when jets pump 2 is running.

Page 28

9.16 J-470 Air Controls Diagram

J-400 Series

Air Controls Operation

• Rotate air controls 1-4 to add air to designated jet groups.

• Center footwell IX Jet draws air at all times when jets pump 1 is

Spa operation subject to change without notice.

running. This jet has no air control.

Page 29

J-400 Series

9.17 J-465 Massage/Waterfall Selector Diagram

Massage Selectors (1)

• Massage selector 1 diverts pump 1 output between jets groups 1a-1b.

Massage Selector (2)

• Massage selector 2 controls pump 1 output to footwell IX Jet.

Waterfall Selector (3)

• Waterfall selector 3 controls circulation pump output to waterfall.

Jets Without Massage Selector Controls (4)

• Jets 4 are always on when jets pump 2 is running.

Page 30

Spa operation subject to change without notice.

2 2

9.18 J-465 Air Controls Diagram

J-400 Series

Spa operation subject to change without notice.

Air Controls Operation

• Rotate air controls 1-3 to add air to designated jet groups.

Page 31

J-400 Series

3 2

9.19 J-460 Massage/Waterfall Selector Diagram

Massage Selector (1)

• Massage selector 1 diverts pump 1 output between jets groups 1a-1b.

Massage Selector (2)

• Massage selector 2 controls pump 1 output to footwell IX Jet.

Waterfall Selector (3)

• Waterfall selector 3 controls circulation pump output to waterfall.

Jets Without Massage Selector Controls (4)

• Jets 4 are always on when jets pump 2 is running.

Spa operation subject to change without notice.

Page 32

9.20 J-460 Air Controls Diagram

J-400 Series

Spa operation subject to change without notice.

Air Controls Operation

• Rotate air controls 1-4 to add air to designated jet groups.

• Center footwell IX Jet (5) draws air at all times when jets pump 1 is running. This jet has no air control.

Page 33

J-400 Series

10.0 Heating Modes

The control system in your spa activates a programmable “standard” or “economy” mode which effects when the heater operates. Refer to sections 10.1

and 10.2 below for additional information.

10.1 Standard Mode (Factory Default)

Standard mode is typically selected by customers in cold climates where heat up times are extended due to lower ambient temperatures. In this mode, water temperature is regulated by the set temperature which activates the heater automatically as needed.

10.2 Economy Mode

Economy mode is typically selected by customers in warm climates where heat up times are minimized due to higher ambient temperatures. In this mode, the water temperature is regulated by the set temperature only when a programmed ﬁlter cycle is running, unless in summer logic (page 36).

10.3 Selecting Standard or Economy Mode

Press the MODE button to select either “Standard” or “Economy” mode. The control panel’s indicator on the right side of the LCD changes to indicate which mode is selected.

10.4 Clean-Up “Blow-Out” Cycle

The clean-up cycle is once per day in both Standard and Economy modes at 12:00 (noon) for two minutes. This is not user programmable. Jets pump 2 activates for one minute to circulate any water in the plumbing. After 1 minute, jets pump 2 shuts off and jets pump 1 turns on, runs for 1 minute, then shuts off.

Page 34

J-400 Series

11.0 Programming Instructions

11.1 Programming Filter/Circulation Pump Run Time

The Sentry control system allows you to easily adjust two separate aspects of ﬁlter/circulation pump operation:

1. The time of day (start time) the ﬁlter/circulation pump turns on.

2. The length of time (duration) the ﬁlter/circulation pump operates.

The factory default start time is 12:00AM (Midnight). The default duration is 24 hours. To make adjustments, press the CYCLE button to enter the ﬁlter/ circulation pump programming mode. “Circ” appears on the LCD. Now, the

system is ready to accept your changes:

• Press the SELECT button once. The previously programmed start time appears on the LCD display.

• Press WARMER or COOLER buttons to adjust the start time in 30-minute increments.

• Press the SELECT buttons to program duration.

• Press WARMER or COOLER buttons to program the duration time in 1 hour increments.

• Press DISPLAY button to save changes and recall the main water temperature display. Note: If no button is pressed within 30 seconds, all

changes are recorded and the screen automatically returns to the standard water temperature display.

Note: When the standard mode is selected (sec. 10.3, page 34), the ﬁlter/circulation pump automatically turns on for a heat call regardless of the pump’s programmed start time and duration.

11.2 Programming Filter Cycles

Your spa comes with four 30-minute ﬁlter cycles which activate the ﬁlter/circulation pump. These cycles are factory programmed to start at 6:00 am, 12:00 p.m., 6:00 p.m., and 12:00 a.m. The control system allows you to easily adjust two separate aspects of each cycle: 1) the time of day at which it begins; 2) the duration of the cycle.

Note: When “Standard” mode is selected (sec. 10.3, page 34) and the ﬁlter/circulation pump is set to the factory default duration of 24 hours (sec. 11.1), no apparent change of operation will occur. However, when “Economy” mode is selected (sec. 10.3, page 34), the heater activates only during a programmed ﬁlter cycle.

Page 35

J-400 Series

When in a Summer Logic condition is active (see note below), the ﬁlter/circulation pump will turn on for all programmed ﬁlter cycles.

Summer Logic: In warm weather, the water temperature in the spa may exceed the set temperature. This condition may occur due to heat transference from the ﬁlter/circulation pump and jets pumps. If the water temperature is higher than 95°F (35°C) and rises two degrees above the set temperature, a “Summer Logic” condition occurs that deactivates the ﬁlter/circulation pump and ozonator (if equipped). This safety feature cannot be altered! The ﬁlter/circulation pump and ozonator will remain off until the water temperature cools to the set temperature (except between 9:00 - 11:00 AM when the ﬁlter/circulation pump runs for its mandatory 2-hour cycle). To help prevent a “Summer Logic” condition, it may be necessary to reduce ﬁlter/circulation pump cycles run times in warm weather.

To make adjustments, ﬁrst press the CYCLE button to enter the ﬁlter cycle programming mode. The LCD screen will display the following in the upper right corner:

*Note: Number will

*Note: Number will vary according to which

vary according to which ﬁlter cycle is being

ﬁlter cycle is being programmed.

programmed.

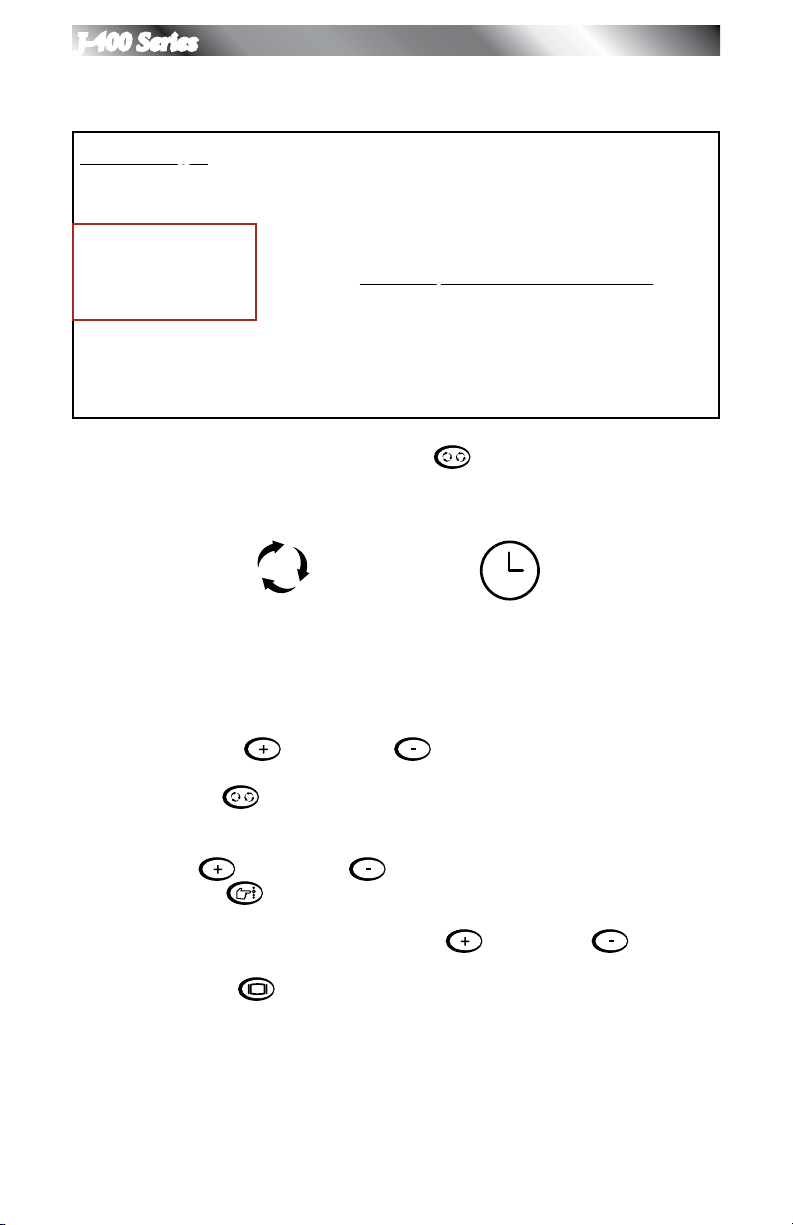

This means the system is ready to accept your changes to the start time for cycle number one. Simultaneously, the large four-digit display in the center of the screen displays the currently programmed start time for that cycle. At this point, you have four options. You may:

1. Press WARMER or COOLER button to adjust the start time in increments of 30 minutes.

2. Press CYCLE button to display and adjust each subsequent cycles start time. With each press, the currently programmed status will be shown in the large four digit display. To adjust any displayed value, simply press the WARMER or COOLER button.

3. Press SELECT button to move down the menu from Start Time to Duration, with each press, the currently programmed duration will be shown in the large four-digit display. Press WARMER or COOLER button to adjust the duration in increments of 15 minutes.

4. Press DISPLAY button to save changes and recall the main water temperature display. Note: If no button is pressed within 30 seconds, all

changes are recorded and the screen automatically returns to the standard water temperature display.

Page 36

J-400 Series

LOCKEDLOCKED

When a programmed ﬁlter/heating cycle activates, the LCD screen displays the following message:

*Note: Number will vary

*Note: Number will vary according to which ﬁlter

according to which ﬁlter cycle is being programmed.

cycle is being programmed.

At any time, you may check the programming of any aspect of any ﬁlter/heating cycle by ﬁrst pressing CYCLE button then moving through the menu by pressing either CYCLE or SELECT button. The programming is changed only by pressing WARMER or COOLER buttons during this process.

11.3 Adjusting Time of Day

The Sentry control system remembers the time of day even in the event of a prolonged power outage. However, it may occasionally be necessary to reset the time of day. For example: if you are not in the Paciﬁc Time Zone you will want to reset the time for your own time zone. (The system will automatically adjust to and from daylight savings time.) To accomplish this, press DISPLAY , MODE and DISPLAY buttons within ﬁve seconds each. A number representing the hour will be displayed, followed by AM or PM. The hour will advance or decrease each time WARMER or COOLER button is pressed within ﬁve seconds. Then, press DISPLAY button again to display the minutes. Adjust the minutes as necessary by pressing WARMER or COOLER button. After 5 seconds, the display will return to normal and save your settings.

11.4 Main Control Panel Lock

To help prevent unauthorized use of your spa, the Sentry controls incorporate a unique panel locking system which disables the controls on the panel.

• To Lock The Main Control Panel: Press DISPLAY , MODE , and WARMER buttons within ﬁve seconds

each. A padlock symbol will appear on the LCD screen. With the panel locked, all components are disabled from modiﬁcations and the only settings that can be adjusted are the standard and economy ﬁlter/heating

modes and time of day. All automatic spa functions will operate normally.

• To Unlock Main Control Panel: Press DISPLAY , MODE , and COOLER buttons within ﬁve seconds. The “lock”

symbol will disappear. All buttons are now active.

Page 37

J-400 Series

LOCKEDLOCKED

11.5 Locking Filter Cycles

You may keep all ﬁlter cycle programs from being inadvertently altered by electronically “locking” them.

• To Lock All Filter Cycles: Press CYCLE button, then within 30 seconds, press DISPLAY , MODE and WARMER buttons within ﬁve seconds each. A padlock symbol will appear on the screen. In this state, the status of the cycle program may be checked, but may not be altered.

• To Unlock Filter Cycles: Press DISPLAY , MODE and COOLER buttons within ﬁve seconds each.

11.6 Temperature Setting Lock

The spa’s temperature setting can be locked to prevent unauthorized changes. When locked, all other spa buttons and functions remain undisturbed.

• To Lock Temperature Setting: Press WARMER or COOLER

button to display temperature setting, then immediately press the DISPLAY , MODE , and WARMER buttons within ﬁve seconds each. A padlock symbol will appear on the screen.

• To Unlock Temperature Setting: Press WARMER or COOLER button to display temperature setting, then imme-

diately press the DISPLAY , MODE , and COOLER buttons within ﬁve seconds each.

11.7 Programming the Change Filter Reminder

Your new spa is equipped with a programmable “Change Filter” reminder icon that ﬂashes on the control panel display after a speciﬁed number of days. It is designed to remind you to clean the skimmer ﬁlter cartridge on a regular basis but does not affect spa operation in any way. The “Change Filter” reminder must be reset at each ﬁlter cleaning interval. It offers a selectable range from 10-120 days or can be disabled (turned off). We recommend an initial setting of 60 days (2 months) to remind you to check your ﬁlters after your ﬁrst 2 months of operation. At this time, you can easily determine whether you need to change this interval by visually inspecting the ﬁlter cartridge an polishing bag. Note: This reminder must be reset at each ﬁlter

cleaning interval. Refer to section 12.1 for ﬁlter cleaning instructions.

Programming Instructions

1. Press the CYCLE button 2 times. The main display reads “FIL” indicating the “Change Filter” display program has been accessed.

2. Press SELECT button once to display the currently programmed duration or to view days elapsed since last ﬁlter cleaning interval.

Page 38

J-400 Series

ABA

3. Press WARMER or COOLER button to change duration setting as follows: 0 - 10 - 20 - 30 - 40 - 50 - 60 - 70 - 80 - 90 - 100 - 110 - 120 - OFF

Note: Selecting 0 in step 3 forces the change ﬁlter reminder icon to remain on indeﬁnitely.

4. Press DISPLAY button once to save changes and return to the standard water temperature display. Note: If no button is pressed within 30

seconds, all changes are recorded and the screen automatically returns to the standard water temperature display.

12.0 Spa Maintenance

Proper and regular maintenance of your spa will help it retain its beauty and performance. Your authorized Jacuzzi dealer can supply you with all the information, supplies, and accessory products you will need to accomplish this.

12.1 Cleaning the Filter Cartridges

A programmable “Change Filter” reminder icon ﬂashes on the control panel display after a speciﬁed number days to remind you to clean the skimmer ﬁlter and to check the polishing bag ﬁlter. This reminder must be reset at each ﬁlter cleaning interval. Refer to section 11.7 (page 38) for additional information and programming details. Your new spa is equipped with an advanced 2-stage ﬁltration system. Fine debris are ﬁltered by the circulation pump drawing water through the ProClear™ skimmer and pleated ﬁlter cartridge 24 hours (unless programmed otherwise). Large debris are ﬁltered when either jets pump is running when the spa is in use or during a programmed ﬁlter cycle. These pumps draw water from footwell suction ﬁtting and through a secondary water polishing bag ﬁlter. The exclusive footwell “sweeper” suction ﬁtting enhances ﬁltration in the footwell area by creating a “swirling” water motion to maximize particle agitation and pickup.

To ensure optimum performance, the 24-hour ProClear™ skimming ﬁlter cartridge (A) must be cleaned every three months and replaced once a year. The secondary ProClear™ Plus polishing ﬁlter bag (B) should be emptied weekly and replaced every 3 months. To accomplish this, refer to the following ﬁlter cleaning procedure.

Note: Do not attempt to wash the polishing ﬁlter bag (B) or it will come apart!

Page 39

J-400 Series

2.1. 3. 4. 5.

ABA

ALWAYS TURN POWER TO THE SPA OFF BEFORE CLEANING THE FILTER CARTRIDGES! NEVER OPERATE SPA WITHOUT FILTER LID (2) AND SKIMMER ASSEMBLY (4) INSTALLED.

1. Remove power to the hot tub before removing the skimmer (A) or ﬁlter bag cover (B).

2. Remove the polishing bag lid (B) by rotating it counterclockwise approximately 5 degrees until you feel it unlatch.

3. Remove the polishing bag by reaching into the ﬁlter bucket and gently pulling upward on the blue ﬁlter ring (empty ﬁlter bag weekly or install a new bag every three months.) Replace bag, then install ﬁlter lid by rotating it clockwise until you feel it latch in place. DO NOT FORCE LID! FINGER TIGHT ONLY!

4. Remove the ProClear skimmer assembly (A) by gently lifting upward from the ﬁlter bucket.

5. Remove the ProClear ﬁlter cartridge by rotating it counterclockwise to unthread it, then remove the center cap and chemical dispenser from the ﬁlter cartridge as shown (right).

6. Clean the ProClear ﬁlter cartridge (A) with a garden hose and high pressure nozzle. Rinse debris from the ﬁlter pleats beginning at the top and working your way downward. Continue, one section at a time until you have cleaned all debris from the ﬁlter pleats. When replacing the ﬁlter cartridge, make sure you remove the center cap and chemical dispenser for use with the new cartridge. Replacement ﬁlter cartridges may be purchased from your authorized Jacuzzi dealer. Request #20086-001 (6540-498 for J-460) for the main pleated cartridge (A) and #6540-513 (6540-512 for

J-460) for the secondary polishing ﬁlter bag (B).

12.2 Draining and Reﬁlling

About every 3 to 6 months, you will want to replace the spa’s water. The frequency depends on a number of variables including the amount of use, number of users, attention paid to water quality maintenance, etc. You will know it is time for a change when you cannot control sudsing and/or you can no longer get the normal feel or sparkle to the water even though the key water balance measurements are all within the proper parameters.

Page 40

CAUTION! READ THIS BEFORE DRAINING: To prevent damage

2.2.

3.3.

Unlock Drain

Open Drain

to the spas components, turn off power to the spa at the circuit breaker before draining it. Do not turn the power back on until your spa has been reﬁlled.

CAUTION: There are certain precautions to keep in mind when draining your spa. If it is extremely cold, and the spa is outdoors, freezing could occur in the lines or the equipment (see “WINTERIZING”, page 42). On the other hand, if it is hot outdoors, do not leave the spa’s surface exposed to direct sunlight.

To drain your spa, perform the following steps:

1. Turn off power to spa at breaker.

2. Locate the drain valve located on the front left corner on the black plastic pan. Hold the larger (rear) drain valve body to prevent it from turning, then loosen and remove the front cap to expose the underlying male hose threads.

J-400 Series

3. Attach a garden hose to the exposed threads.

4. Gently rotate the larger (rear) valve body 1/3 turn counterclockwise to unlock the drain valve.

5. Pull the larger (rear) body outward as shown to open drain.

6. After the spa drains, perform steps 2-5 in reverse order to close the drain prior to reﬁlling spa.

After reﬁlling, turn on power to the spa and follow the steps listed under “Spa Fill Up Procedures.” (page 12). Always ﬁll your spa through both ﬁlter buckets.

12.3 Cleaning the Spa Interior

To preserve the sheen of your spa’s surface, it is crucial that you avoid using abrasive cleaners or cleaners which have adverse chemical effect on the surface. If you are not certain as to the suitability of a particular cleanser, consult your authorized Jacuzzi dealer. Regardless of the cleanser used, use extreme care to

Page 41

J-400 Series

assure that no soap residue is left on the surface. This could cause severe sudsing when the spa is reﬁlled.

12.4 Pillow Care

Clean the four headrests in your spa as needed by wiping them with a cloth with

soapy water. It is not necessary to remove the headrests for cleaning.

To remove headrests for long term storage or replacement, grasp both ends of each headrest and gently pull inward towards the center of the spa. To reinstall, over mounting strip and press down until headrest mounting bracket emits a “click” sound. Then adjust headrest height by simply moving up or down as desired.

12.5 Maintaining the Synthetic Cabinet

The synthetic cabinet requires little or no maintenance of any kind. To clean, simply wipe cabinet with mild detergent soap solution and a clean towel.

CAUTION: Never spray cabinet with a high pressure garden hose for any reason since this action may induce an electrical short in the spa’s electrical equipment.

12.6 Maintaining the Cover

Using the Jacuzzi insulating spa cover anytime the spa is not in use will signiﬁcantly reduce your operating costs, heat-up time, and maintenance requirements. To prolong the life of the cover, handle it with care and clean it regularly using mild soap and water. Periodic treatments with a special conditioner developed for Jacuzzi spa covers will help protect against deterioration caused by UV rays from the sun. Never allow anyone to stand or sit on the cover, and avoid dragging it across rough surfaces.

12.7 Winterizing

Your Jacuzzi spa is designed to automatically protect itself against freezing when operating properly. During periods of severe freezing temperatures, you should check periodically to be certain that the electrical supply to the spa has not been interrupted. In extreme, bitter cold weather (less than -20°F) verify standard

mode is set for 24-hour operation (sec. 11.1 Programming Filter/Circulation Pump Run Time, page 35) and that standard mode is selected (sec. 10.3 Selecting Standard or Economy Mode, page 34) to protect against damage to the spa.

If you do not intend to use your spa, or if there is a prolonged power outage during periods of severe freezing temperatures, it is important that all water be removed from the spa and equipment to protect against damage from freezing.

Page 42

J-400 Series

For expert winterization of your spa, contact your authorized Jacuzzi dealer. In emergency situations, damage can be minimized by taking the following steps:

CAUTION: Turn off power to spa.

1. Follow the directions on page 40 for draining the spa.

2. As the water level drops below the seats, use whatever means necessary to get the water out of the recessed seating areas and into the footwell.

3. When the water level ceases to drop, use whatever means available to remove any remaining water from the footwell.

4. Remove the equipment-side cabinet panels and locate the drain plugs in the front of each pump (Figure-A, page 10). Remove these plugs to allow the water to drain out of the pumps and heater. (Note: Approximately one to two

gallons will be released during this procedure. Use a wet/dry vacuum or other means to keep this from ﬂooding the equipment compartment. Replace the drain plugs.

5. Loosen hose clamp at bottom of heater (Figure-A, page 10) and pull hose off of heater ﬁtting (twist the hose back and forth while pulling downward). Tip hose down and allow to drain, then reinstall hose and clamp.

6. Re-install cabinet side panels and cover spa so that no casual moisture can enter into it.

Consult your Jacuzzi dealer if you have any questions regarding winter use or winterizing.

12.8 Restarting Your Spa in Cold Weather

If you want to start up your spa after it has sat empty for a time in freezing temperatures, be aware that the water remaining in certain sections of the piping may still be frozen. This situation will block water ﬂow preventing the spa from operating properly and possibly damaging the equipment. We recommend you consult your dealer for guidance before attempting to restart your spa under these conditions.

Page 43

J-400 Series

13.0 Water Quality Maintenance

Maintaining the quality of the water within speciﬁed limits will serve to enhance your enjoyment and prolong the life of the spa’s equipment. It is a fairly simple task, but it requires regular attention because the water chemistry involved is a balance of several factors. There is no simple formula, and there is no avoiding it. Procrastination in regard to water maintenance will result in poor and potentially unhealthful conditions for soaking and even damage to your spa investment. For speciﬁc guidance on maintaining water quality, consult your Authorized Jacuzzi dealer who can recommend appropriate chemical products for sanitizing and maintaining your spa.

CAUTION: Never store spa chemicals inside the spa’s equipment bay.

13.1 pH Control

pH is a measure of relative acidity or alkalinity of water and is measured on a scale of 0 to 14. The midpoint of 7 is said to be neutral, above which is alkaline and below which is acidic. In spa water, IT IS VERY IMPORTANT TO MAINTAIN A SLIGHTLY ALKALINE CONDITION OF 7.4 to 7.6. Problems become proportionately severe the further outside of this range the water gets. A low pH will be corrosive to metals in the spa equipment. A high pH will cause minerals to deposit on the interior surface (scaling). In addition, the ability of the sanitation agents to keep the spa clean is severely affected as the pH moves beyond the ideal range. That is why almost all spa water test kits contain a measure for pH as well as sanitizer.

13.2 Sanitizing

To destroy bacteria and organic compounds in the spa water, a sanitizer must be used regularly. Your Jacuzzi spa is equipped with the Brominator™, a special compartment built into the ﬂoating skimmer gate to hold bromine tablets. By regulating the number of bromine tablets in the Brominator you can control the amount of bromine which is actively working in your spa water. A bromine residual of 2.0-4.0 ppm is generally considered desirable. A two-part bromine system or granular chlorine (dichlor) are also acceptable sanitizers.

IMPORTANT: Do not use chlorine tablets (trichlor) in your spa. This chemical can have an extremely corrosive effect on certain materials in the spa. Damage caused by use of this chemical, or improper use of any chemicals, is not covered under the spa’s warranty.

Page 44

J-400 Series

13.3 Other Additives

Many other additives are available for your spa. Some are necessary to compensate for out-of-balance water, some aid in cosmetic water treatment and others simply alter the feel or smell of the water. Your Authorized Jacuzzi dealer can advise you on the use of these additives.

13.4 Ozone Water Maintenance System (Optional)

If you have elected to have your spa equipped with the Jacuzzi CD Ozone water puriﬁcation system, you will ﬁnd that your water stays fresh and clear with signiﬁcantly less chemical sanitizer usage.

14.0 Troubleshooting - Display Messages

There are a number of unique functions designed into your Jacuzzi spa to protect it from damage and/or to aid in troubleshooting. Following is a listing of all the possible messages along with their meanings:

MESSAGE MEANING

Overheat Protection (Heater is deactivated, filter/circulation pump is activated). Water temperature is above acceptable limits. Do not enter the water! Remove spa cover to speed cooling. See “Water Is Too Hot” on page

48. If condition persists, contact your dealer or autho-

rized service center.

If the spa water is more than 20°F/6°C cooler than the temperature set point, jets pump #1 and heater will automatically activate to provide freeze protection. The spa will stay in this mode until the water temperature reaches 15 degrees below the set temperature. No corrective action is necessary.

FLOW SWITCH (Heater is deactivated. The filter/circulation may also be deactivated). Proper flow of water is inhibited or a flow switch has malfunctioned. Check for proper water level and for clogged filter (page 39). Contact your dealer or service organization.

Note: This message can also appear if the pump has not regained prime after the spa has been drained and refilled. If you suspect that this is the case, see the instructions on page 47 under “pump does not operate but icon does.

Page 45

J-400 Series

Panel buttons have been pressed too many times in a short period of time. Because this could cause excessive wear on equipment components, panel buttons are temporarily deactivated. Panel buttons will automatically re-activate if no button is pressed for 30 seconds.

Circuit board temperature has exceeded acceptable limit. This message will disappear when the circuit board temperature drops below acceptable limit. If condition persists, provide shade for equipment side of spa.

FREEZE PROTECTION A potential freeze condition has been detected. No action is required. Jets pump(s) operate until the spa is out of danger. It is possible to manually turn off pump

1 and pump 2, but if after 2 hours ICE is still detected, pumps will automatically turn back on. Note: This error

commonly occurs when the spa is first filled because tap water is often very cold.

Communication between the control panel and/or remote control panel and circuit board is faulty. Contact your dealer or service organization.

Page 46

“WATCHDOG” (spa is deactivated) A problem has been detected which could cause damage to the spa or its components. Contact your dealer or service organization.

OPEN SENSOR (heater disabled) OR SHORTED SENSOR (spa is deactivated) The high-limit temperature sensor is non-functional. This must be repaired only by a dealer or qualified service organization.

OPEN OR SHORTED SENSOR (heater disabled) The main sensor is non-functional. This must be repaired only by a dealer or qualified service organization.

CLOSED OR SHORTED FLOW SWITCH ON SYSTEM STARTUP (system disabled) Flow switch is non-functional. This must be repaired only by an authorized dealer or qualified service organization.

J-400 Series

15.0 Troubleshooting - Procedures

In the unlikely event your spa is not working the way you believe it should, please ﬁrst review all the installation and operating instructions in this manual and check the message on the panel display; second, if you are still not satisﬁed it is working properly, please follow the appropriate troubleshooting instructions.

PROBLEM PROCEDURE

NONE OF THE COMPONENTS OPERATE (i.e. pump light)

PUMP DOES NOT OPERATE AND ICON DOES

Check the control panel lights.

1. If there are letters or symbols displayed on the screen, refer to the previous section to determine the meaning and action required.

2. If nothing appears on the screen:

a. Check the household circuit breaker b. Contact you dealer or authorized service center

Depress “JETS” button.

1. If no sound is detected or if a “buzzing” sound AND ICON DOES is detected, turn off power to the spa and contact your dealer or service center.

2. If motor operates but no water ﬂows to jets:

a. Pump may not be properly primed. See instruc-

tions below.

b. Contact dealer or authorized service center.

Pump Priming Instructions:

1. Turn off power to the spa.

2. Remove the handle from the massage selector supplied by the pump you are priming.

3. Loosen the massage selector’s cap slightly (counterclockwise), listening for the air to seep out.

4. Tighten the cap ﬁnger-tight, replace the handle and turn the hot tub’s power back on.

Note: This method must be used for the jet’s pumps because these pumps are not connected to the main ﬁlter system in any way.

CAUTION: If freezing conditions exist and pump is not operational, take measures to protect the system from freeze damage. See section titled “Winterizing” (page 42).

Page 47

J-400 Series

POOR JET ACTION (see page 26-33)

WATER IS TOO HOT 1. Reduce thermostat setting (page 13).

NO HEAT 1. Check thermostat setting.

FILTER/CIRCULATION PUMP OFF

1. Make certain the jets pump is turned on.

2. Check position of massage selectors.

3. Open air control for selected jet system.

4. Check for adequate water level.

5. Check for dirty ﬁlter (page 39).

2. Switch hot tub to “Economy” mode to turn heater on only during programmed ﬁlter cycles (page 34).

2. Keep the cover in place while heating.

3. If “heater on” indicator is lit (page 18), but no temperature rise is experienced after a reasonable period of time, contact your dealer or authorized service center.

1. Verify ﬁlter/circulation pump is programmed to run 24 hours a day (page 35).

2. Filter/circulation pump cycle canceled by power interruption. Wait 24 hours for hot tub to reset.

3. Hot tub water is warmer than 95°F (35°C) and two degrees warmer than the set temperature. The “Summer Logic” safety feature has activated. See note on page 36 for details.

Jacuzzi builds the best spas in the industry. Nonetheless, we are always striving to improve the quality and features of our products. Your input as a Jacuzzi spa owner is a cherished part of this process. If you have any comments or suggestions, or if you wish to be informed on any new products for your spa, please write to us.

CONGRATULATIONS on your good taste and welcome to the happiest and most relaxed family in the world!

Page 48

16.0 North American 60Hz J-460/J-465/J-470/J-480

K13

J8 J6 J7

12VAC Output Power to Lighting

Controller.

Transformer

K1 K2 K3 K4 K5 K6

K7 K8

Options

Sensors

LCD Panel

Flow

Switch

Hi-Limit/Freeze

Sensor

Temperature

Sensor

LED

Lighting

Controller

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference

received including interference that may cause

undesired operation.

1 3 5 8 10

MAIN LCD CONTROL

PANEL

1 2 1 2

Ozone

Generator

(Optional)

BLK

WHT

Circulation

Pump

Heater

5.5 kW

RED

WHT

PUMP 1

PUMP 2

BLK

RED

30A, 250V

SC-30

To Heater

Relays

TB1

TB3

TB1

TB2 TB6

TB4

STEREO

(Optional)

Main Power

On/Off

Shutoff Switch

GRN

External Service Panel Box - Disconnect

Means Must Be Located No Closer Than

5FT (1.52 Meters) From Edge And Within

Sight of Spa.

240VAC/60Hz, 23A/38A/45A, 1-Phase,

Use Copper Conductors Only, Use Min.

8AWG/75°C Wire Size, Wire Size Must

Be Appropriate Per NEC And/Or Local

Codes.

13579

135791113

JP19

JP20

JP9

13579

135791113

JP19

JP20

JP9

Wiring Diagram

J-400 Series

Circuit Board Jumper Settings:

JP20-1: Not Used

JP19-1: On C°, Off F°

JP19-3: Not Used

JP19-5: On enables Multi-Colored LED light kit

JP19-7: Not Used

JP19-9: Not Used

JP9-1: Not Used

JP9-3: Not Used

or 60A Logic

JP9-5: Not Used

JP9-7: On enables 60A Logic

JP9-9: On 2-Pump Logic, Off 1-Pump Logic

JP9-11: On enables 30A Logic, Off enables 50A

JP9-13: Not used

See Section 6.0, page 11 for jumper conﬁguration

pump operation.

Caution: always

remove power

to spa before

making jumper

changes on the

circuit board.

Page 49

J-400 Series

SENSORS LCD PANEL

230 VAC, 20A / 30A / 40A, 1-Phase, 50 Hz;

USE MIN. 10mm

(6 AWG) COPPER CONDUCTORS ONLY

J8 J6 J7

OPTIONS

FLOW SWITCH

HI - LIMIT / FREEZE SENSOR

TRANSFORMER

TB3

TB3 TB4

11 2

TB2

2 1

PUMP 1

PUMP 2

TEMPERATURE

SENSOR

TB7

From TB1

Terminal Block

TB1

UV or CD

Ozonator

(Optional)

Circulation

Pump

TB1

TB5

1 2 3

20A,

250V

SC-20

BLU (N)

GRN/YEL (GND)

N N N

L N

L L L

BRN (L)

Red

Black

B B Y Y

STEREO

(Optional)

Power Supply (Optional)

12VAC Output to

Waterfall Light/

Footwell Light

Controller

To Heater

Relay

LED

Lighting

Controller

MAIN LCD CONTROL

PANEL

Heater

2.7 kW

13579

135791113

JP19

JP20

JP9

13579

135791113

JP19

JP20

JP9

17.0 Export 50Hz J-460/J-465/J-470/J-480 Wiring Diagram

Circuit Board Jumper Settings:

JP20-1: Not Used

JP19-1: On C°, Off F°

JP19-3: On 50Hz, Off 60Hz

Page 50

light kit

JP19-5: On enables Multi-Colored LED

JP19-7: Not Used

JP19-9: Not Used

JP9-1: Not Used

JP9-3: Not Used

Logic

enables 30A or 40A Logic

JP9-5: Not Used

JP9-7: On enables 40A Logic

JP9-9: On 2-Pump Logic, Off 1-Pump

JP9-11: On enables 20A Logic, Off

JP9-13: Not used

Caution:

See Section 6.0, page 11 for jumper conﬁgu-

ration pump operation.

always remove

power to spa

before making

jumper

changes on the

circuit board.

Red (L2)

Pigtail

Neutral Bus

Ground

TB2

TB1

Black (L1)

Green

Main

Service

Panel

with

GFCI

2-Pole GFCI Breaker

Ground/Bonding Lug**

2-Pole Circuit Breaker with 2-Wire Grounded Load Connection

(3 Wires to Hot Tub, 2-Hot (L1-L2), 1-Ground)

White (N)

Black (L1)

Red (L2)

240 VAC

No Load Neutral Wire

Note: service disconnect not shown in this diagram. The control box TB1 terminal position varies between models.

Red (L2)

Pigtail

Neutral Bus

Ground

TB2

Black (L1)

Green

GFCI Sub Panel*

Main Panel*

2-Pole GFCI Breaker

Ground/Bonding Lug**

No Load Neutral Wire

Main Panel with Secondary GFCI Shut-Off Box Using a

2-Pole GFCI Breaker with 2-Wire Grounded Connection

(3 Wires to Hot Tub, 2-Hot (L1-L2), 1-Ground)

TB1

White (N)

Green (Ground)

*GFCI Sub Panel commonly used when recommended GFCI does not install in Main Panel.

Note: service disconnect not shown in this diagram. The control box TB1 terminal position varies between models.

240 VAC

18.0 Typical Spa Wiring Diagrams A-B (North American 60Hz Models Only)

J-400 Series

Page 51

J-400 Series

MUTE

POWER

SOURCE

MRD 60

MA R IN E

INTRO RANDOM REPEAT DISK

LOCAL

SCAN

BAND

SET

TUNE

1 2 3 4 5 6

AUDIO AUTO

TRACK

DISC IN

21 1920 18 17 16 15 14 13

5 6 7 8 9 10

19.0 Optional Jacuzzi AquaSound Stereo System Features

19.1 Sound System Controls

1. Volume Up/Down (VOL)

2. Mute

3. Power On/Off

4. Source

5. Infrared Receiver for Wireless Remote Control

6. Preset Buttons 1 to 6

7. Front Panel Release Button

8. Display

9. Clock Set

10. Local

11. Scan

12. Band

13. Tune/Seek Up

14. Tune/Seek Down

15. Disc +

16. Auto

17. Disc -

18. CD Repeat

19. CD Random

20. Audio

21. CD Intro.

A. Power On and Off

Make sure spa power is turned on, then press power button (3) once to turn on. Press a second time to turn off.

B. Adjusting Volume

Rotate volume knob (1) to increase or decrease volume. Current volume setting is brieﬂy indicated on the display (0 to 31).

C. Mute

Press mute button (2) once to mute audio output (“Mute” ﬂashes on display). To restore audio output, press mute button a second time, or rotate volume knob.

D. Program Selection

Press source button (4) to cycle through available program sources as follows: Tuner - CD - AU- Tuner. If a source is unavailable (e.g. no CD or MP3 Player inserted), that source will not appear on the display.

E. Adjusting Bass Level

Press audio button (20) until display reads “BAS.” Rotate volume knob to

Page 52

J-400 Series

desired setting. A display of “C 0” indicates center, -2 to -12 indicates bass cut, and +2 to +12 indicates bass boost. Note: Unit returns to volume mode if volume

control is not rotated for 3 seconds.

F. Adjusting Treble Level

Press audio button (20) until display reads “TRE.” Rotate volume knob to desired setting. A display of “C 0” indicates center, -2 to -12 indicates treble cut, +2 to +12 indicates treble boost. Note: Unit returns to volume mode if volume

control is not rotated for 3 seconds.

G. Adjusting Balance

Press the audio button (20) until display indicates “BAL.” Rotate volume knob to desired setting. A display of “C 0” indicates center, L1 to 15 indicates left balance, R1 to 15 indicates right balance. Note: Unit returns to volume mode if

volume control is not rotated for 3 seconds.

19.2 Radio Operation

A. Adjust Fader

Press audio button (20) until display reads “FAD.” Rotate volume knob to desired setting. A display of “C 0” indicates center, “R” 1 to 15 indicates rear fade, “F” 1 to 15 indicates front fade. Note: Unit returns to volume mode if

volume control is not rotated for 3 seconds.

B. Display Clock

Press set button (9) to toggle display between clock and radio modes. When clock mode is selected, the current time displays whenever the unit is left undisturbed.

C. Set Clock

Press and hold set button (9) for 2 seconds until ﬁrst time digit ﬂashes on display. Use tune/seek-up button (13) or tune/seek-down button (14) to set hour, noting AM/PM indicator at left. Brieﬂy press set button a second time to select minutes display. Press set button a third time to complete procedure. Unit remains in clock mode and displays time after 3 seconds. Note: When power to spa is shut off for any reason, the clock will be reset to 12:00 AM.

D. Open/Close Front Panel

Place thumb on front panel release button (7) with foreﬁnger below front overhang. Press ﬁrmly on release button, then ﬂip panel open by pulling outward at top edge. To close panel, ﬂip panel up and press ﬁrmly until you hear an audible click. Keep the front panel closed at all times to prevent water intrusion, except when changing discs. CAUTION: Never insert wet discs into unit or CD player will be damaged!

Page 53

J-400 Series

MUTE

POWER

SOURCE

MRD 60

MA R IN E

INTRO RANDOM REPEAT DISK

LOCAL

SCAN

BAND

SET

TUNE

1 2 3 4 5 6

AUDIO AUTO

TRACK

DISC IN

21 1920 18 17 16 15 14 13

5 6 7 8 9 10

E. Radio Operation

Press source button (4) to select radio mode. Station frequency is indicated on display.

• To Select Band: press band button (12) to toggle through radio modes as follows: FM1 - FM2 - FM3 - AM1 - AM2 - FM1. Each radio band stores up to 6 independent presets, for a total of 18 FM and 12 AM presets.

• To Program Presets: tune in desired radio station, then press and hold desired preset button for at least 2 seconds. ”PX”, where X=preset number, appears at bottom right of the display. Note: When power to spa is shut off

for any reason, all station presets are reset.

F. Automatically Setting Station Presets

To automatically set station presets to their next higher stations, press the preset button (1 to 6) from which to start programming, then press and hold the auto button (16) for 3 seconds. The current station preset and additional preset memories up to P6 will be reprogrammed with their next higher tunable stations. When the auto preset cycle is complete, the unit will remain in preset scan mode and continue scanning for presets until the auto button (16) is pressed. To select only the strongest stations, press the local button (10). All 18 FM and 12 AM presets can be set sequentially by selecting the next band and continuing the operation during auto programming.

G. Seek/Manual Tune

Press tune/seek-up button (13) once to automatically tune the next higher station. Press tune/seek-down button (14) once to automatically tune the next lower station. To manually tune to a speciﬁc station frequency, press and hold either tune/seek button for at least 2 seconds. Holding either button down will increase or decrease the displayed frequency manually. When the desired frequency is reached, release the button. The unit remains in manual tune mode for 3 seconds after either button is released so you can ﬁne tune the station frequency with additional button presses. Note: After 3 seconds, seek mode is

re-enabled.

H. Scan Functions

Select any AM or FM band and press scan button (11) to listen to a few seconds of each radio station. The display will ﬂash and the radio will automatically

Page 54

J-400 Series

scan to the next higher station, play that station for a few seconds, then scan to the next higher station. To stop scanning and continue listening to the current station, press scan button a second time. Note: The radio remains in scan mode

until the scan button is pressed a second time or one of the tune buttons is pressed.

I. Preset Scan Function

Press the auto button (16) once to enter scan mode. The next higher preset station will be selected and be played for 3 seconds while the preset number on the display ﬂashes. If you wish to remain on this station, press the auto button (16) a second time. Note: Preset scanning continues unless you press the auto

button (16) or either preset button (P1-P6) to cancel.

J. Local/Distance Function

Press the local button (10) to toggle between local and distant station mode. When “LOCAL” is displayed, only the strongest stations will be selected during seek or scan. Note: In the default mode (no LOCAL display), all usable stations

will be selected during seek or scan.

K. Changing Tuner Frequency from US to Europe

Your unit is factory set to US tuning frequency steps. To switch to Europe tuning steps, use the switch on the bottom of the unit. With the unit disconnected from the power source, use a screwdriver to slide the switch to the desired position.

Note: Power must be removed from the radio, or the reset switch must be pressed before the new frequency mode is activated.

19.3 CD Player Operation

A. Insert, Play, and Eject a CD

Open the front panel and insert a CD into the slot with the CD label facing up. The CD will be drawn inside by the motorized mechanism. Close the front panel. The “DISC IN” symbol on the display indicates that a CD is in the drive.

• To play CD: press the source button (4) to change to CD mode. The CD will

play. The display shows the current track and play time, and will animate a 3-D rotating disc while the CD is playing. Note: If CD play time is not shown, press

clock set button (9) once.

• To remove CD: open the front panel and press the CD eject button located

under the front panel. Remove CD from drive and close front panel.

CAUTION: Listen for an audible click to ensure the front panel is closed to prevent water intrusion that could damage your unit.

Page 55

J-400 Series

MUTE

POWER

SOURCE

MRD 60

MA R IN E

INTRO RANDOM REPEAT DISK

LOCAL

SCAN

BAND

SET

TUNE

1 2 3 4 5 6

AUDIO AUTO

TRACK

DISC IN

21 1920 18 17 16 15 14 13

5 6 7 8 9 10

B. Changing CD Tracks and Music Seek

To advance to the next track, press the tune/seek-up button (13) once and the track counter will increase one track. When the ﬁnal track is reached on the CD, play will resume on track #1.

• To fast forward through tracks: press and hold the tune/seek-up button (13) until the track counter displays the desired track, then release the button.

• To return to the beginning of the current track: press the tune/seek-down button (14). Pressing it a second time within 1 second will skip back to the previous track.

• To rewind the current track: press and hold the tune/seek-down button (14). The track will quickly rewind until you release the button.

C. Intro Scan, Random, Repeat

Intro Scan Mode: press intro button (21) to enter intro scan mode. The left side of the display reads “SCN” and the ﬁrst 10 seconds of each CD track will play continuously until you press the intro button a second time, or press either tune/ seek-up button (13) or tune/seek-down button (14).

• Random Mode: press the random button (19) to play the CD tracks in random order. The left side of the display reads “RDM” when random mode is enabled.

• Repeat Mode: press the repeat button (18) to repeat the current CD track continuously. The left side of the display reads “RPT” when repeat mode is enabled.

Page 56

J-400 Series

19.4 Speciﬁcations

Tuner

FM usable sensitivity 10 dBf

FM 50 dB quieting sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 dBF

FM alternate channel selectivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 dB

FM stereo separation @ 1kHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 dBf

AM usable sensitivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 UV

CD Player

Sampling frequency (8X oversampling). . . . . . . . . . . . . . . . . . . . . . 44.1 kHz

Channel separation @ 1 kHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 db

Signal-to-noise ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90 dBA

Frequency-to-noise response @ ±1 dB. . . . . . . . . . . . . . . . . . . . . . 20-20 kHz

Audio

Maximum power output (45 watts x 4 channel) . . . . . . . . . . . . . . . . . 180 W

Continuous power, 20-20 kHz, 4 ohms, 1% THD. . . . . . . . . . . . . . . . .18 x 4

Bass boost/cut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10/100±dB/Hz

Treble boost/cut. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10/10+/-dB/kHz

General

Nominal power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14.4 VDC

Allowable power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10.8-15.6 VDC

Current consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <10 Amp

Speaker impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8 Ohms

Page 57

J-400 Series

The following UL requirements must be observed for all spas

with optional stereo components installed.

A. “Caution - Risk of Electric Shock. Do not leave compartment door open”;

B. “Caution - Risk of Electric Shock. Replace component only with identical components”;

and

C. Do not operate the audio/video controls while inside the spa.”

D. “Warning - Prevent Electrocution. Do not connect any auxiliary components (for

example: cable, additional speakers, headphones, additional audio/video components etc.) to the system.”

E. These units are not provided with an outdoor antennae; when provided, it should be

installed in accordance with Article 810 of the National Electric Code, ANSI/NFPA 70.

F. Do not service this product yourself as opening or removing covers may expose you

to dangerous voltage or other risk of injury. Refer all servicing to qualiﬁed service personnel.

G. When the power supply connections or power supply cord(s) are damage; if water is

entering the audio/video compartment or any electrical equipment compartment area; if the protective shields or barriers are showing signs of deterioration; or if there are signs of other potential damage to the unit, turn off the unit and refer to a qualiﬁed service personnel.

H. This unit should be subject to periodic routing maintenance (for example, once every 3

months) to make sure that the unit is operating properly.

P/N: 6530-509, Rev. A

Page 58

19.5 iPod™ Docking Station

Source

A. Docking Your iPod

The Docking Station for iPod is compatible with all dockable Apple iPod models.

To Install the Apple iPod:

1. Locate and open Docking Station door by gently pulling outward on handle as shown (A).

2. Center the iPod over Docking Station Interface Port, then gently press downward as shown (B). DO NOT FORCE!

3. Close Docking Station door as shown (C), then refer to section below for stereo system iPod selection and operation details.

WARNING: Electrical Shock Hazard Exists! Never install or remove iPod while hands are wet or while sitting partially immersed or fully immersed in spa!

J-400 Series

CAUTIONS:

• Never leave iPod in Docking Station when spa is not in use to prevent damage from outdoor elements!

• Never spray Docking Station with pressurized water hose for any reason! Damage to iPod or spa stereo system caused by water intrusion is not covered under the manufacturer warranty!

• Damage to Docking Station port or iPod due to excessive force or improper alignment during installation or removal from Docking Station is not covered under warranty.

B. Setting Up The iPod for Use

1. Select and play preferred song/album/playlist prior to docking iPod.

2. Press “Source Button”

on stereo receiver or remote until the display

reads “CD-1”.

Page 59

J-400 Series

Source

C. Use Wireless Remote or Stereo to Operate iPod

Button Operation

Press

Press & Hold

Press x 2

Press x 3

Next Track

Fast Forward

Return to Beginning of Current Track

Recall Previous Tracks

Press

Pause (Press Again to resume Play)

19.6 Generic MP3 Player Operation

A. Connecting Your MP3 Player

Plug in any MP3 Player’s headphone output jack with supplied

cable into the auxiliary port as shown using the supplied audio RCA cable (iPod shown for demonstration purposes only).

B. Setting Up The MP3 Player for Use

1. Select preferred song/album/playlist prior plugging in MP3 Player and start playback.

2. Press “Source Button”

on stereo receiver or

remote until the display reads “AU-1”.

Note: All external MP3 Playback operations are performed solely by the MP3 Player with the exception of volume control and “Source Button” selector, which can be controlled via wireless remote or on the stereo receiver.

WARNING: Electrical Shock Hazard Exists! Never install, handle or remove MP3 Player while hands are wet or while sitting partially or fully immersed.

19.7 Troubleshooting

A. Unit will not turn-on

Make sure spa power is turned on, then check both harness fuses on back of unit making sure they are the proper ratings:

• Yellow memory B+ line (1A fuse); Red ACC line (10A fuse).

• With spa power off, use a thin rod to press the reset button located under the front panel.

Page 60

J-400 Series

Power

Intro

Mute

Random

Source

Repeat

B. Fogged CDs and Lens

This condition may occur when it’s cold. Wipe fogged CDs with a soft cloth. Fogged optical components inside the unit will return to normal operation after an hour in a heated environment.

19.8 Standard Wireless Remote Control

(Included With Optional Jacuzzi Sound System)

• Usable range 15’ (5m)

• Never leave the remote under the spa cover for any reason.

• Battery Replacement: Use Coin Type, CR2025 or equivalent.

Wireless Remote Control Command Summary

Button Operation Button Operation

Intro/Station 1 Preset Button:

• In CD mode: provides a 5 second preview of each

Power Button: On/Off.

Mute Button: On/Off.

Source Button: Selects Radio, CD or iPod/MP3 Player function.

track.

• In radio mode: plays preset station 1 or press and hold for 3 seconds to set station

Random/Station 2 Preset Button:

• In CD mode: plays CD tracks in a random mode.

• In radio mode: plays preset station 2 or press and hold to set station 2.

Repeat/Station 3 Preset Button:

• In CD mode: repeats same CD track until the feature is deactivated.

• In radio mode: plays preset station 3 or press and hold to set station 3.

Page 61

J-400 Series

Auto

Audio

Disc -

Band

Disc +

Volume

Zone 1

Zone 2

Tune

Light

Mode

2/3

Button Operation Button Operation

Auto Button: Scans through preset radio stations.

Audio Button: Selects treble, bass, fader or balance, audio settings.

Band Button: Selects AM or FM band.

Volume Buttons: Zone 1 buttons are used to adjust volume levels. Zone 2 buttons not used.

Light Button: Turns spa light on/off (See Sec 9.5, page 23)

Mode Button: Selects one of ﬁve light modes (See sec. 9.6 page 24) for details.

Station 4 Preset Button: has no CD/Radio function. Press and hold to set station 4 or pause iPod when docked in Docking Station.

Station 5 Preset Button: has no CD/Radio function. Press and hold to set station 5.

Station 6 Preset Button: has no CD/Radio function. Press and hold to set station 6.

Tune Buttons:

• In CD mode: Advances/ Rewinds tracks.

• In radio mode: Selects radio stations.

Jets 1 Button: Turns Jets pump 1 On and Off*

Jets 2 & 3 Button: Turns Jets pump 2 On and Off*

Note: Remote control has no effect on MP3 Player playback if/when the generic MP3 cable output is used. (Sec 19.5 page 59)

Page 62

19.9 Wireless Remote Battery Replacement Procedure

2/3

LIGHTSNC AIR

SPA

JETS

2/3

LIGHTSNC AIR

SPA

JETS

105358

www.polyplanar.com

Poly-Planar Inc.

Warminster, PA 18974

(215) 675-7805 Made in China

OPEN

CLOSED

105358

www.polyplanar.com

Poly-Planar Inc.

Warminster, PA 18974

(215) 675-7805 Made in China

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN CLOSED

OPEN

CLOSED

CR2025

OPEN

CLOSED

CR2025

OPEN

CLOSED

OPEN

CLOSED

2/3

LIGHT

MODE

Hot Tub

JETS

2/3

LIGHT

MODE

Hot Tub

JETS

1. Start by removing the rubber cover to the remote. (Figure A)

J-400 Series

Fig. A

2. Turn the remote unit over and locate the battery door. (Figure B)

3. Rotate the battery door, with a coin, counterclockwise until the dot aligns with the Open arrow (Figure C).

4. Remove battery door using coin to pry the door upward (Figure D).

5. Replace battery using CR2025 or equivalent (Figure E).

6. Reinstall the battery cover, using the coin to close (Figure F).

Fig. B

Battery

Battery Door

Door

Fig. C

Fig. D

Fig. E

7. Reinstall rubber housing onto remote (Figure G).

Note: Remote unit is water resistant not waterproof, therefore the unit should never be left in the spa while the cover is on and spa is not in use.

Fig. F

Fig. G

Page 63

Serial Number: _______________________________

Model Name: _______________________________

Dealer Name: _______________________________

Notes: _______________________________________

______________________________________________

14525 Monte Vista Avenue, Chino, California 91710/U.S.A.

Telephone 1.866.234.7727 | Fax 1.909.606.1095

P/N 2530-442T Rev. A

Jacuzzi J - 480 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

1.0 Important Spa Owner Information

2.0 IMPORTANT SAFETY INSTRUCTIONS

3.0 Choosing a Location

3.1 Outdoor Location

3.2 Indoor Location

4.0 General Electrical Safety Instructions

5.0 Electrical Installation Instructions (240V Service)

6.0 Power Requirements

7.0 Spa Fill Up Procedure

8.0 Control Functions

8.1 Control Panel

8.2 LCD Display

8.3 J-480 Spa Features

8.4 J-470 Spa Features

8.5 J-465 Spa Features

8.6 J-460 Spa Features

9.0 Operating Instructions

9.1 View Button

9.2 Activate Jets Pump 1

9.3 Activate Jets Pump 2

9.4 Selecting the Desired Massage Action

9.5 Light On/Off Button

9.6 Light Mode Button

9.7 Adjusting Individual Jet Flow

9.8 Adjusting PowerPro™ MX2 Jets

9.9 Adjusting RX Jets

9.10 WaterColour™ Waterfall Control

9.11 Air Controls

9.12 Optional AquaSound™ Jacuzzi Audio System

9.13 J-480 Massage/Waterfall Selector Diagram

9.14 J-480 Air Controls Diagram

9.15 J-470 Massage/Waterfall Selector Diagram

9.16 J-470 Air Controls Diagram

9.17 J-465 Massage/Waterfall Selector Diagram

9.18 J-465 Air Controls Diagram

9.19 J-460 Massage/Waterfall Selector Diagram

9.20 J-460 Air Controls Diagram

10.0 Heating Modes

10.1 Standard Mode (Factory Default)

10.2 Economy Mode

10.3 Selecting Standard or Economy Mode

10.4 Clean-Up “Blow-Out” Cycle

11.0 Programming Instructions

11.1 Programming Filter/Circulation Pump Run Time

11.2 Programming Filter Cycles

11.3 Adjusting Time of Day

11.4 Main Control Panel Lock

11.5 Locking Filter Cycles

11.6 Temperature Setting Lock

11.7 Programming the Change Filter Reminder

12.0 Spa Maintenance

12.1 Cleaning the Filter Cartridges

12.3 Cleaning the Spa Interior

12.4 Pillow Care

12.5 Maintaining the Synthetic Cabinet

12.6 Maintaining the Cover

12.7 Winterizing

12.8 Restarting Your Spa in Cold Weather

13.0 Water Quality Maintenance

13.1 pH Control

13.2 Sanitizing

13.3 Other Additives

13.4 Ozone Water Maintenance System (Optional)

14.0 Troubleshooting - Display Messages

15.0 Troubleshooting - Procedures

17.0 Export 50Hz J-460/J-465/J-470/J-480 Wiring Diagram

18.0 Typical Spa Wiring Diagrams A-B (North American 60Hz Models Only)

19.0 Optional Jacuzzi AquaSound Stereo System Features

19.2 Radio Operation

19.3 CD Player Operation

19.6 Generic MP3 Player Operation

19.7 Troubleshooting

19.8 Standard Wireless Remote Control

19.9 Wireless Remote Battery Replacement Procedure
