Transformer
230 VAC
Control Panel
Circ.
Pump
BLU
BLK
WHT
BRN
BRN
J21
J12
J14
J16
J11
J15
J20
K1
K2
K3
K4
F1
J1
JP1
8 7
6 5
4
3
2
1
J4
K5 K7 K8
J2
J3
BRN
F1
20A
250V
SC-20
21
J13
J5
Heater IN Heater OUT
J17 J7 J8 J9 J10
J6
BLK BLU BRN BLU BRN
BRN
HILO
Main
Pump
LED Series Hot Tub Owner’s Manual
TB1
230 VAC, 3-Wire Connection
USE COPPER CONDUCTORS ONLY. WIRE SIZE MUST
J-210, J-220, J-230 Models
6530-322, Rev-C
Attention New Spa Owner!
pH 7.2 - 7.4
Free Chlorine 3-5 ppm
Free Bromine 4-6 ppm
Total Alkalinity 100-120 ppm
Calcium Hardness 150-250 ppm
Congratulations on the purchase of your new Jacuzzi® spa! The following is a list
of automated functions performed by your spa. These functions are listed below
in an attempt to suppress any operational concerns you may have during the rst
24-hours of ownership! Also listed below are important maintenance recommendations you should observe on a regular basis to protect your new investment.
Automated Operations
Approximately two minutes after power is applied to the spa, the rst skimming/
heating cycle turns on pump 1. In J-230 models, an automatic ve minute “blowout” function also activates pump 2 for a period of ve minutes to ush all lines.
Then, after ve minutes, pump 2 turns off and pump 1 continues to operate for
the duration of the cycle. Note: this function only occurs during the rst ltration/
heating cycle each day.
Maintain Healthy Spa Water
Always maintain your spa’s water chemistry within the following parameters as
dened by the Association of Pool And Spa Professionals/USA:
Always maintain your spas lter as outlined below to ensure healthy spa water.
Refer to page 27 “Water Quality Maintenance” for additional information.
Required Filter Maintenance
Your new spa is equipped with an advanced water ltration system that provides
unsurpassed water quality! To ensure maximum water quality at all times, you
should clean the lter cartridge every three months, or earlier as necessary. See
page 24 for detailed lter cartridge cleaning/replacement instructions.
Required Water Replacement
You should replace the spa’s water every 3 months. The frequency
depends on a number of variables including frequency of use, number of users,
and attention paid to water quality maintenance. You will know it is time for a
change when you cannot control sudsing and/or you can no longer get
feel or sparkle to the water, even though the key water balance measurements
are all within the proper parameters. See page 27-28 for additional information.
the normal
Table of Contents
1.0 Important Spa Owner Information ..............................................1
2.0 FCC Notice ....................................................................................1
3.0 Important Safety Instructions .....................................................2
4.0 Choosing A Location ...................................................................7
4.1 Outdoor Location ...........................................................................7
4.2 Indoor Location ..............................................................................8
5.0 General Electrical Safety Instructions .......................................8
6.0 Power Requirements ...................................................................9
7.0 Electrical Wiring Instructions ...................................................10
8.0 Spa Fill Up Procedure ...............................................................13
9.0 Control Functions ......................................................................17
9.1 Control Panel ...............................................................................17
9.2 Spa Features And Controls ..........................................................18
9.3 Jet/Air Controls Diagram (J-210 & J-220 Models) .......................19
9.4 Jet/Air Controls Diagram (J-230 Models) .....................................20
10.0 Operating Instructions ..............................................................21
10.1 Setting Water Temperature ..........................................................21
10.2 Activate Pumps ............................................................................21
10.3 Light Button ..................................................................................21
10.4 Selecting Desired Message Action ..............................................22
10.5 Adjusting Individual Jet Flow .......................................................22
10.6 Air Controls ..................................................................................22
11.0 Automatic Filtration Cycles ......................................................22
11.1 Standard Filtration/Heating Modes (F1-F3) .................................22
11.2 Economy Filtration/Heating Modes (F4-F6) .................................23
11.3 Lock Modes (L1-L2) .....................................................................23
11.4 Selecting The Skimmer/Heating Mode ........................................23
12.0 Spa Maintenance ........................................................................24
12.1 Cleaning The Filter .......................................................................24
12.2 Draining and Refilling ...................................................................25
12.3 Cleaning The Spa Interior ............................................................25
12.4 Pillow Care (J-220/J-230 Only) ....................................................25
12.5 Maintaining The Cover .................................................................26
12.6 Maintaining The Synthetic Cabinet ..............................................26
12.7 Winterizing ...................................................................................26
11.8 Restarting Your Spa n Cold Weather ...........................................27
13.0 Water Quality Maintenance .......................................................27
13.1 pH Control ....................................................................................27
13.2 Sanitizing ......................................................................................28
13.3 Optional CD Ozone Water Maintenance System ........................28

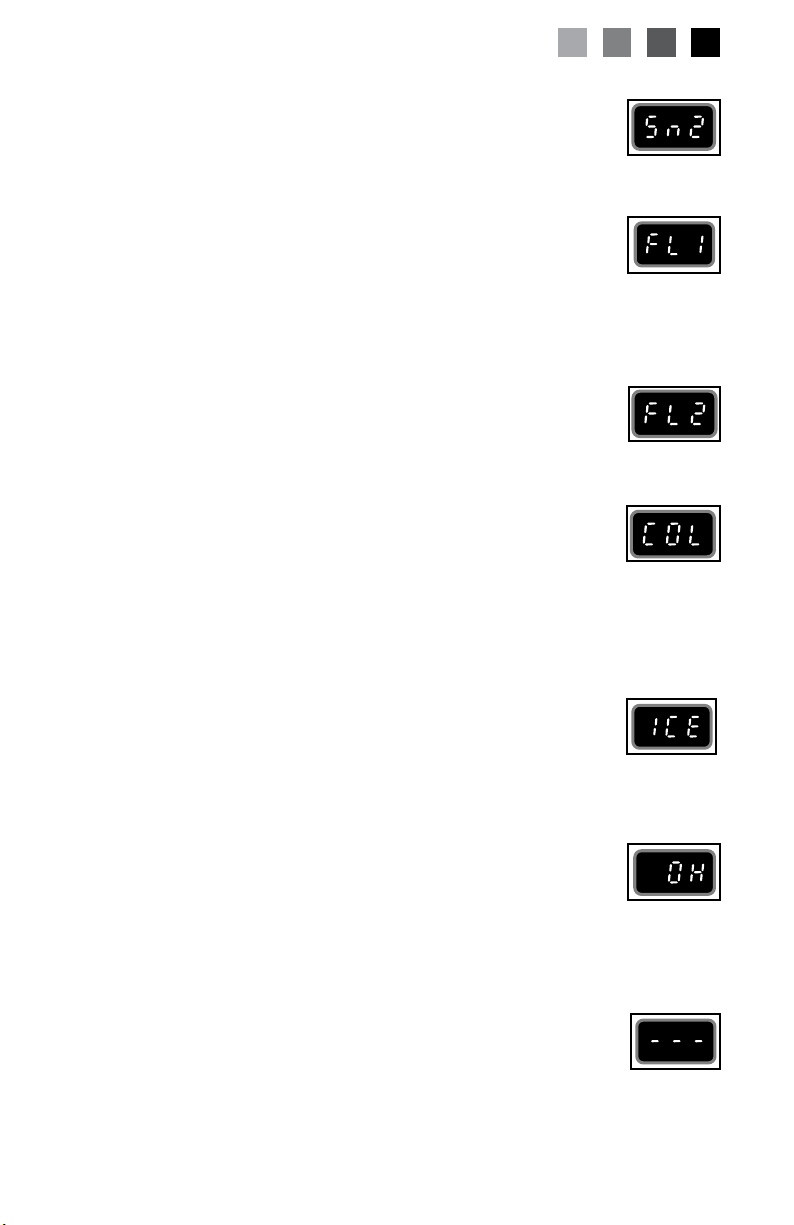

14.0 Error Conditions/Error Messages ............................................28
14.1 Panel Displays SN1 .....................................................................28
14.2 Panel Displays SN2 .....................................................................29
14.3 Panel Displays FL1 ......................................................................29
14.4 Panel Displays FL2 ......................................................................29
14.5 Panel Displays COL .....................................................................29
14.6 Panel Displays ICE ......................................................................29
14.7 Panel Displays OH .......................................................................29
14.8 Panel Displays - - - - ...................................................................29
15.0 Troubleshooting Procedures ....................................................30
15.1 None of The Components Operate (e.g. Pump, Light) ................30
15.2 Pump Does Not Operate But Light Does .....................................30
15.3 Poor Jet Action .............................................................................30
15.4 Water is Too Hot ..........................................................................30
15.5 No Heat ........................................................................................31
16.0 J-210/J-220 Convertible Circuit Diagram (60Hz) .....................32
17.0 J-230 Circuit Diagram (60Hz) ....................................................33
18.0 J-220 Export Circuit Diagram (50Hz) ........................................34
19.0 J-230 Export Circuit Diagram (50Hz) ........................................35
1.0 Important Spa Owner Information
Your Jacuzzi® 200 series spa is constructed to the highest standards
and is capable of providing many years of trouble-free use. However,
because heat retentive materials are utilized to insulate the spa for efficient operation, an uncovered spa surface directly exposed to sunlight
and high temperatures for an extended period is subject to permanent
damage. Damage caused by exposing the spa to this abuse is not
covered by warranty. We recommend that you always keep the spa
full of water when it is exposed to direct sunlight and that you keep the
Jacuzzi premium insulating cover in place at all times when the spa is
not in use. Read and carefully follow the requirements for your spa’s
support base found in section 4.0 titled, “Choosing a Location” (page 7).
Jacuzzi constantly strives to offer the finest spas available, therefore modifications and enhancements may be made which affect
the specifications, illustrations and/or instructions contained
herein.
2.0 FCC Notice
This equipment has been tested and found to comply with the limits for
a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
1. Rearrange or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver
3. Connect the equipment into an outlet on a circuit different from the
circuit connected.
4. Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party
responsible for FCC compliance could void the user’s authority to
operate this equipment.
page 1
3.0 IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
When installing and using this electrical equipment, basic safety precautions should always be followed, including:
1. WARNING:
this product unless they are closely supervised at all times.
2. WARNING:
connect a minimum No. 8 AWG (8.4mm2) solid copper conductor between this unit and any metal equipment, metal enclosures
of electrical equipment, metal water pipe, or conduit within 5 feet
(1.5m) of the unit.
3. DANGER:
exercised to prevent unauthorized access by children. To avoid
accidents, ensure that children cannot use this spa unless they are
supervised at all times.
4. DANGER:
match the specific water flow created by the pump. Should the need
arise to replace the suction fittings or the pump, be sure that the
flow rates are compatible. Never operate the spa if the suction fittings are broken or missing. Never replace a suction fitting with one
rated less than the flow rate marked on the original suction fitting.
5. DANGER: Risk of Electric Shock. Install at least 5 feet (1.5m), from
all metal surfaces. As an alternative, a spa may be installed within
5 feet of metal surfaces if each metal surface is permanently connected (bonded) by a minimum No. 8 AWG (8.4 mm2) solid copper
conductor attached to the wire connector on the grounding lug,
inside the equipment compartment on the equipment box.
To reduce the risk of injury, do not permit children to use
A grounding wire connector is provided on this unit to
Risk of Accidental Drowning. Extreme caution must be
Risk of Injury. The suction fittings in this spa are sized to
6. DANGER:
ance, such as a light, telephone, radio, television, etc. within 5 feet
(1.5m) of a spa unless such appliances are built-in by the manufac
turer.
7. ELECTRICAL SUPPLY:
must include a suitably rated switch or circuit breaker to open all
ungrounded supply conductors to comply with section 422-20 of the
National Electrical Code/USA, ANSI/NFPA 70. The disconnect must
be readily accessible and visible to the spa occupant but installed at
least 5 feet (1.5m), from the spa water.
page 2
Risk of Electric Shock. Do not permit any electrical appli-
The electrical supply for this product
-
8. WARNING: To Reduce the Risk of Injury:
9. The water in the spa should never exceed 104°F (40°C). Water
temperatures between 100°F (38°C) and 104°F (40°C) are consid
ered safe for a healthy adult. Lower water temperatures are recommended for young children and when spa use may exceed 10 min
utes.
-
-
10. Since excessive water temperatures have a high potential for caus
ing fetal damage during the early months of pregnancy, pregnant or
possibly pregnant women should limit spa water temperatures to
100°F (38°C). If pregnant, please consult your physician before
using a spa.
11. Before entering the spa, the user should measure the water
temperature with an accurate thermometer since the tolerance of
water temperature-regulating devices may vary as much as +/- 5°F
(2°C).
12. The use of alcohol, drugs, or medication before or during spa use
may lead to unconsciousness with the possibility of drowning.
13. Persons suffering from obesity or a medical history of heart disease,
low or high blood pressure, circulatory system problems, diabetes,
infectious diseases or immune deficiency syndromes should consult
a physician before using a spa. If you experience breathing difficulties in association with using or operating your spa, discontinue use
and consult your physician.
14. Persons using medication should consult a physician before using
a spa since some medication may induce drowsiness, while other
medication may affect heart rate, blood pressure, and circulation.
-
15. Always shower before and after using your spa. To reduce the pos
sibility of contracting a waterborne illness, always maintain water
chemistry within the parameters listed on the inside cover of this
manual. If you or other bathers experience such a condition, discontinue use and seek medical attention.
page 3
-
IMPORTANT CSA SAFETY INSTRUCTIONS (CANADA ONLY)
When using this electrical equipment, basic safety precautions should
always be followed, including the following:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. A green colored terminal or a terminal marked G, Gr, Ground,
Grounding or the
symbol* is located inside the supply terminal
box or compartment. To reduce the risk of electric shock, this
terminal must be connected to the grounding means provided in the
electric supply service panel with a continuous copper wire equivalent in size to the circuit conductors that supply this equipment.
*IEC Publication 417, Symbol 5019.
3. At least two lugs marked “Bonding Lugs” are provided on the exter
nal surface or on the inside of the supply terminal box/compartment.
To reduce the risk of electric shock, connect the local common
bonding grid in the area of the spa to these terminals with an insulated or bare copper conductor not smaller than No. 6 AWG (10
mm2).
4. All field installed metal components such as rails, ladders, drains
or other similar hardware within 10 feet (3m) of the spa shall be
bonded to the equipment grounding buss with copper conductors
2
not smaller than No. 6 AWG (10 mm
).
5. SAVE THESE INSTRUCTIONS.
WARNING:
WARNING:
Children should not use spas without adult supervision.
Do not use spas unless all suction guards are installed to
prevent body and hair entrapment.
WARNING:
WARNING:
People with infectious diseases should not use a spa.
To avoid injury, exercise care when entering or exiting the
spa.
WARNING:
Do not use drugs or alcohol before or during the use of a
spa to avoid unconsciousness and possible drowning.
-
WARNING:
Pregnant or possibly pregnant women should consult a
physician before using a spa.
page 4
WARNING: Water temperature in excess of 40°C (104°F) may be injurious to your health.
WARNING:
with an accurate thermometer.
WARNING:
WARNING:
health.
WARNING:
radio, television, etc.) within 5 feet (1.5m) of this spa unless such appli
ances are built-in by the manufacturer.
CAUTION: Maintain water chemistry in accordance with manufacturer’s
instructions.
WARNING:
fatal hyperthermia in spas.
SAVE THESE INSTRUCTIONS
HYPERTHERMIA
Prolonged immersion in hot water may induce hyperthermia. A description of the causes, symptoms, and effects of hyperthermia are as follows:
Before entering the spa, measure the water temperature
Do not use a spa immediately following strenuous exercise.
Prolonged immersion in a spa may be injurious to your
Do not permit electric appliances (such as lights, telephone,
-
The use of alcohol or drugs can greatly increase the risk of
Hyperthermia occurs when the internal temperature of the body reaches
a level several degrees above the normal body temperature of 98.6°F
(37°C). The symptoms of hyperthermia include drowsiness, lethargy,
and an increase in the internal temperature of the body. The effects of
hyperthermia include:
1. Unawareness of impending hazard;
2. Failure to perceive heat;
3. Failure to recognize the need to exit spa;
4. Physical inability to exit spa;
5. Fetal damage in pregnant women; and
6. Unconsciousness and danger of drowning.
page 5
A warning sign is provided in your warranty packet. Please
install it at a location near your spa, where it is visible to the
user of the spa. For additional or replacement signs please
contact your local Jacuzzi spas dealer and reference item number #6530-082.
CAUTIONS
1. Persons suffering from heart disease, diabetes, high or low blood
pressure, and any condition requiring medical treatment, pregnant
women, the elderly, or infants should consult with a physician before
using a spa.
2. The Consumer Products Safety Commission/USA has stated that
the water temperature in a spa should not exceed 104°F (40°C).
Immersion in water in excess of 104°F (40°C) can be hazardous to
your health.
3. Observe a reasonable time limit when using the spa. Long expo
sures at higher temperatures can cause high body temperature.
Symptoms may include dizziness, nausea, fainting, drowsiness, and
reduced awareness. These effects could possibly result in drowning.
4. Do not use the spa under the influence of alcohol, narcotics, or
other drugs. Use of the spa under these conditions may lead to serious consequences.
5. Always test the spa water temperature before entering the spa.
Enter and exit the spa slowly. Wet surfaces can be very slippery.
6. Never bring any electrical appliances into or near the spa. Never
operate any electrical appliances from inside the spa or when you
are wet unless such appliances are built-in by the manufacturer.
7. Proper chemical maintenance of spa water is necessary to
maintain safe water and prevent possible damage to spa compo
nents.
8. Use the straps and clip tie downs to secure the cover when not in
use. This will help to discourage unsupervised children from entering the spa and keep the spa cover secure in high-wind conditions.
There is no representation that the cover, clip tie-downs, or actual
locks will prevent access to the spa.
-
-
page 6
4.0 Choosing A Location
IMPORTANT: Because of the combined weight of the spa, water and
users, it is extremely important that the base upon which the spa rests
be smooth, flat, level and capable of uniformly supporting this weight,
without shifting or settling, for the entire time the spa is in place. If the
spa is placed on a surface which does not meet these requirements,
damage to the skirt and/or the spa shell may result. Damage caused by
improper support is not covered under warranty. It is the responsibility of
the spa owner to assure the integrity of the support over time.
We recommend a poured, reinforced concrete slab with a minimum
thickness of 4 inches (10cm). Wood decking is also acceptable provided
it is constructed so that it meets the requirements outlined above. The
spa must be installed in such a manner as to provide drainage away
from the spa. Placing the spa in a depression without provisions for
proper drainage could allow rain, overflow and other casual water
to flood the equipment and create a wet condition in which it would
sit. For spas which will be recessed into a floor or deck, install so as
to permit access to the equipment, either from above or below, for
servicing. Make certain that there are no obstructions which would
prevent removal of the cabinet side panels and access to the jets
components, especially on the side with the equipment bay doors.
4.1 Outdoor Location
In selecting the ideal outdoor location for your spa, we suggest that you
take into consideration:
1. The proximity to changing area and shelter (especially in colder
weather).
2. The pathway to and from your spa (this should be free of debris so
that dirt and leaves are not easily tracked into the spa).
3. The closeness to trees and shrubbery (remember that leaves and
birds could create extra work in keeping the spa clean).
4. A sheltered environment (less wind and weather exposure can
result in lowered operation and maintenance costs).
5. The overall enhancement of your environment. It is preferable not
to place the spa under an unguttered roof overhang since run-off
water will shorten the life expectancy of the spa cover.
page 7
4.2 Indoor Location
For indoor installations, be certain to make provisions for proper
ventilation. When the spa is in use, considerable amounts of moisture
will escape. This can damage certain surfaces over time. If you have
any questions regarding the placement or installation of your spa,
consult your authorized Jacuzzi dealer.
WARNING: In addition to maintenance of filters and water
chemistry, proper ventilation is recommended to reduce
the risk of exposure to viruses and bacteria that could be
present in the air or water. Consult a licensed architect
or building contractor to determine your specific needs if
installing your spa indoors.
5.0 GENERAL ELECTRICAL SAFETY INSTRUCTIONS
Your new Jacuzzi® spa is equipped with a “state-of-the-art” equipment
system. It contains the most advanced safety and self-protective equipment in the industry. Nonetheless, this spa must be installed properly to
insure dependable usage. Please contact your dealer or local building
department should you have any questions regarding your installation.
Proper grounding is extremely important. Jacuzzi spas are equipped
with a current collector system. A pressure wire connector is provided
on the surface of the control box, located outside the equipment door
(Figure B, page 12) to permit connection of a bonding wire between
this point and any ground metal equipment, metal water pipe or conduit
within 5 feet (1.5m) of the spa, or copper clad grounding rod buried
within 5 feet (1.5m) of the spa. Bonding wire must be at least No. 8
AWG (8.4mm2) solid copper wire. This is a most important safety assurance feature. Before installing this spa, check with the local building
department to insure installation conforms to local building codes.
120/240 Volt Convertible Models
A spa connected to a 120VAC electrical service must be located close
enough to a grounded, grounding-type electrical outlet so that the
included power cord can be plugged directly into it. DO NOT USE
AN EXTENSION CORD
equipment due to insufficient voltage. The power supplied to this spa
must be a dedicated circuit with no other appliances or lights sharing
the power provided by the circuit.
page 8
as this could cause damage to the spa’s
6.0 Power Requirements
Jacuzzi® spas are designed to provide optimum performance and flexibility of use when connected to the maximum electrical service listed in
the tables below. If you prefer, your dealer can perform a minor circuit
board modification to allow your spa to accept an electrical service other
than the factory setting.
US/Canada J-210/J-220 1-Pump Convertible Model (60Hz)
120V/15A* 240V/30A* 240V/40A**
Voltage: 120 VAC 240 VAC 240 VAC
# of Wires: 3 (15A GFCI Cord 4 4
US only*)
Frequency: 60Hz 60Hz 60Hz
Current Draw: 12A 21A 30A
Circuit Breaker: 15A, 1-Pole 30A, 2-Pole 40A, 2-Pole
For 240 VAC Heater Operation: Move the red wire on the main terminal
strip (TB1) from position #1 to position #3. Make certain wires are connected exactly as shown in Figure-D (page 12) before applying power.
Failure to do so will result in damage to the circuit board and/or related
components and void the manufacturer’s warranty.
*All Canadian spas must be hard wired (120 VAC or 240 VAC) per
CSA Canadian standards. (page 4).
*
In 15A/30A configuration, the heater will not operate at the same
time as the high-speed jets pump. The factory setting is 120V/15A.
In 40A configuration, remove the jumper JP1 #1-2 on the circuit
**
board to allow the heater to operate at the same time as the
high-speed jets pump (page 32).
US / Canada J-230 2-Pump Model (60Hz)
240V/40A* 240V/50A** 240V/60A***
Voltage: 240 VAC 240 VAC 240 VAC
# of Wires: 3 3 3
Frequency: 60Hz 60Hz 60Hz
Current Draw: 26A 36A 45A
Circuit Breaker: 40A, 2-Pole 50A, 2-Pole 60A, 2-Pole
* In 40A configuration, the heater will not operate while either jets
pump is running in high speed. Note: pump 2 runs only in high speed.
In 50A configuration, the heater will not operate while both jet pumps
**
are running in high speed. Note: pump 2 runs only in high speed.
This is the factory setting.
*** In 60A configuration, the heater will operate while both jet pumps are
running in high speed.
Note: pump 2 runs only in high speed.
page 9
Export J-210 / J-220 1-Pump Models (50Hz)
230V/20A* 230V/30A**
Voltage: 230 VAC 230 VAC
# of Wires: 3 3
Frequency: 50Hz 50Hz
Current Draw: 15A 21A
Circuit Breaker: 20A 30A
* In the 20A configuration, the heater
pump is running in high speed.
** In the 30A configuration, the heater will operate while the jets pump
is running in high speed.
will not operate while the jets
This is the factory setting.
Export J-230 2-Pump Model (50Hz)
230V/20A* 230V/30A** 230V/40A***
Voltage: 230 VAC 230 VAC 240 VAC
# of Wires: 3 3 3
Frequency: 50Hz 50Hz 50Hz
Current Draw: 15A 23A 29A
Circuit Breaker: 20A 30A 40A
In 20A configuration, the heater will not operate while either jets
*
pump is running in high speed.
pump 2 runs only in high speed.
** In the 30A configuration, the heater will operate while one jets
pump is running in high speed. Note: pump 2 runs only in high
speed.
In 40A configuration, the heater will operate while both jet pumps
***
are running in high speed.
This is the factory setting. Note:
Note: pump 2 runs only in high speed.
7.0 Electrical Wiring Instructions
IMPORTANT NOTICE: The electrical wiring of this spa must meet
the requirements of the National Electrical Code/USA (NEC) and any
applicable state or local codes. The electrical circuit must be installed
by a qualified electrician and approved by a local building/electrical
inspection authority.
1. Convertible 120/240V Power Models:
• 120V “Plug-in” Operation: This spa must operate on the supplied
120V GFCI cord at its original length or must be hard-wired for
longer runs. NEVER USE AN EXTENSION CORD FOR ANY REA-
SON!
page 10
• Convertible 120/240V Operation: The included 120V GFCI cord
must be discarded for 240V operation. This spa must be hard wired.
Supplying power to either configuration above which is not in accordance with these instructions will void both the independent testing
agency listing and the manufacturer’s warranty.
2. Dedicated 230-240V Power Models: This spa must be
permanently connected (hard-wired) to the power supply. NO
PLUG-IN CONNECTIONS OR EXTENSION CORDS ARE TO BE
USED IN CONJUNCTION WITH THE OPERATION OF THIS SPA.
Supplying power to the spa which is not in accordance with these
instructions will void both the independent testing agency listing and
the manufacturer’s warranty.
3. The power supplied to this spa must be a dedicated circuit with no
other appliances or lights sharing the power provided by the circuit.
4. To determine the current, voltage and wire size required, refer to
section 6.0 “Power Requirements” (page 9-10).
• Wire size must be appropriate per NEC/USA and/or local codes.
• We recommend type THHN wire.
• All wiring must be copper to ensure proper connections. Do not
use aluminum wire.
• When using wire larger than #6 (10mm2), add a junction box near
the spa and reduce to short lengths of #6 (10mm2) wire to connect
to the spa.
5. The electrical supply for this product must include a suitably rated
switch or circuit breaker to open all ungrounded supply conductors
to comply with Section 422-20 of the National Electrical Code/USA,
ANSI/NFPA 70. The disconnecting means must be readily accessible to the spa’s occupant but installed at least 5 feet (1.5m) from
spa water.
6. The electrical circuit supplied for the spa must include a suitable
ground fault circuit interrupter (GFCI) as required by NEC/USA
Article 680-42.
7. To gain access to the spa’s power terminal block, remove the
screws securing the synthetic cabinet panel under the control panel
(page 18). Then remove the four control box door screws and door
(Figure B, page 12).
8. Select the power supply inlet you want to use (Figure A, page 12).
Feed power cable to control box, then install it through the large
opening provided in the bottom side of the box.
9. Connect wires, color to color, on terminal blocks TB1 and TB3
(Figures C-F, page 12-13). TIGHTEN SECURELY! All wires must be
hooked up securely or damage could result.
10. Install control box door and screws and reinstall the cabinet side
panels.
page 11
Figure-B - Control Box
1. Terminal Block
2. Bonding Lug
3. Grounding Terminal
TB1
3
2
1
7
8
3 6
2 2
Figure-A
Equipment Area
1. Control Box
2. Power Supply Inlet(s)
3. 2-Speed Pump #1
4. Heater
5. Pump Drain Plug
6. 1-Speed Pump #2
7. Optional CD Ozonator (Purchased Separately)
8. Ozone Injector
Flow
Note: Pump Locations Vary by Model
5 5
1
4
GRN
WHT
WHT
BLK
BLK
BLK
RED
1
2
3
Figure-C
TB1
to Circuit
Board
Power In
GRN
WHT WHT
BLK
BLK
BLK
RED
RED
1
2
3
All US/Canada J-210 / J-220 Convertible
Models: 120/240 VAC, 4-Wire Connection (60Hz)
Figure-D
TB1
to Circuit
Board
Power In
All US/Canada J-210 / J-220 Convertible
Models: 120 VAC, 3-Wire Connection (60Hz)
page 12
Congratulations! You are now all set to get your new spa ready to use.
BLUE
BLUE
BROWN
BROWN
1
2
US/Canada J-230 Models:
240 VAC, 3-Wire Connection (60Hz)
Figure-F
TB1
All Export J-210 / J-220 / J-230 Models:
230 VAC, 3-Wire (50Hz)
to Circuit
Board
BLK
RED
Power In
RED
RED
BLK
BLK
1
2
Figure-E
TB1
to Circuit
Board
Power In
Green
TB3
Green
TB3
GRN
WHT
WHT
BLK
BLK
BLK
RED
1
2
3
Figure-C
TB1
to Circuit
Board
Power In
GRN
WHT WHT
BLK
BLK
BLK
RED
RED
1
2
3
All US/Canada J-210 / J-220 Convertible
Models: 120/240 VAC, 4-Wire Connection (60Hz)
Figure-D
TB1
to Circuit
Board
Power In
All US/Canada J-210 / J-220 Convertible
Models: 120 VAC, 3-Wire Connection (60Hz)
Simply follow this step-by-step procedure below, before long, you will be
enjoying your first glorious experience in your Jacuzzi J-200 spa.
8.0 Spa Fill Up Procedure
FOR BEST RESULTS, read each step in its entirety before proceeding
with that step:
1. Prepare The Spa For Filling
• Clear all debris from the spa. (Although the spa shell has been
polished at the factory, you may want to treat it with a specially formulated spa cleaner. Consult your authorized Jacuzzi dealer for
additional information prior to filling spa.
• Remove filter lid then remove filter cartridge from filter bucket.
2. Fill Spa
• Place the end of your garden hose into the empty filter bucket.
CAUTION: Never fill with water from a water softener. If your
water is extremely “hard”, it is preferable to fill half-way with
hard water and the rest of the way with softened water. Or, you
may fill entirely with hard water if you use a special water additive available from your authorized Jacuzzi dealer.
• Fill spa until water covers all jets but does not touch the bottom of
IMPORTANT: Always fill your spa through the filter bucket after draining. Failure to do so may cause air to be trapped in either pump,
preventing the pump from circulating water. Remove the hose and
replace the filter cartridge.
the lowest headrest. DO NOT OVERFILL.
page 13
3. Turn On Power
Turn on power to spa at the home’s circuit breaker. The heater and
filter/circulation pump will automatically activate. If the control panel
LCD flashes water temperature and “COL” or “ICE”, refer to page
29 for additional information.
4. Activate Jets Pump 1
Depress the JETS 1 button on the control panel once to activate
jets pump #1.
5. Add Start-Up Chemicals
Add the spa water chemicals as recommended by your authorized
Jacuzzi dealer. See section 13.0 “Water Quality Maintenance”
(page 27) for general guidance.
6. Establish A Stable Sanitizer Reading
Establish a stable sanitizer reading between 3 ppm and 5 ppm. To
ensure healthy water conditions, always maintain a constant sanitizer reading within the levels recommended by the Association of
Pool And Spa Professionals/USA printed on the inside cover of this
manual. If sanitizer levels cannot be stabilized, perform the decontamination procedure steps 9-15 on page 15-16. Note: the “decon-
tamination procedure” steps 9-15 should also be used after the spa
has been “Winterized” (section 12.7, page 26 ) or has been sitting
without power for an extended period.
7. Set Spa To Heat
To warm spa water to a comfortable temperature, follow these
steps:
• The LCD display on the control panel displays the actual tempera
ture of the spa water. Press either the COOLER (-) or WARMER
(+) button once to display the “set” temperature for 5 seconds. If
you want the water to heat to a different temperature, simply press
COOLER (-) or WARMER (+) within 5 seconds. The set temperature increases or decreases by one degree each time one of these
buttons is pressed.
• The heater will turn off when the temperature corresponding to the
thermostat setting is achieved.
Important Heater Details:
• The maximum water temperature setting for your spa is 104°F
(40°C) and the minimum setting is 80°F (27°C).
• Setting the thermostat at maximum will not accelerate the heating
process. This will only result in a higher ultimate temperature.
page 14
-
• The heater operates until the water reaches the programmed “set
B
temperature”, then turns off. The heater will reactivate after the
water cools to approximately 1.5° below the set temperature.
8. Place Cover On Spa
• Keeping the insulating cover in place anytime the spa is not in use
will reduce the time required for heating, thereby minimizing operat
ing costs.
• The time required for initial heat-up will vary depending on the start
ing water temperature.
DANGER: Risk of injury, always check water temperature carefully
before entering spa!
Decontamination Procedure (Steps 9-15)
Steps 9-15 pages 15-16 are only required when sanitizer levels are
unstable after performing steps 1-6 above. Disregard steps 9-15 below
if sanitizer levels remain stable at 3 ppm to 5 ppm after performing steps
1-6.
9. Add 2.5 ounces of sodium dichlor for every 100 gallons of water.
Refer to the table below for approximate water ll volume by model.
CAUTION: Never add chlorine tablets (trichlor) to your spa for any reason! This chemical may damage your spa and void the manufacturer
warranty.
-
-
Water Fill Volume by Model
Spa Model Approximate Fill Volume
J210 .......................................220 US Gallons (833 Liters)
J220 .......................................335 US Gallons (1,268 Liters)
J230 .......................................380 US Gallons (1,438 Liters)
10. Leave spa cover open during this step to allow excessive chemical vapors to exit spa, protecting pillows and
plastic knobs from chemical attack. If spa is indoors,
open doors and windows for proper ventilation. Turn on
all spa jet pumps for one hour, open all air controls, and
place the Divert-A-Jet (J-210 models) or massage selector knob (J-220 models) in the center “combo” position as
shown, (right). Note: You will need to press the jets pump
button(s) every 20 minutes since these functions have an
automatic 20 minute time-out function that turns them off.
page 15
CAUTION: never leave your spa unattended for any reason
while the cover is open and accessible to small children and
animals!
11. Turn off power to the spa at the circuit breaker, then drain spa as
outlined in section 12.2 “Draining And Relling” (page 25).
12. Fill spa until water covers all jets but does not touch the bottom of
the lowest headrest. DO NOT OVERFILL.
CAUTION: Never fill with water from a water softener. If your
water is extremely “hard”, it is preferable to fill half-way with
hard water and the rest of the way with softened water. Or, you
may fill entirely with hard water if you use a special water additive available from your authorized Jacuzzi dealer.
13. Consult your authorized Jacuzzi dealer for chemical recommendations, then add chemicals to spa water to achieve a constant sanitizer reading within the levels recommended by the Association of
Pool And Spa Professionals/USA printed on the inside cover of this
manual.
14. Turn on all jet(s) pumps when adding chemicals to ensure proper
mixing and leave your spa cover open until the sanitizer level falls
below 5 ppm to protect pillows and plastic knobs from chemical
attack.
CAUTION: Never leave your spa unattended for any reason
while the cover is open and accessible to small children and
animals.
CAUTION: To prevent the unlikely possibility of contracting a
waterborne illness, maintain water chemistry within step 6 parameters. If you or other bathers experience such a condition,
discontinue use and seek medical attention.
15. Establish a sanitizer reading between 3 ppm and 5 ppm, then allow
the spa to set undisturbed for 8 hours. Retest water after 8 hours to
determine if sanitizer levels are stable. If sanitizer levels are stable,
your spa is ready for use. To ensure healthy water conditions, always
maintain a constant sanitizer reading within the levels recommended
by the Association of Pool And Spa Professionals/USA printed on
the inside cover of this manual. If sanitizer levels are not stable at
this time, it will be necessary to repeat this procedure in its entirety
(steps 1-15) until stable sanitizer readings are achieved.
page 16
9.0 Control Functions
GA
B
C
D
E
F
9.1 Control Panel
A. LED Display: Can
display current water
temperature (default display), water temperature
set point, selected skimming/heating mode, and
error messages.
B. Warmer ( + ) Button: Increases water temperature set point.
C. Cooler ( - ) Button: Decreases water temperature set point.
D. Light Button: Turns underwater light on and off.
E. Jets 1 Button: Turns jets pump #1 on and off. Press once for low
speed; press a second time for high speed; press a third time to turn
pump off.
F. Jets 2 Button (J-230 Models): Turns high-speed jets pump #2 on
and off. Press once to turn pump #2 on; press a second time to turn
pump #2 off.
G. Heat Indicator: Lit when heater is on.
Operation Details
• Temperature Adjustment: 80 to 104°F (27 to 40°C). Factory default
setting is 100°F (38°C).
• Underwater Light Operation: Light runs for 1 hour then shuts off for
increased bulb life.
• Jets 1/Jets 2 Button Operation: Jets run for 20 minutes when acti
vated, then turn off automatically to conserve energy. Simply press
either jets button to continue operation for an additional 20 minutes.
page 17
9.2 Spa Features And Controls
4
5
8
3
7
2
4
1
4
2
9
10
4
J-220 model illustrated - Location of Features Vary by Model
1. Control Panel
2. Air Controls
3. Filter/Skimmer
4. Therapy Jets
5. Massage Selector (J-220 only).
J-210 models use a “Divert-A-Jet”
which functions as a diverter in
these models. See page 19 for
details.
6. Therapy Seats
page 18
7. Spa Light
8. Vertical Jets (Foot Jets)
9. Footwell Suction Fitting
ilter.
F
10. Heater Return/Gravity Drain
Fitting
11. Calf Jets (J-220 only)
&
9.3 Jet/Air Controls Diagram
(J-210 & J-220 Models)
page 19
9.4 Jet/Air Controls Diagram
(J-230 Models)
page 20
10.0 Operating Instructions
1.
2.
3.
The spa control system has automatic functions that operate upon startup and normal operation to protect the system. Upon power up, the
readout displays the following information:
1. Control panel displays current software release (e.g.
5.54), then;
2. Control panel displays “888” and all indicator LEDs
are lit, permitting visual inspection of all display segments and indicator lights for proper operation.
3. After the initial start-up sequence ends, the actual
water temperature is displayed. If water temperature
at this time is less then the factory default temperature
setting of 100°F (38°C) and the spa is set to either standard skim
ming/heating mode “F1-F3” (page 22), the heater will turn on and
run until the water temperature rises to the factory setting, then turn
off. Note: it is common for the heater to turn on after the spa is first
filled because tap water is often very cold.
10.1 Setting Water Temperature
The spa’s thermostat provides optimum control of water temperature. The temperature set point (set temperature) can be
adjusted from 65°F to 104°F (18°C to 40°C). To raise the set
temperature, press the WARMER ( + ) button. To lower the
set temperature, press the COOLER ( - ) button. Note: The first press
of either WARMER ( + ) or COOLER ( - ) button displays the set temperature.
-
10.2 Activate Pumps
The JETS 1 button activates the functions of the main
2-speed jets pump 1. The first press activates pump 1 in
low speed, the second press activates high speed, and the
third press shuts the pump off. The JETS 2 button (J-230
only) controls jets pump 2 as follows:
• US/Canada 60Hz Models: Pump 2 runs in high speed only.
• Export 50Hz Models:
The first press activates jets pump 2 in low
speed, the second press activates high speed, and the third press
turns jets pump 2 off.
Both jets pumps have a twenty-minute default when manually activated.
10.3 Light Button
The LIGHT button activates the spa light when pressed.
The light has a one-hour default.
page 21
10.4 Selecting Desired Massage Action (J-210 & J-220 Only)
A
C
B
A
B
C
Your Jacuzzi spa incorporates a “Divert-A-Jet” or
“Massage Selector” (page 19) that allows you to custom
ize massage performance between various jet systems
by diverting water between them. Simply turn the DivertA-Jet or Massage Selector to position A (Combo), B, or C
to divert water pressure to various jet groups. Note: The
valve is intended to operate in positions A (Combo), B,
and C for optimum performance. It is considered normal
for sound levels within the valve to vary between positions
due to the large amounts of water flowing through it! For
optimum filtration benefits, leave the valve in position A (center position)
when spa is covered. Select position B or C for maximum jet performance during spa use.
10.5 Adjusting Individual Jet Flow
The water flow to the individual jets in your spa can be
increased or decreased by rotating the outside jet face.
Note: Always keep at least 6 adjustable jets open at all times.
10.6 Air Controls
Certain jet systems have their own air control. Each control
introduces air into the water lines that supply that specific jet
group. Simply turn the air control selection counterclockwise
to open or clockwise to close. To minimize heat loss, all air
controls should be closed when the spa is not in use.
11.0 Automatic Filtration Cycles
The control system activates a programmable “standard” or “economy”
filtration cycle to remove debris from your spa. These cycles use the
low speed pump, skimmer basket, and filter cartridge quickly clear
“skim” the water of debris and minimize their “bathtub ring” affect. Apart
from their filtration benefit, each mode also effects the operation of your
spa’s heater. Refer to sections 11.1 and 11.2 below for additional infor
mation.
11.1 Standard Filtration/Heating Modes (F1-F3)
Standard filtration/heating modes are typically selected by customers in
cold climates where heat up times are extended due to lower ambient
temperatures. In these modes, the water temperature is regulated by
the set temperature, low-speed pump, and heater which turns on as
needed. After the programmed set temperature is reached, the heater
and pump turn off, only to turn back on at the next programmed filtration/heating cycle or during a heat call.
page 22
-
11.2 Economy Filtration/Heating Modes (F4-F6)
Economy filtration/heating modes are typically selected by customers in
warm climates where heat up times are minimized due to higher ambient temperatures. In these modes, the water temperature is regulated
by the set temperature, low-speed pump, and heater only while a programmed filtration/heating cycle is running. Note: these modes consume less energy than standard modes F1-F3 outlined in the previous
section.
11.3 Lock Modes (L1-L2)
These modes are designed for use during spa service or to prevent
unauthorized use.
11.4 Selecting The Skimmer/Heating Mode
Press and hold both control panel WARMER ( + ) and COOLER ( - )
buttons at the same time, then release. Then press either WARMER
( + ) or COOLER ( - ) button to select skimming/heater mode F1-F6 or
lock modes L1-L2 on below:
Standard Filtration/Heating Modes (F1-F3)
F1 4 hours of filtration/heating per day (one 2-hour cycle
every 12 hours).
F2 6 hours of filtration/heating per day (one 2-hour cycle
every 8 hours).
F3 8 hours of filtration/heating per day (one 2-hour cycle
every 6 hours)
Economy Filtration/Heating Modes (F4-F6)
F4 4 hours of filtration/heating per day (one 2-hour cycle
every 12 hours).
F5 6 hours of filtration/heating per day (one 2-hour cycle
every 8 hours).
F6 8 hours of filtration/heating per day (one 2-hour cycle
every 6 hours)
Lock Modes (L1-L2)
L1 Lock Out (disables all spa functions to permit filter clean-
ing)
L2 Lock Mode (disables the jets and light buttons to pre vent
unauthorized use of spa). Filtration/heating cycle will
continue to operate as programmed in this mode. The
temperature display flashes when this function is enabled. Example:
the “F3” filtration/heating cycle was enabled prior to choosing lock
mode. The spa continues to perform the “F3” cycle until lock mode
is canceled,
page 23
allowing another cycle to be selected.
To set a time for the first filtration/heating cycle, simply turn power on to
the spa two minutes prior to the desired time. Example: If you desire
your first filtration/heating cycle to begin at 10:00 AM turn off power
to the spa and turn it back on again at 9:58 AM. Note: start time is
approximate and may vary slightly from day to day.
12.0 Spa Maintenance
Proper and regular maintenance of your spa will help it retain its beauty
and performance. Your authorized Jacuzzi dealer can supply you with
all the information, supplies, and accessory products you will need to
accomplish this.
12.1 Cleaning The Filter
Your Jacuzzi spa is equipped with a skimmer basket and filter cartridge
located in the skimmer/filter well. Filtering is accomplished when jets
pump #1 turns on in low speed initiating water flow through the skimmer
basket and polyester mesh filter cartridge. As this happens, suspended
particles become trapped on the filter’s surface. To ensure optimum
performance, it is necessary to remove and clean the skimmer basket
and filter cartridge regularly (typically once a week) depending on usage
and water quality.
To accomplish this, follow these steps:
Turn off power to the spa at the home’s breaker panel or select
1.
the L1 “Lock Out” mode (page 23) to disable all spa functions.
2. Remove the filter strainer lid assembly.
3. Remove the filter cartridge by rotating it counterclockwise to
unthread it from the filter wall fitting, then lift it straight up to remove
from filter well.
4. Using a garden hose with a high-pressure nozzle, rinse debris
from the filter pleats beginning at the top and working your way
downward. Continue, one section at a time, until you have rinsed all
of the filter’s pleats.
Periodically, the filter cartridge will need a more thorough cleaning to
remove imbedded oils and minerals. For this, we suggest cleaning as
above and then soaking the cartridge overnight in a plastic container
filled with a solution of water and a specially formulated filter cleaner
available from your authorized Jacuzzi dealer. The average life expectancy of a Jacuzzi filter cartridge is approximately two years with proper
care and water quality maintenance. A replacement cartridge may be
purchased from your dealer.
page 24
12.2 Draining and Refilling
About every 3 months, you will want to replace the spa’s water. The frequency depends on a number of variables including the amount of use,
attention paid to water quality maintenance, etc. You will know it is time
for a change when you cannot control sudsing and/or you can no longer
get the normal feel or sparkle to the water even though the key water
balance measurements are all within the proper parameters.
WARNING! READ THIS BEFORE DRAINING: To prevent
damage to the spa’s components, turn off power to the spa
at the circuit breaker before draining it. Do not turn the
power back on until your spa has been refilled.
CAUTION: There are certain precautions to keep in mind
when draining your spa. If it is extremely cold, and the spa is
outdoors, freezing could occur in the lines or the equipment,
see “WINTERIZING” (page 26). On the other hand, if it is hot
outdoors, do not leave the spa’s surface exposed to direct
sunlight.
To drain spa:
1. Remove synthetic skirt panel below the control panel (page 18).
2. Remove drain hose behind synthetic skirt.
3. Raise end of drain hose above water line, then remove drain hose
cap and attach garden hose to drain hose fitting.
4. Lay drain hose down on ground, making sure water drains away from
spa.
After refilling, turn on power to the spa and follow the steps listed under
the “Spa Fill Up Procedure” (page 13).
12.3 Cleaning The Spa Interior
To preserve the sheen of your spa’s surface, it is crucial that you avoid
using abrasive cleaners or cleaners which have adverse chemical effect
on the surface. If you are not certain as to the suitability of a particular
cleanser, consult your authorized Jacuzzi dealer. Regardless of the
cleanser used, use extreme care to assure that no soap residue is
left on the surface. This could cause severe sudsing when the spa is
refilled.
12.4 Pillow Care (J-220/J-230 Models Only)
Remove and clean the headrest pillows as needed with soapy water
using a cloth or soft-bristle brush. To maintain water resistance and
luster, apply a quality vinyl conditioner once a month. Always remove
the pillows when adding chemical shock treatment to the spa water. The
page 25
pillows can be returned to the spa when the sanitizer reading drops
below 5 ppm.
12.5 Maintaining the Cover
Using the Jacuzzi insulating spa cover anytime the spa is not in use will
significantly reduce your operating costs, heat-up time and maintenance
requirements. To prolong the life of the cover, handle it with care and
clean it regularly using mild soap and water. Periodic treatments with a
special conditioner developed for Jacuzzi spa covers will help protect
against deterioration caused by UV rays from the sun.
Never allow anyone to stand or sit on the cover, and avoid
dragging it across rough surfaces.
12.6 Maintaining The Synthetic Cabinet
Your new spa’s synthetic cabinet requires little or no maintenance of
any kind. To clean, simply wipe cabinet with a clean towel and mild
soap solution.
CAUTION: Never spray cabinet with a garden hose for any rea
son since this action may induce an electrical short in the spa’s
electrical equipment.
12.7 Winterizing
Your Jacuzzi spa is designed to automatically protect itself against
freezing when operating properly. During periods of severe freezing
temperatures, you should check periodically to be certain that the electrical supply to the spa has not been interrupted. In extreme, bitter cold
weather less than -20°F (-29°C), choose the F3 “Standard” skimming/
heating mode to prevent freezing (page 23).
If you do not intend to use your spa, or if there is a prolonged power
outage during periods of severe freezing temperatures, it is important that all water be removed from the spa and equipment to protect
against damage from freezing. For expert winterization of your spa,
contact your authorized Jacuzzi dealer. In emergency situations,
damage can be minimized by taking the following steps:
1. Follow the directions on page 25 for draining the spa.
2. As the water level drops below the seats, use whatever means nec
essary to get the water out of the recessed seating areas and into
the footwell.
3. When the water level ceases to drop, use whatever means avail
able to remove any remaining water from the footwell.
-
-
-
page 26
4. Turn off power to the spa.
5. Remove the synthetic cabinet panel under the control panel and
locate the drain plugs on the front of the pump(s), (Figure-A, page
12). Remove plugs to allow water to drain out of pumps and heater.
Note: Approximately one to two gallons will be released during this
procedure. Use a wet/dry vacuum or other means to keep this from
flooding the equipment compartment. Replace the drain plugs.
6. Re-install synthetic cabinet side panel and cover spa so that no
casual moisture can enter into it.
Consult your authorized Jacuzzi dealer if you have any questions
regarding winter use or winterizing.
12.8 Restarting Your Spa in Cold Weather
If you want to start up your spa after it has sat empty for a time in freezing temperatures, be aware that the water remaining in certain sections
of the piping may still be frozen. This situation will block water flow
preventing the spa from operating properly and possibly damaging the
equipment. We recommend you consult your authorized Jacuzzi dealer
for guidance before attempting to re-start your spa under these conditions.
13.0 Water Quality Maintenance
Maintaining the quality of the water within specified limits will serve to
enhance your enjoyment and prolong the life of the spa’s equipment.
It is a fairly simple task, but it requires regular attention because the
water chemistry involved is a balance of several factors. There is no
simple formula, and there is no avoiding it. A careless attitude in regard
to water maintenance will result in poor and potentially unhealthful conditions for soaking and even damage to your spa. For specific guidance
on maintaining water quality, consult your authorized Jacuzzi dealer
who can recommend appropriate chemical products for sanitizing and
maintaining your spa.
CAUTION: Never store spa chemicals inside the spa’s equipment bay.
13.1 pH Control
pH is a measure of relative acidity or alkalinity of water and is measured on a scale of 0 to 14. The midpoint of 7 is said to be neutral,
above which is alkaline and below which is acidic. In spa water, IT IS
VERY IMPORTANT TO MAINTAIN A SLIGHTLY ALKALINE CONDI
-
page 27
TION OF 7.2 to 7.8. Problems become proportionately severe the further outside of this range the water gets. A low pH will be corrosive to
metals in the spa equipment. A high pH will cause minerals to deposit
on the interior surface (scaling).
In addition, the ability of the sanitation agents to keep the spa clean is
severely affected as the pH moves beyond the ideal range. That is why
almost all spa water test kits contain a measure for pH as well as the
sanitizer.
13.2 Sanitizing
To destroy bacteria and organic compounds in the spa water, a sanitizer
must be used regularly. Chlorine and bromine are the two most popular
sanitizers used to date. Many other additives are available for your spa.
Some are necessary to compensate for out-of-balance water, some aid
in cosmetic water treatment and others simply alter the feel or smell of
the water. Your authorized Jacuzzi dealer can advise you on the use of
these additives.
CAUTION: Do not use chlorine tablets (trichlor) in your spa.
This chemical can have an extremely corrosive effect on
certain materials in the spa. Damage caused by use of this
chemical, or improper use of any chemicals, is not covered
under the spa’s warranty.
13.3 Optional CD Ozone Water Maintenance System
If you have elected to have your spa equipped with the optional Jacuzzi
CD ozone water purification system you will find that your water stays
fresh and clear with significantly less chemical sanitizer usage. You will
also probably be able to go longer between complete spa drainings.
The CD ozone unit operates in conjunction with low speed jets pump
#1.
14.0 Error Conditions/Error Messages
Your spa has a self-diagnostic control system. The system will
automatically display the following if a problem is detected.
14.1 Panel Displays SN1
Open sensor (heater is disabled) or shorted sensor (spa is
deactivated). The high-limit temperature sensor is not functioning. Contact your authorized Jacuzzi dealer or qualified
service technician.
page 28
14.2 Panel Displays SN2
Open or shorted sensor (heater disabled). The temperature
sensor is not functioning. Contact your authorized Jacuzzi
dealer or qualified service technician.
14.3 Panel Displays FL1
Pressure switch is not closed when the pump is activated.
Heater is deactivated. Proper flow of water is inhibited or
pressure switch has malfunctioned. Check for proper water
level, pump is primed and/or clogged filter. Contact your authorized
Jacuzzi dealer or qualified service technician.
14.4 Panel Displays FL2
Pressure switch is closed while pump is deactivated. Contact
your authorized Jacuzzi dealer or qualified service technician.
14.5 Panel Displays COL
Cool Condition - Temperature has dropped 20°F (11°C)
below the current set temperature. The pump and heater
have been activated to bring the temperature to within 15°F
(8°C) of the set temperature. No corrective action is required. Note:
during cold periods, you may consider increasing the number of filtration
cycles (page 23).
14.6 Panel Displays ICE
Freeze Protection - A potential freeze condition has been
detected. No action is required. The pump and heater will
operate to circulate and warm water through the plumbing
until spa is out of danger. See “Winterizing” (page 26).
14.7 Panel Displays OH
Water temperature is above acceptable limits. Do not enter
spa! Water temperature has reached 112˚F (44˚C) and the
low speed pump has activated to circulate water through
heater. Contact your authorized Jacuzzi dealer or qualified service
technician.
14.8 Panel Displays - - -
The safety “Watchdog” software has been triggered and
the spa is deactivated. A problem has been detected which
could cause damage to the spa or its components. Contact
your authorized Jacuzzi dealer or qualified service technician.
page 29
15.0 Troubleshooting Procedures
In the event your Jacuzzi® spa is not working the way it should, please
first review all the installation and operating instructions in this manual
and check the message on the panel display. If you are still not satis-
fied it is working properly, please follow the appropriate troubleshooting
instructions below. Note: If any of the supply cords to the accessories
are damaged, they must be replaced by authorized service personnel.
Contact your authorized Jacuzzi dealer or qualified service technician.
15.1 None of the Components Operate (e.g. Pump, Light)
Check the following:
1. Is there power to the spa?
2. Is the household circuit breaker tripped?
Contact your authorized Jacuzzi dealer or qualified service
3.
technician.
15.2 Pump Does Not Operate But Light Does
Press the JETS 1 button:
1. If no water movement is detected, make sure power is going to the
spa and check the water level. If it does not solve the problem, contact your authorized Jacuzzi dealer or qualified service technician.
2. The main pump operates but no water flows to jets. Pump may not
be properly primed. This can happen after the spa is drained and
refilled. Press the JETS 1 button several times, never leaving the
motor on for more than 5 to 10 seconds at a time. Turn power off
and let the air out by loosening the cap on the diverter valve (J-220
models only) and/or remove the filter. Refer to section 9.2 (page
18). Make certain you tighten the diverter cap and/or reinstall the
filter before turning on spa power and restarting the pump.
15.3 Poor Jet Action
1. Press the JETS 1 button to make certain pump #1 is on.
2. Open all air controls to their full on position (counterclockwise).
3. Check for dirty filter. Clean, if necessary (section 12.1 page 24).
4. Make sure jets are all the way open (section 10.5 page 22).
15.4 Water is Too Hot
Reduce thermostat setting.
page 30
15.5 No Heat
1. Check thermostat setting (section 10.1 page 21).
2. Keep the spa cover in place while heating.
3. Check the settings to see if your spa is in economy filtration/heating
mode (page 23).
Should checking the above steps fail to correct the problem, please call
your dealer so that they may arrange service. We build the best spas in
the industry. Nonetheless, we are always striving to improve the quality
and features of our products.
Your input as a Jacuzzi spa owner is a cherished part of this process. If
you have any comments or suggestions, or if you wish to be informed on
any new products for your spa, please write to us.
CONGRATULATIONS
and most relaxed family in the world!
on your good taste and welcome to the happiest
page 31
16.0 J-210/J-220 Convertible Circuit Diagram (60Hz)
Optional
Ozonator
O
3
Standard 3-Wire 120 VAC Connection (60 Hz, 1 Phase, 15A Service)
Use copper conductors ONLY. Wire size must be appropriate per NEC and/or local codes.
WHT
WHT
WHT
WHT
WHT
WHT
BLK
BLK
BLK
BLK
BLK
BLK
BLK
BLK
RED
RED
RED
*
RED
*
RED
*
RED
Heater
1.0 kW @ 120 VAC (3-wire connection)
4.0 kW @ 240 VAC (4-wire connection)
Pressure Switch
Hi-limit/Freeze Sensor
Temperature Sensor
J2
J3
F1
20A
250V
SC-20
Main Pump
Spa Light
Transformer
120 VAC
Optional 4-Wire 240/120 VAC Convertible Heater Connection
1. Remove and discard the factory installed GFCI Cord.
2. Move
RED
*
wire from TB1 position #1 to TB1 position #3 as shown below.
3. Permanently connect to the power supply. Use copper conductors ONLY.
Wire size must be appropriate per NEC and/or local codes.
4. If hot tub is to be operated on 30A service, make sure the jumper provided
at location JP1 #1&2 on the circuit board is installed. If hot tub is to be
operated on 40A service, remove the jumper JP1 #1&2 on the circuit board.
HILO
J1 Logic Jumper Settings (Factory Defaults Shown)
JP1 1-2 ON = 30A Logic (4-wire 120/240 VAC operation only)
JP1 1-2 OFF = 40A Logic (4-wire 120/240 VAC operation only)
JP1 7-8 ON = °C Temperature Display
JP1 7-8 OFF = °F Temperature Display
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any inteference
received including interference that may
cause undesired operation.
J20
J21
J12
J14
J16
J11
J15
J13
J17 J7 J8
J9
J10
J5
J6
Heater IN Heater OUT
F1
K5 K7 K8
J1
Control
Panel
THERM
SWITCH
7
5
3
1
8
6
4
2
T
o circuit board
GRN
TB1
WHT
BLK
1
2
3
1
2
3
GROUND
GRN
TB1
WHT
BLK
GROUND
WARNING, ELECTRICAL SHOCK HAZARD EXISTS! Always remove power to spa before wiring
and/or configuring the circuit board
M
o
v
e
W
i
r
e
Hard
Wire
Only
Plug-in
GFCI
Cord (US
Models
Only) OR
Hard
Wire
This wiring diagram is used for the J-210/J-220 US/Canada 120/240
VAC (60Hz) convertible power models.
page 32
17.0 J-230 Circuit Diagram (60Hz)
OZONATOR (OPTIONAL)
O
3
GRN
TB1
Standard 240 VAC, 3-Wire Connection (60Hz, 1-Phase Service)
USE COPPER CONDUCTORS ONLY. WIRE SIZE MUST
BE APPROPRIATE PER NEC AND/OR LOCAL CODES
RED
RED
J6
BLK
J5
WHT
WHT
WHT
RED
BLK
BLK
BLK
WHT
BLK
RED RED
BLK BLK
BLK
2
1
FLOW SWITCH
HI - LIMIT / FREEZE SENSOR
TEMPERATURE SENSOR
J1
J2
J3
F1
30A, 250V
SC-30
PUMP 1
PUMP 2
TRANSFORMER
240 VAC
J4
F1
7 6 2 4
HI
HI
LO
Control Panel
SPA LIGHT
J20
K1
K2
K3
K4
K5
K6 K7 K8
J21
J11
J12
J13
J14
J15
J16
J17
J18
J19
J7
J8
J9
J10
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any inteference
received including interference that may
cause undesired operation.
Heater
5.5 kW
240 VAC
JP1
4
2
3
1
6 5
8 7
Logic Jumper Settings (Factory Defaults Shown)
JP1 1-2 ON = 40A Logic
JP1 1-2 OFF = 50A Logic (Factory Default Setting)
JP1 3-4 ON = 2 Pump Operation*
JP1 3-4 OFF = 1 Pump Operation*
JP1 5-6 ON = 60A Logic (Remove JP1 1-2 Jumper)
JP1 5-6 OFF = Leave Off for 40A or 50A Logic
JP1 7-8 ON = Celsius Temperature Display
JP1 7-8 OFF = Fahrenheit Temperature Display
This wiring diagram is used for all J-230 US/Canada 240 VAC (60Hz)
dedicated power models.
page 33
Standard 3-Wire 230 VAC Connection (50 Hz, 1 Phase Service)
Use copper conductors ONLY. Wire size must be appropriate per NEC and/or
local codes.
BLK
BLK
BLU
BLU
BLU
BLU
BLU
BLU
BRN
BRN
BRN
BRN
BRN
BRN
BRN
Heater
2.7kW @ 230 VAC
Pressure Switch
Hi-limit/Freeze Sensor
Temperature Sensor
J2
J3
Spa Light
Transformer
230 VAC
J1 Logic Jumper Settings
JP1 1-2 ON = 20A Logic (Factory Setting)
JP1 1-2 OFF = 30A Logic
JP1 7-8 ON = °C Temperature Display (Factory Setting)
JP1 7-8 OFF = °F Temperature Display
J20
J21
J12
J14
J16
J11
J15
J13
J17 J7 J8
J9
J10
J5
J6
Heater IN Heater OUT
F1*
K5 K7 K8
J1
Control
Panel
THERM
SWITCH
7
5
3
1
8
6
4
2
Optional
Ozonator
O
3
F1
20A
250V
SC-20
GRN
TB1
BLU
BRN
1
2
GROUND
Main Pump
HILO
Hard
Wire
Only
18.0 J-210/J-220 Export Circuit Diagram (50Hz)
This wiring diagram is used for the J-210/J-220 Export 230 VAC (50Hz)
dedicated power models.
page 34
19.0 J-230 Export Circuit Diagram (50Hz)
Optional Stereo And Power
Supply on J-335, J-345
Models Only.
Power Supply
OZONATOR (OPTIONAL)
O
3
GRN
TB1
230 VAC 3-Wire Connection (50Hz, 1-Phase Service)
USE COPPER CONDUCTORS ONLY. WIRE SIZE MUST BE
APPROPRIATE PER NEC AND/OR LOCAL CODES
BLU
BLU
J6
BRN
J5
BRN
WHT
BLU
BLK
BLU
BLK
BRN
BLU
BRN
BLU BLU
BRN BRN
BRN
2
1
FLOW SWITCH
HI - LIMIT / FREEZE SENSOR
TEMPERATURE SENSOR
J1
J2
J3
F1
20A, 250V
SC-20
PUMP 1
PUMP 2
TRANSFORMER
240 VAC
J4
F1
7 6 2 4
HI
HI
LO
Control Panel
SPA LIGHT
J20
K1
K2
K3
K4
K5
K6 K7 K8
J21
J11
J12
J13
J14
J15
J16
J17
J18
J19
J7
J8
J9
J10
Heater
2.7 kW @
230 VAC
JP1
4
2
3
1
6 5
8 7
Logic Jumper Settings (Factory Defaults Shown)
JP1 1-2 ON = 20A Logic (Factory Default Setting)
JP1 1-2 OFF = 30A Logic
JP1 3-4 ON = 2 Pump Operation*
JP1 3-4 OFF = 1 Pump Operation*
JP1 5-6 ON = 40A Logic (Remove JP1 1-2 Jumper)
JP1 5-6 OFF = Leave Off for 20A or 30A Logic
JP1 7-8 ON = Celsius Temperature Display
JP1 7-8 OFF = Fahrenheit Temperature Display
This wiring diagram is used for all J-230 Export 230 VAC (50Hz)
dedicated power models.
page 35
Notes
page 36
Notes
page 37
Transformer
230 VAC
O
3
Ozonator
Spa
Light
BLU
BLU
Circ.
Pump
BLU
BLK
WHT
BRN
BRN
J21
J12
J14
J16
J11
J20
K1
K2
K3
J4
K4
F1
J15
K5 K7 K8
BRN
F1
20A
250V
SC-20
Jacuzzi® Hot Tubs
14525 Monte Vista Ave.
Chino, CA 91710
United States
www.jacuzzi.com
6530-322, Rev-C
21
J13
J5
Heater IN Heater OUT
J17 J7 J8 J9 J10
J6
BLK BLU BRN BLU BRN
BRN
HILO
Main
Pump
TB1
Printed in The USA
230 VAC, 3-Wire Connection
USE COPPER CONDUCTORS ONLY. WIRE SIZE MUST
Loading...
