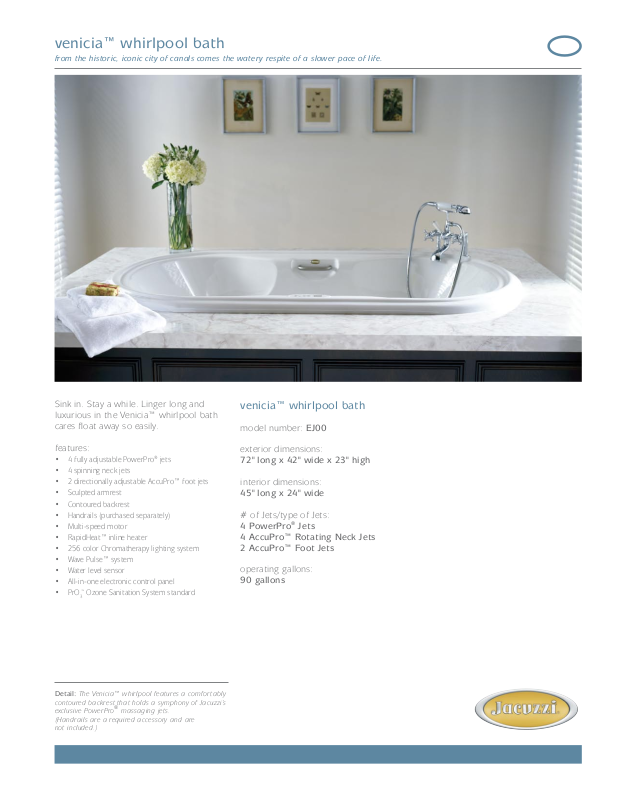

venicia™ whirlpool bath
from the historic, iconic city of canals comes the watery respite of a slower pace of life.
Sink in. Stay a while. Linger long and
luxurious in the Venicia™ whirlpool bath
cares float away so easily.
features:
• 4 fully adjustable PowerPro® jets
• 4 spinning neck jets
• 2 directionally adjustable AccuPro™ foot jets
• Sculpted armrest
• Contoured backrest
• Handrails (purchased separately)
• Multi-speed motor
• RapidHeat™ inline heater
• 256 color Chromatherapy lighting system
• Wave Pulse™ system
• Water level sensor
• All-in-one electronic control panel
™
• PrO
Ozone Sanitation System standard
3
Detail: The Venicia™ whirlpool features a comfortably
contoured backrest that holds a symphony of Jacuzzi’s
exclusive PowerPro® massaging jets.
(Handrails are a required accessory and are
not included.)
venicia™ whirlpool bath
model number: EJ00
exterior dimensions:
72" long x 42" wide x 23" high
interior dimensions:
45" long x 24" wide
# of Jets/type of Jets:
4 PowerPro® Jets
4 AccuPro™ Rotating Neck Jets
2 AccuPro™ Foot Jets
operating gallons:
90 gallons
Ordering Information
10-1/2"
36"
3"
42"
72"
12-1/8"
5-1/4"
29-7/8"
18" x 4"
Motor
12" H x 18" L
Service Access
Heater
Opt. Service Access
END VIEW
H
W
SIDE VIEW
2"
(Motor)
(Heater)
L
(51 mm)
VENICIA™
MAX. 1/2"**
DRAIN/OVERFLOW
A
B
Product Code:
EJ00 Venicia™ Whirlpool Bath
Right Hand
• Center Drain Location
• Accessories / Hardware:
Trim Kit: 4 HTA Jet Rings #M952
Rotary Drain Kit, 30” Cable #K606
Trim Kit: 2 BMH Jet Rings #J869
Oval Trim Kit #N557
2 X Trim Kit: 2 Neck Jet Rings #P556
Hand Rails (Must Buy) #G864
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze
Venicia™ Whirlpool Bath
Model: EJ00
Installation Notes
Refer to installation instructions included with fixture before beginning installation.
Please confirm product availability and specifications before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Technical Specifications
Dimensions
72” L x 42” W x 23” H
(1829 mm) L x (1067 mm) W x (584 mm) H
Drain/Overflow
A: 20 “ (508 mm) B: 14 “ (356 mm)
Cutout
Template Provided Part Number #P187000
Total Weight
1130 lb (513 kg) / 54 lb/sq. ft. (264 kg/m2)
Operating Gallonage
90 U.S. Gal. (341 Liters)
Product Weight
130 lb (59 kg)
Skirt Mounting
Not Available
Electrical Specifications
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 20 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
Heater (Standard)
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000
Product Shown: Venicia™ Whirlp ool Bath Right Hand Shown Model: EJ00
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum Service Access dimensions given.
#FS33 12/06
