Installation/Operation Instructions
for
Shower Towers
EC30000 Ristorre™ Onda™
EC31000 Ristorre™ Ovale™
EC33000 Ristorre™ Metallo™
Metallo™Onda™Ovale™
Save These Instructions for Future Use.
Complete and mail-in the product registration card provided with your unit.
Write and save the model and serial number of your unit.
Installer: Leave this manual for homeowner.
Homeowner: Read this manual and keep for future reference.
Copyright © by Jacuzzi Whirlpool Bath FZ71000C • 10/07
SAFETY INSTRUCTIONS
NOTE: MINIMUM WATER PRESSURE FOR THESE SYSTEMS IS 40 PSI.
WARNING: WHEN USING THIS UNIT, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING
THE FOLLOWING:
DANGER: DO NOT PLACE OR USE ELECTRICALLY CONNECTED DEVICES, SUCH AS TELEVISION, RADIO,
OR STEREO SPEAKERS, LIGHTS, HAIR DRYERS, OR TELEPHONES, WITHIN 1.5 M (5 FEET) OF SHOWER.
IMPORTANT: Read all instructions before beginning installation. Consult local codes for requirements.
Owner's Record
Date Purchased ____________________________________________________________
Purchased From ____________________________________________________________
Installed By ________________________________________________________________
Model _____________________________________________________________________
CONTENTS
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Component Identication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Common Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Finish Wall Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Assemble and Install Shower Tower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Warranty
Jacuzzi Whirlpool Bath: Shower Towers Page 2 FZ71000C • 10/07
Ristorre™ Ovale™ Shower Tower — Specications
Optional-Supplied
Temperature
Check Spout
DIMENSIONS
3" ( 76 mm) D (Depth)
10-1/4" ( 260 mm) W
46-5/8" (1184 mm) H
PRODUCT WEIGHT
22 lb
(10 kg)
Minimum Working Water Pressure 21.76 psi (1.5 bar)
Maximum Working Water Pressure 72.52 psi (5.0 bar)
Recommended Working Water Pressure 43.51 psi (3.0 bar)
Maximum Working Water Temp. 140-158° F (60 – 70° C)
Minimum Working Water Temp. 41-68° F (5-20° C)
Recommended Working Temp. 100° F (38° C)
Under water pressure at
21.76 psi (1.5 bar)
Flow Rate of Hand Shower 1.61 US gal/min (6.1 L/min)
Flow Rate of Wall Mount 1.69 US gal/min (6.4 L/min)
Flow Rate of Body Jet 1.66 US gal/min (6.3 L/min)
Flow Rate of Temp Check Spout 1.69 US gal/min (6.4 L/min)
SHIPPING WEIGHT
27 lb
(13.3 kg)
Product specications are subject to change without
notice.
Jacuzzi Whirlpool Bath: Shower Towers Page 3 FZ71000C • 10/07
Ristorre™ Onda™ Shower Tower — Specications
Optional-Supplied
Temperature
Check Spout
DIMENSIONS
3" ( 76 mm) D (Depth)
13-1/2" ( 343 mm) W
51-1/4" (1302 mm) L
PRODUCT WEIGHT
25 lb
(11 kg)
Minimum Working Water Pressure 21.76 psi (1.5 bar)
Maximum Working Water Pressure 72.52 psi (5.0 bar)
Recommended Working Water Pressure 43.51 psi (3.0 bar)
Maximum Working Water Temp. 140-158° F (60 – 70° C)
Minimum Working Water Temp. 41-68° F (5-20° C)
Recommended Working Temp. 100° F (38° C)
Under water pressure at
21.76 psi (1.5 bar)
Flow Rate of Hand Shower 1.51 US gal/min (6.0 L/min)
Flow Rate of Wall Mount 1.69 US gal/min (6.4 L/min)
Flow Rate of Body Jet 1.71 US gal/min (6.5 L/min)
Flow Rate of Temp Check Spout 1.69 US gal/min (6.4 L/min)
SHIPPING WEIGHT
29 lb
(13.2 kg)
Product specications are subject to change without
notice.
Jacuzzi Whirlpool Bath: Shower Towers Page 4 FZ71000C • 10/07
Ristorre™ Metallo™ Shower Tower — Specications
Optional-Supplied
Temperature
Check Spout
DIMENSIONS
2-1/2" ( 63.5 mm) D (Depth)
12-3/4" ( 1905 mm) W
55-7/8" (1419 mm) L
PRODUCT WEIGHT
26 lb
(12 kg)
Minimum Working Water Pressure 21.76 psi (1.5 bar)
Maximum Working Water Pressure 72.52 psi (5.0 bar)
Recommended Working Water Pressure 43.51 psi (3.0 bar)
Maximum Working Water Temp. 140-158° F (60 – 70° C)
Minimum Working Water Temp. 41-68° F (5-20° C)
Recommended Working Temp. 100° F (38° C)
Under water pressure at
21.76 psi (1.5 bar)
Flow Rate of Hand Shower 1.58 US gal/min (6.0 L/min)
Flow Rate of Wall Mount 1.58 US gal/min (6.0 L/min)
Flow Rate of Body Jet 1.98 US gal/min (7.5 L/min)
Flow Rate of Temp Check Spout 1.98 US gal/min (7.5 L/min)
SHIPPING WEIGHT
29 lb
(13.2 kg)
Product specications are subject to change without
notice.
Jacuzzi Whirlpool Bath: Shower Towers Page 5 FZ71000C • 10/07
Ristorre™ Ovale™ Shower Tower — Component Identication
8
9
7
18
10
4
11
14
20a
20b
20c
1
15
17
2
12
13
17
18
27
19
26
28
24
25
23
13
5
22
6
21
16
RemarkNo. Name Qty RemarkNo. Name Qty
Tempered Glass Front Plate
1
Body Jet
2
Wall Mount Shower
3
Shower Arm
4
Back Housing
5
1
6
1
1
1
6
Wall Mount Fixing Rod
7
Screw(M4.2X35mm)
8
Rubber Washer
9
Screw Cap
10
Screw Nut
11
Square-shaped Temperature Check Spout
12
Tube-shaped Temperature Check Spout13
Glass Shelf With Pillar Included
Hand Shower15 Included
3
3
3
3
3
1
1
1
1
Included
Included
Included1Gasket
Included
Included
Included
Included
Included
S.S.Flexible Hose
16
Hand Shower Bracket
17
18
Plastic Anchor
19
Screw(M3.5x25mm)
Diverter
20a
20b
Flow Control
Thermo-Static Control
20c
Sealing Washer
21
Threaded Connector
22
Brass Nut
23
Spring Washer
24
Washer Plate
25
26 Silica Gel Washer 2 Included
28
Washer
Included
1
1
Included
Included
5
1 Included
1
1
1
Included
5
Included
1
Included
2
Included
2
Included
2
Included2Ring2714
1 Included
Parts List
The parts list table common to all Ristorre shower towers is located on Page 9. Please refer to this table for com-
ponent identication of parts list in all Ristorre shower towers.
Jacuzzi Whirlpool Bath: Shower Towers Page 6 FZ71000C • 10/07
Ristorre™ Onda™ Shower Tower — Component Identication
27
5
19
15
13
14
16
10
9
8
17
18
7
6
1
2
3
20b
20c
20a
11
12
18
22
21
O
p
t
io
n
a
l
4
17
26
23
24
25
13
28
RemarkNo. Name Qty RemarkNo. Name Qty
1
6
1
Included
Included
1
1
Included1Gasket
Included
3
Included
3
Included
3
Included
3
3
1
1
Included
1
1
S.S.Flexible Hose
16
Hand Shower Bracket
17
18
Plastic Anchor
19
Screw(M3.5x25mm)
Diverter
20a
20b
Flow Control
Thermo-Static Control
20c
Sealing Washer
21
Threaded Connector
22
Brass Nut
23
Spring Washer
24
Washer Plate
25
26 Silica Gel Washer 2 Included
28
Washer
Tempered Glass Front Plate
1
2
3
4
5
6
7
8
9
10
11
12
Body Jet
Wall Mount Shower
Shower Arm
Back Housing
Wall Mount Fixing Rod
Screw(M4.2X35mm)
Rubber Washer
Screw Cap
Screw Nut
Square-shaped Temperature Check Spout
Tube-shaped Temperature Check Spout13
Glass Shelf With Pillar Included
Hand Shower15 Included
Parts List
The parts list table common to all Ristorre shower towers is located on Page 9. Please refer to this table for com-
ponent identication of parts list in all Ristorre shower towers.
Jacuzzi Whirlpool Bath: Shower Towers Page 7 FZ71000C • 10/07
Included
1
1
Included
Included
5
1 Included
1
1
1
Included
5
Included
1
Included
2
Included
2
Included
2
Included2Ring2714
1 Included

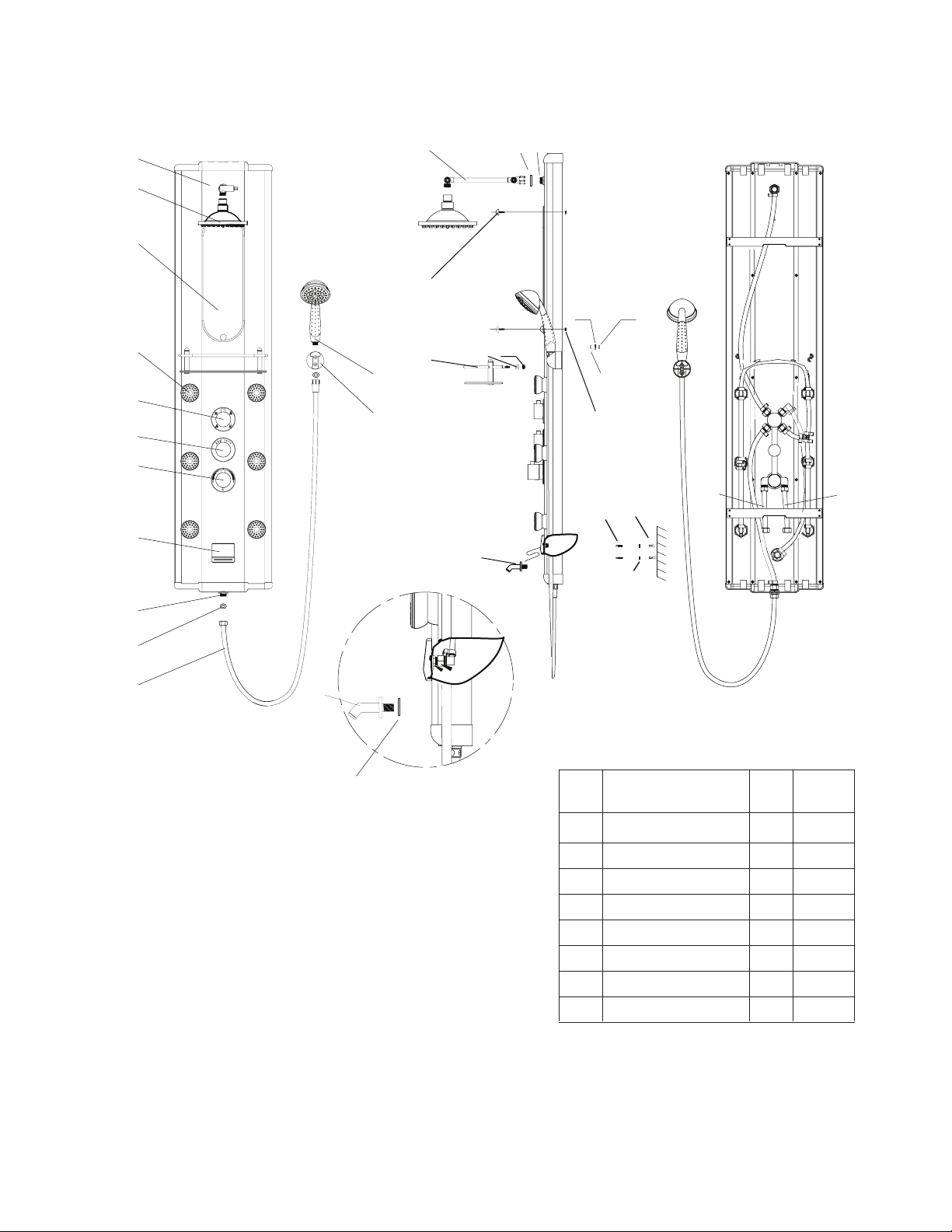

Ristorre™ Metallo™ Shower Tower — Component Identication
7
19
18
13
13
26
9
8
20b
1
3
6
2
20a
20c
12
22
21
16
17
15
10
11
14
27
23
25
24
28
21
18
19
Wall
7
Blue means connect to cool water
Red means connect to hot water
RemarkNO. Name Qty
Front Plate
1
2
Wall Mount Shower 1
3
10
19
Mirror
6
7
8
1
6Body Jet
1
IncludedHanger 2
IncludedScrew 2
IncludedConnection rod 1
Included6Screw
Parts List
The parts list table common to all Ristorre shower towers is located on Page 9. Please refer to this table for com-
ponent identication of parts list in all Ristorre shower towers.
Jacuzzi Whirlpool Bath: Shower Towers Page 8 FZ71000C • 10/07

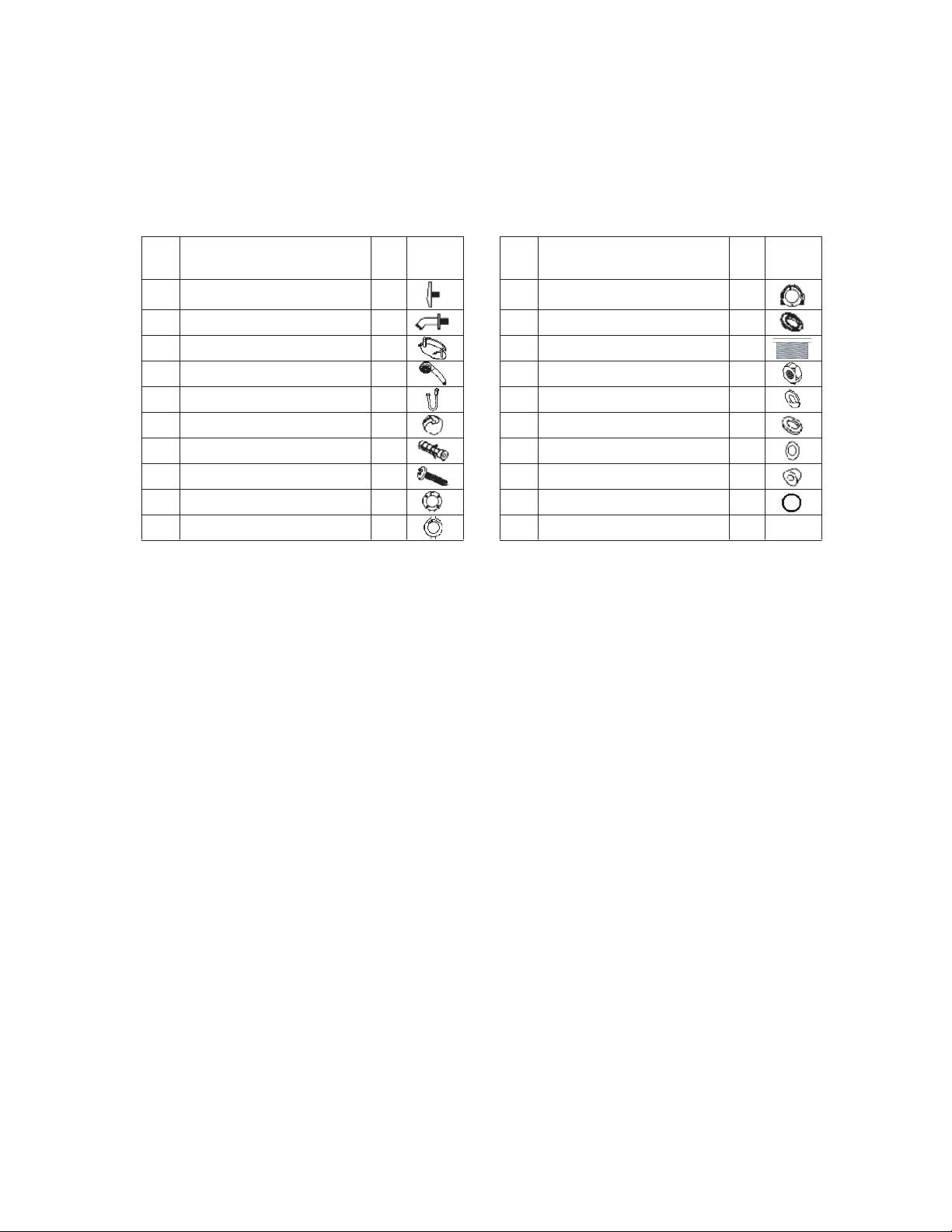

Common Parts List
Name
12
Square Temp Check Spout
Tube Temp Check Spout
13
14
Glass Shelf Assembly
15
Hand Shower
16
Shower Flexible Hose
17
Hand Shower Bracket
18
Plastic Anchors
19
(M3.5X25mm) Screws
20a
Diverter
20b
Flow Control
Qty
1
1
1
1
1
1
6
6
1
1
Remark
Name
20c
Thermo-Static Control
21
Sealing Washer
22
Threaded Connector
23
Brass Nut
24
Spring Washer
25
Washer Plate
26
Silica Gel Washer
27
Ring
28
Washer
Qty
Remark
1
5
1
2
2
2
2
2
1
Jacuzzi Whirlpool Bath: Shower Towers Page 9 FZ71000C • 10/07
INSTALLATION
IMPORTANT: Read all instructions before beginning installation. Consult local codes for requirements.
Each unit arrives ready for installation, completely equipped with plumbing and ttings. Remove the unit from the
carton. Retain the shipping carton until satisfactory inspection of the product has been made.
CAUTION: Do not drop the shower tower. Dropping the unit may damage its appearance and function.
Immediately upon receipt, inspect the unit before installing. Should inspection reveal any damage or defect in the
nish, do not install. Damage or defect to the nish claimed after the unit is installed is excluded from the warranty.
Jacuzzi Whirlpool Bath's responsibility for shipping damage ceases upon delivery of the products in good order to
the carrier. Refer any claims for damage to the carrier. For denitions of warranty coverage and limitations, refer
NOTE: Parts with item number listed are included.
Determine the installation height of the shower tower. The height of the top row of the body jets should be level
with the users’ shoulders. Place a mark on the wall at the top of the unit when the top jets are at the desired
position. Begin installation using the following instructions.
Finish Wall Preparation

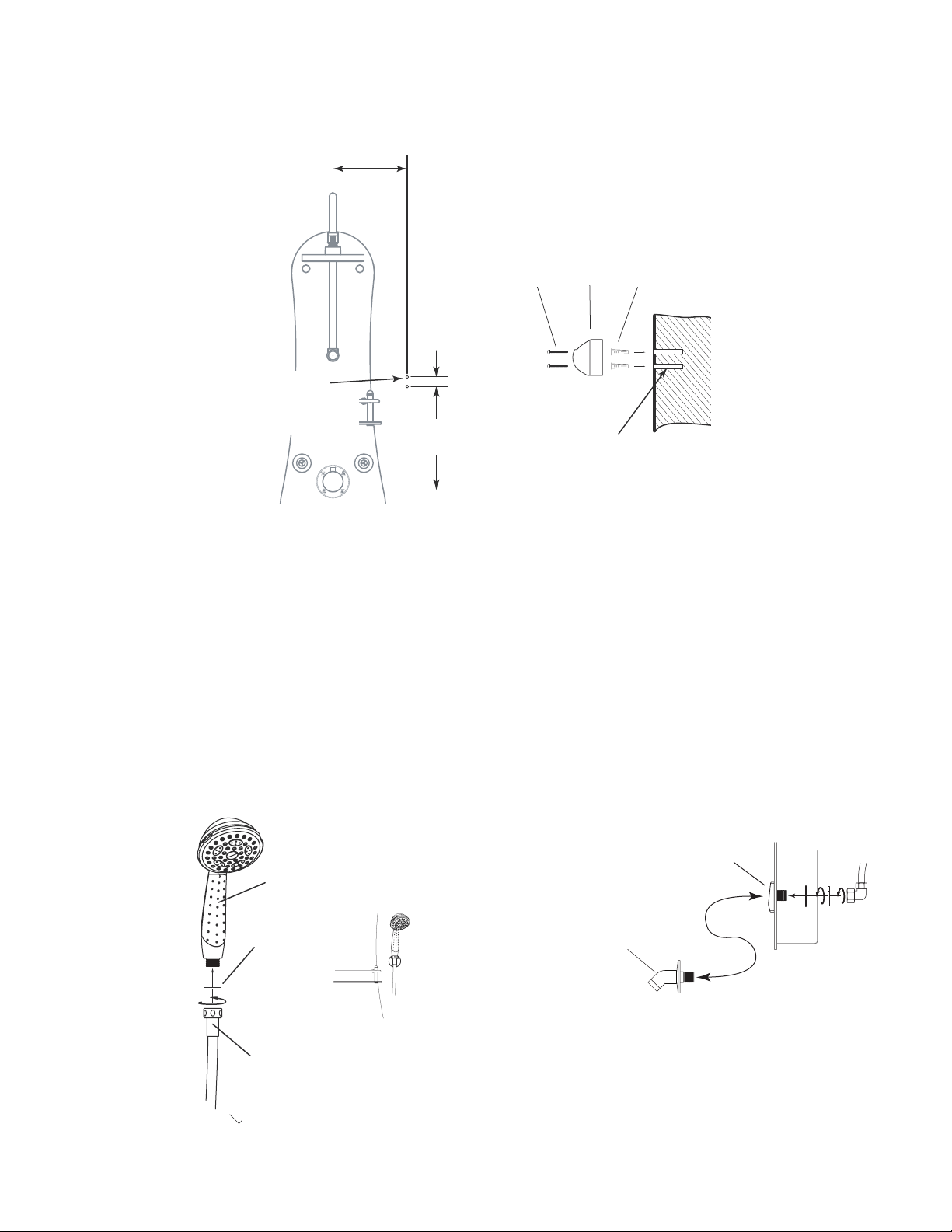

1. Drill three holes 1/4" diameter by 1-3/8” deep in
the wall at the locations and dimensions shown
in Figure 1.
2. Insert plastic anchors (18) into each of the
holes, then mount the wall mount xing rods (7)
to the wall using the M4.2x35mm screws (8),
see Figure 2.
Figure 2
Ovale Onda
- - - - - - - - - - - - - - - - -
A 5-1/8 7-3/16
B 2-3/8 4-1/2
C 33-1/4 46-1/2
D 3-1/2 2-1/4
- - - - - - - - - - - - - - - - Measurements in inches
To
Figure 1
f U
o
p
A
B
it
n
D
NOTE: Figure 3 is for Metallo only.
3. The User can adjust the height. Drill four holes at 1/4" diameter by 1-3/8" deep.
The distance of the holes are 1-3/16" and 35-3/16" apart. Insert the anchor (18)
to the holes. Then use the screw (8) to x the location of the hanger on the wall,
see Figure 3.
Figure 3
1-3/16"
1-3/16"
35"
35-3/16"
C
18
8
7
1-3/16"
Jacuzzi Whirlpool Bath: Shower Towers Page 10 FZ71000C • 10/07
Assemble and Install the Shower Tower
1. Attach the shower arm and prepare the glass shampoo
Figure 4
platform as follows.
a. Attach the shower arm (4) to the front plate (1) with
screw nut (11), see Figure 4. Conrm the screen
4
1
washer at the water inlet tting of the wall mount
shower head (3) is in place and screw the shower
head onto the shower arm by hand. Finally, place
a sealing washer (21) into the end connector of the
11
exible tubing as shown in the Figure, and fasten
the tubing connector to the shower arm.
3
b. Prepare the glass shampoo platform (14) for as-
sembly to the front plate (1), see Figure 5. Insert
the rings (27) and rubber washer (24) into the
1
21
threaded end of the pillar of the glass shampoo
platform (14).
c. Attach the glass shampoo platform (14) onto the front plate using the washer plates (25), spring washers
(24), and brass nuts (23) to fasten the assembly.
d. Place a sealing washer (21) into the hexagon nut of the S.S. exible hose (16), then, attach the hose onto
the threaded connector (22) at the bottom of the back housing (5), see Figure 6.
NOTE: There are ve sealing washers (21). One is for use in the hexagon nut of the S.S. exible hose, another is
used for the hand shower. The remaining three sealing washers are spare parts to be stored for later use.
NOTE: Flush the water lines supply lines to eliminate any construction debris prior to connecting water lines. Ensure
there is no particle contamination on the threaded ends of the water supply pipe. Debris and particles in the water
supply will reduce shower performance.
Parts List
The parts list table common to all Ristorre shower towers is located on Page 9. Please refer to this table for com-
ponent identication of parts list in all Ristorre shower towers.
Figure 5
Figure 6
21
14
27
26
25
23
Cover
6
24
5
Mirror Installation
8
9
22
22
16
Jacuzzi Whirlpool Bath: Shower Towers Page 11 FZ71000C • 10/07
2. Connect 1/2" hoses from the front plate (1) marked in red and blue to
RED AND BLUE WATER SUPPLY LINES
BLUE HOSE
RED HOSE
HOT WATER
SUPPLY
COLD WATER
SUPPLY
the hot and cold water supply’s, respectively, as shown in Figure 7.
NOTE: Do not bend or kink the hoses
Figure 7
when installing. Tighten ttings with a
wrench and test for leaks.
3. Align the three mounting holes of the back
housing (5) and front plate (1) with the three
mounting rods (7) on wall. Fasten the front
plate to the xing rods and attach with the
washers (9) and cap screws (10) provided.
NOTE: Figure 8 shows the hot and cold supply
locations.
7
5
510
9
7
9
10
(1/2" NPT
Thread)
7
Figure 8
Place supply lines
within hatched region
OndaOvale
Place supply lines
within hatched region
Metallo
Place supply
lines
within hatched
region
6.25"
11.00"
6.25"
18.50"
2.00"
6.25"
2.00"
3.50"
Jacuzzi Whirlpool Bath: Shower Towers Page 12 FZ71000C • 10/07
4. Using the dimensions indicated in Figure 9, drill two holes 1/4” diameter by 1-3/8” deep into the wall on the
2"
(23 mm)
9-7/8"
(250 mm)
63"
(1600 mm)
TO FLOOR
2 HOLES
1/4" DIA. (6,4 mm) x
1-3/8 " (35 mm)
DEEP
2 HOLES
1/4" DIA. (6,4 mm) x
1-3/8 " (35 mm)
DEEP
19
16
18
15
21
16
12
right hand side of the shower tower. Insert the plastic anchors (18) into each of the holes, and mount the
bracket (17) onto the wall using the M3.5x25mm Screws (19).
Figure 9
19
17
18
5. Conrm the sealing washer (21) is inside the end of the S.S. exible hose (16). Attach the hand shower (15) onto
the hose by hand and place the hand shower into the bracket as shown in Figure 10.
6. After nishing the installation, the shower tower is ready for use.
7. There is an optional tube-shaped temperature check spout (13) as an alternative to the pre-installed squareshaped temperature check spout (12). To exchange these two components, use a hand wrench (not supplied) to remove the supply hose connecting nut attached to the square-shaped temperature check spout.
Remove the mounting nut of the spout to release it. After that, install the tube-shaped temperature check
spout into the mounting hole and tighten it, and mount it with the supplying hose, see Figure 11.
NOTE: To avoid scratching the front surface, do not turn square spout. Hold and remove washer rather than remove
the square spout.
Figure 10
Jacuzzi Whirlpool Bath: Shower Towers Page 13 FZ71000C • 10/07
Figure 11
12
13
38
OPERATION
1. CONTROL VALVE. The Control Valve consists of three parts, the diverter (20a),
ow control (20b), and thermo-static control (20c).
a. Diverter
The Diverter (20a) works as a function selection. Four icons on the diverter
indicate the function selected. The four icons represent the following four
functions: Hand shower spray , Body jets , Wall mount spray , and
Bath spout .
b. Flow Control
The Flow Control (4b) is located in the center of the Control Valve and is used to
control the water ow volume. Increase the water ow by turning the handle to the
left and decrease by turning to the right.
c. Thermo-Static Control
The thermo-Static Control (20c) is used for setting the water temperature. There are
the “H” and “C” letters, and red and blue colors representing Hot and Cold, respectively.
Users can adjust the water temperature as they want by turning the control handle.
CAUTION: The “38° C” (100° F) mark on the control represents the safety temperature level. If a higher
water temperature is needed, turn the handle left while pressing the red button.
CAUTION: Remember to return the handle to the “38°C” after use at the higher water temperature.
2. BRACKET. Use the wall mounted bracket (16) to hold the hand shower (15) on wall. Select "??" on the Diverter
to activate the hand shower.
20a
20b
20c
Troubleshooting
1. If the water ow rate is reduced or if there is no water ow while using a specic function, dismount the shower
tower and verify the main water supply hoses (blue and red supply lines) or tubing are not bent or kinked.
2. During operation, if only cold or hot water is supplied but no combination, please check to see if the thermo-static
control (20c) is set at the middle level. Also check for bending or kinking in the main cold or hot water supply
lines.
Cleaning
Do not use sand paper, thinner or other corrosive cleaner. Normal non-abrasive household cleaners can be used.
Rinse with water.
Proper installation of the shower tower and compliance with local codes is the responsibility of the installer. Jacuzzi Whirlpool Bath
does not warrant connections of water supply ttings and piping, or ll systems. Nor is it responsible for damage to the shower tower
which occurs during any installation procedure.
PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
USE INSTALLATION INSTRUCTIONS SUPPLIED WITH PRODUCT.
Jacuzzi Whirlpool Bath has obtained applicable code (standards) listings generally available on a national basis for products of this
type. It is the responsibility of the installer/owner to determine specic local code compliance prior to installation of the product.
Jacuzzi Whirlpool Bath makes no representation or warranty regarding, and will not be responsible for any code compliance.
Jacuzzi Whirlpool Bath
14525 Monte Vista Avenue
Chino, California 91710
Customer Service: Call: 1-800-288-4002
Jacuzzi Whirlpool Bath: Shower Towers Page 14 FZ71000C • 10/07
Jacuzzi Whirlpool Bath Limited Warranty
Shower System Product
WARRANTY COVERAGE
Jacuzzi Whirlpool Bath (the “Company”) offers the following express limited warranty to the original purchaser of any Jacuzzi Whirlpool Bath
Shower System product (“unit”) who purchases the product for personal or single family use (“user”). The Company will repair or replace, at its
option, the unit or its equipment in accordance with the following terms and conditions.
ONE YEAR LIMITED WARRANTY ON SHOWER SYSTEM
Our warranty on Shower System products is for one (1) year. Our warranty covers the unit and factory-installed components (e.g., pump, motor)
against defects in material or workmanship. Warranty coverage begins on the date the unit was originally purchased by the user.
NINETY DAY (PARTS ONLY) LIMITED WARRANTY ON OPTIONS AND ACCESSORIES
Our warranty on options and accessories manufactured by the Company is for ninety (90) days for parts only. Our warranty covers options and
accessories manufactured by the Company (e.g., ll spout kits, trim kits, skirts) against defects of material or workmanship. Warranty coverage
begins on the date the option or accessory was originally purchased by the user.
WARRANTY LIMITATIONS
Our warranty does not cover defects, damage, or failure caused by the common carrier, installer, user, or other person, or resulting from, without
limitation, any of the following: careless handling (lifting unit by plumbing, abrading nish, etc.); modication of any type for any reason (including
modication to meet local codes); improper installation (including installation not in accordance with instructions and specications provided with
the unit); connections supplied by the installer of the equipment; improper voltage supply or unauthorized electrical modication; misuse; incorrect operation, or lack of proper routine maintenance; operation of the unit without specied minimum amount of water or at inappropriate water
temperature; use of abrasive or improper cleaners; or acts of God, such as lightning, oods, earthquakes, etc.
In addition, THE COMPANY WILL NOT BE RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES or losses arising from any
cause (e.g., water damage to carpet, ceiling, loss of use, etc.) including its own negligence; damages to, respecting, or resulting from: plated
parts when chemicals are used in the unit; optional equipment not manufactured by the Company, supplied by Dealer, installer or the Company;
the unit's prior usage as an operational display; or defects that should have been discovered before installation. This limited warranty does not
include: labor, transportation, or other costs incurred in the removal and/or reinstallation of the original unit and/or installation of a replacement
unit; any costs relating to obtaining access for repair; or loss of use damage, including loss of sales, prot or business advantage of any kind
under any circumstances. Units in commercial use are excluded from any warranty coverage whatsoever.
Warranty coverage is provided in the United States of America only.
IMPLIED WARRANTIES
All implied warranties of merchantability and tness for a particular purpose are equal in duration with the express warranties set forth herein.
NOTICE: This warranty gives you specic legal rights, and you may also have other rights which vary from state to state. There are no warranties
applicable to Jacuzzi Whirlpool Bath products except as expressly stated herein or as implied by applicable state and federal laws. The Company
will not be responsible for any statements or representations made in any form that go beyond, are broader than or are inconsistent with any
authorized literature or specications furnished by the Company.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages,
so the above limitations and exclusions may not apply to you.
RETURN OF WARRANTY CARD
The attached pre-addressed Warranty Registration Card MUST be lled out by the purchaser within thirty (30) days from purchase and mailed
to Jacuzzi Whirlpool Bath in order for this warranty to become effective.
Jacuzzi Whirlpool Bath
14525 Monte Vista Avenue
Chino, California 91710
RESPONSIBILITIES OF OTHERS
Inspecting the unit prior to installation is the responsibility of the installer or building contractor who acts on behalf of the user. They are responsible
for ensuring the unit is free of defect or damage. Notices are placed on and in the unit and on the shipping carton advising the installer of this
responsibility. In the event of a problem, the unit must not be installed. The Company is not responsible for failures or damage that could have
been discovered, repaired, or avoided by proper inspection and testing prior to installation.
Damage occurring in transit is the responsibility of the carrier. The user or installer MUST open the crates and inspect the unit for damage when it
is delivered. If damage is discovered, it must be reported immediately to the seller and the carrier in writing, and an inspection requested. Failure
of the carrier to respond should be reported to the seller and the carrier. Your freight claims should be led promptly thereafter.
It is the responsibility of the installer, building contractor, or user to provide access for service. The Company is not responsible for any costs
relating to obtaining access for repair. The user shall bear such costs and, if appropriate, must seek recovery from the installer.
Damage occurring to the unit during installation is the responsibility of the installer and/or building contractor and damage occurring thereafter
is the responsibility of the user.
Failure of any optional equipment is the sole responsibility of the equipment manufacturer. (Options and accessories manufactured by the Company are warranted for ninety (90) days from the original date of purchase for parts only.)
The Distributor or Dealer is responsible for knowing local code requirements and notifying the installing contractor and/or user of these requirements at the time of purchase. The Company is not responsible for costs to modify any product to obtain any code approval, such as city, county,
or state building codes.
WARRANTY SERVICE
For the customer's benet, the Company maintains a list of independent service personnel to perform required warranty service repairs. Such
rms are not agents or representatives of the Company and cannot bind the Company by words or conduct.
The Company will provide the warranty service described above when the following conditions have been met: the failure is of the nature or type
covered by the warranty; the user has informed an Authorized Jacuzzi Whirlpool Bath Service Agent or Warranty Service Department Representative of the nature of the problem during the warranty period; conclusive evidence (e.g., proof of purchase or installation) is provided to the
foregoing by the user proving that the failure occurred or was discovered within the warranty period; an authorized independent service person
or Company representative has been permitted to inspect the unit during regular business hours within a reasonable time after the problem was
reported by the user.
In order to obtain warranty service, consult your local telephone book for the location of the nearest Jacuzzi Whirlpool Bath Authorized Service
Agent. Describe the problem and the Authorized Service Agent will inspect the unit and provide the required warranty service.
If you are unable to contact a Jacuzzi Whirlpool Bath Authorized Service Agent, call or write:
Jacuzzi Whirlpool Bath
Warranty Service Department
14525 Monte Vista Avenue
Chino, California 91710
Call: 1-800-288-4002
To obtain warranty replacement for factory-installed components or Company supplied options and accessories manufactured and supplied by the Company, call or write the above. Provide a description of the problem and proof of purchase.
You will be instructed how to obtain replacements and where to return, at your expense, the failed component(s), option(s),
Limited Warranty
Accessory(ies)
Parts Only
On
or accessory(ies).
Ninety-Day
All replacement parts, equipment, and repairs shall assume the remaining warranty period of the part(s) replaced. The
Company's warranty obligation shall be discharged upon tender of replacement or repair. The customer's refusal to accept
the tender terminates the Company's warranty obligation.
JACUZZI WHIRLPOOL BATH
Jacuzzi® is a Federally registered trademark owned by Jacuzzi Inc. ©Copyright 1991 Jacuzzi Whirlpool Bath, FZ71000C • 10-07
Limited Warranty
Accessory(ies)
Parts Only
On
FZ71000C
( ) Not aware ( ) Somewhat aware ( ) Very aware
prior to your purchase?
Ninety-Day
5. Who installed? ( ) Already installed/New Home
( ) Contractor/Plumber when remodeling
( ) Self/Spouse when remodeling
( ) Other _____________________________________________
6. What is the current market value of this property?
Please estimate $________________________________________
7. What is the age of the head of the household? _____________ years
8. What other manufacturers did you consider?
( ) Eljer ( ) Lasco ( ) Price Pster ( ) Aqua Glass
( ) Kohler ( ) American Standard ( ) Sterling
( ) Other (Specify) ______________________________________
9. How long did you shop before purchasing unit?
( ) 1 day ( ) 2 months - 6 months
( ) 2 - 7 days ( ) 6 months - 1 year
( ) 1 week - 2 weeks ( ) 1 year - 2 years
( ) 2 weeks - 4 weeks ( ) +2 years
( ) 1 month - 2 months
10. Approximately how long have you lived in this home?____________
11. Please indicate, approximately, the total annual income of your house-
( ) Up to $24,999 ( ) $50,000 to $74,999
( ) $25,000 to $29,999 ( ) $75,000 to $99,999
( ) $30,000 to $39,999 ( ) $100,000 to $149,999
( ) $40,000 to $49,999 ( ) $150,000 and Above
12. Was your purchase process?
( ) Very easy ( ) Easy ( ) Difcult ( ) Very Difcult
13. How technically aware were you of the patented Jacuzzi® jet system
hold.
( ) Builder/Plumber/Remodeler ( ) Decorator/Architect
( ) Visited Retailer/Home Center Store
( ) Word of Mouth . . . Friend/Relative/Acquaintance
( ) Other (Please Describe) ________________________________
2. Who rst gave you specic information about this product (specications,
( ) Dealer/Plumbing Supplier ( ) Builder ( ) Remodeler
( ) Plumbing Contractor ( ) Retailer/Home Center Store
( ) Decorator/Architect ( ) Already Installed
3. What was the main reason for purchase?
( ) Styling ( ) Warranty Service ( ) Product Features
( ) Brand Name ( ) Price ( ) Hydrotherapy
( ) Home Resale _______________________________________
( ) Other _____________________________________________
4. Who nally decided which product you would buy?
( ) Self ( ) Spouse ( ) Self and Spouse Together
( ) Other Family Member ( ) Designer/Architect
( ) Builder/Plumber/Remodeler ( ) Already Installed
prices, etc.)?
This card must be lled out and returned to the address printed on the other
side within thirty (30) days from date of purchase in order for this warranty to be
come effective.
Purchaser's Name __________________________________________
Purchaser's Address ________________________________________
City _____________________________ State ______Zip _________
Date of Purchase ___________________________________________
Model Name ______________________________________________
Serial Number _____________________________________________
Dealer's Name _____________________________________________
Dealer's Address ___________________________________________
1. How did you rst hear about this Jacuzzi® product?
( ) Advertisement ( ) Article in Magazine/Newspaper
( ) Visited Dealer/Plumbing Supplier ( ) Yellow Pages
Warranty
Registration Card
Loading...
