capella® 60 corner pure air® II bath w/integral skirt
to the Italians, “la capella”—the chapel—is a sacred place. step into our capella® pure air® II, and you’ll understand.
The Capella’s® unique corner confi guration
allows for roomy relaxation.
features:
• Exclusive 360º Balanced Airfl ow™ system
• 600 watt variable speed heated air blower
• Thermal Lumbar Comfort™ (TLC)
• Timed purge cycle
• Safely use salts and aromatic oils
• PrO3™ Sanitation System
capella® 60 pure air® II
(with integral skirt)
model number: EA20
exterior dimensions:
60" long x 60" wide x 20½" high
interior dimensions:
50" long x 34" wide(mid) x 18" wide(end)
operating gallons:
73 gallons
Capella® 60 Corner Pure Air® II Bath w/Integral Skirt
Ordering Information
Product Code:
EA20 Capella® 60 Corner Pure Air®
II Bath w/ Integral Skirt RightHand
• Center Drain Location
• Accessories / Hardware:
Trip-Lever Drain Kit: #X559
Rotary Drain Kit, 26” Cable: #8730
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze

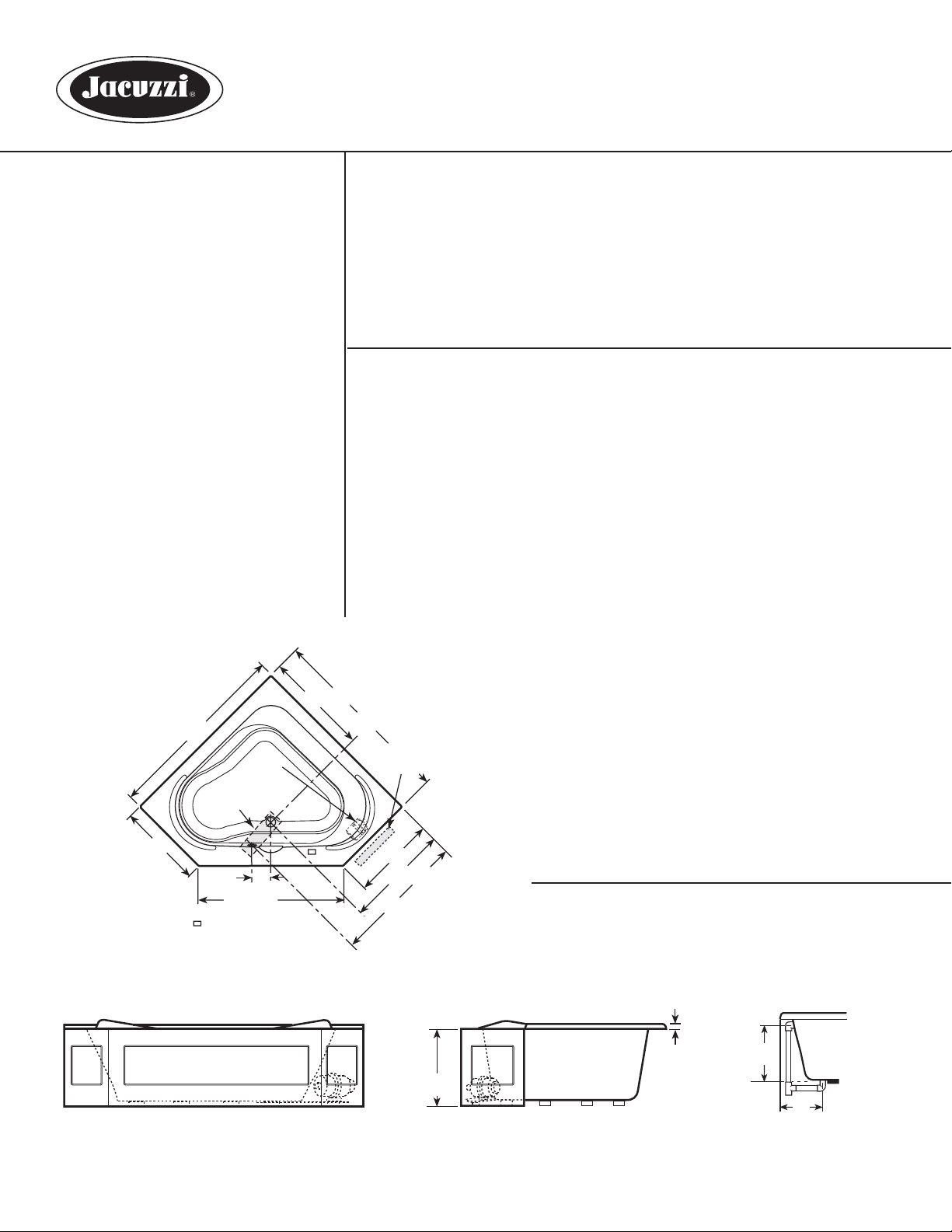

90˚
60"
Blower
90˚
27"
14" X 4"*
6"
46-5/8"
- Junction Box
33-1/2"
Model: EA20
Installation Notes
Refer to installation instructions included with fi xture before beginning installation.
Please confi rm product availability and specifi cations before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Technical Specifi cations
Dimensions
60” L x 60” L x 20-1/2” H
(1524 mm) L x (1524 mm) L x (521 mm) H
Drain/Overfl ow
A: 18” (457 mm) B: 12-1/8” (308 mm)
Cutout
NA
Total Weight
1217 lb (552 kg) / 56.8 lb/ft2 (277 kg/m2)
Operating Gallonage
73 U.S. Gal. (276 Liters),
Min. 55 U.S. Gal. (208 Liters)
Max. 90 U.S. Gal. (341 Liters)
Product Weight
170 lb (77 kg)
60"
12" H x 18" L
Service Access
90˚
27"
34-15/16"
43-1/8"
Skirt Mounting
Integral
Electrical Specifi cations
Requires a dedicated GFCI protected separate circuit.
Blower: 120 VAC, 15 AMP, 60 Hz.
Heater
No water heater is available on this unit. Blower has integral air heater.
Product Shown: Capella® 60 Cor ner Pure Air II Bath with Integral Sk irt Model: EA20
* Measurements inside unit represent cutout in fl oor to allow for drain/overfl ow.
Minimum Service Access dimensions given.
FRONT VIEW
# FQ89 06/07
© Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino • CA • 91710 • www.jacuzzi.com
20-1/2"
SIDE VIEW
1"
(25 mm)
A
B
DRAIN/OVERFLOW
