Jacuzzi DT10 User Manual

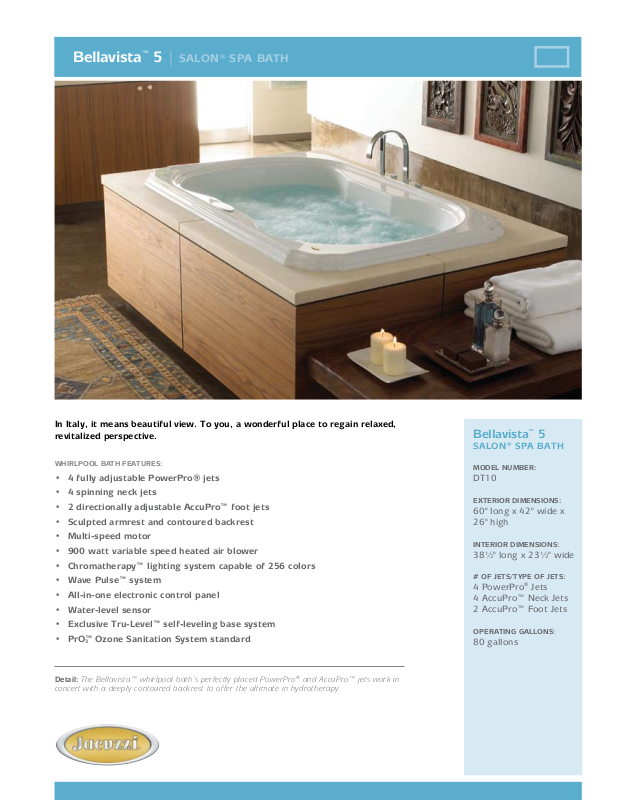

Bellavista™ 5 | SALON
®
SPA BATH
In Italy, it means beautiful view. To you, a wonderful place to regain relaxed,
revitalized perspective.
WHIRLPOOL BATH FEATURES:
• 4 fully adjustable PowerPro® jets
• 4 spinning neck jets
• 2 directionally adjustable AccuPro™ foot jets
• Sculpted armrest and contoured backrest
• Multi-speed motor
• 900 watt variable speed heated air blower
• Chromatherapy™ lighting system capable of 256 colors
• Wave Pulse™ system
• All-in-one electronic control panel
• Water-level sensor
• Exclusive Tru-Level™ self-leveling base system
• PrO
Detail:
concert with a deeply contoured backrest to offer the ultimate in hydrotherapy.
™ Ozone Sanitation System standard
3
The Bellavista™ whirlpool bath’s perfectly placed PowerPro® and AccuPro™ jets work in
Bellavista™ 5
SALON® SPA BATH
MODEL NUMBER:
DT10
EXTERIOR DIMENSIONS:
60" long x 42" wide x
26" high
INTERIOR DIMENSIONS:
38½" long x 23½" wide
# OF JETS/TYPE OF JETS:
4 PowerPro® Jets
4 AccuPro™ Neck Jets
2 AccuPro™ Foot Jets
OPERATING GALLONS:
80 gallons
Bellavista™ 5
7"
32-1/2"
11-3/
4
6"
30-1/
8
42"
60"
4" x 4"
Motor
12" H x 24" L
Service Access
Heater
Blower
END VIEW
SIDE VIEW
2"
(Heater)
(Motor)
(51 mm)
(Blower)
60"
42"
26"
DRAIN/OVERFLOW
A
B
SA LON ® S PA BATH
DT10
Bellavista™ 5 Salon® Spa, Right Hand
• Center Drain Location
• Accessories / Hardware:
PowerPro™ Jet Rings Kit: #M952
AccuPro™ Jet Rings Kit: #P556
2 x Neck Jet Rings Kit: #P556
Rotary Drain Kit, 26” Cable: #8730
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze
Product Shown: Bellavista® 5 Salon® Spa Right
Hand (DT10) Shown.
* Measurements inside unit represent cutout in
floor to allow for drain/overflow.
Minimum Service Access dimensions given.
INSTALLATION NOTES
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILIT Y ARE SUBJECT
TO CHANGE WITHOUT NOTICE.
Technical Specifications
DIMENSIONS
60” L x 42” W x 26” H
(1524 mm) L x (1067 mm) W x (660 mm) H
DRAIN/OVERFLOW
A: 20” (508 mm) B: 11-3/4” (298 mm)
CUTOUT
Template Provided P/N P187000
TOTAL WEIGHT
1025 lb (465 kg) / 59 lb/ft2 (288 kg/m2)
OPERATING GALLONAGE
80 U.S. Gal. (303 Liters)
PRODUCT WEIGHT
157 lb (71 kg)
SKIRT MOUNTING
Not Available
ELECTRICAL SPECIFICATIONS
Requires a dedicated GFCI protected separate circuit.
Blower: 120VAC, 20AMP, 60 Hz.
Motor/Pump and RapidHeat™: 240VAC, 20AMP, 60 Hz.
HEATER (STANDARD)
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N BN60000
