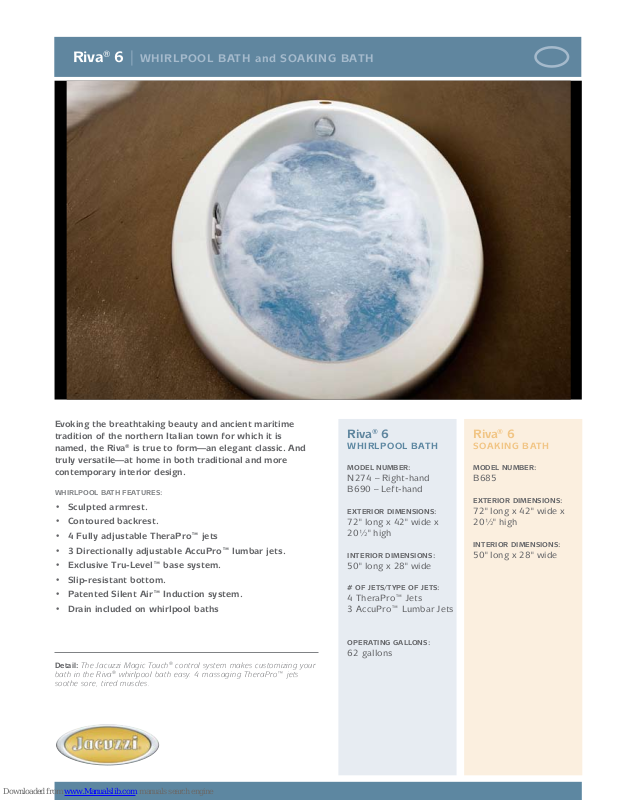

Jacuzzi Riva 6 Whirlpool Bath and Soaking Bath B685, B690, Riva 6, N274 Specification Sheet
Riva® 6 | WHIRLPOOL BATH and SOAKING BATH
Evoking the breathtaking beauty and ancient maritime
tradition of the northern Italian town for which it is
named, the Riva
®
is true to form—an elegant classic. And
truly versatile—at home in both traditional and more
contemporary interior design.
WHIRLPOOL BATH FEATURES:
• Sculpted armrest.
• Contoured backrest.
• 4 Fully adjustable TheraPro™ jets
• 3 Directionally adjustable AccuPro™ lumbar jets.
• Exclusive Tru-Level™ base system.
• Slip-resistant bottom.
• Patented Silent Air™ Induction system.
• Drain included on whirlpool baths
Detail:
The Jacuzzi Magic Touch® control system makes customizing your
bath in the Riva® whirlpool bath easy. 4 massaging TheraPro™ jets
soothe sore, tired muscles.
Riva® 6
WHIRLPOOL BATH
MODEL NUMBER:
N274 – Right-hand
B690 – Left-hand
EXTERIOR DIMENSIONS:
72" long x 42" wide x
20½" high
INTERIOR DIMENSIONS:
50" long x 28" wide
# OF JETS/TYPE OF JETS:
4 TheraPro™ Jets
3 AccuPro™ Lumbar Jets
OPERATING GALLONS:
62 gallons
Riva® 6
SOAKING BATH
MODEL NUMBER:
B685
EXTERIOR DIMENSIONS:
72" long x 42" wide x
20½" high
INTERIOR DIMENSIONS:
50" long x 28" wide
Riva® 6
72"
21"
42"
2"
14" x 4"
11-1/2"
Motor
12" H x 18" L
Service Access
6-7/8"
SIDE VIEW
W
H
2''
L
END VIEW
DRAIN/OVERFLOW
A
B
WHIRLPOOL BATH
N274
Riva™ 6 Whirlpool Bath, Right Hand
B690
Riva™ 6 Whirlpool Bath, Left Hand
Riva® 6
SOAKER BATH
B685
Riva™ 6 Bath
INSTALLATION NOTES
Refer to installation instructions included with xture before
beginning installation. Please conrm product availability and
specications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT
TO CHANGE WITHOUT NOTICE.
• Right and Left Hand Drain Location
• Accessories / Hardware:
4 XHTC Jet Trim Kit: #D095
2 X BMH Jet Trim Kit: #J869
Trip-Lever Drain Kit: #X559
Rotary Drain Kit, 26” Cable: #8730
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze
Product Shown: Riva™ 6 Whirlpool Bath
Left Hand Shown Model: B690
* Measurements inside unit represent
cutout in floor to allow for drain/overflow.
Minimum Service Access dimensions given.
Electrical Components and Electrical Specifications do not apply
to non-jetted baths.
Technical Specifications
DIMENSIONS
72” L x 42” W x 20-1/2” H
(1829 mm) L x (1067 mm) W x (521 mm) H
DRAIN/OVERFLOW
A: 16” (406 mm) B: 11-1/2” (292 mm)
CUTOUT
Template Provided Part Number: P186000
TOTAL WEIGHT
B690, N274: 871 lb (395 kg) / 42 lb/sq. ft. (203 kg/m2)
B685: 840 lb (381 kg) / 40 lb/sq. ft. (195 kg/m2)
OPERATING GALLONAGE
62 U.S. Gal. (235 Liters)
Max. 77 U.S. Gal. (291 Liters)
PRODUCT WEIGHT
B690, N274: 105 lb (48 kg)
B685: 74 lb (34 kg)
SKIRT MOUNTING
Not Available
ELECTRICAL SPECIFICATIONS MODELS B690, N274 ONLY
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
HEATER (OPTIONAL) MODELS B690, N274 ONLY
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000
