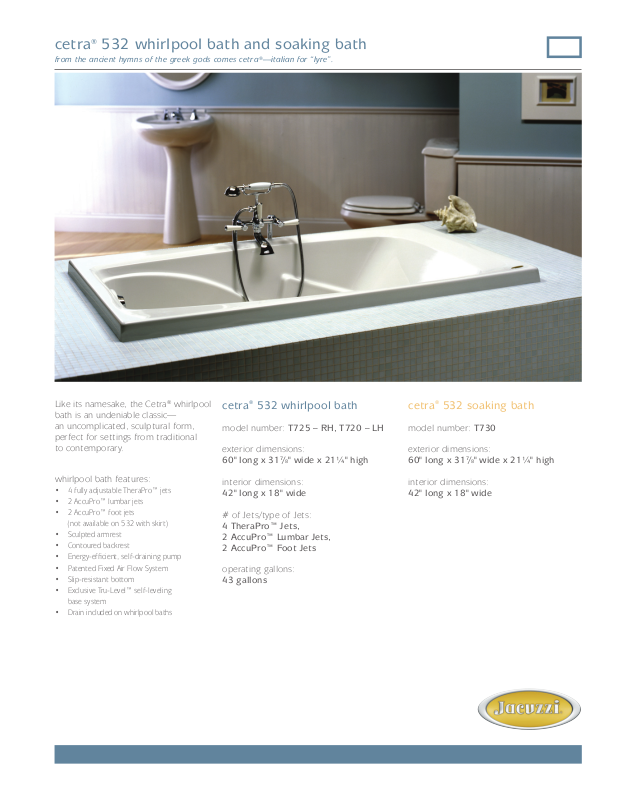

cetra
from the ancient hymns of the greek gods comes cetra®—italian for “lyre”.
®
532 whirlpool bath and soaking bath
Like its namesake, the Cetra® whirlpool
bath is an undeniable classic—
an uncomplicated, sculptural form,
perfect for settings from traditional
to contemporary.
whirlpool bath features:
• 4 fully adjustable TheraPro™ jets
• 2 AccuPro™ lumbar jets
• 2 AccuPro™ foot jets
(not available on 532 with skirt)
• Sculpted armrest
• Contoured backrest
• Energy-effi cient, self-draining pump
• Patented Fixed Air Flow System
• Slip-resistant bottom
• Exclusive Tru-Level™ self-leveling
base system
• Drain included on whirlpool baths
cetra® 532 whirlpool bath
model number: T725 – RH, T720 – LH
exterior dimensions:
60" long x 317/8" wide x 21¼" high
interior dimensions:
42" long x 18" wide
# of Jets/type of Jets:
4 TheraPro™ Jets,
2 AccuPro™ Lumbar Jets,
2 AccuPro™ Foot Jets
operating gallons:
43 gallons
cetra® 532 soaking bath
model number: T730
exterior dimensions:
60" long x 317/8" wide x 21¼" high
interior dimensions:
42" long x 18" wide
Cetra® 532 Whirlpool Bath
Model: T720, T725
Cetra® 532 Bath
Model: T730
Ordering Information
Product Code:
T725 Cetra® 532 Whirlpool Bath
Installation Notes
Refer to installation instructions included with fi xture before beginning installation.
Please confi rm product availability and specifi cations before commencing with any
installation work.
Right Hand
T720 Cetra® 532 Whirlpool Bath
Left Hand
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
T730 Cetra® 532 Bath
• Right and Left Hand Drain Location
• Accessories / Hardware:
TheraPro™ Jet Rings Kit #D095
AccuPro™ Jet Rings Kit #P556
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze
*60"
12" x 4"
32"
Motor
16"
5-3/4"
2"
Opt. Service Access
9"
Product Shown: Cetra® 532 Whirlpool Bath Left Hand Model: T720
* Measurements inside unit represent cutout in fl oor to allow for drain/overfl ow.
Minimum Service Access dimensions given.
12" H x 18" L
Service Access
Technical Specifi cations
Dimensions
60” L x 31-7/8” W x 21-1/4” H
(1524 mm) L x (810 mm) W x (540 mm) H
Drain/Overfl ow
A: 18-1/2” (470 mm) B: 9” (229 mm)
Cutout
58” x 30-1/4”
Total Weight
T720, T725: 697 lb (316 kg) / 53 lb/sq. ft. (256 kg/sq. m)
T730: 663 lb (301 kg) / 50 lb/sq. ft. (244 kg/sq. m)
Operating Gallonage
43 U.S. Gal. (163 Liters)
Max. 57 U.S. Gal. (216 Liters)
Product Weight
T720, T725: 89 lb (40 kg)
T730: 55 lb (25 kg)
Skirt Mounting
Optional U-Frame
Electrical Specifi cations
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
Rapid Heat: 120 VAC, 15 AMP, 60 Hz.
Heater (Optional) Models T720, T725 only
Requires a dedicated GFCI protected separate circuit.
Rapid Heat: P/N S750000
#FR27 06/07
L
2"
SIDE VIEW
© Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino • CA • 91710 • www.jacuzzi.com
H
END VIEW
W
A
DRAIN/OVERFLOW
B
