JACTO SP 312 / SP 416

Operator´s manual

English version / MI_USA - 0474

Edition: 09/2012

Code: 1177038

MÁQUINAS AGRÍCOLAS JACTO S.A. shall warrant the equipment described in this manual and shall repair or replace parts and components which, under normal operation and wear, in accordance with technical recommendations, show DEFECTS IN MATERIAL OR WORKMANSHIP, based on the following conditions.

WARRANT Y PERIOD

∙

01 (one) year from the date of sale to the original purchaser.

WARRANTY APPLICATION

∙

JACTO shall honor this warranty, free of charge, if any part or component shows defect

in MATERIAL OR WORKMANSHIP, after final analysis at the factory.

THIS WARRANTY SHALL BE NULL & VOID IN CASE OF:

∙

Misuse of the equipment against specifications in the OPERATOR'S MANUAL, overwork

or accidents. Preventive/remedial maintenance performed by unauthorized people.

∙

Use of parts and components not supplied by JACTO. Modification of the equipment

or any characteristic of the original design.

THIS WARRANTY SHALL EXCLUDE:

∙

Parts which show wear and tear due to use, UNLESS THEY SHOW DEFECTS IN

WORKMANSHIP, ASSEMBLY OR MATERIAL.

∙

Damages resulting from accidents.

∙

Transportation or freight of the equipment, parts and components in case such warranty is

not approved.

GENERAL INFORMATION:

∙

Parts replaced within the warranty period shall be property of JACTO.

∙

The warranty on replaced parts and components shall expire together with the equi-

pment warranty period.

∙

Eventual delays in performing services shall not give the owner right either to indemnity

or to extension of the warranty period.

∙

JACTO reserves the right to modify its products or to interrupt the manufacture without prior

notice.

Statement of limited

Jacto SP 312 / SP 416

Page 2

Jacto SP 312 / SP 416

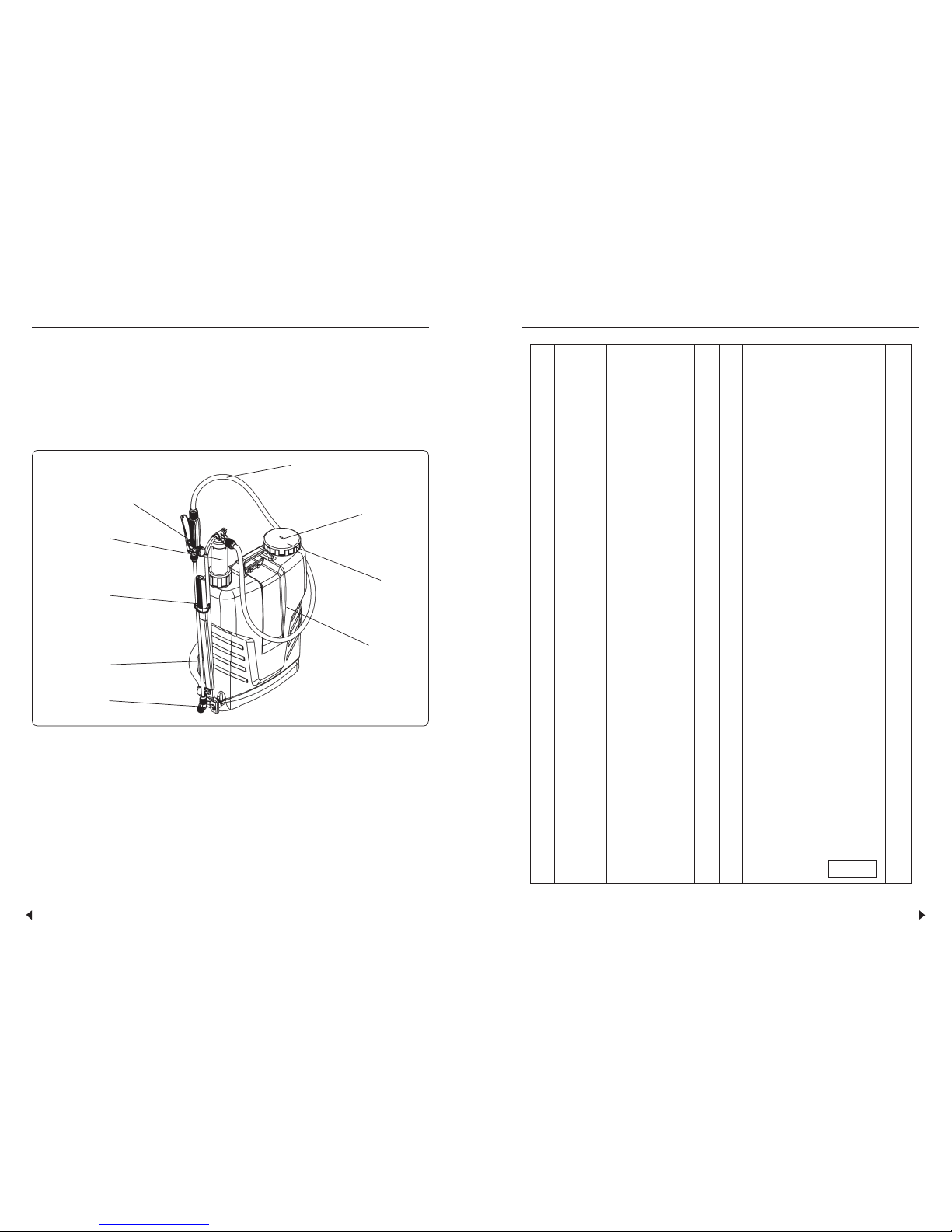

Tank

Lever

Lance

Trigger valve

Diaphragm

Chamber

Nozzle

Lid

This manual contains information for

the proper assembly, operation and care of your sprayer.

Carefully read and follow the instructions contained in this manual before

using your sprayer.

Hose

∙ Model ..........SP 312-SP 416

∙ Net weight ..7.7 / 7.9 Lbs

∙ Tank

Capacity .........3 / 4 (Gallons)

Material

..........

Polyethylene

Fill opening Ø

...3.9 inches

∙ Pump

Type ............... Piston

Material ..........

High Density Polypropylene

Pressure ...........130 psi

∙ Lance length. 23.6 inches

∙ Hose length ..65 inches

∙ Nozzle fitted..Blue adjustable cone

Introduction

> Presentation of the sprayer

> Specications

P/N

DESCRIPTION

Qty

P/N

DESCRIPTION

Qty

1 1198800 Washers and cotter

pins set (repair) 1

2 1168408 Gasket holder SP 1 3 1168409 Gasket (felt) 1 4 1168407 Piston cup

(Santoprene™) 1

5 1168406 Chamber with

piston cup 1

6 323576 O-ring ORi-033 1 7 1168405 Chamber cylinder 1 8 358234 Stainless steel

ball 1/2” 1

9 560573 Lid diaphragm 1

10 1168411

Lid with diaphragm SP

1 11 1168414 Strainer SP 1 12 1168396 Tank base 1 13 1168397 Base lock 1 14 1176796

Tank SP 312 with lock

14A 1176808

Tank SP 416 with lock

1 15 883108 Axle with lock 1 16 1198602

Pumping rod (black)

17 1194579

Handgrip assembly

18 661363 Lever

assembly (black) 1

19 635664 Strap lock 1 20 1176504

Complete strap SP (soft shouder pad) 1

21 942193 Screw cap S20 2 22 1168403 Hose assembly SP 1 23 1168418 Filter LP-3 1

24 502757 Strap buckle 2 25 1168420 Trigger valve body

LP-3 1

26 1168421 Lever assembly

LP-3 1

27 1168422 Trigger valve LP-3

complete 1

28 1168419

Trigger valve assembly LP-3 1

29 909309 Cone packing 2

30 635276 Elbow with cone

packing

1 31 1168423 Lance LP-3 1 32 1180613 Spring 1 33 592139 Nozzle filter (40 mesh) 1 34 325787 Blue adjustable

cone nozzle 1

35 1185540 Lance LP-3 (complete) 1 36 942201 Outlet tube 2 37 231845 O-ring 110 2 38 229732 Trigger valve cap 1 39 229781 O-ring 019 1 40 915744 Screw cap 2 41 1167985 Lance tube LP-3 1

LLM-359

Parts list

Page 3

Jacto SP 312 / SP 416

Parts list

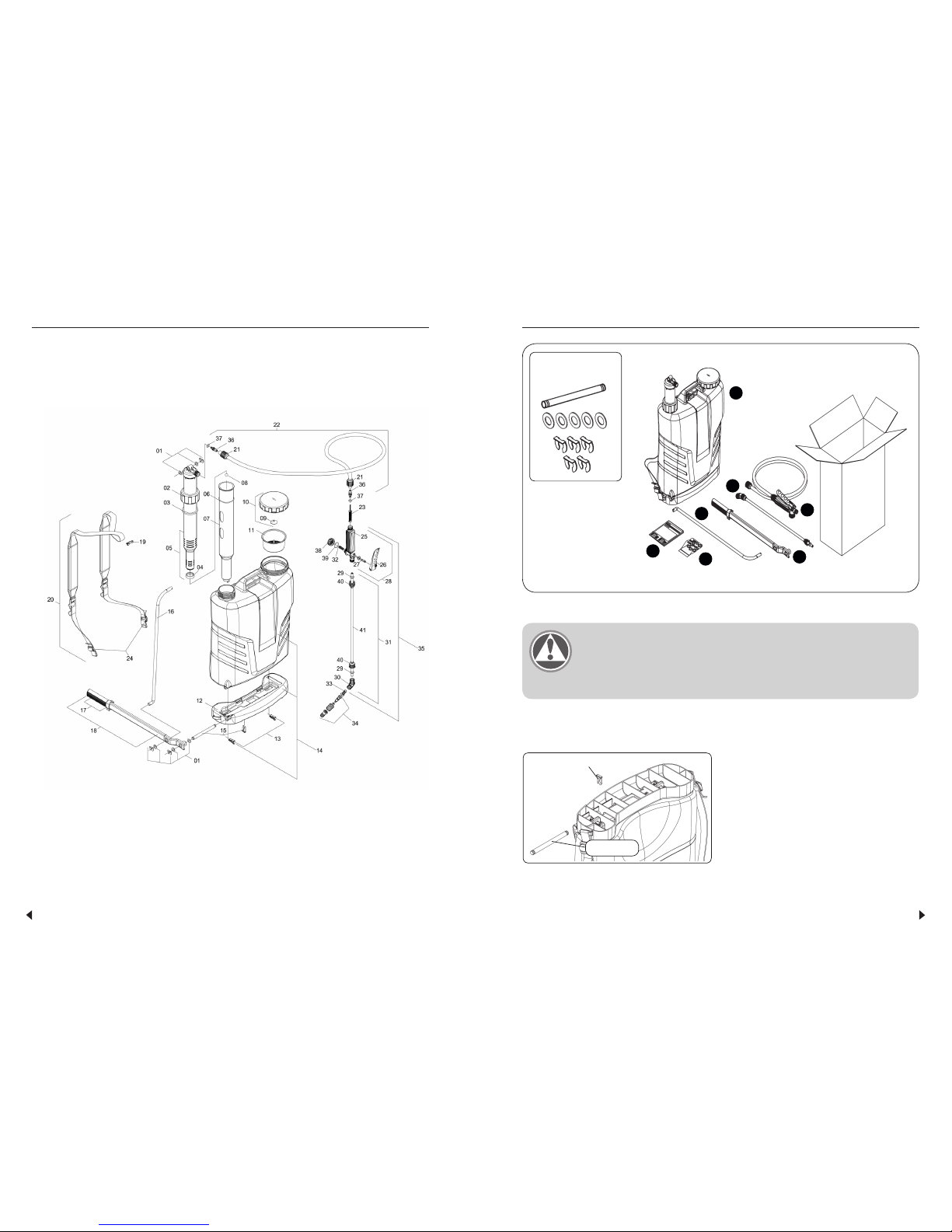

Contents of the

assembly bag

1∙ Assembly bag 2∙ Lever 3∙ Lance 4∙ Rod 5∙ Trigger valve 6∙ Manual 7∙ Tank

Shaft lock (2)

Install the shaft (1) in the free opening on the tank base (on the same side of

the chamber). Install the shaft lock (2).

Shaft (1)

Assembly

> Installing the shaft

ATTENTION!

Be careful when taking the sprayer out of the carton because the lever is shipped loose and can cause damage.

Page 4

Jacto SP 312 / SP 416

Assembly

Optional accessories

Rod

Lever

Shaft

Locked rings

Flat washers

Locked ring

* Do not overtighten the screw cap.

1∙ Lance

2∙ Trigger valve

Push the lance into the trigger valve and secure it with the screw cap.

Before using the equipment, tighten the fastening nut (A).

IMPORTANT: This operation must be done by the hand. Do not use any type of tool.

> Attaching the lance to the trigger valve

> Tightening the fastening nut

Item

number

Part

number

Recommended use

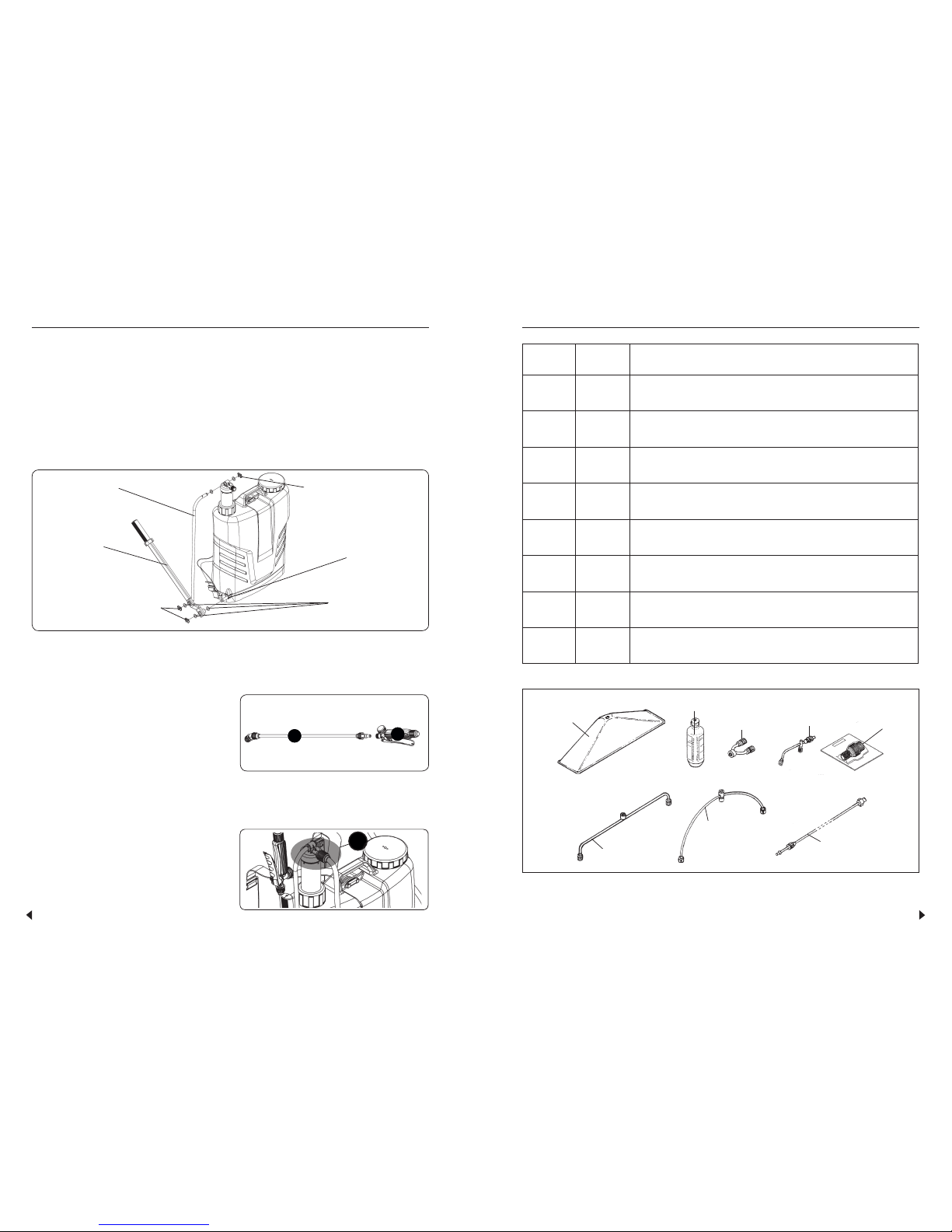

01 761882

Spray hood: prevents nonselective herbicides from drifting.

02 902296

Boom 500: improves the coverage and increases the productivity.

03 907873

Flexible boom: holds the required shape for better coverage.

04 728139 Wand extension 600

05 100016 Double nozzle holder

06 834309

Flow calibration bottle

07 336115 Y nozzle

1197164 1197163

Ecovalve: Green (1,0 kgf/cm2) Ecovalve: Blue (2,0 kgf/cm2)

∙ L

ightly grease the orifice on the chamber

top.

∙ Install a flat washer on the shaft and

rod.

∙ For easy assembly, install the lever on

the shaft and the rod on the chamber top at the same time.

∙ Install the other flat washers on the

shaft rod and lock with the locked ring.

> Installing the pump lever

Page 5

Jacto SP 312 / SP 416

Assembly

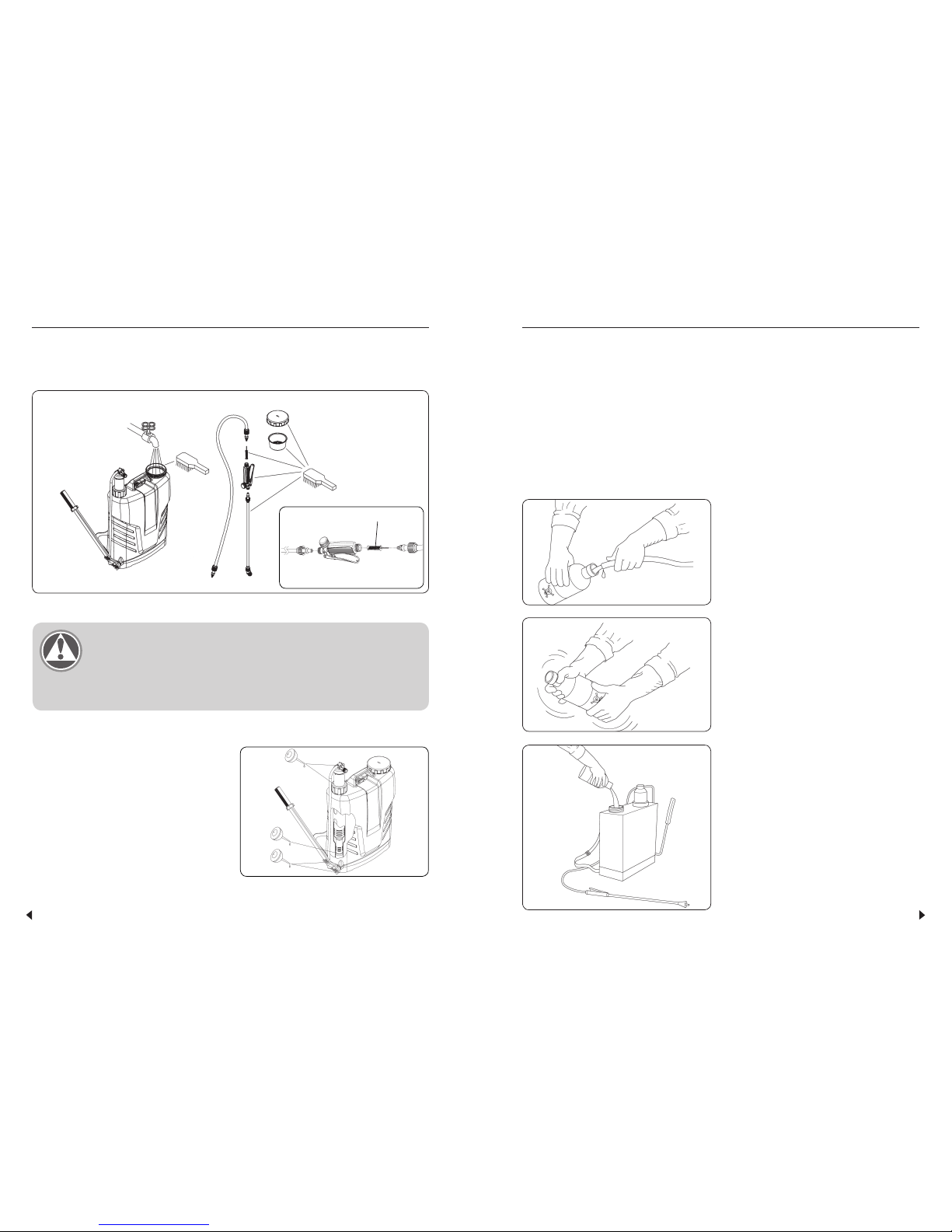

Triple wash containers

Handle

Buckle

TIGHTENING

Hold the strap buckle firmly with one hand, and pull the handle downward with the other hand.

LOOSENING

Hold the buckle firmly with one hand, and pull the strap upward with the other hand.

5∙ Continue holding the container over

the spray tank opening for approximately 30 seconds or until it stops dripping.

6∙ REPEAT this operation twice more.

This way you complete the TRIPLE WASH.

7∙ Make the plastic and metallic

containers useless by piercing the containers bottom with a pointed instrument. By doing this the labels are not damaged for identification purposes.

8∙ The useless containers can be

stored temporarily in an appropriate place, until final destination.

9∙ With mid and large size container

(15, 25 and 50 gallons), add appropriate volume (1/4 of the total) of water and install the cap, roll it on the ground for approximately 30 seconds.

10∙ Next in the upright position complete the agitation by moving back and forth for approximately 30 seconds.

11∙ Then, empty the container by

pouring the rinse water into the spray tank.

12∙ REPEAT this operation twice more.

At the last time, completely empty the containers rinse.

13∙ The least amount of rinse water

that remains in the container, from one wash to the next, the better descontamination will be.

14∙ When performing the TRIPLE

WASH, do not use a water volume either much lower or much higher than 1/4 of the container capacity.

15∙ The TRIPLE WASH must be done

IMMEDIATELY AFTER emptying the container, during the preparation of the solution.

SOURCE - ANDEF (NATIONAL ASSOCIATION OF VEGETAL DEFENSE - BRAZIL)

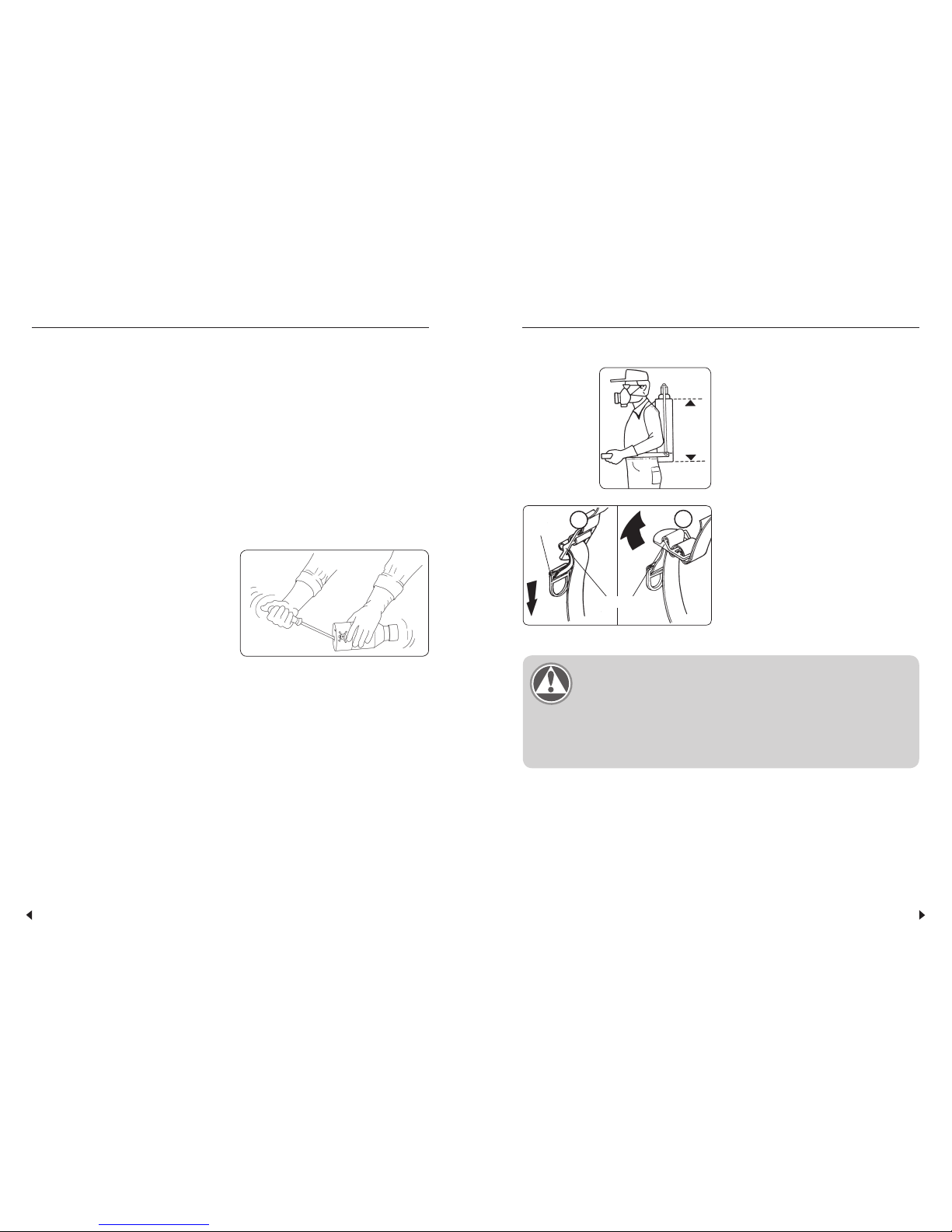

The tank is contoured for the operator comfort. The shoulder straps can be quickly adjusted to properly position the sprayer on the operator's back.

> Adjusting the shoulder strap

ATTENTION!

After assembling the sprayer, fill the tank with clean water and pressure-check the tank lid, diaphragm, tank bottom, lance and trigger valve for leaks. Most leaks can be stopped by retightening the appropriate connections and fittings. Any leakage must be repaired before returning to service

Page 6

Jacto SP 312 / SP 416

Maintenance

Triple wash containers

Filter assembly

Filter

After finishing the application, clean and wash all equipment in an approved decontamination area.

Every 40 hours, clean and lubricate the chamber and components, as shown. Remove the chamber and lubricate the piston cups.

Jacto recommends graphite base grease but silicone based grease or vaseline are also acceptable. Do not apply grease excessively to avoid clogging and impurities build-up.

Even the containers considered empty, still contain chemical residues. Some publications show that approximately

0.3% of the chemicals remains in the container after being used.Therefore, discarding the containers without washing out the residues is extremely dangerous to man, animals and environment.

In the case of metal, plastic and glass chemical containers, each container must be rinsed three times to ensure the residues are completely removed. This manual describeds how to perform the TRIPLE WASH in a correct, safe and effective way.

During the TRIPLE WASH, you must use appropriate protective clothing, such as: gloves, apron, boots, goggles and protective masks with appropriate filters.

IMMEDIATELY AFTER emptying the container, keep it upside down over the sprayer tank opening or over the bucket that you are using to prepare the chemical mixture for at least 30 seconds or until no residue is left in the container, when the drops are falling in long intervals.

1∙ Next, hold the container in the

upright position and fill it with water. For example: in a 4 gallon container, put 1 gallon of water.

2∙ Fit the container cap and tight it

enough to avoid leakage during the agitation.

3∙ Agitate the container strongly in all

ways (horizontal and vertical), during approximately 30 seconds to remove the residues that are stuck to the container internal walls.

4∙ Carefully remove the container cap and pour the rinse water into the spray tank.

> Triple wash of empty agrochemicals containers

ATTENTION!

Remove all chemicals before storing the sprayer. Chemical products have different reactions and can damage the sprayer components and environment as well as cause personal injury.

Page 7

Jacto SP 312 / SP 416

Safety precautions

Maintenance

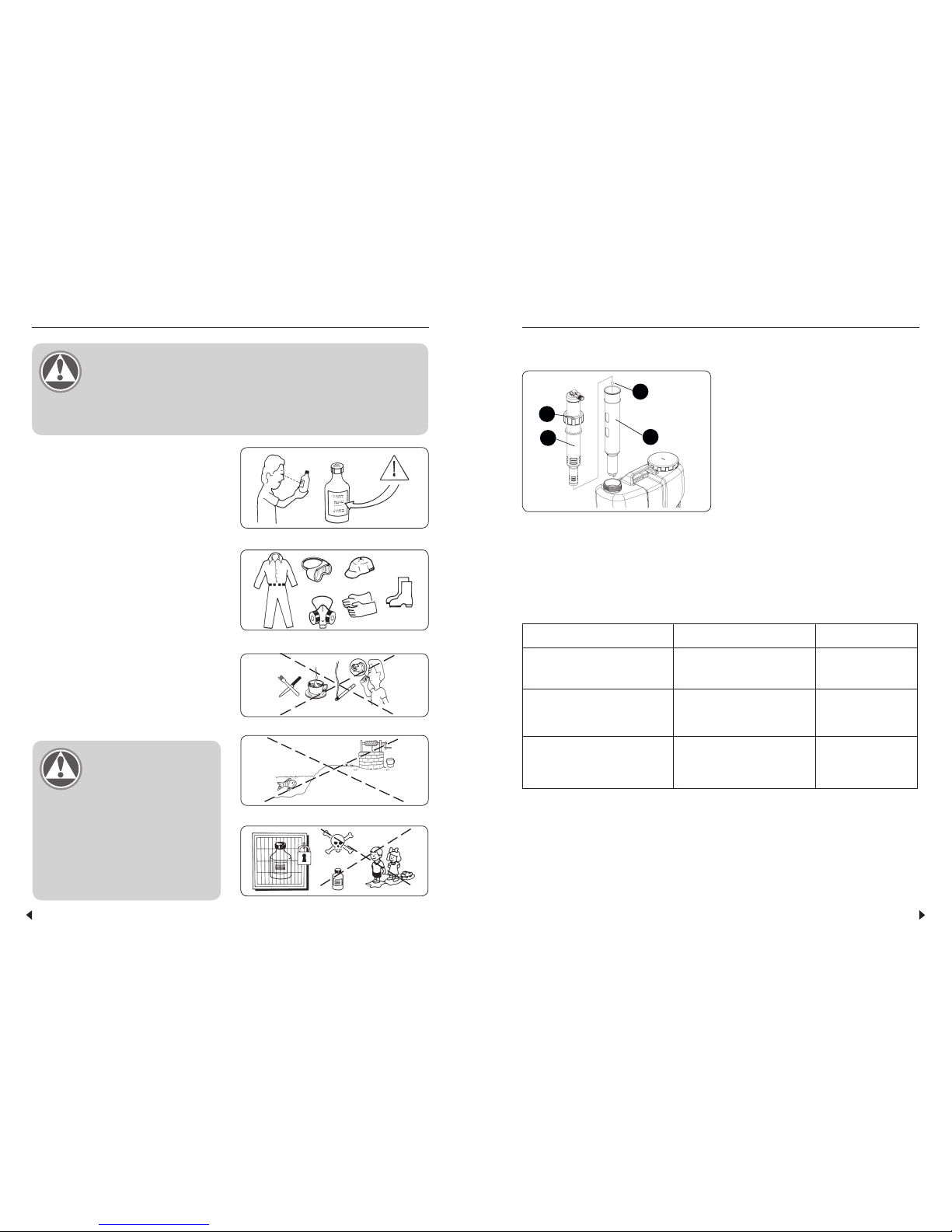

> Troubleshooting procedure

PROBLEM CAUSES CORRECTIONS

Leak on the upper portion of the cylinder.

Worn or dried out piston cup.

Replace or lubricate the piston cup.

After pumping and pressurizing the chamber the pumping lever falls.

Cylinder valve not sealing properly due to wear or impurities.

Clean or replace the valve.

After pumping and pressurizing the chamber, the lever rises slowly when released.

Chamber valve not sealing properly due to wear or impurities.

Clean or replace the chamber.

Put about 0.5 gallon of water in the tank. While operating the pumping lever, look into the tank.

Refer to the table and diagram below.

Put 1 gallon of water in a bucket and add the chemical product. Stir until it becomes an homogeneous mixture and pour the solution into the tank while filling with water.

Carefully read the chemicals manufacturer's label.

Use of individual protective clothing and safety equipment is recommended.

Do not eat, drink or smoke while spraying.

Do not pollute the environment.

Keep all products out of reach of children and animals. Lock up the chemical products to prevent untrained persons to handling them.

After finishing the spray application, take a shower with plenty of water and soap. Put on clean clothes.

> Cylinder maintenance

Remove the pumping rod from the chamber. Loosen the gasket holder and remove the assembly.

Remove the chamber (A) from the cylinder (B). Clean the ball (C) and the piston cup (D); replace them if necessary.

ATTENTION!

Read carefully the chemicals manufacturer´s labels. Wash hands and other parts of the body that have touched chemi-

cals before starting to spray.

ATTENTION!

The clothing used during the application must be washed separate from other clothes of ordinary use.

In case of intoxication, see a doctor immediately and show him the chemicals manufacturer’s label.

Page 8

Jacto SP 312 / SP 416

Spray nozzle

Calibration

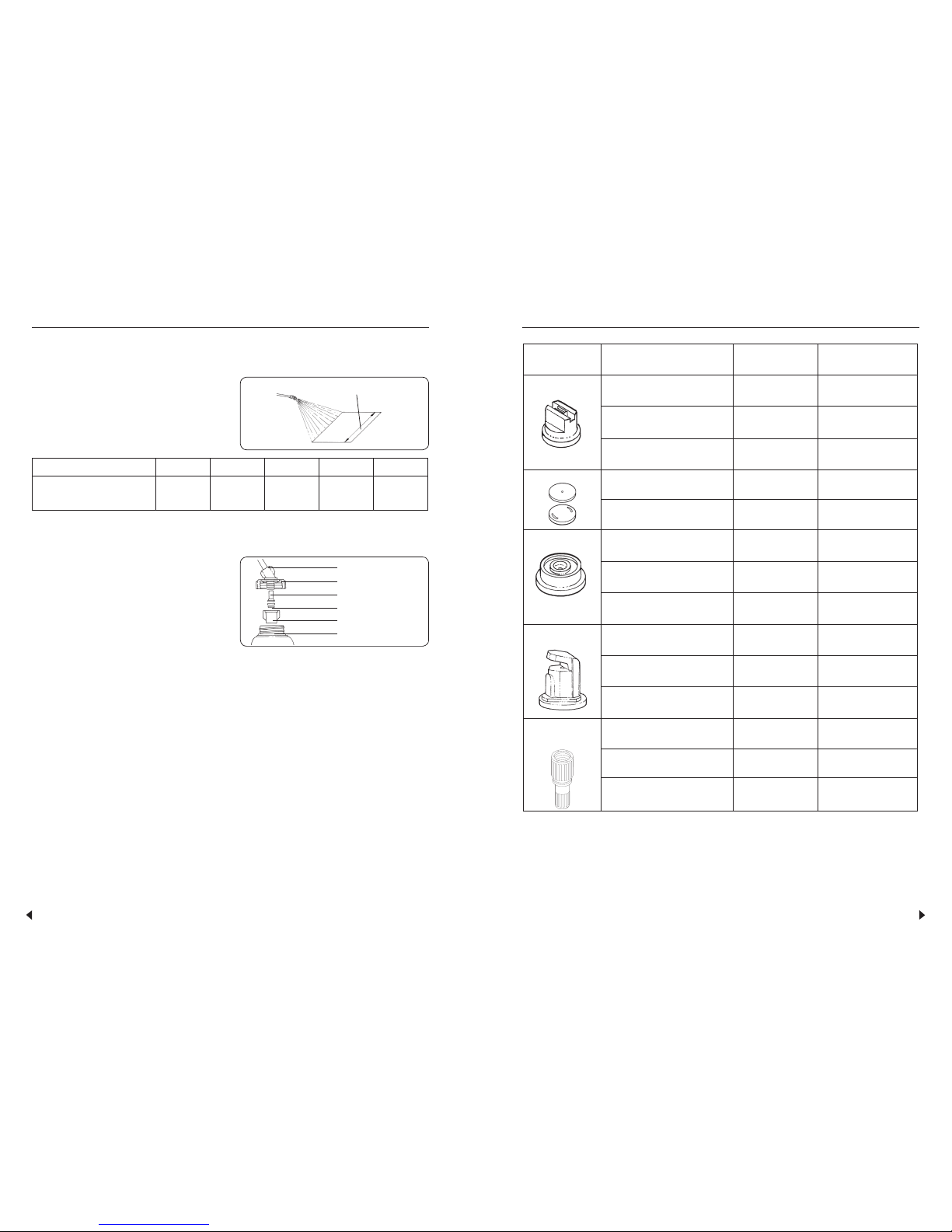

Lance Cover Filter Nozzle Nozzle cap Calibration bottle

Band width

Band width (feet) 1.6 2.2 3.2 3.9 4.9

Distance to walk (feet) 164 117.1 82 68.2 54.7

Attach the calibrator bottle to the lance as shown:

Hold the lance at the working height and spray to measure the application band width. Based on the band width, calculate the total walking distance required to spray the desired area

269.1 ft2.

A - Remove the cap, nozzle and filter. B - Mount the calibrator cover to the

lance. C - Reinstall the filter, nozzle and cap. D - Screw the calibrator onto the

cover.

Hold the lance at the normal working height and spray into the bottle while walking the distance required to spray an area corresponding to 269.1 ft2.

Place the bottle on a level surface and observe the liquid level visible through the side of the bottle. Match the liquid level to the corresponding scale on the calibrator bottle.

Empty the bottle and repeat this operation to determine the average of two or more readings.

> Calibration of manual backpack sprayer

USING CALIBRATOR BOTTLE (optional)

NOZZLE

TYPE

IDENTIFICATION PRESSURE

(psi)

FLOW RATE

(gallons/minute)

FLAT FAN

1197535 - JEF 110015

GREEN

45 0.16

1197536 - 11002

YELLOW

45 0.21

1197538 - JEF 11003

BLUE

45 0.33

CONE

717942 - JD 10A 45 0.08

217174 - JD 12P 45 0.16

CONE 1197565 - JHC 02

YELLOW

45 0.22

1198892 - JHC 04

RED

45 0.44

1198893 - JHC 05

BROWN

45 0.54

DEFLECTOR 1197486 - JDF 04

RED

15 0.25

1197487 - JDF 05

BROWN

15 0.31

1197488 - JDF 06

GRAY

15 0.41

ADJUSTABLE

CONE

323725 - YELLOW 45 0.08

015024 - RED 45 0.17

325787 -BLUE 45 0.18

* ATTENTION:This sprayers is supplied with the Blue adjustable cone nozzle fitted in the lance. Other nozzles mentioned in this manual are optional and purchased separately.
