Page 1
STATEMENT OF LIMITED WARRANTY
MÁQUINAS AGRÍCOLAS JACTO S.A. shall warrant the equipment described in this
manual and shall repair or replace parts and components which, under normal operation and wear, in accordance with technical recommendations, show DEFECTS IN
MATERIAL OR WORKMANSHIP, based on the following conditions.
WARRANTY PERIOD
- 01 (one) year from the date of sale to the original purchaser.
WARRANTY APPLICATION
- JACTO shall honor this warranty, free of charge, if any part or component shows
defect in MATERIAL OR WORKMANSHIP, after nal analysis at the factory.
THIS WARRANTY SHALL BE NULL & VOID IN CASE OF:
- Misuse of the equipment against specications in the OPERATOR'S MANUAL,
overwork or accidents.
- Preventive/remedial maintenance performed by unauthorized people.
- Use of parts and components not supplied by JACTO.
- Modication of the equipment or any characteristic of the original design.
THIS WARRANTY SHALL EXCLUDE:
- Parts which show wear and tear due to use, UNLESS THEY SHOW DEFECTS IN
WORKMANSHIP, ASSEMBLY OR MATERIAL.
- Damages resulting from accidents.
- Transportation or freight of the equipment, parts and components in case such warranty is not approved.
- Transportation and mobilization of technicians.
GENERAL INFORMATION:
- Parts replaced within the warranty period shall be property of JACTO.
- The warranty on replaced parts and components shall expire together with the equipment warranty period.
- Eventual delays in performing services shall not give the owner right either to indemnity or to extension of the warranty period.
- JACTO reserves the right to modify its products or to interrupt the manufacture without prior notice.
09/2012 - 1173656 - 0479-MI_USA
1- INTRODUCTION
This manual contains information for the proper assembly, operation and care of
your HD400 sprayer.
Carefully read and follow the instructions contained in this manual before using
your sprayer.
Tank
Lever
Lance
Trigger
valve
Diaphragm
Chamber
Nozzle
Lid

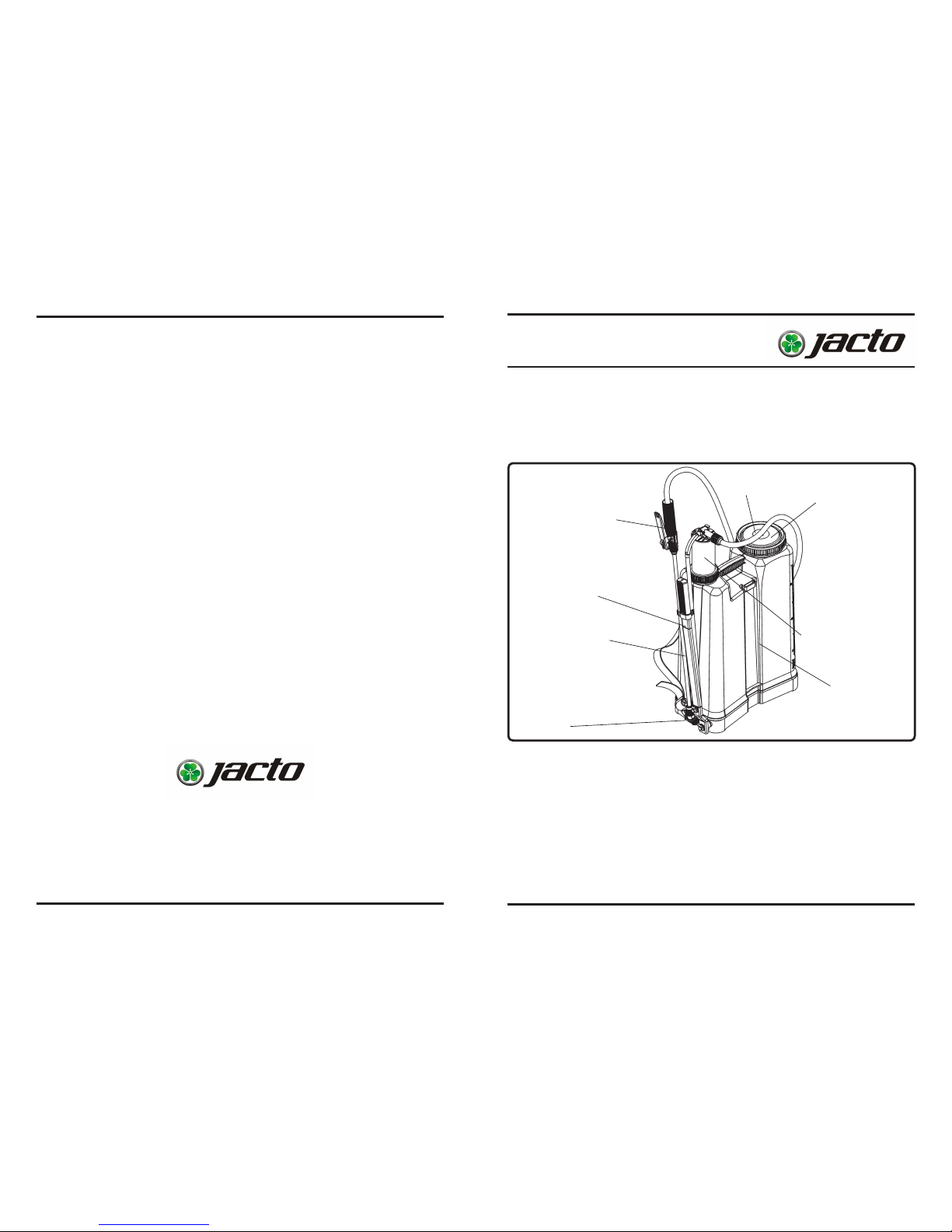

2- SPRAYER VIEW
3- SPECIFICATIONS
Pump
- Type ................................. Piston
- Material ............................ Polypropylene
- Working pressure (max.) . 65 psi
Lance length ...................... 18 in.
Hose length ....................... 53 in.
Nozzle tted ....................... JD 12 P
Model ......................... HD400
Net weight.................. 8.16 lbs
Tank
- Capacity .................. 4 gallons
- Material .................... Polypropylene
- Fill opening diameter 4.5 in.
JACTO INC.
19217 SW 119
th
Ave.
Tualatin, Oregon 97062
Tel: (503) 885-8723
Fax: (800) 511-3671
Toll free: (800) 522-8610
E-mail: [email protected]
Home page: www.jacto.com
OPERATOR'S MANUAL
HD-400
Page 2
15
02
Tank
Lance
Accessories plastic bag
Trigger valve
Contents of the
plastic bag
ATTENTION:Be careful when taking the sprayer out of the carton as the lever is shipped
loose and can cause damage.

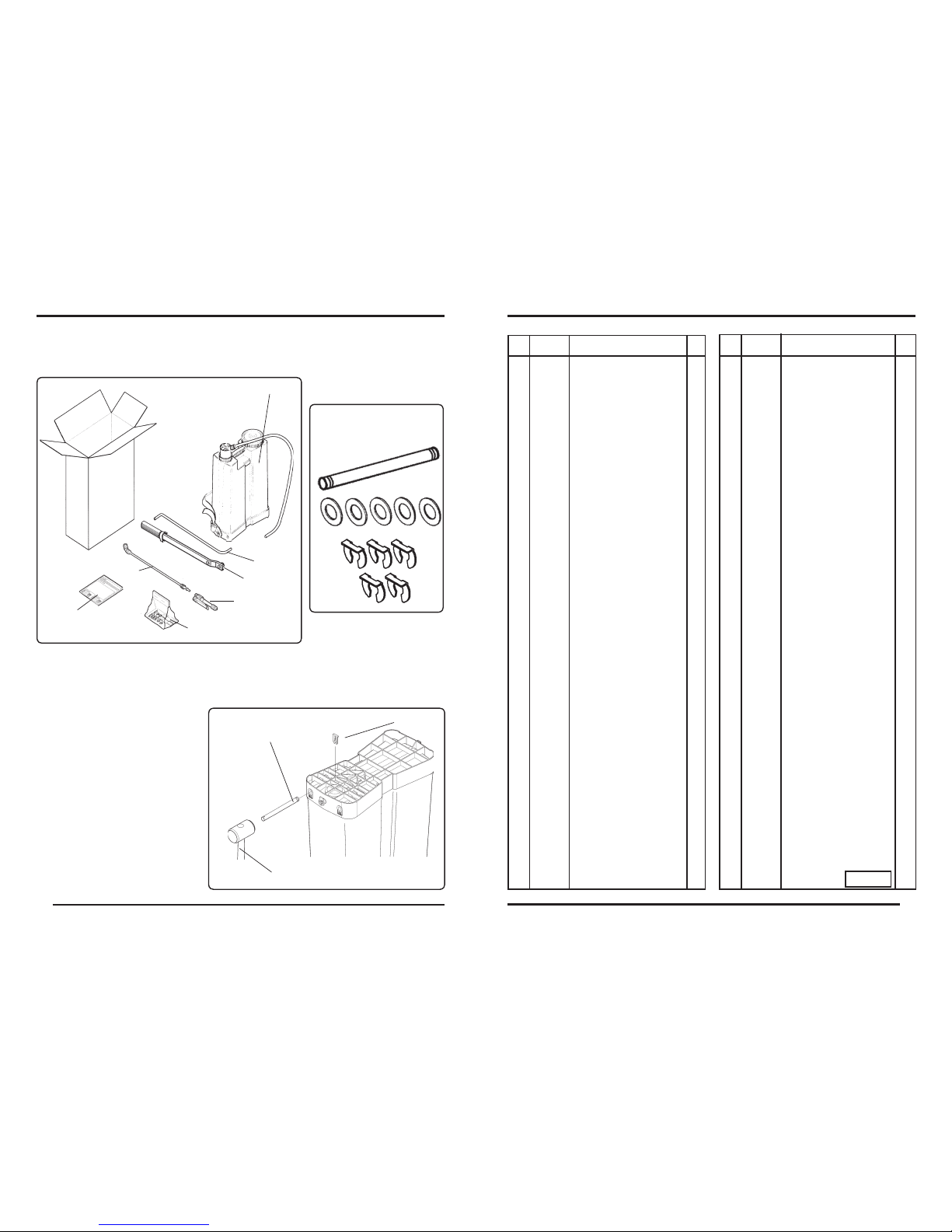

4- ASSEMBLY PROCEDURES
Remove from the sprayer carton the following parts:
5- INSTALLING THE SHAFT
- Insert the shaft (1) in the free ope-
ning on the tank base (on the same
side of the chamber).
- Tap the shaft with a plastic hammer
as shown, until it is possible to t the
shaft lock (2).
- Lock the shaft with the shaft lock (2).
Shaft lock
(2)
Lever
Shaft (1)
Manual
Rod
Plastic
hammer
Description
Item
Description
Item
Part no
Qty
Qty
Part no
LLM-421
00 - HD400 01
01 1198800 Washers and locked rings
set (repair) 01
02 907113 Gasket holder and gasket 01
03 325787 Blue adjustable cone
nozzle 01
04 188250 Chamber (0.23 gallons) 01
05 214585 Piston cup 01
06 560573 Diaphragm 01
07
1173630
Sphere valve 01
08 635813 Chamber assembly
(includes items 4, 5, 7 and
38) 01
09 920470 Pin lock 01
10 942193 Screw cap S-20 x 1.5 01
11 1194579 Handgrip with lock 01
12 1198602 Rod 01
13 838029 Strap assembly (includes
14 to 17) 01
14 1184172 Shouder strap and pad 01
15 229971 Strap and handle 02
16 635672 Buckle 02
17 635664 Strap catch 01
18 214619 Agitator 01
19 654939 Cylinder (includes items
47 and 21 to 25) 01
20 838011 Cylinder valve assembly
(repair) 47, 22 to 25) 01
21 635599 Cylinder body 01
22 715474 Ball 01
23 570945 Ball seat 01
24 336412 Compression spring
12 x 28 01
25 635615 Valve base 01
26 661363 Lever 01
27 293324 Lever shaft 01
28 654921 Lid with diaphragm 01
29 942920 Fill basket strainer 01
30 586321 Tank 01
31 277350 Shaft lock 01
32 635854 Spray lance 01
33 909192 Trigger valve handle 01
34 909283 Trigger valve body 01
35 105247 Trigger 01
36 908889 Trigger valve assembly 01
37
915751
Extention 601 01
38 048116 Dip tube with hose 01
39 071308 Dip tube assembly 01
40 105239 Trigger valve needle
assembly 01
41 996058 Trigger valve cap with
packing 01
42 909309 Cone packing 02
43 915744 Screw cap 02
44
1189539
Stainless steel tube 01
45 635276 Elbow witth cone packing 01
46 592139 Nozzle lter (40 mesh) 01
47 635607 Piston cup fastener 01
Page 3
03
14
6- INSTALLING THE LEVER ON THE SHAFT AND THE ROD ON THE CHAMBER TOP
Rod
Lever
Shaft
- Lightly grease the orice on the chamber
top.
- Fit a at washer on the shaft and rod.
- For easy assembly, install the lever on
the shaft and the rod on the chamber
top at the same time.
- Install the other at washers on the
shaft and rod and lock with the
locked ring.
Locked ring
Flat washers
Locked ring
Chamber
Flat washers
7- ATTACHING THE LANCE TO THE TRIGGER VALVE
- Push the lance into the trigger valve and secure it with the screw cap.
Lance
Trigger valve
Elbow
ATTENTION:
Do not overtighten the screw cap.
Screw cap
8- ATTACHING THE HOSE TO THE TRIGGER VALVE
- Unscrew the trigger valve handle.
- Remove the lock.
- Pass the hose through the randle and attach it
to the trigger valve as shown.
- Screw the handle on the trigger
valve.
ATTENTION: Do not overtighten the handle.
Lock
Hose
Trigger
valve
Handle
ilustrative
gure

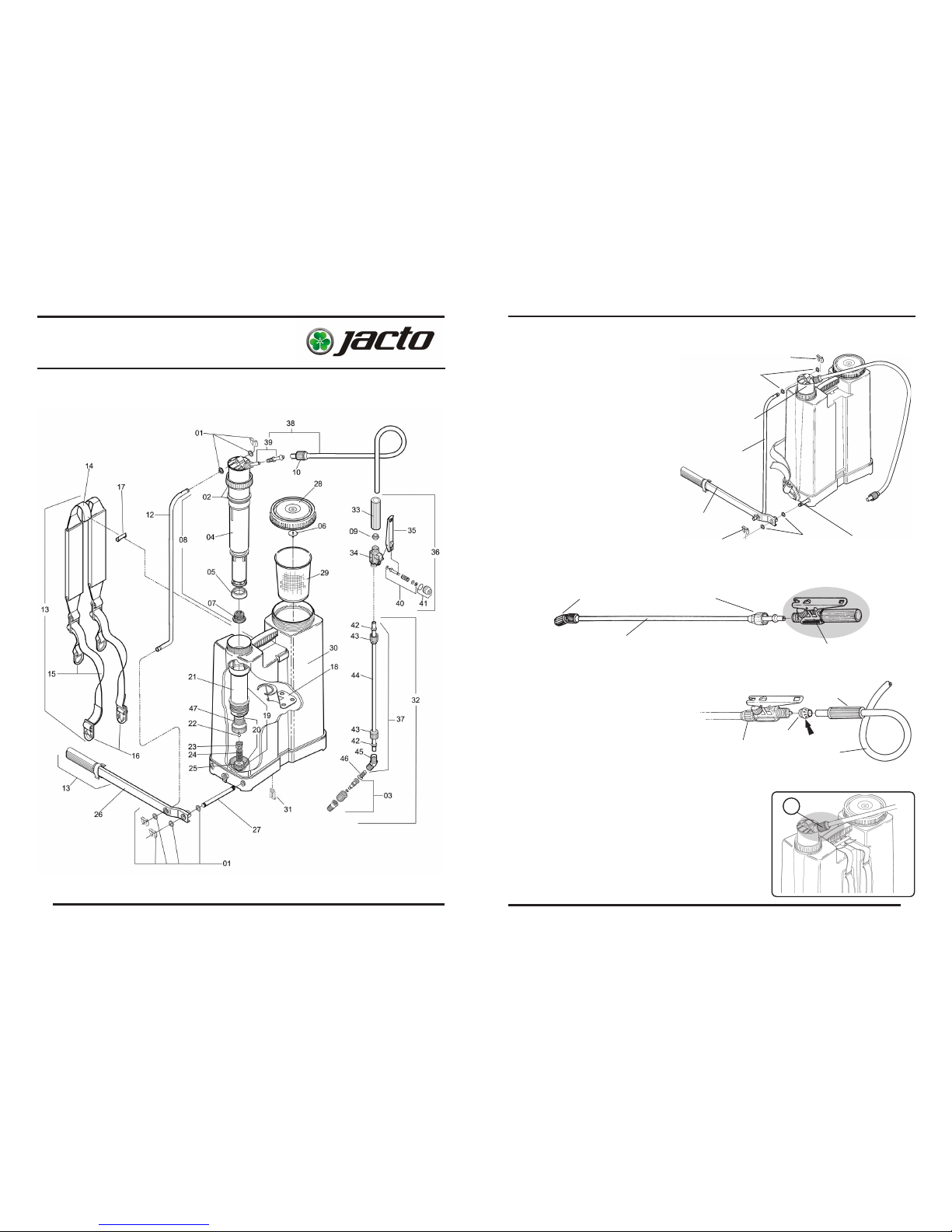

PARTS LIST
9- TIGHTENING THE FASTENING NUT.
- Before using the equipment, tighten the fastening nut
(A).
Important: This operation must be carried out by hand.
Never use any type of tool.
A
Page 4
13
04

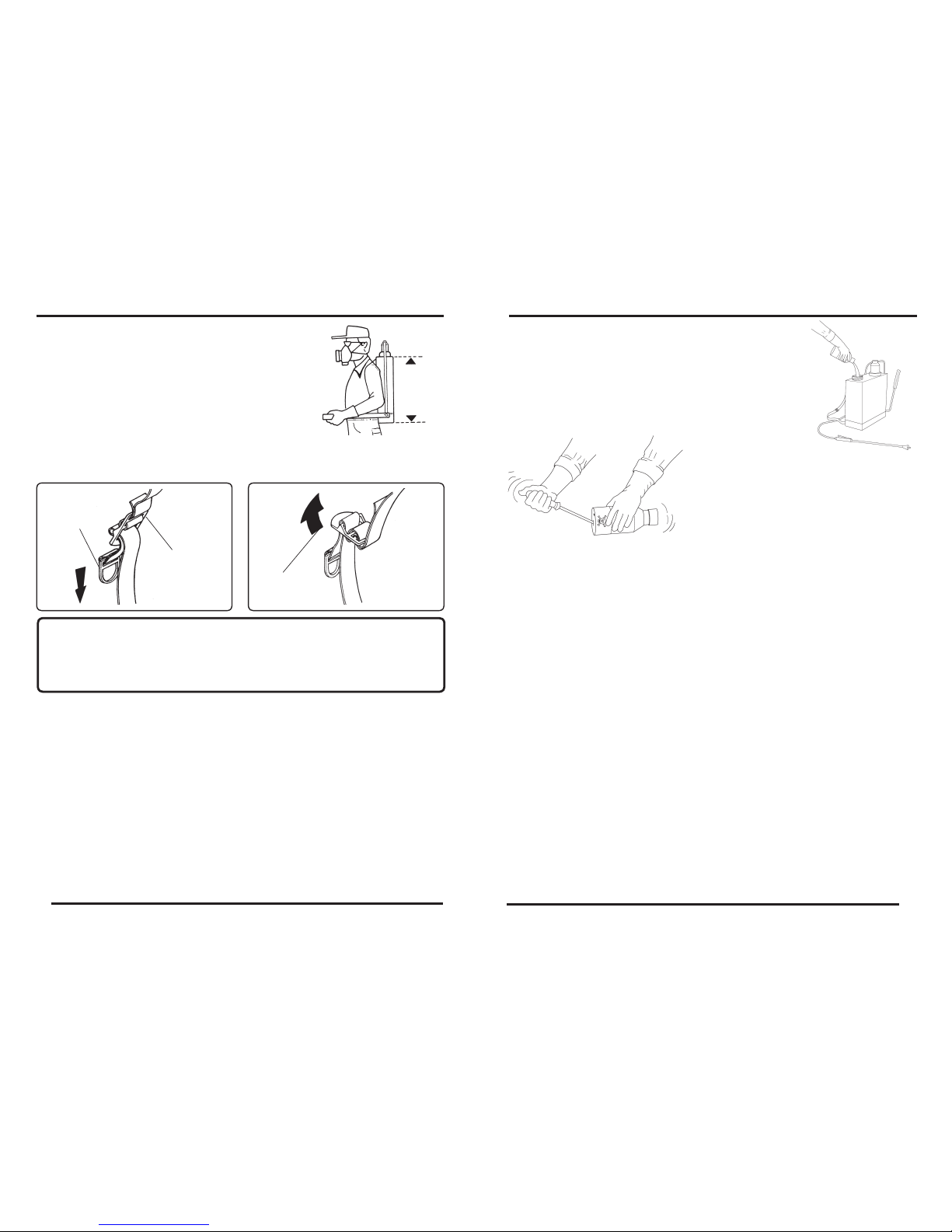

10- ADJUSTING THE SHOULDER STRAP
The tank is contoured for the operator comfort.
The shoulder straps can be quickly adjusted to properly
position the sprayer on the operator's back.
See below.
TIGHTENING
- Hold the strap buckle rmly with one hand,
and pull the handle downward with the other
hand.
Buckle
LOOSENING
- Hold the buckle rmly with one hand, and
pull the strap upward with the other hand.
Handle
Buckle
11- ATTENTION
After assembling the sprayer, ll the tank with clean water and pressure-check the
tank lid, diaphragm, tank bottom, lance and trigger valve for leakage. Most leaks can
be stopped by retightening the appropriate connections and ttings. Any leakage must
be repaired before returning to service.

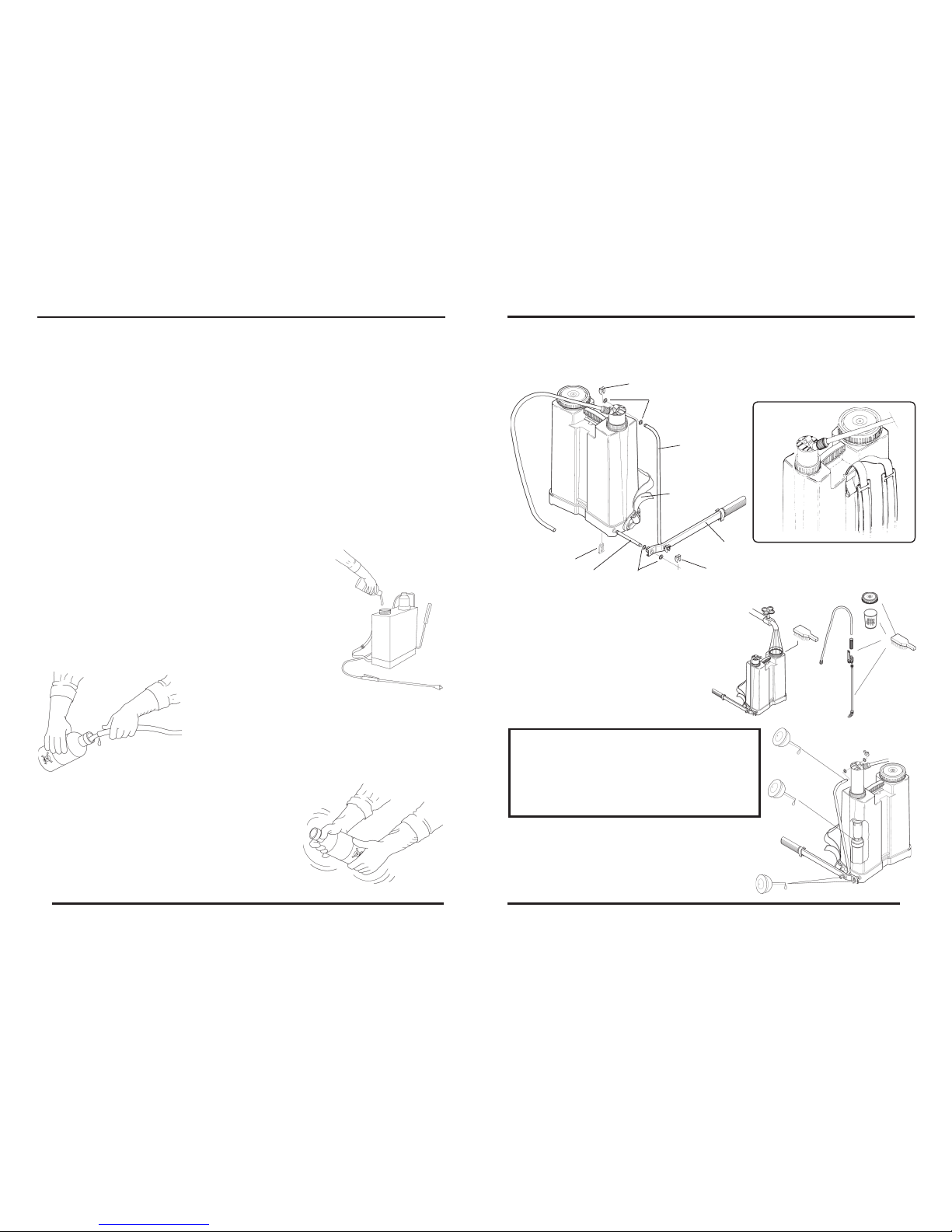

12- INVERTING THE LEVER POSITION
This sprayer is assembled to mount the lever for left hand operation. In case you wish
to change its position, proceed as follows.
- Remove the locked ring (1) and washers (A) and the rod (2) of the chamber top.
- Turn the chamber top 180°.
- Reinstall the rod (2) on the chamber top, t the washers (A) and secure the rod with
the locked ring (1) again.
- Then, remove the locked ring (4 and 5) and the washers (B).
- Remove the lever (6) and the shaft (7).
- Unfasten the strap assembly (8) and mount it on the other side of the sprayer as shown
in the detail below.
- Take the container cap off and carefully pour the rinse water into
the spray tank.
- Continue holding the container over the spray tank opening
for approximately 30 seconds to the last drop.
- REPEAT this operation twice more. This way, you complete the
TRIPLE WASH.
- Next, make the plastic and metallic containers useless by piercing with a pointed instrument the containers bottom. This way, their labels are not damaged
for identication purposes.
- The useless containers can be placed temporarily in an appropriate place, until nal destina-
tion.
- In the case of mid and large size container (13.2, 26.4 and 52.8 gallons), after washing with the
appropriate volume (1/4 of the total) and tting the cap, roll it on the ground for approximately 30
seconds.
- In the upright position complete the agitation by moving back and forth for approximately 30
seconds.
- Empty the container by pouring the rinse water into the spray tank.
- REPEAT this operation twice more. Finally, totally empty the container by pouring rinse water
in the spray tank.
- The least amount of rinse water that remains in the container, from one wash to the next, the
better the decontamination will be.
- For the performance of the TRIPLE WASH, do not use a water volume either much lower or
much higher than 1/4 of the container capacity.
-The TRIPLE WASH must be done IMMEDIATELY AFTER emptying the container, during the
preparation of the solution
SOURCE - ANDEF (NATIONAL ASSOCIATION OF VEGETAL DEFENSE)
Page 5
12 05
Locked ring (1)
(8)
(6)
(4)
Rod (2)
(7)
(5)
FASTENING THE STRAP
- Install the shaft on the other opening on the tank base; proceed as instructed in the item
05. - Fit the washers (B) and mount the lever (6) on the rod oriented to be operated with
the right hand.
Washers (A)
Washers (B)
13- MAINTENANCE
CLEANING THE SPRAYER
- After nishing the application, clean and wash
all equipment in an approved decontamination
area.
Pump the lever until the dis-
charge runs clear.
ATTENTION: Remove all chemicals before storing
the sprayer. Chemical products have different re-
actions and can damage the sprayer components
and environment as well as cause personal injury.
- Periodically, clean the chamber and lubricate
the components as shown. With oil.
- Remove the chamber and lubricate the piston
cups. With oil.
Even the containers considered empty contain chemical residues.
Some publications show that aproximately 0.3% of the chemicals remains in the container
after being used.
Therefore, discarding the containers without washing out the residues is extremely dangerous to man, animals and environment.
In the case of metal, plastic and glass chemical containers, each container must be rinsed
three times to ensure the residues are completely removed.
This manual describeds how to make the TRIPLE WASH in a correct, safe and effective
way.
-During the TRIPLE WASH, you must use appropriate protective clothing, such as: gloves, apron,
boots, goggles and protective masks with appropriate lters.
- IMMEDIATELY AFTER emptying the container, you must keep it with
the opening upside down over the sprayer tank opening or over the
bucket that you are using to prepare the chemical mixture for at least
30 seconds, until no residue is left in the container.
- Next, hold the container in the upright position and ll it
with water up to 1/4. For example: in a 5.2 gallons
container, put 1.3 gallons of water.
- Fit the container cap and tighen enough to avoid leakage
during the agitation.
- Agitate the container vigorousty in all directions (horizontal and
vertical), for approximately 30 seconds to remove the
residues that cling to the container internal walls.
TRIPLE WASH OF EMPTY AGROCHEMICALS CONTAINERS
ilustrative
gure
ilustrative
gure
Page 6
11
06
- Do not eat, drink or smoke while spraying.
- Do not pollute the environment.
- Keep the pro-
ducts out of reach
of children and
animals.
ATTENTION: The clothing used during the application must be washed separate
from other clothes of ordinary use.
- After nishing the spray application, take
a shower with plenty of water and soap.
- Put on clean clothes.
- Lock up the chemical products to prevent
untrained persons to handle them.
ATTENTION: In case of intoxication, see a doctor immediately and show
him the chemicals manufacturer's label.
Cylinder valve
14- CYLINDER MAINTENANCE
DISASSEMBLING
- Remove the rod from the chamber top.
- Loosen the nut that fastens the chamber onto the tank.
- Push the chamber into the cylinder all the way.
- Turn the chamber 360° counter-clockwise and pull it out
of the tank.
- Remove the tank lid and the strainer.
- Inside the tank, unscrew the cylinder and take it out of the tank.
- Disassemble the cylinder valve using the maintenance wrench.
- Clean or replace the parts.
REASSEMBLING
- Install the valve in the cylinder and install it using the maintenance
wrench.
- Mount the cylinder on the sprayer and install it using the chamber
assembly as a wrench.
- Mount the chamber on the cylinder and retighten the nut.
- Install the rod in the chamber top.
Cylinder
15- TROUBLESHOOTING
- Put about 0.5 gallons of water in the tank.
- While operating the pumping lever, look into the tank to investigate the problem.
- Refer to the table and diagram below.
ilustrative gure
CORRECTIONS
Worn or dried out piston cup.
Replace or lubricate
the piston cup.
Leakage through the cylinder
upper part (1).
After pumping and pressurizing
the chamber, the lever it drops.
Cylinder valve (2) not sea-
ling properly due to wear or
impurities.
Clean or replace the
valve.
After pumping and pressurizing
the chamber, the lever rises
slowly when released.
Chamber valve (3) not sealing properly due to wear or
impurities.
Clean or replace the
valve.
PROBLEM
CAUSES
The lever is hard to pump and
the spray stops rapidly.
Air leakage through the nut that
fastens the hose to the chamber.
Drain all the liquid
from the chamber.
Tighten the nut.
Page 7
1.6 2.2 3.2 3.9 4.9
164 117.1 82 68.2 54.7
07
10
Wrench for maintenance of chamber
and cylinder valves (OPTIONAL).
P/N:452284
Chamber
Piston cup
Cylinder
Cylinder
valve
(1)
(3)
(2)
Chamber
valve
SAFETY PRECAUTIONS
- Read carefully the chemicals
manufacturer's label.
- Use of individual protective clothing and
safety equipment is required.
ATTENTION
- Wash hands and other parts of the body that have touched chemicals before starting
to spray.
Chemical
product
- Stir until it becomes an homogeneous
mixture.
- Pour the solution into the tank while lling
with water.
- Put 1.3 gallons of water in a bucket and
add the chemical product.
ATTENTION!
READ CAREFULLY
THE CHEMICALS
MANUFACTURER'S LA-
BELS
PROCEDURE
USING CALIBRATOR BOTTLE (OPTIONAL)
- Hold the lance at the working height and
spray to measure the application band width.
- Based on the band width, calculate the total
walking distance required to spray the desired
area. Use the chart below.
Band
width
Lance
Cover
Filter
Nozzle
Nozzle cap
Calibrator
bottle
- Attach the calibrator bottle to the lance as
shown:.
A - Remove the cap, nozzle and lter.
B - Mount the calibrator cover to the lance.
C - Reinstall the lter, nozzle and cap.
D - Screw the calibrator onto the cover.
- Hold the lance at the normal working height and spray into the bottle while walking the
distance required to spray an area corresponding to 269.1 ft².
- Place the bottle on a level surface and observe the liquid level visible through the side
of the bottle. Match the liquid level to the corresponding scale on the calibrator bottle.
- Empty the bottle and repeat this operation to determine the average of two or more
readings.
Band width
(feet)
Distance to
walk (feet)
Page 8
0908
* ATTENTION: This sprayer is packaged with the JD-12 P nozzle tted in the lance.
Other nozzles mentioned in this manual are optional and can be puchased seperately.

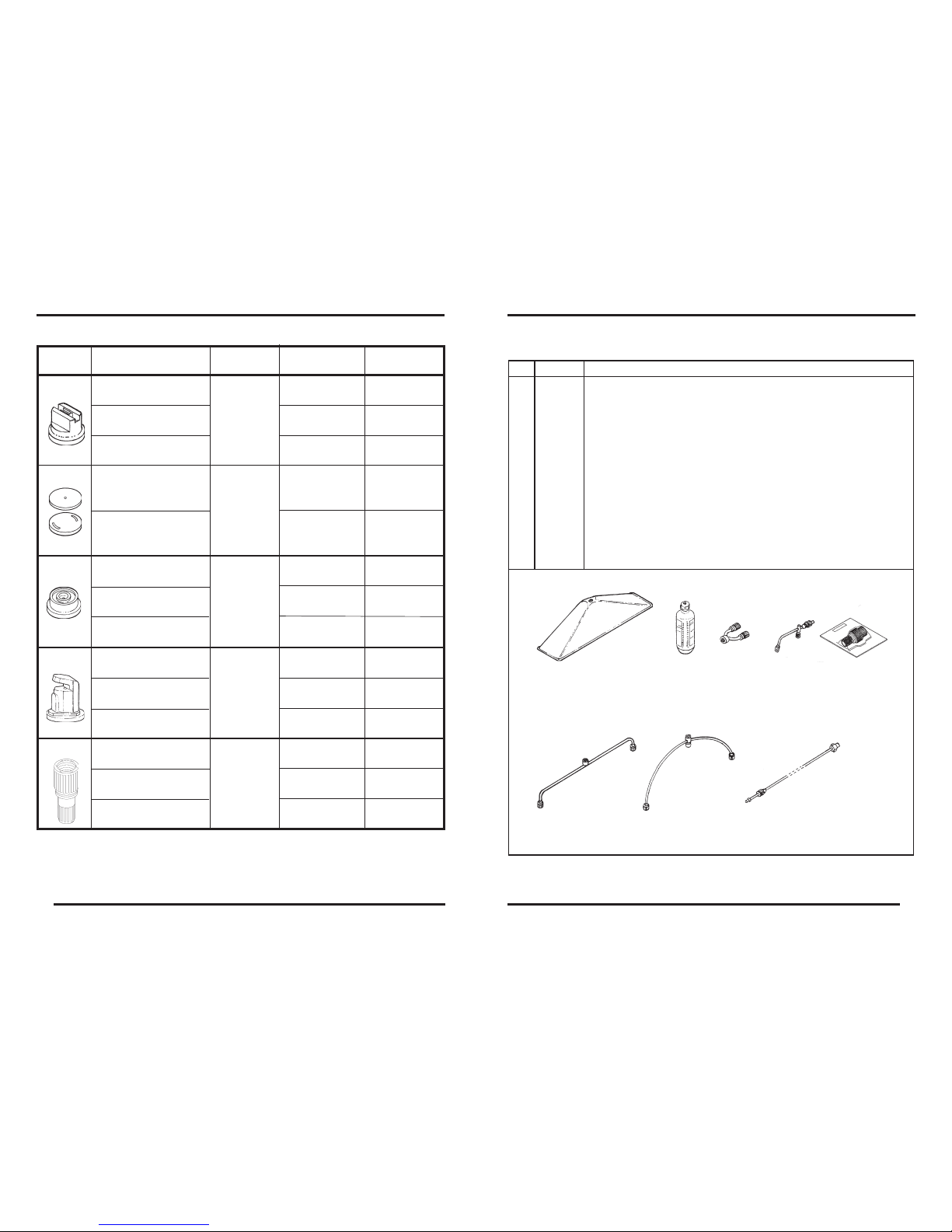

SPRAY NOZZLES
Flat fan
IDENTIFICATION
(Part no. - Description)
NOZZLE
TYPE
(1197536) JEF 11002
Yellow
(1197535) JEF 110015
Green
(1197537) JEF 11003
Blue
Herbicides
Cone
Cone
Flat fan
Deector
Adjustable
Cone
Agrochemicals
and foliar fertili-
zers.
90º cone
and concentrated
jet
45 610
45
810
45
1,250
45
717942 - JD-10A
(Stainless steel)
(*) 217174 - JD-12P
(Stainless steel)
300
615
45
Agrochemicals
and
foliar
fertilizers
APPLICATION
PRESSURE
(psi)
FLOW RATE
(ml/min)
(1197565) JHC 8002
Yellow
45 830
(1198892) JHC 8004
Red
Agrochemicals
and
foliar
fertilizers
45 1,680
(1198893) JHC 8005
Brown
45
2,060
(1197486) JDF 11004
Red
(1197488) JDF 11006
Gray
(1197487) JDF 9005
Brown
Agrochemicals
and
foliar
fertilizers
15 950
15 1,200
15
1,540
45 315
45
640
45 710
323725
(Yellow)
015024
(Red)
325787
(Blue)
01 761882 Spray guard: prevents nonselective herbicides from drifting.
02 902296 Boom 500: improves the coverage and increases the productivity.
03 907873 Pliable boom: holds the required shape for better coverage.
04 728139 Extension 600: increases the application reach.
05 100016 Extension 160 - 2 nozzles: increases the coverage and penetration.
06 834309 Flow calibrator bottle: is used to calibrate the sprayer, thus
reducing the waste
07 336115 Nozzle Y: improves the coverage.
08 1197164 Ecovalve green (1,0 kgf/cm2)
1197159 Ecovalve yellow (1,5 kgf/cm2)
1197163 Ecovalve blue (2,0 kgf/cm2)
1197162 Ecovalve red (3,0 kgf/cm2)
OPTIONAL ACCESSORIES FOR MANUAL KNAPSACK SPRAYERS
Item
Part no.
Use
Boom 500
Spray guard
Pliable boom
Extension 600
Ecovalve
Extension 160
Nozzle Y
Flow
calibrator
bottle
Loading...
