Page 1

Technical Manual

When Performance Matters.

™

WARNING

If incorrectly used, this machine can cause severe injury. Those who use and maintain this machine should be trained in its proper use, warned of its dangers, and should read the entire manual before attempting to set up, operate, adjust, or service the machine.

Eclipse® 2

4260472-Rev A

InCommand

63334 – Eclipse 2 118, 18” 11 Blade Reel, Gen-Set 63343 – Eclipse 2 118, 18” 11 Blade Reel, Battery Pack 63335 – Eclipse 2 118, 18” 15 Blade Reel, Gen-Set 63344 – Eclipse 2 118, 18” 15 Blade Reel, Battery Pack 63336 – Eclipse 2 118F, Floating 18” 11 Blade Reel, Gen-Set 63345 – Eclipse 2 118F, Floating 18” 11 Blade Reel, Battery Pack 63337 – Eclipse 2 118F, Floating 18” 15 Blade Reel, Gen-Set 63346 – Eclipse 2 118F, Floating 18” 15 Blade Reel, Battery Pack 63338 – Eclipse 2 122, 22” 11 Blade Reel, Gen-Set 63347 – Eclipse 2 122, 22” 11 Blade Reel, Battery Pack 63339 – Eclipse 2 122, 22” 15 Blade Reel, Gen-Set 63348 – Eclipse 2 122, 22” 15 Blade Reel, Battery Pack 63340 – Eclipse 2 122F, Floating 22” 11 Blade Reel, Gen-Set 63349 – Eclipse 2 122F, Floating 22” 11 Blade Reel, Battery Pack 63341 – Eclipse 2 122F, Floating 22” 15 Blade Reel, Gen-Set 63350 – Eclipse 2 122F, Floating 22” 15 Blade Reel, Battery Pack 63342 – Eclipse 2 126, 26” 7 Blade Reel, Gen-Set 63351 – Eclipse 2 126, 26” 7 Blade Reel, Battery Pack

™

Page 2

11524 WILMAR BLVD,

CHARLOTTE, NC 28273

kg kW

1-800-848-1636 (US)

PRODUCT OF U.S.A.

A Textron Company

FOREWORD

This manual contains safety, operating, adjustment, maintenance, troubleshooting instructions and parts list for your new Jacobsen machine. This manual should be stored with the equipment for reference during operation.

Before you operate your machine, you and each operator you employ should read the manual carefully in its entirety. By following the safety, operating and maintenance instructions, you will prolong the life of your equipment and maintain its maximum efficiency.

If additional information is needed, contact your Jacobsen Dealer.

The serial plate is located on the rear crossbar of the frame. Jacobsen recommends you record these numbers below for easy reference.

Suggested Stocking Guide

To Keep your Equipment fully operational and productive, Jacobsen suggests you maintain a stock of the more commonly used maintenance items. We have included part numbers for additional support materials and training aids.

To order any of the following material:

1. Write your full name and complete address on your order form.

2. Explain where and how to make shipment:

3. Order by the quantity desired, the part number, and the description of the part.

4. Send or bring the order to your authorized Jacobsen Dealer.

❑ UPS ❑ Regular Mail

❑ Overnight ❑ 2nd Day

Service Parts

Qty. Part No. Description Qty. Part No. Description

4102780 50 Amp Fuse 2811106 Motor to Pulley Belt 4262910 30 Amp Fuse 2811070 Pulley to Traction Drum Belt 4131618 Ignition Key

Service Support Material

Qty. Part No. Description

4260472 Technical Manual 4260475 Operator Training Video

Qty. Part No. Description

4262930 Floating Head Service Manual 4262932 Fixed Head Service Manual

These are the original instructions verified by Jacobsen, A Textron Company.

or portions thereof in any form.”

Proposition 65 Warning

This product contains or emits chemicals known to State of California to cause cancer and birth defects or other reproductive harm.

LITHO IN U.S.A. 6-2012

Page 3

Table of Contents

1SAFETY

1.1 Operating Safety . . . . . . . . . . . . . . . . . . . . . . 4

1.2 Important Safety Notes . . . . . . . . . . . . . . . . . 5

2 SPECIFICATIONS

2.1 Product Identification . . . . . . . . . . . . . . . . . . 6

2.2 Mower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.3 Traction and Differential . . . . . . . . . . . . . . . . 7

2.4 Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.5 Gen-Set Power Module . . . . . . . . . . . . . . . . 7

2.6 Battery Power Module . . . . . . . . . . . . . . . . . 8

2.7 Accessories & Support Literature . . . . . . . . . 9

2.8 Declaration of Conformity . . . . . . . . . . . . . . 10

3DECALS

3.1 Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4 CONTROLS

4.1 Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.2 Handle Controls . . . . . . . . . . . . . . . . . . . . . 16

4.3 LCD Display . . . . . . . . . . . . . . . . . . . . . . . . 17

4.4 Frequency of Cut . . . . . . . . . . . . . . . . . . . . 22

4.5 Gas Power Module Controls . . . . . . . . . . . . 27

4.6 Battery Power Module Controls . . . . . . . . . 27

5 OPERATION

5.1 Daily Inspection . . . . . . . . . . . . . . . . . . . . . 28

5.2 Interlock System (O.P.C.) . . . . . . . . . . . . . . 28

5.3 Operating Procedures . . . . . . . . . . . . . . . . . 29

5.4 Starting/Stopping . . . . . . . . . . . . . . . . . . . . 30

5.5 Mowing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5.6 Transport Wheels (Optional) . . . . . . . . . . . . 32

5.7 Kickstand . . . . . . . . . . . . . . . . . . . . . . . . . . 32

5.8 Grass Catcher . . . . . . . . . . . . . . . . . . . . . . . 33

5.9 Daily Maintenance . . . . . . . . . . . . . . . . . . . 33

6 ADJUSTMENTS (ALL UNITS)

6.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

6.2 Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

6.3 Speed Paddle Stops . . . . . . . . . . . . . . . . . . 34

6.4 Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

6.5 Traction Belts . . . . . . . . . . . . . . . . . . . . . . . 35

6.6 Front Roller Weight . . . . . . . . . . . . . . . . . . . 36

6.7 Torque Specification . . . . . . . . . . . . . . . . . . 37

8 FLOATING HEAD REEL ADJUSTMENTS

8.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

8.2 Bedknife-To-Reel . . . . . . . . . . . . . . . . . . . . .40

8.3 Bedknife Adjustment . . . . . . . . . . . . . . . . . .41

8.4 Reel Bearing . . . . . . . . . . . . . . . . . . . . . . . . 41

8.5 Cutting Height . . . . . . . . . . . . . . . . . . . . . . . 42

8.6 Reel Assembly Removal . . . . . . . . . . . . . . .42

9 BATTERY POWER MODULE

9.1 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

9.2 General . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

9.3 Maintenance . . . . . . . . . . . . . . . . . . . . . . . .44

9.4 Cleaning Batteries . . . . . . . . . . . . . . . . . . . . 44

9.5 Battery Charger . . . . . . . . . . . . . . . . . . . . . . 45

9.6 Battery Installation . . . . . . . . . . . . . . . . . . . .46

9.7 Replacing Battery Pack . . . . . . . . . . . . . . . . 47

10 GEN-SET POWER MODULE

10.1 Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

10.2 Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . .48

10.3 Engine Oil Change . . . . . . . . . . . . . . . . . . . .49

10.4 Engine Speed . . . . . . . . . . . . . . . . . . . . . . .49

10.5 Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

11 MAINTENANCE

11.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

11.2 Tires (Option) . . . . . . . . . . . . . . . . . . . . . . . .51

11.3 Wheel Bearing . . . . . . . . . . . . . . . . . . . . . . .51

11.4 Backlapping and Grinding . . . . . . . . . . . . . .52

11.5 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

12 TROUBLESHOOTING

12.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

13 MAINTENANCE & LUBRICATION CHARTS

13.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

13.2 Maintenance Chart . . . . . . . . . . . . . . . . . . . 55

13.3 Lubrication Chart . . . . . . . . . . . . . . . . . . . . 56

14 PARTS CATALOG

14.1 How To Use The Parts Catalog . . . . . . . . . .57

14.2 To Order Parts . . . . . . . . . . . . . . . . . . . . . . . 57

14.3 Parts Catalog Table of Contents . . . . . . . . .57

7 FIXED HEAD REEL ADJUSTMENTS

7.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

7.2 Reel To Bedknife . . . . . . . . . . . . . . . . . . . . 38

7.3 Bedknife Adjustment . . . . . . . . . . . . . . . . . . 39

7.4 Cutting Height . . . . . . . . . . . . . . . . . . . . . . . 39

Page 4

1 SAFETY

1.1 OPERATING SAFETY ______________________________________________________

WARNING

EQUIPMENT OPERATED IMPROPERLY OR BY UNTRAINED PERSONNEL CAN BE DANGEROUS.

Familiarize yourself with the location and proper use of all controls. Inexperienced operator’s should receive

instruction from someone familiar with the equipment before being allowed to operate the machine.

1. Safety is dependent upon the awareness, concern and prudence of those who operate or service the equipment. Never allow minors to operate any equipment.

2. It is your responsibility to read this manual and all publications associated with this equipment (Engine Manual, Battery Charger Manual, accessories, and attachments). If the operator cannot read English it is the owner’s responsibility to explain the material contained in this manual to them.

3. Learn the proper use of the machine, the location and purpose of all the controls before you operate the equipment. Working with unfamiliar equipment can lead to accidents.

4. Never allow anyone to operate or service the machine or its attachments without proper training and instructions; or while under the influence of alcohol or drugs.

5. Wear all the necessary protective clothing and personal safety devices to protect your head, eyes, ears, hands, and feet. Long hair, loose clothing, or jewelry may get tangled in moving parts. Operate the machine only in daylight or in good artificial light.

6. Evaluate the terrain to determine what accessories and attachments are needed to properly and safely perform the job. Only use accessories and attachments approved by Jacobsen.

7. Stay alert for holes in the terrain and other hidden hazards.

8. Inspect the area where the equipment will be used. Pick up all the debris you can find before operating. Beware of overhead obstructions (low tree limbs, electrical wires, etc.) and also underground obstacles (sprinklers, pipes, tree roots, etc.) Enter a new area cautiously. Stay alert for hidden hazards.

9. Do not carry passengers. Keep bystanders and pets a safe distance away.

10. Never direct discharge of material toward bystanders, nor allow anyone near the machine while in operation. The owner/operator can prevent and is responsible for injuries inflicted to themselves, to bystanders, and damage to property.

This machine is to be operated and maintained as specified in this manual and is intended for the professional maintenance of specialized turf grasses. It is not intended for use on rough terrain or long grasses.

11. Never operate equipment that is not in perfect working order or is without decals, guards, shields, discharge deflectors, or other protective devices securely fastened in place.

12. Never disconnect or bypass any switch.

13. Keep the unit clean. Disconnect the power connector before storing. Do not store unit near an open flame or flammable debris.

14. Place unit on a flat surface, disengage all drives, and engage parking brake before energizing the unit.

15. Local regulations may restrict the age of the operator.

16. Operate the machine across the face of the slope (horizontally), not up and down the slope (vertically). Never operate on wet grass.

17. Always operate at speeds that allow you to have complete control of the machine. Be sure of your footing, keep a firm hold on the handle, and walk, never run.

Gen-Set Power Module

18. Carbon monoxide in the exhaust fumes can be fatal when inhaled. Never operate the engine without proper ventilation.

19. Fuel is highly flammable, handle with care. See Section 5.9 .

20. Before you clean, adjust or repair this equipment, stop the engine, disconnect the spark plug wire, and keep the wire away from the plug to prevent accidental starting. Disconnect the power connector.

21. Keep the engine clean. Allow the engine to cool, always close fuel shut off valve, and remove the spark plug wire from the spark plug before storing. Do not store unit near an open flame or flammable debris.

Battery Power Module

22. Before you clean, adjust, or repair this equipment, disconnect the power connector.

23. Do not remove battery pack without unit on kickstand.

Page 5

SAFETY 1

1.2 IMPORTANT SAFETY NOTES ________________________________________________

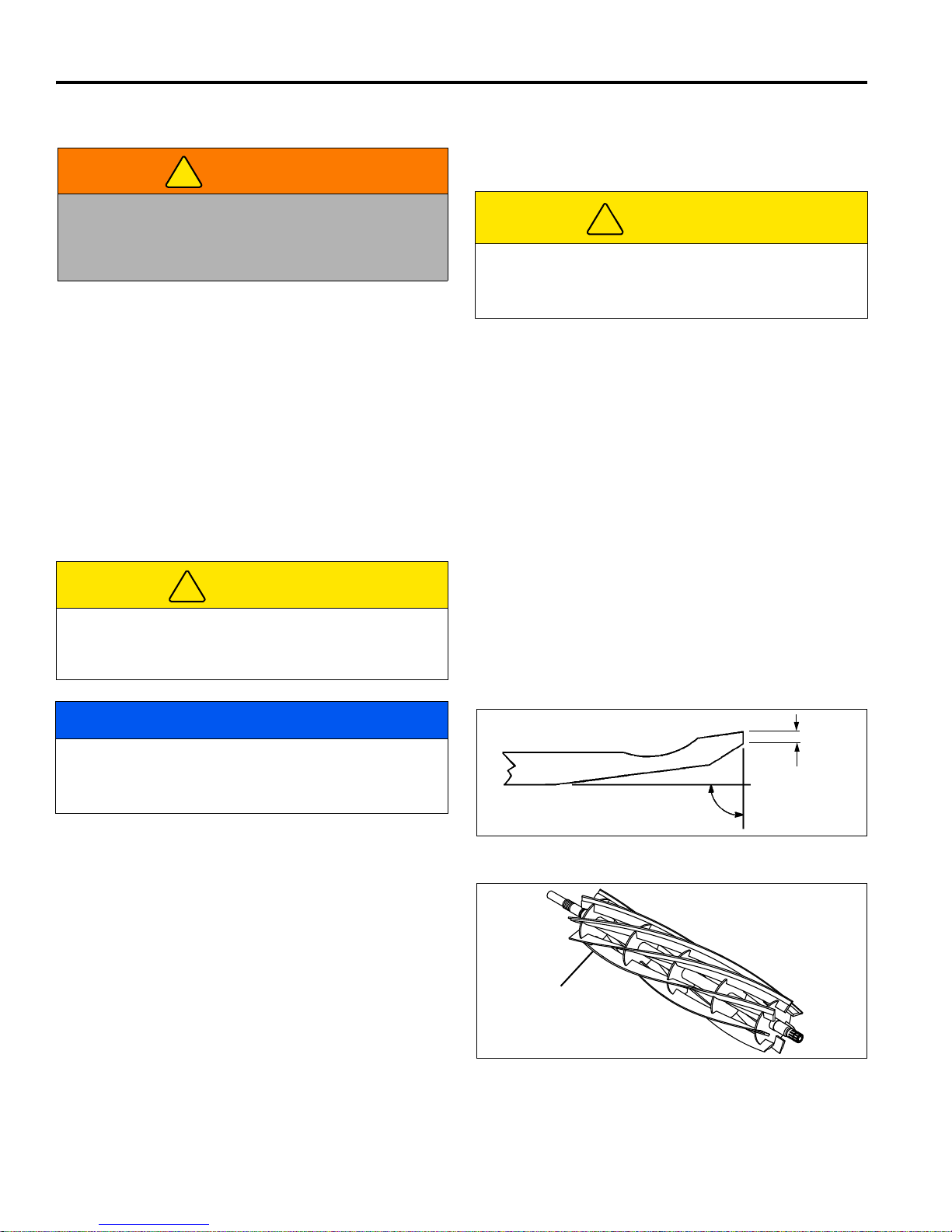

This safety alert symbol is used to alert you to potential hazards.

DANGER - Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

WARNING - Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious

injury.

CAUTION - Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury

and property damage. It may also be used to alert against unsafe practices.

NOTICE - Indicates a potentially hazardous situation which, if not avoided, MAY result in property damage. It may

also be used to alert against unsafe practices.

For pictorial clarity, some illustrations in this manual may show shields, guards or plates open or removed. Under no circumstances should this equipment be operated without these devices securely fastened in place.

WARNING

The Interlock System on this machine will shut off the reel and traction drive if the operator releases the O.P.C. (Operator Presence Control) bail.

To protect the operator and others from injury, never operate equipment with the Interlock System disconnected or malfunctioning.

WARNING

1. Before leaving the operator’s position for any reason:

a. Disengage all drives. b. Engage parking brake. c. Disconnect power connector.

2. Keep hands, feet, and clothing away from moving parts. Wait for all movement to stop before you clean, adjust, or service the machine.

3. Keep the area of operation clear of all bystanders and pets.

4. Chock or block the wheels if the machine is left on an incline.

5. Never operate mowing equipment without the discharge deflector securely fastened in place.

By following all instructions in this manual, you will prolong the life of your machine and maintain its maximum efficiency. Adjustments and maintenance should always be performed by a qualified technician.

If additional information or service is needed, contact your Authorized Jacobsen Dealer who is kept informed of the latest methods to service this equipment and can provide prompt and efficient service.

Page 6

2 SPECIFICATIONS

92.3 2.6 XXXX

63334001651

2 SPECIFICATIONS

2.1 PRODUCT IDENTIFICATION_________________________________________________

63334............................ Eclipse® 118 base unit with 18 in.

(457 mm) 11 blade reel and InCommand™ control system. Gen-Set power module.

63343............................ Eclipse

118 base unit with 18 in. (457 mm) 11 blade reel and InCommand™ control system. Battery power module.

63335............................ Eclipse

118 base unit with 18 in. (457 mm) 15 blade reel and InCommand™ control system. Gen-Set power module.

63344............................ Eclipse

118 base unit with 18 in. (457 mm) 15 blade reel and InCommand™ control system. Battery power module.

63336............................ Eclipse

118F base unit with floating 18 in. (457 mm) 11 blade reel and InCommand™ control system. Gen-Set power module.

63345............................ Eclipse

118F base unit with floating 18 in. (457 mm) 11 blade reel and InCommand™ control system. Battery power module.

63337............................ Eclipse

118F base unit with floating 18 in. (457 mm) 15 blade reel and InCommand™ control system. Gen-Set power module.

63346............................ Eclipse

118F base unit with floating 18 in. (457 mm) 15 blade reel and InCommand™ control system. Battery power module.

63338............................ Eclipse

122 base unit with 22 in. (559 mm) 11 blade reel and InCommand™ control system. Gen-Set power module.

63347............................ Eclipse

122 base unit with 22 in. (559 mm) 11 blade reel and InCommand™ control system. Battery power module.

63339............................ Eclipse

122 base unit with 22 in. (559 mm) 15 blade reel and InCommand™ control system. Gen-Set power module.

63348............................ Eclipse

122 base unit with 22 in. (559 mm) 15 blade reel and InCommand™ control system. Battery power module.

63340............................ Eclipse

122F base unit with floating 22 in. (457 mm) 11 blade reel and InCommand™ control system. Gen-Set power module.

63349.............................Eclipse

floating 22 in. (457 mm) 11 blade reel and InCommand™ control system. Battery power module.

63341.............................Eclipse

floating 22 in. (457 mm) 15 blade reel and InCommand™ control system. Gen-Set power module.

63350.............................Eclipse

floating 22 in. (457 mm) 15 blade reel and InCommand™ control system. Battery power module.

63342.............................Eclipse

(660 mm) 7 blade reel and InCommand™ control system. Gen-Set power module.

63351.............................Eclipse

(660 mm) 7 blade reel and InCommand™ control system. Battery power module.

Serial Number ..............An identification plate, like the one

shown, listing the serial number, is attached to the rear crossbar.

PRODUCT OF U.S.A.

kg kW

Product

63334 63335 63336 63337 63338 63339 63340 63341 63342 63343 63344 63345 63346 63347 63348 63349 63350 63351

122F base unit with

126 base unit with 26 in.

11524 WILMAR BLVD,

A Textron Company

Vibration M/S

CHARLOTTE, NC 28273

1-800-848-1636 (US)

Arms

4.25 ± 1.3

4.83 ± 1.3

2.37 ± 1.3

4.44 ± 1.3

2.84 ± 1.3

1.44 ± 1.3

0.90 ± 1.3

1.00 ± 1.3

1.07 ± 1.3

0.89 ± 1.3

Page 7

SPECIFICATIONS 2

2.2 MOWER__________________________________________________________________

Reel..................................7, 9, 11, or 15 blades, hardened

high manganese carbon steel.

Reel Diameter .................. 5 in. (127 mm)

Cutting Width ...................18, 22 or 26 in. (457, 559 or

660 mm)

Height of cut.....................1/16 to 7/16 in. (1.6 to 11 mm)

Bedknives.........................Hardened carbon steel

High Profile ................5/32” - 7/16” (4 - 11 mm) cut

Low Profile................. 1/8” - 7/32” (3.2 - 5.6 mm) cut

Tournament................ 3/32” - 5/32” (2.4 - 4 mm) cut

Super Tournament ..... 5/64” - 7/64” (2.1 - 2.8 mm) cut

Championship............ 1/16” - 7/64” (1.6 - 2.8 mm) cut

Frequency of Cut

15 Blade Reel ............ 0.064 - 0.133 in. (1.6 - 3.4 mm)

11 Blade Reel ............ 0.087 - 0.178 in. (2.2 - 4.5 mm)

9 Blade Reel .............. 0.106 - 0.217 in. (2.7 - 5.5 mm)

2.3 TRACTION AND DIFFERENTIAL ______________________________________________

Transport Tires (Option) ... 11 x 4 pneumatic bidirectional.

Reel Drive ........................Independent direct drive motor.

Traction Drive ...................Independent drive motor with two

synchronous polyurethane belts. Traction Reduction Ratio..15.15:1

Mowing speed.................. 0 - 3.4 m.p.h. (5.31 km/h)

Differential........................ Full automotive type, housed in

traction drum

Rear Drive Drum.............. Machined aluminum alloy

2 Section, 7-3/4 (O.D.) x 10-31/32

2.4 WEIGHTS ________________________________________________________________

Gen Set Mowers

Weights: Without Grass Catcher Lbs. (kg)

63334 – Eclipse 118 11 Blade  .................. 214 (97.1)

63335 – Eclipse 118 15 Blade  .................. 217 (98.4)

63336 – Eclipse 118F 11 Blade ................ 254 (115.2)

63337 – Eclipse 118F 15 Blade ................ 257 (116.6)

63338 – Eclipse 122 11 Blade  .................. 221 (100.2)

63339 – Eclipse 122 15 Blade  .................. 224 (101.6)

63340 – Eclipse 122F 11 Blade  ................ 265 (120.2)

63341 – Eclipse 122F 15 Blade  ................ 268 (121.6)

63342 – Eclipse 126 .................................. 243 (110.2)

Battery Pack Mowers

Weights: Without Grass Catcher Lbs. (kg)

63343 – Eclipse 118 11 Blade .................. 234 (106.1)

63344 – Eclipse 118 15 Blade .................. 237 (107.5)

63345 – Eclipse 118F 11 Blade ................ 274 (124.3)

63346 – Eclipse 118F 15 Blade ................ 277 (125.6)

63347 – Eclipse 122 11 Blade  .................. 241 (109.3)

63348 – Eclipse 122 15 Blade  .................. 244 (110.7)

63349 – Eclipse 122F 11 Blade  ................ 285 (129.3)

63350 – Eclipse 122F 15 Blade  ................ 288 (130.6)

63351 – Eclipse 126  ................................. 263 (119.3)

 With Steel Grooved Roller 68618  With Machined Aluminum Grooved Roller 68614  With Machined Aluminum Grooved Roller 68617

2.5 GEN-SET POWER MODULE _________________________________________________

Engine..............................Honda GX-120 K1Q JG2 4-Cycle,

4HP (2.98 kW) at 4000 RPM

Speed...............................Engine speed set at factory for

generator to produce 59.8 volts

with no load. (2750 to 3250 rpm)

Fuel .................................. Regular Grade (Unleaded)

Fuel Tank .........................0.66 Gallon (2.5 liter)

Use clean, fresh, regular unleaded gasoline, 85 octane minimum. Refer to the engine’s operator manual for fuel recommendations when using blended fuel.

Page 8

2 SPECIFICATIONS

2.6 BATTERY POWER MODULE ________________________________________________

To ensure the longest battery life possible, the batteries are not shipped with the power module and must be ordered separately. For optimum range and performance use batteries that equal or exceed the Amp-hour rating listed.

System Voltage............. 48 Volt DC

Batteries ...................... (4) 12 volt, valve regulated,

non-spillable sealed lead acid batteries.

Charger......................... 5 Amp, 48 Volt DC, dual input

voltage 115/230 Volt AC, 50/60 Hz.

Recommended Battery:

CSB battery is the Jacobsen recommended battery for use in the Eclipse mower.

Battery Brand Battery Part Number

CSB EVX12200

Length

in. (mm)

7-1/8 (181)

Width

in. (mm)

(76)

Height

in. (mm)

6-9/16

(167)

Weight

lbs. (kg)

14.7 (6.7)

Rating

Amp-Hr

20 12 4

Volt s

Qty

Req’d

Alternate Batteries:

These alternate batteries are also currently available. These batteries have the same dimensions and amphour ratings, but have not been tested by Jacobsen, and no recommendation is stated or should be implied. Contact your local battery dealer or the manufacturer for sourcing on these batteries.

Battery Brand

Yuasa Enersys NPX 80

Panasonic LC-X1220AP

Panasonic LC-X1220P

Discover D12200

Power Sonic PSH-12180

B.B. Battery EB20-12

Battery

Part Number

(USE ONLY 12 VOLT SLA BATTERIES)

CSB batteries can be ordered from these CSB distributors, or from any local battery dealer.

Electronic Distributing

920 Brookstown Ave Winston Salem, NC 27101

Phone Number - 800-777-1096 Fax Number - 336-723-1098 E-Mail - [email protected] (E-Mail) Contact Name - Bill Turner

URS Electronics

123 N.E. 7th Portland, OR 97232

Phone Number - 800-955-4877 Fax Number - 503-232-3373 E-Mail - [email protected] Contact Name - Mark Twietmeyer

Page 9

SPECIFICATIONS 2

2.7 ACCESSORIES & SUPPORT LITERATURE _____________________________________

Contact your area Jacobsen Dealer for a complete listing of accessories and attachments.

CAUTION

Use of other than Jacobsen authorized parts and accessories may cause personal injury or damage to the equipment.

Accessories

Lapping Compound (180 grit) ................................... 554598

Orange Touch-up Paint (12 oz. spray) ...................... 554598

18 in. Fixed Head Grass Catcher................................ 68122

18 in. Floating Head Grass Catcher........................ 4174683

22 in. Fixed Head Grass Catcher................................ 68123

22 in. Floating Head Grass Catcher........................ 4114788

26 in. Fixed Head Grass Catcher................................ 68124

22 in. Push Brush (Fixed Head Units)......................... 68611

22 in. Front Roller Brush (Fixed Head Units) .............. 68610

22 in. Front Roller Brush (Floating Head Units) .......... 68536

LED Light Kit ............................................................... 63307

Battery Charger........................................................... 68661

Removable Battery Pack ()....................................... 63316

Mower Caddy Battery Pack Mounting Kit.................... 68660

Transport Tires ............................................................ 62293

Mower Caddy ..........................................................63321

Mower Caddy 18” Mower Mounting Kit ...............4243882

Mower Caddy 22” Mower Mounting Kit ...............4243883

Mower Caddy 26” Mower Mounting Kit ...............4243884

22 in. Turf Groomer Fixed Head Turf Groomer

() .........................................67966

Adapter Kit ...................67965

MAGKnife Kits

122F Super Tournament MAGKnife Kit................... 4188500

122F Tournament MAGKnife Kit ............................. 4158083

122 Super Tournament MAGKnife Kit..................... 4158082

Solid Rollers

18 in. with Scraper.......................................................68626

22 in. with Scraper.......................................................68530

26 in. with Scraper.......................................................68627

Grooved Rollers

18 in. Machined Steel ..................................................68616

22 in. Assembled Disc .................................................68527

22 in. Machined Aluminum ..........................................68614

22 in. Machined Steel ..................................................68613

22 in. Segmented Roller ..............................................68673

26 in. Machined Aluminum ..........................................68617

26 in. Machined Steel ..................................................68628

Floating Head Reels

22 in. 11 Blade Reel ....................................................63308

22 in. 15 Blade Reel ....................................................63333

18 in. 11 Blade Reel ....................................................63309

18 in. 15 Blade Reel ....................................................62824

Right Hand Reel Conversion Kit ..............................4172485

Left Hand Reel Conversion Kit ................................4172441

Additional Power Modules

Gen-Set Power Module................................................ 63305

Battery Power Module () ...........................................63306

Support Literature

Technical Manual.....................................................4260472

Operator Training DVD Video ..................................4260475

Fixed Head Repair Manual......................................4262932

Floating Head Repair Manual..................................4262930

Does not included batteries



 Fixed Head Units require 67965 to install Turf Groomer

Page 10

2 SPECIFICATIONS

2.8 DECLARATION OF CONFORMITY ____________________________________________

DECLARATION OF CONFORMITY ▪ ДЕКЛАРАЦИЯ ЗА СЪОТВЕТСТВИЕ ▪ PROHLÁŠENÍ O SHODĚ ▪

OVERENSSTEMMELSESERKLÆRING ▪ CONFORMITEITSVERKLARING ▪ VASTAVUSDEKLARATSIOON ▪

VAATIMUSTENMUKAISUUSVAKUUTUS ▪ DECLARATION DE CONFORMITE ▪ KONFORMITÄTSERKLÄRUNG ▪ ΔΗΛΩΣΗ ΣΥΜΜΟΡΦΩΣΗΣ ▪ MEGFELELŐSÉGI NYILATKOZAT ▪ DICHIARAZIONE DI CONFORMITÀ ▪ ATBILSTĪBAS DEKLARĀCIJA ▪ ATITIKTIES DEKLARACIJA ▪ DIKJARAZZJONI TAL-KONFORMITÀ ▪ DEKLARACJA ZGODNOŚCI ▪

DECLARAÇÃO DE CONFORMIDADE ▪ DECLARAŢIE DE CONFORMITATE ▪ VYHLÁSENIE O ZHODE ▪ IZJAVA O

SKLADNOSTI ▪ DECLARACIÓN DE CONFORMIDAD ▪ DEKLARATION OM ÖVERENSSTÄMMELSE

Business name and full address of the manufacturer ▪ Търговско име и пълен адрес на производителя ▪ Obchodní jméno a plná adresa výrobce ▪ Producentens firmanavn og fulde adresse ▪ Bedrijfsnaam en volledig adres van de fabrikant ▪ Tootja ärinimi ja täielik aadress ▪ Valmistajan toiminimi ja täydellinen osoite ▪ Nom commercial et adresse complète du fabricant ▪ Firmenname und vollständige Adresse des Herstellers ▪ Επωνυμία και ταχυδρομική διεύθυνση κατασκευαστή ▪ A gyártó üzleti neve és teljes címe ▪ Ragione sociale e indirizzo completo del fabbricante ▪ Uzņēmuma nosaukums un pilna ražotāja adrese ▪ Verslo pavadinimas ir pilnas gamintojo adresas ▪ Isem kummerċjali u indirizz sħiħ tal-fabbrikant ▪ Nazwa firmy i pełny adres producenta ▪ Nome da empresa e endereço completo do fabricante ▪ Denumirea comercială şi adresa completă a producătorului ▪ Obchodný názov a úplná adresa výrobcu ▪ Naziv podjetja in polni naslov proizvajalca ▪ Nombre de la empresa y dirección completa del fabricante ▪ Tillverkarens företagsnamn och kompletta adress

Product Code ▪ Код на ▪ Termékkód ▪ Codice prodotto ▪ Produkta kods ▪ Produkto kodas ▪ Kodiċi tal-Prodott ▪ Kod produktu ▪ Código do Produto ▪ Cod produs ▪ Kód výrobku ▪ Oznaka proizvoda ▪ Código de producto ▪ Produktkod

Machine Name ▪ Наименование на машината ▪ Název stroje ▪ Maskinnavn ▪ Machinenaam ▪ Masina nimi ▪ Laitteen nimi ▪ Nom de la machine ▪ Maschinenbezeichnung ▪ Ονομασία μηχανήματος ▪ Gépnév ▪ Denominazione della macchina ▪ Iekārtas nosaukums ▪ Mašinos pavadinimas ▪ Isem tal-

▪ Nazwa urządzenia ▪ Nome da Máquina ▪ Numele echipamentului ▪ Názov stroja ▪ Naziv stroja ▪ Nombre de la máquina ▪ Maskinens namn

Magna

Designation ▪ Предназначение ▪ Označení ▪ Betegnelse ▪ Benaming ▪ Nimetus ▪ Tyyppimerkintä ▪ Pažymėjimas ▪ Bezeichnung ▪ Χαρακτηρισμός ▪ Megnevezés ▪ Funzione ▪ Apzīmējums ▪ Lithuanian ▪ Denominazzjoni ▪ Oznaczenie ▪ Designação ▪ Specificaţie ▪ Označenie ▪ Namen stroja ▪ Descripción ▪ Beteckning

Serial Number ▪ Сериен номер ▪ Sériové číslo ▪ Serienummer ▪ Serienummer ▪ Seerianumber ▪ Valmistusnumero ▪ Numéro de série ▪ Seriennummer ▪ Σειριακός αριθμός ▪ Sorozatszám ▪ Numero di serie ▪ Sērijas numurs ▪ Serijos numeris serie ▪ Sériové číslo ▪ Serijska številka ▪ Número de serie ▪ Serienummer

Engine ▪ Двигател ▪ Motor ▪ Motor ▪ Motor ▪ Mootor ▪ Moottori ▪ Moteur ▪ Motor ▪ Μηχανή ▪ Modulnév ▪ Motore ▪ Dzinējs ▪ Variklis ▪ Saħħa Netta Installata ▪ Silnik ▪ Motor ▪ Motor ▪ Motor ▪ Motor ▪ Motor ▪ Motor

Net Installed Power ▪ Нетна инсталирана мощност ▪ Čistý instalovaný výkon ▪ Installeret nettoeffekt ▪ Netto geïnstalleerd vermogen ▪ Installeeritud netovõimsus ▪ Asennettu nettoteho ▪ Puissance nominale nette ▪ Installierte Nettoleistung ▪ Καθαρή εγκατεστημένη ισχύς ▪ Nettó beépített teljesítmény ▪ Potenza netta installata ▪ Paredzētā tīkla jauda ▪ Grynoji galia ▪ Wisa’ tal-Qtugħ ▪ Moc zainstalowana netto ▪ Potência instalada ▪ Puterea instalată netă ▪ Čistý inštalovaný výkon ▪ Neto vgrajena moč ▪ Potencia instalada neta ▪ Nettoeffekt

продукта ▪ Kód výrobku ▪ Produktkode ▪ Productcode ▪ Toote kood ▪ Tuotekoodi ▪ Code produit ▪ Produktcode ▪ Κωδικός προϊόντος

▪ Numru Serjali ▪ Numer seryjny ▪ Número de Série ▪ Număr de

Jacobsen, A Textron Company 11524 Wilmar Blvd. Charlotte, NC 28273, USA

63334 63335 63336 63337 63338 63339 63340 63341 63342 63343 63344 63345 63346 63347 63348 63349 63350 63351

118 Hybrid 11 Blade

Eclipse

118 Hybrid 15 Blade

Eclipse

118F Hybrid 11 Blade

Eclipse

118F Hybrid 15 Blade

Eclipse

122 Hybrid 11 Blade

Eclipse

122 Hybrid 15 Blade

Eclipse

122F Hybrid 11 Blade

Eclipse

122F Hybrid 15 Blade

Eclipse

126 Hybrid 7 Blade

Eclipse

118 Battery 11 Blade

Eclipse

118 Battery 15 Blade

Eclipse

118F Battery 11 Blade

Eclipse

118F Battery 15 Blade

Eclipse

122 Battery 11 Blade

Eclipse

122 Battery 15 Blade

Eclipse

122F Battery 11 Blade

Eclipse

122F Battery 15 Blade

Eclipse

126 Battery 7 Blade

Lawnmower, Article 12, Item 32

6333401651-6333404500 6333501651-6330104500 6333601651-6330204500 6333701651-6330304500 6333801651-6330404500 6333901651-6331104500 6334001651-6331204500 6334101651-6334304500 6334201651-6331404500 6334301651-6331504500 6334401651-6332504500 6334501651-6332604500 6334601651-6333504500 6334701651-6332804500 6334801651-6332904500 6334901651-6333004500 6335001651-6333104500 6335101651-6333204500

Hybrid Models Honda GX-120 Gas Battery Models Aspen Motor 48V Brushless DC

Hybrid Models 2,98 kW @ 3000 RPM Battery Models 1,3 kW @ 2200 RPM

Page 11

SPECIFICATIONS 2

Cutting Width ▪ Широчина на рязане ▪ Šířka řezu ▪ Skærebredde ▪ Maaibreedte ▪ Lõikelaius ▪ Leikkuuleveys ▪ Largeur de coupe ▪ Schnittbreite ▪ Μήκος μισινέζας ▪ Vágási szélesség ▪ Larghezza di taglio ▪ Griešanas platums ▪ Pjovimo plotis ▪ Tikkonforma mad-Direttivi ▪ Szerokość cięcia ▪

Largura de Corte ▪ Lăţimea de tăiere ▪ Šírka záberu ▪ Širina reza ▪ Anchura de corte ▪ Klippbredd Conforms to Directives ▪ В съответствие с директивите ▪ Splňuje podmínky směrnic ▪ Er i overensstemmelse med direktiver ▪ Voldoet aan de richtlijnen ▪

Vastab direktiividele ▪ Direktiivien mukainen ▪ Conforme aux directives ▪ Entspricht Richtlinien ▪ Ακολουθήστε πιστά τις Οδηγίες ▪ Megfelel az irányelveknek ▪ Conforme alle Direttive ▪ Atbilst direktīvām ▪ Atitinka direktyvų reikalavimus ▪ Valutazzjoni tal-Konformità ▪ Dyrektywy związane ▪ Cumpre as Directivas ▪ Respectă Directivele ▪ Je v súlade so smernicami ▪ Skladnost z direktivami ▪ Cumple con las Directivas ▪ Uppfyller direktiv

Conformity Assessment ▪ Оценка за съответствие ▪ Hodnocení plnění podmínek ▪ Overensstemmelsesvurdering ▪ Conformiteitsbeoordeling ▪ Vastavushindamine ▪ Vaatimustenmukaisuuden arviointi ▪ Evaluation de conformité ▪ Konformitätsbeurteilung ▪ Διαπίστωση Συμμόρφωσης ▪ Megfelelőség-értékelés ▪ Valutazione della conformità ▪ Atbilstības novērtējums ▪ Atitikties įvertinimas ▪ Livell tal-Qawwa tal-Ħoss Imkejjel ▪ zgodności ▪ Avaliação de Conformidade ▪ Evaluarea conformităţii ▪ Vyhodnotenie zhodnosti ▪ Ocena skladnosti ▪ Evaluación de conformidad ▪ Bedömning av överensstämmelse

Measured Sound Power Level ▪ Измерено ниво на звукова мощност ▪ Naměřený akustický výkon ▪ Målte lydstyrkeniveau ▪ Gemeten geluidsniveau ▪ Mõõdetud helivõimsuse tase ▪ Mitattu äänitehotaso ▪ Niveau de puissance sonore mesuré ▪ Gemessener Schalldruckpegel ▪ Σταθμισμένο επίπεδο ηχητικής ισχύος ▪ Mért hangteljesítményszint ▪ Livello di potenza sonora misurato ▪ Izmērītais skaņas jaudas līmenis ▪ Išmatuotas garso stiprumo lygis ▪ Livell tal-Qawwa tal-Ħoss Iggarantit ▪ Moc akustyczna mierzona ▪ Nível sonoro medido ▪ Nivelul măsurat al puterii acustice ▪ Nameraná hladina akustického výkonu ▪ Izmerjena raven zvočne moči ▪ Nivel de potencia sonora medido ▪

Guaranteed Sound Power Level ▪ Гарантирано ниво на звукова мощност ▪ Garantovaný akustický výkon ▪ Garanteret lydstyrkeniveau ▪ Gegarandeerd geluidsniveau ▪ Garanteeritud helivõimsuse tase ▪ Taattu äänitehotaso ▪ Niveau de puissance sonore garanti ▪ Garantierter Schalldruckpegel ▪ Εγγυημένο επίπεδο ηχητικής ισχύος ▪ Szavatolt hangteljesítményszint ▪ Livello di potenza sonora garantito ▪ Garantētais skaņas jaudas līmenis ▪ Garantuotas garso stiprumo lygis ▪ Livell tal-Qawwa tal-Ħoss Iggarantit ▪ Moc akustyczna gwarantowana ▪ Nível sonoro farantido ▪ Nivelul garantat al puterii acustice ▪ Garantovaná hladina akustického výkonu ▪ Zajamčena raven zvočne moči ▪ Nivel de potencia sonora garantizado ▪ Garanterad ljudeffektsnivå

Conformity Assessment Procedure (Noise) ▪ Оценка за съответствие на процедурата (Шум) ▪ Procedure for overensstemmelsesvurdering (Støj) ▪ Procedure van de conformiteitsbeoordeling (geluid) ▪ Vastavushindamismenetlus (müra) ▪ Vaatimustenmukaisuuden arviointimenettely (Melu) ▪ Procédure d’évaluation de conformité (bruit) ▪ Konformitätsbeurteilungsverfahren (Geräusch) ▪ Διαδικασία Αξιολόγησης Συμμόρφωσης (Θόρυβος) ▪ Megfelelőség-értékelési eljárás (Zaj) ▪ Procedura di valutazione della conformità (rumore) ▪ Atbilstības novērtējuma procedūra (troksnis) ▪ Atitikties įvertinimo procedūra (garsas) ▪ Proċedura tal-Valutazzjoni tal-Konformità (Ħoss) ▪ Procedura oceny zgodności (poziom hałasu) ▪ Processo de avaliação de conformidade (nível sonoro) Procedura de evaluare a conformităţii (zgomot) ▪ Postup vyhodnocovania zhodnosti (hluk) ▪ Postopek za ugotavljanje skladnosti (hrup) ▪ Procedimiento de evaluación de conformidad (ruido) ▪ Procedur för bedömning av överensstämmelse (buller)

UK Notified Body for 2000/14/EC ▪ Нотифициран орган в Обединеното кралство за 2000/14/ЕО ▪ Úřad certifikovaný podle směrnice Det britiske bemyndigede organ for 2001/14/EF ▪ Engels adviesorgaan voor 2000/14/EG ▪ Ühendkuningriigi teavitatud asutus direktiivi 2000/14/EÜ mõistes ▪ Direktiivin 2000/14/EY mukainen ilmoitettu tarkastuslaitos Isossa-Britanniassa ▪ Organisme notifié concernant la directive 2000/14/CE ▪ Britische benannte Stelle für 2000/14/EG ▪ Κοινοποιημένος Οργανισμός Ηνωμένου Βασιλείου για 2000/14/ΕΚ ▪ 2000/14/EK – egyesült királyságbeli bejelentett szervezet ▪ Organismo Notificato in GB per 2000/14/CE ▪ 2000/14/EK AK reģistrētā organizācija ▪ JK notifikuotosios įstaigos 2000/14/EC ▪ Korp Notifikat tar-Renju Unit għal 2000/14/KE ▪ Dopuszczona jednostka badawcza w Wielkiej Brytanii wg 2000/ 14/WE ▪ Entidade notificada no Reino Unido para 2000/14/CE ▪ Organism notificat în Marea Britanie pentru 2000/14/CE ▪ Notifikovaný orgán Spojeného kráľovstva pre smernicu 2000/14/ES ▪ Britanski priglašeni organ za 2000/14/ES ▪ Cuerpo notificado en el Reino Unido para 2000/14/CE ▪ Anmält organ för 2000/14/EG i Storbritannien

Operator Ear Noise Level ▪ Оператор на нивото на доловим от ухото шум ▪ Hladina hluku v oblasti uší operátora ▪ Støjniveau i førers ørehøjde Geluidsniveau oor bestuurder ▪ Müratase operaatori kõrvas ▪ Melutaso käyttäjän korvan kohdalla ▪ Niveau de bruit à hauteur des oreilles de l’opérateur ▪ Schallpegel am Bedienerohr ▪ Επίπεδο θορύβου σε λειτουργία ▪ A kezelő fülénél mért zajszint ▪ Livello di potenza sonora all’orecchio dell’operatore ▪ Trok šņa līmenis pie operatora auss ▪ Dirbančiojo su mašina patiriamo triukšmo lygis ▪ Livell tal-Ħoss fil-Widna tal-Operatur ▪ Dopuszczalny poziom hałasu dla operatora ▪ Nível sonoro nos ouvidos do operador ▪ Nivelul zgomotului la urechea operatorului ▪ Hladina hluku pôsobiaca na sluch operátora ▪ Raven hrupa pri ušesu upravljavca ▪ Nivel sonoro en el oído del operador ▪ Ljudnivå vid förarens öra

Harmonised standards used ▪ Използвани хармонизирани стандарти ▪ Použité harmonizované normy ▪ Brugte harmoniserede standarder ▪ Gebruikte geharmoniseerde standaards ▪ Kasutatud ühtlustatud standardid ▪ Käytetyt yhdenmukaistetut standardit ▪ Normes harmonisées utilisées ▪ Angewandte harmonisierte Normen ▪ Εναρμονισμένα πρότυπα που χρησιμοποιήθηκαν ▪ Harmonizált szabványok Izmantotie saskaņotie standarti ▪ Panaudoti suderinti standartai ▪ Standards armonizzati użati ▪ Normy spójne powiązane ▪ Normas harmonizadas usadas ▪ Standardele armonizate utilizate ▪ Použité harmonizované normy ▪ Uporabljeni usklajeni standardi ▪ Estándares armonizados utilizados ▪ Harmoniserade standarder som används

Technical standards and specifications used ▪ Използвани технически стандарти и спецификации ▪ Použité technické normy a specifikace ▪ Brugte tekniske standarder og specifikationer ▪ Gebruikte technische standaards en specificaties ▪ Kasutatud tehnilised standardid ja spetsifikatsioonid ▪ Käytetyt tekniset standardit ja eritelmät ▪ Spécifications et normes techniques utilisées ▪ Angewandte technische Normen und Spezifikationen ▪ Τεχν ι κά πρότυπα και προδιαγραφές που χρησιμοποιήθηκαν ▪ Műszaki szabványok és specifikációk ▪ Standard tecnici e specifiche applicati ▪ Izmantotie tehniskie standarti un specifikācijas ▪ Panaudoti techniniai standartai ir techninė informacija ▪ Standards u speċifikazzjonijiet tekniċi użati ▪ Normy i specyfikacje techniczne powiązane ▪ Normas técnicas e especificações usadas ▪ Standardele tehnice şi specificaţiile utilizate ▪ Použité technické normy a špecifikácie ▪ Uporabljeni tehnični standardi in specifikacije ▪ Estándares y especificaciones técnicas utilizadas ▪ Tekniska standarder och specifikationer som används

The place and date of the declaration ▪ Място и дата на декларацията ▪ Místo a datum prohlášení ▪ Sted og dato for erklæringen ▪ Plaats en datum van de verklaring ▪ Deklaratsiooni väljastamise koht ja kuupäev ▪ Vakuutuksen paikka ja päivämäärä ▪ Lieu et date de la déclaration ▪ Ort und Datum der Erklärung ▪ Τόπ ος και ημερομηνία δήλωσης ▪ A nyilatkozat kelte (hely és idő) ▪ Luogo e data della dichiarazione ▪ Deklarācijas vieta un datums ▪ Deklaracijos vieta ir data ▪ Il-post u d-data tad-dikjarazzjoni ▪ Miejsce i data wystawienia deklaracji ▪ Local e data da declaração ▪ Locul şi data declaraţiei ▪ Miesto a dátum vyhlásenia ▪ Kraj in datum izjave ▪ Lugar y fecha de la declaración ▪ Plats och datum för deklarationen

Postup hodnocení plnění podmínek (hluk) ▪

Uppmätt ljudeffektsnivå

▪ Standard armonizzati applicati ▪

Ocena

č. 2000/14/EC ▪

▪

118, 118F - 45,7 cm 122, 122F - 55,9 cm 126 - 66,1 cm

2004/108/EC 2006/42/EC 2000/14/EC, 2005/88/EC 2006/66/EC

2006/42/EC Annex VIII

Hybrid Models - 96 dB(A) LWA Battery Models - 86 dB(A) LWA

Hybrid Models - 95 dB(A) LWA Battery Models - 85 dB(A) LWA

2000/14/EC Annex VI, Part 1

Sound Research Laboratories Limited

Hybrid Models 82 dB(a) Leq (2006/42/EC) Battert Models 70 dB(a) Leq (2006/42/EC)

BS EN ISO 20643 BS EN ISO 5349-1 BS EN ISO 5349-2 BS EN 836

B71.4 ISO 2631-1

Jacobsen, A Textron Company 11524 Wilmar Blvd. Charlotte, NC 28273, USA February 21st, 2012

Number: 1088

Holbrook House, Little Waldingfield

Sudbury, Suffolk CO10 0TH

Page 12

2 SPECIFICATIONS

Signature of the person empowered to draw up the declaration on behalf of the manufacturer, holds the technical documentation and is authorised to compile the technical file, and who is established in the Community.

Подпис на човека, упълномощен да състави декларацията от името на производителя, който поддържащ техническата документация и е оторизиран да изготви техническия файл и е регистриран в общността.

Podpis osoby oprávněné sestavit prohlášení jménem výrobce, držet technickou dokumentaci a osoby oprávněné sestavit technické soubory a založené v rámci Evropského společenství. Underskrift af personen, der har fuldmagt til at udarbejde erklæringen på vegne af producenten, der er indehaver af dokumentationen og er bemyndiget til at udarbejde den tekniske journal, og som er baseret i nærområdet. Handtekening van de persoon die bevoegd is de verklaring namens de fabrikant te tekenen, de technische documentatie bewaart en bevoegd is om het technische bestand samen te stellen, en die is gevestigd in het Woongebied. Ühenduse registrisse kantud isiku allkiri, kes on volitatud tootja nimel deklaratsiooni koostama, kes omab tehnilist dokumentatsiooni ja kellel on õigus koostada tehniline toimik. Sen henkilön allekirjoitus, jolla on valmistajan valtuutus vakuutuksen laadintaan, jolla on hallussaan tekniset asiakirjat, joka on valtuutettu laatimaan tekniset asiakirjat ja joka on sijoittautunut yhteisöön. Signature de la personne habilitée à rédiger la déclaration au nom du fabricant, à détenir la documentation technique, à compiler les fichiers techniques et qui est implantée dans la Communauté. Unterschrift der Person, die berechtigt ist, die Erklärung im Namen des Herstellers abzugeben, die die technischen Unterlagen aufbewahrt und berechtigt ist, die technischen Unterlagen zusammenzustellen, und die in der Gemeinschaft niedergelassen ist.

Υπογραφή ατόμου εξουσιοδοτημένου για την σύνταξη της δήλωσης εκ μέρους εξουσιοδότηση να ταξινομήσει τον τεχνικό φάκελο και ο οποίος είναι διορισμένος στην Κοινότητα.

A gyártó nevében meghatalmazott személy, akinek jogában áll módosítania a nyilatkozatot, a műszaki dokumentációt őrzi, engedéllyel rendelkezik a műszaki fájl összeállításához, és aki a közösségben letelepedett személy. Firma della persona autorizzata a redigere la dichiarazione a nome del fabbricante, in possesso Della documentazione tecnica ed autorizzata a costituire il fascicolo tecnico, che deve essere stabilita nella Comunità. Tās personas paraksts, kura ir pilnvarota deklarācijas sastādīšanai ražotāja vārdā, kurai ir tehniskā dokumentācija, kura ir pilnvarota sagatavot tehnisko reģistru un kura ir apstiprināta Kopienā. Asmuo, kuris yra gana žinomas, kuriam gamintojas suteikė įgaliojimus sudaryti šią deklaraciją, ir kuris ją pasirašė, turi visą techninę informacij įgaliotas sudaryti techninės informacijos dokumentą. Il-firma tal-persuna awtorizzata li tfassal id-dikjarazzjoni f’isem il-fabbrikant, għandha d-dokumentazzjoni teknika u hija awtorizzata li tikkompila l-fajl tekniku u li hija stabbilita fil-Komunità. Podpis osoby upoważnionej do sporządzenia deklaracji w imieniu producenta, przechowującej dokumentację techniczną, upoważnioną do stworzenia dokumentacji technicznej oraz wyznaczonej ds. wspólnotowych. Assinatura da pessoa com poderes para emitir a declaração em nome do fabricante, que possui a documentação técnica, que está autorizada a compilar o processo técnico e que está estabelecida na Comunidade. Semnătura persoanei împuternicite să elaboreze declaraţia în numele producătorului, care deţine documentaţia tehnică, este autorizată să compileze dosarul tehnic şi este stabilită în Comunitate. Podpis osoby poverenej vystavením vyhlásenia v mene výrobcu, ktorá má technickú dokumentáciu a je oprávnená spracovať technické podklady a ktorá je umiestnená v Spoločenstve. Podpis osebe, pooblaščene za izdelavo izjave v imenu proizvajalca, ki ima tehnično dokumentacijo in lahko sestavlja spis tehnične dokumentacije, ter ima sedež v Skupnosti. Firma de la persona responsable de la declaración en nombre del fabricante, que posee la documentación técnica y está autorizada para recopilar el archivo técnico y que está establecido en la Comunidad. Undertecknas av den som bemyndigad att upprätta deklarationen å tillverkarens vägnar, innehar den tekniska dokumentationen och är bemyndigad att sammanställa den tekniska informationen och som är etablerad i gemenskapen.

Certificate Number ▪ Номер на сертификат ▪ Číslo osvědčení Numéro de certificat ▪ Bescheinigungsnummer ▪ Αριθμός Πιστοποιητικού ▪ Hitelesítési szám ▪ Numero del certificato ▪ Sertifikāta numurs ▪ Sertifikato numeris ▪ Numru taċ-Ċertifikat ▪ Numer certyfikatu ▪ Número do Certificado ▪ Număr certificat ▪ Číslo osvedčenia ▪ Številka certifikata ▪ Número de certificado ▪ Certifikatsnummer

▪ Certifikatnummer ▪ Certificaatnummer ▪ Sertifikaadi number ▪ Hyväksyntänumero ▪

του κατασκευαστή, ο οποίος κατέχει την τεχνική έκθεση και έχει την

ą ir yra

2006/42/EC Annex II 1.A.2

Tim Lansdell

Technical Director

Ransomes Jacobsen Limited

West Road, Ransomes Europark,

Ipswich, IP3 9TT, England

2006/42/EC Annex II 1.A.10

Vasant Godhalekar

VP of Engineering

Jacobsen, A Textron Company

11524 Wilmar Blvd,

Charlotte, NC 28273, USA

4260472 Rev A

Page 13

DECALS 3

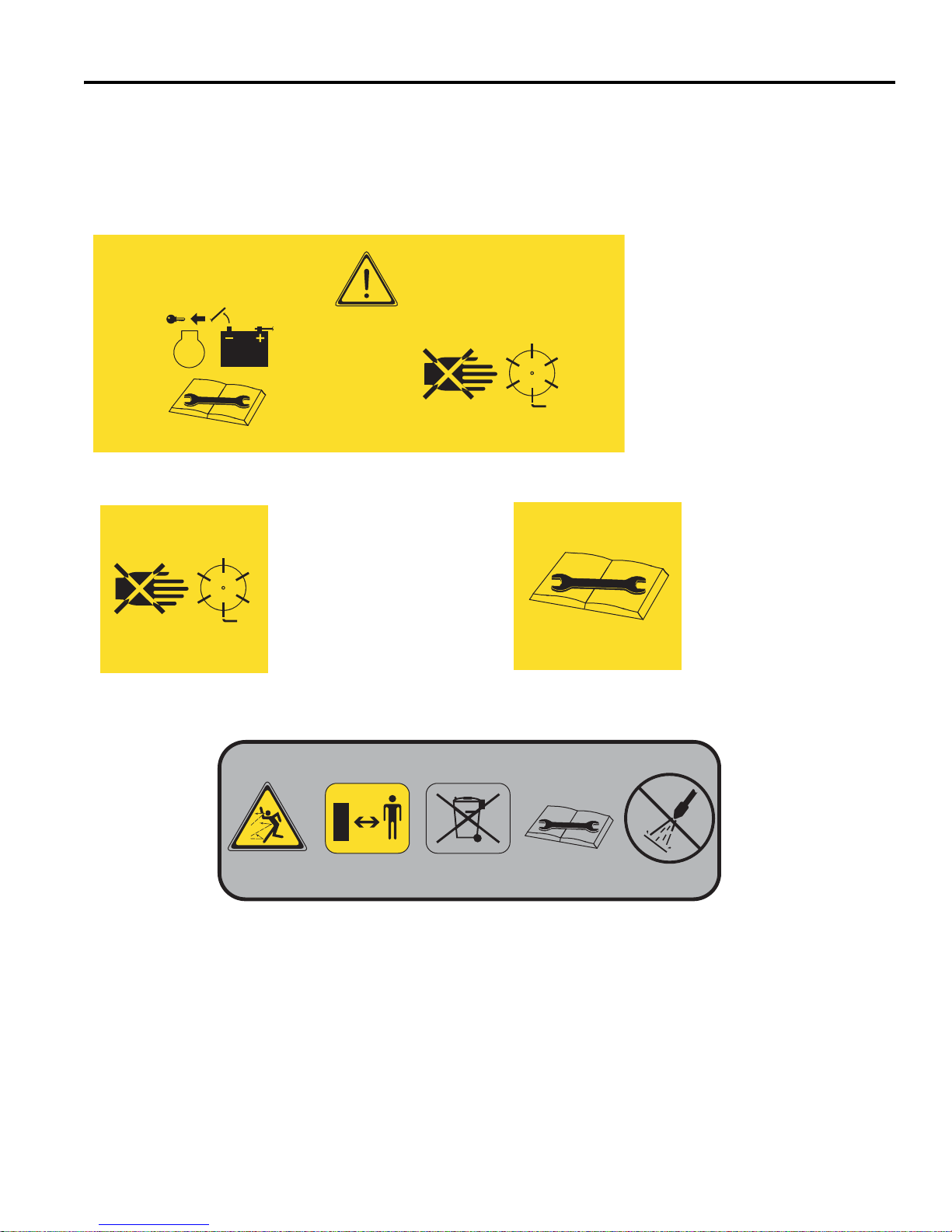

4170001

STOP

4127335

4169840 REV A

DANGER

To prevent injury, disengage all drives, engage parking brake, turn off key switch and disconnect power connector before working on machine or emptying grass catchers.

DANGER

Keep hands and feet away from the cutting unit to prevent serious injury.

DANGER

1. Keep a safe distance from the machine. Keep bystanders away.

2. Properly dispose of components from this machine. Refer to local regulations for waste disposal and recycling.

3. Refer to the manual for maintenance and service procedures.

4. Do not spray water at electrical connectors, motors or controllers. Do not use high pressure when to clean mower.

4170321

Read the manual before adjusting engine throttle lever.

3 DECALS

3.1 DECALS _________________________________________________________________

Familiarize yourself with the following decals. They are critical to the safe operation of the mower. REPLACE DAMAGED DECALS IMMEDIATELY.

Page 14

3 DECALS

4172240

Read the manual before adjusting front roller weight.

Disengaged Parking Engaged

Brake

Reel Switch

OFF

4265172

Key Switch

Off Position

Run Position

Energize Unit

Familiarize yourself with the following decals. They are critical to the safe operation of the mower. REPLACE DAMAGED DECALS IMMEDIATELY.

4265170

4265171

Page 15

DECALS 3

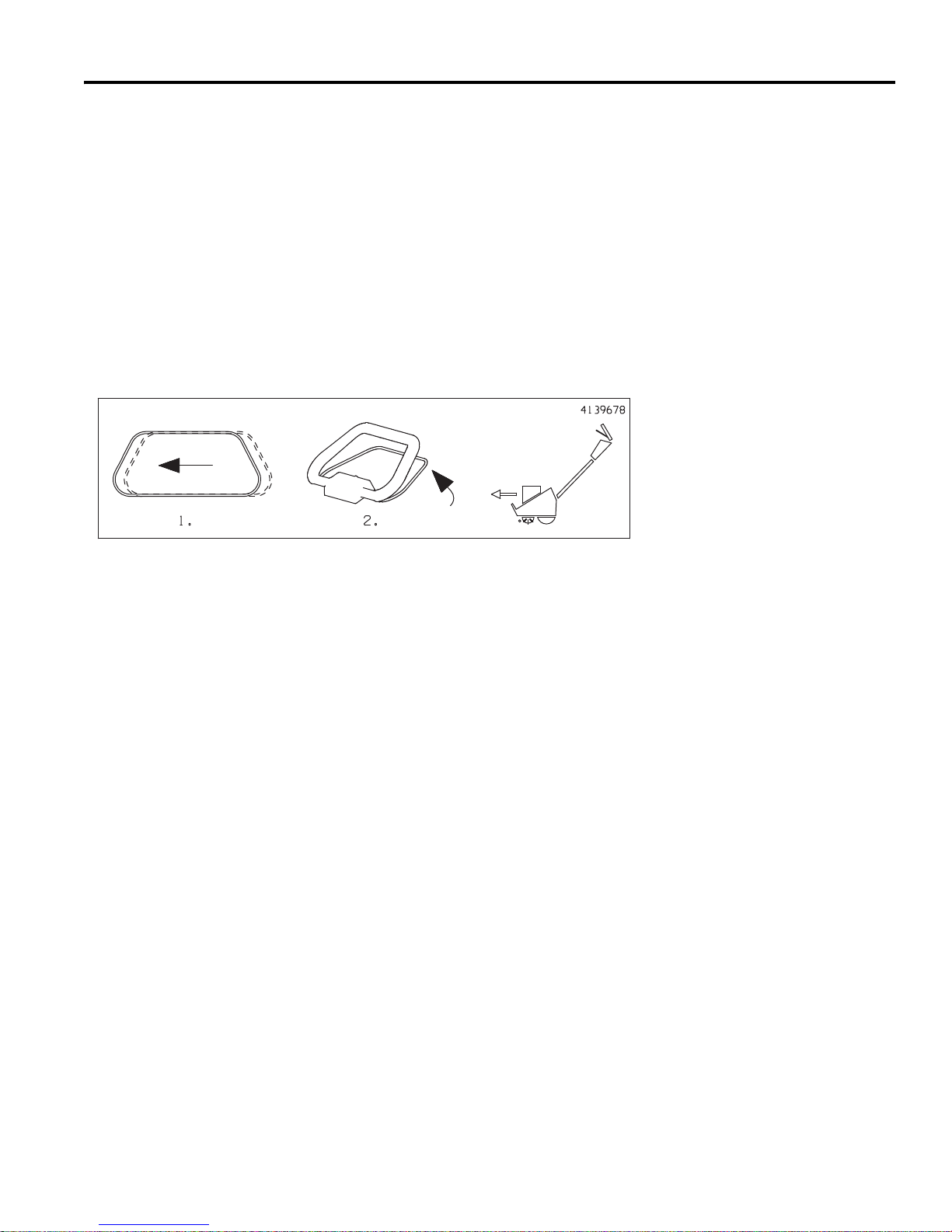

To Engage Traction.

1. Slide bail to the left.

2. Squeeze bail to handle.

Page 16

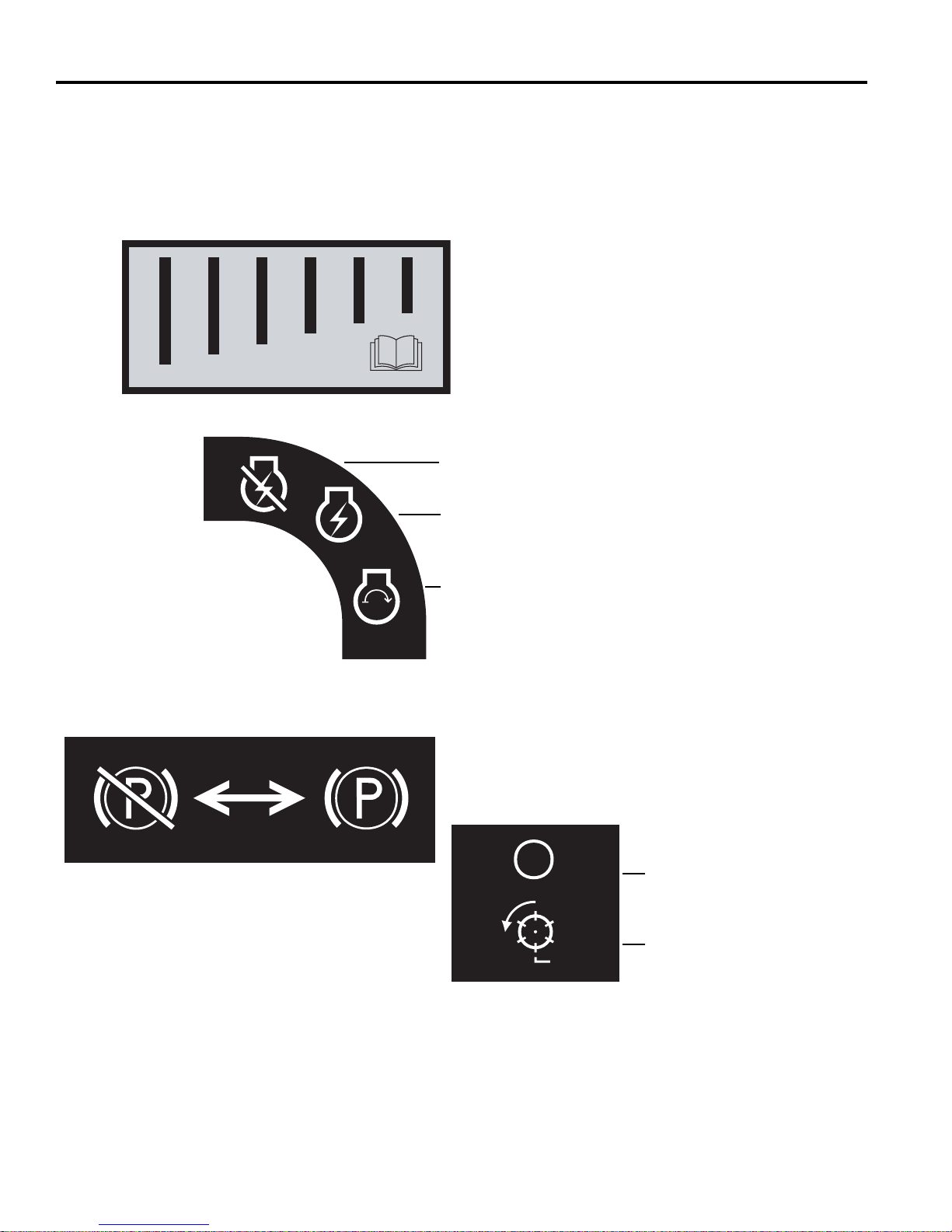

4 CONTROLS

Engaged Disengaged

Parking Brake

O.P.C. Traction Drive

Squeeze bail to handle

Power On

Fast Slow

Throttle

Power Up

Slide Bail Left

Power Off

4 CONTROLS

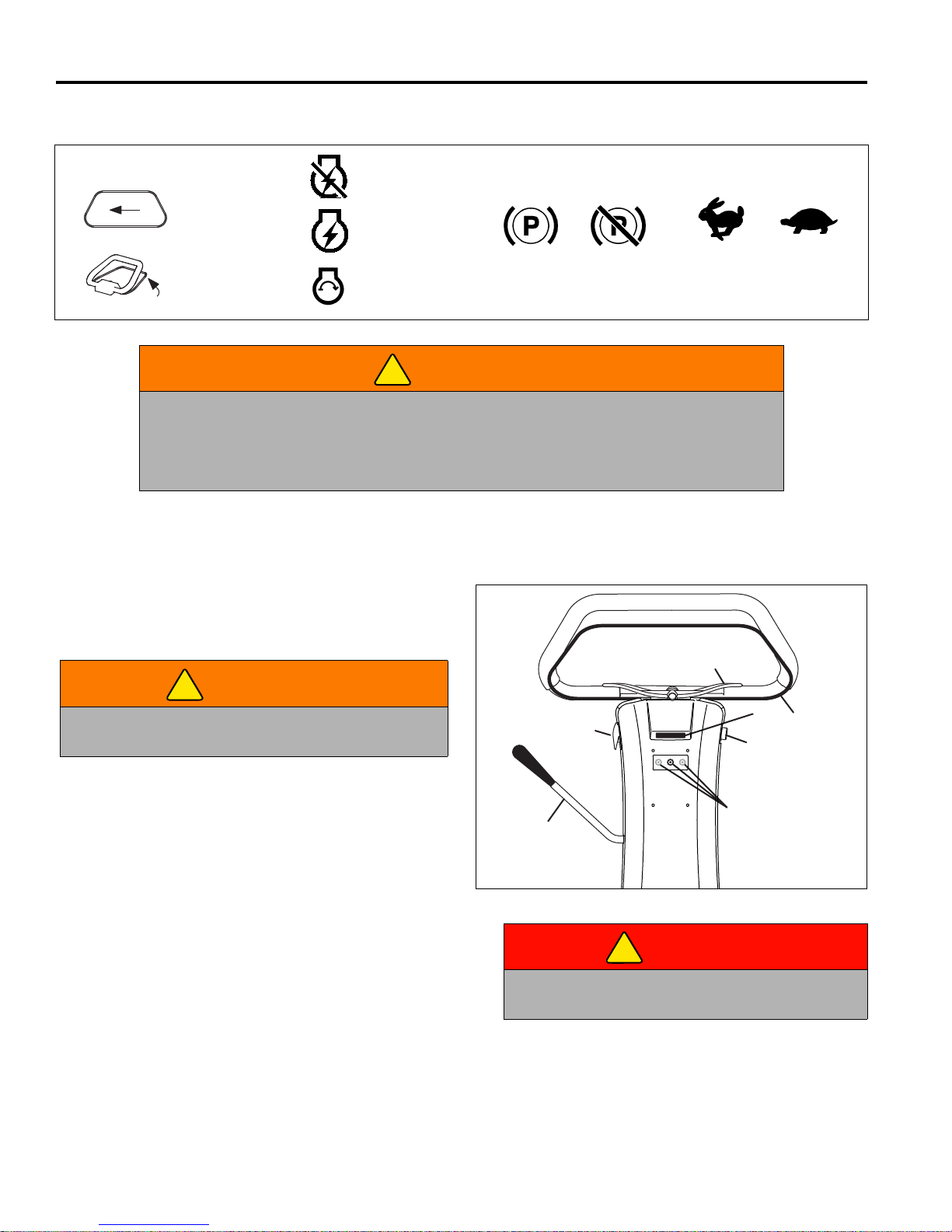

4.1 ICONS ___________________________________________________________________

WARNING

Never attempt to operate the machine unless you have read the Safety and Operation Manual, the Parts and Maintenance Manual and know how to operate all controls correctly.

Familiarize yourself with the icons shown above and what they represent. Learn the location and purpose of all the controls before operating this mower.

4.2 HANDLE CONTROLS ______________________________________________________

A. Parking Brake – Used whenever the mower is left

unattended or as a service brake while transporting. Always use transport tires when transporting up or

down hills.

WARNING

To prevent injury, always use transport tires when transporting unit up or down hills.

B. Speed Paddle – Sets maximum traction drive speed

when O.P.C. Bail is engaged. Push (+) side of lever to increase speed. Push (-) side of lever to decrease speed.

C. O.P.C. Bail – Slide bail slightly to the left and

squeeze bail to start traction motor. Traction motor speed is increased as the bail moves towards the handle. Release bail to stop unit.

D. Key Switch - The power switch turns the power on

and off. It has three positions OFF, RUN, and START. Key switch must be in RUN position to start units equipped with Gen-Set power module.

DANGER

Keep hands and feet away from the cutting unit to prevent serious injury.

Figure 4A

E. Reel Switch - The reel switch is used to start and

stop the reel.

F. LCD Controls - Used to navigate through menus.

G. LCD Display - Used to display operating conditions.

Page 17

CONTROLS 4

4.3 LCD DISPLAY _____________________________________________________________

The LCD displays current functional values for the operation of the Eclipse mower and sounds one of three types of audible alerts. The LCD operates in one of two modes, Operator Mode (Default), and Maintenance Mode. Use of Maintenance mode requires a four digit pin number.

Press either of the orange buttons (K or L) to change screen display or change values. Push the right orange button (K) to go forward in the display list or increase setting value, and push the left orange button (L) to go back in the display list or decrease setting value. The black button (J) is used to select, reset, or change values.

Alert Displays: In addition to the standard displays for each mode, there are six displays that are used to alert the operator/mechanic of a problem the needs to be corrected.

Alert Display Alert Description

Low Voltage display is shown when system voltage drops below 42 Volts DC on Battery

powered mowers or 38 Volts DC on Gen-Set powered mowers, for 30 seconds and a solid tone alarm will sound. Press the black button (J) to silence the alarm. Return mower to storage area or install a fully charged battery pack. Reel motor will not operate with low voltage on the display.

Overvoltage/Check Voltage display is shown when system voltage is above 60 Volts DC and a fast (2 per second) beeping alarm will sound. If not corrected, controller will shut down after 60 seconds. Check generator output before restarting system. [See Section 10.4].

Traction Motor Controller Fault display is shown when a problem is detected in the traction motor controller. Traction motor will not operate until the problem is resolved. Return mower to maintenance area for repair.

Audible Alerts indicate one of three conditions detected by the LCD Display and a corresponding message would show on the display. A solid tone indicates low system voltage. A fast beeping (2 per second) alert indicates an over voltage condition. A slow beeping (1 every 3 seconds) alert indicates mower is in backlap mode.

Figure 4B

Traction Motor Fault display is shown when a traction motor short circuit is detected or the

traction motor current draw exceeds 30 Amps for one second. Traction motor will not operate until the problem is resolved. Return mower to maintenance area for repair.

Reel Motor Controller Fault display is shown when a problem is detected in the reel motor controller. Reel motor will not operate until the problem is resolved. Return mower to maintenance area for repair.

Reel Motor Fault display is shown when a reel motor short circuit is detected or the reel motor current draw exceeds 30 Amps for one second. Reel motor will not operate until the problem is resolved. Return mower to maintenance area for repair.

WARNING

Turn reel switch off, release bail, turn key to off position, and disconnect battery connector before checking for obstructions in reel.

Page 18

4 CONTROLS

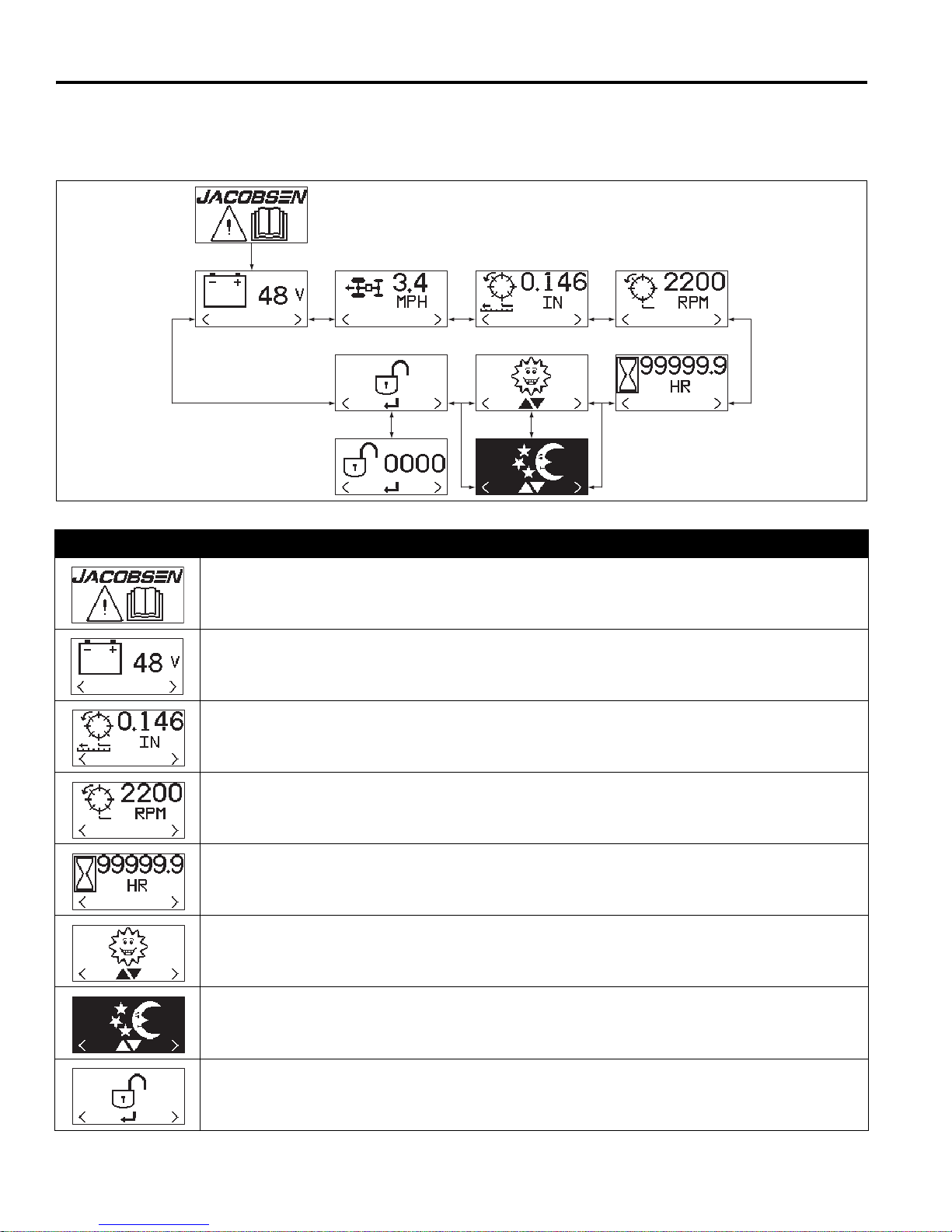

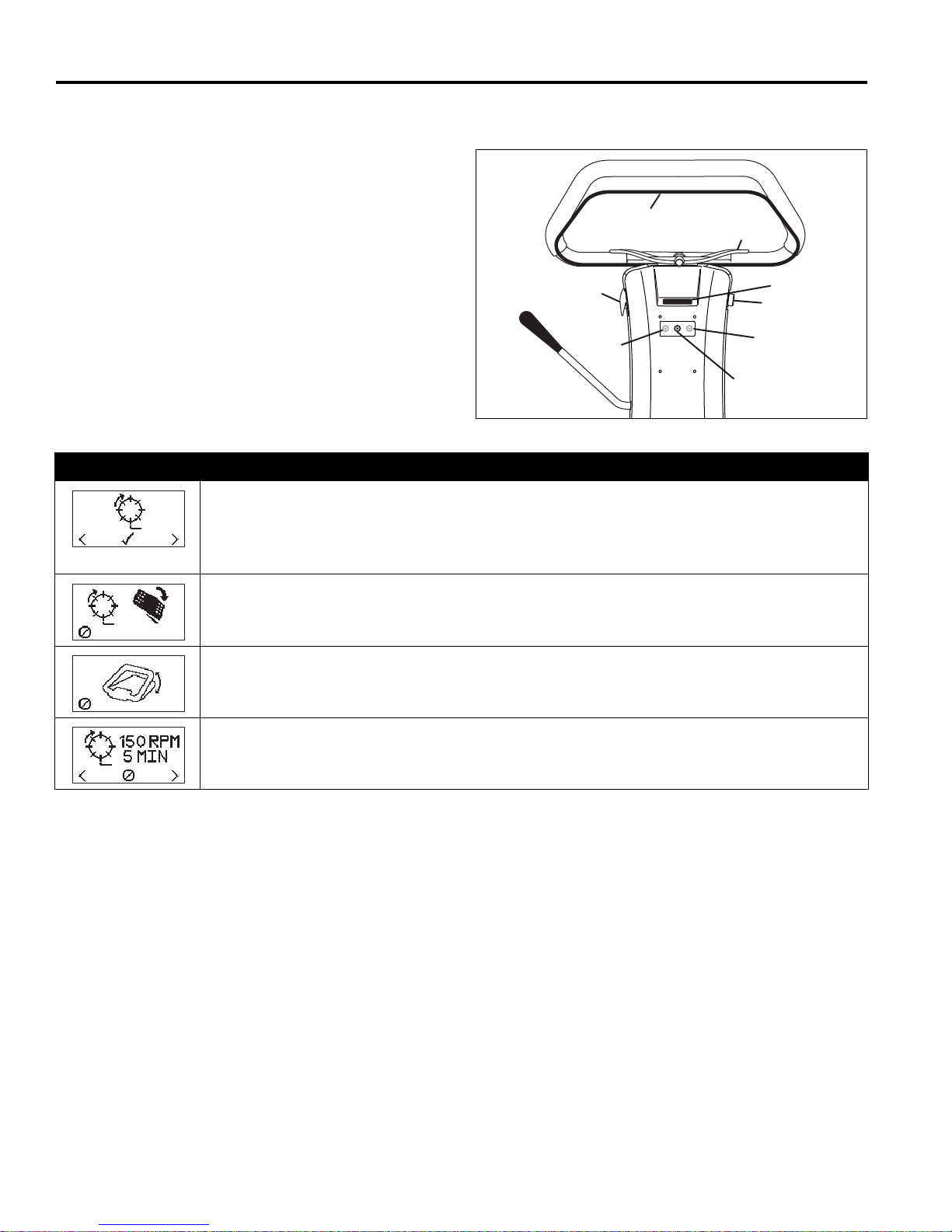

Operator Mode is used by the operator for system voltage information, travel speed, FOC setting, reel speed, and total hours on mower. Press the orange buttons (K and L) on the front handle cover to toggle between the different displays. Operator Mode is view only, only screen illumination mode can be changed.

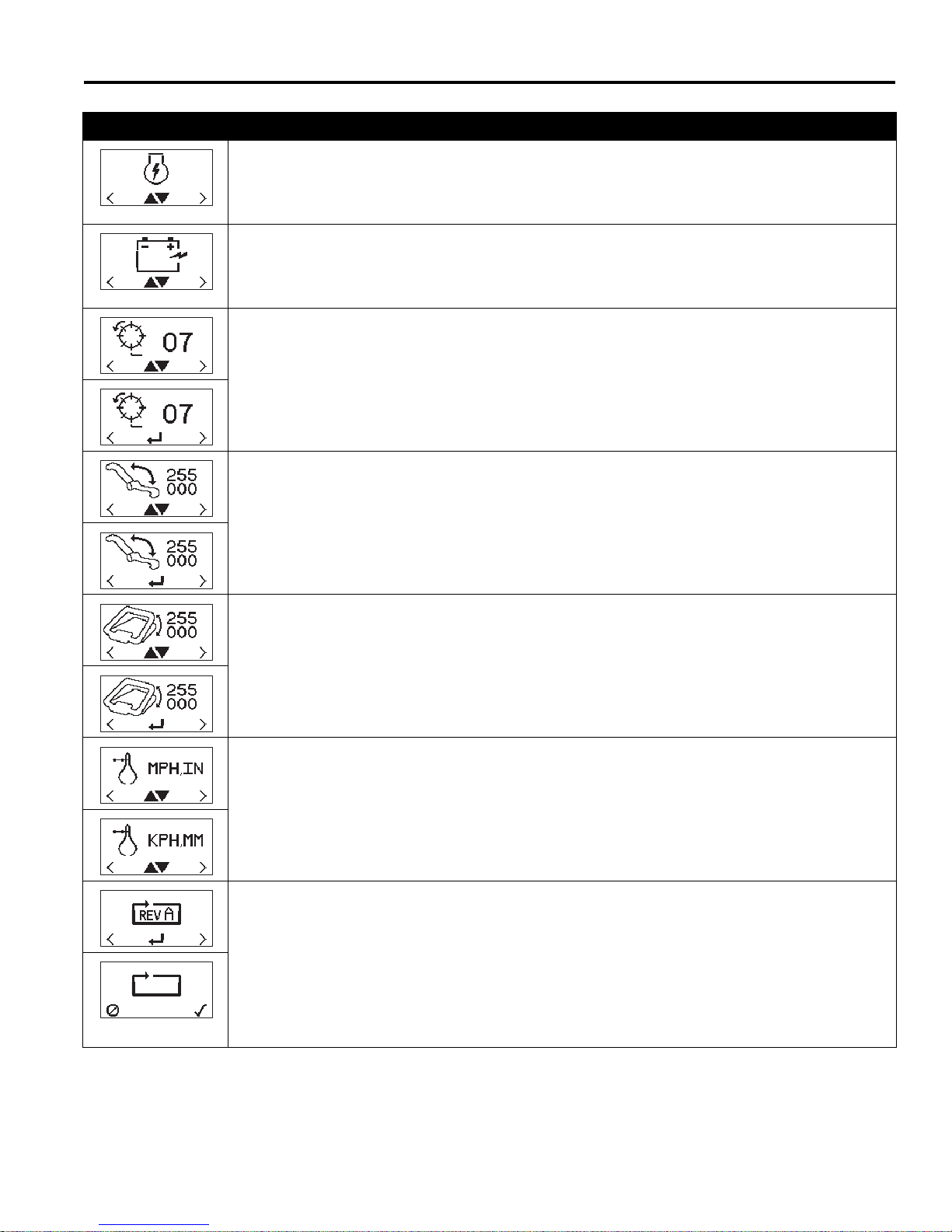

Display Description

Start-Up Screen - Displays for up to five seconds when system is started.

System Voltage - Displays system voltage between 42 and 59 volts. Screen will be replaced

with alert screen when system voltage drops below 42 volts or rises above 60 volts.

FOC Setting - Displays FOC (Frequency of Clip) setting. When FOC is set to 0, reel will operate at the fixed reel speed.

Fixed Reel Speed - Displays fixed reel speed setting with FOC set to 0. Fixed reel speed setting is not used for any FOC other than 0.

Hour Meter - Displays total hours unit has been operated.

Daytime Illumination - When selected, LCD displays dark pixels on a light background. Press the black button (J) to toggle between daytime and nighttime illumination.

Nighttime Illumination - When selected, LCD displays light pixels on a dark background. Press the black button (J) to toggle between daytime and nighttime illumination.

Maintenance Mode PIN - Used to enter Maintenance Mode. Maintenance Mode pin is required.

See Maintenance Mode.

Page 19

CONTROLS 4

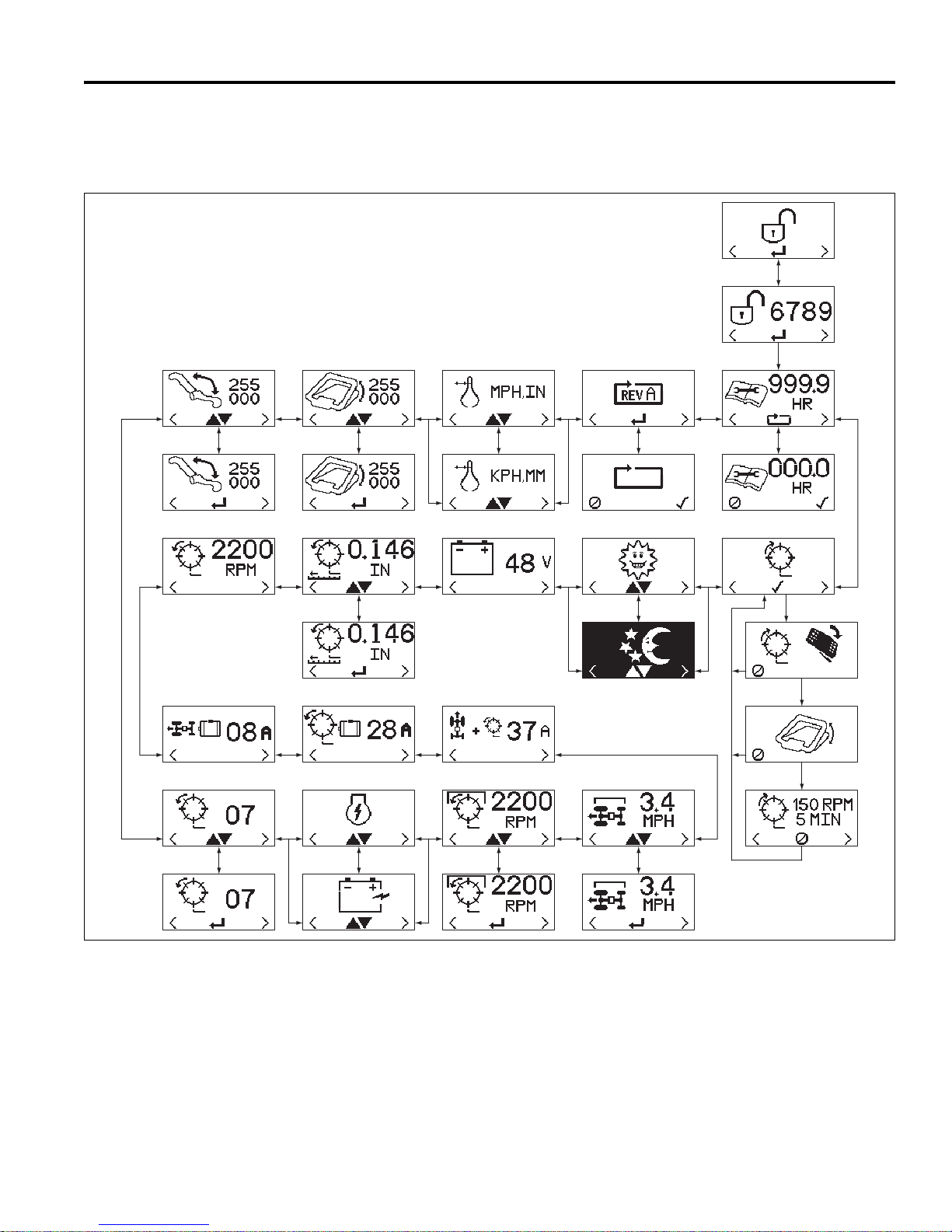

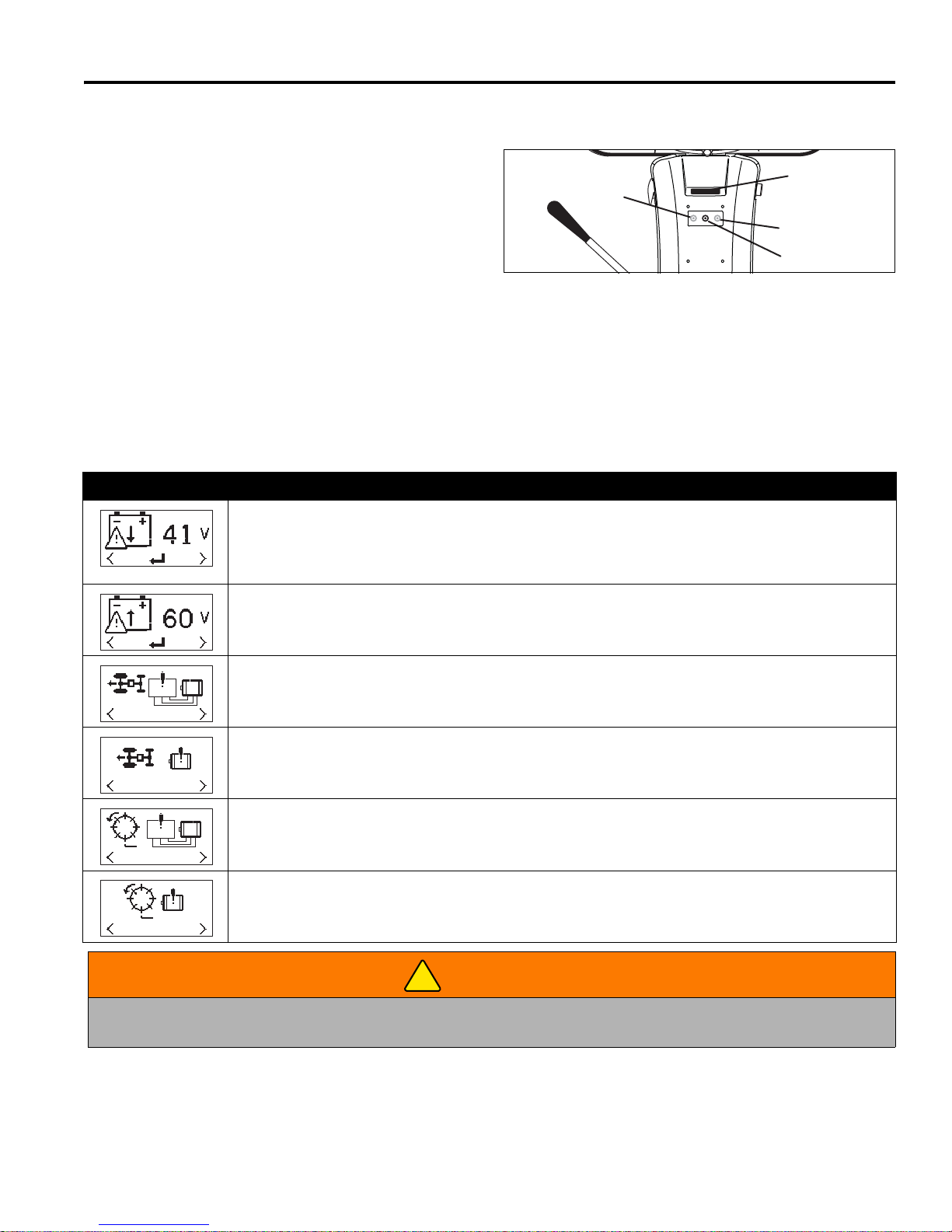

Maintenance Mode is used to set and adjust all functional values for the Eclipse Mower. LCD displays available in Maintenance Mode are, maintenance hours, backlap, system voltage, travel speed, set FOC, reel speed, traction motor current draw, reel motor current draw, total motor current draw, set mow speed, set reel speed, set power source, set number of reel blades, calibrate speed paddle, calibrate bail lever, set display units, and factory reset.

See Operator Mode for descriptions of Daytime/Nighttime Illumination, System Voltage, and Fixed Reel Speed screens.

Figure 4C

Page 20

4 CONTROLS

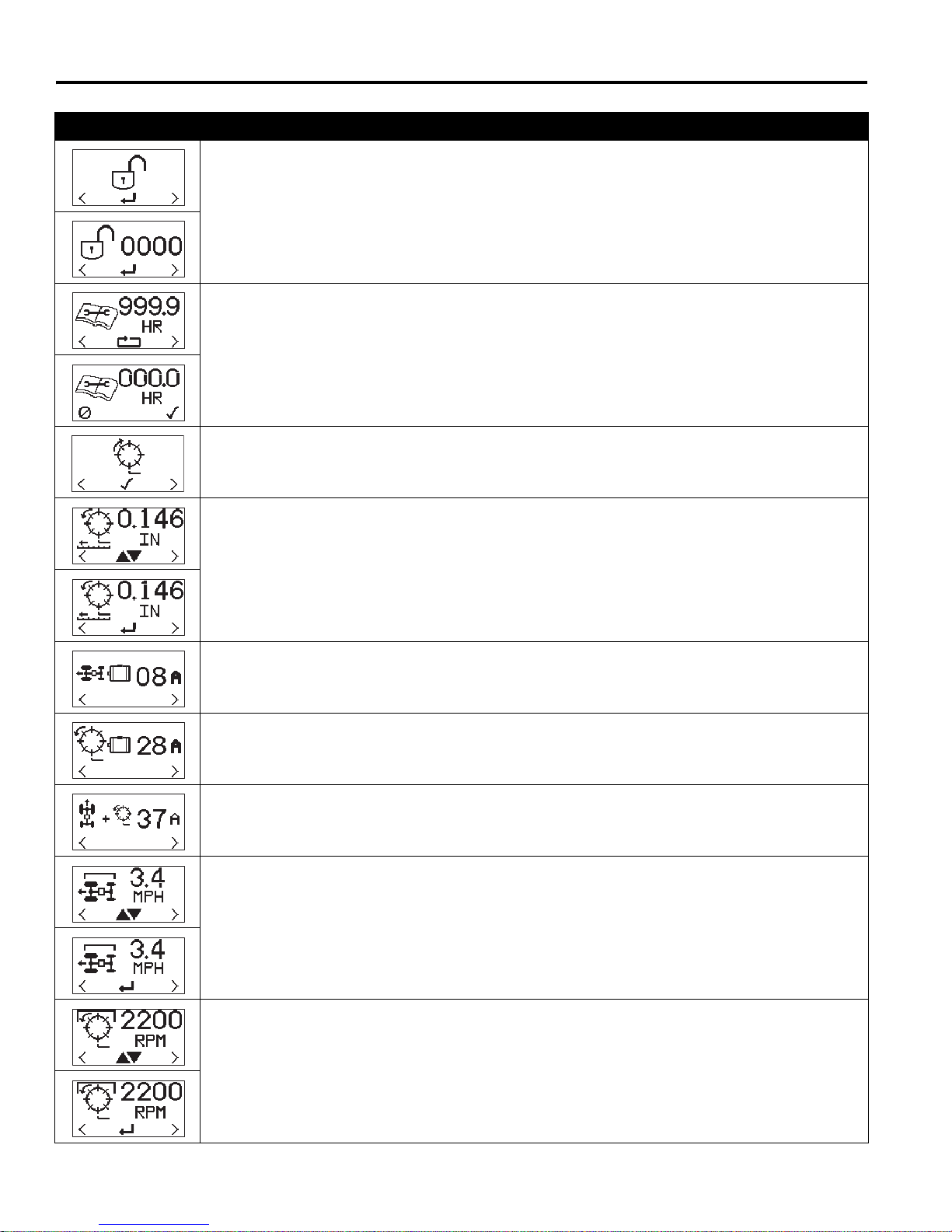

Display Description

To enter Maintenance Mode, press either orange buttons (K or L) until Maintenance Mode PIN screen is on the display and press black button (J). Use the orange buttons (K or L) to select and the black button (J) to enter the digits for the Mechanic Mode pin.

NOTE: The default PIN for Maintenance Mode is 6789. The Maintenance Mode PIN can be customized to a setting of your choice. Please contact your Jacobsen Dealer or Jacobsen Technical Support (1800-848-1636 Option 2) for complete instructions.

Maintenance Hours - System can track up to 999.9 hours for maintenance purposes. To reset maintenance hours, press either of the orange buttons (K or L) on the front cover until

the maintenance hours screen is on the LCD display. Press the black button (J) to move to the confirm reset screen. Press the right orange button (K) to confirm reset, or press left orange button (L) to cancel reset.

Backlap Select - Used to switch mower to backlap mode. See Section 11.4 for backlap screen descriptions.

Set FOC - To set the fixed FOC, press either of the orange buttons (K or L) on the front cover until the FOC set screen is on the LCD display. Press the black button (J) to enter set mode. Use the orange buttons to raise (K) or lower (L) the FOC value to the desired setting. press the black button to set speed.

Fixed FOC setting must be 0 or between 0.087 and 0.178 in. (2.2 and 4.5 mm). [See Section

4.4].

Traction Motor Current - Displays current draw of traction drum motor. Fault will be displayed if

current draw is greater than 30 Amps for one second.

Reel Motor Current - Displays current draw of reel motor. Fault will be displayed if current draw is greater than 30 Amps for one second.

Total Motor Current - Displays total current draw of traction drum motor and reel motor.

Maximum Mow Speed - To set the maximum mow speed, press either of the orange buttons (K or L) on the front cover until the set max mow speed screen is on the LCD display. Press the

black button (J) to enter set mode. Use the orange buttons to raise (K) or lower (L) the maximum mow speed to the desired speed. press the black button to set speed.

Maximum mow speed must be between 2.0 and 3.8 MPH (3.2 and 6.1 kph).

Fixed Reel Speed: To set the fixed reel speed, the FOC setting must be set to 0, then press either of the orange buttons (K or L) on the front cover until the set reel speed screen is on the LCD display. Press the black button (J) to enter set mode. Use the orange buttons to raise (K) or lower (L) the reel speed to the desired setting.

Fixed reel speed must be set between 1800 and 2200 rpm.

The Maximum Mow Speed and the Fixed Reel Speed are used to determine the FOC (Frequency of Cut) [See Section 4.4].

Page 21

Display Description

Gen-Set Power Module - Used to indicate the gen-set power module is installed on the mower.

This setting is used by system controllers and does not affect operation of mower. Do not operate mower with incorrect power module setting. Press the black button (J) to toggle between the power module settings.

Battery Power Module - Used to indicate the battery power module is installed on the mower. This setting is used by system controllers and does not affect operation of mower. Do not operate mower with incorrect power module setting. Press the black button (J) to toggle between the power module settings.

Set Number of Reel Blades: To set the number of reel blades, press either of the orange buttons (K or L) on the front cover until the reel blades screen is on the LCD display. Press the black

button (J) to enter set mode. Use the orange buttons to set the number of blades.

Available reel blades are 7, 9 (Floating Only), 11 or 15.

Speed Paddle Calibration - Before calibrating the speed paddle, check that paddle stops are properly adjusted [See Section 6.3].To calibrate the paddle, press either of the orange buttons (K or L) on the front cover until the speed paddle calibration screen is on the LCD display. Press the black button (J) to enter set mode. Move the speed paddle through its entire range of movement to determine minimum and maximum values.

Values displayed will change as controls are moved.

CONTROLS 4

Bail Lever Calibration - To calibrate the bail lever, press either of the orange buttons (K or L) on the front cover until the bail lever calibration screen is on the LCD display. Press the black button (J) to enter set mode. Fully engage and disengage the bail lever to determine minimum and maximum values.

Values displayed will change as controls are moved.

Display Units - To set the display units, press either of the orange buttons (K or L) on the front cover until the units screen is on the LCD display. Press the black button (J) to toggle between english (MPH, IN) or metric (KPH, mm) units.

Factory Reset - To reset controller to factory default values, press either of the orange buttons (K or L) on the front cover until the Factory Reset screen is on the LCD display. Press the black

button (J) to move to the confirm reset screen. Press the right orange button (K) to confirm reset, or press left orange button (L) to cancel reset.

Maximum Mow Speed......3.4 Mph (5.5 kph)

Reel Speed ......................2200 rpm

Fixed FOC Setting............0.146

Display units.....................English

Page 22

4 CONTROLS

4.4 FREQUENCY OF CUT ______________________________________________________

The FOC (Frequency of cut) is the distance, in inches (mm), the machine travels forward between reel blades contacting the bedknife. The FOC can be adjusted either by changing the Fixed FOC setting or by changing the maximum mow speed and the fixed reel speed on the LCD display.

Adjust FOC with Fixed FOC setting

Changing the FOC setting to a value other than 0 will enable the fixed FOC mode and disable the reel speed setting. As mower travel speed increases or decreases, reel speed will automatically adjust as required to maintain set FOC.

Adjust FOC with Reel Speed Setting

1. Using the FOC charts, determine the maximum mow speed and fixed reel speed required for the desired FOC.

2. Start the unit in Maintenance mode. [Section 4.3]

3. Set fixed FOC setting to 0

4. Set desired Maximum Mow Speed

5. Set desired Fixed Reel Speed

NOTE: Mow speed is measured in mph (kph), FOC is measured in inches (millimeters).

Page 23

CONTROLS 4

15 Blade Reel FOC Table

Mow

Speed

2.00 0.078 0.076 0.074 0.072 0.070 0.069 0.067 0.065 0.064

(3.22) (1.987) (1.933) (1.882) (1.834) (1.788) (1.745) (1.703) (1.663) (1.626)

2.10 0.082 0.080 0.078 0.076 0.074 0.072 0.070 0.069 0.067

(3.38) (2.086) (2.030) (1.976) (1.926) (1.878) (1.832) (1.788) (1.747) (1.707)

2.20 0.086 0.084 0.082 0.079 0.077 0.076 0.074 0.072 0.070

(3.54) (2.186) (2.126) (2.071) (2.017) (1.967) (1.919) (1.873) (1.830) (1.788)

2.30 0.090 0.088 0.085 0.083 0.081 0.079 0.077 0.075 0.074

(3.70) (2.285) (2.223) (2.165) (2.109) (2.056) (2.006) (1.958) (1.913) (1.869)

2.40 0.094 0.091 0.089 0.087 0.084 0.082 0.080 0.079 0.077

(3.86) (2.384) (2.320) (2.259) (2.201) (2.146) (2.093) (2.044) (1.996) (1.951)

2.50 0.098 0.095 0.093 0.090 0.088 0.086 0.084 0.082 0.080

(4.02) (2.484) (2.416) (2.353) (2.293) (2.235) (2.181) (2.129) (2.079) (2.032)

2.60 0.102 0.099 0.096 0.094 0.092 0.089 0.087 0.085 0.083

(4.18) (2.583) (2.513) (2.447) (2.384) (2.325) (2.268) (2.214) (2.162) (2.113)

2.70 0.106 0.103 0.100 0.097 0.095 0.093 0.091 0.088 0.086

(4.35) (2.682) (2.610) (2.541) (2.476) (2.414) (2.355) (2.299) (2.246) (2.195)

2.80 0.110 0.107 0.104 0.101 0.099 0.096 0.094 0.092 0.090

(4.51) (2.782) (2.706) (2.635) (2.568) (2.503) (2.442) (2.384) (2.329) (2.276)

2.90 0.113 0.110 0.107 0.105 0.102 0.100 0.097 0.095 0.093

(4.67) (2.881) (2.803) (2.729) (2.659) (2.593) (2.530) (2.469) (2.412) (2.357)

3.00 0.117 0.114 0.111 0.108 0.106 0.103 0.101 0.098 0.096

(4.83) (2.980) (2.900) (2.823) (2.751) (2.682) (2.617) (2.555) (2.495) (2.438)

3.10 0.121 0.118 0.115 0.112 0.109 0.106 0.104 0.102 0.099

(4.99) (3.080) (2.996) (2.918) (2.843) (2.772) (2.704) (2.640) (2.578) (2.520)

3.20 0.125 0.122 0.119 0.116 0.113 0.110 0.107 0.105 0.102

(5.15) (3.179) (3.093) (3.012) (2.934) (2.861) (2.791) (2.725) (2.661) (2.601)

3.30 0.129 0.126 0.122 0.119 0.116 0.113 0.111 0.108 0.106

(5.31) (3.278) (3.190) (3.106) (3.026) (2.950) (2.879) (2.810) (2.745) (2.682)

3.40 0.133 0.129 0.126 0.123 0.120 0.117 0.114 0.111 0.109

(5.47) (3.378) (3.286) (3.200) (3.118) (3.040) (2.966) (2.895) (2.828) (2.764)

3.50 0.137 0.133 0.130 0.126 0.123 0.120 0.117 0.115 0.112

(5.63) (3.477) (3.383) (3.294) (3.210) (3.129) (3.053) (2.980) (2.911) (2.845)

3.60 0.141 0.137 0.133 0.130 0.127 0.124 0.121 0.118 0.115

(5.79) (3.576) (3.480) (3.388) (3.301) (3.219) (3.140) (3.065) (2.994) (2.926)

3.70 0.145 0.141 0.137 0.134 0.130 0.127 0.124 0.121 0.118

(5.95) (3.676) (3.576) (3.482) (3.393) (3.308) (3.227) (3.151) (3.077) (3.007)

3.80 0.149 0.145 0.141 0.137 0.134 0.130 0.127 0.124 0.122

(6.12) (3.775) (3.673) (3.576) (3.485) (3.398) (3.315) (3.236) (3.160) (3.089)

1800 1850 1900 1950 2000 2050 2100 2150 2200

, Product No 63339, 63341, 63335, 63337, 63348, 63350, 63344, 63346 (Standard Reel)

Reel RPM

Page 24

4 CONTROLS

11 Blade Reel FOC Table, Product No. 63334, 63336, 63338, 63340, 63347, 63349, 63343, 63345 (Standard Reel)

Mow

Speed

2.0

(3.22)

2.1

(3.38)

2.2

(3.54)

2.3

(3.7)

2.4

(3.86)

2.5

(4.02)

2.6

(4.18)

2.7

(4.35)

2.8

(4.51)

2.9

(4.67)

3.0

(4.83)

3.1

(4.99)

3.2

(5.15)

3.3

(5.31)

3.4

(5.47)

3.50 0.187 0.182 0.177 0.172 0.168 0.164 0.160 0.156 0.153

(5.63) (4.741) (4.613) (4.492) (4.377) (4.267) (4.163) (4.064) (3.969) (3.879)

3.60 0.192 0.187 0.182 0.177 0.173 0.169 0.165 0.161 0.157

(5.79) (4.877) (4.745) (4.620) (4.502) (4.389) (4.282) (4.180) (4.083) (3.990)

3.70 0.197 0.192 0.187 0.182 0.178 0.173 0.169 0.165 0.161

(5.95) (5.012) (4.877) (4.748) (4.627) (4.511) (4.401) (4.296) (4.196) (4.101)

3.80 0.203 0.197 0.192 0.187 0.182 0.178 0.174 0.170 0.166

(6.12) (5.148) (5.009) (4.877) (4.752) (4.633) (4.520) (4.412) (4.310) (4.212)

1800 1850 1900 1950 2000 2050 2100 2150 2200

0.107

(2.709)

0.112

(2.845)

0.117

(2.98)

0.123

(3.116)

0.128

(3.251)

0.133

(3.387)

0.139

(3.522)

0.144

(3.658)

0.149

(3.793)

0.155

(3.929)

0.160

(4.064)

0.165

(4.199)

0.171

(4.335)

0.176 (4.47)

0.181

(4.606)

0.104

(2.636)

0.109

(2.768)

0.114 (2.9)

0.119

(3.032)

0.125

(3.163)

0.130

(3.295)

0.135

(3.427)

0.140

(3.559)

0.145

(3.691)

0.150

(3.822)

0.156

(3.954)

0.161

(4.086)

0.166

(4.218)

0.171

(4.35)

0.176

(4.481)

0.101

(2.567)

0.106

(2.695)

0.111

(2.823)

0.116

(2.952)

0.121 (3.08)

0.126

(3.208)

0.131

(3.337)

0.136

(3.465)

0.141

(3.593)

0.147

(3.722)

0.152 (3.85)

0.157

(3.978)

0.162

(4.107)

0.167

(4.235)

0.172

(4.363)

0.098

(2.501)

0.103

(2.626)

0.108

(2.751)

0.113

(2.876)

0.118

(3.001)

0.123

(3.126)

0.128

(3.251)

0.133

(3.376)

0.138

(3.501)

0.143

(3.626)

0.148

(3.751)

0.153

(3.876)

0.158

(4.001)

0.162

(4.127)

0.167

(4.252)

Reel RPM

0.096

(2.438)

0.101

(2.56)

0.106

(2.682)

0.110

(2.804)

0.115

(2.926)

0.120

(3.048)

0.125 (3.17)

0.130

(3.292)

0.134

(3.414)

0.139

(3.536)

0.144

(3.658)

0.149 (3.78)

0.154

(3.901)

0.158

(4.023)

0.163

(4.145)

0.094

(2.379)

0.098

(2.498)

0.103

(2.617)

0.108

(2.736)

0.112

(2.855)

0.117

(2.974)

0.122

(3.093)

0.126

(3.212)

0.131 (3.33)

0.136

(3.449)

0.140

(3.568)

0.145

(3.687)

0.150

(3.806)

0.155

(3.925)

0.159

(4.044)

0.091

(2.322)

0.096

(2.438)

0.101

(2.555)

0.105

(2.671)

0.110

(2.787)

0.114

(2.903)

0.119

(3.019)

0.123

(3.135)

0.128

(3.251)

0.133

(3.367)

0.137

(3.483)

0.142 (3.6)

0.146

(3.716)

0.151

(3.832)

0.155

(3.948)

0.089

(2.268)

0.094

(2.382)

0.098

(2.495)

0.103

(2.609)

0.107

(2.722)

0.112

(2.835)

0.116

(2.949)

0.121

(3.062)

0.125

(3.176)

0.129

(3.289)

0.134

(3.402)

0.138

(3.516)

0.143

(3.629)

0.147

(3.743)

0.152

(3.856)

0.087

(2.217)

0.092

(2.328)

0.096

(2.438)

0.100

(2.549)

0.105 (2.66)

0.109

(2.771)

0.113

(2.882)

0.118

(2.993)

0.122

(3.103)

0.127

(3.214)

0.131

(3.325)

0.135

(3.436)

0.140

(3.547)

0.144

(3.658)

0.148

(3.768)

Page 25

CONTROLS 4

9 Blade Reel FOC Table, Product No. 63340, 63349 (Optional Reel)

Mow

Speed

2.0 0.130 0.127 0.124 0.120 0.117 0.114 0.112 0.109 0.107

(3.22) (3.311) (3.222) (3.137) (3.057) (2.98) (2.908) (2.838) (2.772) (2.709)

2.1 0.137 0.133 0.130 0.126 0.123 0.120 0.117 0.115 0.112

(3.38) (3.477) (3.383) (3.294) (3.21) (3.129) (3.053) (2.98) (2.911)

2.2 0.143 0.140 0.136 0.132 0.129 0.126 0.123 0.120 0.117

(3.54) (3.643) (3.544) (3.451) (3.362) (3.278) (3.198) (3.122) (3.05) (2.98)

2.3 0.150 0.146 0.142 0.138 0.135 0.132 0.129 0.126 0.123

(3.7) (3.808) (3.705) (3.608) (3.515) (3.427) (3.344) (3.264) (3.188) (3.116)

2.4 0.156 0.152 0.148 0.144 0.141 0.137 0.134 0.131 0.128

(3.86) (3.974) (3.866) (3.765) (3.668) (3.576) (3.489) (3.406) (3.327) (3.251)

2.5 0.163 0.159 0.154 0.150 0.147 0.143 0.140 0.136 0.133

(4.02) (4.139) (4.027) (3.921) (3.821) (3.725) (3.634) (3.548) (3.465) (3.387)

2.6 0.169 0.165 0.161 0.156 0.153 0.149 0.145 0.142 0.139

(4.18) (4.305) (4.188) (4.078) (3.974) (3.874) (3.78) (3.69) (3.604) (3.522)

2.7 0.176 0.171 0.167 0.162 0.158 0.155 0.151 0.147 0.144

(4.35) (4.47) (4.35) (4.235) (4.127) (4.023) (3.925) (3.832) (3.743) (3.658)

2.8 0.183 0.178 0.173 0.168 0.164 0.160 0.156 0.153 0.149

(4.51) (4.636) (4.511) (4.392) (4.279) (4.172) (4.071) (3.974) (3.881) (3.793)

2.9 0.189 0.184 0.179 0.174 0.170 0.166 0.162 0.158 0.155

(4.67) (4.802) (4.672) (4.549) (4.432) (4.321) (4.216) (4.116) (4.02) (3.929)

3.0 0.196 0.190 0.185 0.181 0.176 0.172 0.168 0.164 0.160

(4.83) (4.967) (4.833) (4.706) (4.585) (4.47) (4.361) (4.258) (4.159) (4.064)

3.1 0.202 0.197 0.191 0.187 0.182 0.177 0.173 0.169 0.165

(4.99) (5.133) (4.994) (4.863) (4.738) (4.619) (4.507) (4.399) (4.297) (4.199)

3.2 0.209 0.203 0.198 0.193 0.188 0.183 0.179 0.175 0.171

(5.15) (5.298) (5.155) (5.019) (4.891) (4.768) (4.652) (4.541) (4.436) (4.335)

3.3 0.215 0.209 0.204 0.199 0.194 0.189 0.184 0.180 0.176

(5.31) (5.464) (5.316) (5.176) (5.044) (4.917) (4.798) (4.683) (4.574) (4.47)

3.4 0.222 0.216 0.210 0.205 0.199 0.195 0.190 0.186 0.181

(5.47) (5.629) (5.477) (5.333) (5.196) (5.066) (4.943) (4.825) (4.713) (4.606)

3.50 0.228 0.222 0.216 0.211 0.205 0.200 0.196 0.191 0.187

(5.63) (5.795) (5.638) (5.490) (5.349) (5.215) (5.088) (4.967) (4.852) (4.741)

3.60 0.235 0.228 0.222 0.217 0.211 0.206 0.201 0.196 0.192

(5.79) (5.961) (5.799) (5.647) (5.502) (5.364) (5.234) (5.109) (4.990) (4.877)

3.70 0.241 0.235 0.228 0.223 0.217 0.212 0.207 0.202 0.197

(5.95) (6.126) (5.961) (5.804) (5.655) (5.513) (5.379) (5.251) (5.129) (5.012)

3.80 0.248 0.241 0.235 0.229 0.223 0.217 0.212 0.207 0.203

(6.12) (6.292) (6.122) (5.961) (5.808) (5.663) (5.524) (5.393) (5.267) (5.148)

1800 1850 1900 1950 2000 2050 2100 2150 2200

Reel RPM

(2.845)

Page 26

4 CONTROLS

7 Blade Reel FOC Table, Product No. 63342, 63351 (Standard Reel) and 63340, 63349 (Optional Reel)

Mow

Speed

2.0 0.168 0.163 0.159 0.155 0.151 0.147 0.144 0.140 0.137

(3.22) (4.258) (4.142) (4.033) (3.93) (3.832) (3.738) (3.649) (3.564) (3.483)

2.1 0.176 0.171 0.167 0.162 0.158 0.155 0.151 0.147 0.144

(3.38) (4.47) (4.35) (4.235) (4.127) (4.023) (3.925) (3.832) (3.743) (3.658)

2.2 0.184 0.179 0.175 0.170 0.166 0.162 0.158 0.154 0.151

(3.54) (4.683) (4.557) (4.437) (4.323) (4.215) (4.112) (4.014) (3.921) (3.832)

2.3 0.193 0.188 0.183 0.178 0.173 0.169 0.165 0.161 0.158

(3.7) (4.896) (4.764) (4.638) (4.52) (4.407) (4.299) (4.197) (4.099) (4.006)

2.4 0.201 0.196 0.191 0.186 0.181 0.177 0.172 0.168 0.165

(3.86) (5.109) (4.971) (4.84) (4.716) (4.598) (4.486) (4.379) (4.277) (4.18)

2.5 0.210 0.204 0.198 0.193 0.189 0.184 0.180 0.175 0.171

(4.02) (5.322) (5.178) (5.042) (4.913) (4.79) (4.673) (4.562) (4.456) (4.354)

2.6 0.218 0.212 0.206 0.201 0.196 0.191 0.187 0.182 0.178

(4.18) (5.535) (5.385) (5.243) (5.109) (4.981) (4.86) (4.744) (4.634) (4.528)

2.7 0.226 0.220 0.214 0.209 0.204 0.199 0.194 0.189 0.185

(4.35) (5.748) (5.592) (5.445) (5.306) (5.173) (5.047) (4.927) (4.812) (4.703)

2.8 0.235 0.228 0.222 0.217 0.211 0.206 0.201 0.196 0.192

(4.51) (5.961) (5.799) (5.647) (5.502) (5.364) (5.234) (5.109) (4.99) (4.877)

2.9 0.243 0.236 0.230 0.224 0.219 0.213 0.208 0.203 0.199

(4.67) (6.173) (6.007) (5.848) (5.699) (5.556) (5.421) (5.291) (5.168) (5.051)

3.0 0.251 0.245 0.238 0.232 0.226 0.221 0.216 0.210 0.206

(4.83) (6.386) (6.214) (6.05) (5.895) (5.748) (5.607) (5.474) (5.347) (5.225)

3.1 0.260 0.253 0.246 0.240 0.234 0.228 0.223 0.218 0.213

(4.99) (6.599) (6.421) (6.252) (6.092) (5.939) (5.794) (5.656) (5.525) (5.399)

3.2 0.268 0.261 0.254 0.248 0.241 0.235 0.230 0.225 0.219

(5.15) (6.812) (6.628) (6.454) (6.288) (6.131) (5.981) (5.839) (5.703) (5.573)

3.3 0.277 0.269 0.262 0.255 0.249 0.243 0.237 0.232 0.226

(5.31) (7.025) (6.835) (6.655) (6.485) (6.322) (6.168) (6.021) (5.881) (5.748)

3.4 0.285 0.277 0.270 0.263 0.256 0.250 0.244 0.239 0.233

(5.47) (7.238) (7.042) (6.857) (6.681) (6.514) (6.355) (6.204) (6.06) (5.922)

3.50 0.293 0.285 0.278 0.271 0.264 0.258 0.251 0.246 0.240

(5.63) (7.451) (7.249) (7.059) (6.878) (6.706) (6.542) (6.386) (6.238) (6.096)

3.60 0.302 0.294 0.286 0.279 0.272 0.265 0.259 0.253 0.247

(5.79) (7.664) (7.456) (7.260) (7.074) (6.897) (6.729) (6.569) (6.416) (6.270)

3.70 0.310 0.302 0.294 0.286 0.279 0.272 0.266 0.260 0.254

(5.95) (7.876) (7.664) (7.462) (7.271) (7.089) (6.916) (6.751) (6.594) (6.444)

3.80 0.318 0.310 0.302 0.294 0.287 0.280 0.273 0.267 0.261

(6.12) (8.089) (7.871) (7.664) (7.467) (7.280) (7.103) (6.934) (6.772) (6.619)

1800 1850 1900 1950 2000 2050 2100 2150 2200

Reel RPM

Page 27

CONTROLS 4

OFF

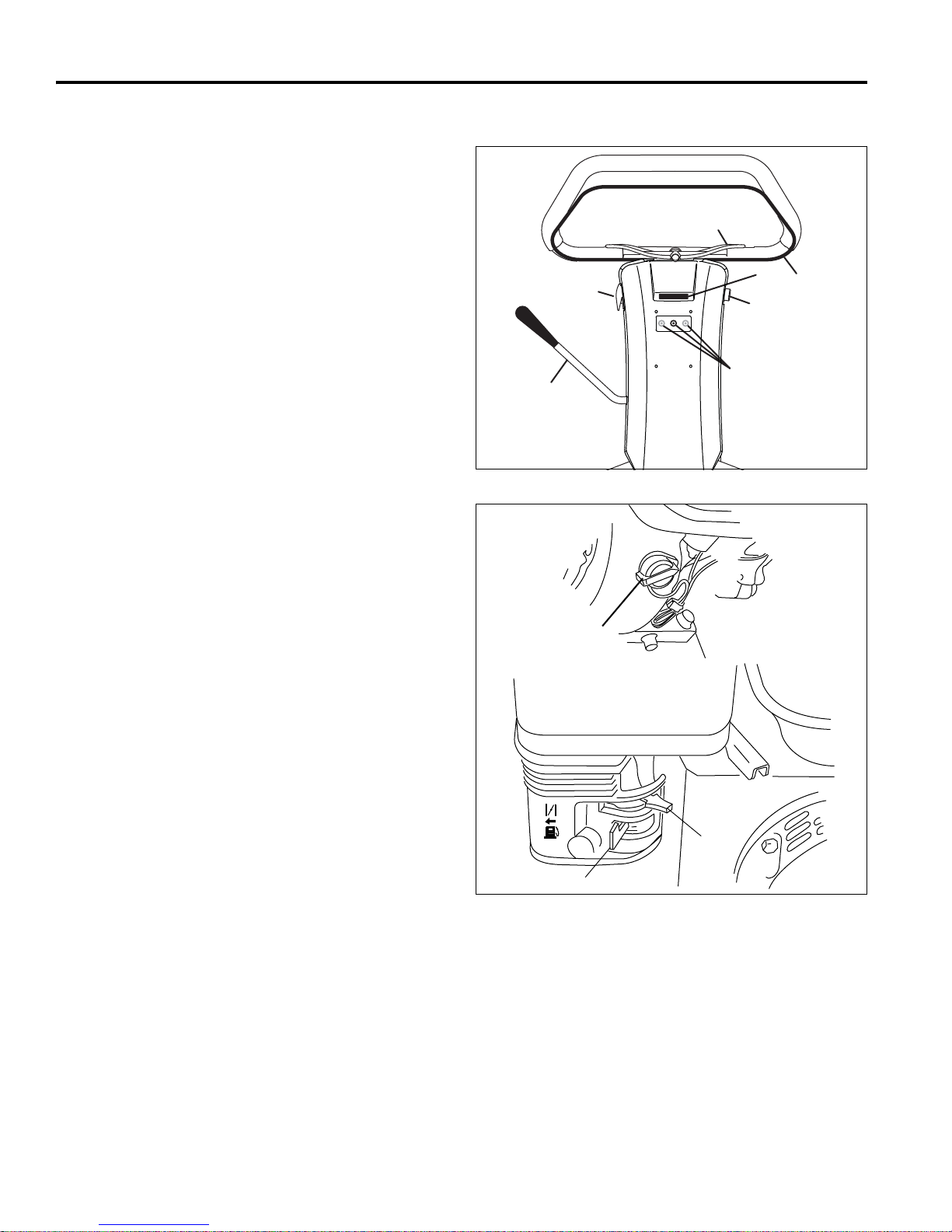

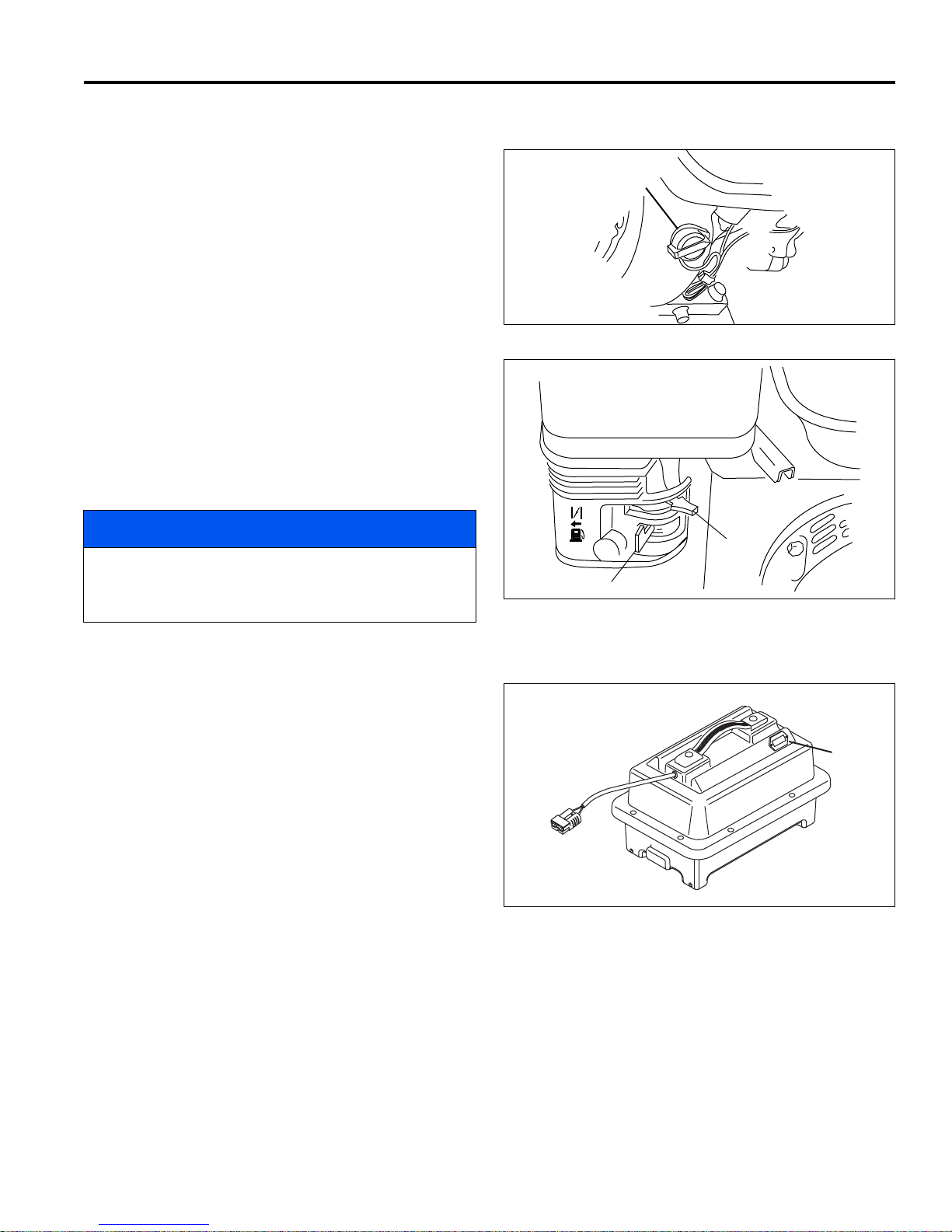

4.5 GAS POWER MODULE CONTROLS ___________________________________________

M. Engine Switch – The engine switch enables and

disables the engine ignition system. The engine switch must be in the ON position for the engine to run. Turning the engine switch to the OFF position stops the engine.

N. Choke Lever - The choke lever opens and closes

the choke valve in the carburetor. The CLOSED position enriches the fuel mixture for starting a cold engine. The OPEN position provides the correct fuel mixture for operation after starting, and for restarting a warm engine.

P. Fuel Valve Lever - The fuel valve opens and closes

the connection between the fuel tank and the carburetor. The fuel valve lever must be in the ON position for the engine to run. When the engine is not in use, leave the fuel valve lever in the OFF position to prevent carburetor flooding, and to reduce the possibility of fuel leakage.

Figure 4D

NOTICE

Before tipping mower back for adjustments, the fuel lever must be moved to the OFF position to prevent fuel from leaking into the crankcase.

4.6 BATTERY POWER MODULE CONTROLS ______________________________________

R. Battery Monitor - Located on the removable battery

pack displays battery charge level.

Figure 4E

Figure 4F

Page 28

5 OPERATION

5.1 DAILY INSPECTION________________________________________________________

2. Make sure the mower is adjusted to the required

CAUTION

The daily inspection should be performed only with

the parking brake engaged, and power connector

disconnected.

1. Perform a visual inspection of the entire unit, look for signs of wear, loose hardware, missing or damaged components.

5.2 INTERLOCK SYSTEM (O.P.C.) _______________________________________________

1. The Interlock System is intended to protect the operator and others from injury by stopping the reel and drive mechanism as soon as the operator releases the O.P.C. (Operator Presence Control) bail.

cutting height.

3. Make sure the machine is lubricated and the transport tires are properly inflated.

4. Check the O.P.C. system.

5. Check motor connections are tight.

WARNING

Never operate equipment with the Interlock System disconnected or malfunctioning. Do not disconnect or bypass any switch.

2. To test the system:

a. Place mower on the kickstand.

b. Make certain reel switch is off.

3. Gen-Set Power Module: Start the engine.

4. Energize the unit.

a. Slide bail to the left and engage O.P.C. Bail.

b. The drive motor and the wheels will begin to turn.

c. Release the O.P.C. bail. The bail must

disengage, and drive motor must stop.

5. If the drive motor engages before the O.P.C. bail is engaged or the drive motor continue to turn after the O.P.C. bail is released; stop the unit immediately and have the system repaired.

Page 29

OPERATION 5

5.3 OPERATING PROCEDURES _________________________________________________

CAUTION

To help prevent injury, always wear safety glasses, leather work shoes or boots, a hard hat, and ear protection.

1. Under no circumstances should the unit be started

with operator or bystanders standing in front of the reel.

2. Never run the engine in an enclosed area.

3. Keep hands and feet away from moving parts and

cutting units. If possible, do not make adjustments with the engine running.

4. Do not operate mower or attachments with loose,

damaged, or missing components. Whenever possible mow when grass is dry.

5. First mow in a test area to become thoroughly

familiar with the operation of the mower and control levers.

NOTICE

To prevent damage to the reel and bedknife never operate the reels when they are not cutting grass. Excessive friction and heat will develop between the bedknife and reel and damage the cutting edge.

6. Study the area to determine the best and safest

operating procedure. Consider the height of the grass, type of terrain, and condition of the surface. Each condition will require certain adjustments or precautions. Only use accessories and attachments approved by Jacobsen.

9. Disengage the reel switch to stop blades when not mowing.

10. Disengage the reel switch when crossing paths or roadways. Look out for traffic.

11. Stop and inspect the equipment for damage immediately after striking an obstruction, or if the machine begins to vibrate abnormally. Have the equipment repaired before resuming operation.

WARNING

Before you clean, adjust, or repair this equipment, always disengage all drives, engage parking brake, turf key switch OFF, and disconnect power connector to prevent injuries.

12. Slow down and use extra care on hillsides. Use caution when operating near drop offs.

13. Look behind and down before backing up to be sure of a clear path. Use care when approaching blind corners, shrubs, trees, or other objects that may obscure vision.

14. Never use your hands to clean cutting units. Use a brush to remove grass clippings from blades. Blades are extremely sharp and can cause serious injuries.

7. Be aware of mower discharge direction and never direct discharge of material toward bystanders. Never allow anyone near the machine while in operation. The owner/operator is responsible for injuries inflicted to bystanders and/or damage to their property.

CAUTION

Before mowing, pick up all debris such as rocks, toys, and wire which can be thrown by the machine. Enter a

new area cautiously. Always operate at speeds that

allow you to have complete control of the mower.

8. Use discretion when mowing near gravel areas (roadway, parking areas, cart paths, etc.). Stones discharged from the mower may cause serious injuries to bystanders and/or damage the equipment.

Page 30

5 OPERATION

OFF

5.4 STARTING/STOPPING _____________________________________________________

1. Prepare power module to energize unit.

Battery Power Module: Disconnect battery charger and connect power connector.

Gen-Set Power Module:

a. Check oil level and fuel supply then open fuel

valve lever (P).

b. Move the choke lever (N) to the CLOSED

position.

c. Set engine switch (M) to ON and power switch

(D) to RUN position.

d. Start the engine.

e. Once engine starts move choke lever (N) to the

OPEN position.

2. Make certain O.P.C. bail (C) is disengaged, reel switch (E) is off, and parking brake (A) is engaged.

3. Turn power switch (D) to start position and release. LCD display (G) should show startup display for 5 seconds, then switch to system voltage.

If system fails to initialize, check to see if power connector is properly attached.

4. Check system voltage on LCD display (G). If the system voltage screen is not on the display, press either of the orange buttons (F) to forward display to the correct screen. If system voltage is low, recharge batteries or check generator output before operating.

5. To mow or transport unit, push O.P.C. bail (C) to the left and engage.

6. To stop the unit, release the O.P.C. bail, engage parking brake, and set power switch to OFF position.

7. Battery Power Module: Disconnect power connector and connect battery pack to charger.

Gen-Set Power Module: Turn engine switch (M) to off position and close fuel valve (P).

Figure 5A

Figure 5B

Page 31

OPERATION 5

First Mowing

Second Mowing

Third Mowing

Four th Mowing

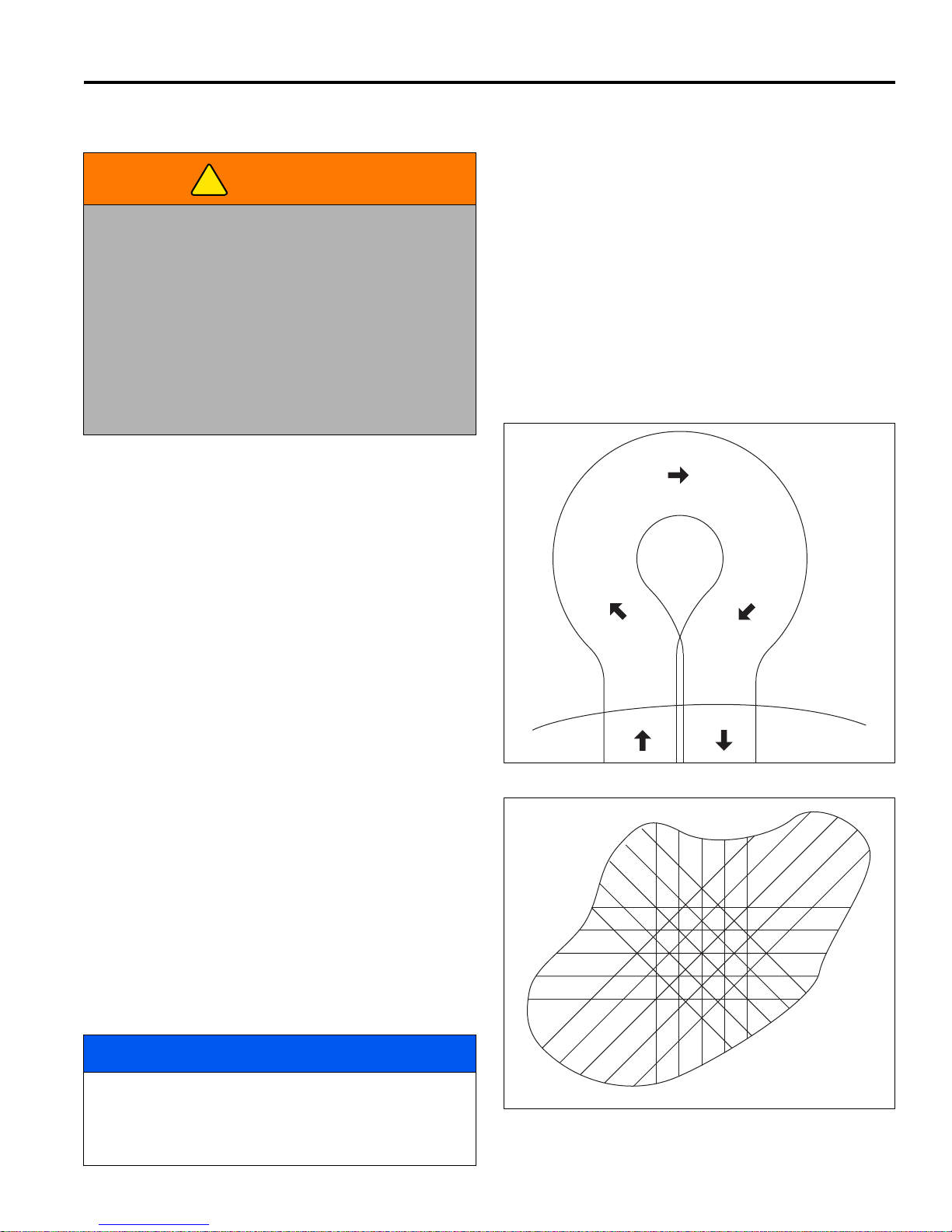

5.5 MOWING _________________________________________________________________

4. To assure complete, even cutting, overlap swaths by

WARNING

To prevent serious injuries, keep hands, feet, and clothing away from cutting unit when the blades are moving.

NEVER use your hands to clean cutting units. Use a brush to remove grass clippings from blades. Blades can be sharp and could cause injuries.

To clear obstructions from cutting unit, disengage O.P.C. bail, engage parking brake, turn off power switch, and disconnect power connector then remove obstruction.

1. Turn power OFF. Remove the transport wheels (If

installed).

2. Engage the reel switch. Start the unit.

1 to 2 in., (25 to 50 mm), then make one or more passes around the perimeter of the green to clean ragged edges and separate the putting green surface from the apron.

5. For a more even playing surface and neater appearance, alter the mowing pattern each time a green is mowed. The patterns shown in Figure 5D are suggestions only, the operator or course superintendent can arrange patterns to suit each green.

6. Use caution while operating on hillside and dropoffs.

3. Position mower slightly off green.

a. Adjust traction speed paddle (B) to provide a

safe, comfortable walking speed.

b. Push handle down to lift the mower head above

the grass then engage the O.P.C. bail (C).

c. As the mower crosses the edge of the green,

lower the mower head to the ground, and proceed across the green in a straight line.

When mowing lift up as required to keep handle centered in slots on handle stops. Do not push down on handle when mowing or the mower head may lift off the grass.

d. When the opposite side of the green is reached,

push down of the handle to lift the mower head without disengaging the O.P.C. bail, and proceed off the green to turn around, or simply release O.P.C. bail and turn around.

e. To turn to the right, start by turning mower

slightly to the left (2). When the mower has moved approximately 1/2 its own width to the left, swing it around quickly to the right (3 and 4), guiding the mower with your right hand. This method makes it possible to turn around quickly with very few steps. [Figure 5C].

NOTICE

Figure 5C

To prevent damage to the reel and bedknife never operate the reels when they are not cutting grass. Excessive friction and heat will develop between the bedknife and reel and damage the cutting edge.

Figure 5D

Page 32

5 OPERATION

Rotate Kickstand

Down

Pull up and back

on handle

Slowly Rotate

Kickstand Up

Lift up and push

forward on handle

To p ut mower

on kickstand

To remove mower

from kickstand

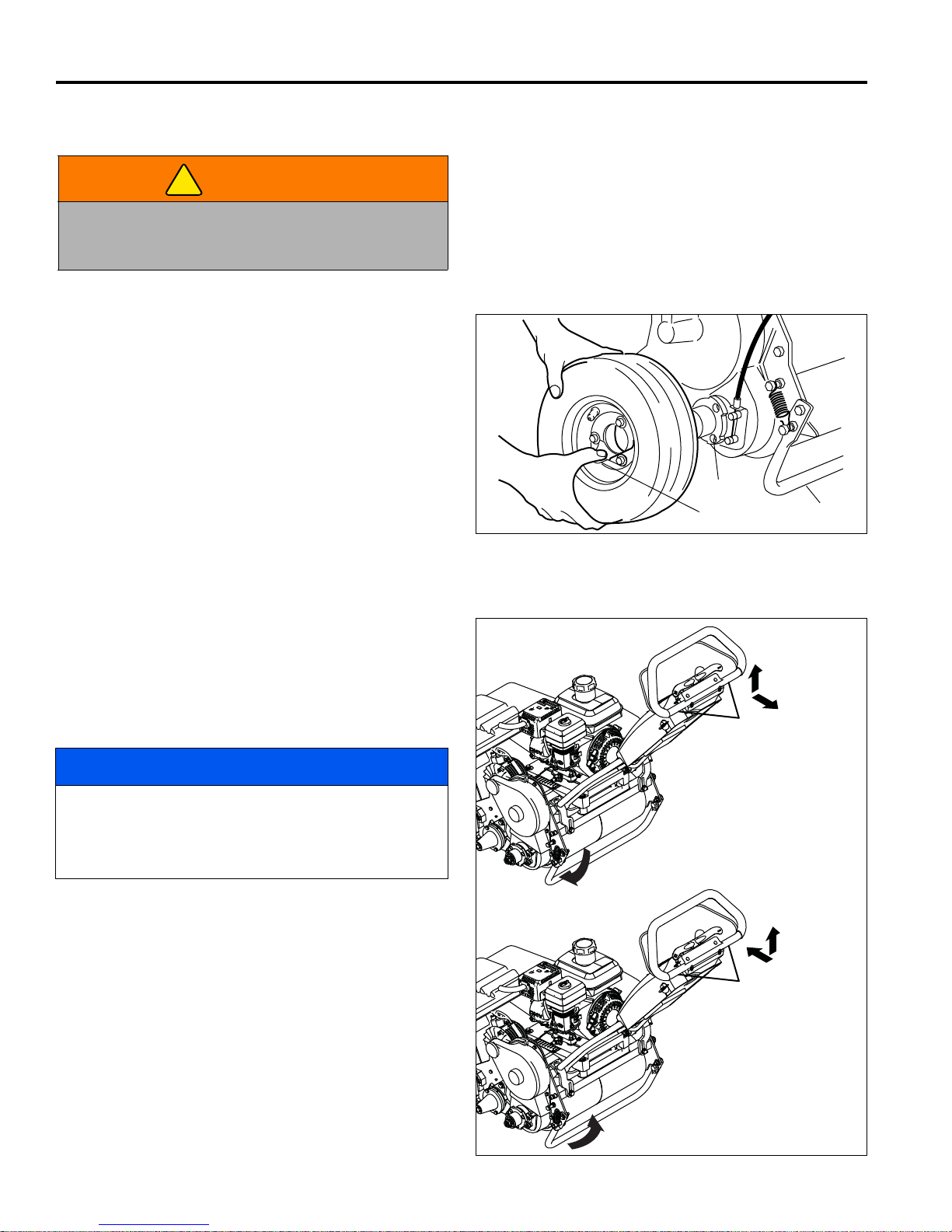

5.6 TRANSPORT WHEELS (OPTIONAL) __________________________________________

4. Always disengage reel switch prior to transporting

WARNING

Always engage parking brake and disconnect power connector before installing or removing the transport wheels.

Transport wheels are optional accessories available through your Jacobsen Dealer. Traction wheels are recommended when not using the Mower Caddy to move the mower from green to green.

1. Push and hold the kickstand against the ground then pull the mower handle, by the lift point, back until the mower rests on the stand (S). Engage parking brake.

2. To remove wheels, press retaining clip (T) away from hub, and pull wheel off hub.

3. To install wheels, press retaining clip (T), place wheel on hub, and turn the wheel backwards until studs on back of wheel line up with holes in hub (U). Push wheel in and release clip.

the mower more than a few feet.

5. Push the mower forward off the kickstand, start the unit, and engage the O.P.C. bail.

6. When using a vehicle to transport the mower, apply parking brake, turn key switch OFF, and disconnect power connector.

Figure 5E

5.7 KICKSTAND ______________________________________________________________

1. To put the mower on the kickstand:

a. Use your foot to rotate kickstand down to the

ground. Hold kickstand on the ground.

b. Pull up and back on lower portion of D handle

until mower weight is on kickstand, and traction roller is off the ground.

NOTICE

To prevent damage to the D handle, only use the lower portion of the handle to put mower on the kickstand. Pulling on upper portion of D handle may cause damage to the handle.

2. To remove mower from kick stand:

a. Place foot behind kickstand.

b. Push mower forward while lifting slightly on the

lower portion of D handle.

c. When traction roller is on the ground, use your

foot to slowly allow kickstand to rotate up to rest against frame. Do not allow kick stand to snap back against frame.

Figure 5F

Page 33

OPERATION 5

5.8 GRASS CATCHER _________________________________________________________

1. When the basket is about two thirds (2/3) full of grass clippings, move the mower off the green.

2. Stop on a flat surface, disengage O.P.C. bail, engage parking brake, turn key switch OFF, and disconnect power connector.

3. Remove and empty the grass clippings from the mower.

To prevent serious injury, always disengage O.P.C. bail and disconnect power connector before emptying grass catcher.

5.9 DAILY MAINTENANCE______________________________________________________

WARNING

1. Park the mower on a flat, level surface. Engage parking brake, and turn key switch to off position.

2. Grease and lubricate all points if required. Use a manual grease gun only, do not use compressed air.

NOTICE

To prevent damage to reel motor, do not over grease reel bearings. Damage of this nature is not covered by the factory warranty.

3. To prevent fires, wash the mower after each use.

NOTICE

Battery Power Modules: Disconnect battery

connector and remove the battery pack from the mower before washing.

a. Use only fresh water for cleaning your

equipment.

NOTICE

Use of salt water or effluent water will encourage rust and corrosion of metal parts resulting in premature deterioration or failure. Damage of this nature is not covered by the factory warranty.

b. Do not use high pressure spray.

c. Do not spray water directly at electrical

connectors, generator, motors, or controller

Battery Power Module:

4. Disconnect power connector and connect battery pack to charger.

Gen-Set Power Module:

5. Fill fuel tank at the end of each operating day. Do not fill above the fuel strainer shoulder. Close fuel valve when unit is not in use.

Use clean, fresh, unleaded gasoline, 86 octane minimum. Refer to the engine’s operator manual for fuel recommendations when using blended fuel.

Handle fuel with care - it is highly flammable. Use an approved container. The spout must fit inside the fuel filler neck. Avoid using cans and funnels to transfer fuel.

WARNING

Never remove the fuel cap from the fuel tank, or add fuel, when the engine is running or while the engine is hot.

Do not smoke when handling fuel. Never fill or drain the fuel tank indoors.

Do not spill fuel and clean spilled fuel immediately.

Never handle or store fuel containers near an open flame or any device that may create sparks and ignite the fuel or fuel vapors.

Be sure to reinstall and tighten fuel cap securely.

d. Do not spray water into the cooling fins or the

engine air intake.

NOTICE

Do not wash a hot or running engine. Use compressed air to clean the engine.

6. Store fuel according to local, state or federal ordinances and recommendations from your fuel supplier.

7. Check the engine oil at the start and end of each day, before starting the engine. If the oil level is low, remove the oil filler cap and add oil as required. Do not overfill.

Page 34

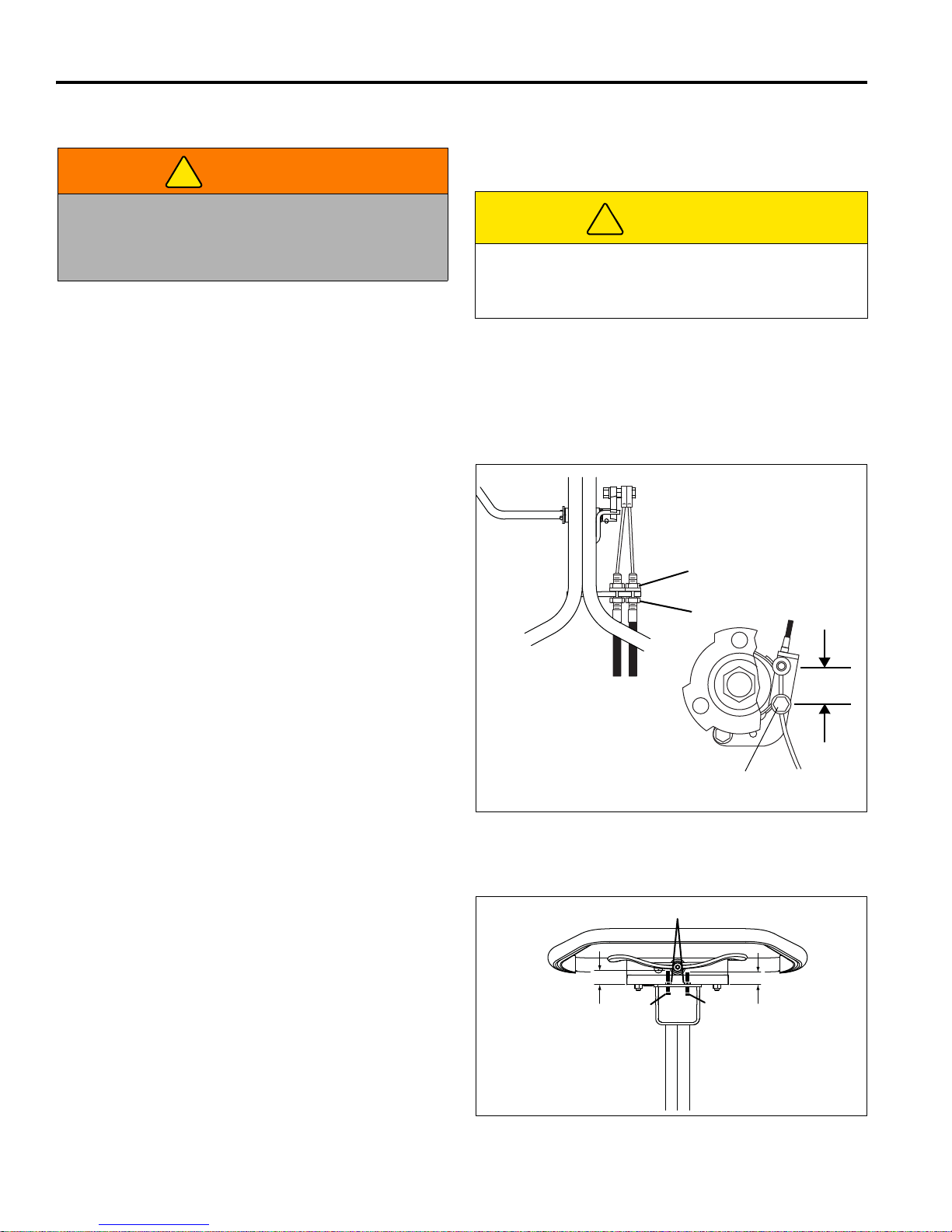

6 ADJUSTMENTS (ALL UNITS)

HANDLE

BRAKE BAND

1-1/2”

(38 mm)

1-1/16 in. (27 mm)

7/8 in.

(22 mm)

6 ADJUSTMENTS (ALL UNITS)

6.1 GENERAL________________________________________________________________

3. Long hair, jewelry, or loose fitting clothing may get

WARNING

Before you adjust, clean, or repair this equipment, always disengage all drives, engage parking brake, turn key switch OFF, and disconnect power connector to prevent serious injury.

1. Adjustments and maintenance should always be performed by a qualified technician. If proper adjustment cannot be made, contact an authorized Jacobsen Dealer.

2. Replace, do not adjust, worn or damaged components.

6.2 BRAKE __________________________________________________________________

A properly adjusted brake requires 10 lbs. pull at top of brake lever to engage and must have 1-1/2” (38 mm) center to center when released.

tangled in moving parts.

CAUTION

Be careful to prevent entrapment of the hands and fingers between moving and fixed components of the machine.

4. Do not change speed limit settings or overspeed the drive motors.

1. Minor adjustments are made at the handle. Loosen nut (A), turn nut (B) to adjust the brake cable, then tighten nut (A).

2. If adjustments cannot be made at the handle, remove the transport wheel, and make the adjustment at the brake band.

3. Loosen screw (C) and pull cable to obtain desired brake tension. Tighten screw (C). Readjust (A) and

(B).

Figure 6A

6.3 SPEED PADDLE STOPS ____________________________________________________

1. Loosen both nuts (X).

2. Adjust positive paddle stop (Y) to 7/8 in. (22 mm).

3. Adjust negative paddle stop (Z) to 1-1/16 in. (27 mm).

4. Tighten nuts (X) to lock adjustment.

After adjusting paddle stops, the controller speed paddle calibration must be reset. [See Section 4.3].

Figure 6B

Page 35

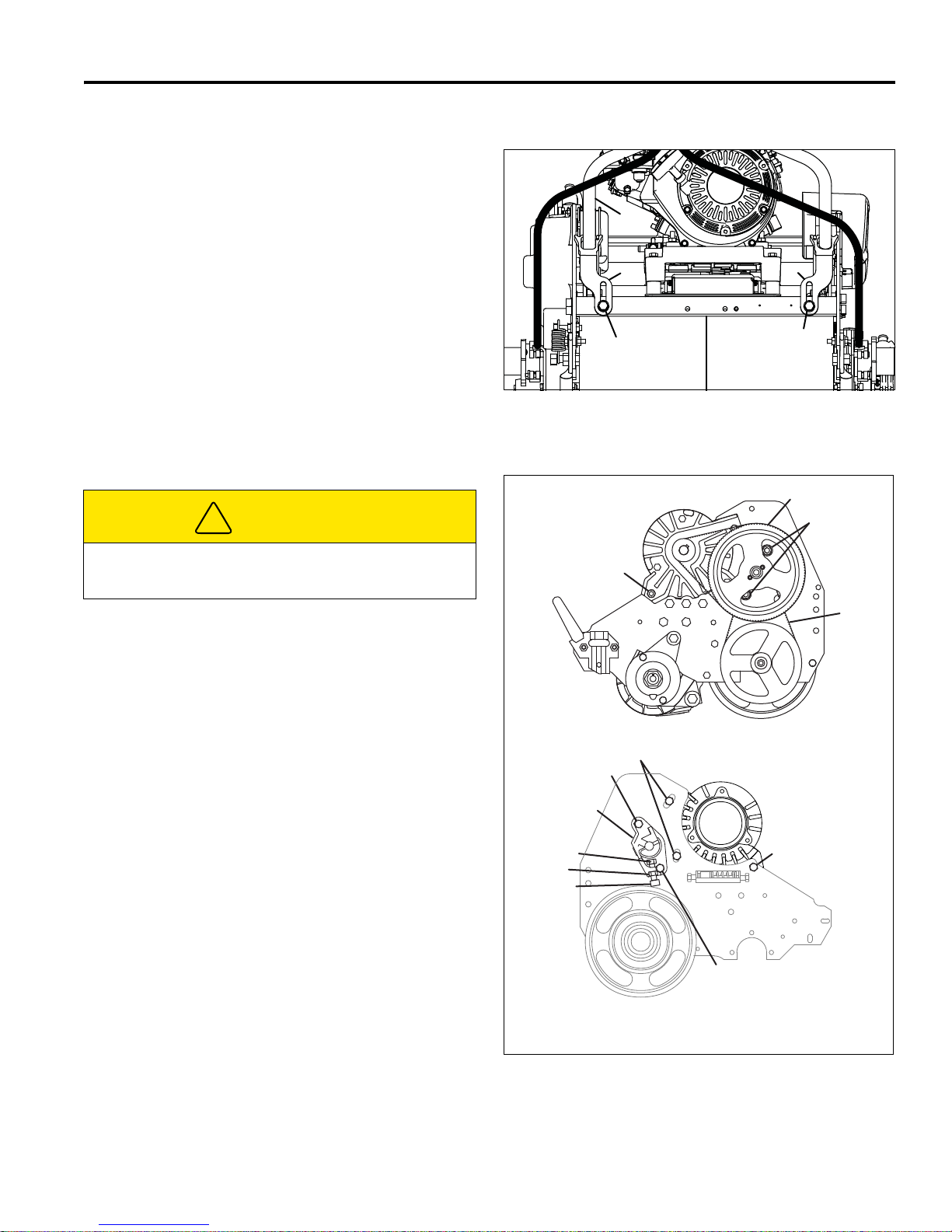

ADJUSTMENTS (ALL UNITS) 6

Fixed Head Mower Shown

Floating Head Mower Similar

6.4 HANDLE _________________________________________________________________

1. To adjust the angle of the handle bar (F), loosen

screw (D) on both sides of the mower and adjust the handle bar to the desired position.

2. After adjusting handle bar, adjust bracket (E) so that

the handle bar just rests on the bottom of the slot in bracket. Tighten screw (D). Check that handle moves from bottom to top of slot in bracket (E) without binding.

Figure 6C

6.5 TRACTION BELTS _________________________________________________________

CAUTION

To prevent permanent damage to the belt, do not twist, fold, bend. or overtighten the belt.

1. To adjust belt (G), assemble 5/16-18 x 1” hex head

screw (K) and 5/16-18 hex nut (L) to bottom of bearing bracket (H). Loosen nuts (J).

2. Place bedknife gauge bar (M) on top of roller and

under screw (K). Tighten screw (K) until belt (G) deflects 1/10” (2.5 mm) with 1 ~ 2 lb (0.45 ~ 0.91 kg) load applied at mid span.

3. Tighten nuts (J) and remove 5/16-18 x 1” screw (K)

and lower nut (L).

4. Place hardware (K and L) in a safe place for future

adjustments.

5. To adjust belt (N), loosen pivot hardware (P), and

pivot motor housing towards front of mower until belt deflects 1/10” (2.5 mm) with 1 ~ 2 lb. (0.45 ~ 0.91 kg) load applied at mid span. Tighten hardware (P).

Figure 6D

Page 36

6 ADJUSTMENTS (ALL UNITS)

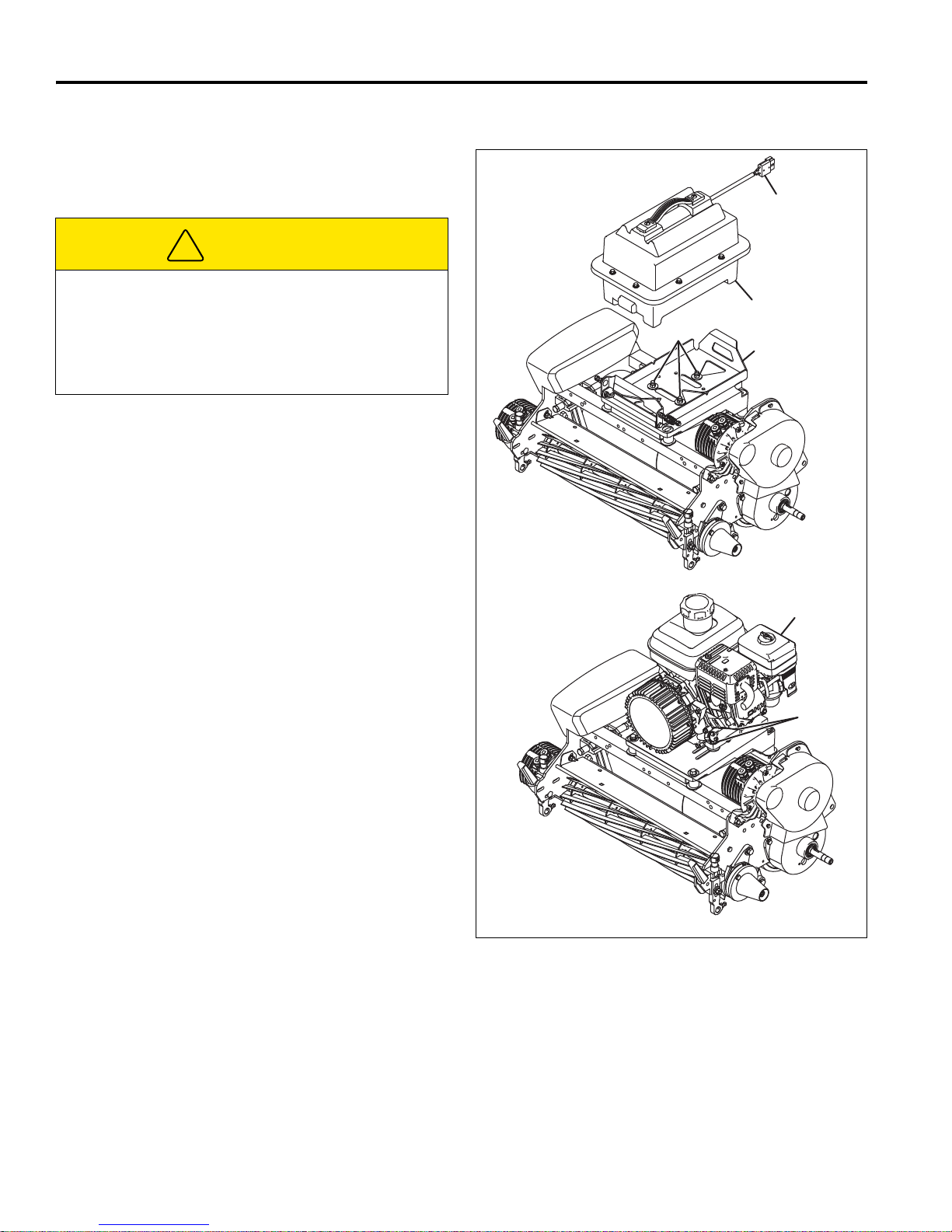

Battery Power Module

Gen-Set Power Module

6.6 FRONT ROLLER WEIGHT ___________________________________________________

The weight on the front roller is adjustable. Adjust the front roller weight as required to meet your turf needs.

CAUTION

To prevent injury or property damage, place mower on kickstand or support mower handle before removing battery pack.

Full battery packs weigh approximately 60 lbs (27.2 kg). Use proper lifting techniques when moving them.

1. Battery Power Module: To adjust front roller weight, disconnect power connector (R), and remove battery pack (S). Loosen hardware (T), place battery pack back onto mower, and slide battery mounting tray (U) as required.

Gen-Set Power Module: Loosen engine mounting hardware (V) and slide engine (W) as required.

2. To adjust the front roller weight:

a. To increase front roller weight, slide battery tray

(U), or engine (W) towards front of mower.

b. To decrease front roller weight, slide battery tray

(U), or engine (W) towards rear of mower.

c. Use the decal on the power module mount as a

guide for adjusting the front roller weight. Aligning the oil drain (Gen-Set) or the V-notch in the battery tray (Battery Tray) with the desired line on the decal allows for consistent front roller weight setting.

3. Battery Power Module: When desired weight is attained, measure distance from edge of power module mount to tray (U). Remove battery pack (S). Recheck measured dimension and tighten hardware

(R).

Gen-Set Power Module: Tighten engine mounting hardware (V).

Figure 6E

Page 37

ADJUSTMENTS (ALL UNITS) 6

4.6

8.8

10.9

12.9

6.7 TORQUE SPECIFICATION ___________________________________________________

NOTICE

All torque values included in these charts are approximate and are for reference only. Use of these torque values is

at your sole risk. Jacobsen is not responsible for any loss, claim, or damage arising from the use of these charts.

Extreme caution should always be used when using any torque value.

Jacobsen uses Grade 5 Plated bolts as standard, unless otherwise noted. For tightening plated bolts, use the value given for lubricated.

AMERICAN NATIONAL STANDARD FASTENERS

SIZE UNITS GRADE 5 GRADE 8 SIZE UNITS GRADE 5 GRADE 8

Lubricated Dry Lubricated Dry Lubri-

cated

#6-32 in-lb (Nm) – 20 (2.3) – – 7/16-14 ft-lb (Nm) 37 (50.1) 50 (67.8) 53 (71.8) 70 (94.9)

#8-32 in-lb (Nm) – 24 (2.7) – 30 (3.4) 7/16-20 ft-lb (Nm) 42 (56.9) 55 (74.6) 59 (80.0) 78 (105)

#10-24 in-lb (Nm) – 35 (4.0) – 45 (5.1) 1/2-13 ft-lb (Nm) 57 (77.2) 75 (101) 80 (108) 107 (145)

#10-32 in-lb (Nm) – 40 (4.5) – 50 (5.7) 1/2-20 ft-lb (Nm) 64 (86.7) 85 (115) 90 (122) 120 (162)

#12-24 in-lb (Nm) – 50 (5.7) – 65 (7.3) 9/16-12 ft-lb (Nm) 82 (111) 109 (148) 115 (156) 154 (209)

1/4-20 in-lb (Nm) 75 (8.4) 100 (11.3) 107 (12.1) 143 (16.1) 9/16-18 ft-lb (Nm) 92 (124) 122 (165) 129 (174) 172 (233)

1/4-28 in-lb (Nm) 85 (9.6) 115 (13.0) 120 (13.5) 163 (18.4) 5/8-11 ft-lb (Nm) 113 (153) 151 (204) 159 (215) 211 (286)

5/16-18 in-lb (Nm) 157 (17.7) 210 (23.7) 220 (24.8) 305 (34.4) 5/8-18 ft-lb (Nm) 128 (173) 170 (230) 180 (244) 240 (325)

5/16-24 in-lb (Nm) 173 (19.5) 230 (26.0) 245 (27.6) 325 (36.7) 3/4-10 ft-lb (Nm) 200 (271) 266 (360) 282 (382) 376 (509)

3/8-16 ft-lb (Nm) 23 (31.1) 31 (42.0) 32 (43.3) 44 (59.6) 3/4-16 ft-lb (Nm) 223 (302) 298 404 315 (427) 420 (569)

3/8-24 ft-lb (Nm) 26 (35.2) 35 (47.4) 37 (50.1) 50 (67.8) 7/8-14 ft-lb (Nm) 355 (481) 473 (641) 500 (678) 668 (905)

Dry Lubri-

cated

Dry

SIZE UNITS

Lubricated Dry Lubricated Dry Lubricated Dry Lubricated Dry

M4 Nm (in-lb)––––––3.83 (34)5.11 (45)2.0 (18)

M5 Nm (in-lb) 1.80 (16) 2.40 (21) 4.63 (41) 6.18 (54) 6.63 (59) 8.84 (78) 7.75 (68) 10.3 (910 4.0 (35)

M6 Nm (in-lb) 3.05 (27) 4.07 (36) 7.87 (69) 10.5 (93) 11.3 (102) 15.0 (133) 13.2 (117) 17.6 (156) 6.8 (60)

M8 Nm (in-lb) 7.41 (65) 9.98 (88) 19.1 (69) 25.5 (226) 27.3 (241) 36.5 (323) 32.0 (283) 42.6 (377) 17.0 (150)

M10 Nm (ft-lb) 14.7 (11) 19.6 (14) 37.8 (29) 50.5 (37) 54.1 (40) 72.2 (53) 63.3 (46) 84.4 (62) 33.9 (25)

M12 Nm (ft-lb) 25.6 (19) 34.1 (25) 66.0 (48) 88.0 (65) 94.5 (70) 125 (92) 110 (81) 147 (108) 61.0 (45)

M14 Nm (ft-lb) 40.8 (30) 54.3 (40) 105 (77) 140 (103) 150 (110) 200 (147) 175 (129) 234 (172) 94.9 (70)

METRIC FASTENERS

Non Critical

Fasteners

into

Aluminum

Page 38

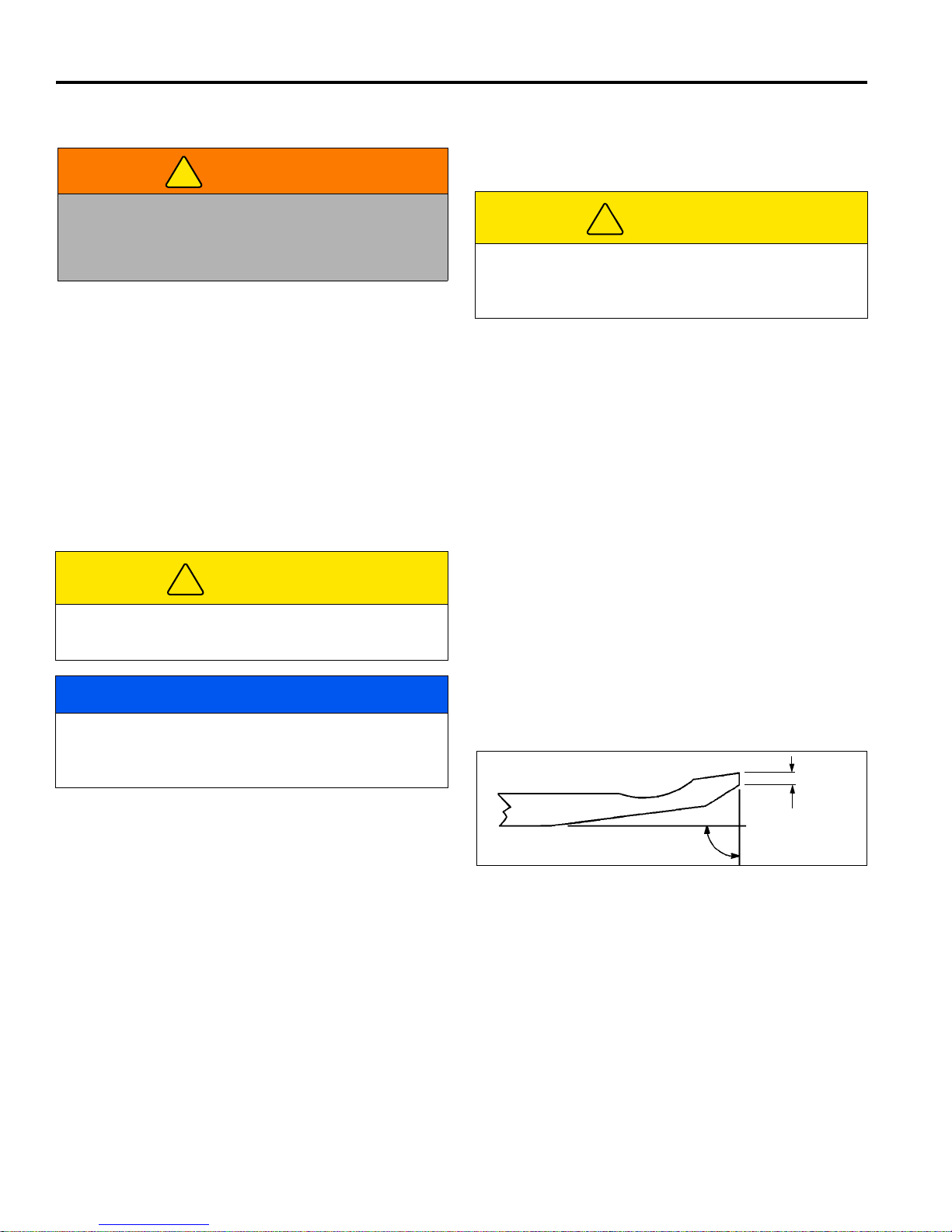

7 FIXED HEAD REEL ADJUSTMENTS

1/32” (0.8 mm)

7 FIXED HEAD REEL ADJUSTMENTS

7.1 GENERAL________________________________________________________________

3. Long hair, jewelry, or loose fitting clothing may get

WARNING

Before you adjust, clean, or repair this equipment, always disengage all drives, engage parking brake, turn power off and disconnect power connector to prevent serious injury.

1. Adjustments and maintenance should always be performed by a qualified technician. If proper adjustment cannot be made, contact an authorized Jacobsen Dealer.

2. Replace, do not adjust, worn or damaged components.

7.2 REEL TO BEDKNIFE _______________________________________________________

(Pre-adjustment Check)

1. Check the reel bearings for end play or radial play. If there is any abnormal movement of the reel, up and down, or side to side, adjust, or replace components

as needed.

CAUTION

tangled in moving parts.

CAUTION

Be careful to prevent entrapment of the hands and fingers between moving and fixed components of the machine.

4. Do not change speed limit settings or overspeed the drive motors.

4. Proper reel-to-bedknife adjustment is critical. A gap of 0.001 to 0.003” (0.025 to 0.076 mm) must be maintained across the entire length of the reel and bedknife.

5. The reel must be parallel to the bedknife. An improperly adjusted reel will lose its sharp edges prematurely and may result in serious damage to the reel and bedknife.

Handle the reel with extreme care to prevent personal injury and damage to the cutting edges.

NOTICE

Before tipping mower back for adjustments, the fuel lever must be moved to the OFF position to prevent fuel from leaking into the crankcase.

2. Inspect the reel blades and bedknife to insure good sharp edges without bends or nicks.

a. The cutting edges of the reel blades and bedknife

must be sharp, free of burrs, and show no signs of rounding off.

b. The bedknife and bedknife backing must be

securely tightened. The bedknife must be straight and sharp.

c. A flat surface of at least 1/32 in. (0.8 mm)

minimum must be maintained on the front face of the bedknife. Use a standard flat file to dress the bedknife.

3. If wear or damage is beyond the point where the reel or bedknife can be corrected by the lapping process, they must be reground.

6. Grass conditions will also affect the adjustment.

a. Dry, sparse conditions will require a wider gap to

prevent heat buildup and damage to the reel and bedknife.

b. High quality grass with a good moisture content

requires a closer gap (near zero).

Figure 7A

Page 39

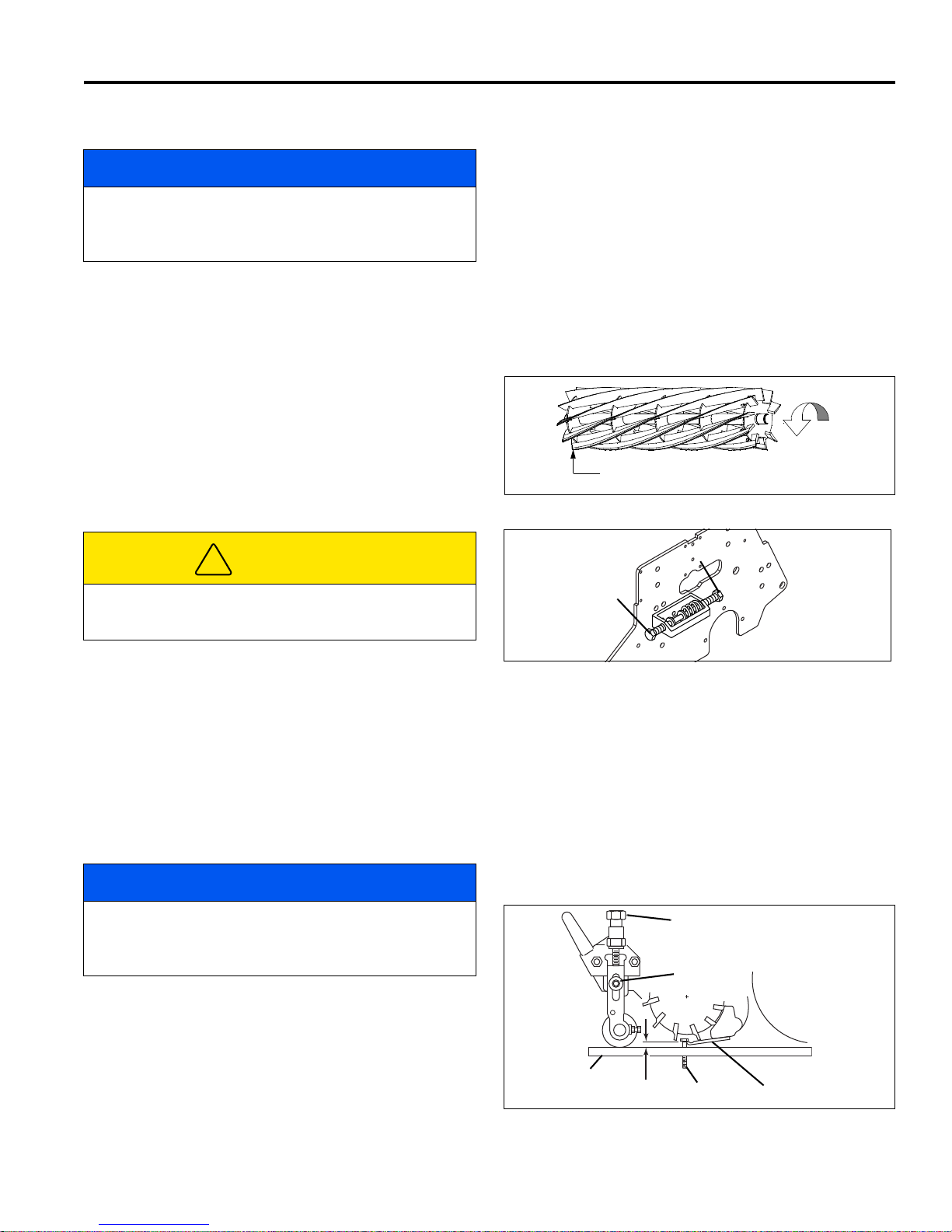

FIXED HEAD REEL ADJUSTMENTS 7

Rotation

Leading Edge

7.3 BEDKNIFE ADJUSTMENT ___________________________________________________

a. Slide a feeler gauge or shim stock 0.001 - 0.003

NOTICE

Before tipping mower back for adjustments, the fuel lever must be moved to the OFF position to prevent fuel from leaking into the crankcase.

1. Adjuster (A) is used to increase or decrease the

spring load on the bedknife. Adjuster (B) is used to move the bedknife to the reel or away from the reel.

2. Once the spring is totally collapsed as a result of

many adjustments, the bedknife cannot be moved. Back-off adjuster (A) before adjusting (B).

3. For most applications, compress the spring to 1 in.,

(25 mm).

4. Start adjustment at the leading edge of the reel,

followed by the trailing end. The leading end of the

reel blade is the end that passes over the bedknife first during normal rotation.

in., (0.025 - 0.075 mm) between the reel blade and the bedknife. Do not turn the reel.

b. Adjust the trailing end of the reel in the same

manner, then recheck the adjustment at the leading end.

c. When the reel and bedknife are properly

adjusted, the reel will spin freely and will cut a piece of newspaper along the full length of the reel when the paper is held at 90° to the bedknife.

Figure 7B

CAUTION

Handle the reel with extreme care to prevent personal injury and damage to the cutting edges.

5. Turn adjuster (B) clockwise to bring the bedknife

closer to the reel or counterclockwise to back the bedknife away from the reel.

7.4 CUTTING HEIGHT _________________________________________________________

Note: Make sure the bedknife is properly adjusted before

setting the cutting height. [See Section 7.3].

1. Push kickstand down and tip mower back on it’s

handle.

NOTICE

Gen-Set Power Modules: Do not leave the mower

tipped back for an extended length of time or oil may migrate into the combustion chamber.

2. Loosen nuts (D) on both sides just enough to allow

knob (C) to raise the front roller. Raise both sides an equal amount.

3. Set gauge screw (G) to the desired cutting height

(F). Measure from the gauge bar (E) to the underside of the screw head (G) then tighten wing nut to lock the adjustment.

4. Place gauge bar between front roller and traction

roller, near the outer end of the rollers.

Figure 7C

5. Slide screw head over bedknife (H) and adjust knob (C) so roller just contacts the gauge bar. Tighten nut (D).

6. Repeat Steps 4 and 5 on the opposite end of the reel then tighten nuts (D). Recheck and readjust the cutting height if necessary.

Figure 7D

Page 40

8 FLOATING HEAD REEL ADJUSTMENTS

1/32” (0.8 mm)

Leading Edge

LF025

8 FLOATING HEAD REEL ADJUSTMENTS

8.1 GENERAL________________________________________________________________

3. Long hair, jewelry or loose fitting clothing may get

WARNING

Before you adjust, clean, or repair this equipment, always disengage all drives, engage parking brake, turn power off and disconnect power connector to prevent serious injury.

1. Adjustments and maintenance should always be performed by a qualified technician. If proper adjustment cannot be made, contact an authorized Jacobsen Dealer.

2. Replace, do not adjust, worn or damaged components.

8.2 BEDKNIFE-TO-REEL _______________________________________________________

(Pre-adjustment Check)

tangled in moving parts.

CAUTION

Be careful to prevent entrapment of the hands and fingers between moving and fixed components of the machine.

4. Do not change speed limit settings or overspeed the drive motors.

1. Check the reel bearings for end play or radial play. There should be no end play or radial play. See Section

8.6.

CAUTION

To prevent personal injury and damage to the cutting edges, wear gloves and handle the reel and bedknife with extreme care.

NOTICE

Before tipping mower back for adjustments, the fuel lever must be moved to the OFF position to prevent fuel from leaking into the crankcase.

2. Inspect the reel blades and bedknife to insure good sharp edges without bends or nicks.

a. The leading edge of the reel blades must be sharp,

free of burrs and show no signs of rounding off.

b. The bedknife and bedknife backing must be

securely tightened. The bedknife must be straight and sharp.

5. The reel must be parallel to the bedknife. An improperly adjusted reel will lose its sharp edges prematurely and may result in serious damage to the reel and bedknife.

6. Grass conditions will also affect the adjustment.

a. Dry, sparse conditions will require a wider gap to

prevent heat buildup and damage to the reel and bedknife.

b. High quality grass with a good moisture content

requires a closer gap (near zero).

Figure 8A

c. A flat surface of at least 1/32 in. (0.8 mm) minimum

must be maintained on the front face of the bedknife. Use a standard flat file to dress the bedknife.

3. If wear or damage is beyond the point where the reel or bedknife can be corrected by the lapping process, they must be reground.

4. Proper reel-to-bedknife adjustment is critical. A gap of

0.001 to 0.003” (0.025 to 0.076 mm) must be maintained across the entire length of the reel and bedknife.

Figure 8B

Page 41

FLOATING HEAD REEL ADJUSTMENTS 8

GKV-1

1-27/32 in. (46.8 mm)

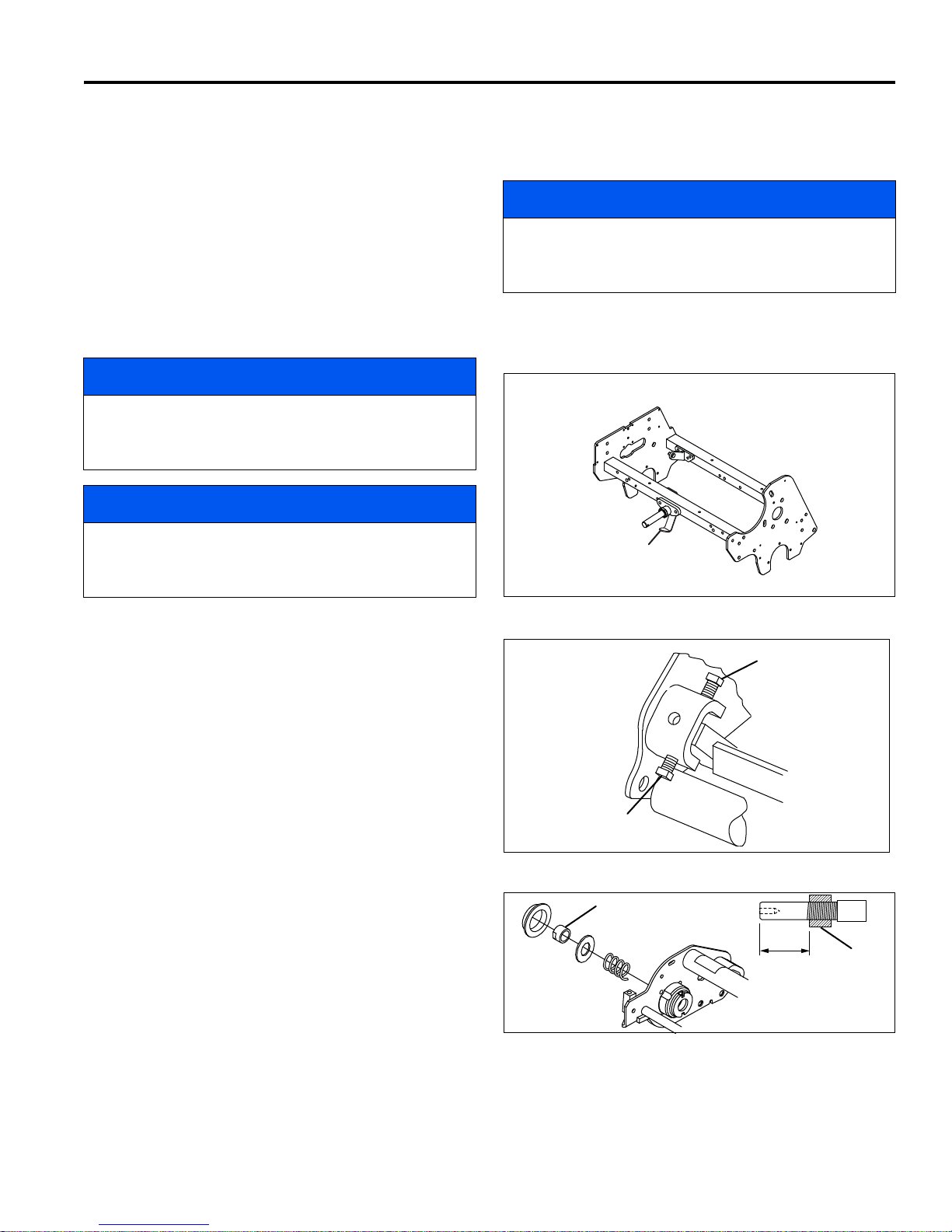

8.3 BEDKNIFE ADJUSTMENT ___________________________________________________

1. Read Section 8.2 before making the adjustment.

2. Start adjustment at the leading end of the reel,

followed by the trailing end. The leading end of the

reel blades is that end which passes over the bedknife first during normal reel rotation.

3. Additional access to bedknife adjusting hardware (B

and C) can be obtained by pressing the limit bracket (A) away from the reel as the mower is tipped back

onto it’s handle. This allows the back side of the reel to pivot down and away from the frame.

NOTICE

Before tipping mower back for adjustments, the fuel lever must be moved to the OFF position to prevent fuel from leaking into the crankcase.

NOTICE

Gen-Set Power Modules: Do not leave the mower

tipped back for an extended length of time or oil may migrate into the combustion chamber.

full length of the reel, when the paper is held at 90° to the bedknife.

NOTICE

Avoid excessive tightening or serious damage may result to bedknife and reel blades. Reels must turn freely.

4. Return mower to upright position. Limit bracket (A) is spring loaded and should latch into bracket on reel.

4. Use adjusters (B and C), to adjust gap. Loosen bottom adjuster (C) and turn top adjuster (B) down (Clockwise) to close gap.

a. Slide a feeler gauge or shim stock 0.001” - 0.003”

(0.025 - 0.075 mm) between the reel blade and the bedknife. Do not turn the reel.

b. Adjust the trailing end of the reel to the same

gap in a similar manner then recheck the adjustment at the leading end.

c. When the reel is properly adjusted to the

bedknife, the reel will spin freely and you should be able to cut a piece of newspaper, along the

Figure 8C

8.4 REEL BEARING ___________________________________________________________

Any end play or radial play indicates bad bearings, a weak tension spring or a backed off nut.

1. Check bearing housing mounting hardware. Tighten or replace components as required. Carefully clean threads with degreaser.

2. Apply a medium strength grade of Loctite to nut (P), then thread nut onto the reel shaft until the nut is 1-27/32 in. (46.8 mm) from the end of the reel shaft.

Figure 8E

3. Fill reel bearing housings with NLGI - Grade O grease after adjusting spring.

Page 42

8 FLOATING HEAD REEL ADJUSTMENTS

8.5 CUTTING HEIGHT _________________________________________________________

Note: Always make the reel to bedknife adjustment

before adjusting height of cut. (Sections 8.2 and 8.3).

6. Place gauge (E) across bottom of front and rear rollers near one end of roller.

1. Push kickstand down and tip mower back on it’s handle.

NOTICE

Gen-Set Power Modules: Before tipping mower back

for adjustments, the fuel lever must be moved to the OFF position to prevent fuel from leaking into the crankcase. Do not leave the mower tipped back for an extended length of time or oil may migrate into the combustion chamber.

4. Set desired cutting height on the gauge (E).

a. Measure distance between the underside of

screw head and gauge block surface (F).

b. Adjust screw (H) to obtain desired height then

tighten the wing nut.

5. Loosen the nuts on the front roller brackets (G) just enough to allow the adjuster knob (K) to raise or lower the front roller.

7. Slide the head of gauge screw (H) over the bedknife (L) and adjust the knob (K) to close the gap between the screw head and bedknife. Then tighten locknut (G).

8. Repeat Steps 4 and 5 on opposite end. Complete adjustment to one end before adjusting opposite end.

9. Tighten nuts (G) and recheck each end.

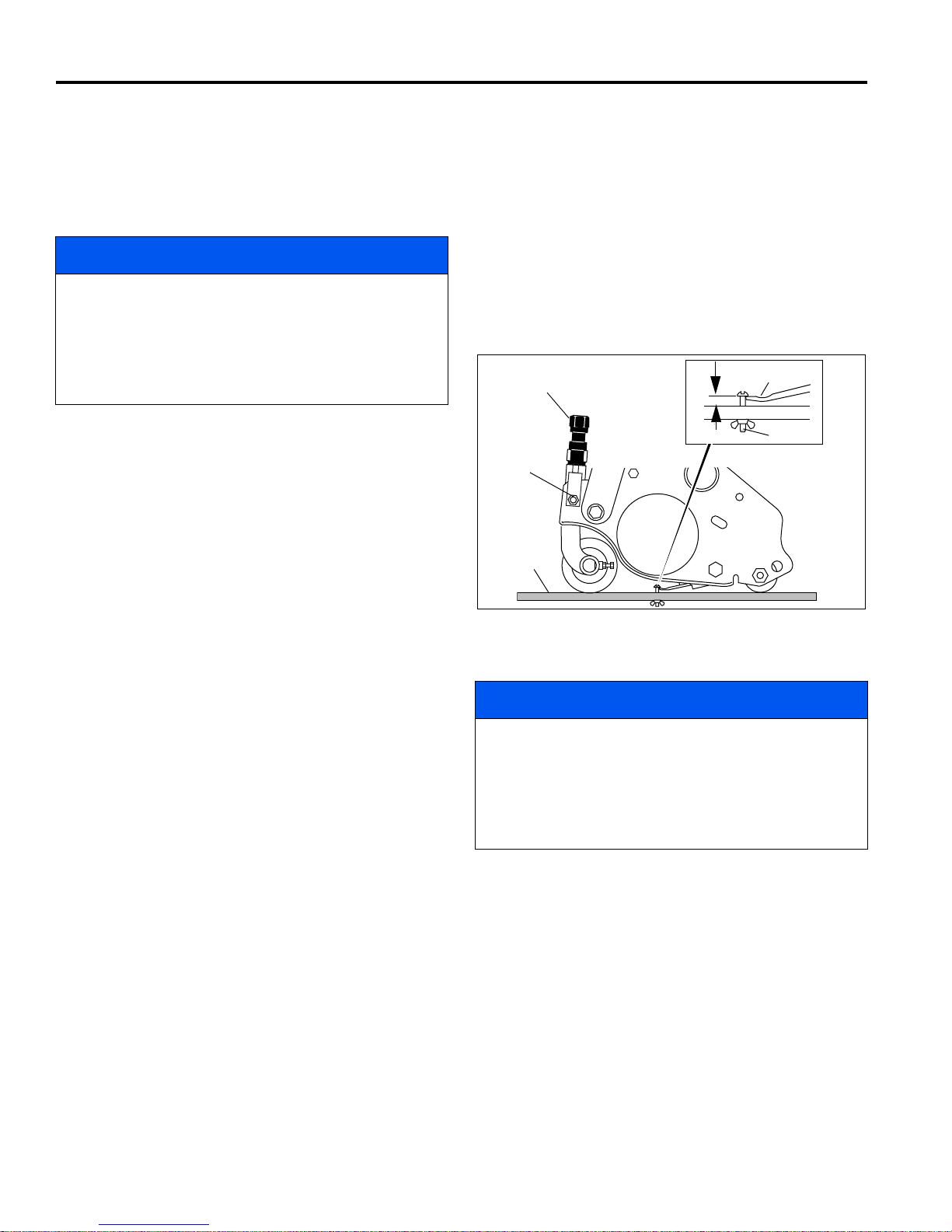

Figure 8F

8.6 REEL ASSEMBLY REMOVAL________________________________________________

The reel assembly can be removed for maintenance or to use a different reel.

1. Remove hairpin and washer and slide the lift hangers off the pins.

2. Disconnect motor electrical connectors and reel ground wire. Whenever the reel motors are disconnected from the harness, cover the connectors on the motor to prevent debris from entering motor.

3. Remove hairpin and flat washer and lift panhard rod off of reel bolt.

Gen-Set Power Modules: Before tipping mower back for adjustments, the fuel lever must be moved to the OFF position to prevent fuel from leaking into the crankcase. Do not leave the mower tipped back for an extended length of time or oil may migrate into the combustion chamber.

4. Tip the unit back onto the handle and slide the reel away from the mower.

5. Reel assembly is reverse of removal.

NOTICE

Page 43

BATTERY POWER MODULE 9

TR016

TR017

9 BATTERY POWER MODULE

9.1 SAFETY__________________________________________________________________

Batteries contain dilute sulfuric acid which can result in severe burns.

Hydrogen gas is formed within a battery during the charging cycle. Hydrogen in concentrations of 4% and higher are explosive and can be ignited by open flame or an electrical spark. A battery explosion will cause sulfuric acid and battery components to be thrown over a large area with considerable force.

Always observe the following warnings when working on or near batteries:

WARNING

The electrolyte in a storage battery is a dilute acid which can cause severe burns to the skin and eyes. Treat all electrolyte spills to the body and eyes with extended flushing with clear water. Contact a

physician immediately. Always wear a safety shield or approved safety goggles when charging batteries.

Hydrogen is explosive in concentrations as low as 4% and is generated in the charging cycle of electric mowers. Because it is lighter than air, it will collect in the ceiling of buildings necessitating proper ventilation. Air exchanges of 5 changes per hour is considered the minimum requirement.

Never smoke around batteries.

Never charge batteries in an area that has open flame or electrical equipment that could cause an electrical arc.

Be sure that the key switch is off, all electrical accessories are turned off and power connector is disconnected before starting work on vehicle.

WARNING

Wrap wrenches with vinyl tape to prevent the possibility of a dropped wrench from ‘shorting out’ a battery, which could result in an explosion and severe personal injury.

Electrolyte spills should be neutralized

with a solution of 1/4 cup (59.1ml) of sodium bicarbonate (baking soda) dissolved in 1-1/2 gallons (5.7 liters) of water and flushed with water.

Never disconnect a circuit under load at a battery terminal.

Wear appropriate protective clothing when working with batteries. Electrolyte can cause severe burns to the eyes, skin and clothing.

Full battery packs weigh approximately 55 lbs. Use proper lifting techniques when moving them.

Batteries, battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash your hands

after handling

Remove all jewelry (watches, ring etc.)

9.2 GENERAL ________________________________________________________________

The batteries used it this mower are sealed lead acid (SLA) maintenance free type.

Temperature is important when conducting tests on a battery and test results must be corrected to compensate for temperature differences.

As a battery ages, it still performs adequately except that its capacity is diminished. Capacity describes the time that a battery can continue to provide its design amperes from a full charge.

A new battery must mature before it will develop its maximum capacity. A battery has a maximum life, therefore good maintenance is designed to maximize the available life and reduce the factors that can reduce the life of the battery.

Page 44

9 BATTERY POWER MODULE

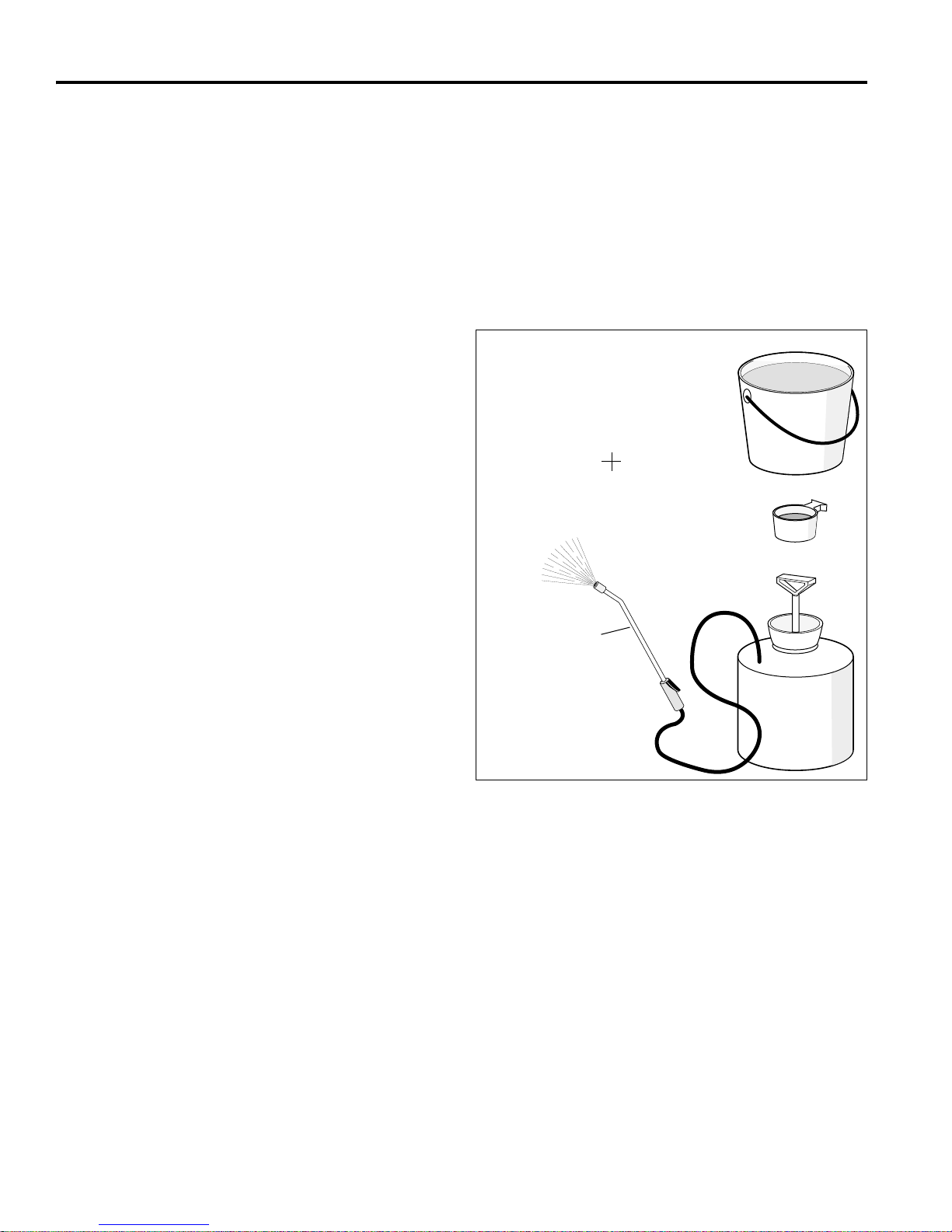

1-1/2 GALLONS

CLEAR WATER

1/4 CUP SODIUM

BICARBONATE

(BAKING SODA)

2 GAL. GARDEN SPRAYER

(1 1/2 GAL. OF WATER)

NON-METAL

WAND

TR008

9.3 MAINTENANCE ___________________________________________________________

Tool List

Insulated wrench, 3/8” Insulated wrench, 11/32” Standard Screwdriver

Before charging batteries

Inspect the connector housings of the battery charger and battery pack for dirt or debris. It is suggested to apply white lithium grease to both terminals to prevent corrosion.

Charge the batteries daily after use.

9.4 CLEANING BATTERIES ____________________________________________________

When cleaning the batteries, do not use a water hose without first spraying with a solution of sodium bicarbonate (baking soda) and water to neutralize any acid deposits.

Use of a water hose without first neutralizing any acid, will move acid from the top of the batteries to another area of the mower or storage facility where it will attack the metal structure or the concrete/asphalt floor. After hosing down the batteries, a residue will be left on the batteries which is conductive and will contribute to the discharge of the batteries.

The correct cleaning technique is to spray the top and sides of the batteries with a solution of sodium bicarbonate (baking soda) and water. This solution is best applied with a garden type sprayer equipped with a non metallic spray wand. The solution should consist of 1/4 cup (59.1 ml) of sodium bicarbonate (baking soda) mixed with 1-1/2 gallons (5.7 l) of clear water. In addition to the batteries, special attention should be paid to metallic components adjacent to the batteries which should also be sprayed with the sodium bicarbonate (baking soda) solution.

Allow the solution to sit for at least three minutes; use a soft bristle brush or cloth to wipe the tops of the batteries in order to remove any residue that could cause the self discharge of the battery. Rinse the entire area with low pressure clear water. Cleaning should take place yearly or more often under extreme conditions.

Figure 9A

Page 45

BATTERY POWER MODULE 9

ING

- For contin

ued

prote

ction

ainst fire, re

place only w

ith sam

size and type fu

INT

ERAC

INC

A TED

EL:

BATCH

: S

IAL NO

INP

UT:

1. Connect and di

sconnect batter

y leads o

nly when

supp

ly cord is disc

ted or arcing

and b

urning

ay re

sult.

2. B

TTERY LEAD CO

ECTIO

S - For a batter

installed in a

veh

icle, first conne

ct charge

r output

lead to ungrounded batter

y post - not conn

ected to

auto

obile chassi

s - in acco

rda

nce w

ith polar

ity

indication, and

en opposite

olarity lead to

chas

sis a

way

from

atter

y; do not co

nne

carburetor or fuel

line

isconn

ect chassis l

ead

first. F

or batter

y n

ot in

stalled

in a vehicle

, refer to

instru

ction

ual.

3. Do not over

-charge battery - see instruction

anual

4. D

o not smok

strike a m

atch, or cau

se a spar

k in

vicinity of batte

y during char

ging.

5. U

se only in a w

ll ve

ntilated area.

This equipm

ent e

ploys parts, s

uch

as sw

itches and

relays

, that tend to pro

uce arcs and spar

ks and

therefore, if used

in a

garage

, locate in a

oom

enclosure pro

vided for the p

or not less than 18

inches from the floor.

- D

T EX

POSE

AIN:

replace

defective cords or w

ires i

ediately.

CAUTIO

NE PAS

EXP

SER

PLUIE.

ADVERTISSEM

: R

ISQU

E D

E M

ELANG

GAZE

AUX

EXPLO

SIF.

LIRE LA NOTICE A

VANT D

TILIS

CHARG

WARNING - RISK OF EXPLOSIVE GAS MIXTURE

115V

230V

Input Voltage Selector

Position

Spare Fuse

Fuse Holder

Fuse

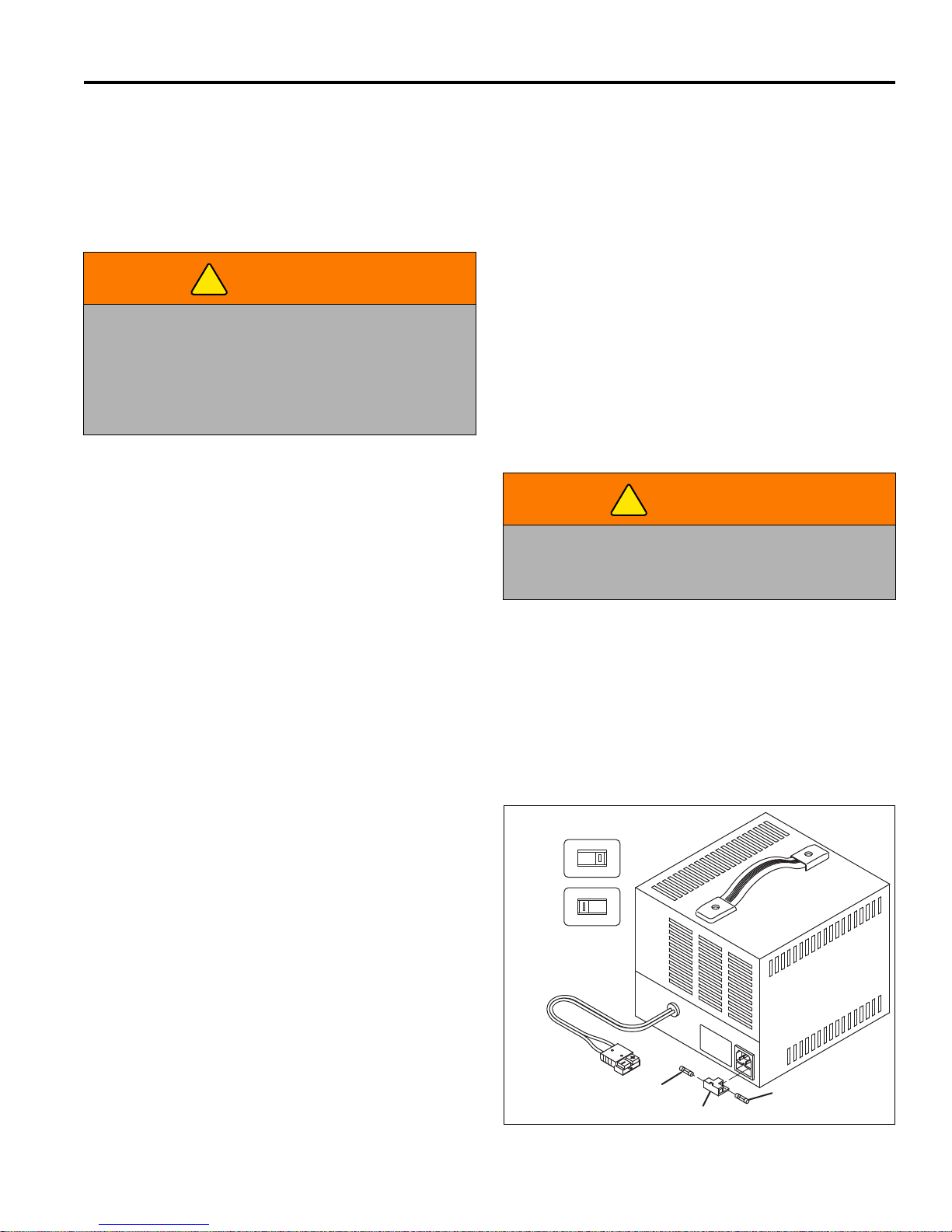

9.5 BATTERY CHARGER_______________________________________________________

The battery charger is designed to fully charge the battery pack. Read the instruction manual included with the charger for proper operating procedure.

Before charging, the following should be observed:

WARNING

Portable chargers should be mounted on a platform above the ground, or in such a manner as to permit the maximum air flow underneath and around the charger. Serious damage to the charger, overheating and potential for fire may result if the charger does not have sufficient air flow.

The charging must take place in an area that is well ventilated and capable of removing the hydrogen gas that is generated by the charging process. A minimum of five air exchanges per hour is recommended.

The charging connector components are in good condition and free from dirt or debris. It is suggested to apply white lithium grease to both terminals to prevent corrosion.

The charger connector is fully inserted into the battery pack receptacle.

The charger connector/cord set is protected from damage and is located in an area to prevent injury that may result from personnel running over or tripping over the cord set.

Install all chargers in accordance with the manufacturers instructions.

AC Voltage

The charger is equipped with an input voltage selector switch located on the rear of the charger. Determine what input voltage is used in your area and set switch accordingly before connecting AC power cord. This charger can be used with the following AC input voltages:

100 - 130 V (Set voltage selector to 115 V (Position 1))

200 - 240 V (Set voltage selector to 230 V (Position 2))

NOTE: Charger will operate with either a 50 or 60 Hz input voltage.

Make certain the AC power cord is equipped with an appropriate plug for the area you live in. The charger is equipped with a grounding plug, do not attempt to defeat its functionality.

WARNING

An ungrounded electrical device may become a physical hazard that could result in an electrical shock or electrocution

Note: The AC power cord included with the battery charger is used with 115 V - 60 Hz (North America) input voltage only. If you live in an area where 115 V - 60 Hz input voltage is not used, a new AC power cord must be purchased locally.

The battery charger should fully charge the battery pack in approximately 5 hours with 115V AC input voltage. Battery charging times may exceed 8 hours in areas where 100V AC input voltage is used.

If the charger is operated in an outdoor location, rain and sun protection must be provided.

Remove AC power cord from outlet before connecting or disconnecting battery charger to battery pack.

The charging (DC) cord is equipped with a polarized connector which fits into a matching receptacle on the battery pack.

If the charger is not operating correctly, unplug charger from both the AC outlet and the battery pack and check the fuse. If a new fuse is required, order part number 4102780 from your Jacobsen Dealer. There is one spare fuse included in the fuse holder.

Page 46

9 BATTERY POWER MODULE

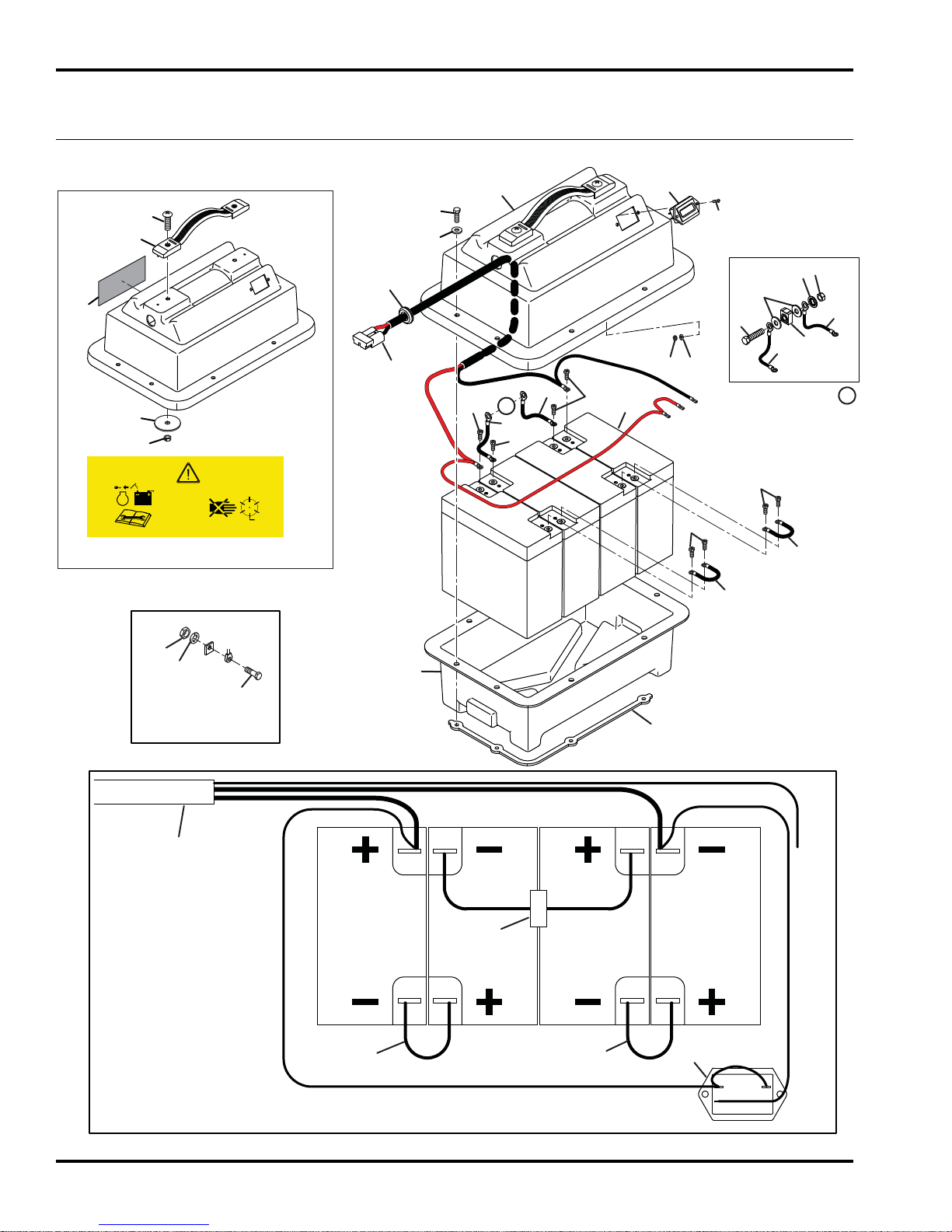

KEY

RD Wire

BK Wire

Og/Gn Wire

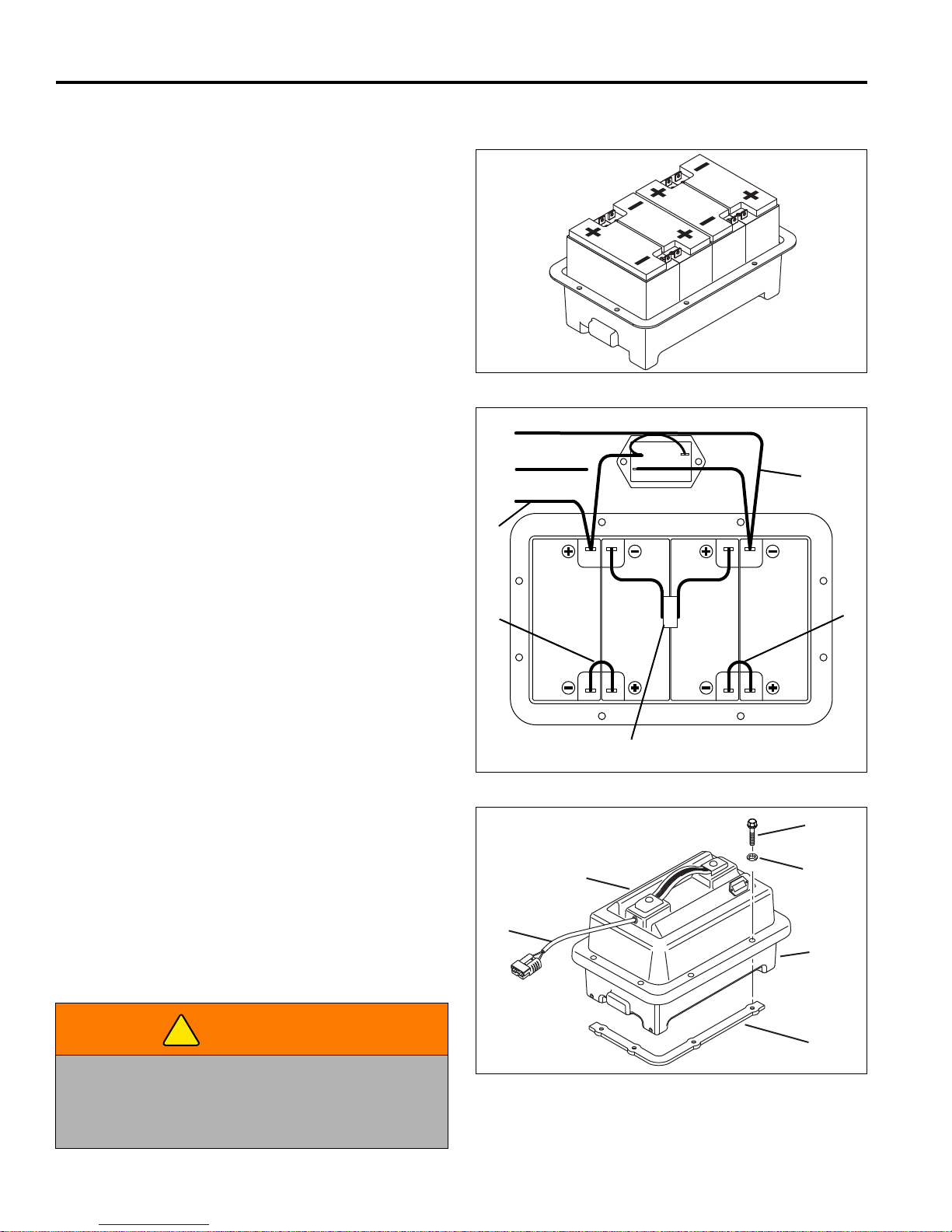

9.6 BATTERY INSTALLATION __________________________________________________

If the batteries have been cleaned and any acid in the battery tray area neutralized, no corrosion to the surrounding area should be present. Any corrosion found should be immediately removed with a putty knife and a wire brush. The area should be washed with a solution of sodium bicarbonate (baking soda) and water and thoroughly dried before priming and painting with a corrosion resistant paint.

The batteries should be placed into the battery tray as shown in Figure 9B. Using batteries with the correct physical size will prevent movement, but will not be tight enough to cause distortion of the battery case.

Inspect all wires and terminals. Clean any corrosion from the battery terminals or the wire terminals with a solution of sodium bicarbonate (baking soda) and brush clean if required.

Use care to connect the battery wires as shown in Figure 9C and tighten the battery post hardware securely. Protect the battery terminals and battery wire terminals with a commercially available protective coating.

Figure 9B

Battery Pack Assembly:

1. Install batteries into battery tray.

2. Fasten fuse cable assembly (D) to battery pack with screws, lockwashers, and nuts.

3. Fasten two cable jumper wires (E) into their respective positions.

4. Thread the main cable (F) through the hole in the side of the battery case lid (G).

5. Attach the main cable (F) to the batteries, and battery monitor (M).

NOTE: There will be an Orange/Green wire with insulated 1/4” terminal that is not used on the Eclipse mowers. Seal end of the wire to prevent short-circuits.

6. Assemble the two halves of the battery case (G) and (H), with screws (J), flat washers (K), and battery casing straps (L).

Refer to Section 2.6 for battery specifications.

WARNING

Figure 9C

Aerosol containers of battery terminal protectant must be used with extreme care. Insulate the metal container to prevent the metal can from contacting battery terminals which could result in an explosion.

Figure 9D

Page 47

BATTERY POWER MODULE 9

9.7 REPLACING BATTERY PACK________________________________________________

The battery pack (A) is designed to be easily lifted out and replaced. This allows the mower to quickly return to service should the batteries become discharged or fail. Additional battery packs are available as an accessory. See Section 2.7

CAUTION

To prevent injury or property damage, place mower on kick stand before removing battery pack.

Full battery packs weigh approximately 60 lbs. (27.2 kg) Use proper lifting techniques when moving them.

To remove battery pack:

1. Park mower on a solid, level area.

2. Set parking brake and remove key from switch.

3. Disconnect battery connector (B), place mower on

kickstand.

4. Push and hold battery release latch (C) down and

lift battery pack (A) away from mower.

5. Reverse procedure to install pack. Be sure pack is

completely seated on frame and secure.

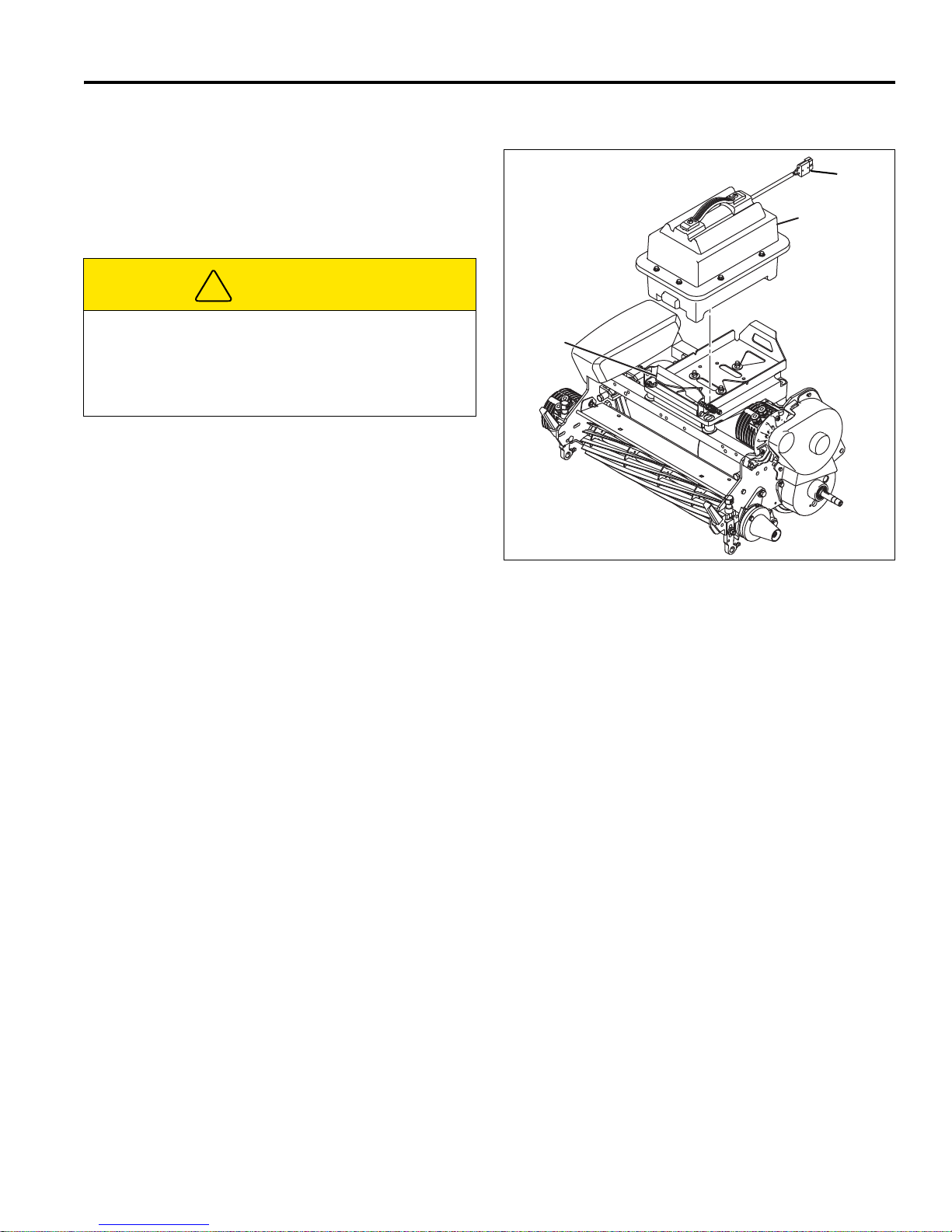

Figure 9E

Page 48

10 GEN-SET POWER MODULE

Upper Oil Level

Oil Filler Cap

10 GEN-SET POWER MODULE

10.1 ENGINE _________________________________________________________________

IMPORTANT: A separate Engine Manual, prepared by the engine manufacturer, is supplied with the power module. Read the engine manual carefully until you are familiar with the operation and maintenance of the engine. Proper attention to the engine manufacturer’s directions will assure maximum service life of the engine. To order replacement engine manuals contact the engine manufacturer.

The proper break-in of a new engine can make a considerable difference to the performance and life of the engine.

The mower is designed to operate and cut most efficiently at the preset governor setting. Do not change the engine governor settings or overspeed the engine.

During the break-in period, Jacobsen recommends the following:

1. Operate machine modestly for the first 25 hours.

2. Allow the engine to reach operating temperature before operating at full load.

3. Change the engine oil after the first 20 hours of operation.

4. Refer to Section 13.2 and Engine Manual for specific maintenance intervals.

NOTICE

10.2 ENGINE OIL ______________________________________________________________

Check the engine oil at the start of each day, before starting the engine. If the oil level is low, remove oil filler cap and add oil as required.

See the engine manufacturer’s Owners’s Manual for detailed service information.

After adding or changing oil, start and run engine at idle with all drives disengaged for 30 seconds. Shut engine off. Wait 30 seconds and check oil level. Add oil to bring up to FULL mark on dipstick.

Use only SAE 10W30 engine oils with API classification SG.SF/CC.CD.

Figure 10A

Page 49

GEN-SET POWER MODULE 10

10.3 ENGINE OIL CHANGE ______________________________________________________

Perform initial oil change after the first 20 hours of operation. Change oil every 100 hours thereafter.

1. To change engine oil, attach a 7/16 in. (11 mm) i.d. hose (A) to oil drain valve (B). Place other end of hose into a suitable container.

2. Remove oil fill plug (C).

3. Push drain lever (D) towards rear of mower and rotate down. Allow engine oil to drain into container.

4. When oil has completely drained, rotate drain lever (D) up until it latches in the closed position.

5. Remove hose (A) and clean up any spilled oil.

6. Add engine oil until oil level is at full level. See

Figure 10A.

After adding or changing oil, start and run engine at idle with all drives disengaged for 30 seconds. Shut engine off. Wait 30 seconds and check oil level. Add oil to bring up to FULL level.

Use only SAE 10W30 engine oils with API classification SG.SF/CC.CD.

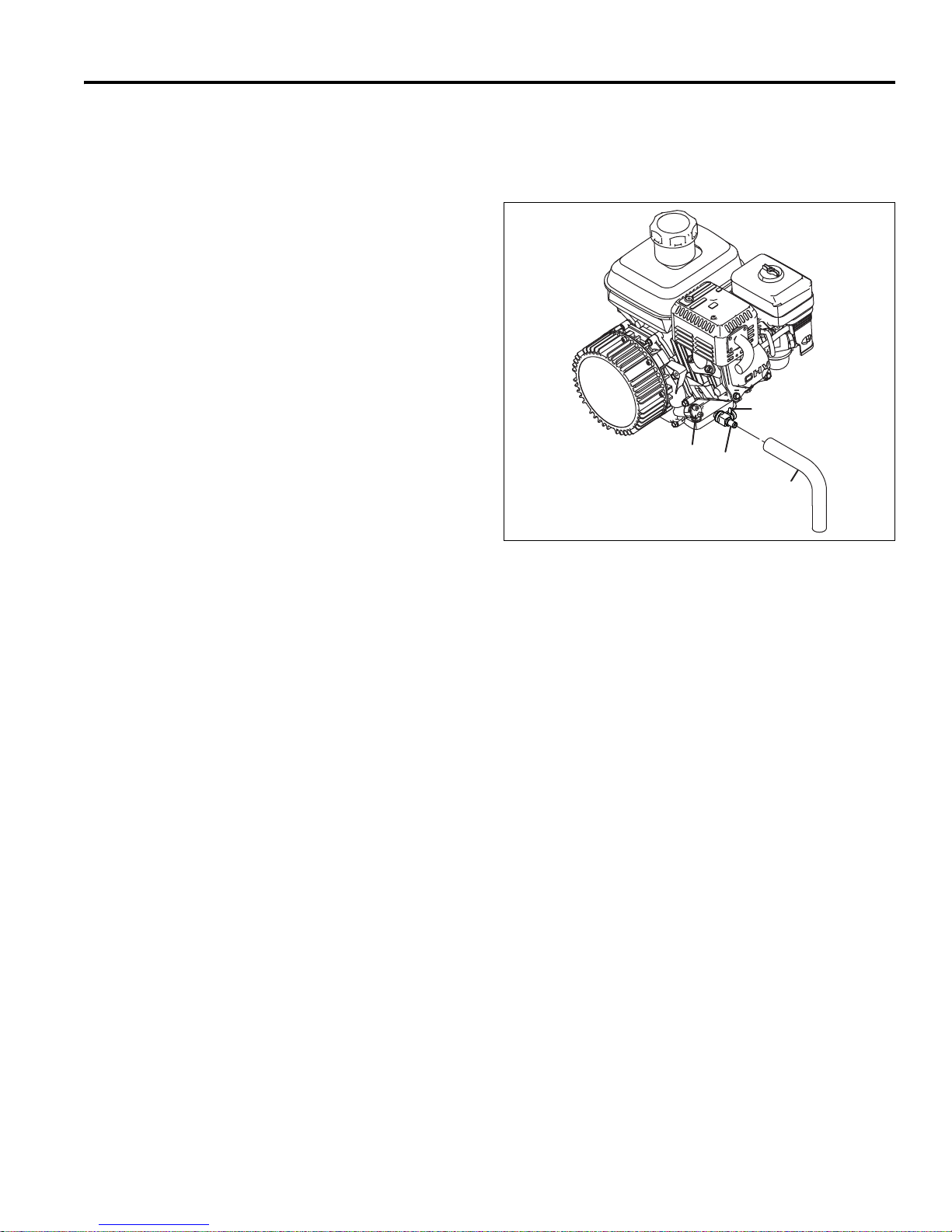

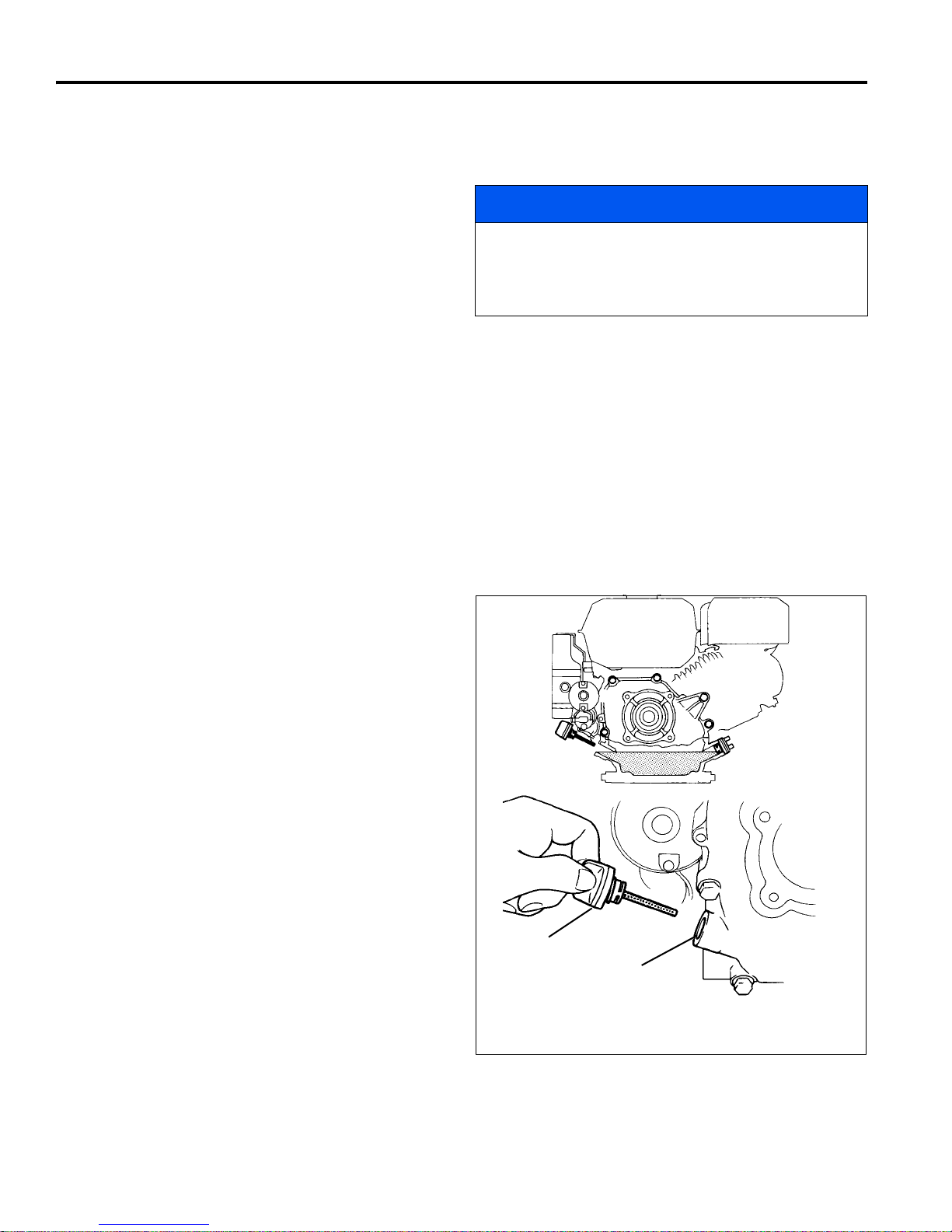

Figure 10B

10.4 ENGINE SPEED ___________________________________________________________

The engine speed is set at the factory for proper generator output. However, engine speed should be checked periodically, and adjusted to 59 volts. An output voltage greater than 60 volts will cause an alarm to sound and may cause system damage. Controller will shut down after 60 seconds if the over voltage condition is not corrected.

1. Turn the ignition switch to run position. Start the engine and turn ignition switch to start position.

2. Press either orange button on LCD display until system voltage screen is on the display.

3. Remove the throttle lever cover.

4. Adjust the engine throttle position until LCD displays system voltage of 59 volts.

5. Stop the engine and install throttle lever cover.

Page 50

10 GEN-SET POWER MODULE

10.5 FUEL ____________________________________________________________________

Handle fuel with care - it is highly flammable. Use an

approved container, the spout must fit inside the fuel filler neck. Avoid using cans and funnels to transfer fuel.

WARNING

Never remove the fuel cap from the fuel tank, or add fuel, when the engine is running or while the engine is hot.

Do not smoke when handling fuel. Never fill or drain the fuel tank indoors.

Do not spill fuel and clean spilled fuel immediately.

Never handle or store fuel containers near an open flame or any device that may create sparks and ignite the fuel or fuel vapors.

Be sure to reinstall and tighten fuel cap securely.

• Store fuel according to local, state or federal ordinances and recommendations from your fuel supplier.

• Never overfill or allow the tank to become empty.

• Use clean, fresh, regular grade, unleaded gasoline minimum 86 Octane.

• See engine manual before using oxygenated (blended) fuel.

• Do not fill above the fuel filler neck.

Page 51

MAINTENANCE 11

11 MAINTENANCE

11.1 GENERAL ________________________________________________________________

e. Keep tires properly inflated (If installed).

WARNING

Before you adjust, clean, or repair this equipment, always disengage all drives, engage parking brake, turn power off and disconnect power connector to prevent serious injury.

1. Adjustment and maintenance should always be performed by a qualified technician. If proper adjustments cannot be made, contact an Authorized Jacobsen Dealer.

2. Inspect the equipment on a regular basis, establish a maintenance schedule and keep detailed records.

a. Keep the equipment clean.

b. Keep all moving parts properly adjusted and

lubricated.

c. Replace worn or damaged parts before operating

the machine.

d. Keep shields in place and all hardware securely

fastened.

3. Long hair, jewelry or loose fitting clothing may get

tangled in moving parts.

CAUTION

Be careful to prevent entrapment of the hands and fingers between moving and fixed components of the machine.

4. Use the illustrations in the Parts Catalog as reference for the disassembly and reassembly of components.

5. Recycle or dispose of all hazardous materials (batteries, lubricants, etc.) according to local, state or federal regulations.

6. Do not change speed limit settings or overspeed the drive motors.

7. After servicing reel or traction motor, check to be sure motor connections are tight.

11.2 TIRES (OPTION) ___________________________________________________________

1. Keep tires properly inflated to prolong tire life. Check pressure only when the tires are cool.

CAUTION

2. Use an accurate, low pressure tire gauge. 6 - 8 psi (0.413-0.551 BAR)

11.3 WHEEL BEARING _________________________________________________________

The bearing has the word LOCK and an arrow stamped on the face. When replacing the bearing, make absolutely certain that the bearing is being installed in the proper direction or rotation.

For the Right wheel, install the bearing with the “LOCK➨" arrow to the Outside of the bearing housing.

For the Left wheel, install the bearing with the “LOCK➨" arrow to the Inside of the housing.

Unless you have the proper training, tools and experience, DO NOT attempt to mount a tire on a rim. Improper mounting can produce an explosion that may result in serious injury.

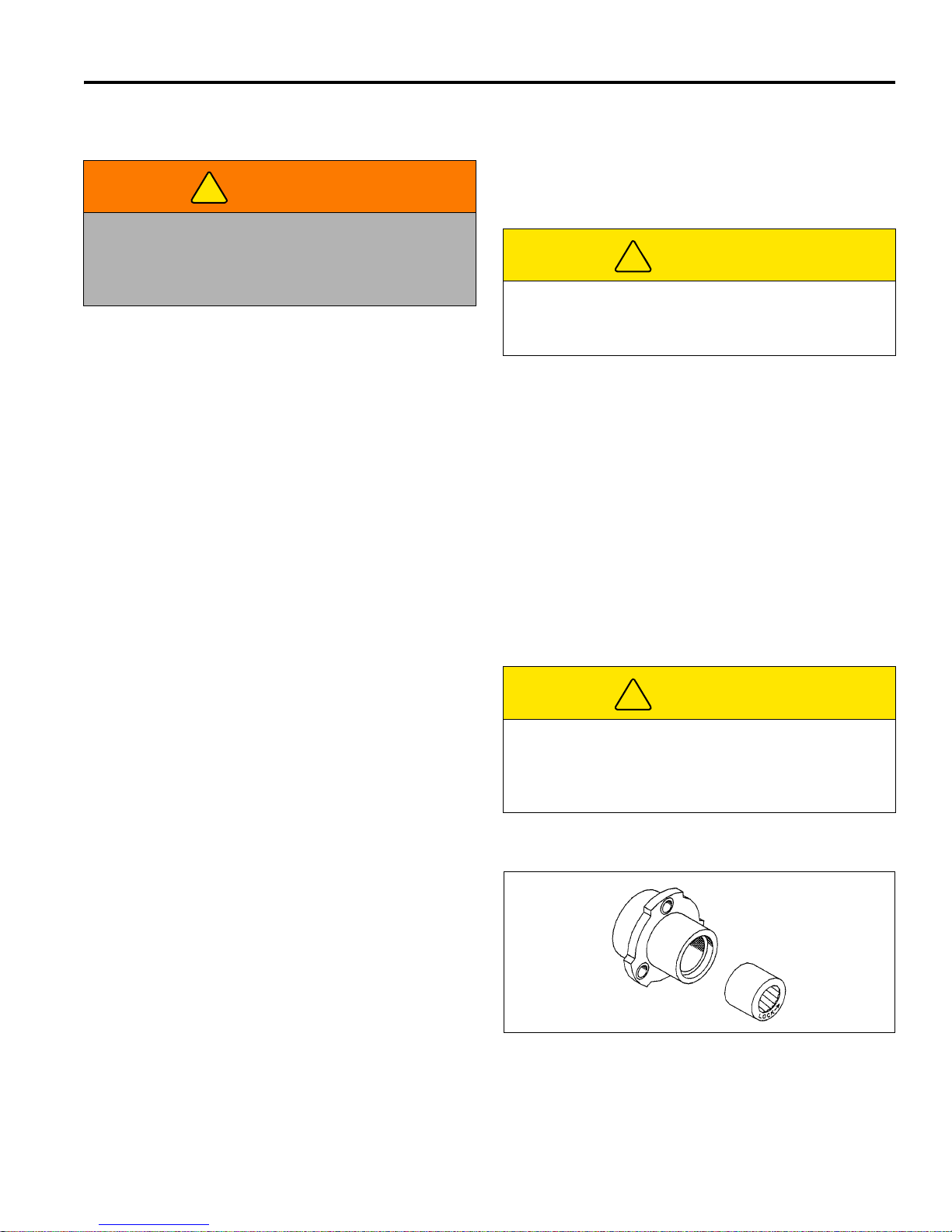

Figure 11A

Page 52

11 MAINTENANCE

11.4 BACKLAPPING AND GRINDING _____________________________________________

Check for damage to the bedknife and reel blades. Refer to (Section 6.2).

1. Determine if backlapping or grinding will restore the proper cutting edge.

2. For optimum performance use a bedknife grinder to touch-up the blade then reassemble and adjust the bedknife to the reel as described in (Section 6.2).

Disconnect motor connections whenever turning the reel by means other than the reel motor. When tightening, hand tighten motor connections only,

do not use wrenches to tighten motor connection.

Figure 11B

Backlap Display Description

Backlap Select - Used to switch mower into backlap mode. Start the mower and enter

Maintenance mode. [See Section 4.3]

Use the orange buttons (G or H) until the select backlap screen is on the display. Press the black button (F) to enter backlap mode.

Engage Reel Switch - To backlap, place reel switch (E) in ON position. If Cancel (Ø) is selected, display will return to backlap select screen.

Engage Bail - Engage O.P.C. bail (C) and release. Reel motor will begin turning, a slow beeping (1 every three seconds) alarm will sound and a five minute timer will start. If Cancel (Ø) is selected, display will return to backlap select screen.

Backlap Reel Speed and Timer Adjust reel speed between 150 to 400 rpm using the orange buttons (G or H). Press the black button (F) to Cancel (Ø) backlap.

3. Apply lapping compound with a long handle brush along the entire length of the reel, (180 grit is recommended, Section 2.7).

4. Continue lapping and at the same time make a fine adjustment on the reel and bedknife until there is a uniform clearance along the full length of the cutting edges.

5. Exit backlap mode by allowing the five minute timer to end, selecting Cancel (Ø), placing reel switch (E) in the OFF position, moving the O.P.C. bail (C), moving the thumb lever (B), or turning key switch (D) to the OFF position.

6. Turn key switch (D) to off position.

7. Carefully and thoroughly remove all lapping compound from reel and bedknife before running the reel in forward direction.

Page 53

MAINTENANCE 11

11.5 STORAGE ________________________________________________________________

General

1. Wash the mower thoroughly and lubricate. Repair

and paint damaged or exposed metal.

2. Inspect the mower, tighten all hardware, replace

worn or damaged components.

3. Clean the tires thoroughly and store the tractor on

the kickstand so the load is off the tires. The front roller should be resting on a wood board.

4. Keep the machine and all its accessories clean, dry

and protected from the elements during storage. Never store equipment near an open flame.

5. Wash the reel and bedknife thoroughly, then repair

and paint any damaged or exposed metal.

6. Lubricate all fittings and friction points.

7. Backlap the reels then back the reel away from the

bedknife. Apply a light coat of rust preventative oil to the sharpened edges of the reel and bedknife.

CAUTION

To prevent personal injury and damage to the cutting edges, handle the reel with extreme care.

Battery Power Module:

During periods of storage, the batteries will need attention to keep them maintained and prevent discharge.

In high temperatures the chemical reaction is faster, while low temperatures cause the chemical reaction to slow down. If a fully charged battery is allowed to sit unused, it will slowly self discharge. When the battery charge level falls to 80% of its full charge, it should be recharged.

to slow self discharge. The batteries should be tested or recharged at thirty day intervals.

Battery Power Module After Storage

1. Fully charge the batteries.

2. Make certain that the tires are properly inflated.

3. Remove all oil from the reels and bedknife. Adjust bedknife and cutting height.

Gen-Set Power Module:

1. While the engine is warm, remove drain plug, drain the oil from the crankcase. Install drain plug and refill with fresh oil. Torque drain plug to 22 ft. lb. (30 Nm).

2. Clean exterior of engine. Paint the exposed metal or apply a light coat of rust preventative oil.

3. To prevent the build-up of gum residues and vanish films, fill the tank with stabilized fuel. Use an antioxidant fuel conditioner, such STA-BIL®. Read and follow the instructions on the container.

4. Operate the engine for about 5 minutes to distribute the treated fuel. Stop the engine, close the fuel shut-off valve and let the engine cool. Drain fuel.

5. Remove the spark plug and pour about one ounce of SAE 30 oil into the cylinder. Crank engine slowly by hand to distribute oil over the cylinder wall. Replace the spark plug.

6. Pull the starter rope slowly until resistance is felt. Continue pulling until the notch on the starter pulley aligns with the hole on the recoil starter. At this point, the intake and exhaust valves are closed.

Gen-Set Power Module After Storage

1. Check or service the fuel filter and air cleaner.

If a battery is allowed to fully discharge and is left in a discharged state, sulfation takes place on and within the plates. This condition is not reversible and will cause permanent damage to the battery. In order to prevent damage, the battery should be recharged.

In winter conditions, the battery must be fully charged to prevent the possibility of freezing. A fully charged battery will not freeze in the most severe of winter climates. Although the chemical reaction is slowed in cold temperatures, the battery must be stored fully charged, and disconnected from any circuit that could discharge the battery. Disconnect the charging plug from the mower power connector. The batteries must be cleaned and all deposits neutralized and removed from the battery case

2. Check oil level in the engine crankcase.

3. Fill the fuel tank with fresh fuel. Open fuel shut off valve.

4. Remove all oil from the cutting edges. Readjust reelto-bedknife and cutting height.

5. Start the engine and allow enough time for the engine to become properly warmed and lubricated.

WARNING

Never operate the engine without proper ventilation; exhaust fumes can be fatal if inhaled.

Page 54

12 TROUBLESHOOTING

12.1 GENERAL________________________________________________________________

The troubleshooting chart below lists basic problems that may occur during start-up and operation. For more detailed information, contact your area Jacobsen Dealer.

Symptoms Possible Causes Action

Unit does not have

power

Engine will not start.

Engine hard to start or runs poorly, looses power or stalls.

Mower does not react properly to O.P.C. Lever

Reel does not cut, or cuts unevenly

1. Power Connector Disconnected 1. Connect Power Connector

2. Batteries Discharged 2. Fully charge battery pack

3. Engine not running 3. Start engine before attempting to energize unit

4. 50 Amp fuse blown 4. Open battery tray and check fuse. Replace if required

5. 30 Amp fuse blown 5. Remove handle cover and check fuse. Replace if required

6. Defective Battery 6. Perform load test, replace batteries as needed

7. O.P.C. bail engaged 7. Disengage bail and restart

1. Choke in wrong position 1. See Engine Manual

2. Empty fuel tank or dirty fuel 2. Drain and refill fuel tank with fresh, clean fuel

3. Fuel Shut-off valve closed 3. Open fuel shut-off valve

4. Engine / Spark Plug 4. See Engine Manual

5. Engine switch off 5. Turn engine switch to On

1. Choke in wrong position 1. See Engine Manual

2. Dirty or incorrect fuel 2. Refill with proper grade, clean fuel

3. Loose Wiring 3. Check spark plug wire

4. Air intake plugged 4. Clean air intake and air cleaner

5. Vent in fuel cap plugged 5. Clean fuel cap

1. Power switch not on 1. Follow proper start-up procedure

2. Parking brake engaged 2. Disengage parking brake

3. Reel switch in off position 3. Turn reel switch on

4. Broken Belt 4. Check and replace belts as needed

5. Bail lever not properly calibrated 5. Calibrate bail lever

6. Traction motor fault 6. Check LCD display, service traction motor

1. Reel to bedknife not adjusted 1. Adjust Reel to Bedknife

2. Reel switch in off position 2. Turn reel switch on

3. Reel motor fault 3. Check LCD display, service reel motor

4. Low battery charge 4. Fully charge battery pack

5. Over Voltage condition 5. Adjust generator output

Page 55

MAINTENANCE & LUBRICATION CHARTS 13

13 MAINTENANCE & LUBRIC ATION CHARTS

13.1 GENERAL ________________________________________________________________

The mower was designed for minimum lubrication. Over greasing will produce high loads on the bearings; thereby reducing the performance of the machine. Over greasing reel bearings may also damage the electric motor; voiding the warranty.

All maintenance intervals must be performed more frequently when operating in extremely dusty conditions.

2. Lubricate with grease that meets or exceeds NLGI Grade 2 LB specifications. Apply grease with a manual grease gun and fill slowly until grease begins to seep out. Do not use compressed air.

3. For smooth operation of pivot points and other friction points, apply several drops of SAE 30 oil every 50 hours or as required.

4. Do not over grease reel bearing (L2). Damage to

WARNING

Before you clean, adjust, or repair this equipment, disengage all drives, engage parking brake, turn power off and disconnect power connector to prevent injuries.

the motor may result. This damage is not covered under the warranty.

5. To lubricate point (L4), remove L.H. transport wheel and mounting bracket (E) to gain access to fitting. Turn the traction drum if pulley (F) is blocking the fitting then insert grease gun through hole and carefully apply grease.

1. Always clean grease fittings before and after lubrication.

6. To lubricate points (L7), remove transport wheel, nut (A) from end of shaft and pull wheel hub (D) off. Remove collar (B) and bushing (C) then pack bearing with lithium grease.

13.2 MAINTENANCE CHART_____________________________________________________

Recommended Service and Lubrication Intervals

Every

Hours

IR* R II

● Charge Batteries

Belt Tension

Air Cleaner

▼ Combustion Chamber

▼ Engine Oil

▼ Fuel Line

▼ Fuel Strainer

▼ Spark Plug

▼ Valve Clearance

Grease Locations

L1 - L5

L6-L7

Every

3-4

Hours

AR I C

A - Adjust C - Clean I - Inspect L- Lubricate R - Replace AR - As Required

* Indicates initial service for new machines.

I Manual grease gun with NLGI Grade 2 (Service Class LB). II Engine Oil - See 10.2

Every

Hours

Every

100

Hours

A/R

LLI

Every

250

Hours

Yearly Lubricant

I-A

R - 2yrs

L I

Type

● Battery Power Module ▼ Gen-Set Power Module

Page 56

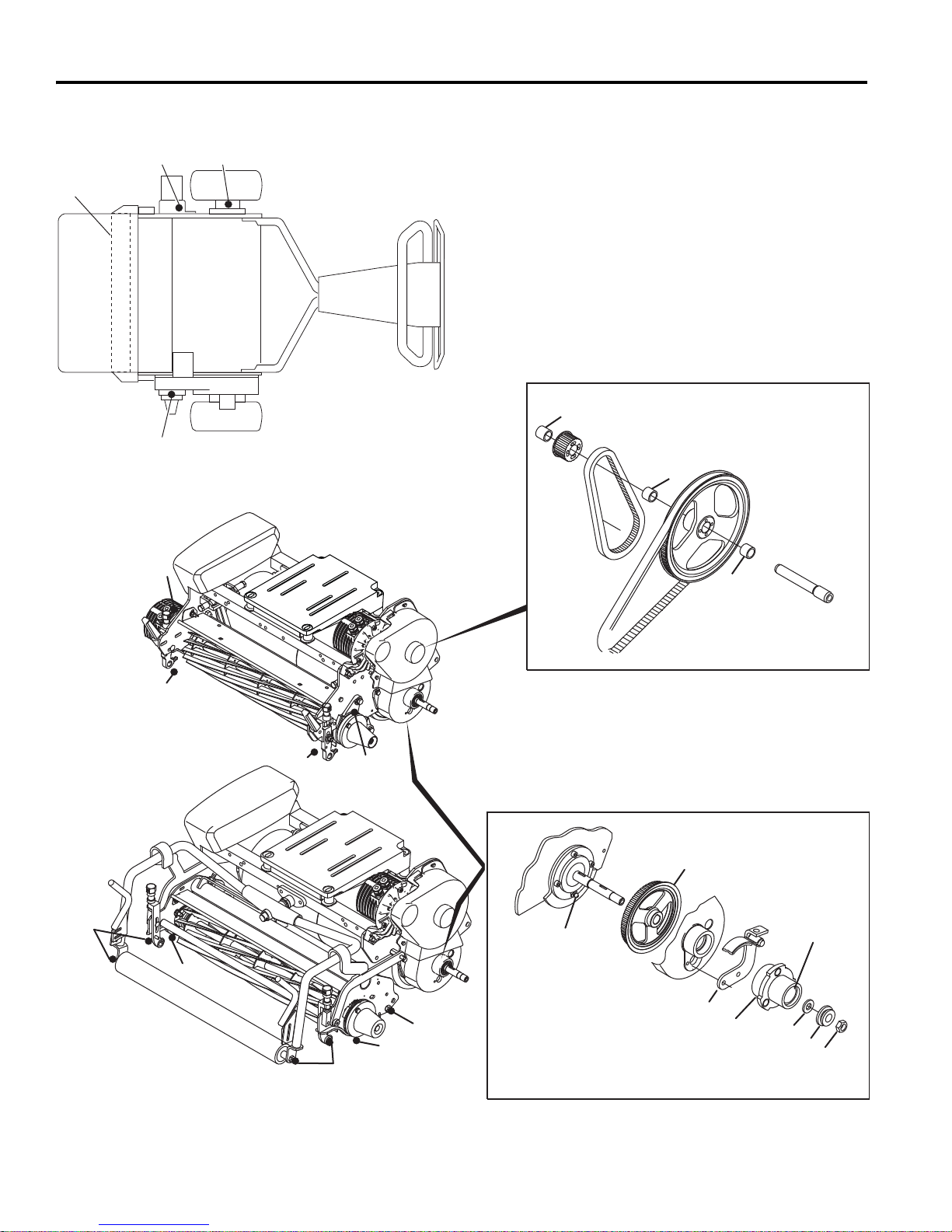

13 MAINTENANCE & LUBRICATION CHARTS

●

L1 - Reel Roller Bearing L

2 - Reel Motor Bearing Housing

3 - Right Side Traction Drum Bearing Housing

4 - Left Side Traction Drum Bearing Housing

5 - Reel Bearing Housing

6 - Pulley Shaft Bearing

7 - Hub

Wheel Hub Assembly

Pulley Shaft Assembly

13.3 LUBRICATION CHART _____________________________________________________

Page 57

PARTS CATALOG 14

14 PARTS CATALOG

14.1 HOW TO USE THE PARTS CATALOG _________________________________________

Abbreviations

N/S - Not serviced separately, can only be obtained

by ordering main component or kit.

AR -Variable quantity or measurement is required

to obtain correct adjustment.

Indented Items

Indented items indicate component parts that are included as part of an assembly or another component. These parts can be ordered separately or as part of the main component.

Symbols such as ●, next to the item number, indicate that a note exists which contain additional information important in ordering that part.

Item Part No. Qty Description Serial Numbers/Notes

● 1 123456 1 Mount, Valve Indicates a piece part 2 789012 1 Valve, Lift Includes Items 2 and 3 3 345678 1 • Handle Serviced part included with Item 2 4 N/S 1 • Seal Kit Non serviced part included with Item 2 5 901234 1 Screw, 1/4-20 x 2” Hex Head

14.2 TO ORDER PARTS _________________________________________________________

1. Write your full name and complete address on the order.

2. Explain where and how to make shipment.

3. Give product number, name and serial number that is stamped on the name plate or serial plate of your product.

4. Order by the quantity desired, the part number, and description of the part as given in the parts list.

5. Send or bring the order to an authorized Jacobsen Distributor.

6. Inspect all shipments on receipt. If any parts are damaged or missing, file a claim with the carrier before accepting.

7. Do not return material without a letter of explanation, listing the parts being returned. Transportation charges must be prepaid.

14.3 PARTS CATALOG TABLE OF CONTENTS______________________________________

1.1..............................Handle Covers.............................................................................................................................................. 58

2.1..............................Handle Assembly......................................................................................................................................... 60

3.1..............................Handle to Frame Mount............................................................................................................................... 62

4.1..............................Power Module Mounting Plate.................................................................................................................... 64

5.1..............................Frame ............................................................................................................................................................ 66

6.1..............................Lower Unit .................................................................................................................................................... 68

7.1..............................Reel ............................................................................................................................................................... 70

8.1.............................. Grass Shield and Roller Brackets .............................................................................................................. 72

9.1..............................Floating Head Reel Connection.................................................................................................................. 74

10.1............................Outer Reel Assembly................................................................................................................................... 76

11.1............................Inner Reel Assembly.................................................................................................................................... 78

12.1............................Differential and Rollers................................................................................................................................ 80

13.1............................Parking Brake and Wheels.......................................................................................................................... 82

14.1............................Belts and Drive Motors................................................................................................................................ 84

15.1............................Harness Routing .......................................................................................................................................... 86

16.1............................Genset Power Source.................................................................................................................................. 88

17.1............................Battery Power Source.................................................................................................................................. 90

18.1............................Battery Case ................................................................................................................................................. 92

19.1............................Electrical Schematic .................................................................................................................................... 94

Page 58

DRY ERASE MARKER ONLY

4265172

4265171

4265170

ECLIPSE

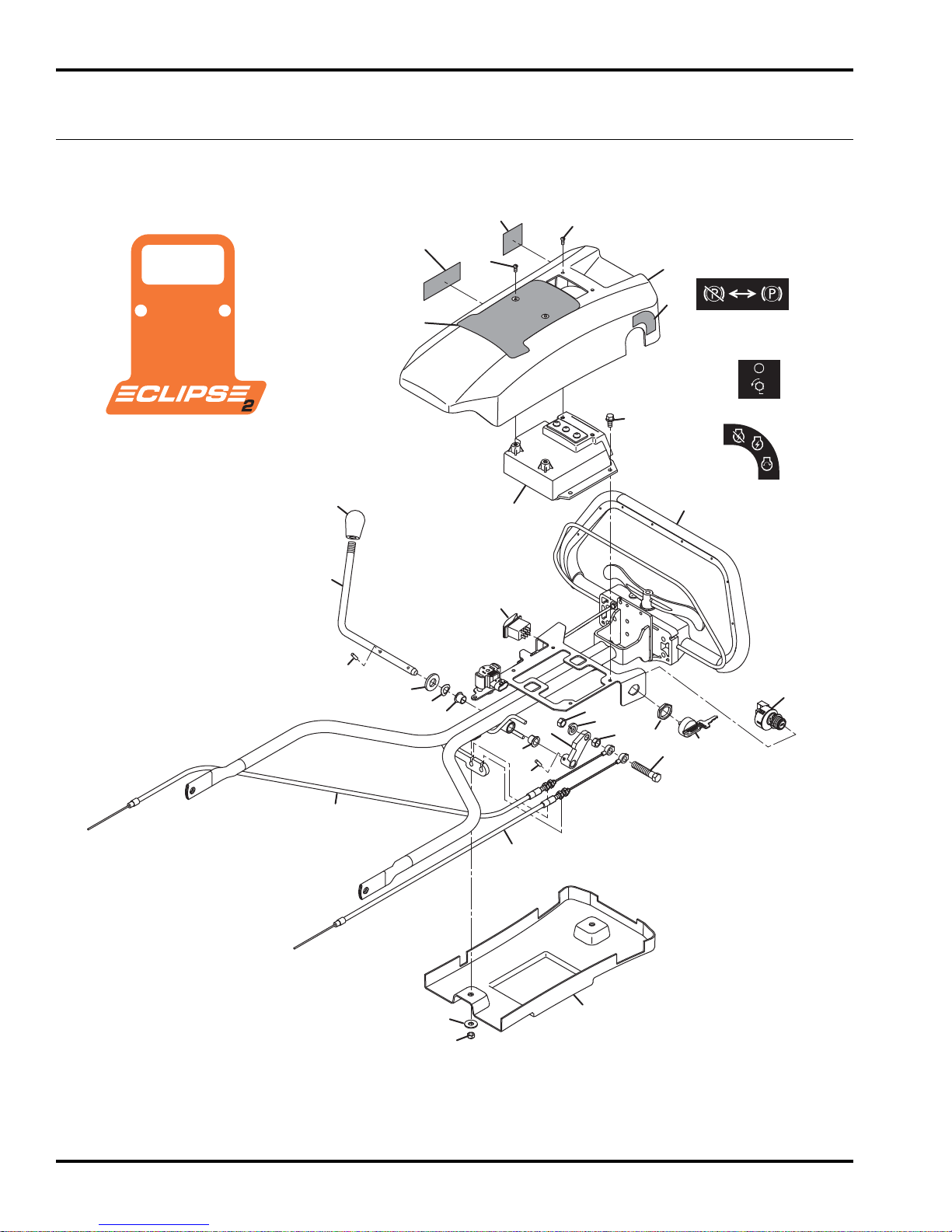

1.1 Handle Covers

Serial No. All

Page 59

ECLIPSE

Item Par t No. Qty. Description Serial Numbers/Notes

1 2 4254050 1 Control Lever 3 4127340 1 Knob 4 453017 1 Flat Washer, 1/2 5 454025 AR Spring Washer, 1/2 6 366708 2 Bearing, Flanged 7 461381 1 Roll Pin, 3/16 x 13/16” 8 2000067 1 Lever, Brake Cable

9 443110 2 Nut, 3/8-16 Hex 10 446142 1 Lockwasher, 3/8 Heavy 11 400268 1 Screw, 3/8-16 x 1-3/4” Hex Head

12 4258791 1 Cable, 34-1/2” Brake

12 4258830 1 Cable, 38-1/2” Brake

13 4258830 1 Cable, 38-1/2” Brake

13 4258790 1 Cable, 40-1/2” Brake

14 4253551 1 Controller, MCU REFERENCE U5, See 19.1 15 409807 4 Screw, 1/4-20 x 1/2” Thread Cutting 16 4165020 1 Key Switch REFERENCE SW2, See 19.1 17 4131618 1 • Key 18 N/S 1 • Nut, Face 19 4130132 1 Switch, Rocker REFERENCE SW1, See 19.1 20 4253330 1 Cover, Upper Console 21 4260810 1 Decal, Eclipse 2 22 4265172 1 Decal, Key Switch 23 4265171 1 Decal, Reel 24 4265170 1 Decal, Parking Brake 25 402056 4 Screw, #8-32 x 3/8” Slotted 26 4253310 1 Cover, Lower Console 27 445770 2 Nut, 1/4-20 Nylon Insert 28 452004 2 Flat Washer, 1/4 29 461181 1 Groove Pin, 3/16 x 3/4”

REF 1 Handle Assembly See 2.1

Eclipse

118, 118F Left Side

122, 122F Left Side

126 Left Side

118, 118F Right Side

122, 122F, 126 Right Side

> Change from previous revision

Page 60

ECLIPSE

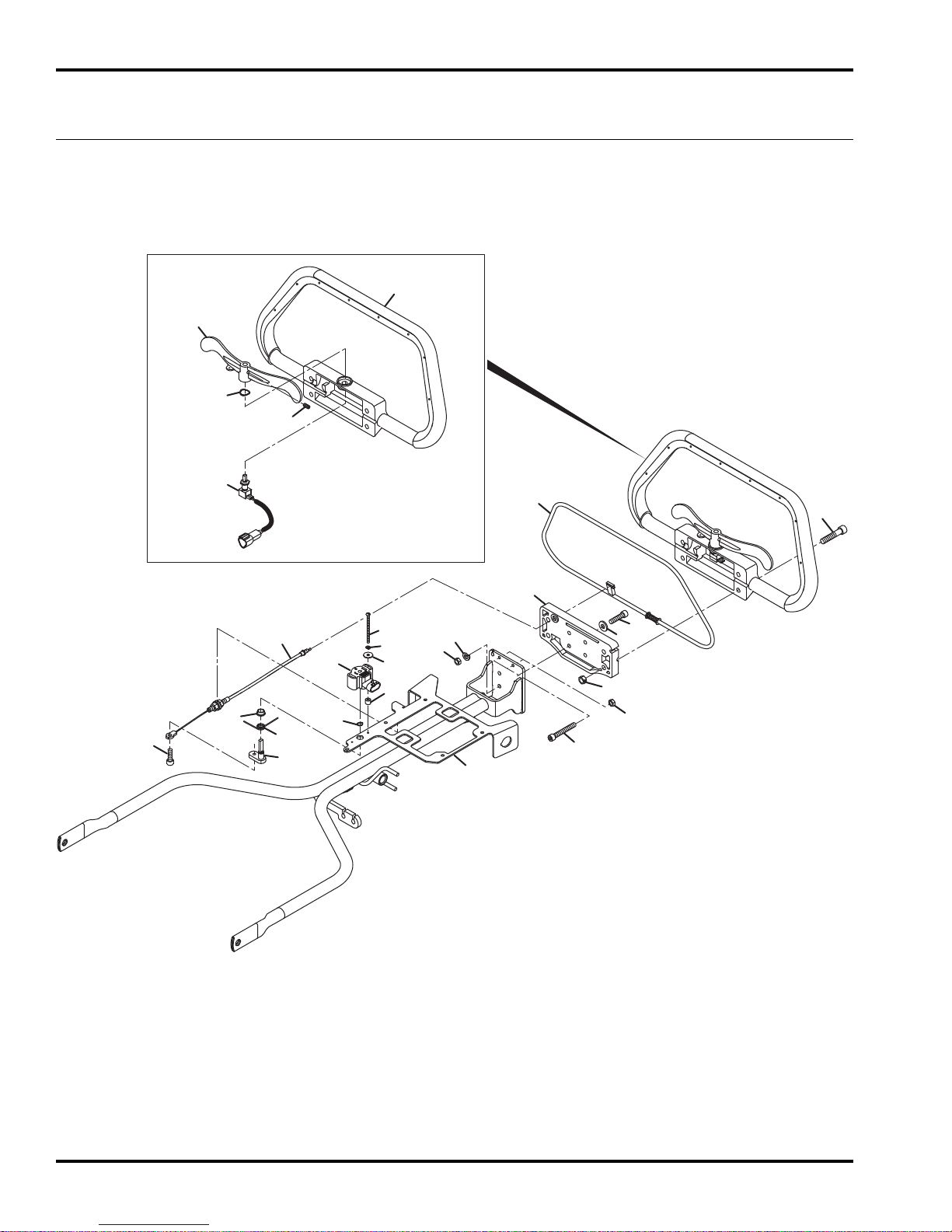

2.1 Handle Assembly

Serial No. All

18 17

Page 61

ECLIPSE

Item Par t No. Qty. Description Serial Numbers/Notes

2 4136328 1 Plate, Tilt

3 434029 4 Screw, 1/4-20 x 1” Hex Socket

4 453023 4 Flat Washer, 1/4

5 446130 4 Lockwasher, 1/4 Heavy

6 443102 6 Nut, 1/4-20 Hex

7 4136325 1 Bail

8 4147696 1 Handle, Overmolded Includes Decal

9 4260432 1 Hand Throttle Potentiometer REFERENCE R1, See 19.1 10 454020 1 Spring Washer, 7/16 11 4137303 1 Plate, Throttle 12 422504 1 Set Screw, #10-32 x 3/8” 13 4128933 4 Screw, 5/16-18 x 1-1/2” Hex Socket 14 444718 4 Locknut, 5/16-18 Hex Center 15 4256692 1 Cable, OPC 16 434031 1 Screw, 1/4-20 x 3/4” Hex Socket Nylon Patch 17 4156781 1 Lever, Bail 18 4196280 1 Spring, Torsion 19 364154 1 Bushing 20 458001 1 Retaining Ring, 3/8 Truarc 21 4145428 1 Switch, Rotary REFERENCE R2, See 19.1 22 402022 2 Screw, #6-32 x 2” Slotted Round 23 446106 2 Lockwasher, #6 24 453005 2 Flat Washer, #6 25 4136366 2 Spacer, 3/8 x 5/16 26 434054 2 Screw, 1/4-20 x 1-3/4” Hex Socketv

4256578 1 Handle

> Change from previous revision

Page 62

Eclipse

118 and 118F 63334 63343 63335 63344 63336 63345 63337 63346

Eclipse

122, 122F, and 126 63338 63347 63339 63348 63340 63349 63341 63350 63342 63351

Handle Assembly

ECLIPSE

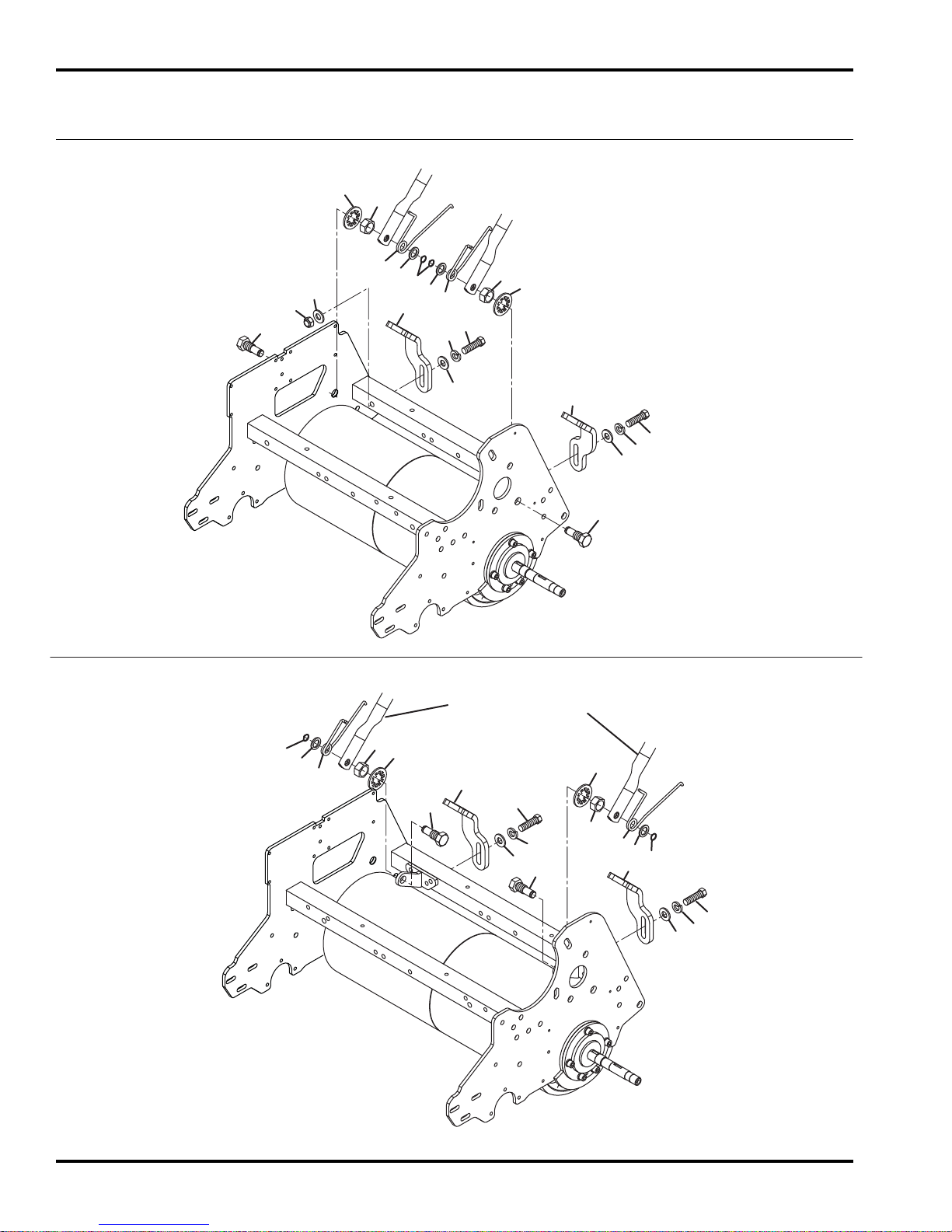

3.1 Handle to Frame Mount

Serial No. All

Page 63

ECLIPSE

Item Par t No. Qty. Description Serial Numbers/Notes

1 2 447224 2 Lockwasher, 5/8 Internal Tooth 3 443828 2 Nut, 5/8-18 Hex Jam 4 4257813 1 Handle Stop, Right Side 5 4257814 1 Handle Stop, Left Side

6 2809900 1 Torsion Spring, Handle

7 2809901 1 Torsion Spring, Handle

8 455012 2 Flat Washer, 1/2 9 456006 2 Retaining Ring, 1/2” Truarc

10 400286 2 Screw, 3/8-16 x 2-3/4” Hex Head

10 400274 2 Screw, 3/8-16 x 2-1/2” Hex Head

11 446142 2 Lockwasher, 3/8 Heavy

12 453011 4 Flat Washer, 3/8

12 453011 2 Flat Washer, 3/8

13 445808 2 Nut, 3/8-16 Hex Nylock

2811559 2 Bolt, Handle Mount

Eclipse

118, 118F Left Side

122, 122F, 126 Right Side

118, 118F Right Side

122, 122F, 126 Left Side

118, 118F

122, 122F, 126

118, 118F

122, 122F, 126

118, 118F Only

> Change from previous revision

Page 64

4172240

Gen-Set Battery

ECLIPSE

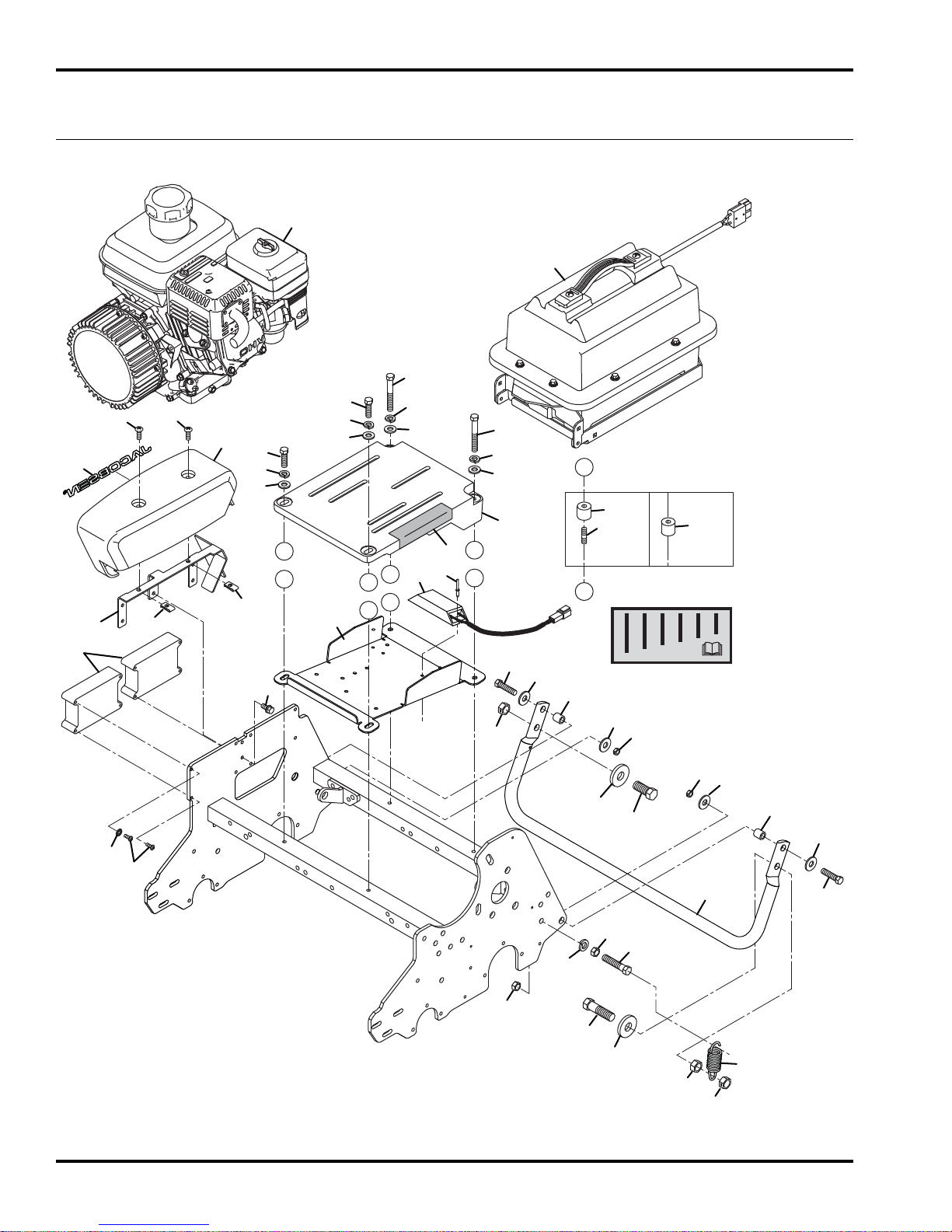

4.1 Power Module Mounting Plate

Serial No. All

Fixed Head Frame Shown. Floating Head Similar

Page 65

ECLIPSE

Item Part No. Qty. Description Serial Numbers/Notes

1 2 63306 1 Battery Power Module See 20.1 3 4253190 2 Controller, Motor REFERENCE U1, U2, See 19.1 4 800271 8 Screw, #10-24 x 1/2” Pan Head 5 404016 2 Screw, 1/4-20 x 5/8” Truss Head 6 445245 2 Tinnerman Nut, 1/4-20 7 4253595 1 Mount, Power Module 8 400186 2 Screw, 5/16-18 x 7/8” Hex Head Gen-Set Power Module Only 8 400198 2 Screw, 5/16-18 x 2-1/4” Hex Head Battery Power Module Only 9 400196 2 Screw, 5/16-18 x 2” Hex Head Gen-Set Power Module Only

9 400204 2 Screw, 5/16-18 x 3-1/2” Hex Head Battery Power Module Only 10 446136 4 Lockwasher, 5/16 Battery Power Module Only 11 409807 2 Screw, 1/4-20 x 1/2” Thread Cutting 12 4193060 1 Decal, Front Roller Weight 13 4258590 1 Cover, Motor Controller 14 4255550 4 Female Iso Mount Gen-Set Power Module Only 15 4259130 1 Bracket, Controller Cover 16 453009 4 Flat Washer, 5/16 17 4257467 1 Plate, Power Module Mounting 18 4255551 4 Stud, Iso-Mount Gen-Set Power Module Only 19 4265710 1 Resistor, Ceramic REFERENCE R3, See 19.1 20 400058 2 Pop Rivet, 3/16 x 1/2” 21 361139 4 Spacer Battery Power Module Only

22 4257455 1 Kickstand, 18”

22 4247755 1 Kickstand, 22”

22 4257770 1 Kickstand, 26” Used on 63342 and 63351 23 400190 2 Screw, 5/16-18 x 1-1/4” Hex Head 24 452006 4 Flat Washer, 5/16 25 366715 2 Spacer 26 444718 2 Locknut, 5/16-18 Hex Center 27 400268 1 Screw, 3/8-16 x 1-3/4” Hex Head 28 443810 2 Nut, 3/8-16 Hex Jam 29 446142 1 Lockwasher, 3/8 Heavy 30 400410 1 Screw, 1/2-13 x 1-3/4” Hex Head 31 344132 2 Washer, 1/2 32 443118 1 Nut, 1/2-13 Hex 33 444758 2 Locknut, 1/2-13 Hex Center 34 364164 1 Spring, Extension 35 400404 1 Screw, 1/2-13 x 1” Hex Head 36 4264210 1 Decal, Jacobsen 37 306998 2 Lockwasher, #10 Int/Ext Tooth

63305 1 Gen-Set Power Module See 19.1

Used on 63334, 63335, 63336, 63337, 63343, 63344, 63345, and 63346

Used on 63338, 63339, 63340, 63341, 63347, 63348, 63349, and 63350

> Change from previous revision

Page 66

Manufactured under one or more

of the following U.S. patents:

xxxxxxx xxxxxxx xxxxxxx xxxxxxx xxxxxxx xxxxxxx

CHARLOTTE, NC

YEAR OF PRODUCTION:

MADE IN U.S.A.

A Textron Company

Manufactured under one or more

of the following U.S. patents:

xxxxxxx xxxxxxx xxxxxxx xxxxxxx xxxxxxx xxxxxxx

CHARLOTTE, NC

YEAR OF PRODUCTION:

MADE IN U.S.A.

A Textron Company

If 2 Bolt Spindle Mount is installed, order Spindle Mount Kit 4273830 (122F), or 4273831 (118F).

Eclipse2 118, 122 and 126 63334 63343 63335 63344 63338 63347 63339 63348 63342 63351

Eclipse

118F and 122F 63336 63345 63337 63346 63340 63349 63341 63350

ECLIPSE

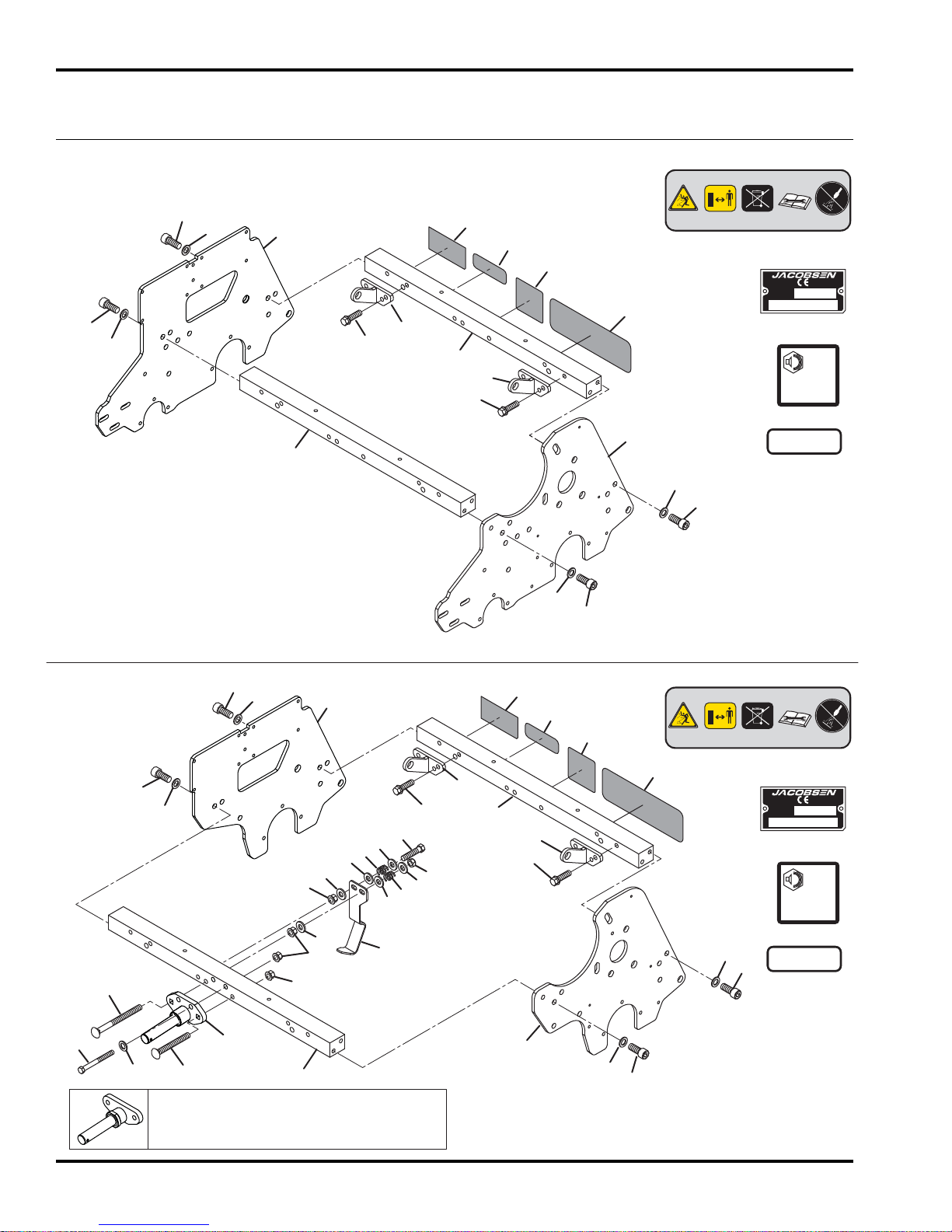

5.1 Frame

Serial No. All

Page 67

ECLIPSE

Item Part No. Qty. Description Serial Numbers/Notes

4253156 1 Frame, L.H. Side Fixed Head

1 4253154 1 Frame, L.H. Side Floating Head

2 4253155 1 Frame, R.H. Side Fixed Head

2 4253157 1 Frame, R.H. Side Floating Head

3 4257453 2 18” Crossbar

3 4247754 2 22” Crossbar

3 4257470 2 26” Crossbar

4 434030 8 Screw, 3/8-16 x 7/8” Hex Socket 5 64163-04 8 Flat Washer, 3/8 6 4127931 1 Decal, Patent 7 4117466 1 Decal, 96 dBA Noise 8 4169640 1 Decal, Danger 9 REF 1 Serial Plate

10 800710 2 Screw, 5/16-18 x 1” Hex Flange

11 4258190 2 Bracket, Handle Mount

12 400192 1 Screw, 5/16-18 x 1-1/2” Hex Head

13 441672 1 Carriage Bolt, 5/16-18 x 2-1/2”

14 441688 1 Carriage Bolt, 5/16-18 x 3-1/2”

15 4273518 1 Spindle Mount

16 548911 5 Nut, 5/16-18 Hex Flange

17 445802 1 Nut, 5/16-18 Nylon Insert Hex

18 400200 2 Screw, 5/16-18 x 2-1/2” Hex Head

19 453009 8 Flat Washer, 5/16

20 4255870 1 Limit Bracket

21 332844 2 Spring, Compression

Eclipse

118, 122, and 126

118F and 122F

118, 122, and 126

118F and 122F

118 and 118F

118, 122, and 126

126

122, 122F, and 126

118F and 122F Only

> Change from previous revision

Page 68

ECLIPSE

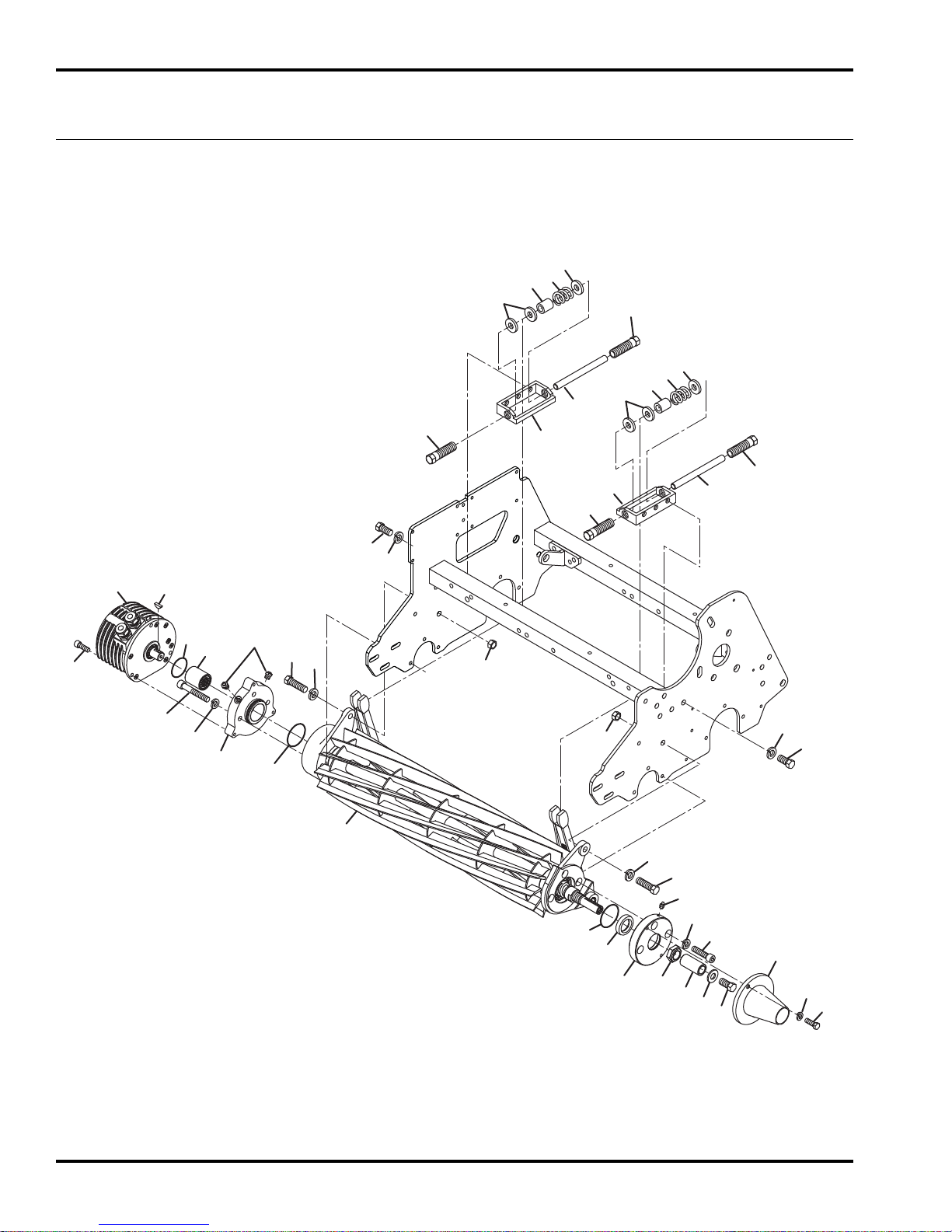

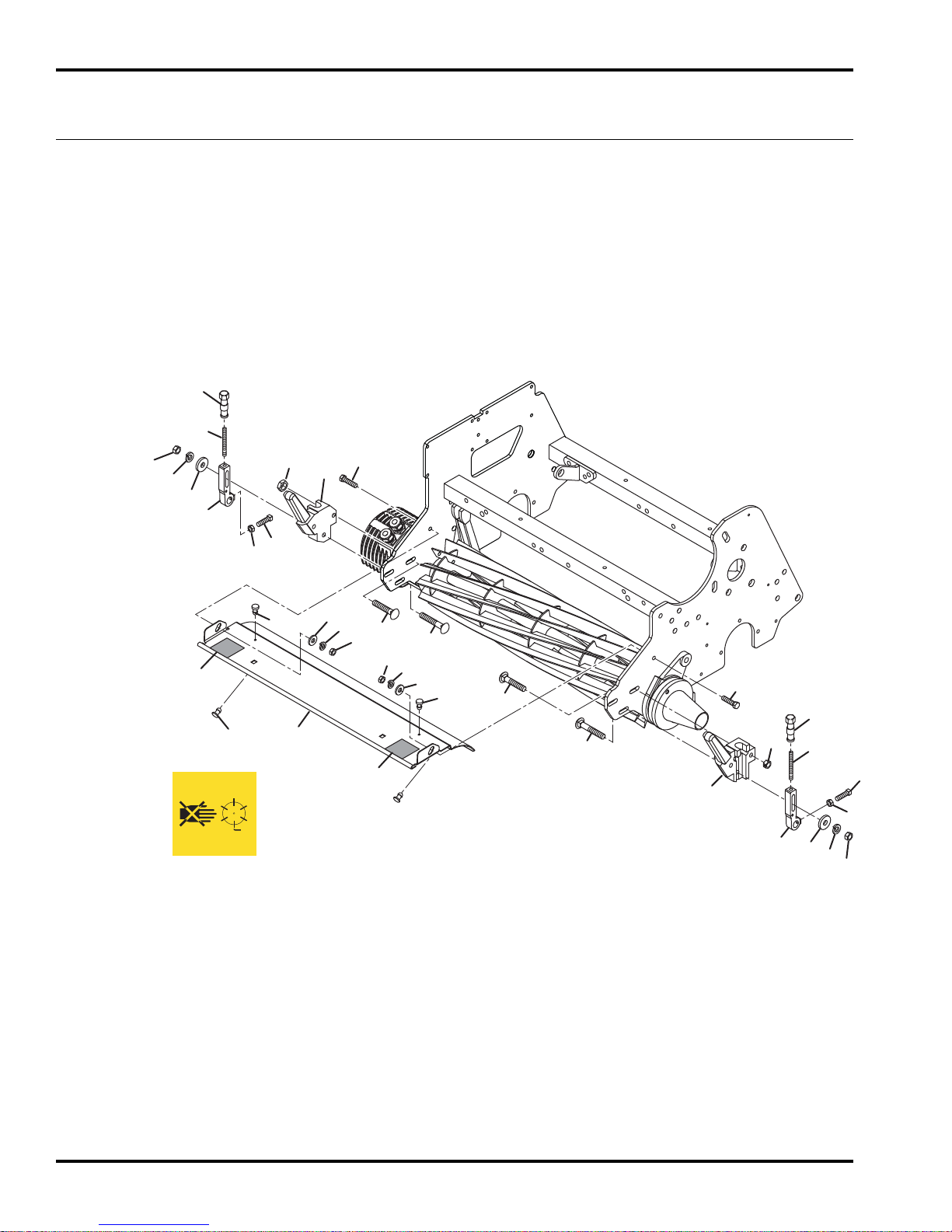

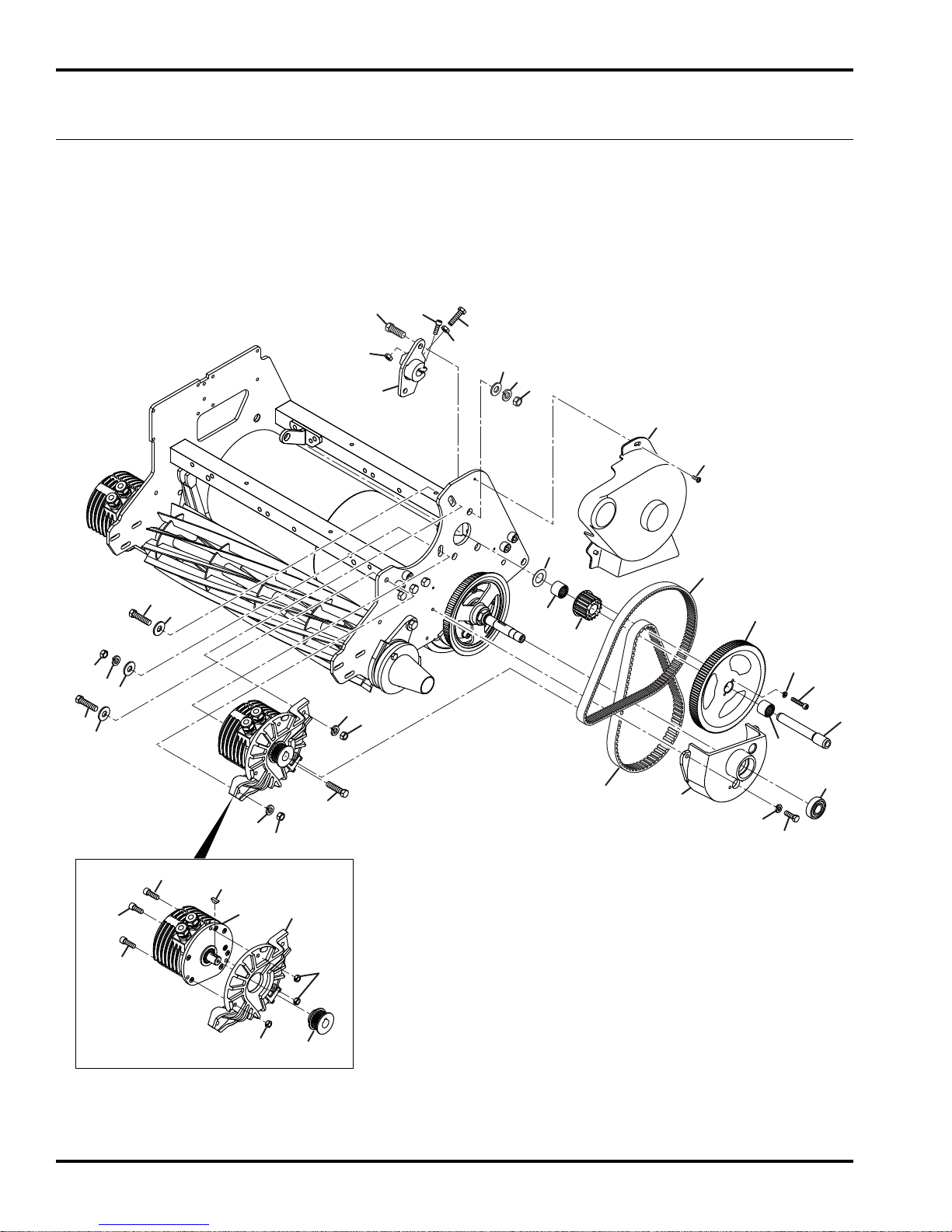

6.1 Lower Unit

Fixed Head Units

Serial No. 63334 - All Serial No. 63335 - All Serial No. 63338 - All Serial No. 63339 - All

Serial No. 63342 - All Serial No. 63343 - All Serial No. 63344 - All Serial No. 63347 - All

Serial No. 63348 - All Serial No. 63351 - All

29 30

Page 69

ECLIPSE

Item Part No. Qty. Description Serial Numbers/Notes

1 2 400264 2 Screw, 3/8-16 x 1-1/4” Hex Head 3 446142 8 Lockwasher, 3/8 Heavy 4 400258 6 Screw, 3/8-16 x 3/4” Hex Head 5 3001610 2 Block, Bedknife Adjuster 6 366726 4 Bolt, 5/8-11 Special 7 366653 6 Spacer, 7/8 x 3/8 x 1/8” 8 367512 2 Spacer, 5/8 x 3/8 x 3/4”

9 366709 2 Spring 10 366727 2 Rod 11 4179780 1 Seal Carrier 12 366648 1 Grease Seal 13 4104720 3 O-Ring 14 434036 3 Screw, 5/16-18 x 1-1/4” Hex Socket 15 446136 6 Lockwasher, 5/16 Heavy 16 471214 1 Grease Fitting, 1/4-20 Straight 17 367029 1 Nut, 3/4-16 Nylock Hex Jam Nut 18 367164 1 Spacer, Reel Shaft 19 453011 1 Flat Washer, 3/8 20 400294 1 Screw, 3/8-24 x 3/4” Hex Head 21 557775 1 Cover, Reel Shaft 22 400108 2 Screw, 1/4-20 x 3/4” Hex Head 23 446130 2 Lockwasher, 1/4 Heavy 24 4167541 1 Adapter, Motor 25 471242 2 Grease Fitting, Relief 26 434049 3 Screw, 5/16-18 x 2” Hex Socket 27 2812384 1 Coupler, Motor 28 443110 2 Nut, 3/8-16 Hex 29 4261470 1 Motor, Brushless Bi-Directional Reference M1, See 19.1 30 463029 1 Key, Woodruff 31 434028 3 Screw, 1/4-20 x 3/4” Hex Socket

REF 1 Reel and Bedknife Assembly See 7.1

> Change from previous revision

Page 70

ECLIPSE

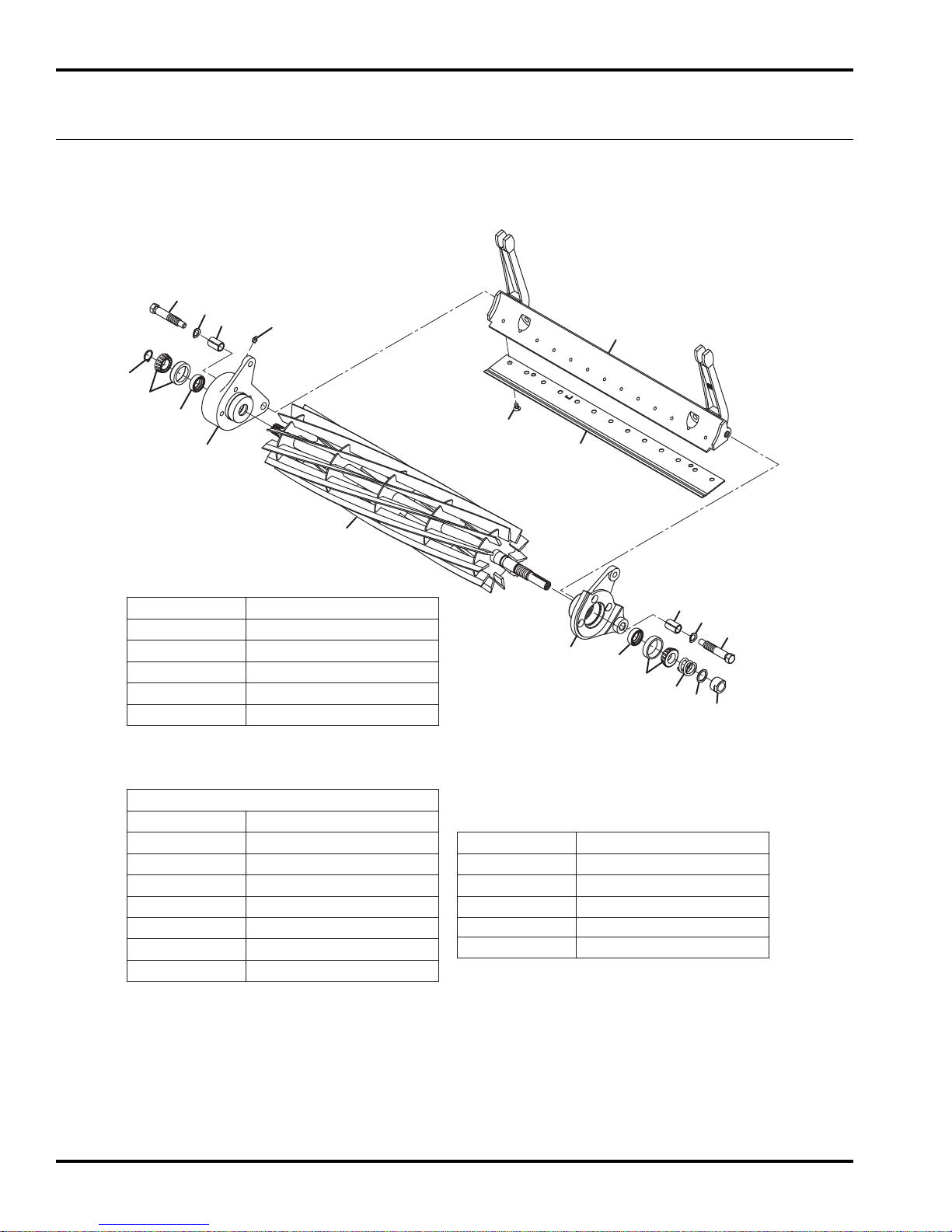

7.1 Reel

Fixed Head Units

Serial No. 63334 - All Serial No. 63335 - All Serial No. 63338 - All Serial No. 63339 - All

Serial No. 63342 - All Serial No. 63343 - All Serial No. 63344 - All Serial No. 63347 - All

Serial No. 63348 - All Serial No. 63351 - All

Reels

Part Number Description

4170202 18” 11 Blade Reel 4225502 18” 15 Blade Reel 4172945 22” 11 Blade Reel 4223946 22” 15 Blade Reel 4170203 26” 7 Blade Reel

Standard Style Bedknives

(Secured with screws)

Part Number Description

5000098 18” Low Profile

● 5002888 18” Super Tournament 4234901 18” Championship 503478 22” Low Profile 503477 22” High Profile

● 5002887 22” Super Tournament 4234900 22” Championship

● 5000141 26” Heavy Section

Optional MagKnife Bedknives

Part Number Description

4131005 22” Medium Section 4131369 22” High Profile 4131001 22” Low Profile 4131370 22” Tournament

4131003 22” Super Tournament

● Standard Bedknife

Page 71

ECLIPSE

Item Part No. Qty. Description Serial Numbers/Notes

See Chart 1 Reel

1 2 4105281 1 Bearing Housing 3 366650 1 • Grease Seal 4 545940 1 • Bushing 5 500534 1 • Bearing Cup and Cone 6 4179720 1 Bearing Housing 7 366650 1 • Seal 8 545940 1 • Bushing

9 500534 1 • Bearing Cup and Cone 10 4128725 1 • Grease Fitting 11 458013 1 Snap Ring 12 5002151 1 Spring 13 304745 1 Washer 14 364900 1 Nut, 3/4-16 Reel 15 365501 2 Screw, Bedknife Backing 16 454017 2 Spring Washer, 7/16

17 5000102 1 Bedknife Backing, 18”

17 2000075 1 Bedknife Backing, 22”

17 2000076 1 Bedknife Backing, 26” Used on 63342 and 63351 18 See Chart 1 Bedknife 19 4252470 AR Screw, 1/4-20 x 1/2” Bedknife Package of 100 Screws

Used on 63334, 63335, 63343, and 63344

Used on 63338, 63339, 63347, and 63348

> Change from previous revision

Page 72

ECLIPSE

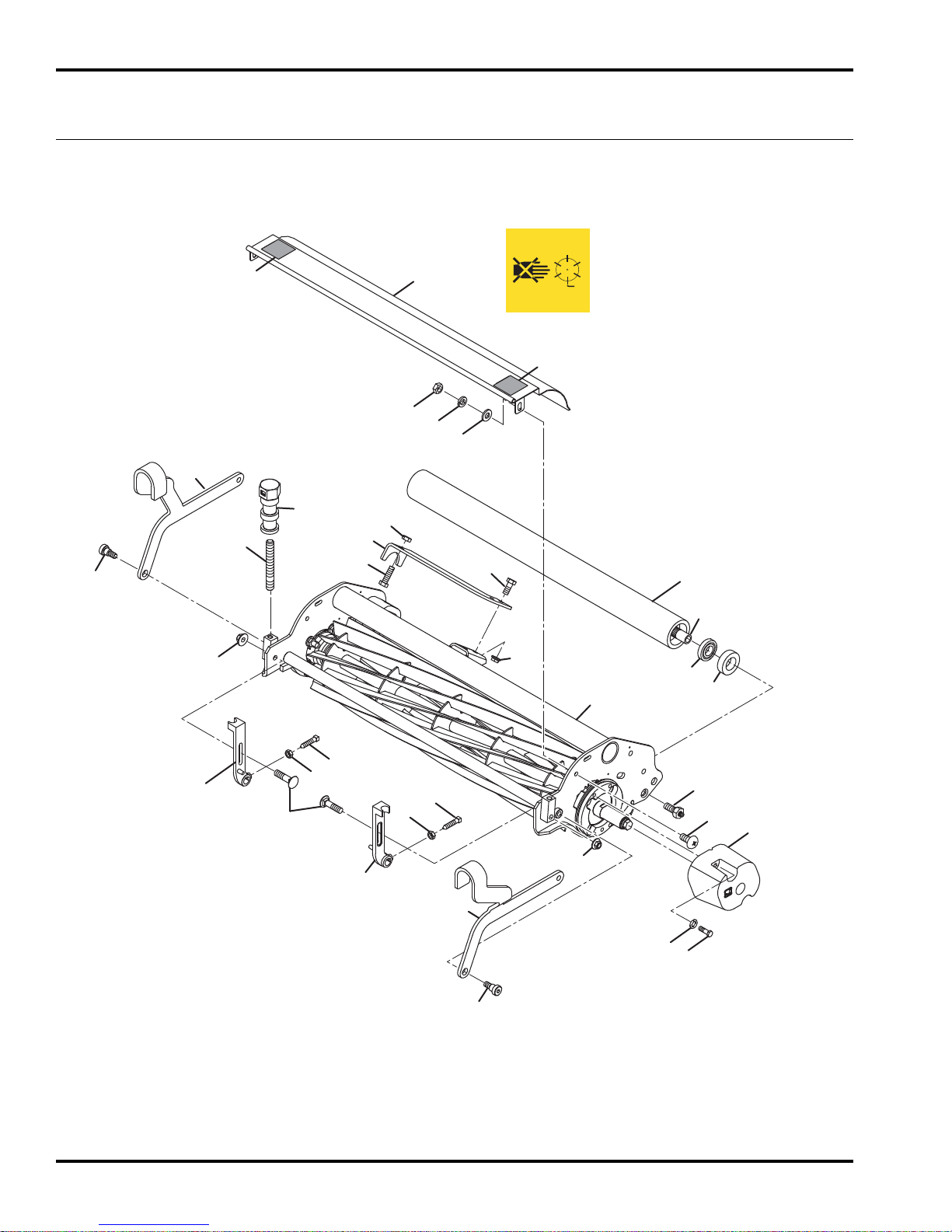

8.1 Grass Shield and Roller Brackets

Fixed Head Units Only

Serial No. 63334 - All Serial No. 63335 - All Serial No. 63338 - All Serial No. 63339 - All

Serial No. 63342 - All Serial No. 63343 - All Serial No. 63344 - All Serial No. 63347 - All

Serial No. 63348 - All Serial No. 63351 - All

4127335

Page 73

ECLIPSE

Item Part No. Qty. Description Serial Numbers/Notes

1 4139660 1 Grass Shield, 22 Inch

1 4139662 1 Grass Shield, 26 Inch Used on 63342 and 63351 2 4127335 2 • Decal, Danger 3 241928 1 Bracket, Catcher Mounting, R.H. 4 241927 1 Bracket, Catcher Mounting, L.H. 5 2000072 2 Bracket, Roller Adjusting 6 343616 2 Stud, Front Roller Adjusting 7 3005692 2 Adjusting Knob 8 441677 4 Carriage Bolt 5/16-18 x 1-1/2”

9 444718 4 Locknut, 5/16-18 Center 10 441674 2 Carriage Bolt, 5/16-18 x 1-3/4” 11 364441 2 Spacer 12 446136 2 Lockwasher, 5/16 Heavy 13 443106 2 Nut, 5/16-18 Hex 14 443102 4 Nut, 1/4-20 Hex 15 352737 2 Set Screw, 1/4-20 x 7/8” Square Hd 16 3008974 4 Grommet 17 400112 2 Screw, 1/4-20 x 1” Hex Head 18 453023 2 Flat Washer, 1/4 19 446130 2 Lockwasher, 1/4 Heavy

4139661

1 Grass Shield, 18 Inch

Used on 63334, 63343, 63335, and 63344

Used on 63338, 63347, 63339, and 63348

> Change from previous revision

Page 74

ECLIPSE

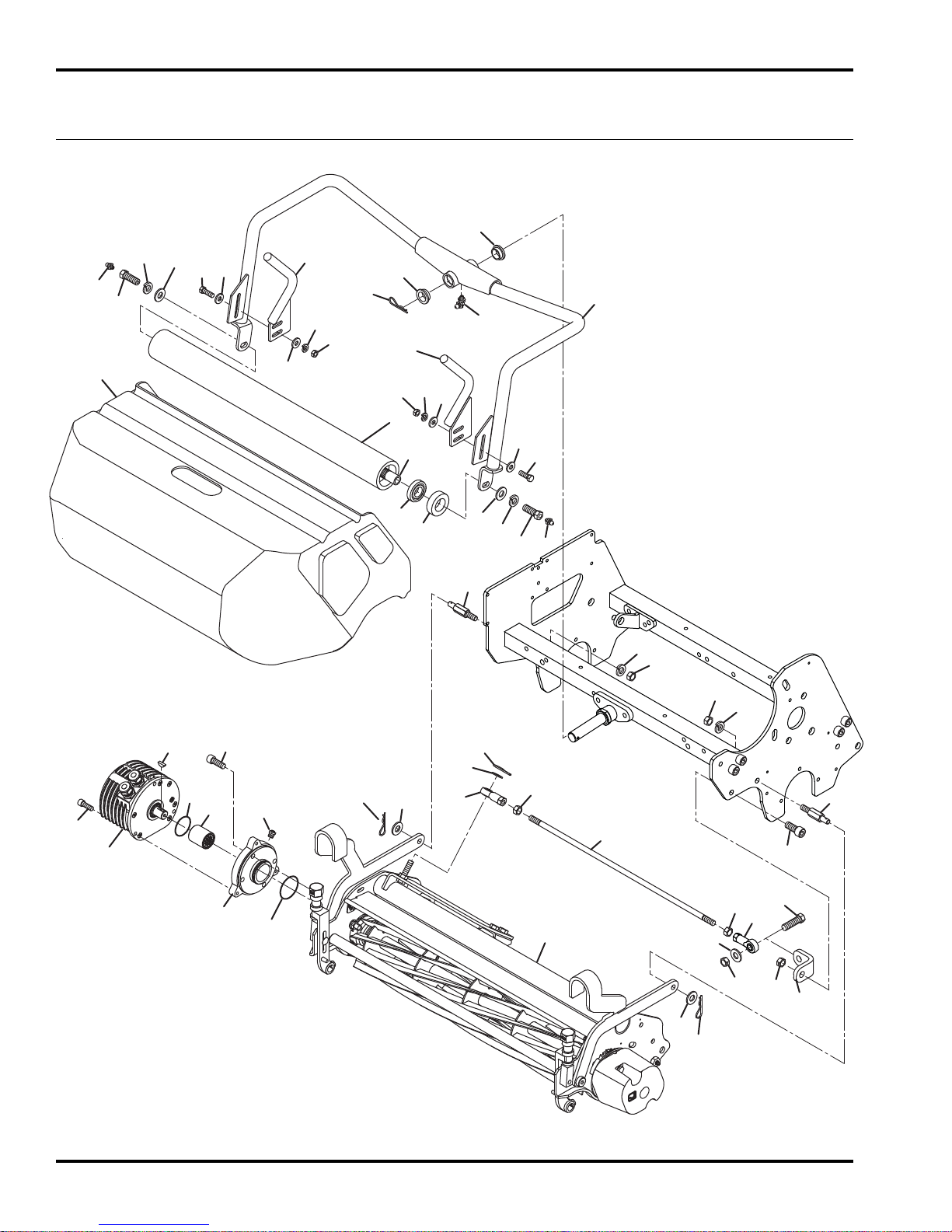

9.1 Floating Head Reel Connection

Floating Head Units Only

Serial No. 63336 - All Serial No. 63337 - All Serial No. 63340 - All Serial No. 63341 - All

Serial No. 63345 - All Serial No. 63346 - All Serial No. 63349 - All Serial No. 63350 - All

Page 75

ECLIPSE

Item Part No. Qty. Description Serial Numbers/Notes

4175221 1 Rear Roller - 18”

1 1004990 1 Rear Roller - 22”

2 4175220 1 • Shaft, 18”

2 3010422 1 • Shaft, 22”

3 3010286 2 • Seal

4 3010712 2 • Bearing

5 4168727 1 Roller Mount - 18”

5 4136994 1 Roller Mount - 22”

6 4203300 1 Grass Catcher, 18” Floating Head

6 4239563 1 Grass Catcher, 22” Floating Head

7 352726 2 Bushing

8 453023 8 Flat Washer, 1/4

9 446128 4 Lockwasher, 1/4 Med. 10 443102 4 Nut, 1/4-20 Hex 11 400108 4 Screw, 1/4-20 x 3/4” Hex Head 12 4140152 1 Mount, Left Side Catcher 13 4140151 1 Mount, Right Side Catcher 14 471221 1 Grease Fitting, 1/4-28 90° 15 460312 4 Hairpin 16 366317 1 Rod End, 3/8-24 17 4104720 1 O-Ring, Motor 18 4261470 1 Motor, Brushless Bi-Directional Reference M2, See 19.1 19 4167400 1 Plate, Motor Adapter 20 4169040 1 Rod, Panhard, 18” 20 4138778 1 Rod, Panhard, 22” 21 360893 1 Rod End 22 4140166 2 Pin, Threaded 23 434024 4 Screw, 5/16-18 x 3/4” Socket Head 24 434029 3 Screw, 1/4-20 x 3/4” Socket Head 25 443110 2 Nut, 3/8-16 Hex 26 443112 1 Nut, 3/8-24 Hex 27 445785 1 Nut, 3/8-24 Left Hand Hex 28 471214 2 Grease Fitting 29 446142 5 Lockwasher, 3/8 Heavy 30 453011 5 Flat Washer, 3/8 31 463029 1 Key, Woodruff 32 845279 1 Seal, O-Ring 33 REF 1 Reel Assembly See 10.1 34 4156930 2 Screw, 3/8-24 x 1” Special 35 2812384 1 Coupler 36 4261071 1 Bracket, Panhard Mount 37 444762 2 Locknut, 3/8-16 Hex Center 38 434030 1 Screw, 3/8-16 x 7/8” Hex Socket 39 417242 1 Fitting, Relief 40 400264 1 Screw, 3/8-16 x 1-1/4” Hex Head 41

Used on 63336, 63345, 63337, 63346

Used on 63340, 63349, 63341, 63350

Used on 63336, 63345, 63337, 63346

Used on 63340, 63349, 63341, 63350

Used on 63336, 63345, 63337, 63346

Used on 63340, 63349, 63341, 63350

Used on 63336, 63345, 63337, 63346

Used on 63340, 63349, 63341, 63350

Used on 63336, 63345, 63337, 63346

Used on 63340, 63349, 63341, 63350

> Change from previous revision

Page 76

ECLIPSE

10.1 Outer Reel Assembly

Floating Head Units Only

Serial No. 63336 - All Serial No. 63337 - All Serial No. 63340 - All Serial No. 63341 - All

Serial No. 63345 - All Serial No. 63346 - All Serial No. 63349 - All Serial No. 63350 - All

4127335

Page 77

ECLIPSE

Item Part No. Qty. Description Serial Numbers/Notes

1 1004990 1 Rear Roller, 22”

2 4175220 1 • Shaft, 18” Roller

2 3010422 1 • Shaft, 22” Roller

3 3010286 2 • Seal 4 3010712 2 • Bearing 5 1002224 2 Zerk Bolt 6 365246 2 Shoulder Bolt 7 4171380 1 Casting, Counterweight 8 446130 4 Lockwasher, 1/4 Heavy 9 400118 2 Screw, 1/4-20 x 1-3/4” Hex Head

10 2811027 1 Shield, Reel, 18”

10 4174640 1 Shield, Reel, 22”

11 403782 2 Screw, 1/4-20 x 3/4” Truss Head 12 443102 4 Nut, 1/4-20 Hex 13 453023 2 Flat Washer, 1/4 14 343616 2 Stud 15 352737 2 Screw, 1/4-20 x 7/8” Sq Hd Set 16 3008438 1 Roller Bracket 17 3008439 1 Roller Bracket 18 3005692 2 Knob, Front Roller Adjusting 19 441674 2 Carriage Bolt, 5/16-18 x 1-3/4” 20 445795 4 Nut, 5/16-18 Spiralock Flange 21 400184 2 Screw, 5/16-18 x 3/4” Hex Head

22 4175240 1 Bracket, 118F Panhard Rod

22 4140163 1 Bracket, 122F Panhard Rod

23 4140164 1 Screw, 3/8-16 x 1-1/4 Special 24 4140284 1 Bar, Left Support 25 4140285 1 Bar, Right Support 26 443810 1 Nut, 3/8-16 Hex Jam 27 N/S 1 Inner Reel Assembly See 11.1 28 4127335 2 Decal, Danger

4175221 1 Rear Roller, 18”

Used on 63336, 63345, 63337, and 63346

Used on 63340, 63349, 63341, and 63350

Used on 63336, 63345, 63337, and 63346

Used on 63340, 63349, 63341, and 63350

Used on 63336, 63345, 63337, and 63346

Used on 63340, 63349, 63341, and 63350

Used on 63336, 63345, 63337, and 63346

Used on 63340, 63349, 63341, and 63350

> Change from previous revision

Page 78

Optional MagKnife Bedknives

Part Number Description

4131369 22” High Profile

4131004 18” Super Tournament

4131373 18” Tournament

4131371 18” Low Profile

4131001 22” Low Profile 4131370 22” Tournament

4131003 22” Super Tournament

Standard Style Bedknives

(Secured with screws)

Part Number Description

5000098 18” Low Profile

● 5002888 18” Super Tournament 4234901 18” Championship 503478 22” Low Profile 503477 22” High Profile

4234900 22” Championship

● 5002887 22” Super Tournament

● Standard Bedknife

ECLIPSE

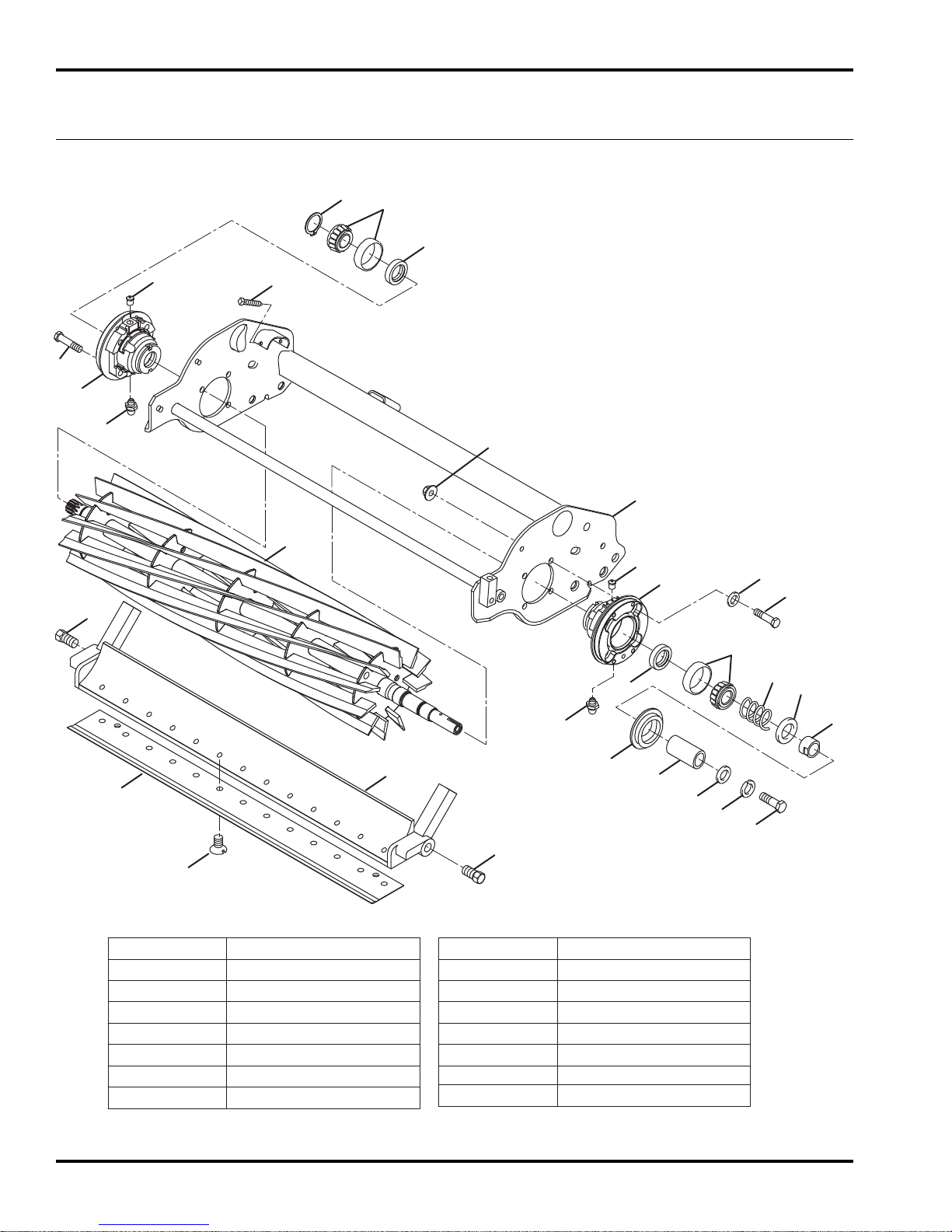

11.1 Inner Reel Assembly

Floating Head Units Only

Serial No. 63336 - All Serial No. 63337 - All Serial No. 63340 - All Serial No. 63341 - All

Serial No. 63345 - All Serial No. 63346 - All Serial No. 63349 - All Serial No. 63350 - All

Page 79

ECLIPSE

Item Part No. Qty. Description Serial Numbers/Notes

1 5002577 1 Frame, 22” Reel

2 400192 8 Screw, 5/16-18 x 1-1/2” Hex Head 3 446142 1 Lockwasher, 3/8 Heavy 4 4225504 1 15 Blade, 18” Left Hand Reel Used on 63337 and 63346 4 4225505 1 15 Blade, 22” Left Hand Reel Used on 63341 and 63350 4 4170220 1 11 Blade, 18” Left Hand Reel Used on 63336 and 63345 4 5001101 1 11 Blade, 22” Left Hand Reel Used on 63340 and 63349 4 5001099 1 9 Blade, 22” Left Hand Reel Optional Reel 4 5003053 1 7 Blade, 22” Left Hand Reel Optioanl Reel 5 1004756 1 Bearing Housing 6 500534 1 • Bearing, Cup and Cone 7 336962 1 • Seal, Grease 8 471214 1 • Grease Fitting

9 471242 1 • Vent Fitting 10 445795 8 Nut, 5/16-18 Spiralock Flange 11 304745 1 Washer 12 458013 1 Snap Ring 13 367164 1 Spacer 14 2811055 1 Backing, 18” Bedknife 14 2000068 1 Backing, 22” Bedknife 15 See Chart 1 Bedknife 16 4252470 AR Screw, 1/4-20 x 1/2” Bedknife Package of 100 Screws 17 315298 2 Wheel Bolt, 7/16 x 3/4” 18 412503 4 Screw, 3/8-16 x 1-1/4” Square Head 19 400294 1 Screw, 3/8-24 x 1” Hex Head 20 453009 4 Flat Washer, 5/16 21 1000480 1 Bearing Housing 22 500534 1 • Bearing, Cup and Cone 23 336962 1 • Seal, Grease 24 471214 1 • Grease Fitting 25 471242 1 • Vent Fitting 26 5002151 1 Spring, Compression 27 364900 1 Nut, Reel 28 453011 1 Flat Washer, 3/8 29 163892 1 Seal

4170204 1 Frame, 18” Reel

Used on 63336, 63345, 63337, and 63346

Used on 63340, 63349, 63341, and 63350

> Change from previous revision

Page 80

ECLIPSE

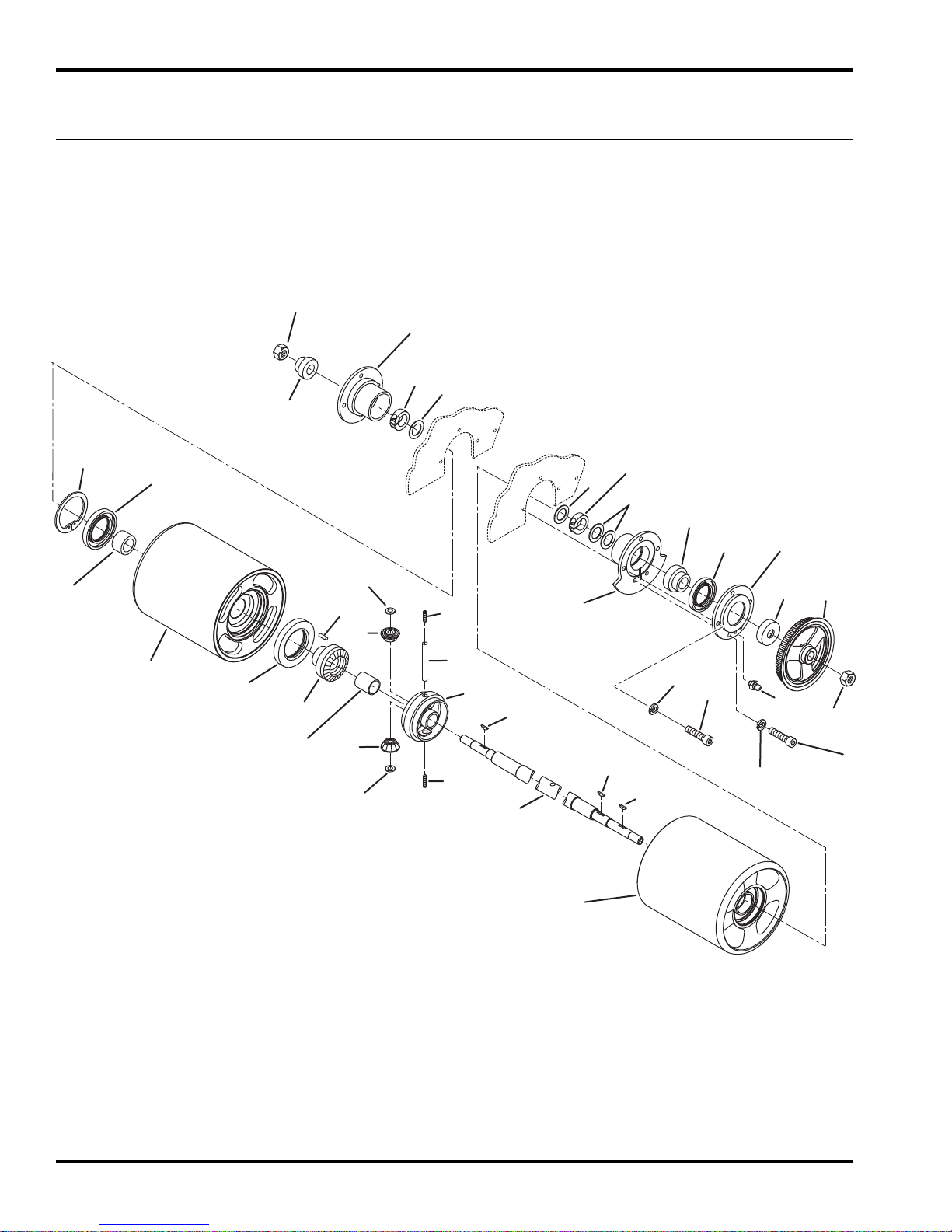

12.1 Differential and Rollers

Serial No. All

Page 81

ECLIPSE

Item Part No. Qty. Description Serial Numbers/Notes

1 1000024 2 18” Smooth Roller

1 132655 2 22” Smooth Roller

1 1000027 2 26” Dimpled Roller

2 366699 1 • Differential Gear Bushing

3 366698 1 • Drum Bushing

4 366701 1 • Grease Seal

5 366700 1 • Grease Seal

6 241836 1 • Differential Gear

7 319085 1 • Pin

8 458127 1 • Snap Ring

9 395419 1 18” Roller Shaft

9 395367 1 22” Roller Shaft

9 395418 1 26” Roller Shaft 10 241835 1 Differential 11 463017 1 Key, #9 Woodruff 12 308030 2 Thrust Washer 13 202947 2 Pinion Gear 14 415563 2 Set Screw, 7/16-20 x 3/8” 15 463007 2 Key, #7 Wooodruff 16 308028 1 Pinion Shaft 17 220318 1 Bearing Housing 18 220319 1 Bearing Housing 19 366693 2 Bearing 20 2810096 1 Nut, 1-14 Nylock Hex 21 241833 1 Seal Cover 22 366702 1 Grease Seal 23 471214 1 Grease Fitting 24 446136 5 Lockwasher,5/16 Heavy 25 366697 2 Spacer 26 366696 1 Spacer 27 3004484 1 Pulley, 56 Tooth 28 366695 2 Locking Collar 29 367029 1 Nut, 3/4-16 Hex Nylock Jam 30 434024 2 Screw, 5/16-18 x 3/4” Socket Head 31 361451 2 Washer 32 434003 3 Screw, 5/16-18 x 1” Socket Head

> Change from previous revision

Page 82

ECLIPSE

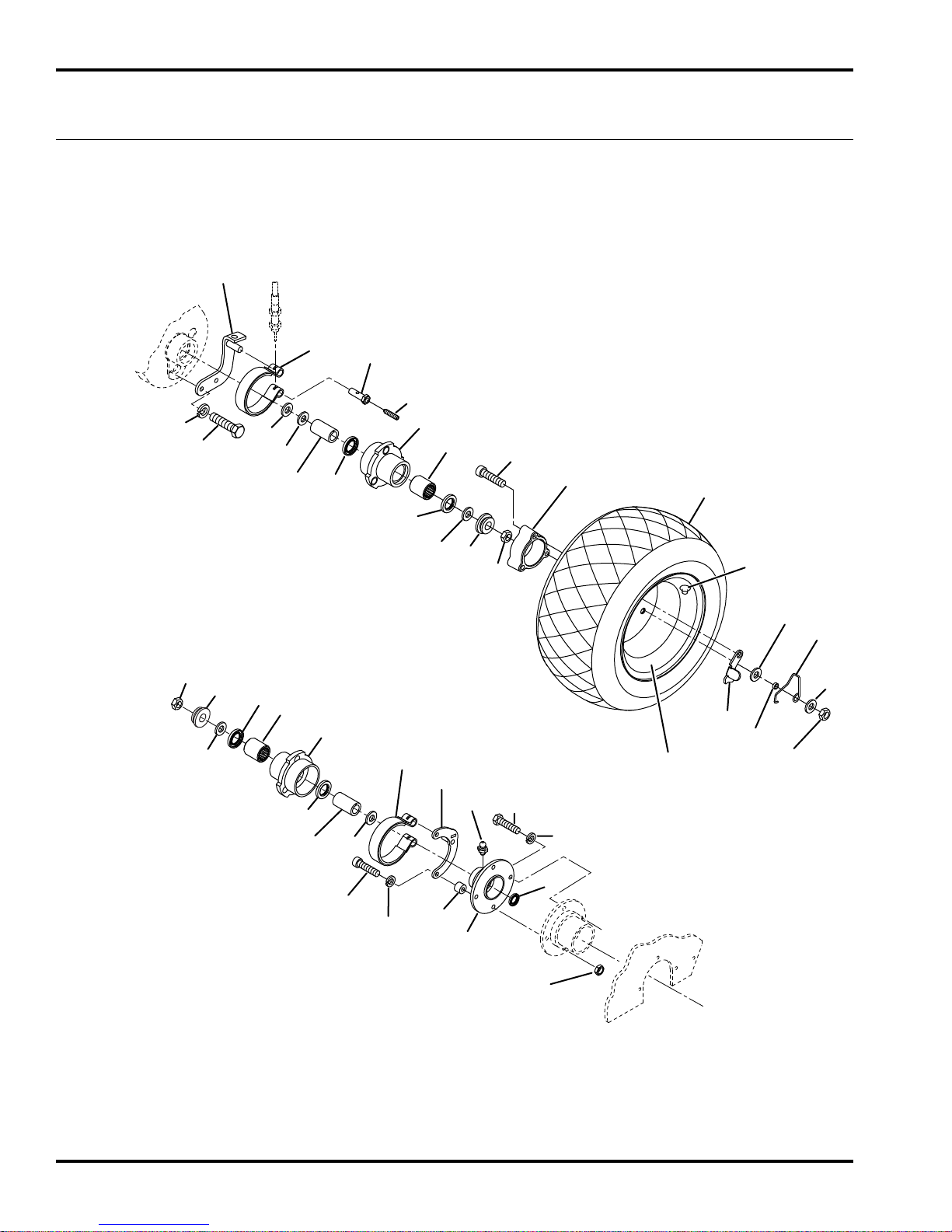

13.1 Parking Brake and Wheels

Serial No. All

Page 83

ECLIPSE

Item Part No. Qty. Description Serial Numbers/Notes

2 338766 1 • Bearing

3 366705 2 • Grease Seal

4 164056 2 Brake Band

5 132663 1 Brake Mounting Bracket

6 132658 1 Seal Housing

7 365753 1 • Grease Seal

8 4128725 1 • Grease Fitting

9 164063 1 Brake Mounting Bracket 10 1000477 1 L.H. Hub 11 338766 1 • Bearing 12 366705 2 • Grease Seal 13 366717 2 Clutch Sleeve 14 445801 2 Nut, 5/8-18 Hex Jam Lock 15 366718 2 Latching Collar 16 366697 4 Bushing 17 446136 4 Lockwasher, 5/16 Heavy 18 400188 2 Screw, 5/16-18 x 1” Hex Head 19 361451 1 Washer Left Side Only 20 415513 2 Set Screw, 1/4-20 x 1/2” 21 366742 2 Brake Band Pin 22 446130 2 Lockwasher, 1/4 Heavy 23 400108 2 Screw, 1/4-20 x 3/4” Hex Head 24 366737 2 Spacer 25 434032 2 Screw, 5/16-18 x 1-3/4” Socket Head 26 443106 1 Nut, 5/16-18 Hex

1000476 1 R.H. Hub

62293 1 Pneumatic Transport Tire Kit Optional Accessory 27 360111 2 • Valve 28 554847 2 • Tire 29 5002905 2 • Wheel, Gray 30 271920 2 • Wheel Spacer 31 434049 6 • Screw, 5/16-18 x 2” Socket Head 32 366719 2 • Latch 33 366716 6 • Spacer 34 366704 2 • Spring 35 452004 12 • Flat Washer, 5/16 36 444718 6 • Locknut, 5/16-18 Center

> Change from previous revision

Page 84

ECLIPSE

14.1 Belts and Drive Motors

Serial No. All

Fixed Head Frame Shown. Floating Head Similar

Page 85

ECLIPSE

Item Part No. Qty. Description Serial Numbers/Notes

1 2 2000148 1 Bracket, Bearing 3 2811070 1 Belt, Polychain, 80 Tooth 4 2811223 1 Pully, 18 Tooth 5 2811107 1 Pully, 112 Tooth 6 3001273 1 Shaft 7 4140154 1 Floating Head Pulley Cover 8 4199640 1 Cover, Belt

9 2811106 1 Belt, 130 Tooth 10 2811108 1 Pulley, 23 Tooth 11 4256571 1 Mount, Motor 12 4261470 1 Motor, Brushless Bi-Directional Reference M2, See 19.1 13 463029 1 Key, Woodruff 14 367554 2 Bearing, Needle 15 446130 2 Lockwasher, 1/4 Heavy 16 444708 3 Locknut, 1/4-20 Center 17 400190 4 Screw, 5/16-18 x 1-1/4” Hex Head 18 452006 3 Flat Washer, 5/16 19 446136 3 Lockwasher, 5/16 Heavy 20 443106 3 Nut, 5/16-18 Hex 21 434011 1 Screw, 14-20 x 5/8” Socket Head 22 400262 2 Screw, 3/8-16 x 1” Hex Head 23 453011 2 Flat Washer, 3/8 24 446142 2 Lockwasher, 3/8 Heavy 25 443110 2 Nut, 3/8-16 Hex 26 434034 2 Screw, 10-24 x 1” Socket Head 27 400106 2 Screw, 1/4-20 x 5/8” Hex Head 28 434031 1 Screw, 1/4-20 x 3/4” Socket Head 29 409807 3 Screw, 1/4-20 x 3/4” Thread Cutting 30 359864 AR Thrust Washer 31 366707 1 Ball Bearing 32 443806 2 Nut, 5/16-24 Hex Jam 33 434029 2 Screw, 1/4-20 x 3/4” Socket Head

446116 2 Lockwasher, #10

> Change from previous revision

Page 86

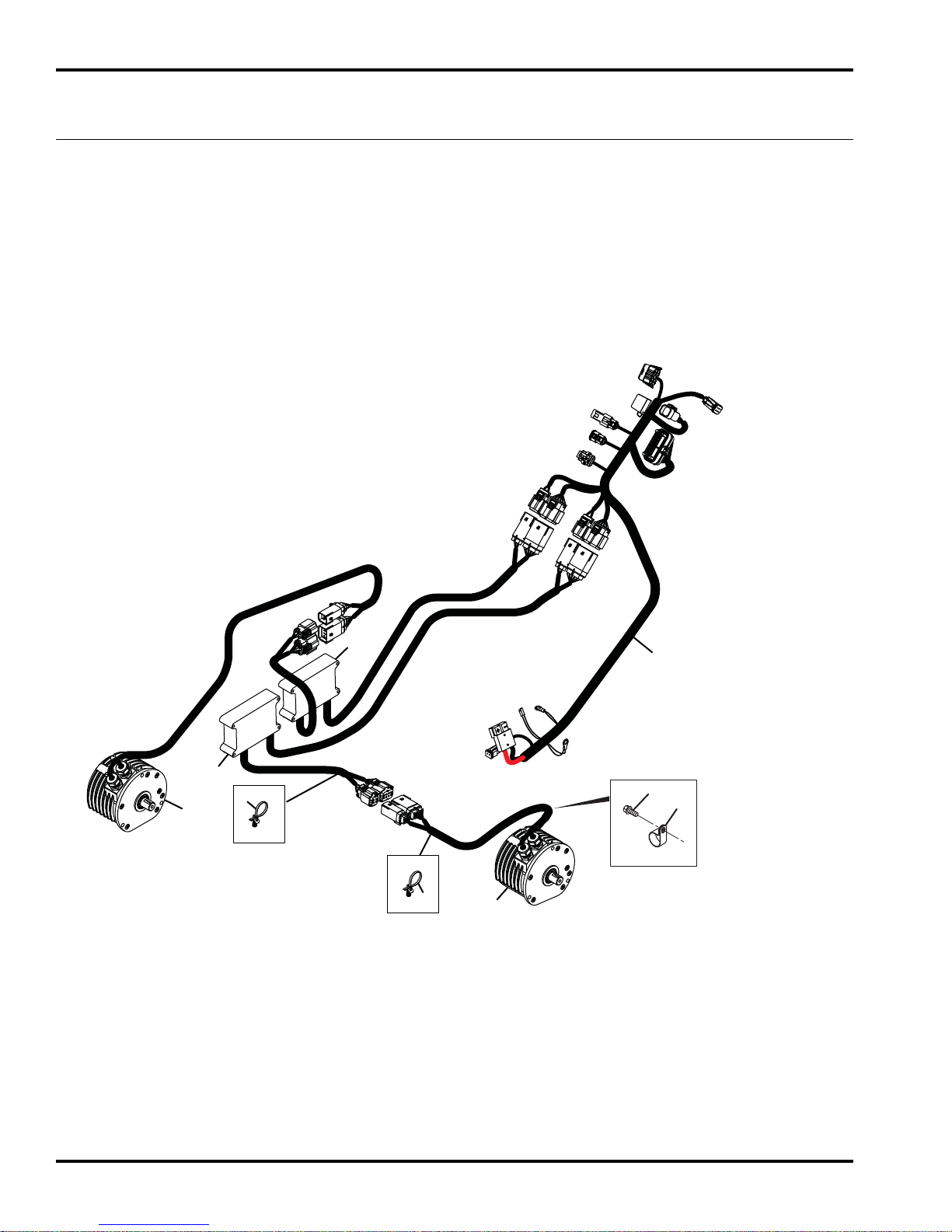

SW1Reel Switch

J14 CAN Diagnostic Connector

R1 Hand Throttle Potentiometer

R2 Rotary Switch

SW2 Ignition

Switch

F230 Amp Fuse

J1 and J2 Controller

Connection

J6 and J7

Reel Motor

Controller

Connection

J10 and J11

Reel Motor Connection

J12 and 13

Tr action Motor

Connection

M1 Reel Motor

M2 Traction Motor

GC1

GC2

J22 and J24

Engine

Shutdown

J23 48V

Power

J15 Light Kit

J8 and J9

Tr action Motor

Controller

Connection

ECLIPSE

15.1 Harness Routing

Serial No. All

Page 87

ECLIPSE

Item Part No. Qty. Description Serial Numbers/Notes

4254330 1 Harness, Main

4262910 1 • 30 Amp Mini Fuse REFERENCE F1, See 19.1 2 4253190 1 Controller, Reel Motor REFERENCE U1, See 19.1, 4.1 3 4261770 1 Motor, Brushless Bi-Directional REFERENCE M1, See 19.1, 6.1, 9.1 4 4253190 1 Controller, Traction Motor REFERENCE U2, See 19.1, 4.1 5 4261770 1 Motor, Brushless Bi-Directional REFERENCE M2, See 19.1, 14.1 6 4245913 2 Clip, Cable Tie 7 354080 1 Clamp, 1” Tube 8 409807 1 Screw, 1/4-20 x 1/2” Thread Cutting 9 473142 12 Cable Tie, 3/16 x 14” Not Shown, harnes to handle.

> Change from previous revision

Page 88

ECLIPSE

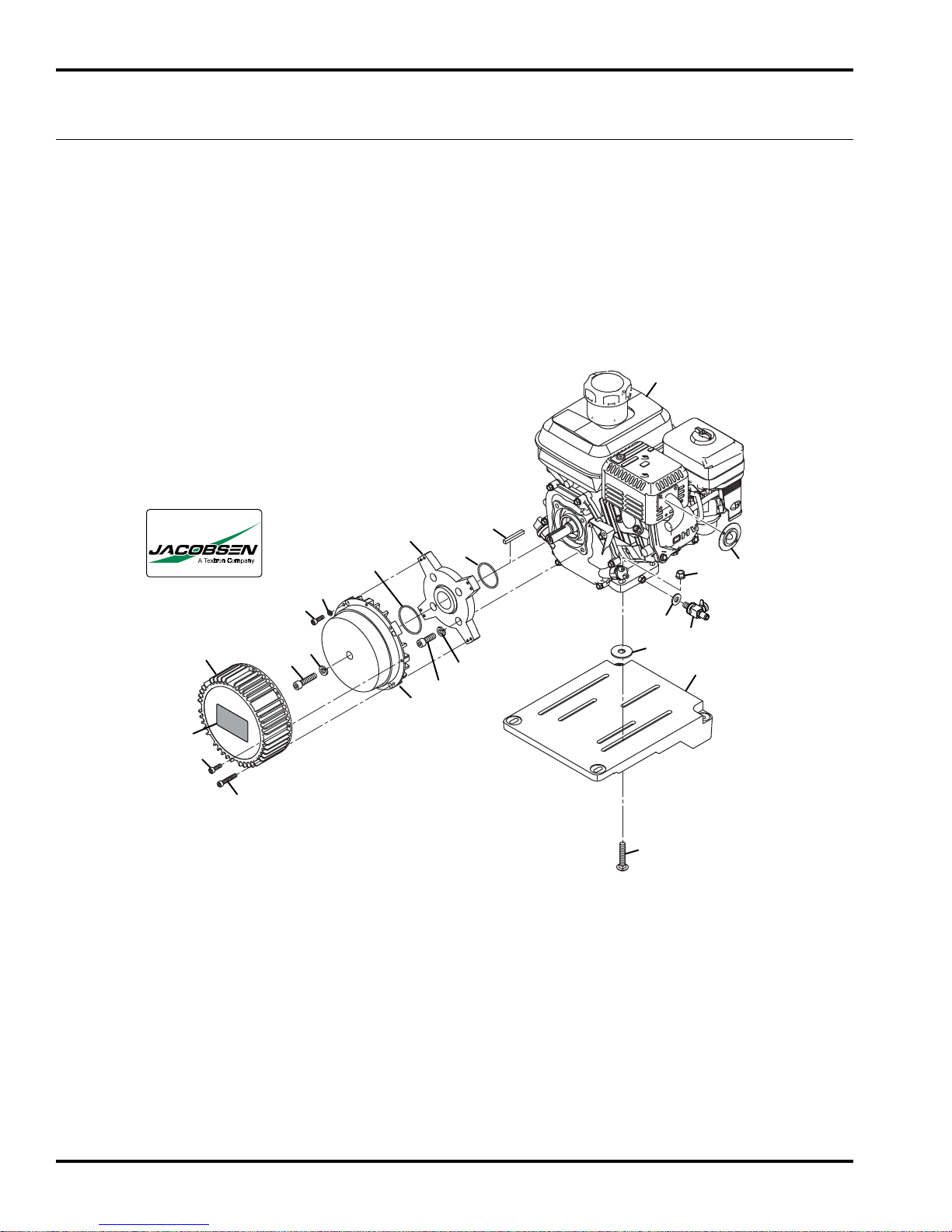

16.1 Genset Power Source

63305

Serial No. 63334 - All Serial No. 63335 - All Serial No. 63336 - All Serial No. 63337 - All

Serial No. 63337 - All Serial No. 63338 - All Serial No. 63339 - All Serial No. 63340 - All

Serial No. 63341 - All

Page 89

ECLIPSE

Item Part No. Qty. Description Serial Numbers/Notes

1 2 320774 1 • Key, 3/16 x1-1/2” Square 3 4170500 1 Trim, Muffler 4 4172080 1 Valve, Oil Drain 5 4187840 1 Gasket, Oil Drain Valve 6 4253595 1 Mount, Power Source 7 441977 4 Carriage Bolt, 5/16-18 x 1-1/2” 8 452010 4 Flat Washer, 3/8 9 548911 4 Nut, 5/16-18 Hex Flange

10 N/S 1 • Generator Adapter Base 11 N/S 1 • O-Ring, 2” O.D. 12 N/S 1 • O-Ring, 2-1/4” O.D. 13 N/S 1 • Generator 14 N/S 1 • Cover, Generator 15 434060 4 Screw, 5/16-24 x 7/8” Hex Socket 16 446136 5 Lockwasher, 5/16 Heavy 17 450697 8 Screw, M5-.8 x 16 mm Hex Socket 18 450409 4 Lockwasher, M5 19 800646 1 Screw, 5/16-24 x 1-1/4” Hex Socket 20 4182386 1 Decal, Jacobsen 21 450700 4 Screw, M5-.5 x 30 mm Hex Socket

4258930 1 Engine, Honda GX-120

4258510 1 Generator, Eclipse II REFERENCE U3, See 19.1

> Change from previous revision

Page 90

ECLIPSE

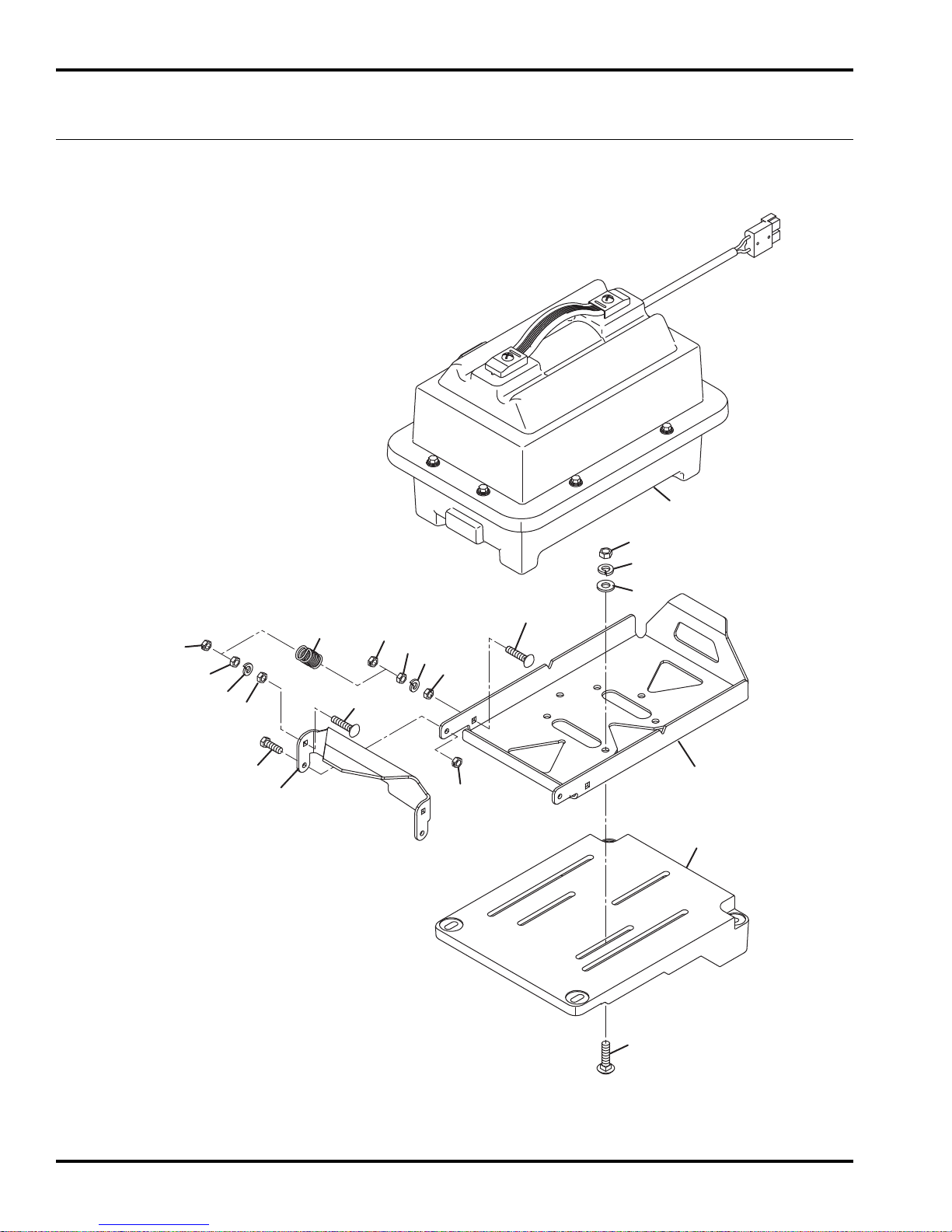

17.1 Battery Power Source

63306

Serial No. 63343 - All Serial No. 63344 - All Serial No. 63345 - All Serial No. 63346 - All

Serial No. 63347 - All Serial No. 63348 - All Serial No. 63349 - All Serial No. 63350 - All

Serial No. 63341 - All

Page 91

ECLIPSE

Item Part No. Qty. Description Serial Numbers/Notes

1 2 444708 6 Locknut, 1/4-20 Center 3 443102 8 Nut, 1/4-20 Hex 4 446130 4 Lockwasher, 1/4 Heavy 5 441604 4 Carriage Bolt, 1/4-20 x 1” 6 400108 2 Screw, 1/4-20 x 3/4 Hex Head 7 443106 3 Nut, 5/16-18 Hex 8 446136 3 Lockwasher, 5/16 Heavy

9 452006 3 Flat Washer, 5/16 10 440082 3 Carriage Bolt, 5/16-18 x 1” 11 4104080 1 Battery Tray 12 2811206 1 Clip 13 4253595 1 Power Module Mount 14 68668 1 Battery Pack See 18.1

2809837 2 Spring, Extension

> Change from previous revision

Page 92

ECLIPSE

18.1 Battery Case

Serial No. All

STOP

4170001

To Battery

Gauge

Battery Post Style Terminal Hardware

See Above

Battery and Battery Monitor Connections

KEY

Page 93

ECLIPSE

Item Part No. Qty. Description Serial Numbers/Notes

68668 1 Battery Case Does Not Include Batteries

2 452004 2 • Flat, Washer 1/4

3 4105800 1 • Fuse, 50A Reference F1, See 19.1

4 447214 1 • Lockwasher, 5/16 Internal

5 443106 1 • Nut, 5/16 Hex

6 2811664 2 • Cable

7 2811662 1 • Main Cable

8 366984 1 • Grommet

9 2811663 2 • Cable, Jumper 10 403741 8 • Screw, #8-32 x 5/8” Hex Head 11 444306 8 • Nut, 8-32 Hex 12 446112 8 • Lockwasher, #8 Heavy 13 4101600 2 • Strap, Battery Case 14 4245270 1 • Gauge, Battery Reference U4, See 19.1 15 2811221 1 • Lid, Battery Case Includes Decals 16 455058 2 • • Flat Washer, 1/4 17 444708 2 • • Locknut, 1/4-20, Center Lock 18 2811220 1 • • Handle, Battery Case 19 404022 2 • • Screw, 1/4-20 x 1” Truss Head 20 4170001 1 • • Decal, Danger 21 453023 8 • Flat Washer, 1/4 22 2809762 1 • Battery Case, Lower Half 23 408851 8 • Screw, 1/4-20 x 3/4” Hex Self Tap 24 444304 2 Nut, #6-32 Hex 25 N/S 4 Battery, 12V Reference B1, B2, B3, B4, See 19.1 26 402006 2 Screw, #6-32 x 1/2” Slotted Round 27 450419 2 Flat Washer, #6

4105660 1 • Screw, 5/16-18 x 1-1/4” Nylon

> Change from previous revision

Page 94

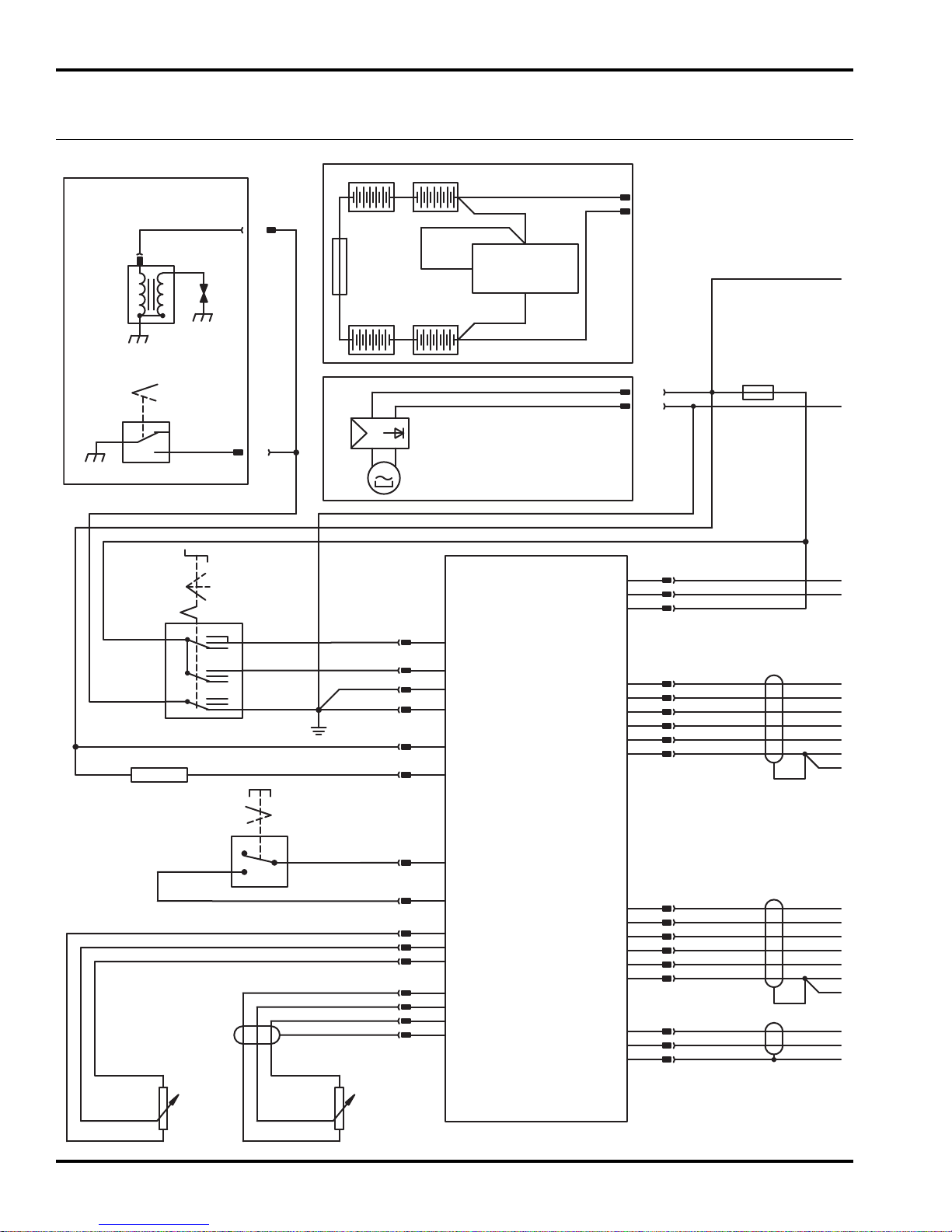

Run

Start

Off

J2-25

J24

J22

J23- –

J23- +

J23- –

J23- +

Key

J2-24

Red

Wht/Red

J2-15

J2-16

J2-29

Wht/Red

Red

SW2 Key Switch

GC1

Yel

Off

SW1 Mow Switch

R3 5Ω Resistor

R2 Bail Potentiometer

R1 Throttle Potentiometer

SW3 Engine On/Off Switch

T1 Ignition Coil

E1 Spark Plug

F1 50A

B1B2

B3B4

30A

U4 Battery Gauge

U3 1kW Generator

U5 MCU Controller

Red/Wht

+15V Output

+48V Input

+48V Reel Motor

+48V Traction Motor

Blk

Brn

Blk

Key-Ignition

RedRed

BlkRed

Key-Start

Mow Enable Input

Throttle Pot +5V

Throttle Pot Wiper

Throttle Pot –

J2-13

Red/Wht

Red/Blu

Red

J1-3

RedJ1-1

Red/Blu

J1-2

J2-14Yel

Off

Blk Blk

Red Red/Yel Red Red/Yel

Reel Motor Speed

Reel Motor Dir

Reel Motor Enable

Reel Motor Gnd

Grn

J2-21

Blu

J2-9

Wht

J2-8

Blk

J2-10

Reel Motor Temp

Red

J2-12

Reel Motor Tach

Brn

J2-17

CAN High

CAN Low

CAN Shield

RedJ2-1

BlkJ2-2

ShldJ2-3

J2-33

Resistor Gnd

Resistor -Ref

J2-35

Resistor +Ref

J2-34

J2-31

J2-32

J2-30

Red/Blu

Grn/Blu

Blk/Blu

Shld

Red/Blu

Grn/Blu

Blk/Blu

Red/Grn

Grn

Blk/Grn

Red/Grn

Grn

Blk/Grn

Bail Pot +5V

Bail Pot Wiper

Bail Pot –

J2-27

Throttle Pot Shieldg

Blk

Red

Grn

J2-5

Blu

J2-20

Wht

J2-19

Blk

J2-4

Red

J2-11

Traction Motor Speed

Traction Motor Dir

Traction Motor Enable

Traction Motor Gnd

Traction Motor Temp

Traction Motor Tach

Brn

Grn

Blu

Wht

Red

Brn

Grn

Blu

Wht

Red

Brn

Red

Blk

Red

Blk

Yel

Blk

J2-6

Engine Control

(Hybrid Genset)

Generator

(Hybrid Genset)

Battery Pack

(Battery)

Yel

Red

Blk

Shld

MCU Gnd

Blk

J2-26

ECLIPSE

19.1 Electrical Schematic

Serial No. All

Page 95

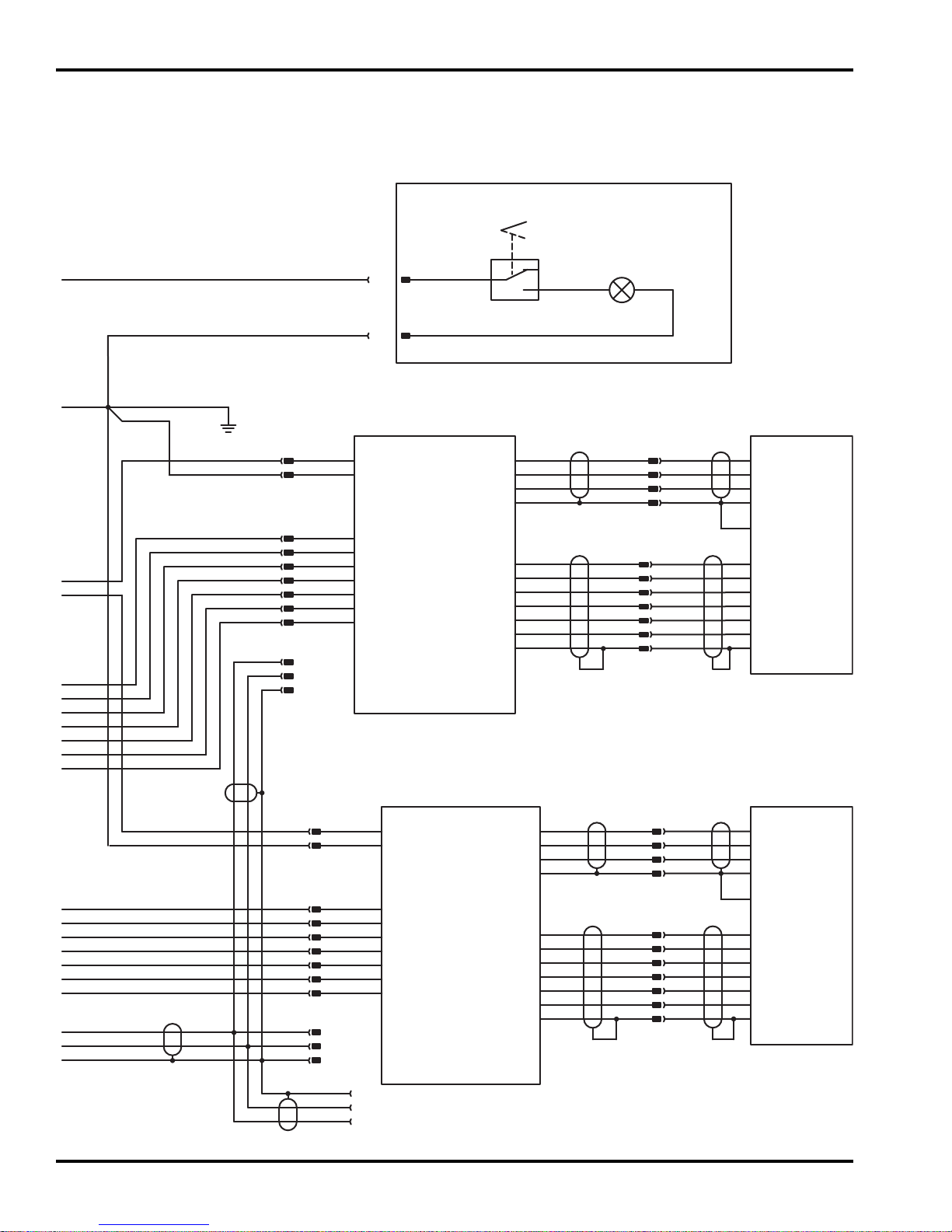

U2 Traction Motor Controller

U1 Reel Motor Controller

M1 Reel Motor

Red

Blk

Shld

SW4 Light Switch

L1 Work Light

Optional

Work Light

Kit

Off

Blk

Grn

Blu

Wht

Red

Brn

Grn

Blu

Wht

Red

Brn

Grn

Blu

Wht

Red

Brn

Grn

Blu

Wht

Red

Brn

Blk

Red

Blk

Yel

Blk

J6-8

J6-9

J6-10

J14-C

J14-B

J14-A

+48V Input

Gnd

Phase A

Phase C

J7-1 J10-1

J10-2

J10-3

J11-3

J11-4

J11-5

J11-6

J11-2

Motor Speed

Motor Dir

Motor Enable

Motor Gnd

Motor Temp

Motor Tach

J11-1

J6-1

J6-2

J6-3

J7-2

J6-4

J6-5

J6-6

J11-7

Org

Yel

Grn

Brn

Blu

Gn/Ye

M2 Traction Motor

Phase A

Phase B

Phase C

J8-8

J8-9

J8-10

+48V Input

Gnd

Phase B

J9-1

J15-1

J15-2

J12-1

J12-2

J12-3

Shield

Phase A

Phase C

Phase B

Shield

J10-4

Blk

Wht

Red

Gn/Ye

Org

Yel

Grn

Brn

Blu

Gn/Ye

Blk

Wht

Red

Gn/Ye

Shield

Motor Case

J12-4

HALL B

HALL C

Signal Gnd

Temp

J13-3

J13-4

J13-5

J13-6

HALL A

J13-2

+5V Output

Motor Speed

Motor Dir

Motor Enable

Motor Gnd

Motor Temp

Motor Tach

J13-1

CAN

Diagnostic

Connector

J8-1

J8-2

J8-3

J9-2

J8-4

J8-5

J8-6

Shield

HALL B

HALL C

Signal Gnd

Temp

HALL A

+5V Output

Shield

HALL B

HALL C

Signal Gnd

Temp

HALL A

+5V Sensor Support

Shield

HALL B

HALL C

Signal Gnd

Temp

HALL A

+5V Sensor Supply

Shield

J13-7

Blk

Motor Speed -

J8-7

Yel

Grn

Blu

Vio

Red

Brn

Blk

Red

Blk

Wht

Gry

Yel

Red

Blk

Blu BlkBlu

Red

Blk

Red

Blk

Wht

Blk

Shld

Blk

Red

Blk

Shld

Blk

Yel

J6-7

Motor Speed -

Yel

Grn

Blu

Vio

Red

Brn

Blk

Yel

Org

Yel

Grn

Brn

Blu

Gn/Ye

Org

Yel

Grn

Brn

Blu

Gn/Ye

Wht

Red

Blk

Wht

Red

Gn/Ye Gn/Ye

Blk

Phase A

Phase B

Phase C

Shield

Motor Case

ECLIPSE

Page 96

ECLIPSE

Item

M1 See 6.1 or 9.1 4261470 Reel Motor M2 See 14.1 4261470 Traction Motor

SW1 See 1.1 4165020 Key Switch SW2 See 1.1 4130132 Reel Switch SW3 Not Shown N/S Engine Shut Down Switch Included with Engine SW4 Not Shown 4208861 Light Switch

Reference

Illustration

B1 See 18.1 N/S 12 Volt SLA Battery B2 See 18.1 N/S 12 Volt SLA Battery B3 See 18.1 N/S 12 Volt SLA Battery B4 See 18.1 N/S 12 Volt SLA Battery E1 Not Shown N/S Spark Plug Included with Engine

F1 See 18.1 4105800 50 Amp Fuse (Battery) Battery Power Module Only F2 Not Shown 4262910 30 Amp Fuse (Main) Included with Harness L1 Not Shown 4187221 48V Work Light Part of optional light kit 63320

R1 See 2.1 4260432 Hand Throttle Potentiometer R2 See 2.1 4145428 Bail Lever Potentiometer R3 See 4.1 4260610 Resistor, 5Ω Ceramic

T1 Not Shown N/S Ignition Coil Included with Engine U1 See 4.1 4253190 Reel Motor Controller U2 See 4.1 4253190 Traction Motor Controller U3 See 16.1 4258510 Generator, 1kW Gen-Set Power Module Only U4 See 18.1 4245270 Battery Gauge Battery Power Module Only U5 See 1.1 4253551 MCU Controller

Part

Number

Description Serial Numbers/Notes

Obtain batteries localy or through your Jacobsen Dealer Battery Power Module Only

Page 97

Fluids and Compounds

Hydraulic Fluid*

5001405 Two 2-1/2 Gallon Container of ISO VG68 Oil 5001404 One 5 Gallon Pail of ISO VG68 Oil 2500548 Two 2-1/2 Gallon Container of 10W30 Oil 2500546 One 5 Gallon Pail of 10W30 Oil

503409 Two 2-1/2 Gallon Container of ATF Fluid 503407 One 5 Gallon Pail of ATF Fluid

2-Cycle Oil

554599 Twenty Four 8 Ounce Plastic Container

Grease

5000067 One 5 Gallon Pail OO-Grease

5000068 Twenty Four 8 Ounce Tube OO-Grease

Paint

4184140 12 Ounce Orange Aerosol Can 2500789 Twelve 1 Quart Can Orange

546409 Two 1 Gallon Can Orange

5002631 Hunter Green Aerolol Can

838140 16 Ounce Ransomes Green Aerosol Can

4112764 1 Quart Can Ransomes Green

Lapping Compound

5002488 One 10 Pound Pail of 80 Grit 5002490 One 25 Pound Pail of 80 Grit 5002489 One 10 Pound Pail of 120 Grit 5002491 One 25 Pound Pail of 120 Grit

Specialty Compound

365422 5.3 Ounce Tube of Electrical Insulating Gel

5001581 14 Ounce Can of Lubriplate Multi Lube A

523248 Chain Lubricant

4136736 Zinc Spray Corrosion Protection

Biodegradable Hydraulic Fluid*

5003102 One 55 Gallon Drum Jacobsen GreensCare 68 5003103 One 5 Gallon Pail Jacobsen GreensCare 68 5003105 One 55 Gallon Drum Jacobsen GreensCare 46 5003104 One 5 Gallon Pail Jacobsen GreensCare 46 4115976 One 55 Gallon Drum Jacobsen GreensCare 32 4115977 One 5 Gallon Pail Jacobsen Greens Care 32 4114701 GreensCare Bio-Flush 5003106 Twenty Four 14 Ounce Tube Greens Care Grease

O-Ring Kit

5002452 SAE O-Ring Boss (3/32 ~ 2” Tube O.D.) 5002453 Common O-Ring Kit 5002454 O-Ring Face Seal ORFS (-4 ~ -24 ORS Tube Size)

Right Start Kit for New Machines

See your local Jacobsen Dealer

On-Time Maintenance Kit

See your local Jacobsen Dealer

* Refer to the Operator’s manual or the Parts & Maintenance Manual for the correct hydraulic oil requirements for your machine. Jacobsen offers a High Usage Parts Catalog illustrating commonly used Parts through easy to read line Drawings. See your local

Jacobsen Dealer for a copy.

Page 98

INDEX

1000024.......................81

1000027.......................81

1000476.......................83

1000477.......................83

1000480.......................79

1002224.......................77

1004756.......................79

1004990.................75

132655.........................81

132658.........................83

132663.........................83

163892.........................79

164056.........................83

164063.........................83

2000067.......................59

2000068.......................79

2000072.......................73

2000075.......................71

2000076.......................71

2000148.......................85

202947.........................81

220318.........................81

220319.........................81

241833.........................81

241835.........................81

241836.........................81

241927.........................73

241928.........................73

271920.........................83

2809762.......................93

2809837.......................91

2809900.......................63

2809901.......................63

2810096.......................81

2811027.......................77

2811055.......................79

2811070.......................85

2811106.......................85

2811107.......................85

2811108.......................85

2811206.......................91

2811220.......................93

2811221.......................93

2811223.......................85

2811559.......................63

2812384.................69

3001273.......................85

3001610.......................69

3004484.......................81

3005692.................73

3008438.......................77

3008439.......................77

3008974.......................73

3010286.................75

3010422.................75

3010712.................75

, 77

, 75

, 77

, 77 , 77 , 77

304745.................. 71

306998.........................65

308028.........................81

308030.........................81

315298.........................79

319085.........................81

320774.........................89

332844.........................67

336962.........................79

338766.........................83

343616.................. 73

344132.........................65

352726.........................75

352737.................. 73

354080.........................87

359864.........................85

360111.........................83

360893.........................75

361139.........................65

361451.................. 81

364154.........................61

364164.........................65

364441.........................73

364900.................. 71

365246.........................77

365501.........................71

365753.........................83

366317.........................75

366648.........................69

366650.........................71

366653.........................69

366693.........................81

366695.........................81

366696.........................81

366697.................. 81

366698.........................81

366699.........................81

366700.........................81

366701.........................81

366702.........................81

366704.........................83

366705.........................83

366707.........................85

366708.........................59

366709.........................69

366715.........................65

366716.........................83

366717.........................83

366718.........................83

366719.........................83

366726.........................69

366727.........................69

366737.........................83

366742.........................83

366984.........................93

367029.................. 69

, 79

, 77

, 83

, 79

, 83

, 81

367164 .................. 69

367512 ........................ 69

367554 ........................ 85

395367 ........................ 81

395418 ........................ 81

395419 ........................ 81

400058 ........................ 65

400106 ........................ 85

400108 ......69

400112 ........................ 73

400118 ........................ 77

400184 ........................ 77

400186 ........................ 65

400188 ........................ 83

400190 .................. 65

400192 .................. 67

400196 ........................ 65

400198 ........................ 65

400200 ........................ 67

400204 ........................ 65

400258 ........................ 69

400262 ........................ 85

400264 .................. 69

400268 .................. 59

400274 ........................ 63

400286 ........................ 63

400294 .................. 69

400404 ........................ 65

400410 ........................ 65

402006 ........................ 93

402022 ........................ 61

402056 ........................ 59

403741 ........................ 93

403782 ........................ 77

404016 ........................ 65

404022 ........................ 93

408851 ........................ 93

409807 ......59

4101600 ...................... 93

4104080 ...................... 91

4104720 ................ 69

4105281 ...................... 71

4105660 ...................... 93

4105800 ................ 93

4117466 ...................... 67

412503 ........................ 79

4127335 ................ 73

4127340 ...................... 59

4127931 ...................... 67

4128725 ................ 71

4128933 ...................... 61

4130132 ................ 59

4131001 ................ 71

4131003 ................ 71

4131004 ...................... 79

4131005 ...................... 71

, 75, 83, 91

, 65, 85, 87

, 79

, 85 , 79

, 75 , 65

, 79

, 75

, 96

, 77

, 83

, 96 , 79 , 79

4131369 ................71

4131370 ................71

4131371 ...................... 79

4131373 ...................... 79

4131618 ...................... 59

4136325 ...................... 61

4136328 ...................... 61

4136366 ...................... 61

4136994 ...................... 75

4137303 ...................... 61

4137577 ...................... 75

4138778 ...................... 75

4139660 ...................... 73

4139661 ...................... 73

4139662 ...................... 73

4140151 ...................... 75

4140152 ...................... 75

4140154 ...................... 85

4140163 ...................... 77

4140164 ...................... 77

4140166 ...................... 75

4140284 ...................... 77

4140285 ...................... 77

4145428 ................61

4147696 ...................... 61

415513 ........................ 83

415563 ........................ 81

4156781 ...................... 61

4156930 ...................... 75

4165020 ................59

4167541 ...................... 69

4168727 ...................... 75

4169040 ...................... 75

4169640 ...................... 67

4170001 ...................... 93

4170202 ...................... 71

4170203 ...................... 71

4170204 ...................... 79

4170220 ...................... 79

4170500 ...................... 89

4171380 ...................... 77

4172080 ...................... 89

417242 ........................ 75

4172945 ...................... 71

4174640 ...................... 77

4175220 ................75

4175221 ................75

4175240 ...................... 77

4179720 ...................... 71

4179780 ...................... 69

4182386 ...................... 89

4187221 ...................... 96

4187840 ...................... 89

4193060 ...................... 65

4196280 ...................... 61

4199640 ...................... 85

, 79 , 79

, 96

, 77 , 77

Page 99

INDEX

4203300...................... 75

4208861...................... 96

4223946...................... 71

422504........................ 61

4225502...................... 71

4225504...................... 79

4225505...................... 79

4234900...................... 79

4234901................ 71

4239563...................... 75

4245270................ 93

4245913...................... 87

4247754...................... 67

4247755...................... 65

4252470................ 71

4253154...................... 67

4253155...................... 67

4253156...................... 67

4253157...................... 67

4253190.......... 65

4253310...................... 59

4253330...................... 59

4253551................ 59

4253595.......... 65

4254050...................... 59

4254330...................... 87

4255550...................... 65

4255551...................... 65

4255870...................... 67

4256571...................... 85

4256578...................... 61

4256692...................... 61

4257453...................... 67

4257455...................... 65

4257467...................... 65

4257470...................... 67

4257770...................... 65

4257813...................... 63

4257814...................... 63

4258190...................... 67

4258510................ 89

4258590...................... 65

4258790...................... 59

4258791...................... 59

4258830...................... 59

4258930...................... 89

4259130...................... 65

4260432................ 61

4260610...................... 96

4260810...................... 59

4261071...................... 75

4261470....69

4264210...................... 65

4265170...................... 59

4265171...................... 59

4265172...................... 59

, 75, 85, 96

, 79

, 96

, 79

, 87, 96

, 96

, 89, 91

, 96

4265710 ...................... 65

4273518 ...................... 67

4324900 ...................... 71

434003 ........................ 81

434011 ........................ 85

434024 .................. 75

434028 ........................ 69

434029 ............ 61

434030 .................. 67

434031 .................. 61

434032 ........................ 83

434034 ........................ 85

434036 ........................ 69

434049 .................. 69

434054 ........................ 61

434060 ........................ 89

440082 ........................ 91

441604 ........................ 91

441672 ........................ 67

441674 .................. 73

441677 ........................ 73

441688 ........................ 67

441977 ........................ 89

443102 61 443106 73

443110 ......59

443112 ........................ 75

443118 ........................ 65

443806 ........................ 85

443810 .................. 65

443828 ........................ 63

444304 ........................ 93

444306 ........................ 93

444708 ............ 85

444718 ......61

444758 ........................ 65

444762 ........................ 75

445245 ........................ 65

445770 ........................ 59

445785 ........................ 75

445795 .................. 77

445801 ........................ 83

445802 ........................ 67

445808 ........................ 63

446106 ........................ 61

446112 ........................ 93

446116 ........................ 85

446128 ........................ 75

44613061

44613665

44614259

447214 ........................ 93

447224 ........................ 63

, 73, 75, 77, 91 , 83, 85, 91, 93

, 69, 75, 85

, 65, 73, 83

, 69, 73, 77, 83,

................. 85, 91

, 69, 73, 81, 83,

........... 85, 89, 91

, 63, 65, 69, 75,

................. 79, 85

, 81

, 75, 85

, 75 , 85

, 83

, 77

, 91, 93

, 79

450409 ........................ 89

450419 ........................ 93

450697 ........................ 89

450700 ........................ 89

452004 ............59

452006 ............65

452010 ........................ 89

453005 ........................ 61

453009 ............65

453011 63

453017 ........................ 59

453023 61

454017 ........................ 71

454020 ........................ 61

454025 ........................ 59

455012 ........................ 63

455058 ........................ 93

456006 ........................ 63

458001 ........................ 61

458013 ..................71

458127 ........................ 81

460312 ........................ 75

461181 ........................ 59

461381 ........................ 59

463007 ........................ 81

463017 ........................ 81

463029 ............69

471214 ......69

471221 ........................ 75

471242 ..................69

473142 ........................ 87

5000098 ................71

5000102 ...................... 71

5000141 ...................... 71

5001099 ...................... 79

5001101 ...................... 79

5002151 ................71

5002577 ...................... 79

5002887 ................71

5002888 ................71

5002905 ...................... 83

5003053 ...................... 79

500534 ..................71

503477 ..................71

503478 ..................71

545940 ........................ 71

548911 ..................67

554847 ........................ 83

557775 ........................ 69

62293 .......................... 83

64163-04 ..................... 67

68668 ....................91

800271 ........................ 65

800646 ........................ 89

800710 ........................ 67

845279 ........................ 75

, 69, 75, 79, 85

, 73, 75, 77, 93

, 83, 93 , 85, 91

, 67, 79

, 79

, 75, 85

, 75, 79, 81

, 79

, 79 , 79

, 79 , 79 , 79

, 89

, 93

Page 100

Jacobsen, A Textron Company 11108 Quality Drive, Charlotte, NC 28273 www.Jacobsen.com 800-848-1636

When Performance Matters.

™

Equipment from Jacobsen is built to exacting

standards ensured by ISO 9001 and ISO 14001

registration at all of our manufacturing locations.

A worldwide dealer network and factory trained

technicians backed by Genuine Jacobsen Parts provide reliable, high-quality product support.
