Jacobsen 63300, 63313, 63301, 63314, 63302 Technical Manual

...

Technical Manual Technická príručka

When Performance Matters.

™

VÝSTRAHA

Nesprávnym používaním stroja, môže príst’ k vážnemu zraneniu. Osoby, ktoré používajú stroj alebo vykonávajú jeho údržbu, musia byt’ pred nastavovaním, prevádzkovaním alebo údržbou stroja vyškolené v správnom používaní stroja, upozornené na jeho nebezpečenstvá a musia si prečítat’ celú príručku.

WARNING

If incorrectly used, this machine can cause severe injury. Those who use and maintain this machine should be trained in its proper use, warned of its dangers and should read the entire manual before attempting to set up, operate, adjust or service the machine

Slovak

Eclipse

InCommand

™

63300 – Eclipse 118, 18” 11 Blade Reel, Gen-Set 63313 – Eclipse 118, 18” 11 Blade Reel, Battery Pack 63301 – Eclipse 118F, Floating 18” 11 Blade Reel, Gen-Set 63314 – Eclipse 118F, Floating 18” 11 Blade Reel, Battery Pack 63302 – Eclipse 122, 22” 11 Blade Reel, Gen-Set 63311 – Eclipse 122, 22” 11 Blade Reel, Battery Pack 63303 – Eclipse 122F, Floating 22” 11 Blade Reel, Gen-Set 63312 – Eclipse 122F, Floating 22” 11 Blade Reel, Battery Pack 63304 – Eclipse 126, 26” 7 Blade Reel, Gen-Set 63315 – Eclipse 126, 26” 7 Blade Reel, Battery Pack

63300 – Eclipse 118, 457 mm 11-lopatková sekacia hlava, benzínový agregát 63313 – Eclipse 118, 457 mm 11-lopatková sekacia hlava, batériový modul 63301 – Eclipse 118F, plávajúca 457 mm 11-lopatková sekacia hlava, benzínový agregát 63314 – Eclipse 118F, plávajúca 457 mm 11-lopatková sekacia hlava, batériový modul 63302 – Eclipse 122, 559 mm 11-lopatková sekacia hlava, benzínový agregát 63311 – Eclipse 122, 559 mm 11-lopatková sekacia hlava, batériový modul 63303 – Eclipse 122F, plávajúca 559 mm 11-lopatková sekacia hlava, benzínový agregát 63312 – Eclipse 122F, plávajúca 559 mm 11-lopatková sekacia hlava, batériový modul 63304 – Eclipse 126, 660 mm 7-lopatková sekacia hlava, benzínový agregát 63315 – Eclipse 126, 660 mm 7-lopatková sekacia hlava, batériový modul

4170162-SK-Rev

right to reproduce this material or portions thereof in any form.”

This manual contains safety, operating, adjustment, maintenance, troubleshooting instructions and parts list for your new Jacobsen machine. This manual should be stored with the equipment for reference during operation.

Before you operate your machine, you and each operator you employ should read the manual carefully in its entirety. By following the safety, operating and maintenance instructions, you will prolong the life of your equipment and maintain its maximum efficiency.

If additional information is needed, contact your Jacobsen Dealer.

The serial plate is located on the rear crossbar of the frame. Jacobsen recommends you record these numbers below for easy reference.

CHARLOTTE, NC

YEAR OF PRODUCTION:

MADE IN U.S.A.

A Textron Company

Proposition 65 Warning

This product contains or emits chemicals known to State of California to cause cancer and birth defects or other reproductive harm.

FOREWORD

Suggested Stocking Guide

To Keep your Equipment fully operational and productive, Jacobsen suggests you maintain a stock of the more commonly used maintenance items. We have included part numbers for additional support materials and training aids.

To order any of the following material:

1. Write your full name and complete address on your order form.

2. Explain where and how to make shipment:

q UPS q Regular Mail

q Overnight q 2nd Day

3. Order by the quantity desired, the part number, and the description of the part.

4. Send or bring the order to your authorized Jacobsen Dealer.

LITHO IN U.S.A. 11-2007

Service Parts

Service Support Material

Qty. Part No. Description Qty. Part No. Description

4102780 50 Amp Fuse 2811106 Motor to Pulley Belt 4169341 25 Amp CIrcuit Breaker 2811070 Pulley to Traction Drum Belt 4131618 Ignition Key

Qty. Part No. Description

4170162 Technical Manual 4166960 Operator Training Video

Qty. Description

Service Manual

> Change from previous revision

Table of Contents

1SAFETY

1.1 Operating Safety .............................................. 4

1.2 Important Safety Notes ..................................... 5

2 SPECIFICATIONS

2.1 Product Identification ........................................ 6

2.2 Mower ............................................................... 6

2.3 Traction and Differential ................................... 7

2.4 Weights ............................................................ 7

2.5 Battery Power Module ...................................... 7

2.6 Gas Engine Power Module ............................... 8

2.7 Accessories & Support Literature ..................... 8

3DECALS

3.1 Decals .............................................................. 9

4 CONTROLS

4.1 Icons............................................................... 12

4.2 Handle Controls .............................................. 12

4.3 LCD Display ................................................... 13

4.4 Frequency of Cut ............................................ 16

4.5 Gas Power Module Controls .......................... 19

4.6 Battery Power Module Controls ...................... 19

5 OPERATION

5.1 Daily Inspection .............................................. 20

5.2 Interlock System (O.P.C.) ............................... 20

5.3 Operating Procedures .................................... 21

5.4 Starting/Stopping ............................................ 22

5.5 Mowing ........................................................... 23

5.6 Transport Wheels (Optional) .......................... 24

5.7 Grass Catcher ................................................ 24

5.8 Daily Maintenance .......................................... 25

6 ADJUSTMENTS (ALL UNITS)

6.1 General........................................................... 26

6.2 Brake .............................................................. 26

6.3 Handle ............................................................ 26

6.4 Traction Belts ................................................. 27

6.5 Front Roller Weight ........................................ 28

6.6 Torque Specification ....................................... 29

7 FIXED HEAD REEL ADJUSTMENTS

7.1 General........................................................... 30

7.2 Reel To Bedknife ............................................ 30

7.3 Bedknife Adjustment ..................................... 31

7.4 Cutting Height ................................................. 31

8 FLOATING HEAD REEL ADJUSTMENTS

8.1 General .......................................................... 32

8.2 Bedknife-To-Reel ........................................... 32

8.3 Bedknife Adjustment ...................................... 33

8.4 Cutting Height ................................................ 34

8.5 Reel Bearing .................................................. 34

8.6 Reel Assembly Removal ................................ 34

9 BATTERY POWER MODULE

9.1 Safety ............................................................. 35

9.2 General .......................................................... 35

9.3 Maintenance ................................................... 36

9.4 Cleaning Batteries .......................................... 36

9.5 Battery Charger .............................................. 37

9.6 Battery Installation .......................................... 38

9.7 Replacing Battery Pack .................................. 39

10 GAS ENGINE POWER MODULE

10.1 Engine ............................................................ 40

10.2 Engine Oil ....................................................... 40

10.3 Engine Speed ................................................. 41

10.4 Fuel ................................................................ 41

11 MAINTENANCE

11.1 General .......................................................... 42

11.2 Tires (Option) ................................................. 42

11.3 Wheel Bearing ................................................ 42

11.4 Backlapping and Grinding .............................. 43

11.5 Storage ........................................................... 44

12 TROUBLESHOOTING

12.1 General .......................................................... 45

13 MAINTENANCE & LUBRICATION CHARTS

13.1 General .......................................................... 46

13.2 Maintenance Chart ......................................... 46

13.3 Lubrication Chart............................................ 47

14 NOTES

15 PARTS CATALOG

15.1 How To Use The Parts Catalog ..................... 49

15.2 To Order Parts ............................................... 49

1 SAFETY

1.1 OPERATING SAFETY ______________________________________________________

1. Safety is dependent upon the awareness, concern and prudence of those who operate or service the equipment. Never allow minors to operate any equipment.

2. It is your responsibility to read this manual and all publications associated with this equipment (Engine Manual, Battery Charger Manual, accessories and attachments). If the operator can not read English it is the owner’s responsibility to explain the material contained in this manual to them.

3. Learn the proper use of the machine, the location and purpose of all the controls before you operate the equipment. Working with unfamiliar equipment can lead to accidents.

4. Never allow anyone to operate or service the machine or its attachments without proper training and instructions; or while under the influence of alcohol or drugs.

5. Wear all the necessary protective clothing and personal safety devices to protect your head, eyes, ears hands and feet. Long hair, loose clothing or jewelry may get tangled in moving parts. Operate the machine only in daylight or in good artificial light.

6. Evaluate the terrain to determine what accessories and attachments are needed to properly and safely perform the job. Only use accessories and attachments approved by Jacobsen.

7. Stay alert for holes in the terrain and other hidden hazards.

8. Inspect the area where the equipment will be used. Pick up all the debris you can find before operating. Beware of overhead obstructions (low tree limbs, electrical wires, etc.) and also underground obstacles (sprinklers, pipes, tree roots, etc.) Enter a new area cautiously. Stay alert for hidden hazards.

9. Do not carry passengers. Keep bystanders and pets a safe distance away.

10. Never direct discharge of material toward bystanders, nor allow anyone near the machine while in operation. The owner/operator can prevent and is responsible for injuries inflicted to themselves, to bystanders and damage to property.

11. Never operate equipment that is not in perfect working order or is without decals, guards, shields, discharge deflectors or other protective devices securely fastened in place.

12. Never disconnect or bypass any switch.

13. Keep the unit clean. Disconnect the power connector before storing. Do not store unit near an open flame or flammable debris.

14. Place unit on a flat surface, disengage all drives and engage parking brake before energizing the unit.

15. Local regulations may restrict the age of the operator.

16. Operate the machine across the face of the slope (horizontally), not up and down the slope (vertically). Never operate on wet grass.

17. Always operate at speeds that allow you to have complete control of the machine. Be sure of your footing; keep a firm hold on the handle and walk; never run.

Gen-Set Power Module

18. Carbon monoxide in the exhaust fumes can be fatal when inhaled. Never operate the engine without proper ventilation.

19. Fuel is highly flammable, handle with care. See Section 5.8

20. Before you clean, adjust or repair this equipment, stop the engine, disconnect the spark plug wire, and keep the wire away from the plug to prevent accidental starting. Disconnect the power connector.

21. Keep the engine clean. Allow the engine to cool and always close fuel shut off valve and remove the spark plug wire from the spark plug before storing. Do not store unit near an open flame or flammable debris.

Battery Power Module

22. Before you clean, adjust or repair this equipment, disconnect the power connector.

23. Do not remove battery pack without unit on kickstand.

WARNING

EQUIPMENT OPERATED IMPROPERLY OR BY UNTRAINED PERSONNEL CAN BE DANGEROUS.

Familiarize yourself with the location and proper use of all controls. Inexperienced operator’s should receive

instruction from someone familiar with the equipment before being allowed to operate the machine.

SAFETY 1

This machine is to be operated and maintained as specified in this manual and is intended for the professional maintenance of specialized turf grasses. It is not intended for use on rough terrain or long grasses.

1.2 IMPORTANT SAFETY NOTES ________________________________________________

This safety alert symbol is used to alert you to potential hazards.

DANGER

- Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

WARNING

- Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious

injury.

CAUTION

- Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury

and property damage. It may also be used to alert against unsafe practices.

NOTICE

- Indicates a potentially hazardous situation which, if not avoided, MAY result in property damage. It may

also be used to alert against unsafe practices.

For pictorial clarity, some illustrations in this manual may show shields, guards or plates open or removed. Under no circumstances should this equipment be operated without these devices securely fastened in place.

By following all instructions in this manual, you will prolong the life of your machine and maintain its maximum efficiency. Adjustments and maintenance should always be performed by a qualified technician.

If additional information or service is needed, contact your Authorized Jacobsen Dealer who is kept informed of the latest methods to service this equipment and can provide prompt and efficient service. Use of other than original or

authorized Jacobsen parts and Accessories will void the warranty.

WARNING

The Interlock System on this machine will shut off the reel and traction drive if the operator releases the O.P.C. (Operator Presence Control) bail.

To protect the operator and others from injury, never operate equipment with the Interlock System disconnected or malfunctioning.

WARNING

1. Before leaving the operator’s position for any reason:

a. Disengage all drives. b. Engage parking brake. c. Disconnect power connector.

2. Keep hands, feet, and clothing away from moving parts. Wait for all movement to stop before you clean, adjust or service the machine.

3. Keep the area of operation clear of all bystanders and pets.

4. Chock or block the wheels if the machine is left on an incline.

5. Never operate mowing equipment without the discharge deflector securely fastened in place.

2 SPECIFICATIONS

2.1 PRODUCT IDENTIFICATION_________________________________________________

63300............................ Eclipse 118 base unit with 18 in.

(457 mm) 11 blade reel and InCommand™ control system. Gen-Set power module.

63313............................ Eclipse 118 base unit with 18 in.

(457 mm) 11 blade reel and InCommand™ control system. Battery power module.

63301............................ Eclipse 118F base unit with floating

18 in. (457 mm) 11 blade reel and InCommand™ control system. Gen-Set power module.

63314............................ Eclipse 118F base unit with floating

18 in. (457 mm) 11 blade reel and InCommand™ control system. Battery power module.

63302............................ Eclipse 122 base unit with 22 in.

(559 mm) 11 blade reel and InCommand™ control system. Gen-Set power module.

63311............................ Eclipse 122 base unit with 22 in.

(559 mm) 11 blade reel and InCommand™ control system. Battery power module.

63303............................ Eclipse 122F base unit with floating

22 in. (457 mm) 11 blade reel and InCommand™ control system. Gen-Set power module.

63312............................ Eclipse 122F base unit with floating

22 in. (457 mm) 11 blade reel and InCommand™ control system. Battery power module.

63304............................ Eclipse 126 base unit with 26 in.

(660 mm) 7 blade reel and InCommand™ control system. Gen-Set power module.

63315.............................Eclipse 126 base unit with 26 in.

(660 mm) 7 blade reel and InCommand™ control system. Battery power module.

Serial Number ...............An identification plate, like the one

shown, listing the serial number, is attached to the rear crossbar.

Always provide the serial number of the unit when ordering replacement parts or requesting service information.

2.2 MOWER _________________________________________________________________

Reel .................................7 or 11 blades, hardened high

manganese carbon steel.

Reel Diameter.................. 5 in. (127 mm)

Cutting Width ................... 18, 22 or 26 in. (457, 559 or

660 mm)

Height of cut..................... 1/16 to 7/16 in. (1.6 to 11 mm)

Bedknives ........................Hardened carbon steel

High Profile ................5/32” - 7/16” (4 - 11 mm) cut

Low Profile ................. 1/8” - 7/32” (3.2 - 5.6 mm) cut

Tournament ...............3/32” - 5/32” (2.4 - 4 mm) cut

Super Tournament..... 1/16” - 7/64” (1.6 - 2.8 mm) cut

Frequency of Cut

11 Blade Reel............ 0.087 - 0.178 in. (2.2 - 4.5 mm)

9 Blade Reel.............. 0.106 - 0.217 in. (2.7 - 5.5 mm)

7 Blade Reel.............. 0.136 - 0.279 in. (3.4 - 7.1 mm)

Product

EEC Sound

Power

Vibration M/S

Arms

63300 63301 63302 63303 63304 63311 63312 63313 63314 63315

TBD TBD

88.4 dBA

88.4 dBa TBD

82.7 dBA

82.7 dBA TBD TBD TBD

TBD TBD

5.191

2.236 TBD

0.822

0.481 TBD TBD TBD

CHARLOTTE, NC

YEAR OF PRODUCTION:

MADE IN U.S.A.

A Textron Company

101

XXXX

63302

1601

SPECIFICATIONS 2

2.3 TRACTION AND DIFFERENTIAL______________________________________________

Transport Tires (Option)... 11 x 4 pneumatic bidirectional.

Reel Drive ........................Independent direct drive motor.

Traction Drive................... Independent drive motor with two

synchronous polyurethane belts.

Traction Reduction Ratio .15.15:1

Mowing speed.................. 0 - 3.4 m.p.h. (5.31 km/h)

Differential........................ Full automotive type, housed in

traction drum

Rear Drive Drum.............. Machined aluminum alloy

2 Section, 7-3/4 (O.D.) x 10-31/32

2.4 WEIGHTS ________________________________________________________________

Weights: Without Grass Catcher Lbs. (kg)

63300 – Eclipse 118 .................................... TBD (TBD)

63301 – Eclipse 118F .................................. TBD (TBD)

63302 – Eclipse 122 ..................................... 224 (101.6)

63303 – Eclipse 122F ................................... 249 (113.0)

63304 – Eclipse 126 .................................... TBD (TBD)

Weights: Without Grass Catcher Lbs. (kg)

63311 – Eclipse 122 ..................................... 241 (109.3)

63312 – Eclipse 122F ................................... 272 (123.5)

63313 – Eclipse 118 .................................... TBD (TBD)

63314 – Eclipse 118F .................................. TBD (TBD)

63315 – Eclipse 126 .................................... TBD (TBD)

2.5 BATTERY POWER MODULE_________________________________________________

To ensure the longest battery life possible, the batteries are not shipped with the power module and must be ordered separately. For optimum range and performance use batteries that equal or exceed the Amp-hour rating listed.

System Voltage .............48 Volt DC

Batteries .......................(4) 12 volt, valve regulated,

non-spillable sealed lead acid batteries.

Charger ......................... 5 Amp, 48 Volt DC, dual input

voltage 115/230 Volt AC, 50/60 Hz.

Recommended Battery:

CSB battery is the Jacobsen recommended battery for use in the Eclipse mower.

CSB batteries can be ordered from these CSB distributors, or from any local battery dealer.

Electronic Distributing

920 Brookstown Ave Winston Salem, NC 27101

Phone Number - 800-777-1096 Fax Number - 336-723-1098 E-Mail - billedi@bellsouth.net (E-Mail) Contact Name - Bill Turner

URS Electronics

123 N.E. 7th Portland, OR 97232

Phone Number - 800-955-4877 Fax Number - 503-232-3373 E-Mail - mark.twietmeyer@ursele.com Contact Name - Mark Twietmeyer

Alternate Batteries:

These alternate batteries are also currently available. These batteries have the same dimensions and amphour ratings, but have not been tested by Jacobsen, and no recommendation is stated or should be implied. Contact your local battery dealer or the manufacturer for sourcing on these batteries.

(USE ONLY 12 VOLT SLA BATTERIES)

Battery Brand Battery Part Number

CSB EVX12200

Length

in. (mm)

Width

in. (mm)

Height

in. (mm)

Weight

lbs. (kg)

Rating

Amp-Hr

Volts

Qty

Req’d

7-1/8 (181)

(76)

6-9/16

(167)

14.7 (6.7)

20 12 4

Battery Brand

Battery

Part Number

Yuasa Enersys NPX 80

Panasonic LC-X1220AP

Panasonic LC-X1220P

Discover D12200

Power Sonic PSH-12180

B.B. Battery EB20-12

2 SPECIFICATIONS

2.6 GEN-SET POWER MODULE _________________________________________________

Engine.............................. Honda GX-120 K1Q JG2 4-Cycle,

4HP (2.98 kW) at 4000 RPM

Speed ..............................Engine speed set at factory for

generator to produce 59.8 volts with no load

Fuel.................................. Regular Grade (Unleaded)

Fuel Tank......................... 0.66 Gallon (2.5 liter)

Use clean, fresh, regular unleaded gasoline, 85 octane minimum. Refer to the engine’s operator manual for fuel recommendations when using blended fuel.

2.7 ACCESSORIES & SUPPORT LITERATURE ____________________________________

Contact your area Jacobsen Dealer for a complete listing of accessories and attachments.

Accessories

Lapping Compound (180 grit) ....................................554598

Orange Touch-up Paint (12 oz. spray) ......................554598

18 in. Fixed Head Grass Catcher ................................68122

18 in. Floating Head Grass Catcher ........................4174683

22 in. Fixed Head Grass Catcher ................................68123

22 in. Floating Head Grass Catcher ........................4114788

26 in. Fixed Head Grass Catcher ................................68124

22 in. Push Brush ........................................................68611

22 in. Front Roller Brush (Fixed Head Units ................68610

22 in. Front Roller Brush (Floating Head Units) ...........68536

Light Kit........................................................................63307

Battery Charger ...........................................................63316

Removable Battery Pack (Does not include batteries) 68668

Mower Caddy Battery Pack Mounting Kit ....................68660

Transport Tires ............................................................62293

Mower Caddy ......................................................... 68648

Mower Caddy 18” Fixed Head Latch Kit................. 68649

Mower Caddy 22” Fixed Head Latch Kit................. 68650

Mower Caddy 26” Fixed Head Latch Kit................. 68651

Mower Caddy 22” Floating Head Latch Kit............. 63310

22 in. Turf Groomer (122 Units Requires 67965) ... 67966

Turf Groomer Adapter Kit ....................................... 67965

Solid Rollers

18 in. with Scraper .......................................................68626

22 in. with Scraper .......................................................68530

26 in. with Scraper .......................................................68627

Grooved Rollers

18 in. Machined Steel.................................................. 68616

22 in. Assembled Disc................................................. 68527

22 in. Machined Aluminum ..........................................68614

22 in. Machined Steel.................................................. 68613

22 in. Segmented Roller.............................................. 68673

26 in. Machined Aluminum ..........................................68617

26 in. Machined Steel.................................................. 68628

Floating Head Reels

22 in. 11 Blade Reel ....................................................63308

18 in. 11 Blade Reel ....................................................63309

Right Hand Reel Conversion Kit.............................. 4172441

Left Hand Reel Conversion Kit ................................4172458

Additional Power Modules

Gen-Set Power Module ...............................................63305

Battery Power Module .................................................63306

Fixed Head Power Module Mount ...........................4165263

Floating Head Power Module Mount .......................4164220

Support Literature

Technical Manual ....................................................4170162

Operator Training Video ..........................................4166960

Service & Repair Manual

CAUTION

Use of other than Jacobsen authorized parts and accessories may cause personal injury or damage to the

equipment and will void the warranty.

DECALS 3

3 DECALS

3.1 DECALS _________________________________________________________________

Familiarize yourself with the decals, they are critical to the safe operation of the mower. REPLACE DAMAGED DECALS IMMEDIATELY.

4170001

STOP

4127335

4169840

DANGER

To prevent injury, disengage all drives, engage parking brake, turn off key switch and disconnect power connector before working on machine or emptying grass catchers.

DANGER

Keep hands and feet away from the cutting unit to prevent serious injury.

DANGER

1. Keep a safe distance from the machine. Keep bystanders away.

2. Properly dispose of components from this machine. Refer to local regulations for waste disposal and recycling.

3. Refer to the manual for maintenance and service procedures

4. Do not spray water at electrical connectors, motors or controllers. Remove battery pack before pressure washing unit.

4170321

Read the manual before adjusting engine throttle lever.

3 DECALS

Familiarize yourself with the following decals, they are critical to the safe operation of the mower. REPLACE DAMAGED DECALS IMMEDIATELY.

3002753

4165241

4172240

Read the manual before adjusting front roller weight

Disengaged

Parking Brake

Engaged

Reel Switch

Forward Rotation Position

OFF

Backlap Position

4104282

Key Switch

Off Position

Run Position

Energize Unit

DECALS 3

63302 = 101.6 Kg 63303 = 109.3 Kg 63311 = 113.0 Kg 63312 = 123.5 Kg

101,6 kg 109,3 kg 113,0 kg 123,5 kg

Mower Weight

To Engage Traction.

1. Slide bail to the left.

2. Squeeze bail to handle.

4 CONTROLS

4.1 ICONS ___________________________________________________________________

4.2 HANDLE CONTROLS ______________________________________________________

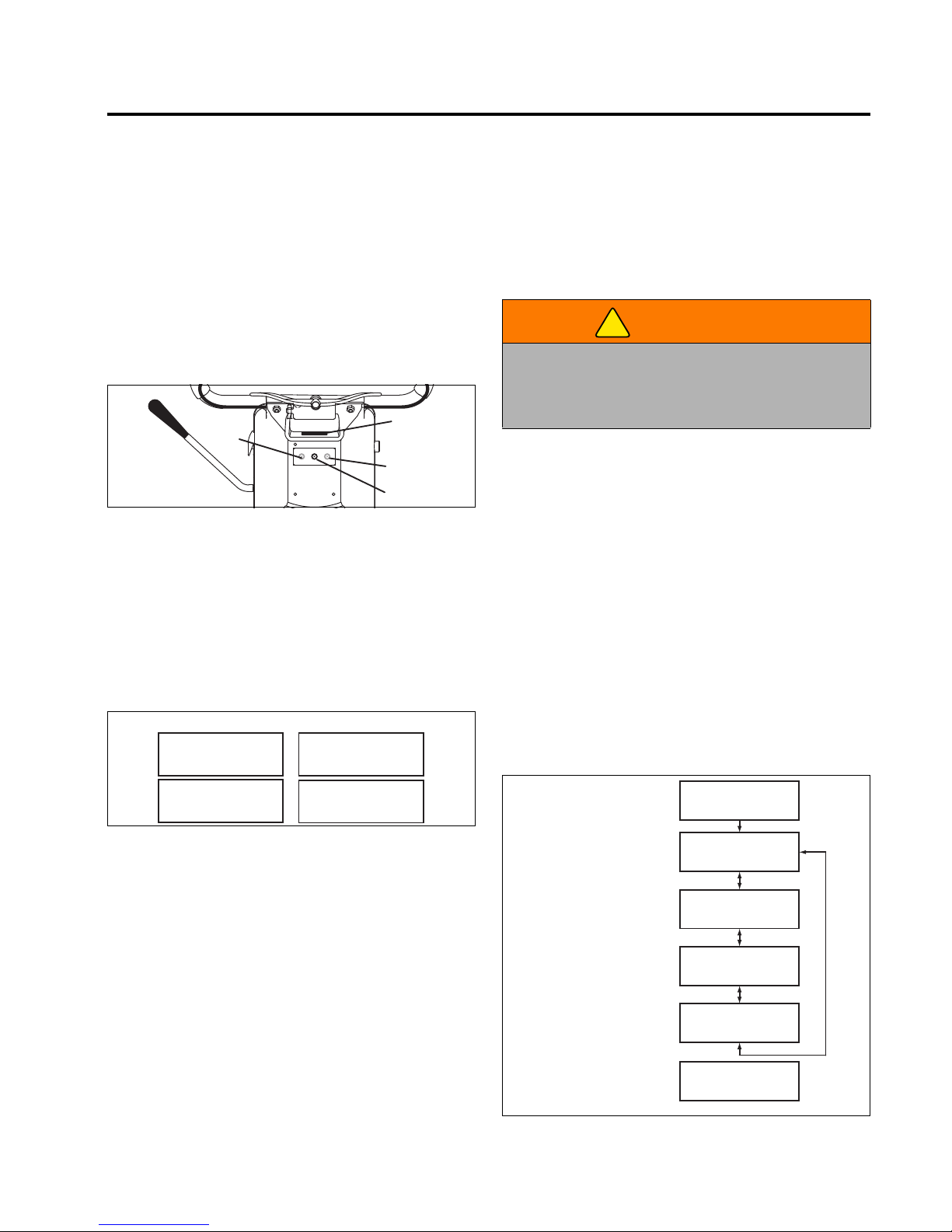

A. Parking Brake – Used whenever the mower is left

unattended or as a service brake while transporting. Always use transport tires when transporting up or

down hills.

B. Speed Paddle – Sets maximum traction drive

speed when O.P.C. Bail is engaged. Push (+) side of lever to increase speed. Push (-) side of lever to decrease speed.

C. O.P.C. Bail – Slide bail slightly to the left and

squeeze bail to start traction motor. Traction motor speed is increased as the bail moves towards the handle. Release bail to stop unit.

D. Key Switch - The power switch turns the power on

and off. It has three positions OFF, RUN and START. Key switch must be in RUN position to start units equipped with Gen-Set power module.

E. Reel Switch - The reel switch is used to start and

stop the reel and to enable backlap.

F. Circuit Breaker - Used to protect controllers. Push

button in when tripped.

G. LCD Display - Used to display operating conditions.

H. LCD Controls - Used to navigate through menus.

Figure 4A

WARNING

Never attempt to operate the machine unless you have read the Safety and Operation Manual, the Parts and Maintenance Manual and know how to operate all controls correctly.

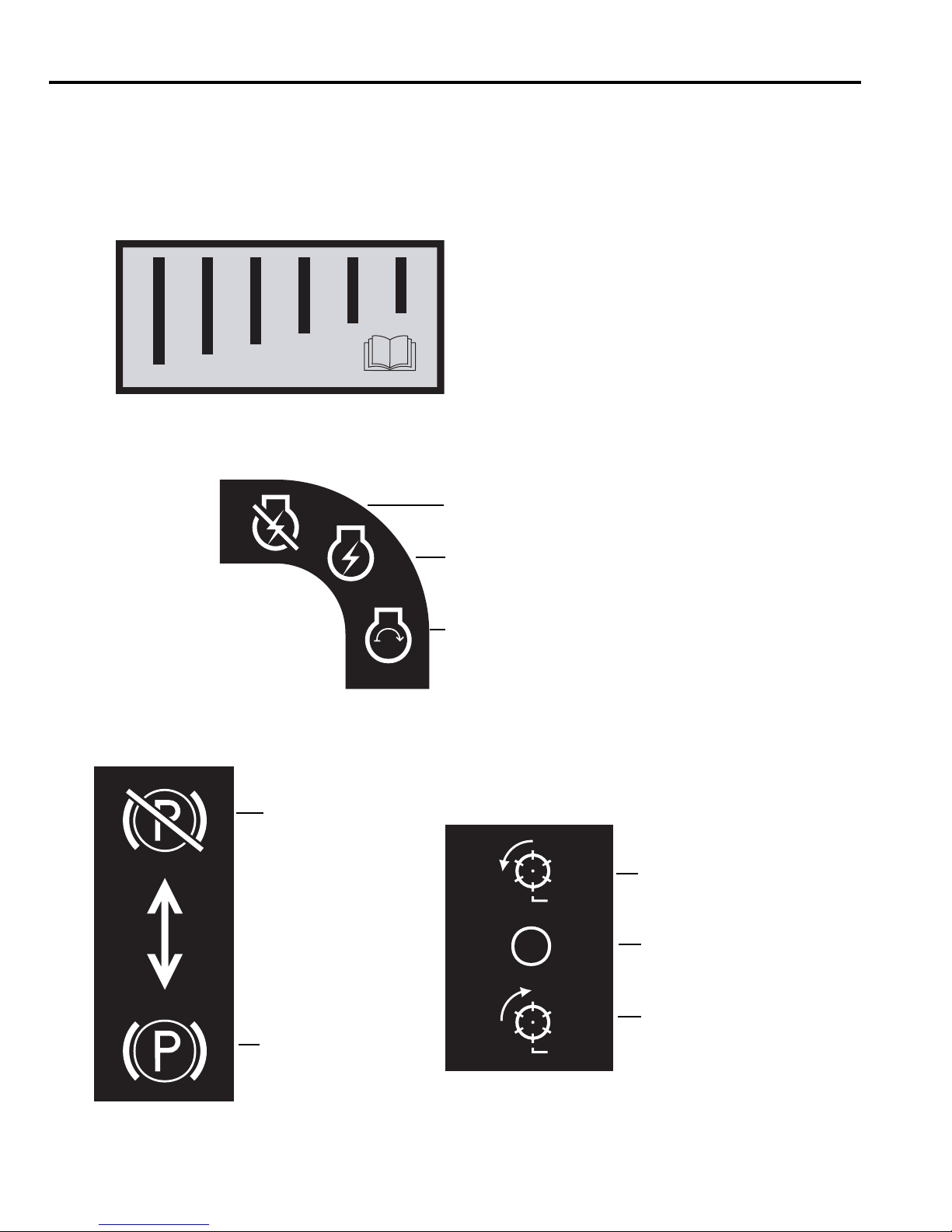

Familiarize yourself with the icons shown above and what they represent. Learn the location and purpose of all the controls before operating this mower.

Engaged Disengaged

Parking Brake

O.P.C. Traction Drive

Squeeze bail to handle

Power On

Fast Slow

Throttle

Power Up

Slide Bail Left

Power Off

WARNING

To prevent injury, always use transport tires when transporting unit up or down hills.

DANGER

Keep hands and feet away from the cutting unit to prevent serious injury.

CONTROLS 4

4.3 LCD DISPLAY_____________________________________________________________

The LCD displays current functional values for the operation of the Eclipse mower and sounds one of three types of audible alerts. The LCD operates in one of two modes, Operator Mode (Default) and Superintendent Mode. Use of Superintendent mode requires a four digit pin number.

Press either of the orange buttons (K or L) to change screen display or change values. Push the right orange button (K) to go forward in the display list or increase setting value, and push the left orange button (L) to go back in the display list or decrease setting value. The black button (J) is used to select, reset or change values.

Figure 4B

Audible Alerts indicate one of three conditions detected

by the LCD Display and a corresponding message would show on the display. A solid tone indicates low system voltage. A fast beeping (2 per second) alert indicates an over voltage condition. A slow beeping (1 every 3 seconds) alert indicates mower is in backlap mode.

Alert Displays: In addition to the standard displays for each mode, there are four displays that are used to alert the operator/mechanic of a problem the needs to be corrected.

Figure 4C

Low Voltage display is shown when system voltage

drops below 42 Volts DC for 30 seconds and an solid tone alarm will sound. Press the black button (J) to silence the alarm. Return mower to storage area or install a fully charged battery pack. Reel motor will not operate with low voltage on the display.

Overvoltage/Check Voltage display is shown when system voltage is above 60 Volts DC and a fast (2 per second) beeping alarm will sound. If not corrected, controller will shut down after 60 seconds. Check generator output before restarting system.

[See Section 10.3]

Reel Motor Fault display is shown when a reel

motor short circuit is detected or the reel motor current draw exceeds 30 Amps for one second. Reel motor will not operate until the problem is resolved. Return mower to maintenance area for repair.

Traction Motor Fault display is shown when a traction motor short circuit is detected or the traction motor current draw exceeds 30 Amps for one second. Traction motor will not operate until the problem is resolved. Return mower to maintenance area for repair.

Operator Mode is used by the operator for system voltage information, travel speed, FOC setting and reel speed. Press the orange buttons (K and L) on the front handle cover to toggle between the different displays. Operator Mode is view only, no system settings can be changed.

If reel switch is placed into backlap position while in operator mode, the reel motor will stop immediately and screen will display “Turn Backlap Switch Off”. Backlap is only available in Superintendant Mode.

Figure 4D

REEL

MOTOR FAULT

LOW BATTERY

42.0 VDC

OVERVOLTAGE

CHECK VOLTAGE

TRACTION

MOTOR FAULT

Alert Displays

WARNING

Turn reel switch off, release bail, turn key to off position and disconnect battery connector before checking for obstructions in reel.

JACOBSEN

VERSION X.XX

TRAVEL SPEED

3.4 MPH

SYSTEM VOLTS

48.0 VDC

REEL SPEED

2200 RPM

TURN BACKLAP

SWITCH OFF

FOC = 0.146

Standard start up screen

Displays system voltage.

Displays travel speed of mower.

Displays reel rotation speed.

Displays fixed FOC setting.

Display if Reel Switch is placed in backlap position.

4 CONTROLS

Superintendent Mode is used by the superintendent to set and adjust all functional values for the Eclipse Mower. LCD displays available in Superintendent Mode are, factory reset, system voltage, travel speed, reel speed, total hours on machine, traction motor current draw, reel motor current draw, total motor current draw, set mow speed, maintenance hours, set reel speed, set display units, calibrate speed paddle and calibrate bail lever.

To enter Superintendent Mode, press both orange buttons (K and L) when Jacobsen Version X.XX is on the display. Use the orange buttons (K or L) to select and the black button (J) to enter the digits for the Mechanic Mode pin.

NOTE: The PIN for Superintendent Mode is 6789. For backlap screens, see Section 11.4 Factory Reset: To reset controller to factory default

values, press either of the orange buttons (K or L) on the front cover until the Factory Reset screen is on the LCD display. Press the black button (J) to reset values back to factory default settings

Maximum Mow Speed3.4 Mph (5.5 kph)

Reel Speed ................ 2200 rpm

Fixed FOC Setting .....0.146

Display units ..............English

Fixed FOC Setting: To set the fixed FOC, press either of the orange buttons (K or L) on the front cover until the FOC x.xxx CHANGE? screen is on the LCD display. Press the black button (J) to enter set mode. Use the orange buttons to raise (K) or lower (L) the FOC value to the desired setting. press the black button to set speed.

Fixed FOC setting must be 0 or between 0.087 and 0.178 in. (2.2 and 4.5 mm) See Section 4.4

Maximum Mow Speed: To set the maximum mow speed, press either of the orange buttons (K or L) on the front cover until the set max mow speed screen is on the LCD display. Press the black button (J) to enter set mode. Use the orange buttons to raise (K) or lower (L) the maximum mow speed to the desired speed. press the black button to set speed.

Maximum mow speed must be between 2.0 and 3.4 MPH (3.2 and 5.5 kph).

Fixed Reel Speed: To set the fixed reel speed, the FOC setting must be set to 0, then press either of the orange buttons (K or L) on the front cover until the set reel speed screen is on the LCD display. Press the black button (J) to enter set mode. Use the orange buttons to raise (K) or lower (L) the reel speed to the desired setting.

Fixed reel speed must be set between 1800 and 2200 rpm.

The Maximum Mow Speed and the Fixed Reel Speed are used to determine the FOC (Frequency of Cut) See

Section 4.4 Maintenance Hours: To reset maintenance hours, press

either of the orange buttons (K or L) on the front cover until the maintenance hours screen is on the LCD display. Press the black button (J) to reset maintenance hours to zero. The system can track a maximum of 999.9 hours.

Motor Type Select: Select the part number for the reel and traction motors used on your equipment. The two motors have different control voltage to output RPM characteristics. The eclipse mower only uses motor part no. 4160533.

Figure 4E

Display Units: To set the display units, press either of

the orange buttons (K or L) on the front cover until the units screen is on the LCD display. Press the black button (J) to enter set mode. Use the orange buttons to select the desired setting.

Units must be set to English or metric.

Calibrate Speed Paddle: Before calibrating the speed paddle, check that paddle stops are properly adjusted [See Section 6.3].To calibrate the paddle, press either of the orange buttons (K or L) on the front cover until the thumb lever screen is on the LCD display. Press the black button (J) to enter set mode. Move the throttle paddle through its entire range of movement to determine minimum and maximum values.

Values displayed will change as controls are moved.

Calibrate Bail Lever: To calibrate the bail lever, press either of the orange buttons (K or L) on the front cover until the bail lever screen is on the LCD display. Press the black button (J) to enter set mode. Fully engage and disengage the bail lever to determine minimum and maximum values.

Values displayed will change as controls are moved.

Part Number 4153940 Part Number 4160533

DO NOT SELECT

THIS MOTOR TYPE

CONTROLS 4

Figure 4F

JACOBSEN

VERSION X.XX

TRAVEL SPEED

3.4 MPH

SYSTEM VOLTS

48.0 VDC

REEL SPEED

2200 RPM

Standard start up screen

Displays system voltage.

Select reset to factory defaults

Confirm reset

Displays maintenance hours.

Press both orange buttons during start screen. Enter PIN

Displays travel speed of mower.

Displays reel rotation speed.

Displays total hours on unit.

Displays traction motor current.

Displays reel motor current.

Displays total motor current.

Change Max Mow Speed.

Mow Speed. Setting

Select motor used

Motor Selection

Calibrate Throttle Paddle

Display Units

Change Display Units

Throttle Paddle Setting

Calibrate Bail Lever

Bail Lever Setting

MNT 100.9 HR

RESET?

MAX MOW

< 3.4 MPH >

RUN TIME

250 HR

FOC = 0.146

CHANGE?

Fixed FOC Setting.

Change FOC Setting

FOC = 0.146

< OK >

TRAVEL MOTOR

08.5 A

REEL MOTOR

08.5 A

MOTOR TOTAL

17.0 A

SET MAX

MOW SPEED

4160533/4153940 < OK >

UNITS

< ENGLISH >

THUMB LEVER

000 DONE 120

BAIL LEVER

040 DONE 096

ENTER PIN?

6789

FACTORY

RESET?

NO YES

MOTOR TYPE

SELECT

UNITS?

THUMB LEVER

CALIBRATE?

BAIL LEVER

CALIBRATE?

Fixed Reel Speed

Fixed Reel Speed setting

REEL SPEED

< 2200 RPM >

REEL SPEED

2200 RPM

4 CONTROLS

4.4 FREQUENCY OF CUT ______________________________________________________

The FOC (Frequency of cut) is the distance, in inches (mm), the machine travels forward between reel blades contacting the bedknife. The FOC can be adjusted either by changing the Fixed FOC setting or by changing the maximum mow speed and the fixed reel speed on the LCD display.

Adjust FOC with Fixed FOC setting

Changing the FOC setting to a value other than 0 will enable the fixed FOC mode and disable the reel speed setting. As mower travel speed increases or decreases, reel speed will automatically adjust as required to maintain set FOC. The controller only accepts an FOC range for the 11 blade reel. To set FOC for the 9 or 7 blade reel, multiply the value in the charts by the following:

9 Blade Conversion ... 0.81818 (9/11) 7 Blade Conversion ... 0.63636 (7/11)

Adjust FOC with Reel Speed Setting

1. Using the FOC charts, determine the maximum mow speed and fixed reel speed required for the desired FOC.

2. Start the unit in Superintendant mode. [Section 4.3]

3. Set fixed FOC setting to 0

4. Set desired Maximum Mow Speed

5. Set desired Fixed Reel Speed

NOTE: Mow speed is measured in mph (kph), FOC is measured in inches (millimeters).

11 Blade Reel FOC Table, Product No. 63300, 63301, 63302, 63303, 63311, 63312, 63313, 63314 (Standard Reel)

Mow

Speed

Reel RPM

1800 1850 1900 1950 2000 2050 2100 2150 2200

2.0

(3.22)

0.107

(2.709)

0.104

(2.636)

0.101

(2.567)

0.098

(2.501)

0.096

(2.438)

0.094

(2.379)

0.091

(2.322)

0.089

(2.268)

0.087

(2.217)

2.1

(3.38)

0.112

(2.845)

0.109

(2.768)

0.106

(2.695)

0.103

(2.626)

0.101 (2.56)

0.098

(2.498)

0.096

(2.438)

0.094

(2.382)

0.092

(2.328)

2.2

(3.54)

0.117 (2.98)

0.114 (2.9)

0.111

(2.823)

0.108

(2.751)

0.106

(2.682)

0.103

(2.617)

0.101

(2.555)

0.098

(2.495)

0.096

(2.438)

2.3

(3.7)

0.123

(3.116)

0.119

(3.032)

0.116

(2.952)

0.113

(2.876)

0.110

(2.804)

0.108

(2.736)

0.105

(2.671)

0.103

(2.609)

0.100

(2.549)

2.4

(3.86)

0.128

(3.251)

0.125

(3.163)

0.121 (3.08)

0.118

(3.001)

0.115

(2.926)

0.112

(2.855)

0.110

(2.787)

0.107

(2.722)

0.105 (2.66)

2.5

(4.02)

0.133

(3.387)

0.130

(3.295)

0.126

(3.208)

0.123

(3.126)

0.120

(3.048)

0.117

(2.974)

0.114

(2.903)

0.112

(2.835)

0.109

(2.771)

2.6

(4.18)

0.139

(3.522)

0.135

(3.427)

0.131

(3.337)

0.128

(3.251)

0.125 (3.17)

0.122

(3.093)

0.119

(3.019)

0.116

(2.949)

0.113

(2.882)

2.7

(4.35)

0.144

(3.658)

0.140

(3.559)

0.136

(3.465)

0.133

(3.376)

0.130

(3.292)

0.126

(3.212)

0.123

(3.135)

0.121

(3.062)

0.118

(2.993)

2.8

(4.51)

0.149

(3.793)

0.145

(3.691)

0.141

(3.593)

0.138

(3.501)

0.134

(3.414)

0.131 (3.33)

0.128

(3.251)

0.125

(3.176)

0.122

(3.103)

2.9

(4.67)

0.155

(3.929)

0.150

(3.822)

0.147

(3.722)

0.143

(3.626)

0.139

(3.536)

0.136

(3.449)

0.133

(3.367)

0.129

(3.289)

0.127

(3.214)

3.0

(4.83)

0.160

(4.064)

0.156

(3.954)

0.152 (3.85)

0.148

(3.751)

0.144

(3.658)

0.140

(3.568)

0.137

(3.483)

0.134

(3.402)

0.131

(3.325)

3.1

(4.99)

0.165

(4.199)

0.161

(4.086)

0.157

(3.978)

0.153

(3.876)

0.149 (3.78)

0.145

(3.687)

0.142 (3.6)

0.138

(3.516)

0.135

(3.436)

3.2

(5.15)

0.171

(4.335)

0.166

(4.218)

0.162

(4.107)

0.158

(4.001)

0.154

(3.901)

0.150

(3.806)

0.146

(3.716)

0.143

(3.629)

0.140

(3.547)

3.3

(5.31)

0.176 (4.47)

0.171 (4.35)

0.167

(4.235)

0.162

(4.127)

0.158

(4.023)

0.155

(3.925)

0.151

(3.832)

0.147

(3.743)

0.144

(3.658)

3.4

(5.47)

0.181

(4.606)

0.176

(4.481)

0.172

(4.363)

0.167

(4.252)

0.163

(4.145)

0.159

(4.044)

0.155

(3.948)

0.152

(3.856)

0.148

(3.768)

CONTROLS 4

9 Blade Reel FOC Table, Product No. 63303, 63312 (Optional Reel)

Mow

Speed

Reel RPM

1800 1850 1900 1950 2000 2050 2100 2150 2200

2.0 0.130 0.127 0.124 0.120 0.117 0.114 0.112 0.109 0.107

(3.22) (3.311) (3.222) (3.137) (3.057) (2.98) (2.908) (2.838) (2.772) (2.709)

2.1 0.137 0.133 0.130 0.126 0.123 0.120 0.117 0.115 0.112

(2.845)

(3.38) (3.477) (3.383) (3.294) (3.21) (3.129) (3.053) (2.98) (2.911)

2.2 0.143 0.140 0.136 0.132 0.129 0.126 0.123 0.120 0.117

(3.54) (3.643) (3.544) (3.451) (3.362) (3.278) (3.198) (3.122) (3.05) (2.98)

2.3 0.150 0.146 0.142 0.138 0.135 0.132 0.129 0.126 0.123

(3.7) (3.808) (3.705) (3.608) (3.515) (3.427) (3.344) (3.264) (3.188) (3.116)

2.4 0.156 0.152 0.148 0.144 0.141 0.137 0.134 0.131 0.128

(3.86) (3.974) (3.866) (3.765) (3.668) (3.576) (3.489) (3.406) (3.327) (3.251)

2.5 0.163 0.159 0.154 0.150 0.147 0.143 0.140 0.136 0.133

(4.02) (4.139) (4.027) (3.921) (3.821) (3.725) (3.634) (3.548) (3.465) (3.387)

2.6 0.169 0.165 0.161 0.156 0.153 0.149 0.145 0.142 0.139

(4.18) (4.305) (4.188) (4.078) (3.974) (3.874) (3.78) (3.69) (3.604) (3.522)

2.7 0.176 0.171 0.167 0.162 0.158 0.155 0.151 0.147 0.144

(4.35) (4.47) (4.35) (4.235) (4.127) (4.023) (3.925) (3.832) (3.743) (3.658)

2.8 0.183 0.178 0.173 0.168 0.164 0.160 0.156 0.153 0.149

(4.51) (4.636) (4.511) (4.392) (4.279) (4.172) (4.071) (3.974) (3.881) (3.793)

2.9 0.189 0.184 0.179 0.174 0.170 0.166 0.162 0.158 0.155

(4.67) (4.802) (4.672) (4.549) (4.432) (4.321) (4.216) (4.116) (4.02) (3.929)

3.0 0.196 0.190 0.185 0.181 0.176 0.172 0.168 0.164 0.160

(4.83) (4.967) (4.833) (4.706) (4.585) (4.47) (4.361) (4.258) (4.159) (4.064)

3.1 0.202 0.197 0.191 0.187 0.182 0.177 0.173 0.169 0.165

(4.99) (5.133) (4.994) (4.863) (4.738) (4.619) (4.507) (4.399) (4.297) (4.199)

3.2 0.209 0.203 0.198 0.193 0.188 0.183 0.179 0.175 0.171

(5.15) (5.298) (5.155) (5.019) (4.891) (4.768) (4.652) (4.541) (4.436) (4.335)

3.3 0.215 0.209 0.204 0.199 0.194 0.189 0.184 0.180 0.176

(5.31) (5.464) (5.316) (5.176) (5.044) (4.917) (4.798) (4.683) (4.574) (4.47)

3.4 0.222 0.216 0.210 0.205 0.199 0.195 0.190 0.186 0.181

(5.47) (5.629) (5.477) (5.333) (5.196) (5.066) (4.943) (4.825) (4.713) (4.606)

4 CONTROLS

7 Blade Reel FOC Table, Product No. 63304, 63315 (Standard Reel) and 63303, 63312 (Optional Reel)

Mow

Speed

Reel RPM

1800 1850 1900 1950 2000 2050 2100 2150 2200

2.0 0.168 0.163 0.159 0.155 0.151 0.147 0.144 0.140 0.137

(3.22) (4.258) (4.142) (4.033) (3.93) (3.832) (3.738) (3.649) (3.564) (3.483)

2.1 0.176 0.171 0.167 0.162 0.158 0.155 0.151 0.147 0.144

(3.38) (4.47) (4.35) (4.235) (4.127) (4.023) (3.925) (3.832) (3.743) (3.658)

2.2 0.184 0.179 0.175 0.170 0.166 0.162 0.158 0.154 0.151

(3.54) (4.683) (4.557) (4.437) (4.323) (4.215) (4.112) (4.014) (3.921) (3.832)

2.3 0.193 0.188 0.183 0.178 0.173 0.169 0.165 0.161 0.158

(3.7) (4.896) (4.764) (4.638) (4.52) (4.407) (4.299) (4.197) (4.099) (4.006)

2.4 0.201 0.196 0.191 0.186 0.181 0.177 0.172 0.168 0.165

(3.86) (5.109) (4.971) (4.84) (4.716) (4.598) (4.486) (4.379) (4.277) (4.18)

2.5 0.210 0.204 0.198 0.193 0.189 0.184 0.180 0.175 0.171

(4.02) (5.322) (5.178) (5.042) (4.913) (4.79) (4.673) (4.562) (4.456) (4.354)

2.6 0.218 0.212 0.206 0.201 0.196 0.191 0.187 0.182 0.178

(4.18) (5.535) (5.385) (5.243) (5.109) (4.981) (4.86) (4.744) (4.634) (4.528)

2.7 0.226 0.220 0.214 0.209 0.204 0.199 0.194 0.189 0.185

(4.35) (5.748) (5.592) (5.445) (5.306) (5.173) (5.047) (4.927) (4.812) (4.703)

2.8 0.235 0.228 0.222 0.217 0.211 0.206 0.201 0.196 0.192

(4.51) (5.961) (5.799) (5.647) (5.502) (5.364) (5.234) (5.109) (4.99) (4.877)

2.9 0.243 0.236 0.230 0.224 0.219 0.213 0.208 0.203 0.199

(4.67) (6.173) (6.007) (5.848) (5.699) (5.556) (5.421) (5.291) (5.168) (5.051)

3.0 0.251 0.245 0.238 0.232 0.226 0.221 0.216 0.210 0.206

(4.83) (6.386) (6.214) (6.05) (5.895) (5.748) (5.607) (5.474) (5.347) (5.225)

3.1 0.260 0.253 0.246 0.240 0.234 0.228 0.223 0.218 0.213

(4.99) (6.599) (6.421) (6.252) (6.092) (5.939) (5.794) (5.656) (5.525) (5.399)

3.2 0.268 0.261 0.254 0.248 0.241 0.235 0.230 0.225 0.219

(5.15) (6.812) (6.628) (6.454) (6.288) (6.131) (5.981) (5.839) (5.703) (5.573)

3.3 0.277 0.269 0.262 0.255 0.249 0.243 0.237 0.232 0.226

(5.31) (7.025) (6.835) (6.655) (6.485) (6.322) (6.168) (6.021) (5.881) (5.748)

3.4 0.285 0.277 0.270 0.263 0.256 0.250 0.244 0.239 0.233

(5.47) (7.238) (7.042) (6.857) (6.681) (6.514) (6.355) (6.204) (6.06) (5.922)

CONTROLS 4

4.5 GAS POWER MODULE CONTROLS___________________________________________

M. Engine Switch – The engine switch enables and

disables the engine ignition system. The engine switch must be in the ON position for the engine to run. Turning the engine switch to the OFF position stops the engine.

N. Choke Lever - The choke lever opens and closes

the choke valve in the carburetor. The CLOSED position enriches the fuel mixture for starting a cold engine. The OPEN position provides the correct fuel mixture for operation after starting, and for restarting a warm engine.

P. Fuel Valve Lever - The fuel valve opens and closes

the connection between the fuel tank and the carburetor. The fuel valve lever must be in the ON position for the engine to run. When the engine is not in use, leave the fuel valve lever in the OFF position to prevent carburetor flooding and to reduce the possibility of fuel leakage.

Figure 4G

Figure 4H

4.6 BATTERY POWER MODULE CONTROLS ______________________________________

R. Battery Monitor - Located on the removable battery

pack displays battery charge level.

Figure 4I

NOTICE

Before tipping mower back for adjustments, the fuel lever must be moved to the OFF position to prevent fuel from leaking into the crankcase.

OFF

5 OPERATION

5.1 DAILY INSPECTION________________________________________________________

1. Perform a visual inspection of the entire unit, look for signs of wear, loose hardware, missing or damaged components.

2. Make sure the mower is adjusted to the required cutting height.

3. Make sure the machine is lubricated and the transport tires are properly inflated.

4. Check the O.P.C. system.

5.2 INTERLOCK SYSTEM (O.P.C.) _______________________________________________

1. The Interlock System is intended to protect the operator and others from injury by stopping the reel and drive mechanism as soon as the operator releases the O.P.C. (Operator Presence Control) bail.

2. To test the system:

a. Place mower on the kickstand.

b. Make certain reel switch is off.

3. Gen-Set Power Module: Start the engine.

4. Energize the unit.

a. Slide bail to the left and engage O.P.C. Bail.

b. The drive motor and the wheels will begin to turn.

c. Release the O.P.C. bail. The bail must

disengage, and drive motor must stop.

5. If the drive motor engages before the O.P.C. bail is engaged or the drive motor continue to turn after the O.P.C. bail is released; stop the unit immediately and have the system repaired.

CAUTION

The daily inspection should be performed only with

the parking brake engaged, and power connector

disconnected.

WARNING

Never operate equipment with the Interlock System disconnected or malfunctioning. Do not disconnect or bypass any switch.

OPERATION 5

5.3 OPERATING PROCEDURES _________________________________________________

1. Under no circumstances should the unit be started

with operator or bystanders standing in front of the reel.

2. Never run the engine in an enclosed area.

3. Keep hands and feet away from moving parts and

cutting units. If possible, do not make adjustments with the engine running.

4. Do not operate mower or attachments with loose,

damaged or missing components. Whenever possible mow when grass is dry.

5. First mow in a test area to become thoroughly

familiar with the operation of the mower and control levers.

6. Study the area to determine the best and safest

operating procedure. Consider the height of the grass, type of terrain, and condition of the surface. Each condition will require certain adjustments or precautions. Only use accessories and attachments approved by Jacobsen.

7. Be aware of mower discharge direction and never

direct discharge of material toward bystanders. Never allow anyone near the machine while in operation. The owner/operator is responsible for injuries inflicted to bystanders and/or damage to their property.

8. Use discretion when mowing near gravel areas

(roadway, parking areas, cart paths, etc.). Stones discharged from the mower may cause serious injuries to bystanders and/or damage the equipment.

9. Disengage the reel switch to stop blades when not mowing.

10. Disengage the reel switch when crossing paths or roadways. Look out for traffic.

11. Stop and inspect the equipment for damage immediately after striking an obstruction or if the machine begins to vibrate abnormally. Have the equipment repaired before resuming operation.

12. Slow down and use extra care on hillsides. Use caution when operating near drop offs.

13. Look behind and down before backing up to be sure of a clear path. Use care when approaching blind corners, shrubs, trees or other objects that may obscure vision.

14. Never use your hands to clean cutting units. Use a brush to remove grass clippings from blades. Blades are extremely sharp and can cause serious injuries

CAUTION

To help prevent injury, always wear safety glasses, leather work shoes or boots, a hard hat, and ear protection.

NOTICE

To prevent damage to the reel and bedknife never operate the reels when they are not cutting grass. Excessive friction and heat will develop between the bedknife and reel and damage the cutting edge.

CAUTION

Before mowing, pick up all debris such as rocks, toys and wire which can be thrown by the machine. Enter a

new area cautiously. Always operate at speeds that

allow you to have complete control of the mower.

WARNING

Before you clean, adjust, or repair this equipment, always disengage all drives, engage parking brake, turf key switch off and disconnect power connector to prevent injuries.

5 OPERATION

5.4 STARTING/STOPPING _____________________________________________________

1. Prepare power module to energize unit.

Battery Power Module: Disconnect battery charger and connect power connector.

Gen-Set Power Module:

a. Check oil level and fuel supply then open fuel

valve lever (P).

b. Move the choke lever (N) to the “CLOSED”

position.

c. Set engine switch (M) to “ON” and power switch

(D) to run position.

d. Start the engine. e. Once engine starts move choke lever (N) to the

“OPEN” position.

2. Make certain O.P.C. bail (C) is disengaged, reel switch (E) is off and parking brake (A) is engaged.

3. Turn power switch (D) to start position and release. LCD display (G) should show startup display for 5 seconds, then switch to system voltage.

If system fails to initialize, check to see if power connector is properly attached or if circuit breaker (F) is tripped. Reset circuit breaker if necessary.

4. Check system voltage on LCD display (G). If the system voltage screen is not on the display, press either of the orange buttons (H) to forward display to the correct screen. If system voltage is low, recharge batteries or check generator output before operating.

5. To mow or transport unit, push O.P.C. bail (C) to the left and engage.

6. To stop the unit, release the O.P.C. bail, engage parking brake and set power switch to “OFF” position.

7. Battery Power Module: Disconnect power connector and connect battery pack to charger.

Gen-Set Power Module: Turn engine switch (M) to off position and close fuel valve (P).

Figure 5A

Figure 5B

OFF

OPERATION 5

5.5 MOWING _________________________________________________________________

1. Turn power off. Place mower on kickstand and

remove the transport wheels (If installed).

2. Engage the reel switch. Push the mower forward off

kickstand. Start the unit.

3. Position mower slightly off green.

a. Adjust traction speed paddle (B) to provide a

safe, comfortable walking speed.

b. Push handle down to lift the mower head above

the grass then engage the O.P.C. bail (C).

c. As the mower crosses the edge of the green,

lower the mower head to the ground and proceed across the green in a straight line.

When mowing lift up as required to keep handle centered in slots on handle stops. Do not push down on handle when mowing or the mower head may lift off the grass.

d. When the opposite side of the green is reached,

push down of the handle to lift the mower head without disengaging the O.P.C. bail and proceed off the green to turn around or simply release O.P.C. bail and turn around.

e. To turn to the right, start by turning mower

slightly to the left (2). When the mower has moved approximately 1/2 its own width to the left, swing it around quickly to the right (3 and 4), guiding the mower with your right hand. This method makes it possible to turn around quickly with very few steps. [Figure 5C]

4. To assure complete, even cutting, overlap swaths by 1 to 2 in., (25 to 50 mm), then make one or more passes around the perimeter of the green to clean ragged edges and separate the putting green surface from the apron.

5. For a more even playing surface and neater appearance, alter the mowing pattern each time a green is mowed. The patterns shown in Figure 5D are suggestions only, the operator or course superintendant can arrange patterns to suit each green.

6. Use caution while operating on hillside and dropoffs.

Figure 5C

Figure 5D

WARNING

To prevent serious injuries, keep hands, feet and clothing away from cutting unit when the blades are moving.

NEVER use your hands to clean cutting units. Use a brush to remove grass clippings from blades. Blades can be sharp and could cause injuries.

To clear obstructions from cutting unit, disengage O.P.C. bail, engage parking brake, turn off power switch and disconnect power connector then remove obstruction.

NOTICE

To prevent damage to the reel and bedknife never operate the reels when they are not cutting grass. Excessive friction and heat will develop between the bedknife and reel and damage the cutting edge.

First Mowing

Second Mowing

Third Mowing

Fourth Mowing

5 OPERATION

5.6 TRANSPORT WHEELS (OPTIONAL) __________________________________________

Transport wheels are an optional accessory available through your Jacobsen Dealer. Traction wheels are recommended when not using the Mower Caddy to move the mower from green to green

1. Push and hold the kickstand against the ground then pull the mower handle, by the lift point, back until the mower rests on the stand (S).

2. To remove wheels, press retaining clip (T) away from hub and pull wheel off hub.

3. To install wheels, press retaining clip (T), place wheel on hub and turn the wheel backwards until studs on back of wheel line up with holes in hub (U). Push wheel in and release clip.

4. Always disengage reel switch prior to transporting the mower more than a few feet.

5. Push the mower forward off the kickstand, start the unit and engage the O.P.C. bail.

6. When using a vehicle to transport the mower, apply parking brake, turn power off and disconnect power connector.

Figure 5E

5.7 GRASS CATCHER _________________________________________________________

1. When the basket is about two thirds (2/3) full of grass clippings, move the mower off the green.

2. Stop on a flat surface, disengage O.P.C. bail, engage parking brake and disconnect power connector.

3. Remove and empty the grass clippings from the mower.

WARNING

Always engage parking brake and disconnect power connector before installing or removing the transport wheels.

WARNING

To prevent serious injury, always disengage O.P.C. bail and disconnect power connector before emptying grass catcher.

OPERATION 5

5.8 DAILY MAINTENANCE______________________________________________________

1. Park the mower on a flat, level surface. Engage

parking brake and turn key switch to off position.

2. Grease and lubricate all points if required.

3. To prevent fires, wash the mower after each use.

a. Use only fresh water for cleaning your

equipment.

b. Do not use high pressure spray.

c. Do not spray water directly at electrical

connectors, motors or controller

d. Do not spray water into the cooling fins or the

engine air intake.

Battery Power Module:

4. Disconnect power connector and connect battery

pack to charger.

Gen-Set Power Module:

5. Fill fuel tank at the end of each operating day. Do not fill above the fuel strainer shoulder. Close fuel valve when unit is not in use.

Use clean, fresh, unleaded gasoline, 86 octane minimum. Refer to the engine’s operator manual for fuel recommendations when using blended fuel.

Handle fuel with care - it is highly flammable. Use an approved container, the spout must fit inside the fuel filler neck. Avoid using cans and funnels to transfer fuel.

6. Store fuel according to local, state or federal ordinances and recommendations from your fuel supplier.

e. Check the engine oil at the start and end of each

day, before starting the engine. If the oil level is low, remove the oil filler cap and add oil as required. Do not overfill.

NOTICE

To prevent damage to reel motor, do not over grease reel bearings. Damage of this nature is not covered by the factory warranty.

NOTICE

Battery Power Modules: Disconnect battery

connector and remove the battery pack from the mower before washing.

NOTICE

Use of salt water or affluent water will encourage rust and corrosion of metal parts resulting in premature deterioration or failure. Damage of this nature is not covered by the factory warranty.

NOTICE

Do not wash a hot or running engine. Use compressed air to clean the engine.

WARNING

Never remove the fuel cap from the fuel tank, or add fuel, when the engine is running or while the engine is hot.

Do not smoke when handling fuel. Never fill or drain the fuel tank indoors.

Do not spill fuel and clean spilled fuel immediately.

Never handle or store fuel containers near an open flame or any device that may create sparks and ignite the fuel or fuel vapors.

Be sure to reinstall and tighten fuel cap securely.

6 ADJUSTMENTS (ALL UNITS)

6.1 GENERAL________________________________________________________________

1. Adjustments and maintenance should always be performed by a qualified technician. If proper adjustment cannot be made, contact an authorized Jacobsen Dealer.

2. Replace, do not adjust, worn or damaged components.

3. Long hair, jewelry or loose fitting clothing may get tangled in moving parts.

4. Do not change speed limit settings or overspeed the drive motors.

6.2 BRAKE __________________________________________________________________

A properly adjusted brake requires 10 lbs. pull at top of brake lever to engage and must have 1-1/2” (38 mm) center to center when released.

1. Minor adjustments are made at the handle. Loosen

nut (A), turn nut (B) to adjust the brake cable, then tighten nut (A).

2. If adjustments cannot be made at the handle, remove the transport wheel and make the adjustment at the brake band.

3. Loosen screw (C) and pull cable to obtain desired brake tension. Tighten screw (C). Readjust (A) and

(B).

Figure 6A

6.3 SPEED PADDLE STOPS ____________________________________________________

1. Loosen both nuts (X).

2. Adjust positive paddle stop (Y) to 7/8 in. (22 mm).

3. Adjust negative paddle stop (Z) to 1-1/16 in. (27 mm).

4. Tighten nuts (X) to lock adjustment.

After adjusting paddle stops, the controllers speed paddle calibration must be reset. [See Section 4.3]

Figure 6B

WARNING

Before you adjust, clean, or repair this equipment, always disengage all drives, engage parking brake, turn power off and disconnect power connector to prevent serious injury.

CAUTION

Be careful to prevent entrapment of the hands and fingers between moving and fixed components of the machine.

HANDLE

BRAKE BAND

1-1/2”

(38 mm)

27 mm 22 mm

ADJUSTMENTS (ALL UNITS) 6

6.4 HANDLE _________________________________________________________________

1. To adjust the angle of the handle bar (F), loosen

screw (D) on both sides of the mower and adjust the handle bar to the desired position.

2. After adjusting handle bar, adjust bracket (E) so that

the handle bar just rests on the bottom of the slot in bracket. Tighten screw (D).

Figure 6C

6.5 TRACTION BELTS _________________________________________________________

1. To adjust belt (G), assemble 5/16-18 x 1” hex head

screw (K) and 5/16-18 hex nut (L) to bottom of bearing bracket (H). Loosen nuts (J).

2. Place bedknife gauge bar (M) on top of roller and

under screw (K). Tighten screw (K) until belt (G) deflects 1/10” (2.5 mm) with 1 ~ 2 lb (0.45 ~ 0.91 kg) load applied at mid span.

3. Tighten nuts (J) and remove 5/16-18 x 1” screw (K)

and lower nut (L)

4. Place hardware (K and L) in a safe place for future

adjustments.

5. To adjust belt (N), loosen pivot hardware (P) and

pivot motor housing towards front of mower until belt deflects 1/10” (2.5 mm) with 1 ~ 2 lb (0.45 ~ 0.91 kg) load applied at mid span. Tighten hardware (P).

Figure 6D

CAUTION

To prevent permanent damage to the belt, do not twist, fold, bend or overtighten the belt.

Fixed Head Mower Shown

Floating Head Mower Similar

6 ADJUSTMENTS (ALL UNITS)

6.6 FRONT ROLLER WEIGHT___________________________________________________

The weight on the front roller is adjustable. Adjust the front roller weight as required to meet your turf needs.

1. Battery Power Module: To adjust front roller weight, disconnect power connector (R) and remove battery pack (S). Loosen hardware (T), place battery pack back onto mower, take mower off kickstand and slide battery mounting tray (U) as required.

Gen-Set Power Module: Loosen engine mounting hardware (V) and slide engine (W) as required

2. To adjust the front roller weight:

a. To increase front roller weight, slide battery tray

(U) or engine (W) towards front of mower.

b. To decrease front roller weight, slide battery tray

(U) or engine (W) towards rear of mower.

c. Use the decal on the power module mount as a

guide for adjusting the front roller weight. Aligning the oil drain (Gen-Set) or the V-notch in the battery tray (Battery Tray) with the desired line on the decal allows for consistent front roller weight setting.

3. Battery Power Module: When desired weight is attained, measure distance from edge of power module mount to tray (U). Remove battery pack (S). Recheck measured dimension and tighten hardware

(R).

Gen-Set Power Module: Tighten engine mounting hardware (V).

Figure 6E

CAUTION

To prevent injury or property damage, place mower on kick stand before removing battery pack.

Full battery packs weigh approximately 55 lbs. Use proper lifting techniques when moving them.

Battery Power Module

Gen-Set Power Module

ADJUSTMENTS (ALL UNITS) 6

6.7 TORQUE SPECIFICATION___________________________________________________

Jacobsen uses Grade 5 Plated bolts as standard, unless otherwise noted. For tightening plated bolts, use the value given for lubricated.

NOTICE

All torque values included in these charts are approximate and are for reference only. Use of these torque values is

at your sole risk. Jacobsen is not responsible for any loss, claim, or damage arising from the use of these charts.

Extreme caution should always be used when using any torque value.

AMERICAN NATIONAL STANDARD FASTENERS

SIZE UNITS GRADE 5 GRADE 8 SIZE UNITS GRADE 5 GRADE 8

Lubricated Dry Lubricated Dry Lubri-

cated

Dry Lubri-

cated

Dry

#6-32 in-lb (Nm) – 20 (2.3) – – 7/16-14 ft-lb (Nm) 37 (50.1) 50 (67.8) 53 (71.8) 70 (94.9)

#8-32 in-lb (Nm) – 24 (2.7) – 30 (3.4) 7/16-20 ft-lb (Nm) 42 (56.9) 55 (74.6) 59 (80.0) 78 (105)

#10-24 in-lb (Nm) – 35 (4.0) – 45 (5.1) 1/2-13 ft-lb (Nm) 57 (77.2) 75 (101) 80 (108) 107 (145)

#10-32 in-lb (Nm) – 40 (4.5) – 50 (5.7) 1/2-20 ft-lb (Nm) 64 (86.7) 85 (115) 90 (122) 120 (162)

#12-24 in-lb (Nm) – 50 (5.7) – 65 (7.3) 9/16-12 ft-lb (Nm) 82 (111) 109 (148) 115 (156) 154 (209)

1/4-20 in-lb (Nm) 75 (8.4) 100 (11.3) 107 (12.1) 143 (16.1) 9/16-18 ft-lb (Nm) 92 (124) 122 (165) 129 (174) 172 (233)

1/4-28 in-lb (Nm) 85 (9.6) 115 (13.0) 120 (13.5) 163 (18.4) 5/8-11 ft-lb (Nm) 113 (153) 151 (204) 159 (215) 211 (286)

5/16-18 in-lb (Nm) 157 (17.7) 210 (23.7) 220 (24.8) 305 (34.4) 5/8-18 ft-lb (Nm) 128 (173) 170 (230) 180 (244) 240 (325)

5/16-24 in-lb (Nm) 173 (19.5) 230 (26.0) 245 (27.6) 325 (36.7) 3/4-10 ft-lb (Nm) 200 (271) 266 (360) 282 (382) 376 (509)

3/8-16 ft-lb (Nm) 23 (31.1) 31 (42.0) 32 (43.3) 44 (59.6) 3/4-16 ft-lb (Nm) 223 (302) 298 404 315 (427) 420 (569)

3/8-24 ft-lb (Nm) 26 (35.2) 35 (47.4) 37 (50.1) 50 (67.8) 7/8-14 ft-lb (Nm) 355 (481) 473 (641) 500 (678) 668 (905)

METRIC FASTENERS

SIZE UNITS

Non Critical

Fasteners

into

Aluminum

Lubricated Dry Lubricated Dry Lubricated Dry Lubricated Dry

M4 Nm (in-lb) – – – – – – 3.83 (34) 5.11 (45) 2.0 (18)

M5 Nm (in-lb) 1.80 (16) 2.40 (21) 4.63 (41) 6.18 (54) 6.63 (59) 8.84 (78) 7.75 (68) 10.3 (910 4.0 (35)

M6 Nm (in-lb) 3.05 (27) 4.07 (36) 7.87 (69) 10.5 (93) 11.3 (102) 15.0 (133) 13.2 (117) 17.6 (156) 6.8 (60)

M8 Nm (in-lb) 7.41 (65) 9.98 (88) 19.1 (69) 25.5 (226) 27.3 (241) 36.5 (323) 32.0 (283) 42.6 (377) 17.0 (150)

M10 Nm (ft-lb) 14.7 (11) 19.6 (14) 37.8 (29) 50.5 (37) 54.1 (40) 72.2 (53) 63.3 (46) 84.4 (62) 33.9 (25)

M12 Nm (ft-lb) 25.6 (19) 34.1 (25) 66.0 (48) 88.0 (65) 94.5 (70) 125 (92) 110 (81) 147 (108) 61.0 (45)

M14 Nm (ft-lb) 40.8 (30) 54.3 (40) 105 (77) 140 (103) 150 (110) 200 (147) 175 (129) 234 (172) 94.9 (70)

4.6 8.8 10.9 12.9

7 FIXED HEAD REEL ADJUSTMENTS

7.1 GENERAL________________________________________________________________

1. Adjustments and maintenance should always be performed by a qualified technician. If proper adjustment cannot be made, contact an authorized Jacobsen Dealer.

2. Replace, do not adjust, worn or damaged components.

3. Long hair, jewelry or loose fitting clothing may get tangled in moving parts.

4. Do not change speed limit settings or overspeed the drive motors.

7.2 REEL TO BEDKNIFE _______________________________________________________

(Pre-adjustment Check)

1. Check the reel bearings for end play or radial play. If there is any abnormal movement of the reel, up and down or side to side, adjust or replace components

as needed.

2. Inspect the reel blades and bedknife to insure good sharp edges without bends or nicks.

a. The cutting edges of the reel blades and bed-

knife must be sharp, free of burrs and show no signs of rounding off.

b. The bedknife and bedknife backing must be

securely tightened. The bedknife must be straight and sharp.

c. A flat surface of at least 1/32 in. (0.8 mm)

minimum must be maintained on the front face of the bedknife. Use a standard flat file to dress the bedknife.

3. If wear or damage is beyond the point where the reel or bedknife can be corrected by the lapping process, they must be reground.

4. Proper reel-to-bedknife adjustment is critical. A gap of 0.001 to 0.003” (0.025 to 0.076 mm) must be maintained across the entire length of the reel and bedknife.

5. The reel must be parallel to the bedknife. An improperly adjusted reel will lose its sharp edges prematurely and may result in serious damage to the reel and bedknife.

6. Grass conditions will also affect the adjustment.

a. Dry, sparse conditions will require a wider gap to

prevent heat buildup and damage to the reel and bedknife.

b. High quality grass with a good moisture content

requires a closer gap (near zero).

Figure 7A

WARNING

Before you adjust, clean, or repair this equipment, always disengage all drives, engage parking brake, turn power off and disconnect power connector to prevent serious injury.

CAUTION

Be careful to prevent entrapment of the hands and fingers between moving and fixed components of the machine.

CAUTION

Handle the reel with extreme care to prevent personal injury and damage to the cutting edges.

1/32” (0.8 mm)

FIXED HEAD REEL ADJUSTMENTS 7

7.3 BEDKNIFE ADJUSTMENT ___________________________________________________

1. Adjuster (A) is used to increase or decrease the

spring load on the bedknife. Adjuster (B) is used to move the bedknife to the reel or away from the reel.

2. Once the spring is totally collapsed as a result of

many adjustments, the bedknife cannot be moved. Back-off adjuster (A) before adjusting (B).

3. For most applications, compress the spring to 1 in.,

(25 mm).

4. Start adjustment at the leading edge of the reel,

followed by the trailing end. The leading end of the

reel blade is the end that passes over the bedknife first during normal rotation.

5. Turn adjuster (B) clockwise to bring the bedknife

closer to the reel or counterclockwise to back the bedknife away from the reel.

a. Slide a feeler gauge or shim stock 0.001 - 0.003

in., (0.025 - 0.075 mm) between the reel blade and the bedknife. Do not turn the reel.

b. Adjust the trailing end of the reel in the same

manner, then recheck the adjustment at the leading end.

c. When the reel and bedknife are properly

adjusted, the reel will spin freely and will cut a piece of newspaper along the full length of the reel when the paper is held at 90° to the bedknife.

Figure 7B

Figure 7C

7.4 CUTTING HEIGHT _________________________________________________________

Note: Make sure the bedknife is properly adjusted before

setting the cutting height. (See Section 7.3)

1. Push kickstand down and tip mower back on it’s

handle.

2. Loosen nuts (D) on both sides just enough to allow

knob (C) to raise the front roller. Raise both sides an equal amount.

3. Set gauge screw (G) to the desired cutting height

(F). Measure from the gauge bar (E) to the underside of the screw head (G) then tighten wing nut to lock the adjustment.

4. Place gauge bar between front roller and traction

roller, near the outer end of the rollers.

5. Slide screw head over bedknife (H) and adjust knob

6. Repeat Steps 4 and 5 on the opposite end of the

reel then tighten nuts (D). Recheck and readjust the cutting height if necessary.

Figure 7D

CAUTION

Handle the reel with extreme care to prevent personal injury and damage to the cutting edges.

Rotation

Leading Edge

NOTICE

Gen-Set Power Modules: Do not leave the mower

tipped back for an extended length of time or oil may migrate into the combustion chamber.

8 FLOATING HEAD REEL ADJUSTMENTS

8.1 GENERAL________________________________________________________________

1. Adjustments and maintenance should always be performed by a qualified technician. If proper adjustment cannot be made, contact an authorized Jacobsen Dealer.

2. Replace, do not adjust, worn or damaged components.

3. Long hair, jewelry or loose fitting clothing may get tangled in moving parts.

4. Do not change speed limit settings or overspeed the drive motors.

8.2 BEDKNIFE-TO-REEL _______________________________________________________

(Pre-adjustment Check)

1. Check the reel bearings for end play or radial play. There should be no end play or radial play. See Section

8.5.

2. Inspect the reel blades and bedknife to insure good sharp edges without bends or nicks.

a. The leading edge of the reel blades must be sharp,

free of burrs and show no signs of rounding off.

b. The bedknife and bedknife backing must be

securely tightened. The bedknife must be straight and sharp.

c. A flat surface of at least 1/32 in. (0.8 mm) minimum

must be maintained on the front face of the bedknife. Use a standard flat file to dress the bedknife.

3. If wear or damage is beyond the point where the reel or bedknife can be corrected by the lapping process, they must be reground.

4. Proper reel-to-bedknife adjustment is critical. A gap of

0.001 to 0.003” (0.025 to 0.076 mm) must be maintained across the entire length of the reel and bedknife.

5. The reel must be parallel to the bedknife. An improperly adjusted reel will lose its sharp edges prematurely and may result in serious damage to the reel and bedknife.

6. Grass conditions will also affect the adjustment.

a. Dry, sparse conditions will require a wider gap to

prevent heat buildup and damage to the reel and bedknife.

b. High quality grass with a good moisture content

requires a closer gap (near zero).

Figure 8A

Figure 8B

WARNING

Before you adjust, clean, or repair this equipment, always disengage all drives, engage parking brake, turn power off and disconnect power connector to prevent serious injury.

CAUTION

Be careful to prevent entrapment of the hands and fingers between moving and fixed components of the machine.

CAUTION

To prevent personal injury and damage to the cutting

edges, wear gloves and handle the reel and bedknife

with extreme care.

1/32” (0.8 mm)

Leading Edge

LF025

FLOATING HEAD REEL ADJUSTMENTS 8

8.3 BEDKNIFE ADJUSTMENT ___________________________________________________

1. Read Section 8.2 before making the adjustment.

2. Start adjustment at the leading end of the reel,

followed by the trailing end. The leading end of the

reel blades is that end which passes over the bedknife first during normal reel rotation.

3. Additional access to bedknife adjusting hardware (B

and C) can be obtained by pressing the limit bracket (A) away from the reel as the mower is tipped back

onto it’s handle. This allows the back side of the reel to pivot down and away from the frame.

4. Use adjusters (B and C), to adjust gap. Loosen

bottom adjuster (C) and turn top adjuster (B) down (Clockwise) to close gap.

a. Slide a feeler gauge or shim stock 0.001” -

0.003” (0.025 - 0.075 mm) between the reel blade and the bedknife. Do not turn the reel.

b. Adjust the trailing end of the reel to the same

gap in a similar manner then recheck the adjustment at the leading end.

c. When the reel is properly adjusted to the

bedknife, the reel will spin freely and you should be able to cut a piece of newspaper, along the full length of the reel, when the paper is held at

90° to the bedknife.

4. Return mower to upright position. Limit bracket (A)

is spring loaded and should latch into bracket on reel.

Figure 8C

Figure 8D

NOTICE

Gen-Set Power Modules: Do not leave the mower

tipped back for an extended length of time or oil may migrate into the combustion chamber.

NOTICE

Avoid excessive tightening or serious damage may result to bedknife and reel blades. Reels must turn freely.

GKV-1

8 FLOATING HEAD REEL ADJUSTMENTS

8.4 CUTTING HEIGHT _________________________________________________________

Note: Always make the reel to bedknife adjustment

before adjusting height of cut. (Sections 8.2 and 8.3).

1. Push kickstand down and tip mower back on it’s handle.

1. Set desired cutting height on the gauge (E).

a. Measure distance between the underside of

screw head and gauge block surface (F).

b. Adjust screw (H) to obtain desired height then

tighten the wing nut.

2. Loosen the nuts on the front roller brackets (G) just enough to allow the adjuster knob (K) to raise or lower the front roller.

3. Place gauge (E) across bottom of front and rear rollers near one end of roller.

4. Slide the head of gauge screw (H) over the bedknife (L) and adjust the knob (K) to close the gap between the screw head and bedknife. Then tighten locknut (G).

5. Repeat Steps 4 and 5 on opposite end. Complete adjustment to one end before adjusting opposite end.

6. Tighten nuts (G) and recheck each end.

Figure 8E

8.5 REEL BEARING ___________________________________________________________

Any end play or radial play indicates bad bearings, a weak tension spring or a backed off nut.

1. Check bearing housing mounting hardware. Tighten or replace components as required. Carefully clean threads with degreaser.

2. Apply a medium strength grade of Loctite to nut (P), then thread nut onto the reel shaft until the nut is 1-27/32” (46 mm) from the end of the reel shaft.

3. Fill reel bearing housings with NLGI - Grade O grease after adjusting spring.

Figure 8F

8.6 REEL ASSEMBLY REMOVAL________________________________________________

The reel assembly can be removed for maintenance or to use a different reel.

1. Remove hairpin and washer and slide the lift hangers off the pins.

2. Disconnect motor electrical connectors and reel ground wire.

3. Remove hairpin and flat washer and lift panhard rod off of reel bolt.

4. Tip the unit back onto the handle and slide the reel away from the mower.

NOTICE

Gen-Set Power Modules: Do not leave the mower

tipped back for an extended length of time or oil may migrate into the combustion chamber.

1-3/4”

(45 mm)

NOTICE

Gen-Set Power Modules: Do not leave the mower

tipped back for an extended length of time or oil may migrate into the combustion chamber.

BATTERY POWER MODULE 9

9 BATTERY POWER MODULE

9.1 SAFETY__________________________________________________________________

Batteries contain dilute sulfuric acid which can result in severe burns.

Hydrogen gas is formed within a battery during the charging cycle. Hydrogen in concentrations of 4% and higher are explosive and can be ignited by open flame or an electrical spark. A battery explosion will cause sulfuric acid and battery components to be thrown over a large area with considerable force.

Always observe the following warnings when working on or near batteries:

9.2 GENERAL ________________________________________________________________

The batteries used it this mower are sealed lead acid (SLA) maintenance free type.

Temperature is important when conducting tests on a battery and test results must be corrected to compensate for temperature differences.

As a battery ages, it still performs adequately except that its capacity is diminished. Capacity describes the time that a battery can continue to provide its design amperes from a full charge.

A new battery must mature before it will develop its maximum capacity. A battery has a maximum life, therefore good maintenance is designed to maximize the available life and reduce the factors that can reduce the life of the battery.

WARNING

The electrolyte in a storage battery is a dilute acid which can cause severe burns to the skin and eyes. Treat all electrolyte spills to the body and eyes with extended flushing with clear water. Contact a

physician immediately. Always wear a safety shield or approved safety goggles when charging batteries.

Hydrogen is explosive in concentrations as low as 4% and is generated in the charging cycle of electric mowers. Because it is lighter than air, it will collect in the ceiling of buildings necessitating proper ventilation. Air exchanges of 5 changes per hour is considered the minimum requirement.

Never smoke around batteries.

Never charge batteries in an area that has open flame or electrical equipment that could cause an electrical arc.

Be sure that the key switch is off, all electrical accessories are turned off and power connector is disconnected before starting work on vehicle.

Remove all jewelry (watches, ring etc.)

TR016

WARNING

Wrap wrenches with vinyl tape to prevent the possibility of a dropped wrench from ‘shorting out’ a battery, which could result in an explosion and severe personal injury.

Electrolyte spills should be neutralized

with a solution of 1/4 cup (59.1ml) of sodium bicarbonate (baking soda) dissolved in 1-1/2 gallons (5.7 liters) of water and flushed with water.

Never disconnect a circuit under load at a battery terminal.

Wear appropriate protective clothing when working with batteries. Electrolyte can cause severe burns to the eyes, skin and clothing.

Full battery packs weigh approximately 55 lbs. Use proper lifting techniques when moving them.

Batteries, battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash your hands

after handling

TR017

9 BATTERY POWER MODULE

9.3 MAINTENANCE ___________________________________________________________

Tool List

Insulated wrench, 3/8” Insulated wrench, 11/32” Standard Screwdriver

Before charging batteries

Inspect the connector housings of the battery charger and battery pack for dirt or debris. It is suggested to apply white lithium grease to both terminals to prevent corrosion.

Charge the batteries daily after use.

9.4 CLEANING BATTERIES ____________________________________________________

When cleaning the batteries, do not use a water hose without first spraying with a solution of sodium bicarbonate (baking soda) and water to neutralize any acid deposits.

Use of a water hose without first neutralizing any acid, will move acid from the top of the batteries to another area of the mower or storage facility where it will attack the metal structure or the concrete/asphalt floor. After hosing down the batteries, a residue will be left on the batteries which is conductive and will contribute to the discharge of the batteries.

The correct cleaning technique is to spray the top and sides of the batteries with a solution of sodium bicarbonate (baking soda) and water. This solution is best applied with a garden type sprayer equipped with a non metallic spray wand. The solution should consist of 1/4 cup (59.1 ml) of sodium bicarbonate (baking soda) mixed with 1-1/2 gallons (5.7 l) of clear water. In addition to the batteries, special attention should be paid to metallic components adjacent to the batteries which should also be sprayed with the sodium bicarbonate (baking soda) solution.

Allow the solution to sit for at least three minutes; use a soft bristle brush or cloth to wipe the tops of the batteries in order to remove any residue that could cause the self discharge of the battery. Rinse the entire area with low pressure clear water. Cleaning should take place yearly or more often under extreme conditions.

Figure 9A

1-1/2 GALLONS CLEAR WATER

1/4 CUP SODIUM

BICARBONATE

(BAKING SODA)

2 GAL. GARDEN SPRAYER

(1 1/2 GAL. OF WATER)

NON-METAL

WAND

TR008

BATTERY POWER MODULE 9

9.5 BATTERY CHARGER_______________________________________________________

The battery charger is designed to fully charge the battery pack. Read the instruction manual included with the charger for proper operating procedure.

Before charging, the following should be observed:

The charging must take place in an area that is well ventilated and capable of removing the hydrogen gas that is generated by the charging process. A minimum of five air exchanges per hour is recommended.

The charging connector components are in good condition and free from dirt or debris. It is suggested to apply white lithium grease to both terminals to prevent corrosion.

The charger connector is fully inserted into the battery pack receptacle.

The charger connector/cord set is protected from damage and is located in an area to prevent injury that may result from personnel running over or tripping over the cord set.

Install all chargers in accordance with the manufacturers instructions.

If the charger is operated in an outdoor location, rain and sun protection must be provided.

Remove AC power cord from outlet before connecting or disconnecting battery charger to battery pack.

The charging (DC) cord is equipped with a polarized connector which fits into a matching receptacle on the battery pack.

If the charger is not operating correctly, unplug charger from both the AC outlet and the battery pack and check the fuse. If a new fuse is required, order part number 4102780 from your Jacobsen Dealer. There is one spare fuse included in the fuse holder.

AC Voltage

The charger is equipped with an input voltage selector switch located on the rear of the charger. Determine what input voltage is used in your area and set switch accordingly before connecting AC power cord. This charger can be used with the following AC input voltages:

100 - 130 V (Set voltage selector to 115 V (Position 1)) 200 - 240 V (Set voltage selector to 230 V (Position 2))

NOTE: Charger will operate with either a 50 or 60 Hz input voltage.

Make certain the AC power cord is equipped with an appropriate plug for the area you live in. The charger is equipped with a grounding plug, do not attempt to defeat its functionality.

Note: The AC power cord included with the battery charger is used with 115 V - 60 Hz (North America) input voltage only. If you live in an area where 115 V - 60 Hz input voltage is not used, a new AC power cord must be purchased locally.

The battery charger should fully charge the battery pack in approximately 5 hours with 115V AC input voltage. Battery charging times may exceed 8 hours in areas where 100V AC input voltage is used.

WARNING

Portable chargers should be mounted on a platform above the ground, or in such a manner as to permit the maximum air flow underneath and around the charger. Serious damage to the charger, overheating and potential for fire may result if the charger does not have sufficient air flow.

WARNING

An ungrounded electrical device may become a physical hazard that could result in an electrical shock or electrocution

WAR

NING - For continued protection

against fire, replace only with same size and type fuse.

INTERACTER INCORPORA

TED

MODEL: BATCH: SERIAL NO: INPUT:

1. Connect and di

sconnect battery leads only when

supply cord is disconnected or arcing and burning may result.

2. BATTERY LEAD CONNECTION

S - For a batter

installed in a

vehicle, first connect charger output

lead to ungrounded batter

y post - not connected to

automobile chassis - in accordance with polar

ity

indication, and

then opposite

polarity lead to

chassis away from battery; do not connect to carburetor or fuel lines. Disconnect chassis lead first. F

or batter

y not installed

in a vehicle, refer to

instruction man

ual.

3. Do not over-charge battery - see instruction manual

4. Do not smoke, strike a match, or cause a spark in vicinity of battery during charging.

5. Use only in a well ventilated area. This equipment employs parts, such as switches and relays

, that tend to produce arcs and spar

ks and

therefore

, if used in a garage, locate in a room or

enclosure provided for the pur

pose or not less than 18

inches from the floor.

CAUTION

- DO NOT EXPOSE TO RAIN:

replace defectiv

e cords or wires immediately.

CAUTION: NE PAS EXP

OSER A LA PLUIE.

ADVERTISSEMENT: RISQUE DE MELANGE GAZEAUX EXPLOSIF.

LIRE LA NOTICE A

VANT D'UTILISER LE

CHARGEUR.

WARNING - RISK OF EXPLOSIVE GAS MIXTURE

115V

230V

Input Voltage Selector

Position

Spare Fuse

Fuse Holder

Fuse

9 BATTERY POWER MODULE

9.6 BATTERY INSTALLATION __________________________________________________

If the batteries have been cleaned and any acid in the battery tray area neutralized, no corrosion to the surrounding area should be present. Any corrosion found should be immediately removed with a putty knife and a wire brush. The area should be washed with a solution of sodium bicarbonate (baking soda) and water and thoroughly dried before priming and painting with a corrosion resistant paint.

The batteries should be placed into the battery tray as shown in Figure 9B. Using batteries with the correct physical size will prevent movement, but will not be tight enough to cause distortion of the battery case.

Inspect all wires and terminals. Clean any corrosion from the battery terminals or the wire terminals with a solution of sodium bicarbonate (baking soda) and brush clean if required.

Use care to connect the battery wires as shown in Figure 9C and tighten the battery post hardware securely. Protect the battery terminals and battery wire terminals with a commercially available protective coating.

Battery Pack Assembly:

1. Install batteries into battery tray.

2. Fasten fuse cable assembly (D) to battery pack with

screws, lockwashers, and nuts.

3. Fasten two cable jumper wires (E) into their

respective positions.

4. Thread the main cable (F) through the hole in the side of the battery case lid (G).

5. Attach the main cable (F) to the batteries, and battery monitor (M).

NOTE: There will be an Orange/Green wire with insulated 1/4” terminal that is not used on the Eclipse mowers. Seal end of the wire to prevent short-circuits.

6. Assemble the two halves of the battery case (G) and (H), with screws (J), flat washers (K), and battery casing straps (L).

Refer to Section 2.5 for battery specifications.

Figure 9B

Figure 9C

Figure 9D

WARNING

Aerosol containers of battery terminal protectant must be used with extreme care. Insulate the metal container to prevent the metal can from contacting battery terminals which could result in an explosion.

PN KEY

RD Wire

BK Wire

Og/Gn Wire

BATTERY POWER MODULE 9

9.7 REPLACING BATTERY PACK________________________________________________

The battery pack (A) is designed to be easily lifted out and replaced. This allows the mower to quickly return to service should the batteries become discharged or fail. Additional battery packs are available as an accessory. See Section 2.7

To remove battery tray:

1. Park tractor on a solid, level area.

2. Set parking brake and remove key from switch.

3. Disconnect battery connector (B), place mower on

kickstand.

4. Push and hold battery release latch (C) down and

lift battery pack (A) away from mower.

5. Reverse procedure to install pack. Be sure pack is

completely seated on frame and secure.

Figure 9E

CAUTION

To prevent injury or property damage, place mower on kick stand before removing battery pack.

Full battery packs weigh approximately 55 lbs. Use proper lifting techniques when moving them.

10 GEN-SET POWER MODULE

10.1 ENGINE _________________________________________________________________

IMPORTANT: A separate Engine Manual, prepared by the engine manufacturer, is supplied with the power module. Read the engine manual carefully until you are familiar with the operation and maintenance of the engine. Proper attention to the engine manufacturer’s directions will assure maximum service life of the engine. To order replacement engine manuals contact the engine manufacturer.

The proper break-in of a new engine can make a considerable difference to the performance and life of the engine.

During the break-in period, Jacobsen recommends the following:

1. Operate machine modestly for the first 25 hours.

2. Allow the engine to reach operating temperature before operating at full load.

3. Change the engine oil after the first 20 hours of operation.

4. Refer to Section 13.2 and Engine Manual for specific maintenance intervals.

10.2 ENGINE OIL ______________________________________________________________

Check the engine oil at the start of each day, before starting the engine. If the oil level is low, remove oil filler cap and add oil as required.

Perform initial oil change after the first 20 hours of operation. Change oil every 100 hours thereafter.

See the engine manufacturer’s Owners’s Manual for detailed service information.

After adding or changing oil, start and run engine at idle with all drives disengaged for 30 seconds. Shut engine off. Wait 30 seconds and check oil level. Add oil to bring up to FULL mark on dipstick.

Use only SAE 10W30 engine oils with API classification SG.SF/CC.CD

Figure 10A

NOTICE

The mower is designed to operate and cut most efficiently at the preset governor setting. Do not change the engine governor settings or overspeed the engine.

Upper Oil Level

Oil Filler Cap

GEN-SET POWER MODULE 10

10.3 ENGINE SPEED ___________________________________________________________

The engine speed is set at the factory for proper generator output. However, engine speed should be checked periodically, and adjusted to 59 volts. An output voltage greater than 60 volts will cause an alarm to sound and may cause system damage. Controller will shut down after 60 seconds if the over voltage condition is not corrected.

Adjustment should be made with the engine at operating temperature using a volt meter.

1. Stop the engine and disconnect the generator power

connector.

2. Remove the throttle lever cover.

3. Start the engine and adjust the engine throttle

position until an output voltage of 59 volts is achieved at generator power connector.

4. Stop the engine and install throttle lever cover.

5. Connect generator power connector.

10.4 FUEL ____________________________________________________________________

Handle fuel with care - it is highly flammable. Use an

approved container, the spout must fit inside the fuel filler neck. Avoid using cans and funnels to transfer fuel.

• Store fuel according to local, state or federal ordinances and recommendations from your fuel supplier.

• Never overfill or allow the tank to become empty.

• Use clean, fresh, regular grade, unleaded gasoline minimum 86 Octane.

• See engine manual before using oxygenated (blended) fuel.

• Do not fill above the fuel filler neck.

WARNING

Never remove the fuel cap from the fuel tank, or add fuel, when the engine is running or while the engine is hot.

Do not smoke when handling fuel. Never fill or drain the fuel tank indoors.

Do not spill fuel and clean spilled fuel immediately.

Never handle or store fuel containers near an open flame or any device that may create sparks and ignite the fuel or fuel vapors.

Be sure to reinstall and tighten fuel cap securely.

11 MAINTENANCE

11.1 GENERAL________________________________________________________________

1. Adjustment and maintenance should always be performed by a qualified technician. If proper adjustments cannot be made, contact an Authorized Jacobsen Dealer.

2. Inspect the equipment on a regular basis, establish a maintenance schedule and keep detailed records.

a. Keep the equipment clean.

b. Keep all moving parts properly adjusted and lubri-

cated.

c. Replace worn or damaged parts before operating

the machine.

d. Keep shields in place and all hardware securely

fastened.

e. Keep tires properly inflated (If installed).

3. Long hair, jewelry or loose fitting clothing may get tangled in moving parts.

4. Use the illustrations in the Parts Catalog as reference for the disassembly and reassembly of components.

5. Recycle or dispose of all hazardous materials (batteries, lubricants, etc.) according to local, state or federal regulations.

6. Do not change speed limit settings or overspeed the drive motors.

11.2 TIRES (OPTION)___________________________________________________________

1. Keep tires properly inflated to prolong tire life. Check pressure only when the tires are cool.

2. Use an accurate, low pressure tire gauge. 6 - 8 psi (41.3-551. kPa)

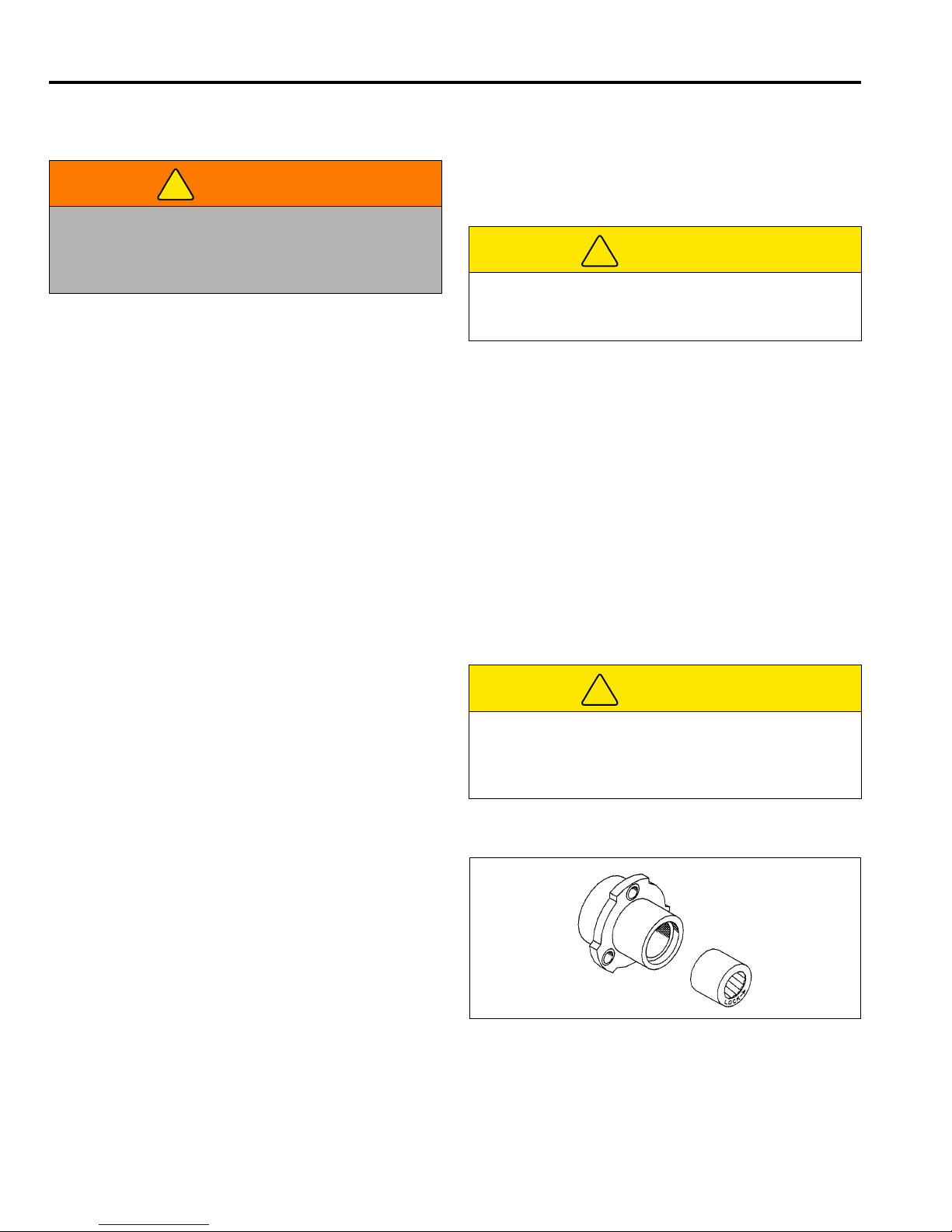

11.3 WHEEL BEARING _________________________________________________________

The bearing has the word LOCK and an arrow stamped on the face. When replacing the bearing, make absolutely certain that the bearing is being installed in the proper direction or rotation.

For the Right wheel, install the bearing with the “LOCKè" arrow to the Outside of the bearing housing.

For the Left wheel, install the bearing with the “LOCKè" arrow to the Inside of the housing.

Figure 11A

WARNING

Before you adjust, clean, or repair this equipment, always disengage all drives, engage parking brake, turn power off and disconnect power connector to prevent serious injury.

CAUTION

Be careful to prevent entrapment of the hands and fingers between moving and fixed components of the machine.

CAUTION

Unless you have the proper training, tools and experience, DO NOT attempt to mount a tire on a rim. Improper mounting can produce an explosion that may result in serious injury.

MAINTENANCE 11

11.4 BACKLAPPING AND GRINDING______________________________________________

Check for damage to the bedknife and reel blades. Refer to (Section 6.2).

1. Determine if backlapping or grinding will restore the

proper cutting edge.

2. For optimum performance use a bedknife grinder to

touch-up the blade then reassemble and adjust the bedknife to the reel as described in (Section 6.2).

3. Start unit in backlap mode.

a. Turn key (D) to start position and release. Press

both orange buttons (G and H) when Jacobsen Version X.XX is on the display (A). Use the orange buttons (G or H) to select and the black button (F) to enter the four digits for the Superintendents mode pin. [Section 4.3]

b. Place reel switch (E) in backlap position.

BACKLAP YES NO screen will display. Select YES to backlap. If NO is selected, TURN BACKLAP SWITCH OFF will be displayed.

c. Engage O.P.C. bail (C) and release. Reel motor

will begin turning, a slow beeping (1 every three seconds) alarm will sound and a five minute timer will start.

d. Adjust reel speed between 10% and 100% using

the orange buttons (G or H).

e. Apply lapping compound with a long handle

brush along the entire length of the reel, (180 grit is recommended, Section 2.7).

f. Continue lapping and at the same time make a

fine adjustment on the reel and bedknife until there is a uniform clearance along the full length of the cutting edges.

g. Exit backlap mode by allowing the five minute

timer to end, placing reel switch (E) in the OFF position, moving the O.P.C. bail (C) or moving the thumb lever (B).

h. Turn key switch (D) to off position.

4. Carefully and thoroughly remove all lapping

compound from reel and bedknife before running the reel in forward direction.

Figure 11B

Figure 11C

JACOBSEN

VERSION X.XX

TURN BACKLAP

SWITCH OFF

BACKLAP 5 MIN

< 50% >

Standard start up screen

Display timer and adjust backlap reel speed

Place Reel Switch in Backlap position. Select yes or no.

Engage Bail and release to start backlapping

Press both orange buttons during start screen. Enter PIN

Exit backlap mode.

ENTER PIN?

XXXX

BACKLAP?

YES NO

ENGAGE BAIL

AND RELEASE

11 MAINTENANCE

11.5 STORAGE________________________________________________________________

General

1. Wash the mower thoroughly and lubricate. Repair and paint damaged or exposed metal.

2. Inspect the mower, tighten all hardware, replace worn or damaged components.

3. Clean the tires thoroughly and store the tractor on the kickstand so the load is off the tires. The front roller should be resting on a wood board.

4. Keep the machine and all its accessories clean, dry and protected from the elements during storage. Never store equipment near an open flame.

5. Wash the reel and bedknife thoroughly, then repair and paint any damaged or exposed metal.

6. Lubricate all fittings and friction points.

7. Backlap the reels then back the reel away from the bedknife. Apply a light coat of rust preventative oil to

the sharpened edges of the reel and bedknife.

Battery Power Module:

During periods of storage, the batteries will need attention to keep them maintained and prevent discharge.

In high temperatures the chemical reaction is faster, while low temperatures cause the chemical reaction to slow down. If a fully charged battery is allowed to sit unused, it will slowly self discharge. When the battery charge level falls to 80% of its full charge, it should be recharged.

If a battery is allowed to fully discharge and is left in a discharged state, sulfation takes place on and within the plates. This condition is not reversible and will cause permanent damage to the battery. In order to prevent damage, the battery should be recharged.

In winter conditions, the battery must be fully charged to prevent the possibility of freezing. A fully charged battery will not freeze in the most severe of winter climates. Although the chemical reaction is slowed in cold temperatures, the battery must be stored fully charged, and disconnected from any circuit that could discharge the battery. Disconnect the charging plug from the mower power connector. The batteries must be cleaned and all deposits neutralized and removed from the battery case

to slow self discharge. The batteries should be tested or recharged at thirty day intervals.

Battery Power Module After Storage

1. Fully charge the batteries.

2. Make certain that the tires are properly inflated.

3. Remove all oil from the reels and bedknife. Adjust bedknife and cutting height.

Gen-Set Power Module:

1. While the engine is warm, remove drain plug, drain the oil from the crankcase. Install drain plug and refill with fresh oil. Torque drain plug to 22 ft. lb. (30 Nm).

2. Clean exterior of engine. Paint the exposed metal or apply a light coat of rust preventative oil.

3. To prevent the build-up of gum residues and vanish films, fill the tank with stabilized fuel. Use an antioxidant fuel conditioner, such STA-BIL®. Read and follow the instructions on the container.

4. Operate the engine for about 5 minutes to distribute the treated fuel. Stop the engine, close the fuel shut-off valve and let the engine cool. Drain fuel.

5. Remove the spark plug and pour about one ounce of SAE 30 oil into the cylinder. Crank engine slowly by hand to distribute oil over the cylinder wall. Replace the spark plug.

6. Pull the starter rope slowly until resistance is felt. Continue pulling until the notch on the starter pulley aligns with the hole on the recoil starter. At this point, the intake and exhaust valves are closed.

Gen-Set Power Module After Storage

1. Check or service the fuel filter and air cleaner.

2. Check oil level in the engine crankcase.

3. Fill the fuel tank with fresh fuel. Open fuel shut off valve.

4. Remove all oil from the cutting edges. Readjust reel-to-bedknife and cutting height.

5. Start the engine and allow enough time for the engine to become properly warmed and lubricated.

CAUTION

To prevent personal injury and damage to the cutting edges, handle the reel with extreme care.

WARNING

Never operate the engine without proper ventilation; exhaust fumes can be fatal if inhaled.

TROUBLESHOOTING 12

12 TROUBLESHOOTING

12.1 GENERAL ________________________________________________________________

The troubleshooting chart below lists basic problems that may occur during start-up and operation. For more detailed information, contact your area Jacobsen Dealer.

Symptoms Possible Causes Action

Unit does not have

1. Power Connector Disconnected 1. Connect Power Connector

power

2. Batteries Discharged 2. Fully charge battery pack

3. Engine not running 3. Start engine before attempting to energize unit

4. 50 Amp fuse blown 4. Open battery tray and check fuse. Replace

5. 20 Amp circuit breaker tripped 5. Reset

6. Defective Battery 6. Perform load test, replace batteries as needed

7. O.P.C. bail engaged 7. Disengage bail and restart

Engine will not start.

1. Choke in wrong position 1. See Engine Manual

2. Empty fuel tank or dirty fuel 2. Drain and refill fuel tank with fresh, clean fuel

3. Fuel Shut-off valve closed 3. Open fuel shut-off valve

4. Engine / Spark Plug 4. See Engine Manual

5. Engine switch off 5. Turn engine switch to On

Engine hard to start or runs poorly, looses power or stalls.

1. Choke in wrong position 1. See Engine Manual

2. Dirty or incorrect fuel 2. Refill with proper grade, clean fuel

3. Loose Wiring 3. Check spark plug wire

4. Air intake plugged 4. Clean air intake and air cleaner

5. Vent in fuel cap plugged 5. Clean fuel cap

Mower does not react properly to O.P.C. Lever

1. Power switch not on 1. Follow proper start-up procedure

2. Parking brake engaged 2. Disengage parking brake

3. Reel switch in off position 3. Turn reel switch on

4. Broken Belt 4. Check and replace belts as needed

5. Bail lever not properly calibrated 5. Calibrate bail lever

6. Traction motor fault 6. Check LCD display, service traction motor

Reel does not cut, or cuts unevenly

1. Reel to bedknife not adjusted 1. Adjust Reel to Bedknife

2. Reel switch in off position 2. Turn reel switch on

3. Reel motor fault 3. Check LCD display, service reel motor

4. Low battery charge 4. Fully charge battery pack

5. Over Voltage condition 5. Adjust generator output

13 MAINTENANCE & LUBRICATION CHARTS

13.1 GENERAL________________________________________________________________

The mower was designed for minimum lubrication. Over greasing will produce high loads on the bearings; thereby reducing the performance of the machine. Over greasing reel bearings may also damage the electric motor; voiding the warranty.

All maintenance intervals must be performed more frequently when operating in extremely dusty conditions.

1. Always clean grease fittings before and after lubrication.

2. Lubricate with grease that meets or exceeds NLGI Grade 2 LB specifications. Apply grease with a manual grease gun and fill slowly until grease begins to seep out. Do not use compressed air.

3. For smooth operation of pivot points and other friction points, apply several drops of SAE 30 oil every 50 hours or as required.

4. Do not over grease reel bearing (L2). Damage to the motor may result. This damage is not covered under the warranty.

5. To lubricate point (L4), remove L.H. transport wheel and mounting bracket (E) to gain access to fitting. Turn the traction drum if pulley (F) is blocking the fitting then insert grease gun through hole and carefully apply grease.

6. To lubricate points (L7), remove transport wheel, nut (A) from end of shaft and pull wheel hub (D) off. Remove collar (B) and bushing (C) then pack bearing with lithium grease.

13.2 MAINTENANCE CHART ____________________________________________________

A - Adjust C - Clean I - Inspect L- Lubricate R - Replace AR - As Required

* Indicates initial service for new machines.

I Manual grease gun with NLGI Grade 2 (Service Class LB). II Engine Oil - See 10.2

l Battery Power Module t Gen-Set Power Module

WARNING

Before you clean, adjust, or repair this equipment, disengage all drives, engage parking brake, turn power off and disconnect power connector to prevent injuries.

Recommended Service and Lubrication Intervals

Every

3-4

Hours

Every

Hours

Every

Hours

Every

100

Hours

Every

250

Hours

Yearly Lubricant

Type

l Charge Batteries

AR I C

Belt Tension

I-A

Air Cleaner

t Combustion Chamber

t Engine Oil

IR* R II

t Fuel Line

R - 2yrs

t Fuel Strainer

t Spark Plug

A/R

t Valve Clearance

Grease Locations

L1 - L5

LLI

L6-L7

L I

MAINTENANCE & LUBRICATION CHARTS 13

13.3 LUBRICATION CHART______________________________________________________

●

L1 - Reel Roller Bearing L

2 - Reel Motor Bearing Housing

3 - Right Side Traction Drum Bearing Housing

4 - Left Side Traction Drum Bearing Housing

5 - Reel Bearing Housing

6 - Pulley Shaft Bearing

7 - Hub

Wheel Hub Assembly

Pulley Shaft Assembly

14 NOTES

PARTS CATALOG 15

15 PARTS CATALOG

15.1 HOW TO USE THE PARTS CATALOG _________________________________________

Abbreviations

N/S - Not serviced separately, can only be

obtained by ordering main component or kit.

AR -Variable quantity or measurement is required

to obtain correct adjustment.

Symbols such as l, next to the item number, indicate that a note exists which contain additional information important in ordering that part.

Indented Items

Indented items indicate component parts that are included as part of an assembly or another component. These parts can be ordered separately or as part of the main component.

15.2 TO ORDER PARTS_________________________________________________________

1. Write your full name and complete address on the

order.

2. Explain where and how to make shipment.

3. Give product number, name and serial number that is stamped on the name plate or serial plate of your product.

4. Order by the quantity desired, the part number, and description of the part as given in the parts list.

5. Send or bring the order to an authorized Jacobsen Distributor.

6. Inspect all shipments on receipt. If any parts are damaged or missing, file a claim with the carrier before accepting.

7. Do not return material without a letter of explanation, listing the parts being returned. Transportation charges must be prepaid.

Use of other than Jacobsen authorized parts will void the warranty.

Item Part No. Qty Description Serial Numbers/Notes

l 1 123456 1 Mount, Valve Indicates a piece part

2 789012 1 Valve, Lift Includes Items 2 and 3 3 345678 1 • Handle Serviced part included with Item 2 4 N/S 1 • Seal Kit Non serviced part included with Item 2 5 901234 1 Screw, 1/4-20 x 2” Hex Head

vrátane práv na reprodukovanie tohto materiálu alebo jeho

casti v akejkolvek podobe.“

Tento návod obsahuje bezpecnostné pokyny a pokyny pre prevádzkovanie, nastavovanie, údržbu a riešenie známych problémov a dalej zoznam dielov vášho nového stroja od spolocnosti Jacobsen. Skladujte tento návod spolu so zariadením, aby bol po ruke pocas jeho používania.

Vy a každý operátor, ktorého zamestnávate, ste povinní si pred používaním tohto stroja pozorne precítat celý tento návod. Dodržiavaním bezpecnostných, prevádzkových a údržbárskych pokynov predlžite životnost zariadenia a zachováte jeho maximálnu úcinnost.

Ak potrebujete dalšie informácie, kontaktujte predajcu zariadení znacky Jacobsen.

Štítok s výrobným císlom sa nachádza na zadnej priecke rámu. Spolocnost Jacobsen vám odporúca, aby ste si tieto císla zaznacili do nasledujúceho obrázka pre prípad potreby.

CHARLOTTE, NC

YEAR OF PRODUCTION:

MADE IN U.S.A.

A Textron Company

Upozornenie na základe Výnosu c. 65

Tento produkt obsahuje alebo vypúšta chemikálie, ktoré podla štátu Kalifornia spôsobujú rakovinu a poruchy plodu alebo iné zdravotné problémy spojené s reprodukciou.

ÚVOD

Sprievodca odporúcaným skladovaním

Na zachovanie úplnej prevádzkyschopnosti a produktivity tohto zariadenia, spolocnost Jacobsen vám odporúca, aby ste mali v zásobe castejšie používané náhradné diely a pracovné pomôcky. Priložili sme císla dielov dalšieho pomocného materiálu a školiacich pomôcok.

Ako si objednat tento materiál:

1. Napíšte celé svoje meno a adresu do objednávkového formulára.

2. Vysvetlite, kde a ako vám máme poslat tieto materiály:

T UPS T Bežná pošta T Cez noc T Nasledujúci den

3. Na objednávke uvedte požadované množstvo, císlo dielu a popis dielu podla zoznamu dielov.

4. Pošlite alebo prineste objednávku autorizovanému predajcovi výrobkov znacky Jacobsen.

VYTLAČENÉ V USA 11-2007

Servisné diely

Podporný servisný materiál

Množstvo Číslo dielu Popis Množstvo Číslo dielu Popis

4102780 50 A poistka 2811106 Remen z motora do kladky 4169341 25 A prerušovac 2811070 Remen z kladky do trakcného bubna 4131618 Klúc zapalovania

Množstvo Číslo dielu Popis

4170162 Technická prírucka 4166960 Školiace video pre obsluhu

Množstvo Popis

Servisný návod

> Zmena oproti predchádzajúcej verzii

Obsah

1BEZPEČNOSŤ

1.1 Prevádzková bezpečnost’ ................................ 4

1.2 Dôležité bezpečnostné poznámky .................... 5

2 TECHNICKÉ ÚDAJE

2.1 Identifikácia produktu ....................................... 6

2.2 Kosačka ............................................................ 6

2.3 trakčný systém a diferenciál ............................. 7

2.4 Hmotnost’ ......................................................... 7

2.5 Batériový napájací modul ................................. 7

2.6 Benzínového napájacieho modulu ................... 8

2.7 Príslušenstvo a podporná literatúra .................. 8

3 ŠTÍTKY NA VÝROBKU

3.1 Štítky na výrobku.............................................. 9

4 OVLÁDACIE PRVKY

4.1 Ikony............................................................... 12

4.2 Ovládacie prvky na rukoväti ........................... 12

4.3 LCD displej ..................................................... 13

4.4 Intenzita sekania ............................................ 16

4.5 Ovládacie prvky benzínového

napájacieho modulu ....................................... 19

4.6 Ovládacie prvky batériového

napájacieho modulu ....................................... 19

5 OBSLUHA

5.1 Každodenná kontrola ..................................... 20

5.2 Spriahací systém (SMPO) .............................. 20

5.3 Pracovné postupy ........................................... 21

5.4 naštartovanie/zastavenie ................................ 22

5.5 Kosenie .......................................................... 23

5.6 Premiestňovacie kolesá (doplnkové) .............. 24

5.7 Zachytávač trávy ............................................ 24

5.8 Každodenná údržba ....................................... 25

6 NASTAVENIA (VŠETKY JEDNOTKY)

6.1 Všeobecné informácie.................................... 26

6.2 Brzda .............................................................. 26

6.3 Zarážky páčky ovládania rýchlosti .................. 26

6.4 Rukovät’ ......................................................... 27

6.5 Trakčné remene ............................................. 27

6.6 Zat’aženie predného valca ............................. 28

6.7 Hodnoty ut’ahovacieho momentu ................... 29

7 NASTAVENIE NEPOHYBLIVEJ

SEKACEJ HLAVY

7.1 Všeobecné informácie.................................... 30

7.2 Vzdialenost’ sekacej hlavy od noža ................ 30

7.3 Nastavenie noža ............................................. 31

7.4 Výška kosenia ................................................ 31

8 NASTAVENIE PLÁVAJÚCEJ

SEKACEJ HLAVY

8.1 Všeobecné informácie.................................... 32

8.2 Vzdialenost’ noža od sekacej hlavy ............... 32

8.3 Nastavenie noža ............................................ 33

8.4 Výška kosenia ................................................ 34

8.5 Ložisko sekacej hlavy .................................... 34

8.6 Odmontovanie zostavy sekacej hlavy ............ 34

9 BATÉRIOVÝ NAPÁJACÍ MODUL

9.1 Bezpečnost’.................................................... 35

9.2 Všeobecné informácie .................................... 35

9.3 Údržba ............................................................ 36

9.4 Čistenie batérií ............................................... 36

9.5 Nabíjačka batérií ............................................ 37

9.6 Inštalácia batérie ............................................ 38

9.7 Výmena batériového modulu ......................... 39

10 BENZÍNOVÉHO NAPÁJACIEHO MODULU

10.1 Motor .............................................................. 40

10.2 Motorový olej .................................................. 40

10.3 Otáčky motora ................................................ 41

10.4 Palivo ............................................................. 41

11 ÚDRŽBA

11.1 Všeobecné informácie.................................... 42

11.2 Kolesá (doplnkové) ........................................ 42

11.3 Kolesové ložisko ............................................ 42

11.4 Lapovanie a brúsenie ..................................... 43

11.5 Skladovanie .................................................... 44

12 RIEŠENIE ZNÁMYCH PROBLÉMOV

12.1 Všeobecné informácie.................................... 45

13 SCHÉMY PRE ÚDRŽBU A MAZANIE

13.1 Všeobecné informácie.................................... 46

13.2 Tabuľka údržbárskych činností ...................... 46

13.3 Tabuľka mazania............................................ 47

14 POZNÁMKY

15 KATALÓG DIELOV

15.1 Ako používat’ katalóg dielov........................... 49

15.2 Postup objednávania dielov ........................... 49

1 BEZPEČNOSŤ

1.1 PREVÁDZKOVÁ BEZPEČNOSŤ ______________________________________________

1. Bezpečnost’ závisí od pripravenosti, záujmu a prezieravosti osôb, ktoré obsluhujú alebo servisujú toto zariadenie. Nikdy nedovoľte neplnoletým osobám, aby používali toto zariadenie.

2. Ste povinný/–á prečítat’ si tento návod a všetky publikácie spojené s týmto zariadením (Návod k motoru, Návod k nabíjačke batérií, doplnkom a príslušenstvu). Ak operátor nehovorí po slovensky, vlastník zodpovedá za vysvetlenie informácií uvedených v tomto návode operátorovi.

3. Pred používaním zariadenia sa naučte, ako správne používat’ stroj, umiestnenie a účel všetkých ovládacích prvkov. Práca s neznámym zariadením môže viest’ k nehodám.

4. Nikdy neumožnite žiadnej osobe, aby obsluhovala alebo servisovala stroj alebo jeho príslušenstvo bez správneho zaškolenia a pokynov; alebo pod vplyvom alkoholu alebo drog.

5. Chráňte si hlavu, oči, uši, roky a nohy potrebným ochranným oblečením a osobnými ochrannými pomôckami. Dlhé vlasy, voľné oblečenie a bižutéria sa môžu zachytit’ do pohyblivých častí. Používajte stroje len pri dennom svetle alebo dobrom umelom osvetlení.

6. Zhodnot’te terén a posúďte, aké príslušenstvo a doplnky sú potrebné na správne a bezpečné vykonávanie úlohy. Používajte len príslušenstvo a doplnky schválené spoločnost’ou Jacobsen.

7. Dávajte pozor na diery v teréne a iné skryté nebezpečenstvá.

8. Skontrolujte plochu, na ktorej sa bude zariadenie používat’. Pred prácou so zariadením pozbierajte všetky väčšie predmety a smeti, ktoré nájdete. Dávajte pozor na prekážky nad hlavou (nízke konáre, elektrické drôty atď.) a tiež prekážky pod zemou (rozprašovače, trubky, korene atď.). Vstupujte do novej oblasti s opatrnost’ou. Myslite stále na skryté nebezpečenstvá.

9. Nepoužívajte zariadenie na vozenie osôb. Udržujte bezpečnú vzdialenost’ od okolostojacich osôb a zvierat.

10. Nikdy nenatáčajte výstup materiálu z kosačky na okolostojace osoby, ani nedovoľte nikomu, aby sa zdržiaval v blízkosti stroja, keď je v činnosti. Vlastník/ operátor môže zabránit’ a je zodpovedný za zranenia, ktoré spôsobí sebe alebo okolostojacim osobám a za škody vzniknuté používaním stroja.

11. Nikdy nepoužívajte zariadenie, ktoré nie je v dokonalom pracovnom stave, bez štítkov, chráničov

, krytov, výstupných deflektorov alebo iných pevne pripevnených ochranných zariadení.

12. Nikdy neodpájajte ani nepremost’ujte žiaden spínač.

13. Udržiavajte stroj v čistote. Pred skladovaním stroja odpojte napájací konektor. Neskladujte zariadenie v blízkosti otvoreného ohňa alebo horľavého nakoseného materiálu.

14. Pred zapínaním zariadenia umiestnite zariadenie na rovný povrch, odpojte všetky pohonné prvky a aktivujte parkovaciu brzdu.

15. Miestne nariadenia môžu stanovovat’ minimálny vek operátora.

16. Na svahoch pracujte so strojom nasmerovaným naprieč svahu (horizontálne), nie smerom hore ani dole kopcom (vertikálne). Nikdy nepoužívajte stroj na mokrej tráve.

17. Vždy pracujte pri rýchlostiach, ktoré vám poskytujú úplnú kontrolu nad strojom. Vždy si zachovajte pevnú pôdu pod nohami; pevne sa držte rukoväte a kráčajte; nikdy nebežte.

Benzínový generátor

18. Oxid uhoľnatý vo výfukových plynoch môžu byt’ smrteľný pri inhalovaní. Nikdy nenechávajte motor zapnutý, ak nie je zabezpečené dostatočné vetranie.

19. Palivo je vysoko horľavé, manipulujte s ním opatrne. Pozri Kapitola 5.8

20. Pred čistením, nastavovaním alebo opravou tohto zariadenia vypnite motor, odpojte vodič zapaľovacej sviečky a umiestnite ho mimo sviečky, aby nedošlo k náhodnému naštartovaniu. Odpojte napájací konektor.

21. Udržiavajte motor v čistote. Pred skladovaním nechajte motor vychladnút’ a vždy zatvorte palivový uzatvárací ventil a odpojte vodič od zapaľovacej sviečky. Neskladujte zariadenie v blízkosti otvoreného ohňa alebo horľavého nakoseného materiálu.

Batériový napájací modul

22. Pred čistením, nastavovaním alebo opravou tohto zariadenia odpojte napájací konektor.

23. Nevyberajte batériový modul, ak zariadenie nie je postavené na stojane.

Toto zariadenie sa musí používat’ a jeho údržba vykonávat’ v súlade s informáciami obsiahnutými v tejto príručke a je určené na profesionálnu údržbu špecializovaných trávnikov. Nie je určené na používanie v drsnom teréne a ani v teréne s dlhou trávou.

VÝSTRAHA

ZARIADENIE MÔŽE BYŤ NEBEZPEČNÉ, AK JE OBSLUHOVANÉ NESPRÁVNE ALEBO NEVYŠKOLENOU

OSOBOU.

Oboznámte sa s umiestnením a správnym používaním všetkých ovládacích prvkov. Predtým, ako je neskúseným

operátorom umožnené používat’ toto zariadenie, musia byt’ zaškolení osobou, ktorá je oboznámená so zariadením.

BEZPEČNOSŤ 1

1.2 DÔLEŽITÉ BEZPEČNOSTNÉ POZNÁMKY ______________________________________

Tento bezpečnostný symbol vás upozorňuje na hroziace nebezpečenstvá.

NEBEZPEČENSTVO

– Označuje bezprostredne hroziace nebezpečné situácie, ktoré – ak sa im nevyhnete –

SPÔSOBIA smrt’ alebo vážne zranenie.

VÝSTRAHA

– Označuje potenciálne nebezpečné situácie, ktoré – ak sa im nevyhnete – MÔŽU zapríčinit’ smrt’

alebo vážne zranenie.

POZOR

– Označuje potenciálne nebezpečné situácie, ktoré – ak sa im nevyhnete – MÔŽU zapríčinit’ menšie alebo

väčšie zranenie a poškodenie majetku. Tiež sa môže použit’ na upozornenie na postupy, ktoré nie sú bezpečné.

UPOZORNENIE

- Upozorňuje na hroziacu nebezpečnú situáciu, ktorej ak sa nezabráni, MÔŽE viest’ k poškodeniu

majetku. Tiež sa môže použit’ na upozornenie na postupy, ktoré nie sú bezpečné.

Pre lepšiu ilustráciu môžu byt’ na niektorých obrázkoch v tejto príručke štíty, chrániče alebo dosky zobrazené v otvorenom alebo odpojenom stave. Toto zariadenie sa za žiadnych okolností nesmie používat’ bez týchto pomôcok pevne upevnených na svojom mieste.

Dodržiavaním všetkých pokynov v tomto návode predĺžite životnost’ zariadenia a zachováte jeho maximálnu účinnost’. Nastavovanie a údržbu by mal vždy vykonávat’ zaškolený technik.

Ak potrebujete ďalšie informácie alebo služby, kontaktujte autorizovaného predajcu výrobkov značky Jacobsen, ktorý je informovaný o najnovších postupoch servisovania tohto zariadenia, a ktorý dokáže poskytnút’ promptné a efektívne služby. Použitie neoriginálnych dielov a príslušenstva alebo dielov a príslušenstva neschválených

spoločnost’ou Jacobsen bude mat’ za následok zrušenie záruky.

VÝSTRAHA

Ak operátor pustí prítlačný poistný spínač SMPO (senzor monitorovania prítomnosti operátora), spriahací systém stroja vypne sekaciu hlavu a trakčný pohon.

Aby nedošlo k zraneniu operátora alebo iných osôb, nikdy nepoužívajte zariadenie s odpojeným alebo nefunkčným spriahacím systémom.

VÝSTRAHA

1. Keď odchádzate od zariadenia z akéhokoľvek dôvodu: a. Odpojte všetky pohony. b. Aktivujte parkovaciu brzdu. c. Odpojte napájací konektor.

2. Nepribližujte sa rukami, nohami a oblečením k pohyblivým častiam. Pred čistením nastavovaním alebo údržbou stroja počkajte, kým sa všetky pohyby zastavia.

3. Nedovoľte okolostojacim osobám a zvieratám, aby vstupovali do pracovnej oblasti.

4. Ak je stroj odstavený na svahu, podložte klin alebo kváder pod kolesá.

5. Nikdy nepoužívajte kosiace zariadenie, ak výstupný deflektor nie je bezpečne pripevnený.

2 TECHNICKÉ ÚDAJE

2.1 IDENTIFIKÁCIA PRODUKTU_________________________________________________

63300................ Základná jednotka Eclipse 118 s 457 mm

11–lopatkovou sekacou hlavou a riadiacim systémom InCommand™. Benzínový generátor.

63313................ Základná jednotka Eclipse 118 s 457 mm

11–lopatkovou sekacou hlavou a riadiacim systémom InCommand™. Batériový napájací modul.

63301................ Základná jednotka Eclipse 118F s

plávajúcou 457 mm 11–lopatkovou sekacou hlavou a riadiacim systémom InCommand™. Benzínový generátor.

63314................ Základná jednotka Eclipse 118F s

plávajúcou 457 mm 11–lopatkovou sekacou hlavou a riadiacim systémom InCommand™. Batériový napájací modul.

63302................ Základná jednotka Eclipse 122 s 559 mm

11–lopatkovou sekacou hlavou a riadiacim systémom InCommand™. Benzínový generátor.

63311 ................ Základná jednotka Eclipse 122 s 559 mm

11–lopatkovou sekacou hlavou a riadiacim systémom InCommand™. Batériový napájací modul.

63303................ Základná jednotka Eclipse 122F s

plávajúcou 457 mm 11–lopatkovou sekacou hlavou a riadiacim systémom InCommand™. Benzínový generátor.

63312................ Základná jednotka Eclipse 122F s

plávajúcou 457 mm 11–lopatkovou sekacou hlavou a riadiacim systémom InCommand™. Batériový napájací modul.

63304................ Základná jednotka Eclipse 126 s 660 mm

7–lopatkovou sekacou hlavou a riadiacim systémom InCommand™. Benzínový generátor.

63315.................Základná jednotka Eclipse 126 s 660 mm

7–lopatkovou sekacou hlavou a riadiacim systémom InCommand™. Batériový napájací modul.

Výrobné číslo.....Identifikačný štítok, podobný

zobrazenému, uvádzajúci výrobné číslo, je pripevnený na zadnej priečke rámu.

Pri objednávaní náhradných dielov alebo požadovaní servisných informácií vždy uveďte výrobné číslo.

2.2 KOSAČKA _______________________________________________________________

Vreteno ....................7 alebo 11 nožov, kalená oceľ s

vysokým obsahom mangánu a uhlíka.

Priemer vretena ...... 127 mm

Šírka kosenia ........... 457,559 alebo 660 mm

Výška pokoseného

trávnika ....................1,6 až 11 mm

Spodné nože............ Kalená uhlíková oceľ

Vysoký profil....... Výška pokoseného trávnika 4 - 11 mm

Nízky profil ......... Výška pokoseného trávnika 3,2 -

5,6 mm

Tournament........ Výška pokoseného trávnika 2,4 -

4 mm

Super

Tournament........ Výška pokoseného trávnika 1,6 -

2,8 mm

Intenzita sekania

11–lopatková sekacia hlava........ 2,2 - 4,5 mm

9–lopatková sekacia hlava .........2,7 - 5,5 mm

7–lopatková sekacia hlava .........3,4 - 7,1 mm

Produkt

Akustický výkon

podľa smernice

EHS

Vibrácie M/S

Ramená

63300 63301 63302 63303 63304 63311 63312 63313 63314 63315

TBD TBD

88,4 dBA 88,4 dBA

TBD

82,7 dBA 82,7 dBA

TBD TBD TBD

TBD TBD

5,191 2,236

TBD

0,822 0,481

TBD TBD TBD

CHARLOTTE, NC

YEAR OF PRODUCTION:

MADE IN U.S.A.

A Textron Company

101

XXXX

63302

1601

TECHNICKÉ ÚDAJE 2

2.3 TRAKČNÝ SYSTÉM A DIFERENCIÁL __________________________________________

Prepravné pneumatiky

(voliteľné) .........................11 x 4 pneumatické obojsmerné

Vretenový pohon..............Nezávislý priamy pohon cez

hnací motor

Trakčný pohon .................Nezávislý hnací motor s dvomi

synchrónnymi polyuretánovými

remeňmi Redukčný pomer

pohonu .............................15,15:1

Rýchlost’ kosenia............. 0 – 5,31 km/hod

Diferenciál........................ Automobilový typ, v bubne

pohonu Bubon zadného

pohonu............................. Mechanický opracovaná 2–dielna

čast’ z hliníkovej zliatiny, 7–3/4

vonkajší priemer x 10–31/32

2.4 HMOTNOSŤ ______________________________________________________________

Hmotnost’: bez zachytávača trávy kg

63300 – Eclipse 118.................................................. TBD

63301 – Eclipse 118F................................................TBD

63302 – Eclipse 122 ............................................... 101,6

63303 – Eclipse 122F ............................................. 113,0

63304 – Eclipse 126 ................................................. TBD

Hmotnost’: bez zachytávača trávy kg

63311 – Eclipse 122................................................ 109,3

63312 – Eclipse 122F ............................................. 123,5

63313 – Eclipse 118.................................................. TBD

63314 – Eclipse 118F ...............................................TBD

63315 – Eclipse 126 ................................................. TBD

2.5 BATÉRIOVÝ NAPÁJACÍ MODUL______________________________________________

Aby sa dosiahla najdlhšia možná životnost’ batérií, batérie sa nedodávajú spolu s napájacím modulom, ale objednávajú sa samostatne. Na dosiahnutie optimálneho dosahu a výkonu používajte batérie, ktoré zodpovedajú alebo prekračujú uvedené ampérhodiny.

Systémové napätie ....... 48 V=

Batérie ..........................(4) 12 V, regulované ventilom,

utesnené olovené batérie, ktoré nevytečú.

Nabíjačka ......................5 A, 48 V=, duálne vstupné

napätie 115/230 V~, 50/60 Hz

Odporúčané batérie:

Spoločnost’ Jacobsen odporúča používat’ v kosačke Eclipse batérie značky CSB.

Batérie značky CSB si môžete objednat’ u nasledujúcich distribútorov výrobkov značky CSB, alebo od miestneho predajcu batérií.

Electronic Distributing

920 Brookstown Ave Winston Salem, NC 27101

Telefónne číslo - 800-777-1096 Faxové číslo - 336-723-1098 E-Mail - billedi@bellsouth.net Kontaktná osoba - Bill Turner

URS Electronics

123 N.E. 7th Portland, OR 97232

Telefónne číslo - 800-955-4877 Faxové číslo - 503-232-3373 E-Mail - mark.twietmeyer@ursele.com Kontaktná osoba - Mark Twietmeyer

Alternatívne batérie:

Tieto alternatívne batérie sú tiež v súčasnosti dostupné. Tieto batérie majú rovnaké rozmery a ampérhodinový výkon, ale neboli testované spoločnost’ou Jacobsen, a preto neuvádzame žiadne odporúčanie, priamo ani nepriamo. Tieto batérie si môžete zakúpit’ u miestneho predajcu batérií alebo výrobcu.

(POUŽÍVAJTE LEN 12 V UTESNENÉ OLOVENÉ

BATÉRIE)

Výrobca batérie Číslo dielu – batéria

CSB EVX12200

DĺžkammŠírkammVýškammHmotnost’

Výkon

Ampérh

odiny

Vol ty

Požado-

vané

mn.

181 76 167 6,7 20 12 4

Výrobca batérie

Číslo dielu –

batéria

Yuasa Enersys NPX 80

Panasonic LC-X1220AP

Panasonic LC-X1220P

Discover D12200

Power Sonic PSH-12180

B.B. Battery EB20-12

2 TECHNICKÉ ÚDAJE

2.6 BENZÍNOVÉHO NAPÁJACIEHO MODULU _____________________________________

Motor................................ Honda GX-120 K1Q JG2, 4-

taktný, 2,98 kW pri 4 000 ot./min.

Otáčky.............................. Otáčky motora nastavené od

výroby tak, aby generátor

produkoval 59,8 V bez zat’aženia

Palivo ............................... Benzín (bezolovnatý)

Palivová nádrž .................2,5 litra

Používajte čistý, čerstvý, bežný bezolovnatý benzín s oktánovým číslom najmenej 85. Informácie o odporúčanom palive pri používaní palivovej zmesi sa nachádzajú v návode na obsluhu motora.

2.7 PRÍSLUŠENSTVO A PODPORNÁ LITERATÚRA _________________________________

Kompletný zoznam príslušenstva a doplnkov vám poskytne miestny predajca výrobkov značky Jacobsen.

Príslušenstvo

Lapovacia zmes (hrubost’ 180)..................................554598

Oranžový korekčný náter (sprej, 340 ml)...................554598

457 mm zachytávač trávy pre

nepohyblivú hlavu ........................................................68122

457 mm zachytávač trávy pre

plávajúcu hlavu ........................................................4174683

559 mm zachytávač trávy pre

nepohyblivú hlavu ........................................................68123

559 mm zachytávač trávy pre

plávajúcu hlavu ........................................................ 4114788

660 mm zachytávač trávy prenepohyblivú hlavu .........68124

Tlačná kefa 559 mm ....................................................68611

559 mm kefa na prednom valci

(zariadenia s nepohyblivou hlavou) .............................68610

559 mm kefa na prednom valci

(zariadenia s plávajúcou hlavou) .................................68536

Osvetľovacia súprava ..................................................63307

Nabíjačka batérií..........................................................63316

Vyberateľný batériový modul

(neobsahuje batérie)....................................................68668

Súprava na montáž batériového modulu

na premiestňovací vozík ..............................................68660

Premiestňovacie kolesá...............................................62293

Ochranné puzdro kosačky...................................... 68648

Pripevňovacia súprava pre premiestňovací vozík a kosačku s 457 mm

nepohyblivou hlavou ....................................................68649

Pripevňovacia súprava pre premiestňovací vozík a kosačku s 559 mm

nepohyblivou hlavou ....................................................68650

Pripevňovacia súprava pre premiestňovací vozík a kosačku s 660 mm

nepohyblivou hlavou ....................................................68651

Pripevňovacia súprava pre premiestňovací

vozík a kosačku s 660 mm plávajúcou hlavou.............63310

559 mm česačka trávy

(Turf Groomer)

(zariadenia radu 122 vyžadujú 67965) ........................67966

Nástavec pre česačku trávy (Turf Groomer) .......... 67965

Valce bez drážok

457 mm so stieračom ..................................................68626

559 mm so stieračom ..................................................68530

660 mm so stieračom ..................................................68627

Valce s drážkami

Oceľový 457 mm .........................................................68616

Montovaný z diskov 559 mm....................................... 68527

Oceľový 559 mm .........................................................68614

Oceľový 559 mm .........................................................68613

Segmentový valec 559 mm .........................................68673

Oceľový 660 mm .........................................................68617

Oceľový 660 mm .........................................................68628

Plávajúce sekacie hlavy

559 mm 11–lopatková sekacia hlava........................... 63308

457 mm 11–lopatková sekacia hlava........................... 63309

Súprava na konverziu kosačky pre pravákov.......... 4172441

Súprava na konverziu kosačky pre ľavákov ............4172458

Doplnkové napájacie modul

Benzínový generátor ...................................................63305

Batériový napájací modul ............................................63306

Montážne príslušenstvo pre napájací

modul nepohyblivej hlavy ........................................4165263

Montážne príslušenstvo pre napájací

modul plávajúcej hlavy ............................................4164220

Podporná literatúra

Technická príručka................................................... 4170162

Školiace video pre obsluhu......................................4166960

Servisný a opravársky návod

POZOR

Použitie dielov a príslušenstva neschválených spoloènost’ou Jacobsen môže mat’ za následok zranenie alebo

poškodenie zariadenia a zrušenie záruky.

ŠTÍTKY NA VÝROBKU 3

3 ŠTÍTKY NA VÝROBKU

3.1 ŠTÍTKY NA VÝROBKU ______________________________________________________

Oboznámte sa s štítkami, sú veľmi dôležité pre bezpečnú prevádzku kosačky. IHNEĎ VYMEŇTE POŠKODENÉ ŠTÍTKY.

NEBEZPEČENSTVO

Pred prácou na stroji alebo pri vyprázdňovaní lapačov trávy odpojte všetky pohony, aktivujte parkovaciu brzdu, vypnite kľúčový spínač a odpojte napájací konektor, aby nedošlo k zraneniu.

NEBEZPEČENSTVO

Nepribližujte sa rukami ani nohami k sekaciemu zariadeniu, pretože by ste sa mohli vážne zranit’.

NEBEZPEČENSTVO

1. Udržujte bezpečnú vzdialenost’ od stroja. Nedovoľte okolostojacim osobám, aby sa približovali k stroju.

2. Použité komponenty z tohto stroja zlikvidujte správnym spôsobom. Postupujte podľa miestnych pravidiel týkajúcich sa likvidácie a recyklácie odpadu.

3. Riaďte sa postupmi údržby a servisovania uvedenými v návode.

4. Nestriekajte vodu na elektrické konektory, motory alebo ovládacie prvky. Pred tlakovým umývaním zariadenia vyberte batériový modul.

Pred nastavovaním páky škrtiacej klapky motora si prečítajte návod.

4170001

STOP

4127335

4169840

4170321

3 ŠTÍTKY NA VÝROBKU

Oboznámte sa s štítkami, sú veľmi dôležité pre bezpečnú prevádzku kosačky. IHNEĎ VYMEŇTE POŠKODENÉ ŠTÍTKY.

3002753

4165241

4172240

4104282

Pred nastavovaním zat’aženia predného valca si prečítajte návod.

Deaktivovaná

Parkovacia brzda

Aktivovaná

Spínač sekacej hlavy

Poloha pre otáčanie dopredu

OFF (Vypnuté)

Poloha pre lapovanie

Kľúčový spínač

OFF (Vypnutá poloha)

RUN (Zapnuté napájanie)

ON (Poloha pre kosenie)

ŠTÍTKY NA VÝROBKU 3

Hmotnost’ kosačky

63302 = 101.6 Kg 63303 = 109.3 Kg 63311 = 113.0 Kg 63312 = 123.5 Kg

101,6 kg 109,3 kg 113,0 kg 123,5 kg

Postup aktivovania trakcie:

1. Posunte prítlacný poistný spínac dolava.

2. Pritlacte prítlacný poistný spínac k rukoväti.

4 OVLÁDACIE PRVKY

4.1 IKONY___________________________________________________________________

4.2 OVLÁDACIE PRVKY NA RUKOVÄTI __________________________________________

A. Parkovacia brzda – používa sa vždy, keď kosačku

opustíte, a pri preprave ako servisná brzda. Vždy používajte premiestňovacie kolesá pri premiestňovaní hore alebo dolu kopcom.

B. Páčka ovládania rýchlosti – Slúži na nastavenie

maximálnej rýchlosti trakčného pohonu, keď je prítlačný poistný spínač SMPO stlačený. Zatlačením páčky na strane (+) sa rýchlost’ zvýši. Zatlačením páčky na strane (-) sa rýchlost’ zníži.

C. Prítlačný poistný spínač SMPO – Posunutím

prítlačného poistného spínača mierne doľava a jeho stlačením sa naštartujte trakčný motor. Rýchlost’ trakčného motora sa zvyšuje posunutím prítlačného poistného spínača smerom k rukoväti. Po uvoľnení prítlačného poistného spínača sa zariadenie zastaví.

D. Kľúčový spínač – Hlavný spínač slúži na zapnutie

a vypnutie napájania. Má tri polohy – OFF (vypnuté), RUN (kosenie) a START (štart). Kľúčový spínač musí byt’ pri štartovaní zariadení vybavených benzínovým generátorom v polohe RUN (kosenie).

E. Sp

ínač sekacej hlavy – Spínač sekacej hlavy sa

používa na spustenie a zastavenie sekacej hlavy a aktivovanie lapovania.

F. Prerušovač – Používa sa na ochranu riadiacich

jednotiek. Ak sa rozopne, zatlačte tlačidlo.

G. LCD displej – Používa sa na zobrazenie

pracovných podmienok.

H. Ovládacie prvky LCD displeja – Používajú sa na

navigovanie v ponukách.

Obrázok 4A

VÝSTRAHA

Nikdy sa nepokúšajte používat’ stroj predtým, ako si prečítate Návod na bezpečnú obsluhu zariadenia, Návod na údržbu a zoznam dielov a sa oboznámite so správnym používaním všetkých ovládacích prvkov.

Oboznámte sa s ikonami zobrazenými vyššie a s ich významom. Pred používaním tejto kosačky sa oboznámte s umiestnením a účelom všetkých ovládacích prvkov.

Aktivovaná Deaktivovaná

Parkovacia brzda

Trakčný pohon SMPO

Pritlačte prítlačný poistný spínač k rukoväti

Napájanie

Rýchlo Pomaly

Škrtiaca klapka

Napájanie

Posuňte prítlačný poistný spínač doľava

Napájanie vypnuté

zapnuté

aktivované

VÝSTRAHA

Vždy používajte premiestňovacie kolesá pri premiestňovaní zariadenia hore alebo dolu kopcom, aby nedošlo k zraneniu.

NEBEZPEČENSTVO

Nepribližujte sa rukami ani nohami k sekaciemu zariadeniu, pretože by ste sa mohli vážne zranit’.

OVLÁDACIE PRVKY 4

4.3 LCD DISPLEJ _____________________________________________________________

LCD displej zobrazuje aktuálne pracovné hodnoty potrebné na prevádzku kosačky Eclipse a vydáva tri typy zvukových upozornení. LCD displej pracuje v jednom z dvoch režimov, režim operátora (základný) a režim kontrolóra. Používanie režimu kontrolóra vyžaduje vloženie štvorciferného kódu.

Oranžové tlačidlá (K alebo L) slúžia na zmenu obrazovky alebo na zmenu hodnôt. Pravé oranžové tlačidlo (K) slúži na posun vpred na zozname na obrazovke alebo na zvýšenie hodnoty nastavenia a ľavé oranžové tlačidlo (L) slúži na posun vzad na zozname na obrazovke alebo na zníženie hodnoty nastavenia. Čierne tlačidlo (J) sa používa na výber, zmenu hodnôt alebo na nastavenie pôvodných hodnôt.

Obrázok 4B

Zvukové upozornenia upozorňujú na tri stavy zistené LCD

displejom a na LCD displeji sa zároveň zobrazí príslušné hlásenie. Neprerušovaný tón upozorňuje na nízke systémové napätie. Rýchle pípanie (2 za sekundu) upozorňuje na neprimerane vysoké napätie. Pomalé pípanie (1 každé 3 sekundy) upozorňuje na režim lapovania.

Obrazovky s upozornením: Okrem štandardných obrazoviek v každom režime sa zobrazujú štyri obrazovky, ktoré sa používajú na upozornenie operátora/mechanika na problém, ktorý je potrebné napravit’.

Obrázok 4C

Obrazovka LOW BATTERY (nízke napätie) sa zobrazí, keď systémové napätie klesne pod 42 V= na 30 sekúnd a súčasne sa zapne neprerušovaný zvukový alarm. Alarm sa vypína stlačením čierneho tlačidla (J) . Vrát’te kosačku do miesta skladovania, alebo vložte plne nabitý batériový modul. Ak sa na displeji zobrazí nízke napätie, motor sekacej hlavy nebude pracovat’.

Obrazovka OVERVOLTAGE/CHECK VOLTAGE (prepätie / skontrolujte napätie) sa zobrazí, keď systémové napätie stúpne nad 60 V= a súčasne sa zapne rýchle pípanie (2 za sekundu). Ak sa porucha neodstráni, riadiaca jednotka sa po 60 sekundách vypne. Pred opätovným spustením systému skontrolujte výstup na generátore. [Pozri Kapitola 10.3]

Obrazovka REEL MOTOR FAULT (porucha motora sekacej hlavy) sa zobrazí, ak sa zistí skrat v obvode motora sekacej hlavy, alebo ak odber prúdu v motore sekacej hlavy stúpne nad 30 A na dlhšie ako jednu sekundu. Motor sekacej hlavy nebude pracovat’ do odstránenia problému. Vrát’te kosačku na miesto určené na oprav

Obrazovka TRACTION MOTOR FAULT (porucha trakčného motora) sa zobrazí, ak sa zistí skrat v obvode trakčného motora, alebo ak odber prúdu v trakčnom motore stúpne nad 30 A na dlhšie ako jednu sekundu. Trakčný motor nebude pracovat’ do odstránenia problému. Vrát’te kosačku na miesto určené na opravu.

Režim operátora používa operátor na zobrazenie informácií o systémovom napätí, cestovnej rýchlosti, nastavení intenzity sekania (FOC) a rýchlosti sekacej hlavy. Oranžové tlačidlá (K a L) na prednom kryte rukoväte sa používajú na prepínanie medzi jednotlivými obrazovkami. Režim operátora slúži len na zobrazovanie, neumožňuje zmenu systémových nastavení.

Ak sa spínač sekacej hlavy prepne do polohy lapovania v režime operátora, motor sekacej hlavy sa ihneď zastaví a na obrazovke sa zobrazí „Turn Backlap Switch Off“ (vypnite spínač lapovania). Lapovanie je dostupné len v režime kontrolóra.

Obrázok 4D

REEL

MOTOR FAULT

LOW BATTERY

42.0 VDC

OVERVOLTAGE

CHECK VOLTAGE

TRACTION

MOTOR FAULT

Obrazovky s upozornením

VÝSTRAHA

Pred zist’ovaním problému so sekacou hlavou vypnite spínač sekacej hlavy, uvoľnite prítlačný poistný spínač, prepnite kľúč do vypnutej polohy a odpojte konektor batérie.

JACOBSEN VERSION X.XX (

Verzia Jacobsen X.XX

)

Štandardná obrazovka pri spustení

SYSTEM VOLTS - 48.0 VDC (Systémové napätie 48,0 V=)

Zobrazuje systémové napätie

TRAVEL SPEED - 3.4 MPH (

Cestovná rýchlosť

- 5,47 KM/H)

Zobrazuje pojazdovú rýchlosť kosačky

REEL SPEED - 2200 RPM (

Rýchlosť sekacej hlavy -

2 200 ot./min

)

Zobrazuje pevné nastavenie intenzity sekania

FOC = 0.146 (Intenzita sekania = 0,146)

Zobrazuje rýchlosť otáčania sekacej hlavy

TURN BACKLAP SWITCH OFF (Vypnite spínač lapovania)

Zobrazí sa pri prepnutí spínača sekacej hlavy do polohy pre lapovanie

JACOBSEN

VERSION X.XX

TRAVEL SPEED

3.4 MPH

SYSTEM VOLTS

48.0 VDC

REEL SPEED

2200 RPM

TURN BACKLAP

SWITCH OFF

FOC = 0.146

4 OVLÁDACIE PRVKY

Režim kontrolóra používa kontrolór na nastavenie a zmenu všetkých pracovných hodnôt kosačky Eclipse. V režime kontrolóra sa na LCD displeji zobrazujú nasledujúce obrazovky: pôvodné nastavenia, systémové napätie, cestovná rýchlost’, rýchlost’ sekacej hlavy, celkový čas činnosti stroja, odber prúdu na trakčnom motore, odber prúdu na motore sekacej hlavy, celkový odber prúdu motorov, nastavenie rýchlosti kosenia, počet hodín od údržby, nastavenie rýchlosti sekacej hlavy, nastavenie zobrazovaných jednotiek, kalibrácia páčky ovládania rýchlosti a kalibrácia páčky prítlačného poistného spínača.

Ak chcete vstúpit’ do režimu kontrolóra, stlačte obe oranžové tlačidlá (K a L), keď sa na displeji zobrazuje Jacobsen Version X.XX (verzia Jacobsen X.XX). Použite oranžové tlačidlá (K alebo L) na výber a čierne tlačidlo (J) na vloženie číslic kódu pre vstup do režimu mechanika.

Poznámka: Kód pre režim kontrolóra je 6789. Informácie o obrazovkách lapovania sa nachádzajú v

kapitole 11.4. Factory Reset (pôvodné nastavenia): Ak chcete obnovit’

pôvodné nastavenia riadiacej jednotky, stlačte jedno z oranžových tlačidiel (K alebo L) na prednom kryte a podržte ho do zobrazenia obrazovky Factory Reset (pôvodné nastavenia) na LCD displeji. Stlačením čierneho tlačidla (J) obnovte hodnoty na pôvodné nastavenia.

Maximálna rýchlost’ kosenia................ 5,5 km/h

Rýchlost’ sekacej hlavy........................ 2200 ot./min

Pevné nastavenie intenzity sekania..... 0,146

Zobrazovacie jednotky......................... Anglické

Pevné nastavenie intenzity sekania: Ak chcete nastavit’ pevnú intenzitu sekania, stlačte jedno z oranžových tlačidiel (K alebo L) na prednom kryte a podržte ho až do zobrazenia obrazovky FOC x.xxx CHANGE? (zmenit’ intenzitu sekania x.xxx?) na LCD displeji. Stlačením čierneho tlačidla (J) vstúpte do režimu nastavenia. Použite oranžové tlači

dlá na zvýšenie (K) alebo zníženie (L)

hodnoty intenzity sekania na požadovanú úroveň. Stlačením čierneho tlačidla nastavte rýchlost’.

Pevné nastavenie intenzity sekania musí byt’ 0 alebo v rozsahu od 2,2 do 4,5 mm Pozri Kapitola 4.4

Maximálna rýchlost’ kosenia: Ak chcete nastavit’ maximálnu rýchlost’ kosenia, stlačte jedno z oranžových tlačidiel (K alebo L) na prednom kryte a podržte ho až do zobrazenia obrazovky nastavenia maximálnej rýchlosti kosenia na LCD displeji. Stlačením čierneho tlačidla (J) vstúpte do režimu nastavenia. Použite oranžové tlačidlá na zvýšenie (K) alebo zníženie (L) maximálnej rýchlosti kosenia na požadovanú úroveň. Stlačením čierneho tlačidla nastavte rýchlost’.

Maximálna rýchlost’ kosenia musí byt’ v rozsahu od 3,2 až 5,5 km/hod).

Pevná rýchlost’ sekacej hlavy: Ak chcete nastavit’ pevnú rýchlost’ sekacej hlavy, intenzita sekania musí byt’ nastavená na 0. Potom stlačte jedno z oranžových tlačidiel (K alebo L) na prednom kryte a podržte ho až do zobrazenia obrazovky nastavenia rýchlosti sekacej hlavy na LCD displeji. Stlačením čierneho tlačidla (J) vstúpte do režimu nastavenia. Použite oranžové tlačidlá na zvýšenie

(K) alebo zníženie (L) rýchlosti sekacej hlavy na požadovanú úroveň.

Pevná rýchlost’ sekacej hlavy musí byt’ od 1 800 do 2 000 ot./min.

Obrazovky Maximálna rýchlost’ kosenia a Pevná rýchlost’ sekacej hlavy sa používajú na stanovenie intenzity sekania (FOC). Pozri kapitolu Kapitola 4.4.

Počet hodín od údržby: Ak chcete vynulovat’ počet hodín od údržby, stlačte jedno z oranžových tlačidiel (K aleb

o L)

na prednom kryte a podržte ho až do zobrazenia obrazovky počtu hodín od údržby na LCD displeji. Stlačením čierneho tlačidla (J) vynulujte počet hodín od údržby. Systém dokáže sledovat’ najviac 999,9 hodiny.

Výber typy motora: Vyberte číslo dielu motora sekacej hlavy a trakčného motora použitých v zariadení. Jednotlivé motory majú rôzne riadiace napätie podľa výstupných otáčok. Kosačky Eclipse používajú len motor s číslom súčiastky 4160533.

Obrázok 4E

Zobrazovacie jednotky: Ak chcete nastavit’ zobrazovacie

jednotky, stlačte jedno z oranžových tlačidiel (K alebo L) na prednom kryte a podržte ho až do zobrazenia obrazovky zobrazovacích jednotiek na LCD displeji. Stlačením čierneho tlačidla (J) vstúpte do režimu nastavenia. Použite oranžové tlačidlá na výber požadovaných nastavení.

Jednotky musia byt’ nastavené na anglické alebo metrické.

Kalibrácia páčky ovládania rýchlosti: Pred kalibrovaním páčky ovládania rýchlosti skontrolujte, či zarážky sú správne nastavené [Pozri kapitolu Kapitola 6.3]. Ak chcete kalibrovat’ páčku, stlačte jedno z oranžových tlačidiel (K alebo L) na prednom kryte a podržte ho až do zobrazenia obrazovky ovládacej páčky na LCD displeji. Stlačením čierneho tlačidla (J) vstúpte do režimu nastavenia. Posunutím páčky škrtiacej klapky v celom rozsahu pohybu stanovte minimálnu a maximálnu hodnotu.

Zobrazené hodnoty sa zmenia pri pohybe ovládacích prvkov.

Kalibrácia páčky prítlačn

ého poistného spínača: Ak

chcete kalibrovat’ páčku prítlačného poistného spínača, stlačte jedno z oranžových tlačidiel (K alebo L) na prednom kryte a podržte ho až do zobrazenia obrazovky páčky prítlačného poistného spínača na LCD displeji. Stlačením čierneho tlačidla (J) vstúpte do režimu nastavenia. Stlačením páčky na doraz a jej úplným uvoľnením stanovte minimálnu a maximálnu hodnotu.

Zobrazené hodnoty sa zmenia pri pohybe ovládacích prvkov.

Číslo dielu 4153940 Číslo dielu 4160533

TENTO TYP MOTORA

NENASTAVUJTE

OVLÁDACIE PRVKY 4

Obrázok 4F

JACOBSEN VERSION X.XX Verzia Jacobsen X.XX

Štandardná obrazovka pri spustení

SYSTEM VOLTS - 48.0 VDC Systémové napätie 48,0 V=

Zobrazuje systémové napätie.

FACTORY RESET? Pôvodné nastavenia?

Vyvolanie pôvodných nastavení

RESET? - NO/YES Vynulovať? NIE/ÁNO

Potvrdenie vyvolania pôvodných nastavení

MNT 100.9 HR - RESET? Čas od údržby 100,9 hod; vynulovať?

Zobrazuje počet hodín o údržby.

ENTER PIN? - 6789 Zadajte PIN kód

- 6789

Stlačte obe oranžové tlačidlá počas úvodnej obrazovky. Zadanie PIN kódu.

TRAVEL SPEED - 3.4 MPH Cestovná rýchlosť

- 5,47 KM/H

Zobrazuje pojazdovú rýchlosť kosačky.

REEL SPEED - 2200 RPM Rýchlosť sekacej hlavy 2 200 ot./min

Zobrazuje rýchlosť otáčania sekacej hlavy.

RUN TIME - 250 HR Čas chodu 250 hod

Zobrazuje celkový počet hodín zariadenia.

TRAVEL MOTOR - 08.5 A Trakčný motor 8,5 A

Zobrazuje prúd na trakčnom motore.

REEL MOTOR - 08.5 A Motor sekacej hlavy 8,5 A

Zobrazuje prúd na motore sekacej hlavy.

MOTOR TOTAL - 17.0 A Motory spolu 17,0 A

Zobrazuje celkový prúd na motoroch.

SET MAX MOW SPEED Nastaviť max. rýchlosť kosenia

Zmena maximálnej rýchlosti kosenia

MAX MOW - < 3.4 MPH > Max. rýchlosť kosenia

< 5,47 KM/H >

Nastavenie rýchlosti kosenia

MOTOR TYPE - SELECT Výber typu motora

Výber používaného motora

4160533/4153940 - < OK > 4160533/4153940 - < OK >

Výber motora

THUMB LEVER - CALIBRATE? Kalibrovať ovládaciu páčku?

Kalibrácia páčky škrtiacej klapky

SELECT UNITS? Nastaviť jednotky

Zobrazovacie jednotky

UNITS - < ENGLISH > Jednotky < anglické >

Zmena zobrazovacích jednotiek

THUMB LEVER - 000 DONE 120 Ovládacia páčka; 000 hotovo 120

Nastavenie páčky škrtiacej klapky

BAIL LEVER - CALIBRATE? Kalibrovať páčku prítlačného poistného spínača?

Kalibrácia páčky prítlačného poistného spínača

BAIL LEVER - 040 DONE 096 Páčka prítlačného poistného spínača 040 hotovo 096

Nastavenie páčky prítlačného poistného spínača

FOC = 0.146 - CHANGE? Intenzita sekania = 0,146 zmeniť?

Pevné nastavenie intenzity sekania

FOC = 0.146 - < OK > FOC = 0,146 - < ACEPTAR >

Zmena nastavenia intenzity sekania.

REEL SPEED - 2200 RPM Rýchlosť sekacej hlavy 2 200 ot./min

Pevná rýchlosť sekacej hlavy

REEL SPEED - < 2200 RPM > Rýchlosť sekacej hlavy < 2 200 ot./min >

Pevné nastavenie rýchlosti sekacej hlavy

JACOBSEN

VERSION X.XX

TRAVEL SPEED

3.4 MPH

SYSTEM VOLTS

48.0 VDC

REEL SPEED

2200 RPM

MNT 100.9 HR

RESET?

MAX MOW

< 3.4 MPH >

RUN TIME

250 HR

FOC = 0.146

CHANGE?

FOC = 0.146

< OK >

TRAVEL MOTOR

08.5 A

REEL MOTOR

08.5 A

MOTOR TOTAL

17.0 A

SET MAX

MOW SPEED

4160533/4153940

< OK >

UNITS

< ENGLISH >

THUMB LEVER

000 DONE 120

BAIL LEVER

040 DONE 096

ENTER PIN?

6789

FACTORY

RESET?

NO YES

MOTOR TYPE

SELECT

UNITS?

THUMB LEVER

CALIBRATE?

BAIL LEVER

CALIBRATE?

REEL SPEED

< 2200 RPM >

REEL SPEED

2200 RPM

4 OVLÁDACIE PRVKY

4.4 INTENZITA SEKANIA ______________________________________________________

Frekvencia sekania (FOC) je vzdialenost’, v palcoch (mm), ktorú stroj prejde smerom vpred do momentu, než sa lopatky sekacej hlavy dotknú noža. Frekvencia sekania sa nastavuje zmenou pevného nastavenia intenzity sekania alebo zmenou maximálnej rýchlosti kosenia a pevnej rýchlosti sekacej hlavy na LCD displeji.

Nastavte frekvenciu sekania pomocou funkcie pevného nastavenia intenzity sekania.

Zmenou nastavenia frekvencie sekania na hodnotu inú než 0 sa aktivuje režim pevného nastavenia intenzity sekania a deaktivuje sa nastavenie rýchlosti sekacej hlavy. Rýchlost’ sekacej hlavy sa automaticky prispôsobí nárastu alebo poklesu rýchlosti cestovnej rýchlosti sekačky, aby sa zachovala nastavená intenzita sekania. Riadiaca jednotka prijíma rozsah intenzity sekania len pre 11–lopatkové sekacie hlavy. Ak chcete nastavit’ intenzitu sekania pre 9– alebo 7–lopatkovú sekaciu hlavu, vynásobte hodnotu v tabuľkách nasledovne:

Zmena na 9–lopatkovú sekaciu hlavu0,81818 (9/11) Zmena na 7–lopatkovú sekaciu hlavu0,63636 (7/11)

Nastavte frekvenciu sekania pomocou funkcie nastavenia rýchlosti sekacej hlavy.

1. Pomocou tabuliek intenzity sekania stanovte maximálnu rýchlost’ kosenia a pevnú rýchlost’ sekacej hlavy podľa požadovanej intenzity sekania.

2. Naštartujte zariadenie v režime kontrolóra. [Kapitola

4.3]

3. Nastavte pevnú hodnotu intenzity sekania na 0.

4. Nastavte požadovanú maximálnu rýchlost’ kosenia.

5. Nastavte požadovanú pevnú rýchlost’ sekacej hlavy.

Poznámka: Rýchlost’ sekania sa meria v mph (km/hod), intenzita sekania sa meria v palcoch (milimetroch).

Tabuľka intenzity sekania pre 11–lopatkovú sekaciu hlavu, číslo výrobku 63300, 63301, 63302, 63303, 63311, 63312,

63313, 63314 (štandardná sekacia hlava)

Rýchlost’

kosenia

Otáčky sekacej hlavy

1800 1850 1900 1950 2000 2050 2100 2150 2200

2,0

(3,22)

0,107

(2,709)

0,104

(2,636)

0,101

(2,567)

0,098

(2,501)

0,096

(2,438)

0,094

(2,379)

0,091

(2,322)

0,089

(2,268)

0,087

(2,217)

2,1

(3,38)

0,112

(2,845)

0,109

(2,768)

0,106

(2,695)

0,103

(2,626)

0,101 (2,56)

0,098

(2,498)

0,096

(2,438)

0,094

(2,382)

0,092

(2,328)

2,2

(3,54)

0,117 (2,98)

0,114

(2,9)

0,111

(2,823)

0,108

(2,751)

0,106

(2,682)

0,103

(2,617)

0,101

(2,555)

0,098

(2,495)

0,096

(2,438)

2,3

(3,7)

0,123

(3,116)

0,119

(3,032)

0,116

(2,952)

0,113

(2,876)

0,110

(2,804)

0,108

(2,736)

0,105

(2,671)

0,103

(2,609)

0,100

(2,549)

2,4

(3,86)

0,128

(3,251)

0,125

(3,163)

0,121 (3,08)

0,118

(3,001)

0,115

(2,926)

0,112

(2,855)

0,110

(2,787)

0,107

(2,722)

0,105

(2,66)

2,5

(4,02)

0,133

(3,387)

0,130

(3,295)

0,126

(3,208)

0,123

(3,126)

0,120

(3,048)

0,117

(2,974)

0,114

(2,903)

0,112

(2,835)

0,109

(2,771)

2,6

(4,18)

0,139

(3,522)

0,135

(3,427)

0,131

(3,337)

0,128

(3,251)

0,125 (3,17)

0,122

(3,093)

0,119

(3,019)

0,116

(2,949)

0,113

(2,882)

2,7

(4,35)

0,144

(3,658)

0,140

(3,559)

0,136

(3,465)

0,133

(3,376)

0,130

(3,292)

0,126

(3,212)

0,123

(3,135)

0,121

(3,062)

0,118

(2,993)

2,8

(4,51)

0,149

(3,793)

0,145

(3,691)

0,141

(3,593)

0,138

(3,501)

0,134

(3,414)

0,131

(3,33)

0,128

(3,251)

0,125

(3,176)

0,122

(3,103)

2,9

(4,67)

0,155

(3,929)

0,150

(3,822)

0,147

(3,722)

0,143

(3,626)

0,139

(3,536)

0,136

(3,449)

0,133

(3,367)

0,129

(3,289)

0,127

(3,214)

3,0

(4,83)

0,160

(4,064)

0,156

(3,954)

0,152 (3,85)

0,148

(3,751)

0,144

(3,658)

0,140

(3,568)

0,137

(3,483)

0,134

(3,402)

0,131

(3,325)

3,1

(4,99)

0,165

(4,199)

0,161

(4,086)

0,157

(3,978)

0,153

(3,876)

0,149 (3,78)

0,145

(3,687)

0,142

(3,6)

0,138

(3,516)

0,135

(3,436)

3,2

(5,15)

0,171

(4,335)

0,166

(4,218)

0,162

(4,107)

0,158

(4,001)

0,154

(3,901)

0,150

(3,806)

0,146

(3,716)

0,143

(3,629)

0,140

(3,547)

3,3

(5,31)

0,176 (4,47)

0,171 (4,35)

0,167

(4,235)

0,162

(4,127)

0,158

(4,023)

0,155

(3,925)

0,151

(3,832)

0,147

(3,743)

0,144

(3,658)

3,4

(5,47)

0,181

(4,606)

0,176

(4,481)

0,172

(4,363)

0,167

(4,252)

0,163

(4,145)

0,159

(4,044)

0,155

(3,948)

0,152

(3,856)

0,148

(3,768)

OVLÁDACIE PRVKY 4

Tab uľka intenzity sekania pre 9–lopatkovú sekaciu hlavu, číslo výrobku 63303, 63312 (doplnková sekacia

hlava)

Rýchlost’

kosenia

Otáčky sekacej hlavy

1800 1850 1900 1950 2000 2050 2100 2150 2200

2,0 0,130 0,127 0,124 0,120 0,117 0,114 0,112 0,109 0,107

(3,22) (3,311) (3,222) (3,137) (3,057) (2,98) (2,908) (2,838) (2,772) (2,709)

2,1 0,137 0,133 0,130 0,126 0,123 0,120 0,117 0,115 0,112

(2,845)

(3,38) (3,477) (3,383) (3,294) (3,21) (3,129) (3,053) (2,98) (2,911)

2,2 0,143 0,140 0,136 0,132 0,129 0,126 0,123 0,120 0,117

(3,54) (3,643) (3,544) (3,451) (3,362) (3,278) (3,198) (3,122) (3,05) (2,98)

2,3 0,150 0,146 0,142 0,138 0,135 0,132 0,129 0,126 0,123

(3,7) (3,808) (3,705) (3,608) (3,515) (3,427) (3,344) (3,264) (3,188) (3,116)

2,4 0,156 0,152 0,148 0,144 0,141 0,137 0,134 0,131 0,128

(3,86) (3,974) (3,866) (3,765) (3,668) (3,576) (3,489) (3,406) (3,327) (3,251)

2,5 0,163 0,159 0,154 0,150 0,147 0,143 0,140 0,136 0,133

(4,02) (4,139) (4,027) (3,921) (3,821) (3,725) (3,634) (3,548) (3,465) (3,387)

2,6 0,169 0,165 0,161 0,156 0,153 0,149 0,145 0,142 0,139

(4,18) (4,305) (4,188) (4,078) (3,974) (3,874) (3,78) (3,69) (3,604) (3,522)

2,7 0,176 0,171 0,167 0,162 0,158 0,155 0,151 0,147 0,144

(4,35) (4,47) (4,35) (4,235) (4,127) (4,023) (3,925) (3,832) (3,743) (3,658)

2,8 0,183 0,178 0,173 0,168 0,164 0,160 0,156 0,153 0,149

(4,51) (4,636) (4,511) (4,392) (4,279) (4,172) (4,071) (3,974) (3,881) (3,793)

2,9 0,189 0,184 0,179 0,174 0,170 0,166 0,162 0,158 0,155

(4,67) (4,802) (4,672) (4,549) (4,432) (4,321) (4,216) (4,116) (4,02) (3,929)

3,0 0,196 0,190 0,185 0,181 0,176 0,172 0,168 0,164 0,160

(4,83) (4,967) (4,833) (4,706) (4,585) (4,47) (4,361) (4,258) (4,159) (4,064)

3,1 0,202 0,197 0,191 0,187 0,182 0,177 0,173 0,169 0,165

(4,99) (5,133) (4,994) (4,863) (4,738) (4,619) (4,507) (4,399) (4,297) (4,199)

3,2 0,209 0,203 0,198 0,193 0,188 0,183 0,179 0,175 0,171

(5,15) (5,298) (5,155) (5,019) (4,891) (4,768) (4,652) (4,541) (4,436) (4,335)

3,3 0,215 0,209 0,204 0,199 0,194 0,189 0,184 0,180 0,176

(5,31) (5,464) (5,316) (5,176) (5,044) (4,917) (4,798) (4,683) (4,574) (4,47)

3,4 0,222 0,216 0,210 0,205 0,199 0,195 0,190 0,186 0,181

(5,47) (5,629) (5,477) (5,333) (5,196) (5,066) (4,943) (4,825) (4,713) (4,606)

4 OVLÁDACIE PRVKY

Tabuľka intenzity sekania pre 7–lopatkovú sekaciu hlavu, číslo výrobku 63304, 63315 (štandardná sekacia

hlava) a 63303, 63312 (doplnková sekacia hlava)

Rýchlost’

kosenia

Otáčky sekacej hlavy

1800 1850 1900 1950 2000 2050 2100 2150 2200

2,0 0,168 0,163 0,159 0,155 0,151 0,147 0,144 0,140 0,137

(3,22) (4,258) (4,142) (4,033) (3,93) (3,832) (3,738) (3,649) (3,564) (3,483)

2,1 0,176 0,171 0,167 0,162 0,158 0,155 0,151 0,147 0,144

(3,38) (4,47) (4,35) (4,235) (4,127) (4,023) (3,925) (3,832) (3,743) (3,658)

2,2 0,184 0,179 0,175 0,170 0,166 0,162 0,158 0,154 0,151

(3,54) (4,683) (4,557) (4,437) (4,323) (4,215) (4,112) (4,014) (3,921) (3,832)

2,3 0,193 0,188 0,183 0,178 0,173 0,169 0,165 0,161 0,158

(3,7) (4,896) (4,764) (4,638) (4,52) (4,407) (4,299) (4,197) (4,099) (4,006)

2,4 0,201 0,196 0,191 0,186 0,181 0,177 0,172 0,168 0,165

(3,86) (5,109) (4,971) (4,84) (4,716) (4,598) (4,486) (4,379) (4,277) (4,18)

2,5 0,210 0,204 0,198 0,193 0,189 0,184 0,180 0,175 0,171

(4,02) (5,322) (5,178) (5,042) (4,913) (4,79) (4,673) (4,562) (4,456) (4,354)

2,6 0,218 0,212 0,206 0,201 0,196 0,191 0,187 0,182 0,178

(4,18) (5,535) (5,385) (5,243) (5,109) (4,981) (4,86) (4,744) (4,634) (4,528)

2,7 0,226 0,220 0,214 0,209 0,204 0,199 0,194 0,189 0,185

(4,35) (5,748) (5,592) (5,445) (5,306) (5,173) (5,047) (4,927) (4,812) (4,703)

2,8 0,235 0,228 0,222 0,217 0,211 0,206 0,201 0,196 0,192

(4,51) (5,961) (5,799) (5,647) (5,502) (5,364) (5,234) (5,109) (4,99) (4,877)

2,9 0,243 0,236 0,230 0,224 0,219 0,213 0,208 0,203 0,199

(4,67) (6,173) (6,007) (5,848) (5,699) (5,556) (5,421) (5,291) (5,168) (5,051)

3,0 0,251 0,245 0,238 0,232 0,226 0,221 0,216 0,210 0,206

(4,83) (6,386) (6,214) (6,05) (5,895) (5,748) (5,607) (5,474) (5,347) (5,225)

3,1 0,260 0,253 0,246 0,240 0,234 0,228 0,223 0,218 0,213

(4,99) (6,599) (6,421) (6,252) (6,092) (5,939) (5,794) (5,656) (5,525) (5,399)

3,2 0,268 0,261 0,254 0,248 0,241 0,235 0,230 0,225 0,219

(5,15) (6,812) (6,628) (6,454) (6,288) (6,131) (5,981) (5,839) (5,703) (5,573)

3,3 0,277 0,269 0,262 0,255 0,249 0,243 0,237 0,232 0,226

(5,31) (7,025) (6,835) (6,655) (6,485) (6,322) (6,168) (6,021) (5,881) (5,748)

3,4 0,285 0,277 0,270 0,263 0,256 0,250 0,244 0,239 0,233

(5,47) (7,238) (7,042) (6,857) (6,681) (6,514) (6,355) (6,204) (6,06) (5,922)

OVLÁDACIE PRVKY 4

4.5 OVLÁDACIE PRVKY BENZÍNOVÉHO NAPÁJACIEHO MODULU ____________________

M. Spínač motora – Spínač motora aktivuje a

deaktivuje zapaľovací systém motora. Spínač motora musí byt’ v zapnutej polohe (ON), aby motor bežal. Vypnutím spínača motora (OFF) súčasne vypnete motor.

N. Páka sýtiča – páka sýtiča slúži na otvorenie a

zatvorenie ventila sýtiča v karburátore. Zatvorená poloha (CLOSED) obohacuje palivovú zmes pri štartovaní studeného motora. Otvorená poloha (OPEN) zabezpecuje správnu zmes paliva na prevádzku po naštartovaní a pri reštartovaní zohriateho motora.

P. Uzatváranie prívodu paliva – palivový ventil

zatvára a otvára prepojenie medzi palivovou nádržou a karburátorom. Páčka palivového ventila musí byt’ v zapnutej polohe (ON), aby motor bežal. Keď sa motor nepoužíva, ponechajte páku palivového ventila v vypnutej polohe (OFF), aby nedošlo k zahlteniu karburátora a k úniku paliva.

Obrázok 4G

Obrázok 4H

4.6 OVLÁDACIE PRVKY BATÉRIOVÉHO NAPÁJACIEHO MODULU ____________________

R. Displej stavu batérií – Nachádza sa na

odnímateľnom batériovom module a zobrazuje stav nabitia batérií.

Obrázok 4I

UPOZORNENIE

Pred preklápaním kosačky pri nastavovaní nastavte páčku palivového ventila do vypnutej polohy (OFF), aby nedošlo k úniku paliva do skrine kľukového hriadeľa.

OFF

5 OBSLUHA

5.1 KAŽDODENNÁ KONTROLA _________________________________________________

1. Vykonajte vizuálnu kontrolu celého zariadenia, skontrolujte známky opotrebenia, uvoľnené časti, chýbajúce alebo poškodené komponenty.

2. Skontrolujte, či kosačka je nastavená na požadovanú výšku kosenia.

3. Skontrolujte, či stroj je namazaný, a či premiestňovacie kolesá sú riadne nahustené.

4. Skontrolujte systém SMPO.

5.2 SPRIAHACÍ SYSTÉM (SMPO)________________________________________________

1. Spriahací systém slúži na ochranu operátora a ostatných osôb pred zranením tým, že zastaví sekaciu hlavu a hnací mechanizmus hneď ako operátor uvoľní prítlačný poistný spínač SMPO (senzor monitorovania prítomnosti operátora).

2. Postup testovania systému:

a. Postavte kosačku na stojan.

b. Skontrolujte, či spínač sekacej hlavy je vypnutý.

3. Benzínový generátor: Naštartujte motor.

4. Zapnite zariadenie.

a. Posuňte prítlačný poistný spínač SMPO doľava a

stlačením ho aktivujte.

b. Hnací motor a kolesá sa začnú otáčat’.

c. Uvoľnite prítlačný poistný spínač SMPO.

Prítlačný poistný spínač sa musí rozpojit’ a hnací motor sa musí zastavit’.

5. Ak sa hnací motor zapojí pre stlačením prítlačného poistného spínača, alebo ak sa hnací motor stále otáča aj po uvoľnení prítlačného poistného spínača, ihneď zastavte zariadenie a dajte systém opravit’.

POZOR

Každodenná kontrola môže byt’ vykonávaná len pri aktivovanej parkovacej brzde a odpojenom napájacom konektore.

VÝSTRAHA

Nikdy nepoužívajte zariadenie, ak je spriahací systém odpojený alebo poškodený. Neodpájajte ani nepremost’ujte žiaden spínač.

OBSLUHA 5

5.3 PRACOVNÉ POSTUPY _____________________________________________________

1. Za žiadnych okolností neštartujte zariadenie, ak sa

operátor alebo okolostojace osoby nachádzajú pred sekacím valcom.

2. Nikdy nenechajte bežat’ motor v uzatvorených

priestoroch.

3. Nepribližujte sa rukami ani nohami k pohyblivým

častiam a rezacím zariadeniam. Ak je to možné, nenastavujte stroj pri bežiacom motore.

4. Nepoužívajte kosačku ani príslušenstvo, ak sú

niektoré komponenty uvoľnené, poškodené alebo ak chýbajú. Vždy, keď to je možné, koste trávu, keď je suchá.

5. Najskôr pokoste skúšobnú plochu, aby ste sa

dôkladne oboznámili/–a s obsluhou kosačky a ovládacími páčkami.

6. Preskúmajte plochu a stanovte najlepší a

najbezpečnejší postup práce. Vezmite v úvahu výšku trávy, typ terénu a stav povrchu. Každé podmienky si vyžadujú konkrétne nastavenia a predbežné opatrenia. Používajte len príslušenstvo a doplnky schválené spoločnost’ou Jacobsen.

7. Vždy sledujte smer vypúšt’ania trávy z kosačky a

nikdy nesmerujte prúd materiálu na okolostojace osoby. Nikdy nedovoľte žiadnej osobe, aby sa priblížila ku kosačke počas používania. Vlastník/ operátor zodpovedá za zranenia, ktoré spôsobí okolostojacim osobám a/alebo za škody na majetku.

8. Buďte rozvážny/–a, keď kosíte v blízkosti štrkových plôch (cesty, parkoviská, cestičky pre vozíky atď.). Kamene vystrelené z kosačky môžu spôsobit’ vážne zranenie okolostojacim osobám a/alebo poškodit’ zariadenie.

9. Ak nekosíte, vypnutím spínača sekacej hlavy zastavte lopatky.

10. Vypnite spínač sekacej hlavy, keď prechádzate cez chodníky alebo cesty. Sledujte premávku.

11. Ak narazíte na prekážku, alebo ak stroj začne nezvyčajne vibrovat’, ihneď zastavte a skontrolujte zariadenie, či nie poškodené. Pred pokračovaním v kosení dajte zariadenie skontrolovat’.

12. Na svahoch spomaľte a buďte mimoriadne opatrný/ –á. Buďte opatrný/–á, keď pracujete v blízkosti previsov.

13. Pred cúvaním sa pozrite za seba a pod nohy a uistite sa, že cesta je voľná. Buďte opatrný/–á, keď sa približujete k slepím rohom, kríkom, stromom a iným objektom, ktoré môžu prekážat’ vo výhľade.

14. Nikdy nečistite rezacie zariadenia rukami. Na odstránenie odrezkov trávy z lopatiek použite kefu. Lopatky sú veľm

i ostré a môžu spôsobit’ vážne

zranenia.

POZOR

Vždy používajte bezpečnostné okuliare, noste koženú pracovnú obuv, ochrannú prilbu a používajte ochranu uší,

aby ste sa nezranili.

UPOZORNENIE

Nikdy nenechajte sekaciu hlavu bežat’, ak neseká trávu.

Zabránite tým poškodeniu sekacej hlavy. Medzi nožom a sekacou hlavou by sa vytváralo nadmerné trenie a teplo a došlo by k poškodeniu reznej hrany.

POZOR

Pred kosením pozbierajte všetky väčšie predmety ako skaly, hračky a drôty, ktoré by mohli byt’ vystrelené zo stroja. Do novej oblasti vstupujte obozretne. Vždy pracujte pri rýchlostiach, ktoré vám poskytujú úplnú kontrolu nad kosačkou.

VÝSTRAHA

Pred čistením, nastavovaním alebo opravovaním tohto zariadenia vždy odpojte všetky pohony, aktivujte parkovaciu brzdu, vypnite kľúčový spínač a odpojte napájací konektor, aby sa zabránilo zraneniu.

5 OBSLUHA

5.4 NAŠTARTOVANIE/ZASTAVENIE _____________________________________________

1. Pripravte napájací modul na aktivovanie zariadenia.

Batériový napájací modul: Odpojte nabíjačku batérií a pripojte napájací konektor.

Benzínový generátor:

a. Skontrolujte hladinu oleja a palivo a potom

otvorte prívod paliva (P).

b. Páku škrtiacej klapky (N) presuňte to polohy

zatvorené (CLOSED).

c. Prepnite spínač motora (M) do zapnutej polohy

(ON) a hlavný spínač (D) do polohy pre kosenie.

d. Naštartujte motor. e. Po naštartovaní motora posuňte páčku sýtiča (N)

do otvorenej polohy (OPEN).

2. Uistite sa, že prítlačný poistný spínač SMPO (C) je rozpojený, spínač sekacej hlavy (E) je vypnutý a parkovacia brzda (A) je aktivovaná.

3. Otočte hlavný spínač (D) do štartovacej polohy a uvoľnite ho. Na LCD displeji (G) by sa mala na 5 sekúnd zobrazit’ obrazovka štartovania, a potom by sa mala prepnút’ na systémové napätie.

Ak sa systém neaktivuje, skontrolujte, či napájací konektor je riadne pripojený, a či prerušovač (F) nie je rozopnutý. V prípade potreby zopnite prerušovač.

4. Skontrolujte systémové napätie na LCD displeji (G). Ak sa na displeji nezobrazí obrazovka systémového napätia, stlačením jedného z oranžových tlačidiel (H) prepnite na správnu obrazovku. Ak je systémové napätie nízke, pred kosením dobite batérie alebo skontrolujte výstup na generátore.

5. Pri premiestňovaní zariadenia zatlačte prítlačný poistný spínač SMPO (C) doľ

ava a stlačte h

6. Ak chcete zastavit’ zariadenie, uvoľnite prítlačný poistný spínač SMPO, aktivujte parkovaciu brzdu a prepnite hlavný spínač do vypnutej polohy (OFF).

7. Batériový napájací modul: Odpojte napájací konektor a pripojte batériový modul do nabíjačky.

Benzínový generátor: Prepnite spínač motora (M) do vypnutej polohy (OFF) a zatvorte palivový ventil

(P).

Obrázok 5A

Obrázok 5B

OFF

OBSLUHA 5

5.5 KOSENIE_________________________________________________________________

1. Vypnite napájanie. Postavte kosačku na stojan a

odmontujte premiestňovacie kolesá (ak sú namontované).

2. Zapnite spínač sekacej hlavy. Potlačte kosačku

smerom dopredu zo stojana. Naštartujte zariadenie.

3. Umiestnite kosačku tak, aby mierne vytŕčala z trávnika.

a. Nastavte páčku ovládania rýchlosti trakcie (B) do

polohy, ktorá umožňuje bezpečnú, pohodlnú rýchlost’ chôdze.

b. Stlačte rukovät’ nadol, čím zdvihnete prednú čast’

kosačky nad trávnik a potom aktivujte strmeň SMPO (C) .

c. Keď kosačka prejde za okraj trávnika, spustite

hlavu kosačky na zem a pokračujte naprieč trávnikom v priamej línii.

Počas kosenia sa podľa potreby zdvihnite, aby rukovät’ ostala v strede v otvoroch na zarážkach rukoväte. Netlačte smerom dole na rukovät’ počas kosenia, pretože hlava kosačky by sa mohla zdvihnút’ z trávnika.

d. Keď dosiahnete protiľahlú stranu trávnika,

zatlačením rukoväte smerom dole zdvihnite hlavu rukoväte, neuvoľňujte prítlačný poistný spínač SMPO, pokračujte smerom von z trávnika a otočte sa, alebo len uvoľnite prítlačný poistný spínač SMPO a otočte sa.

e. Ak sa chcete otoči

t’ doprava, najskôr sa mierne

otočte doľava (2). Keď sa kosačka presunie približne o 1/2 svojej šírky doľava, otočte ju doprava (3 a 4) a usmerňujte kosačku pravou rukou. Táto metóda umožňuje rýchle otáčanie pomocou len niekoľkých krokov. [Obrázok 5C]

4. Aby sa dosiahlo kompletné, rovnomerné kosenie, prekrývajte pásy 25 až 50 mm, a potom jeden– alebo viackrát prejdite po obvode trávnika, aby sa vyhladili nerovné okraje a oddelil povrch jamkoviska od kamennej plochy.

5. Na dosiahnutie rovnomerného hracieho povrchu a čistejšieho vzhľadu, meňte vzor kosenia pri každom kosení trávnika. Vzory uvedené na obr. Obrázok 5D sú len návrhy; operátor alebo správca môže zvolit’ konkrétny spôsob kosenia vzhľadom na konkrétny trávnik.

6. Buďte opatrný/–á, keď pracujete na svahu a previsoch.

Obrázok 5C

Obrázok 5D

VÝSTRAHA

Aby sa predišlo vážnemu zraneniu, nepribližujte sa rukami, nohami a oblečením k rezaciemu zariadeniu, keď sa lopatky otáčajú.

NIKDY nečistite rezacie zariadenia rukami. Na odstránenie odrezkov trávy z lopatiek použite kefu. Lopatky môžu byt’ ostré a môžu vás zranit’.

Ak chcete odstránit’ cudzie predmety z rezacieho zariadenia, rozpojte prítlačný poistný spínač SMPO, aktivujte parkovaciu brzdu, vypnite hlavný spínač a odpojte napájací konektor. Potom odstráňte cudzie predmety.

UPOZORNENIE

Nikdy nenechajte sekaciu hlavu bežat’, ak neseká trávu.

Zabránite tým poškodeniu sekacej hlavy. Medzi nožom a sekacou hlavou by sa vytváralo nadmerné trenie a teplo a došlo by k poškodeniu reznej hrany.

Kosenie 1

Kosenie 2

Kosenie 3

Kosenie 4

5 OBSLUHA

5.6 PREMIESTŇOVACIE KOLESÁ (DOPLNKOVÉ) __________________________________

Premiestňovacie kolesá sú doplnkové príslušenstvo, ktoré vám poskytne predajca výrobkov značky Jacobsen. Odporúčame použit’ premiestňovacie kolesá, keď nepoužívate premiestňovací vozík na premiestňovanie kosačky medzi trávnikmi.

1. Zatlačte stojan proti zemi a podržte ho, a potom potiahnite rukovät’ kosačky v zdvíhacom mieste a cúvajte, až kým sa kosačka neusadí v stojane (S).

2. Ak chcete odpojit’ kolesá, odtlačte upevňovaciu svorku (T) smerom od náboja kolesa a koleso stiahnite z náboja.

3. Ak chcete inštalovat’ kolesá, stlačte upevňovaciu svorku (T), umiestnite koleso na náboj a otáčajte kolesom dozadu, kým čapy na zadnej časti kolesa nezapadnú do otvorov v náboji (U). Zatlačte koleso dnu a uvoľnite sponu.

4. Pred premiestňovaním kosačky na vzdialenost’ viac než niekoľko metrov vždy vypnite spínač sekacej hlavy.

5. Zatlačte kosačku smerom dopredu zo stojana, naštartujte zariadenie a stlačte prítlačný poistný spínač SMPO.

6. Ak používate vozidlo na premiestnenie kosačky, aktivujte parkovaciu brzdu, vypnite napájanie a odpojte napájací konektor.

Obrázok 5E

5.7 ZACHYTÁVAČ TRÁVY _____________________________________________________

1. Keď je kôš naplnený približne z dvoch tretín (2/3) odrezkami trávy, premiestnite kosačku mimo trávnik.

2. Zastavte na rovnom povrchu, uvoľnite prítlačný poistný spínač SMPO, aktivujte parkovaciu brzdu a odpojte napájací konektor.

3. Vyberte odrezky trávy z kosačky a vyprázdnite zachytávač trávy.

VÝSTRAHA

Pred montážou a demontážou premiestňovací kolies vždy aktivujte parkovaciu brzdu a odpojte napájací konektor.

VÝSTRAHA

Pred vyprázdňovaním zachytávača trávy vždy uvoľnite prítlačný poistný spínač SMPO a odpojte napájací konektor, aby nedošlo k vážnemu zraneniu.

OBSLUHA 5

5.8 KAŽDODENNÁ ÚDRŽBA ____________________________________________________

1. Zaparkujte kosačku na plochom, rovnom povrchu.

Aktivujte parkovaciu brzdu a prepnite kľúčový spínač do vypnutej polohy.

2. Podľa potreby namažte všetky mazacie body.

3. Umyte kosačku po každom použití, aby sa zabránilo

vzniku požiaru.

a. Na čistenie zariadenia používajte iba pitnú vodu.

b. Nepoužívajte vysokotlakovú trysku.

c. Nestriekajte vodu priamo na elektrické konektory,

motory a riadiacu jednotku.

d. Nestriekajte vodu do chladiacich rebier alebo

nasávacích otvorov motora.

Batériový napájací modul:

4. Odpojte napájací konektor a pripojte batériový

modul do nabíjačky.

Benzínový generátor:

5. Naplňte palivovú nádrž na konci každého pracovného dňa. Neplňte nad okraj palivového sitka. Zatvorte palivový ventil, ak sa zariadenie nepoužíva.

Používajte čistý, čerstvý, bezolovnatý benzín s oktánovým číslom najmenej 86. Informácie o odporúčanom palive pri používaní palivovej zmesi sa nachádzajú v návode na obsluhu motora.

Manipulujte s palivom opatrne – je vysoko horľavé.

Používajte schválenú nádobu, ktorej hrdlo sa musí zmestit’ do palivového plniaceho hrdla. Nepoužívajte plechovky ani lieviky na prelievanie paliva.

6. Skladujte palivo podľa miestnych a celoštátnych nariadení a odporúčaní, ktorá vám poskytol dodávateľ paliva.

7. Na začiatku a konci každého dňa, pred štartovaním motora, skontrolujte motorový olej. Ak je hladina oleja nízka, odmontujte uzáver olejového plniaceho hrdla a podľa potreby doplňte olej. Nedolievajte zbytočne veľa oleja.

UPOZORNENIE

Nepoužívajte nadmerné množstvo maziva na ložiskách, aby nedošlo k poškodeniu motora sekacej hlavy. Poškodenie tohto druhu nie je pokryté továrenskou zárukou.

UPOZORNENIE

Batériové napájacie moduly: Pred umývaním

kosačky odpojte konektor batérie a vyberte batériový modul z kosačky.

UPOZORNENIE

Morská a riečna voda spôsobujú koróziu kovových častí, vďaka čomu môže dôjst’ k predčasnému

schátraniu alebo poruche. Poškodenie tohto druhu nie je pokryté továrenskou zárukou.

UPOZORNENIE

Horúci alebo spustený motor neoplachujte. Na vyèistenie motora používajte stlaèený vzduch.

VÝSTRAHA

Nikdy neodstraňujte uzáver z palivovej nádrže, ani nepridávajte palivo, keď motor beží alebo keď je horúci.

Nefajčite počas manipulácie s palivom. Nikdy nedolievajte ani nevypúšt’ajte palivovú nádrž v interiéri.

Zabráňte rozliatiu paliva. V prípade rozliatia ihneď utrite vytečené palivo.

Nikdy nemanipulujte s palivovými kanistrami, ani ich neskladujte v blízkosti otvoreného ohňa alebo zariadenia, ktoré môže vytvárat’ iskry a zapálit’ palivo alebo palivové výpary.

Nezabudnite nasadit’ a pevne utiahnut’ palivový uzáver.

6 NASTAVENIA (VŠETKY JEDNOTKY)

6.1 VŠEOBECNÉ INFORMÁCIE _________________________________________________

1. Nastavovanie a údržbu by mal vždy vykonávat’ zaškolený technik. Ak nie je možné zabezpečit’ správne nastavenie, kontaktujte autorizovaného predajcu výrobkov značky Jacobsen.

2. Vymeňte opotrebované a poškodené komponenty. Nikdy ich neopravujte.

3. Dlhé vlasy, bižutéria a voľné oblečenie sa môžu zachytit’ do pohyblivých častí.

4. Nemeňte nastavenie rýchlostných limitov, ani nepretáčajte hnacie motory.

6.2 BRZDA __________________________________________________________________

Správe nastavená brzda vyžaduje t’ah o sile 4,5 kg v hornej časti brzdovej páky, aby sa aktivovala, a po uvoľnení musí vzdialenost’ medzi stredmi skrutiek dosahovat’ 38 mm.

1. Menšie nastavenia sa robia na rukoväti. Povoľte

maticu (A), otočením matice (B) nastavte brzdový kábel a potom dotiahnite maticu (A).

2. Ak nedokážete dosiahnut’ správne nastavenie na rukoväti, odmontujte premiestňovacie koleso a nastavte brzdu na brzdnom lanku.

3. Povoľte skrutku (C) a potiahnutím kábla správne nastavte napnutie brzdy. Utiahnite skrutku (C). Znova nastavte (A) a (B).

Obrázok 6A

6.3 ZARÁŽKY PÁČKY OVLÁDANIA RÝCHLOSTI ___________________________________

1. Uvoľnite obe matice (X).

2. Nastavte kladnú zarážku páčky (Y) na 22 mm.

3. Nastavte zápornú zarážku páčky (Z) na 27 mm.

4. Utiahnutím matíc (X) zaistite nastavenie.

Po nastavení zarážok páčky je potrebné vykonat’ kalibráciu páčky ovládania rýchlosti v riadiacej jednotke.

[Pozri Kapitola 4.3]

Obrázok 6B

VÝSTRAHA

Pred nastavovaním, čistením alebo opravovaním tohto zariadenia vždy odpojte všetky pohony, aktivujte parkovaciu brzdu, vypnite napájanie a odpojte napájací konektor, aby sa zabránilo vážnemu zraneniu.

POZOR

Dajte pozor, aby ste si nezachytili ruky a prsty medzi pohyblivými a pevne pripevnenými komponentmi stroja.

RUKÖVAŤ

BRZDOVÝ PÁS

38 mm

27 mm 22 mm

NASTAVENIA (VŠETKY JEDNOTKY) 6

6.4 RUKOVÄŤ ________________________________________________________________

1. Ak chcete nastavit’ uhol rúčky (F), povoľte skrutku

(D) na obidvoch stranách kosačky a rúčku nastavte

do požadovanej polohy.

2. Po nastavení rúčky nastavte konzolu (E) tak, aby

rúčka spočinula na spodnej časti otvoru v konzole. Utiahnite skrutku (D).

Obrázok 6C

6.5 TRAKČNÉ REMENE ________________________________________________________

1. Pri nastavovaní remeňa (G), namontujte 5/16-18 x 1”

skrutku so šest’hrannou hlavou (K) a 5/16-18 šest’hrannú maticu (L) v dolnej časti ložiskového štítu (H). Uvoľnite matice (J).

2. Umiestnite mierku nastavenia spodného noža (M)

na hornú stranu vretena a pod skrutku (K). Ut’ahujte skrutku (K) , až kým sa remeň (G) nevychýli 2,5 mm pri aplikovaní sily 0,45 ~ 0,91 kg v strede poľa.

3. Utiahnite skrutky (J) a odstráňte skrutku 5/16-18 x

1” (K) a spodnú skrutku (L).

4. Umiestnite pomôcky (K a L) na bezpečné miesto

pre neskoršie nastavovanie.

5. Pri nastavovaní remeňa (N) uvoľnite otočnú

pomôcku (P) a otočte puzdro motora smerom k prednej časti kosačky, až kým sa remeň nevychýli 2,5 mm pri aplikovaní sily 0,45 ~ 0,91 kg v strede poľa. Utiahnite pomôcku (P).

Obrázok 6D

POZOR

Nekrút’te, neskladajte, neohýbajte ani nadmerne nenapínajte remeň, aby nedošlo k jeho trvalému poškodeniu.

Zobrazená kosačka s nepohyblivou sekacou hlavou

Podobná kosačka splávajúcou sekacou hlavou

6 NASTAVENIA (VŠETKY JEDNOTKY)

6.6 ZAŤAŽENIE PREDNÉHO VALCA _____________________________________________

Zat’aženie predného valca je nastaviteľné. Nastavte zat’aženie predného valca tak, aby vyhovovalo spôsobu úpravy vášho trávnika.

1. Batériový napájací modul: Ak chcete nastavit’ zat’aženie predného valca, odpojte napájací konektor (R) a vyberte batériový modul (S). Uvoľnite skrutky (T), vložte batériový modul spät’ do kosačky, zložte kosačku zo stojana a podľa potreby posuňte montážny podnos batériového modulu (U).

Benzínový generátor: Uvoľnite pripevňovacie skrutky motora (V) a podľa potreby posuňte motor (W) .

2. Postup nastavenia zat’aženia predného valca:

a. Ak chcete zvýšit’ zat’aženie predného valca,

posuňte podnos batériového modulu (U) alebo motor (W) smerom k prednej časti kosačky.

b. Ak chcete znížit’ zat’aženie predného valca,

posuňte podnos batériového modulu (U) alebo motor (W) smerom k zadnej časti kosačky.

c. Použite štítok na montážnom prvku napájacieho

modulu ako pomôcku pri nastavovaní zat’aženia predného valca. Zarovnanie olejového výpustu (benzínový agregát) alebo V–drážky na podnose batériového modulu (batériový modul) s požadovanou čiarkou na štítku umožňuje dosiahnut’ konzistentné nastavenie zat’aženia predného valca.

3. Batériový napájací modul: Po dosiahnutí požadovaného zat’aženia zmerajte vzdialenost’ od okraja montážneho prvku napájacieho modulu po podnos (U). Vyberte batériový modul (S). Skontrolujte nameraný rozmer a utiahnite diel (R).

Benzínový generátor: Utiahnite montážny prvok motora (V).

Obrázok 6E

POZOR

Pred vybratím batériového modulu umiestnite kosačku na stojan, aby nedošlo k zraneniu alebo poškodeniu majetku.

Celé batériové moduly vážia približne 25 kg. Pri ich premiestňovaní použite správne postupy zdvíhania.

Batériový napájací modul

Benzínový generátor

NASTAVENIA (VŠETKY JEDNOTKY) 6

6.7 HODNOTY UT’AHOVACIEHO MOMENTU ______________________________________

Spoločnost’ Jacobsen používa štandardne pokovované skrutky triedy 5, pokiaľ nie je uvedené inak. Pri ut’ahovaní pokovovaných skrutiek použite hodnoty uvedené pre namazané skrutky.

UPOZORNENIE

Všetky hodnoty ut’ahovacieho momentu uvedené v týchto tabuľkách sú približné a slúžia len na referenčné účely. Tieto hodnoty ut’ahovacieho momentu používate na vlastné riziko. Spoločnost’ Jacobsen nezodpovedá za ujmu, nároky ani škody vyplývajúce z používania týchto tabuliek. Buďte mimoriadne opatrný/–á pri používaní hodnôt

ut’ahovacieho momentu.

UPEVŇOVACIE PRVKY V AMERICKÝCH NÁRODNÝCH MIERACH

VEĽ-

KOSŤ

JEDNOT-

TRIEDA 5 TRIEDA 8

VEĽ-

KOSŤ

JEDNOT-

TRIEDA 5 TRIEDA 8

Namazané Suché Namazané Suché Namazané Suché Namazané Suché
