COMF
RT SYSTEM
T-32-TS Touchscreen Thermostat
User Manual
TABLE OF CONTENTS
INTRODUCTION
USINGTHE TOUCHSCREENDISPLAY
TYPICALDISPLAY
SETTINGTHE DAY, TIMEAND CALENDAR
SETTING DAYLIGHT SAVINGTIME
BASICFUNC TIONS
MODECONFIGURATIONS
CONVENTIONALHEATINGAND COOLING EQUIPMENT
HEATPUMP
MODESELEC TION
FANSELECTION
CHANGINGTHE HEATINGOR COOLINGTEMPERATURESETTING
MANUALHEAT/ COOL MODE
AUTOMODE
PROGRAMMING
5-2(4 DAILYEVENTS -MORNING, DAY, EVENING,NIGHT )
5-2(2 DAILYEVENTS -DAY,NIGHT )
5-1-1(4DAILY EVENTS- MORNING,DAY,EVENING, NIGHT)
5-1-1(2 DAILYEVENTS -DAY,NIGHT )
7-DAYSCHEDULE(4 OR 2DAILYEVENTS)
OVERRIDES
TEMPORARYPROGRAM OVERRIDE
PERMANENTHOLD
OTHEROPTIONS
PROGRAMMABLEFAN MODE
ADAPTIVERECOVERY OPTION
FILTERREMINDER OPTION
CLEANSCREEN
LOWBATTERYINDICATION
CHANGINGTHE BATTERIES
1
2
3
4
5
6
7-11
7
7
7
8
9
10 - 11
10
11
12 - 22
12 - 15
16
16 - 17
17
18 - 22
23 - 24
23 - 24
24
25 - 28
25
26
26
27
28
29
INTRODUCTION
Your new Comfort System T-32-TS touch screen thermostat has been manufactured
using the highest quality components and design currently available. As a result, when
properly installed and configured by a professional heating and air conditioning
contractor, the T-32-TS will provide years of trouble-free operation.
The T-32-TS has been designed to be an attractive, highly reliable and easy-to-use
thermostat. By taking time to read and understand this User Manual, you can take
advantage of the many features offered in this premium product.
™
Although great care has been taken in the preparation of this manual, Jackson
Systems takes no responsibility for errors or omissions contained herein. It is the
responsibility of the installer to ensure that this thermostat and the equipment
connected to it operate in a safe and efficient manner.
Due to ongoing product improvements, Jackson Systems reserves the right to change the
specifications of the T-32-TS thermostat or its components without notice.
All rights reserved.
Jackson Systems, LLC 2012.
Intellectual rights apply.
©
2
USING THE TOUCHSCREEN DISPLAY
To simplify use, theT-32-TS only displays information relevant to the current mode of
operation. When adjustments are required, the thermostat will display additional
information or functional icons. Based on the thermostat configuration, some
information and icons may not be displayed.The illustration below shows all the LCD
segments and icons along with abbreviated definitions.
3
PM
AM
DST
Begin
Ends
Heat Cool
Auto E. heat
Mon Tue Wed Thu Fri Sat Sun OutsideAir Temperature
Automatic
Always On
OFF
Morning Day
Evening Night
Clean Filter
Clean
Screen
88/88/2088
Cool
Heat Set
Back
Next
Hold
.
.
DAYS OF THE WEEK
TIME OF DAY
12 OR 24 HOUR
SELECTABLE
MONTH, DAY, YEAR
ALSO USED TO SET DAYLIGHT
SAVINGSTIME DATES
DAYLIGHT SAVINGS TIME
DISPLAYED WHEN DSTIS USED
CHANGE FILTER REMINDER
DISPLAYED WITH OUTSIDE
AIR TEMPERATURE
SET TEMPERATURE
OR OUTDOOR TEMPERATURE
DISPLAY
FAHRENHEITOR CELSIUS
SELECTABLE
CLEAN SCREEN
WHEN TOUCHED,ALLOWS
30 SECONDS TO
CLEAN SCREEN
WHILE THERMOSTAT
FUNCTIONS ARE
LOCKED
LOCK ICON
DISPLAYED WHENA
FUNCTION CAN NOT
BE ACCESSED OR
EXCEEDING ASET LIMIT
LOW BATTERY
INDICATOR
CHANGE BATTERIES
WHEN DISPLAYED
UP AND DOWN ARROWS
USED TO SETTEMPERATURE,
TIME, DAY, MONTH,YEAR
AND OTHER VALUES
SPACE TEMPERATURE
FAHRENHEITOR CELSIUS
SELECTABLE
MODE
USED TO SELECT
HEAT, COOL,AUTO,
OFF OR E. HEAT
FAN
USED TO SELECT
AUTOMATIC OR
ALWAYS ON
OPERATION
PROGRAM
USED TO PROGRAM EVENTS
IN PROGRAMMABLE
MODE
TYPICAL DISPLAY
4
During normal operation, the T-32-TS typically displays the following:
1. Day of the week 5. Fan selection
2. Time of day 6. Program period (programmable only)
3. Calendar (M/D/Y) 7. Mode of operation
4. Space temperature 8. Set temperature
AM
DST
Cool
Mon
Automatic
Morning
01/01/2012
Cool
Set
1
2
3
4
5
67
8
SETTING THE DAY, TIME AND CALENDAR
5
AM
DST
Mon
01/01/2012
Tap the clock with your finger. The day of the week will flash. Tap the UP or DOWN
arrow to change the day then tap the clock again. The hour will flash.Tap the UP or
DOWN arrow to change the hour making sure that AM or PM are correct. Tap the clock
again and the minutes will flash. Tap the UP or DOWN arrow and change the minutes
and then tap the clock. The calendar month will flash. Tap the UP or DOWN arrow to
change the month then tap the clock. The day of the month will flash. Tap the UP or
DOWN arrow to change the day of the month and then tap the clock. The year will
flash. Tap the UP or DOWN arrow to change the year and then tap the clock. The
thermostat will then return to its operating mode in 10 seconds.
E
E
SETTING DAYLIGHT SAVINGSTIME
6
Your thermostat has been configured for Daylight Savings Time. If this feature does
not apply in you location, ask your contractor to disable it. You will need to set the
Daylight Savings Time schedule each calender year. (Refer to the DST Chart) Touch and
on the clock. The time will appear along with and the
month will flash. Tap the UP or DOWN arrow to set the proper month based on the
DST Chart then tap the clock. The day of the month will flash. Tap the UP or DOWN
arrow to set the proper day of the month and then tap the clock. The year will flash.
Tap the UP or DOWN arrow to set the year and then tap the clock. will appear
and the month will flash. Follow the same steps above by entering the month, day and
year that DST ends then tap the clock. The thermostat will return to its operating
mode in 10 seconds.
hold down 2:00 AM Begin
Ends
AM
DST
Begin
Ends
03/11/2012
E
E
DAYLIGHT SAVINGS CHART
2012 BEGIN 03/11 ENDS 11/04
2013 BEGIN 03/10 ENDS 11/03
2014 BEGIN 03/09 ENDS 11/02
2015 BEGIN 03/08 ENDS 11/01
BASIC FUNCTIONS
MODE CONFIGURATIONS
Manual Changeover (
Auto Changeover
Heat Only
Cool Only
Auto
Manual Changeover
Auto Changeover
Heat Only
Cool Only
Auto
Your contractor can configure the thermostat with different mode selections based on
user preference and/or equipment type. Mode configuration can be as follows:
Heat / Cool / Off)
(Heat / Cool / Auto / Off)
(Heat / Off )
(Cool / Off)
(Auto / Off)
(Heat / Cool / *E. Heat / Off)
(Heat / Cool / Auto / *E. Heat / Off)
(Heat / *E. Heat / Off )
(Cool / Off)
(Auto / *E. Heat / Off
* Only displayed if thermostat has been configured for auxiliary heat.
Conventional Heating and Cooling Equipment
Heat Pump
7
BASIC FUNCTIONS
MODE SELECTION
Mode
Off Heat
Heat
Cool Cool
To select a mode of operation, simply tap the box on the screen.
Thermostat will not call for heating or cooling.
- Thermostat only controls heating.When the heating system is running, the
symbol will flash.
- Thermostat only controls cooling.When the cooling system is running, the
symbol will flash.
Based on
equipment and thermostat configuration, mode selection can be as follows:
8
AM
DST
Cool
Mon
Automatic
Morning
01/01/2012
Cool
Set
E
Auto
Heat Cool
E. Heat
- Thermostat controls both
heating and cooling. or will
flash when the equipment is running.
- Emergency heat for heat
pump and fossil fuel systems in the
event the heat pump fails. Only
displayed when thermostat is
configured for heat pump equipment.
BASIC FUNCTIONS
9
FAN SELECTION
Fan Automatic Always OnTap the box on the screen to select or fan mode. In
Automatic mode, the fan operates with a heating or cooling call. If set to Always On,
the fan will run continuously. If the thermostat is turned Off while the fan is set to
Always On, the fan will switch to Automatic mode but can be set back to Always On for
constant ventilation when the thermostat is Off.
AM
DST
Cool
Mon
Automatic
Morning
01/01/2012
Cool
Set
E
BASIC FUNCTIONS

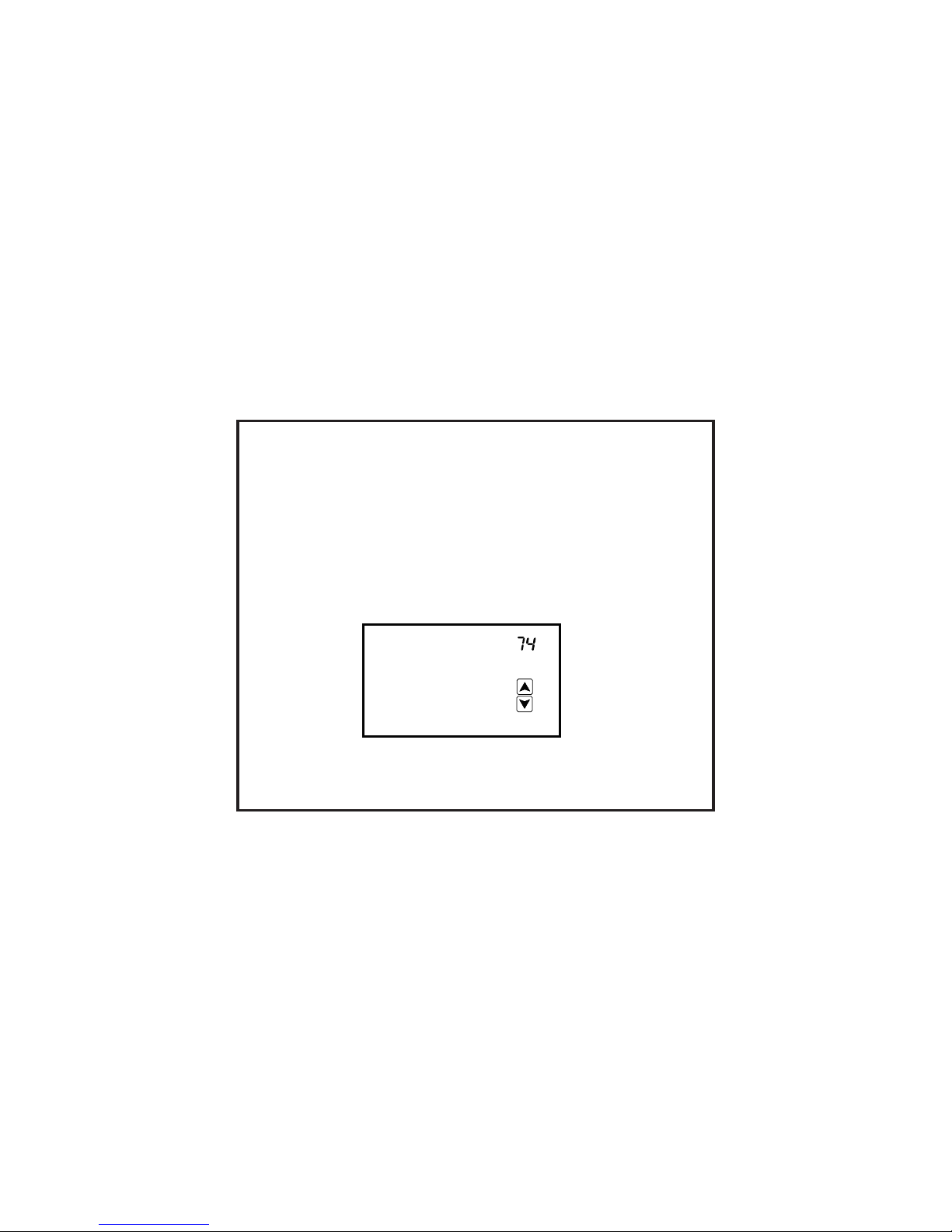

CHANGING THE HEATING OR COOLING TEMPERATURE SETTING
Manual Heat / Cool Mode
In manual changeover mode, only the heating or cooling temperature setting will be
displayed. To change the setting, simply tap the temperature displayed on the screen.
Depending on the mode, either Heat Set or Cool Set will flash.
Tap the UP or DOWN arrow to change the setting. The ther
new temperature will be displayed.
mostat will return to its
operating mode in 10 seconds and the
10
Cool
Set
E
E
BASIC FUNCTIONS
CHANGING THE HEATING OR COOLING TEMPERATURE SETTING
Auto Mode
Heat Set Cool Set
Heat Set
In Auto changeover mode, the heating or cooling temperature settings alternate on
the screen. To change the settings, simply tap the temperature displayed on the
screen. will flash for five times and then will flash five times
To change the heating setting, tap the UP or DOWN arrow to change the setting when
is flashing. To change the cooling setting, tap the UP or DOWN arrow to
change the setting when is flashing. The thermostat will return to its
operating mode in 10 seconds and the new temperature(s) will be displayed.
Cool Set
11
Cool
Set
E
E
PROGRAMMING
5-2 SCHEDULE (4 DAILY EVENTS - Morning, Day, Evening, Night)
Program
If your thermostat has been configured as 5-2, you can schedule 4 daily events
(Morning, Day, Evening, Night) for Monday through Friday and 4 different daily events
for Saturday and Sunday. Press the box. Monday through Friday
along with the UP and DOWN arrows will appear on the screen.
and hold
12
Mon Tue Wed Thu Fri
E
PROGRAMMING
5-2 SCHEDULE (4 DAILY EVENTS - Morning, Day, Evening, Night)
ProgramTap again and the Morning start time will appear. The hour and AM or PM
will flash. Tap the UP or DOWN arrow to change the start time hour. The factory default
is 6:00 AM.
13
AM
Mon Tue Wed Thu Fri
Morning
E
Tap Program again and the minutes will flash. Tap the UP or DOWN arrow to change
the minutes which are displayed in 10 minute increments.
PROGRAMMING
5-2 SCHEDULE (4 DAILY EVENTS - Morning, Day, Evening, Night)
Program Heat SetTap again and the Morning temperature will be displayed and
flash. Tap the UP or DOWN arrow to change the heating temperature. The factory
default is 70 F for Morning.°
14
Tap again and Morning temperature will be displayed and flash.
Tap the UP or DOWN arrow to change the cooling temperature. The factory default is
75
Program Cool Set
° F.
AM
Mon Tue Wed Thu Fri
Morning
Heat Set
E
PROGRAMMING
5-2 SCHEDULE (4 DAILY EVENTS - Morning, Day, Evening, Night)
Program
8:00 AM, Heat Set 62 F, Cool Set 78 F
Program
Tap again and the Day start time will appear. The hour will flash along with
AM or PM. Follow the same steps in the Morning sequence.The factory defaults for
the Day event are .
After setting the Day Cool Set temperature, Tap again and the Evening start
time will appear. Follow the same steps. The factory defaults for the Evening event are
6
°°
:00 PM, Heat Set 70 F, Cool Set 75 F
Program
10:00 PM, Heat Set 62 F, Cool Set 78 F
Program
Cool Set
°°
°°
.
After setting the Evening Cool Set temperature, Tap again and the Night start
time will appear. Follow the same steps. The factory defaults for the Night event are
.
You have now set 4 events for Monday through Friday.
Tap again and Sat, Sun will appear along with the Morning start time. Follow
the same steps as used to schedule the Monday through Friday events. After the
Evening temperature is confirmed, do not touch the screen. The thermostat
will return to its operating mode in 10 seconds and all changes will be saved.
15
PROGRAMMING
16
5-2 SCHEDULE (2 DAILY EVENTS - DAY, NIGHT)
If your thermostat has been configured for only 2 daily events for Monday through
Friday and 2 daily events for Saturday and Sunday, you only have to program a Day
and Night schedule. The factory defaults settings are as follows:
Monday - Friday: Day - 6:00AM - Heat Set 70 F - Cool Set 75 F
Night - 6:00PM - Heat Set 62 F - Cool Set 83 F
Saturday - Sunday: Day - 6:00AM - Heat Set 70 F - Cool Set 75 F
Night - 6:00PM - Heat Set 62 F - Cool Set 83 F
°°
°°
°°
°°
5-1-1 SCHEDULE (4 DAILY EVENTS - Morning, Day, Evening, Night)
If your thermostat has been configured as 5-1-1, you can schedule 4 daily events
(Morning, Day, Evening, Night) for Monday through Friday and 4 different daily events
for Saturday as well as 4 different events for Sunday. Follow the same steps as outlined
in 5-2 programming. The factory default settings are as follows:
Monday - Friday: Morning - 6:00 AM - Heat Set 70 F - Cool Set 75 F
Day - 8:00 AM - Heat Set 62 F - Cool Set 78 F
Evening - 6:00 PM - Heat Set 70 F - Cool Set 75 F
Night - 10:00 PM - Heat Set 62 F - Cool Set 78 F
°°
°°
°°
°°
PROGRAMMING
Saturday: Morning - 6:00 AM - Heat Set 70 F - Cool Set 75 F
Day - 8:00 AM - Heat Set 62 F - Cool Set 78 F
Evening - 6:00 PM - Heat Set 70 F - Cool Set 75 F
Night - 10:00 PM - Heat Set 62 F - Cool Set 78 F
Sunday: Morning - 6:00 AM - Heat Set 70 F - Cool Set 75 F
Day - 8:00 AM - Heat Set 62 F - Cool Set 78 F
Evening - 6:00 PM - Heat Set 70 F - Cool Set 75 F
Night - 10:00 PM - Heat Set 62 F - Cool Set 78 F
Monday - Friday: Day - 6:00AM - Heat Set 70 F - Cool Set 75 F
Night - 6:00PM - Heat Set 62 F - Cool Set 83 F
Saturday: Day - 6:00AM - Heat Set 70 F - Cool Set 75 F
Night - 6:00PM - Heat Set 62 F - Cool Set 83 F
Sunday: Day - 6:00AM - Heat Set 70 F - Cool Set 75 F
°°
°°
°°
°°
°°
°°
°°
°°
°°
°°
°°
°°
°°
5-1-1 SCHEDULE (2 DAILY EVENTS - DAY, NIGHT)
If your thermostat has been configured for only 2 daily events for Monday through
Friday and 2 daily events for Saturday as well as 2 daily events for Sunday, you only
have to program a Day and Night schedule. The factory default setting are as follows:
17
PROGRAMMING
18
7-DAY SCHEDULE (4 OR 2 DAILY EVENTS)
If your thermostat has been configured for 7-Day scheduling, this means that you can
have either 4 daily events (Morning, Day, Evening, Night) or 2 daily events (Day, Night)
for each day of the week.
Press the box. (Monday) along with the UP and DOWN arrows
will appear on the screen.
4 Daily Events
Program Monand hold
Mon
E
PROGRAMMING
7-DAY SCHEDULE (4 OR 2 DAILY EVENTS)
Tap again and the Morning start time will appear. The hour and AM or PM
will flash. Tap the UP or DOWN arrow to change the start time hour. The factory default
is 6:00 AM.
Program
19
AM
Mon
Morning
E
Tap Program again and the minutes will flash. Tap the UP or DOWN arrow to change
the minutes which are displayed in 10 minute increments.
PROGRAMMING
7-DAY SCHEDULE (4 OR 2 DAILY EVENTS)
Tap again and the Morning temperature will be displayed and
flash. Tap the UP or DOWN arrow to change the heating temperature. The factory
default is 70 F for Morning.
Program Heat Set
°
20
Tap again and Morning temperature will be displayed and flash.
Tap the UP or DOWN arrow to change the cooling temperature. The factory default is
75
Program Cool Set
° F.
AM
Mon
Morning
Heat Set
E
PROGRAMMING
7-DAY SCHEDULE (4 OR 2 DAILY EVENTS)
:00 PM, Heat Set 70 F, Cool Set 75 F
Program
10:00 PM, Heat Set 62 F, Cool Set 78 F
cpy
Tue Wed
Program cpy
Thu
Tap again and the Day start time will appear. The hour will flash along with
AM or PM. Follow the same steps in the Morning sequence.The factory defaults for
the Day event are .
After setting the Day Cool Set temperature, Tap again and the Evening start
time will appear. Follow the same steps. The factory defaults for the Evening event are
6
Program
8:00 AM, Heat Set 62 F, Cool Set 78 F
Program
°°
°°
°°
.
After setting the Evening Cool Set temperature, Tap again and the Night start
time will appear. Follow the same steps. The factory defaults for the Night event are
.
Tap Program again and the word (copy) will appear. If you want to copy the
Monday schedule to consecutive days of the week, tap the UP arrow to add additional
days. Each day that you add will flash. For example, you might want to copy the
Monday schedule to Tuesday and Wednesday. Once and are flashing, tap
and will flash confirming that the Monday schedule is being copied to
Tuesday and Wednesday. The thermostat will then advance to ( Thursday).
21
PROGRAMMING
7-DAY SCHEDULE (4 OR 2 DAILY EVENTS)
If you elect to have a different schedule for each day of the week, simply tap
when appears. The thermostat will automatically advance to the next day.
Program
cpy
22
Mon
E
2 DAILY EVENTS
Day Night
Seven day scheduling for 2 daily events uses the same programming steps as 4 daily
events other than you only have to program and . Once programming is
completed, the thermostat will resume normal operation in 10 seconds.
OVERRIDES
When the T-32-TS is configured for programmable operation, there are two types of
temperature overrides available.
Temporary Program Override is designed to allow you to adjust the heating or cooling
temperature without changing the programmed temperatures. For example, if you
want to change the heating temperature, simply tap the displayed temperature.When
flashes, tap the UP or DOWN arrows to adjust the setting.The thermostat will
resume operation in 10 seconds and display the new heating temperature. The
program period (Morning, Day, Evening Night) or (Day, Night) will flash continuously
to provide confirmation that the temperature has been changed.
TEMPORARY PROGRAM OVERRIDE
Heat Set
23
Heat Set
E
E
24
OVERRIDES
The new heating temperature will remain active until the next scheduled event at
which time it will be deleted and only the programmed temperatures will be used.
Your contractor can also configure the thermostat for a fixed override period that is
adjustable from 1 - 12 hours. For example, if 3 hours is selected, any change in the
program temperatures will be kept for 3 hours regardless whether the thermostat
advances to another scheduled event during the override period.
To manually cancelTemporary Override, tap until appears and then tap
Program again. The thermostat will resume normal programmed operation.
There can be times when a permanent override is required such as during a vacation
or holiday period. To place the thermostat in Permanent Hold, simply tap
until the word appears. Next, tap the displayed temperature. While or
are flashing, tap the UP or DOWN arrow to adjust the permanent hold
temperature(s) that you want to maintain.
Whenever you want the thermostat to resume normal programmed operation, simply
tap . will again appear and the thermostat will resume programmed
operation.
Program Hold
PERMANENT HOLD
Program
Hold Set Heat
Set Cool
Hold Program
OTHER OPTIONS AND FEATURES
PROGRAMMABLE FAN OPTION
Automatic Always On
Automatic
Always On
Automatic
Fan On Program
Fan
If your contractor has configured the T-32-TS thermostat with the Programmable Fan
Option, you will be able to select or fan operation for any
programmed event. fan mode allows the equipment fan to run whenever
there is a call for heating or cooling. allows the fan to run continuously
regardless of whether a heating or cooling call is taking place. When programming the
thermostat, the Programmable Fan Option will appear as part of the programming
sequence for each program period. When the word begins to flash, tap the
UP arrow to change to or simply tap to maintain Automatic fan
operation for the program period. Just like Temporary Temperature Override, the
Programmable Fan mode can be changed simply by tapping . The program event
will flash confirming the Programmable Fan mode is in override.
25
AM
Mon
Automatic
Morning
E
26
ADAPTIVE RECOVERY OPTION
FILTER REMINDER OPTION
Mode Fan Clean Filter
If your thermostat has been configured for programmable operation, your contractor
can add the Adaptive Recovery Option. Adaptive Recovery compares the space
temperature deviation from the set temperature for the next event and rate of
recovery history to bring the equipment on and reach the temperature setting at the
scheduled event start time. Example: If you program a heating temperature to be 70
degrees at 6:00 PM, Adaptive Recovery will calculate when to bring the equipment on
so that the temperature will be 70 degrees at 6:00 PM.
The T-32-TS has a Filter Reminder Option that your contractor can configure to remind
you when to change your furnace filter. To reset the Filter Reminder, touch and hold
and until
disappears. This automatically
resets the filter reminder clock.
OTHER OPTIONS AND FEATURES
AM
Heat
Tue
Automatic
Morning
Clean Filter
01/15/2012
Heat Set
E
E
OTHER OPTIONS AND FEATURES
CLEAN SCREEN
Clean Screen
Periodically it might be necessary to clean the touch screen. Use only a slightly
moistened clean non-abrasive cloth or glass cleaner.Tap the area on the screen where
the icon is located. All normal operating functions will be hidden and
the thermostat will begin to count down from 30 seconds. This prevents any changes
to the thermostat during cleaning. If more time is required, tap the screen icon section
again to repeat the process.
27
AM
Heat
Tue
Automatic
Morning
Clean
Screen
01/15/2012
Heat Set
Back
E
Clean
Screen
28
OTHER OPTIONS AND FEATURES
AM
Heat
Tue
Automatic
Morning
Clean Filter
01/15/2012
Heat Set
Back
LOW
BATTERY
ICON
LOW BATTERY INDICATION
Your thermostat uses two AAA batteries to keep the time-of-day clock running in case
of a power failure. In some applications, battery power is also used to control the
heating and air conditioning equipment. When the Low Battery icon appears on the
screen, it’s time to change the batteries.
CHANGING THE BATTERIES
Press in on the battery access compartment and slide the drawer out. Install two AAA
batteries matching the + and - orientation. Push the battery compartment in until it
clicks shut. When the batteries are properly installed, the touchscreen display will
resume normal operation with no loss of programming or current time.
+
-
29
Loading...
