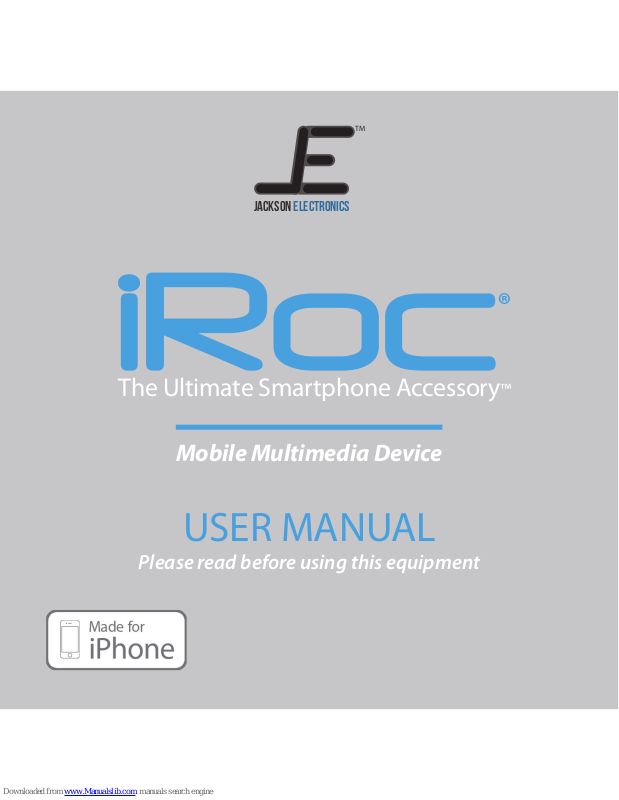

iRoc

The Ultimate Smartphone Accessory

™

Mobile Multimedia Device

USER MANUAL

Please read before using this equipment

Jackson Electronics

1 http://iRocOnline.com

TableofContents

USERS INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

GETTING STARTED WITH iRoc

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Mounting Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Adjusting Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

TECHNICAL DETAILS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

In Case of Diculty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

INSTALLATION AND CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . 18

Installation Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Connections Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

iRoc

The Ultimate Smartphone Accessory

™

User

Instructions

3 http://iRocOnline.com iRoc® Users Instructions 4

UserInstructions

WA R NIN GS

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.

Any function that requires your prolonged attention should be performed only after the vehicle has come to a complete stop. Failure to do so may result in an accident.

DO NOT WATCH VIDEO WHILE DRIVING.

WATCHING VIDEO MAY HIN DER YOUR ABILIT Y TO SAFELY DRIVE THE V EHIC LE AND CAUSE AN ACCID ENT.

AVOID EXCESSIVE VOLUME LEVELS WHILE DRIVING.

High volume levels can cause sounds such as emergency vehicle sirens, train crossings, horns, etc. to be obscured and result in an accident. EXCESSIVE VOLUME LEVELS IN AN ENCLOSED SPACE MAY CAUSE PERMANENT HEARING DAMAGE.

5 http://iRocOnline.com iRoc® Users Instructions 6

DO NOT ATTEMPT TO ALTER OR DISASSEMBLE PRODUCT.

Doing so may result in re, electric shock, or other unintended operation.

FOR USE ONLY IN MOBILE APPLICATIONS WITH A 12 VOLT NEGATIVE GROUND.

Using this product in a manner other than what was intended may result in re, electric shock, or other type of injury.

USE ONLY THE EXACT AMPERE RATING WHEN REPLACING FUSES.

Using incorrect fuses may result in damage to the product and/or damage to your vehicle.

TERMINATE USE IMMEDIATELY IF PROBLEM ARISES.

Failure to do so may result in damage to the product or personal injury. Return product to nearest authorized Jackson Electronics dealer or Installation Company for repair or replacement.

P REC AU TIO NS

PRODUCT CLEANING

Use a dry, soft cloth to clean the product. If necessary use a cloth dampened only with water, as any other substance could damage the plastic or nishes.

TEMPERATURE

Ensure the temperature inside your vehicle is within 0˚C (32˚F) and 45˚C (113˚F) before using product.

MAINTENANCE

If you experience problems with your iRoc®, do not attempt to repair the unit yourself. Please return the product to your nearest authorized Jackson Electronics dealer or Installation Company for repair or replacement.

WARNING

Opening or tampering with the unit will void all warranties.

7 http://iRocOnline.com

I NSTA LL AT ION LO C AT IO N

Make sure the product is not installed in a location subject to any of the following:

• Prolonged Direct Sunlight

• Excessive Vibration

• Excessive Dust

• High Humidity or Water

iRoc

The Ultimate Smartphone Accessory

™

GettingStarted

9 http://iRocOnline.com iRoc® Getting Started 10

CO MP O NENT S

1. VOLUME / TONE CONTROL KNOB

Turn left and right to increase or decrease volume. When knob is depressed, blue icons indicate Treble, Bass, and Subwoofer controls.

2. APPLE 30PIN CONNECTOR

Connects to bottom of the iPhone®.

3. SLIDING HEADPHONE JACK

Slides to the right to secure the iPhone in place.

M OUN TI N G D EV I C E

1. POSITION DEVICE

With headphone jack in the open position, rmly slide iPhone onto 30-pin connector.

Continued on page 11

11 http://iRocOnline.com iRoc® Getting Started 12

Then insert headphone jack into top of device.

A DJU ST I N G LE V E LS

ADJUSTING VOLUME

urn knob right to increase main volume, left to decrease main

volume.

ADJUSTING TREBLE

Depress knob once to display Treble stylized icon, turn knob right to increase Treble and left to decrease Treble.

ADJUSTING BASS

Depress knob again to display Bass stylized icon, turn knob right to increase Bass and left to decrease Bass.

ADJUSTING SUBWOOFER

Depress knob a third time to display Subwoofer stylized icon, turn knob right to increase Subwoofer and left to decrease Subwoofer.

Continued from page 10

2. CONNECT HEADPHONE JACK

13 http://iRocOnline.com

iRoc

The Ultimate Smartphone Accessory

™

TechnicalDetails

15 http://iRocOnline.com iRoc® Technical Details 16

S PEC IF I C AT I O NS

POWER RATINGS

RMS Power Output: 18.5W x 4 Max Power Output: 37W x 4

SOUND TUNING

Treble Level Control Range: +/- 15dB Bass Level Control Range: +/- 15dB Subwoofer Level Control Range: 0-50dB

DIMENSIONS

“DIN” size: 1 or 2 Chassis Size DIN 1 (W x H x D): 178 mm x 50 mm x 156 mm Chassis Size DIN 1 (W x H x D): 7” x 2” x 6-1/8” Chassis Size DIN 2 (W x H x D): 178 mm x 100 mm x 156 mm Chassis Size DIN 2 (W x H x D): 7” x 3-15/16” x 6-1/8”

GENERAL

Power Requirement: 14.4 (11-16) Volts DC Pre Output Voltage (before clipping): 2 Volts RMS

Operating Temperature: 0˚C (32˚F) to 45˚C (113˚F) Weight: x lbs. x oz. (x.x kg)

Due to continuous product improvement, specications and design are subject to change without notice.

I N CA S E O F DIF FI C U LT Y

UNIT DOES NOT OPERATE

• Vehicle ignition is switched o –

If properly connected, the unit should not operate with vehicle’s ignition switched o.

• Fuse is blown –

Check any fuses relevant to the unit’s operation and replace with identical fuse.

• Improper power lead connections –

Ensure power and ground are correctly connected.

UNNATURAL OR NO SOUND

• Volume/treble/bass/subwoofer controls improperly adjusted –

Adjust accordingly.

• Headphone jack is not fully inserted –

Fully remove and insert again, you should feel a rm click once inserted.

• Unit is not properly installed –

If your iRoc® continues to function improperly, please return to your nearest authorized Jackson Electronics dealer for repair or replacement.

17 http://iRocOnline.com

iRoc

The Ultimate Smartphone Accessory

™

Installation

and

Connections

19 http://iRocOnline.com iRoc® Installation and Connections 20

I NSTA LL AT ION PRE CA UTI ON S

HAVE INSTALLATION AND WIRING DONE PROFESSIONALLY

Improper installation could result in product damage, re, or injury. Please contact the dealer from which you purchased your iRoc® for installation.

MAKE ONLY PROPER CONNECTIONS

Failure to do so may result in product damage or injury.

ONLY INSTALL PRODUCT IN VEHICLES WITH 12 VOLT NEGATIVE GROUND

Attempting to do otherwise may result in damage to the product or vehicle.

DISCONNECT NEGATIVE BATTERY TERMINAL BEFORE INSTALL

Leaving the battery terminal connected may result in injury due to electric shock.

DO NOT SPLICE INTO OTHER ELECTRICAL WIRES

Cutting away cable insulation to supply power to other equipment may result in a short circuit, and will exceed the intended current capacity possibly resulting in re or electric shock.

CO NN E C TION S DIA G R AM

L R

AMPLIFIERS 

BATTERY

SWI*

Amp Turn-On (blue/black)

Video Out

IGNITI ON

(red)

BATTERY (yellow)

GROUND (black)

L FRONT R

L REAR R

(white) (gray)

(white/black) (gray/black)

(green) (violet)

(green/black) (violet/black)

SUB Front Rear

L R L R

*Steering Wheel Interface

http://iRocOnline.com

iPhone is a trademark of Apple Inc., registered in the U.S. and other countries.

“Made for iPhone” means that an electronic accessory has been designed to connect specically to iPhone and has been certied by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPhone may aect wireless performance.

Jackson Electronics Incorporated

P.O. Box 164151• Austin, Texas 78716

Info@iRocOnline.com

http://iRocOnline.com
