Jackson Dishwasher R24 Service Manual

Page 1
JACKSON MSC, INC.
BARBOURVILLE, KY. 40906
FAX: (606) 523-9196
PHONE: (606) 523-9795
CHEMICAL SANITIZING GLASSWASHER DISHMACHINE SERIES

TECHNICAL MANUAL

INSTALLATION MANUAL FOR EXPORT UNITS
SERVICE MANUAL FOR DOMESTIC UNITS
FOR JACKSON MODELS:
R24
R30
July 31, 2006 P/N 7610-002-24-72 (Revision G)
HIGHWAY 25E
www.jacksonmsc.com
Page 2
Page 3

REVISION

REVISION
DATE
MADEBYAPPLICABLE
ECN
DETAILS
E 03-01-04 MAW 6431
F 12-05-05 CBW
G 07-31-06 MAW
7075, 7290,
7324
7618, 7657
7751
CHANGED 5/8” TO 1/2” SCREW. CONVERTED OVER TO THE NEW LAYOUT.
ADDED WORK INSTRUCTIONS AND NEW SERVICE KITS, ADDED NEW STIFFENER NUMBER
Converted to center layout. Replaced relay with contactor. Updated vacuum breaker plumbing assemblies. Updated schematic.
i
Page 4
NOMENCLATURE FOR THE MODELS COVERED IN THIS MANUAL
GLASSWASHER SERIES
R24 = 24” Glasswasher R30 = 30” Glasswasher
Model: Serial No.: Installation Date: Service Rep. Name: Phone No.:
ii
Page 5

TABLE OF CONTENTS

SECTION DESCRIPTION PAGE
I. GENERAL
Specifications 2 Dimensions 3
II. INSTRUCTIONS SECTION
Installation Instructions 5 Electrical Connections 6 Detergent Control 7 Chemical Dispensing 8 Operating Instructions 9
Sequence of Operation 10 III. PREVENTATIVE MAINTENANCE 12 IV. TROUBLESHOOTING SECTION 14 V. MAINTENANCE INSTRUCTIONS
Replacing the Rack Wrap 18
Replacing the Chemical Feeder Pump Motor 20
Wash Tank Heater Replacement 23
Thermostat Replacement 26
Wash Motor Replacement 29 VI. PARTS SECTION
Control Box Assembly R24 33
Electrical Box Cover Assembly R24 34
Control Box Assembly R30 35
Electrical Box Cover Assembly R30 36
Chemical Feeder Pump Assembly 37
Drive Motor Assembly 38
Drive Assembly Retro Fit Kit No. 1 39
Drive Assembly Retro Fit Kit No. 2 40
Drive Gear Assembly 41
Drive Motor Assembly (Original Style) 42
Incoming Plumbing Assembly 43
Injection Manifold 44
Vacuum Breaker Assembly /Wash Fill Components 45
Wash Tank Assembly 46
Rinse Sump Assembly/ Wash & Rinse Arms 47
Wash Motor Replacement Kits 48
Operation Instruction Decal 49
Wash & Rinse Manifolds 50
Rack Wrap Replacement Kit/Front Shield Weldment 51
Drain Board Assemblies 52
Door Assembly/Switches 53
Curtain/Curtain Rod 54
Miscellaneous Parts 55
VII. ELECTRICAL DIAGRAM
R24 & R30 208-230 Volt, 60 Hertz, Single Phase 57
iii
Page 6
SECTION 1:
SPECIFICATION INFORMATION
1
Page 7
SECTION 1: SPECIFICATION INFORMATION
SPECIFICATIONS
R24
OPERATING CAPACITY (RACKS/HOUR)
GLASSES PER HOUR 1200 OPERATING CYCLE (SECONDS) TOTAL CYCLE TIME 120
TANK CAPACITY (GALLONS) 3.0
WASH PUMP CAPACITY
WASH PUMP 55 GPM
TEMPERATURES
WASH---°F (MINIMUM) 130 RINSE---°F (MINIMUM) 75
ELECTRICAL REQUIREMENTS
WASH PUMP MOTOR HORSEPOWER 3/4
NOTE: Typical Electrical Circuit is based upon (1) 125% of the full amperage load of the machine and (2) typical fixed-trip circuit breaker sizes as listed in the NEC 2002 Edition. Local codes may require more stringent protec ­tion than what is displayed here. Always verify with your electrical service contractor that your circuit protection is adequate and meets all applicable national and local codes. These numbers are provided in this manual sim ­ply for reference and may change without notice at any given time.
R30
OPERATING CAPACITY (RACKS/HOUR)
GLASSES PER HOUR” 1800 OPERATING CYCLE(SECONDS) TOTAL CYCLE TIME 120
TANK CAPACITY (GALLONS) 4.14
WASH PUMP CAPACITY
WASH PUMP 55 GPM
TEMPERATURES
WASH---°F (MINIMUM) 130 RINSE---°F (MINIMUM) 75
ELECTRICAL REQUIREMENTS
WASH PUMP MOTOR HORSEPOWER 3/4
NOTE: Typical Electrical Circuit is based upon (1) 125% of the full amperage load of the machine and (2) typical fixed-trip circuit breaker sizes as listed in the NEC 2002 Edition. Local codes may require more stringent protec­tion than what is displayed here. Always verify with your electrical service contractor that your circuit protection is adequate and meets all applicable national and local codes. These numbers are provided in this manual sim ­ply for reference and may change without notice at any given time.
RINSE TYPICAL HEATER TOTAL ELECTRICAL
VOLTS PH HZ RATINGS AMPS CIRCUIT
208 1 60 220V/3KW 20 25 AMP 230 1 60 220V/3KW 18 25 AMP
WATER REQUIREMENTS
INLET TEMPERATURE 130°F GALLONS PER HOUR 10.0 WATER LINE SIZE NPT (Minimum) 1/2” DRAIN LINE SIZE NPT (Minimum) 2” FLOW PRESSURE P.S.I. 20A5 MINIMUM CHLORINE REQUIRED (PPM) 50 MINIMUM IODIPHOR REQUIRED (PPM) 12.5
NOTE: Always refer to the machine data plate for specific electrical and water requirements. The material provided on this page is for reference only and may be subject to change without notice.
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
RINSE TYPICAL HEATER TOTAL ELECTRICAL
VOLTS PH HZ RATINGS AMPS CIRCUIT
208 1 60 220V/3KW 20 25 AMP 230 1 60 220V/3KW 18 25 AMP
WATER REQUIREMENTS
INLET TEMPERATURE 130°F GALLONS PER HOUR 10.0 WATER LINE SIZE NPT (Minimum) 1/2” DRAIN LINE SIZE NPT (Minimum) 2” FLOW PRESSURE P.S.I. 20A5 MINIMUM CHLORINE REQUIRED (PPM) 50 MINIMUM IODIPHOR REQUIRED (PPM) 12.5
NOTE: Always refer to the machine data plate for specific electrical and water requirements. The material provided on this page is for reference only and may be subject to change without notice.
2
Page 8
LEGEND:
SECTION 1: SPECIFICATION INFORMATION
DIMENSIONS
A - WATER INLET 1/2” IPS (COLD)
B - WATER INLET 1/2” IPS (HOT) C - DRAIN 2” NOMINAL
D - STANDARD WALL CLEARANCE: 2”
LETTER R24 R30
E 26-1/4" 30-5/16" F 25-1/4" 30-1/2" G 14-3/4" 16-1/4" H 7-1/2" 8-5/8" I 18-11/16" 23-11/16"
E
F
G
H
I
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
3
Page 9
SECTION 2:
INSTALLATION/OPERATION
INSTRUCTIONS
4
Page 10
SECTION 2: INSTALLATION/OPERATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS

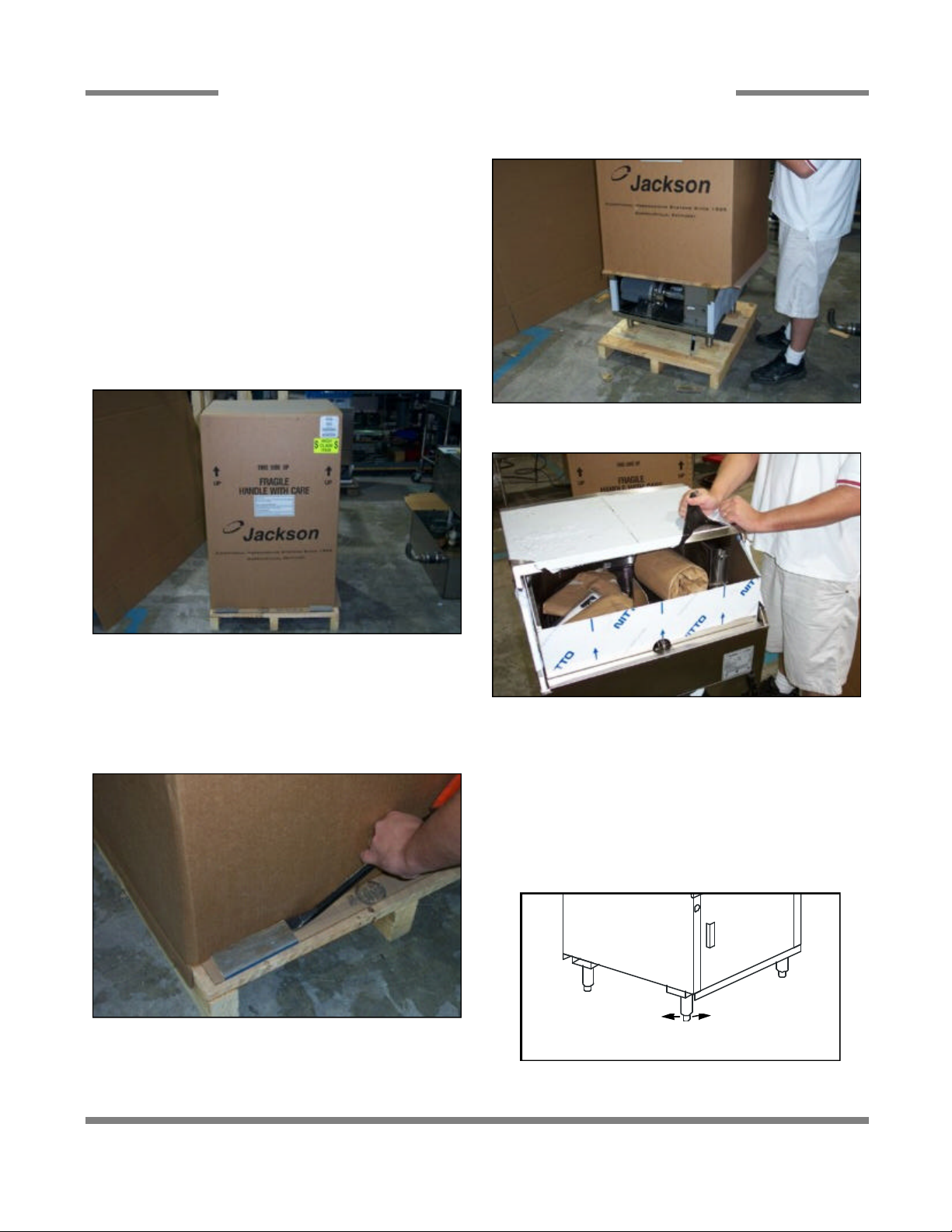

VISUAL INSPECTION: Before installing the unit, check the
container and machine for damage. A damaged container is an indicator that there may be some damage to the machine. If there is damage to both the container and machine, do not throw away the container. The dishmachine has been inspect­ed and packed at the factory and is expected to arrive to you in new, undamaged condition. However, rough handling by carriers or others may result in there being damage to the unit while in transit. If such a situation occurs, do not return the unit to Jackson; instead, contact the carrier and ask them to send a representative to the site to inspect the damage to the unit and to complete an inspection report. You must contact the carrier within 48 hours of receiving the machine. Also, contact the dealer through which you purchased the unit.
Lift the box off of the unit.
Packaged unit should be visually inspected for damage.
UNPACKING THE DISHMACHINE: Once the machine has been removed from the container, ensure that there are no missing parts from the machine. This may not be obvious at first. If it is discovered that an item is missing, contact Jackson immediately to have the missing item shipped to you.
Use a pry bar and mallet to remove the hold-down blocks.
Remove any protective plastic prior to installation.
LEVEL THE DISHMACHINE: The dishmachine is designed to operate while being level. This is important to prevent any damage to the machine during operation and to ensure the best results when washing ware. The unit comes with adjustable bullet feet, which can be turned using a pair of channel locks or by hand if the unit can be raised safely. Ensure that the unit is level from side to side and from front to back before making any connections.
LowerRaise
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
5
Page 11
SECTION 2: INSTALLATION/OPERATION INSTRUCTIONS
ELECTRICAL CONNECTIONS
PLUMBING THE DISHMACHINE: All plumbing connections
must comply with all applicable local, state, and national plumbing codes. The plumber is responsible for ensuring that the incoming water line is thoroughly flushed prior to connect­ing it to any component of the dishmachine. It is necessary to remove all foreign debris from the water line that may poten ­tially get trapped in the valves or cause an obstruction. Any valves that are fouled as a result of foreign matter left in the water line, and any expenses resulting from this fouling, are not the responsibility of the manufacturer.
CONNECTING THE DRAIN LINE: The R24/R30 glasswash­ers have a gravity drain (2” NPT connection). All piping from the machine to the drain must be a minimum 2” NPT and shall not be reduced. There must also be an air gap between the machine drain line and the floor sink or drain. If a grease trap is required by code, it should have a flow capacity of 5 gallons per minute.
WATER SUPPLY CONNECTION: Ensure that you have read the section entitled “PLUMBING THE DISHMACHINE” above before proceeding. Cold water supply must be a minimum of 70°F with a capacity of 180 gallons per hour at 8-12 PSI flow to the glasswasher. Hot water supply must be a minimum of 130°F with a capacity of 10 gallons per hour at 20A5 PSI flow pressure. Incoming hot and cold water service connection (supplied by customer) must be a 1/2” pipe size minimum with shut off valve. Install the water supply line (1/2” pipe size min­imum) to the dishmachine using copper pipe. It is recom­mended that a water shut-off valve be installed in the water line between the main supply and the machine to allow access for service.
In areas where the water pressure fluctuates or is greater than the recommended pressure, it is suggested that a water pres­sure regulator be installed.
tion) and/or other electrical codes. Disconnect electrical power supply and place a tag at the disconnect switch to indi­cate that you are working on the circuit.
The dishmachine data plate is located on the right side of the door. Refer to the data plate for machine operating require­ments, machine voltage, total amperage load and serial num­ber.
To install the incoming power lines, remove the electrical box cover. This will require taking a phillipshead screwdriver and removing the two (2) screws at the bottom corners and lift up and off. Let the cover rest against the plumbing assembly. Install conduit from the underside of machine to hole in rear of electrical box below terminal block and ground lug. Install the service wires (L1 & L2) to the appropriate terminals as they are marked on the terminal block. Install the grounding wire into the lug provided. Tighten the connections. It is recom­mended that “DE-OX” or another similar anti-oxidation agent be used on all power connections.
Ground Lug
Terminal Block
Do not confuse static pressure with flow pressure. Static pres­sure is the line pressure in a “no flow” condition (all valves and services are closed). Flow pressure is the pressure in the fill line when the fill valve is opened during the cycle.
It is also recommended that shock absorbers (not supplied with the R24 & R30 units) be installed in the incoming water lines. This prevents line hammer (hydraulic shock), induced by the solenoid valves as they operate, from causing damage to the equipment.
PLUMBING CHECK: Slowly turn on the water supply to the machine after the incoming fill line and the drain line have been installed. Check for any leaks and repair as required. All leaks must be repaired prior to placing the machine in opera­tion.
ELECTRICAL POWER CONNECTION: Electrical and grounding connections must comply with the applicable por­tions of the National Electrical Code ANSI/NFPA 70 (latest edi-
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
VOLTAGE CHECK: Ensure that the power switch is in the OFF position and apply power to the dishmachine. Check the incoming power at the terminal block and ensure it corre­sponds to the voltage listed on the data plate. If not, contact a qualified service agency to examine the problem. Do not run the dishmachine if the voltage is too high or too low. Shut off the service breaker and mark it as being for the dishmachine. Advise all proper personnel of any problems and of the loca­tion of the service breaker. Replace the electrical box cover and tighten down the screws.
6
Page 12
SECTION 2: INSTALLATION/OPERATION INSTRUCTIONS
DETERGENT CONTROL
Detergent usage and water hardness are two factors that contribute greatly to how efficiently your dishmachine will operate. Using detergent in the proper amount can become, in time, a source of substantial savings. A qualified water treatment spe­cialist can tell you what is needed for maximum efficiency from your detergent, but you should still know some basics so you’ll understand what they are talking about.
First, you must understand that hard water greatly effects the performance of the dishmachine. Water hardness is the amount of dissolved calcium and magnesium in the water supply. The more dissolved solids in the water, the greater the water hard­ness. Hard water works against detergent, thereby causing the amount of detergent required for washing to increase. As you use more detergent, your costs for operating the dishmachine will increase and the results will decrease. The solids in hard water also may build-up as a scale on wash and rinse heaters, decreasing their ability to heat water. Water temperature is important in removing soil and sanitizing dishes. If the water cannot get hot enough, your results may not be satisfactory. This is why Jackson recommends that if you have installed the machine in an area with hard water, that you also install some type of water treatment equipment to help remove the dissolved solids from the water before it gets to the dishmachine.
Second, hard water may have you adding drying agents to your operating cycle to prevent spotting, when the real problem is deposited solids on your ware. As the water evaporates off of the ware, the solids will be left behind to form the spotting and no amount of drying agent will prevent this. Again, using treated water will undoubtedly reduce the occurrences of this prob­lem.
Third, treated water may not be suitable for use in other areas of your operation. For instance, coffee made with soft water may have an acid or bitter flavor. It may only be feasible to install a small treatment unit for the water going into the dishmachine itself. Discuss this option with your qualified water treatment specialist.
Even after the water hardness problems have been solved, there still must be proper training of dishmachine operators in how much detergent is to be used per cycle. Talk with your water treatment specialist and detergent vendor and come up with a complete training program for operators. Using too much detergent has as detrimental effects as using too little. The proper amount of detergent must be used for job. It is important to remember that certain menu items may require extra detergent by their nature and personnel need to be made aware of this. Experience in using the dishmachine under a variety of conditions, along with good training in the operation of the machine, can go a long way in ensuring your dishmachine operates as effi ­ciently as possible.
Certain dishmachine models require that chemicals be provided for proper operation and sanitization. Some models even require the installation of third-party chemical feeders to introduce those chemicals to the machine. Jackson does not recom­mend or endorse any brand name of chemicals or chemical dispensing equipment. Contact your local chemical distributor for questions concerning these subjects.
Some dishmachines come equipped with integral solid detergent dispensers. These dispensers are designed to accommodate detergents in a certain sized container. If you have such a unit, remember to explain this to your chemical distributor upon first contacting them.
As explained before, water temperature is an important factor in ensuring that your dishmachine functions properly. The data plate located on each unit details what the minimum temperatures must be for either the incoming water supply, the wash tank and the rinse tank, depending on what model of dishmachine you have installed. These temperatures may also be followed by temperatures that Jackson recommends to ensure the highest performance from you dishmachine. However, if the minimum requirements are not met, the chances are your dishes will not be clean or sanitized. Remember, a dish can look clean, but it may not be sanitized. Instruct your dishmachine operators to observe the required temperatures and to report when they fall below the minimum allowed. A loss of temperature can indicate a much larger problem such as a failed heater or it could also indicate that the hot water heater for your operation is not up to capacity and a larger one may need to be installed.
There are several factors to consider when installing your dishmachine to ensure that you get the best possible results from it and that it operates at peak efficiency for many years. Discuss your concerns with your local chemical distributor and water treatment specialist before there is a problem.
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
7
Page 13
SECTION 2: INSTALLATION/OPERATION INSTRUCTIONS
CHEMICAL DISPENSING EQUIPMENT
TO PREPARE PUMPS FOR OPERATION
The R24 & R30 are supplied with detergent, rinse additive and sanitizer dispensing chemical feeder pumps. Locate the open ends of the chemical tubes with the tube stiffeners and place each one in the appropriate container.
A. Red Tubing = Detergent B. Blue Tubing = Rinse Aid C. White Tubing = Sanitizer
PRIMING CHEMICAL FEEDER PUMPS
Chemical feeder pumps need priming when the machine is first installed, when chemicals are replenished, or if for some rea­son the chemical lines have been removed and air is allowed to enter.
1. Verify that the proper chemical tube stiffener inlet is in the proper container.
2. Use the toggle switches on the right side of control box to prime each pump.
3. To prime the pumps, hold the switch in the momentary position until chemical can be observed exiting the pump.
4. Detergent is dispensed as required during the wash tank fill. The amount of detergent may need to be increased or decreased depending on water quality and type of detergent. It is adjusted by turning the potentiometer on the speed control board clockwise to increase, counter-clockwise to decrease.
5. Rinse additive is dispensed proportionally into the final rinse water line. The amount of rinse aid may need to be adjusted depending on water hardness and results. It is adjusted by turning the potentiometer on the speed control board clockwise to increase, counter-clockwise to decrease.
6. Sanitizer either chlorine or iodine is dispensed proportionally into the final rinse water line. The amount of sanitizer may need to be adjusted depending on concentration and the type of sanitizer used. It is adjusted by turning the potentiometer on the speed control board clockwise to increase, counter-clockwise to decrease.
7. Warning: Some of the chemicals used in dishwashing may cause chemical burns if they come in contact with your skin. Wear appropriate protective gear when handling these chemicals. If you do come in contact with these chemicals
flush the area with fresh water.
This equipment is not recommend for use with deionized water or other aggressive fluids. Use of deionized water or other aggressive fluids will result in corrosion and failure of materials and components. Use of deionized water or other aggressive fluids will void the manufacturer's warranty.
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
8
Page 14
SECTION 2: INSTALLATION/OPERATION INSTRUCTIONS
OPERATING INSTRUCTIONS
TO FILL MACHINE WITH WATER:
1. Remove wash tank strainer and place overflow stopper into fitting at the bottom of the wash tank.
2. Open incoming water shut-off valves on cold and hot water lines.
3. Place the power switch to the “FILL” position, machine will automatically fill to the correct level.
4. Check water level, it should be near top of the overflow stopper.
5. Replace wash strainer.
TO RUN THE MACHINE:
1. After filling with water, turn the power switch to the “ON” position, the rack will automatically being to rotate.
2. Place glasses on the rack.
3. When the glasses have completed the cycle, the paddle switch will be activated, turning off the water flow and conveyor
rack.
4. Remove the clean glasses which are against the paddle switch.
5. The rack will begin to rotate again.
SHUTDOWN AND CLEANING OF THE MACHINE:
1. Ensure that all ware placed on the rack is able to complete the cycle and is cleaned prior to moving the power switch to
the “OFF” position. Shut off the water supply to the unit.
2. Remove the drain boards, rack cylinder and rack. Clean and allow to dry before reinstalling into the machine.
3. Remove the sump and drain tank strainers. Clean completely and allow to dry before reinstalling into the machine.
4. Remove the stand pipe by grasping by the handle and removing from the drain tank. Clean and allow to dry before rein-
stalling into the machine.
CAUTION: Water in the drain tank may be hot, allow the water to cool down and always remove the stand pipe through the use of the handle. Never place your hand in the water within the drain tank.
5. Remove the curtains and wash using a mild soap and rinse with clear water. Allow to dry completely before reinstalling into
the machine.
6. Remove the rack wrap from inside the tub. Clean and allow to dry completely before reinstalling into the machine.
7. Remove the wash and rinse arms. Inspect them for clogged or obstructed nozzles. Remove end caps and flush the inside
of the wash and rinse arms with clean water. Reinstall end caps when completed.
8. Wipe out the inside of the tub, removing any and all debris.
9. Reinstall all components previously removed after they have been allowed to dry.
10. Remove, clean and reinstall upper (wash) and lower (drain) strainers.
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
9
Page 15
SECTION 2: INSTALLATION/OPERATION INSTRUCTIONS
SEQUENCE OF OPERATION
REFER TO ELECTRICAL DIAGRAM FOR FUNCTION AND REFERENCE DESIGNATIONS.
1. All removable parts have been re-installed into machine and it is ready to operate.
2. Power switch (S1) is turned to the “Fill” position. A. Hot water valve (HWV) is energized filling tank.
3. Tank is filled to operating level. A. Top (FS1) and bottom (FS2) float switches close. B. Wash tank fill relay (R2) is energized C. Wash tank fill relay N.O. holding contact closes. D. Wash tank fill relay N.O. contact closes energizing wash heater relay (R1). E. Wash heater relay N.O. contacts close energizing the tank heater (H1). F. Wash tank fill relay N.C. contact opens de-energizing hot water valve (HWV). G. Detergent speed control is energized for peristaltic pump (DM) operation.
The machine is now ready for operation.
4. Power switch (S1) is turned to the “ON” position. A. Conveyor drive motor (M1) is energized. B. Wash pump motor (M2) is energized. C. Cold water valve (CWV) is energized. D. Power is supplied to speed control (SC) for the peri pump (RM, & SM) operation.
The glasswasher will continue to operate until either a glass trips the conveyor limit switch (S2) or the power switch (S1) is turned to the “OFF” position.
5. Glasses trip the conveyor limit switch (S2). A. Conveyor drive motor (M1) is de-energized. B. Wash pump motor (M2) is de-energized. C. Cold water valve (CWV) is de-energized. D. The unit will not run until the glass(es) are removed from the unload side of the unit.
Once this is done steps 4A, 4B & 4C will start and more glasses can be placed in the unit for washing. The wash tank heater (H1) has two (2) methods of protection to prevent damage to the heater.
6. Bottom float switch (FS2) opens due to low water. A. Wash tank fill relay (R2) is de-energized. B. Wash tank fill relay N.O. holding contact opens. C. Wash heater relay N.O. contacts open de-energizing the tank heater (H1).
7. High limit thermostat (TS1) opens due to sheath temperature exceeding preset limit. A. Heat contactor (R1) is de-energized. B. Wash heater relay N.O. contacts open de-energizing the tank heater (H1). C. Proper water temperature will not be maintained for cleaning glasses.
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
10
Page 16
SECTION 3:
PREVENTATIVE MAINTENANCE
11
Page 17
SECTION 3: PREVENTATIVE MAINTENANCE
PREVENTATIVE MAINTENANCE
The dishmachines covered in this manual are designed to operate with a minimum of interaction with the operator. However, this does not mean that some items will not wear out in time. Jackson highly recommends that any maintenance and repairs not specifically discussed in this manual should be performed by QUALIFIED SERVICE PERSONNEL ONLY. Performing main­tenance on your dishmachine may void your warranty if it is still in effect, so if you have a question or concern, do not hesitate to contact Jackson.
There are many things that operators can do to prevent catastrophic damage to the dishmachine. One of the major causes of component failure has to do with prescrapping procedures. A dishmachine is not a garbage disposal; any large pieces of mate­rial that are put into the machine shall remain in the machine until they are either broken up (after spreading out on your ware!) or physically removed. Strainers are installed to help catch debris, but they do no good If they are clogged. Have operators reg­ularly inspect the pan strainers to ensure (1) that they are free of soil and debris and (2) they are laying flat in the tub.
When cleaning out strainers, do NOT beat them on waste cans. The strainers are made of metal and can be forgiving; but once severe damage is done, it is next to impossible for the strainer to work in the way it was designed to. Wipe out strainers with a rag and rinse under a faucet if necessary. For stubborn debris, a toothpick should be able to dislodge any obstructions from the perforations. Always ensure that strainers are placed back in the machine before operation and that they lay flat in the tub.
You may wish to also refer to the page entitled “Detergent Control” in order to learn more about how your water hardness will effect the performance of your machine. Hard water makes dishmachines work harder and decreases efficiency.
Again, it is important to remind operators that trying to perform corrective maintenance on the dishmachine could lead to larg­er problems or even cause harm to the operator. If a problem is discovered; secure the dishmachine using proper shut down procedures as listed in this manual and contact Jackson.
Some problems, however, may having nothing to do with the machine itself and no amount of preventative maintanence is going to help. A common problem has to do with temperatures being too low. Verify that the water temperatures coming to your dishmachine match the requirements listed on the machine data plate. There can be a variety of reasons why your water tem­perature could be too low and you should discuss it with Jackson to determine what can be done.
By following the operating and cleaning instructions in this manual, you should get the most efficient results from your machine. As a reminder, here are some steps to take to ensure that you are using the dishmachine the way it was designed to work:
1. Ensure that the water temperatures match those listed on the machine data plate.
2. Ensure that all strainers are in place before operating the machine.
3. Ensure that all wash and/or rinse arms are secure in the machine before operating.
4. Ensure that drains are closed/sealed before operating.
5. Remove as much soil from dishes by hand as possible before loading into racks.
6. Do not overfill racks.
7. Ensure that glasses are placed upside down in the rack.
8. Ensure that all chemicals being injected to machine have been verified as being at the correct concentrations.
9. Clean out the machine at the end of every workday as per the instructions in the manual.
10. Always contact Jackson whenever a serious problem arises.
11. Follow all safety procedures, whether listed in this manual or put forth by local, state or national codes/regulations.
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
12
Page 18
SECTION 4:
TROUBLESHOOTING
13
Page 19
SECTION 4: TROUBLESHOOTING
COMMON PROBLEMS
Inspection, testing and repair of electrical equipment should only be performed by a qualified service tech ­nician. Many of the tests require that the unit have power to it and live electrical components be exposed. USE EXTREME CAUTION WHEN TESTING THE MACHINE.
Problem: Dish machine will not run, no voltage at wash relay terminals L1 and T1.
1. Electrical power not installed to machine, service (main) power disconnect off. Ensure electrical wiring is run to machine and
service (main) disconnect is on.
2. Branch circuit breaker tripped or fuse is blown. Reset or replace as required. Have an electrician check machine amp draw
if problem keeps occuring.
3. Loose or broken connection to dish machine. Tighten, replace or repair as required.
Problem: Machine cycles continuously.
1. Limit switch actuator is loose or has fallen off. Reassemble/bend metal lever if necessary.
2. Faulty limit switch. Replace switch.
Problem: Machine will not fill, other functions work.
1. No water supply to machine. Ensure that water is hooked up properly to machine and that it is turned on.
2. Faulty Hot Water solenoid valve diaphragm or coil. Replace diaphragm and clean out valve. Measure continuity on coil, if
there is none, replace the coil.
3. Faulty float switch. Ohm out the switch to ensure that upper and lower floats are working. If not, check float wiring to see if
it is correct; if so, replace float.
Problem: Machine fills continuously even with no power to the dish machine.
1. Solenoid valve jammed/stuck in the open position. Check diaphragm and coil, replace as required.
2. Faulty float switch. Ohm out the switch to ensure that upper and lower floats are working. If not, check float wiring to see if
it is correct; if so, replace float switch.
Problem: Wash motor does not run, other functions work.
1. Loose wire connection to limit switch or relay. Tighten wires.
2. Faulty pump motor. Replace pump motor.
3. Mechanical binding in the pump. If motor has correct incoming voltage, and the overload is tripping, repair or replace the
pump.
Problem: Wash motor does not run; other functions work.
1. High or low voltage problem. Check voltage at motor and at power terminal block. Ensure it meets the electrical voltage
specifiactions for the dish machine.
2. Faulty limit switch. Replace limit switch.
Problem: Wash motor runs continuously.
1. Wash relay welded closed. Turn machine off. If wash relay does not release, replace.
Problem: Low water pressure.
1. Water level is too low. Ensure that incoming water line pressure meets the requirements on dish machine data plate.
2. Wash arms clogged. Remove wash arms and clean.
3. Obstruction in pump housing. Disassemble and clear.
4. O-ring at wash tank drain cut or missing. Replace.
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
14
Page 20
SECTION 4: TROUBLESHOOTING
COMMON PROBLEMS
Problem: Low wash water pressure at wash arm spray nozzles.
1. Pump impeller worn or broken. Replace pump.
2. Clogged jets in wash arms. Clean out wash arms.
3. Float stuck on float switch. Remove, clean and reinstall float switch.
4. Water level too low in the wash tank. Ensure that the incoming water line flow pressure meets the requirements on the dish-
machine data plate.
Problem: Machine keeps tripping service breaker.
1. Power supply shorted to ground. Check for loose wires/burned connection. Replace or repair as required.
2. Pump impeller jammed. Disassembly and remove obstruction.
3. Wash pump motor faulty. Check motor voltage and amp draw.
4. Service breaker too small. Replace with correctly sized breaker.
Problem: Machine will not hold water.
1. Drain stopper not in place. Set drain stopper correctly in drain.
2. Drain fitting O-ring cut or missing. Replace O-ring.
3. Drain stopper bent or deformed. Replace.
Problem: Sanitizer pump runs continuously.
1. Shorted prime switch. If there is not line voltage between BLACK and ORANGE/BLACK wires to prime switch, replace.
2. Faulty speed control board. Check operation of board. If not working properly, replace.
Problem: Sanitizer pump does not run during cycle, but runs when primed. Even when turntable is off.
1. Loose or broken wire. Tighten connections to microswitch.
2. Faulty speed control board. Check operation of board. If not working properly, replace.
3. Faulty prime switch. Check continuity through each pole of switch. If it fails, replace the switch.
Problem: Prime switch does not activate sanitizer pump.
1. Faulty prime switch. With the prime switch in the prime position, check for voltage between BLACK and ORANGE/BLACK
wires. If line voltage, replace switch.
2. Loose wire to prime switch. Tighten wire connection.
Problem: Sanitizer pump doesn't run during cycle or through prime switch.
1. Loose motor terminal wires. Tighten connections.
Problem: Sanitizer pump doesn't run during cycle or through prime switch.
1. Faulty sanitizer pump motor. If you read line voltage at the sanitizer motor terminals during the sanitizer feed cycle, replace
the motor.
2. Faulty prime switch. Check the continuity through each pole of the switch. If faulty, replace the switch.
Problem: Detergent not feeding, rinse aid feeds okay.
1. Faulty speed control board. Check operation of board. If not working properly, replace.
2. Defective hose or squeeze tube. Replace hose or squeeze tube as needed.
3. Machine not in fill mode. Normal operation.
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
15
Page 21
SECTION 4: TROUBLESHOOTING
COMMON PROBLEMS
Problem: Rinse aid pump not feeding, detergent feeds okay.
1. Faulty speed control board. Check operation of board. If not working properly, replace.
2. Defective hose or squeeze tube. Replace hose or squeeze tube as needed.
Problem: Wash heater does not work. (Note: push wash heater contactor bar down and take amperage reading. Amps should be correct as stated on the dish machine data plate).
1. If no amp draw, check wash heater for continuity. If open or shorted, replace the heater. If closed, replace the heater con-
tactor.
2. Wash heater relay will not energize (no voltage at contactor coil). Check for continuity at wash thermostat. If open, replace.
3. Low voltage problem. Check incoming voltage to ensure it as what the data plate calls for.
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
16
Page 22
SECTION 5:
SERVICE PROCEDURES
17
Page 23
SECTION 5: SERVICE PROCEDURES
REPLACING THE RACK WRAP
Jackson glasswasher machines come equipped with rack wraps and rollers used to guide the ware through the machine and to keep the rack mobile. Occasionally, some of these parts may need replacing to maintain optimum perfor­mance.
Jackson offers all of the repair parts necessary for performing this task.
The instructions provided here are for maintenance personnel only. Unauthorized persons should not attempt any of the steps contained in these instructions.
Warning: many of the instructions and steps within this document require the use of tools. Only autho ­rized personnel should ever perform any maintenance procedure on the dishmachine!
PREPARATION
1. Power must be secured to the unit at the service breaker. Tag or lock out the service breaker to prevent acci­dental or unauthorized energizing of the machine.
2. Ensure that incoming water to the machine is secured either by use of a shut-off valve or disconnecting the incoming water line.
TOOLS REQUIRED
The following tools will be needed to perform this
maintenance evolution:
1. 3/8” Nutdriver
2. 7/16” Nutdriver
STEPS
1. Remove the drain boards, wash arms, rinse arms and the center rack.
2. Using the 3/8” nutdriver, remove the locknuts securing the rack wrap to the tub.
Remvoing the locknuts.
3. Once the locknuts are removed, grasp both sides of the rack wrap and pull them towards the center of the tub until the wrap comes off the mounting studs.
TIME REQUIRED
It is estimated that it will take (1) person ten minutes per motor to perform this task, not including all of the items indicated in the section entitled “PREPARATION”.
IMPORTANT NOTES
1. Read these instructions thoroughly before attempting this maintenance task. Become familiar with the parts and what actions need to be taken. This will save time in the long run!
2. For instructions on replacing just the rollers, please go to step 9.
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
Remving the rack wrap.
4. Lift up slightly on the wrap to get it clear of the rear mount ­ing bracket.
5. With the rack wrap removed, you may install your new one. Your complete assmebly kit should come with a rack wrap that already has the rollers mounted on them as well as some extra locknuts in case you lose the ones necessary for mount­ing the wrap to the tub.
18
Page 24
SECTION 5: SERVICE PROCEDURES
REPLACING THE RACK WRAP (CONTINUED)
6. Install the new rack wrap and tighten down the mounting nuts using the 3/8” nutdriver. Ensure that the wrap lies secure­ly in the rear mounting bracket.
7. Once the wrap is installed, verify that the rollers move freely.
Loosening the roller locknut.
8. If the rollers do not move freely, then use the 7/16” nutdriv­er to pack the locknut off slightly until the rollers spin. If the rollers do not spin, they will wear away and will have to even ­tually be replaced.
SPECIAL PARTS
R24 Rack Wrap Replacement Kit: R30 Rack Wrap Replacement Kit: 06401-003-12-25 Rack Roller: 05700-011-60-83
9. To replace any roller, use the 7/16” nutdriver to remove the mounting locknut. Pull the old roller out and discard, replacing with a new one. Then tighten down the locknut as far as pos­sible without preventing the free rotation of the roller.
AFTER MAINTENANCE ACTIONS
None.
SPECIAL NOTES
Work performed on Jackson dishmachines by unau ­thorized or unqualified personnel may void the warranty. Before beginning this or any other maintenance evolution on a unit under warranty, you should contact a certified Jackson technician or Jackson Technical Service. You can find a list of qualified service agencies in the back of you unit’s installation manual.
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
19
Page 25
SECTION 5: SERVICE PROCEDURES
REPLACING THE CHEMICAL FEEDER PUMP MOTOR
Jackson glasswasher machines come equipped with chemical feeder pumps to ensure proper ware washing results. Occasionally, the motors operating these pumps may need replacing to maintain optimum performance.
Jackson offers all of the repair parts necessary for performing this task.
The instructions provided here are for maintenance personnel only. Unauthorized persons should not attempt any of the steps contained in these instructions.
Warning: many of the instructions and steps with­in this document require the use of tools. Only authorized personnel should ever perform any maintenance proce­dure on the dishmachine!
PREPARATION
1. Power must be secured to the unit at the service breaker. Tag or lock out the service breaker to prevent acci­dental or unauthorized energizing of the machine.
2. Ensure that incoming water to the machine is secured either by use of a shut-off valve or disconnecting the incoming water line.
3. The unit must be drained completely with the drain stopper removed.
STEPS
1. Remove the front door.
Removing the screws for the electrical box cover.
TOOLS REQUIRED
The following tools will be needed to perform this
maintenance evolution:
1. Phillipshead Screwdriver
2. Needlenose Pliers
3. Wire Cutters
4. Wire Strippers
5. Crimping Tool
TIME REQUIRED
It is estimated that it will take (1) person thirty minutes per motor to perform this task, not including all of the items indicated in the section entitled “PREPARATION”.
IMPORTANT NOTES
1. Read these instructions thoroughly before attempt­ing this maintenance task. Become familiar with the parts and what actions need to be taken. This will save time in the long run!
2. These instructions show steps on only (1) of the three motors. However, the steps are the same for each one.
Removing the electrical box cover.
2. Remove the electrical box cover with the phillipshead screw­driver.
3. The cover must be laid down close to the control box because of the attached wires. Be careful not to yank out or damage any of the wires as you move the cover.
4. Determine which motor you wish to replace, or which one you wish to start with. Trace the wires leading from the motor to its corresponding prime switch. Trace the other wire from the motor to determine where it is connected.
5. With the needlenose pliers, remove the motor wire from the prime switch, being careful not to damage the prime switch in the process. (If the prime switch is damaged, it will need to be
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
20
Page 26
SECTION 5: SERVICE PROCEDURES
REPLACING THE CHEMICAL FEEDER PUMP MOTOR (CONTINUED)
replaced. Refer to the parts section of the technical manual for information regarding part numbers for ordering new prime switches.)
Removing the priming switch wire
6. Turn the cover over and using the phillipshead screwdriver, remove the cover to the pump requiring a motor change.
Removing the front cover.
7. With the cover removed, gently pull out the rubber tube from inside the pump.
Unhooking motor power wire
Removing the pump front cover screws.
Pulling the rubber tube out of the pump.
8. Remove the roller by pulling it off of the shaft.
9. Using the phillipshead screwdriver, remove the four mount­ing screws for the motor.
10. Once the screws are removed, the motor should drop away.
11. Cut away any tie-wraps that are holding the power wires and remove the motor.
12. Take your new motor and attach new terminals to the wires as required.
13. Remount the motor to the pump.
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
21
Page 27
SECTION 5: SERVICE PROCEDURES
REPLACING THE CHEMICAL FEEDER PUMP MOTOR (CONTINUED)
14. Place the roller and the rubber tube back in the pump cas­ing. Place the pump cover back on and tighten down with the four screws you previously removed.
15. Reattach the power wire and the wire for the priming switch.
16. Put the cover back on the control box and secure with the two screws previously removed.
17. Ensuring that all non-essential personnel are clear of the area, restore power to the unit. Turn the unit on and by using the priming switch, verify that the feeder pump operates and pumps fluid.
18. Replace the front door.
Removing the roller.
AFTER MAINTENANCE ACTIONS
None.
SPECIAL NOTES
Removing the motor mounting screws.
Work performed on Jackson dishmachines by unau ­thorized or unqualified personnel may void the warranty. Before beginning this or any other maintenance evolution on a unit under warranty, you should contact a certified Jackson technician or Jackson Technical Service. You can find a list of qualified service agencies in the back of you unit’s installation manual.
SPECIAL PARTS
Glasswasher Feeder Pump Motor Replacment Kit:
06401-003-12-49*
*The kit contains a motor and instructions.
Removing the motor.
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
22
Page 28
SECTION 5: SERVICE PROCEDURES
WASH TANK HEATER REPLACEMENT
Jackson glasswasher machines come equipped with heaters to ensure proper ware washing results. Occasionally, some of these components may need replacing to maintain optimum performance.
Jackson offers all of the repair parts necessary for performing this task.
The instructions provided here are for maintenance personnel only. Unauthorized persons should not attempt any of the steps contained in these instructions.
Warning: many of the instructions and steps within this document require the use of tools. Only autho­rized personnel should ever perform any maintenance procedure on the dishmachine!
PREPARATION
1. Power must be secured to the unit at the service breaker. Tag or lock out the service breaker to prevent acci­dental or unauthorized energizing of the machine.
2. Ensure that incoming water to the machine is secured either by use of a shut-off valve or disconnecting the incoming water line.
3. The unit must be drained completely with the drain stopper removed.
TOOLS REQUIRED
STEPS
1. Remove the front door.
Removing the heater cover.
2. Remove the heater box cover with the 3/8” nutdriver to expose the heater. Set the cover and hardware to the side.
The following tools will be needed to perform this
maintenance evolution:
1. 3/8” Nutdriver
2. Ratchet
3. 1/2” Socket
4. 3/8” Socket
5. Torque Wrench
6. Amp Meter
TIME REQUIRED
It is estimated that it will take (1) person thirty minutes to perform this task, not including all of the items indicated in the section entitled “PREPARATION”.
IMPORTANT NOTES
1. Read these instructions thoroughly before attempt­ing this maintenance task. Become familiar with the parts and what actions need to be taken. This will save time in the long run!
Removing the lower strainer.
3. Remove the lower strainer.
4. Remove the upper (wash) strainer as well. Set both strain ­ers to the side where they will not be damaged or present a trip hazard.
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
23
Page 29
SECTION 5: SERVICE PROCEDURES
WASH TANK HEATER REPLACEMENT (CONTINUED)
Removing upper (wash) strainer.
6. Next, use the ratchet and 1/2” socket to remove the heater mounting nuts.
Reaching into the wash tank.
7. Removing the heater may require that you reach into the wash tank, grasp it and give it a push out of the wash tank.
Removing the heater nuts.
5. Using the 3/8” nutdriver, remove the nuts securing the heater wires to the heater. Then carefully pull the wires out of
the way.
Using the ratchet to remove the heater mounting nuts.
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
Pulling the heater out.
8. Once the heater is pushed away from the tank wall, pull it out with your hands.
9. Remove the old heater gasket and throw away.
10. Apply the new heater gasket.
11. Take the new heater and slide it through the hole in the wash tank and line it up so the wash tank studs fit in the holes on the heater flange.
12. Place the mounting nuts and lockwashers on the studs and secure them with the ratchet and 1/2” socket.
13. Place the heater wires on the heater and tighten them down using the 3/8” nutdriver.
24
Page 30
SECTION 5: SERVICE PROCEDURES
WASH TANK HEATER REPLACEMENT (CONTINUED)
Removing the heater gasket
AFTER MAINTENANCE ACTIONS
Service personnel may want to drain the machine and allow it to cool down. Secure power to the unit at the ser­vice breaker and then verify the torque of all fasteners covered in this instruction.
SPECIAL NOTES
Work performed on Jackson dishmachines by unau ­thorized or unqualified personnel may void the warranty. Before beginning this or any other maintenance evolution on a unit under warranty, you should contact a certified Jackson technician or Jackson Technical Service. You can find a list of qualified service agencies in the back of you unit’s installation manual.
14. Using the torque wrench or a torque nutdriver (if available) torque the nuts holding the wires, jumpers and bus bars to 16 in-lbs.
15. Ensuring that all non-essential personnel are clear of the area, place the drain stopper back in the wash tank and restore power and water to the unit. Turn the unit on and allow it to fill normally.
18. Verify that there are no leaks around the heater. If there are, attempt to tighten it down (with power secured to the unit at the service breaker to prevent injury) as the tank will change shape slightly as it heats up.
19. Use the amp meter to take readings off of the power lines to the heater, verifying the amperage draw to the machine data plate.
20. Wait until the heater contactor kicks out (meaning that the tub has reached the appropriate temperature) and allow the machine to operate approximately ten minutes to verify that there are no leaks and that the heater is maintaining the tank temperature.
21. Replace the heater cover.
23. Replace the front door.
SPECIAL PARTS
Heater Replacement Kit: 06401-003-12-23*
*The kit contains a heater, gasket, mounting hard­ware for the heater and instructions.
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
25
Page 31
SECTION 5: SERVICE PROCEDURES
THERMOSTAT REPLACEMENT
Jackson glasswasher machines come equipped with thermostats to ensure proper ware washing results. Occasionally, some of these components may need replacing to maintain optimum performance.
Jackson offers all of the repair parts necessary for performing this task.
The instructions provided here are for maintenance personnel only. Unauthorized persons should not attempt any of the steps contained in these instructions.
Warning: many of the instructions and steps within this document require the use of tools. Only autho­rized personnel should ever perform any maintenance procedure on the dishmachine!
PREPARATION
1. Power must be secured to the unit at the service breaker. Tag or lock out the service breaker to prevent acci­dental or unauthorized energizing of the machine.
2. Ensure that incoming water to the machine is secured either by use of a shut-off valve or disconnecting the incoming water line.
3. The unit must be drained completely with the drain stopper removed.
TOOLS REQUIRED
STEPS
1. Remove the front door.
Removing the heater cover.
2. Remove the heater box cover with the 3/8” nutdriver to expose the heater. Set the cover and hardware to the side.
The following tools will be needed to perform this
maintenance evolution:
1. 3/8” Nutdriver
2. 7/16” Nutdriver
3. 7/16” Combination Wrench
4. Needlenose Pliers
5. Phillipshead Screwdriver
TIME REQUIRED
It is estimated that it will take (1) person twenty min ­utes to perform this task, not including all of the items indicat­ed in the section entitled “PREPARATION”.
IMPORTANT NOTES
1. Read these instructions thoroughly before attempting this maintenance task. Become familiar with the parts and what actions need to be taken. This will save time in the long run!
Removing the terminals.
3. Using the pair of needlenosed pliers (if necessary), remove the terminals from the thermostat. Be careful not to damage the terminals or the wires or else they will have to be replaced.
4. Remove the thermostat bracket mounting nuts with the 7/16” nutdriver.
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
26
Page 32
SECTION 5: SERVICE PROCEDURES
THERMOSTAT REPLACEMENT (CONTINUED)
6. Use the 7/16” combination wrench to loosen and remove the imperial brass fitting. Once this is complete, you should be able to completely remove the thermostat.
7. Take the new thermostat and place its probe in the new imperial brass fitting provided in your kit. Use the 7/16” combi­nation wrench to tighten it down after getting the fitting hand­tight in the tank.
8. Mount the thermostat to the bracket.
9. Mount the bracket to the tank and tighten down the nuts with the 7/16” nutdriver.
Removing the thermostat bracket mounting nuts.
Separating the thermostat from the bracket.
5. Remove the thermostat from the mounting bracket with the phillipshead screwdriver.
10. Reconnect the wires per the machine schematic on the back of the door.
11. Place the drain stopper back in the wash tank. Restore power and water to the unit. Then allow the unit to operate nor­mally.
12. Verify that the thermostat operates the heater contactor. Once you have determined the heater contactor is working, adjust the wash tank thermostat to ensure that the tempera­ture is maintained in accordance with the specifications on the machine data plate.
13. Replace the heater cover.
14. Replace the front door.
AFTER MAINTENANCE ACTIONS
None
SPECIAL NOTES
Work performed on Jackson dishmachines by unau ­thorized or unqualified personnel may void the warranty. Before beginning this or any other maintenance evolution on a unit under warranty, you should contact a certified Jackson technician or Jackson Technical Service. You can find a list of qualified service agencies in the back of you unit’s installation manual.
Removing the probe and imperial brass fitting.
R24/R30 Technical Manual 07610-002-24-72
SPECIAL PARTS
Thermostat Replacement Kit: 06401-003-12-40*
*The kit contains a thermostat, imperial brass fitting, and instructions.
Issued: 07-31-2006 Revised: N/A
27
Page 33
SECTION 5: SERVICE PROCEDURES
WASH MOTOR REPLACEMENT
Jackson glasswasher machines come equipped with wash pumps that have powerful motors attached to them to ensure proper ware washing results. Occasionally, these assemblies may require replacing to maintain optimum perfor­mance.
Jackson offers all of the repair parts necessary for performing this task.
The instructions provided here are for maintenance personnel only. Unauthorized persons should not attempt any of the steps contained in these instructions.
Warning: many of the instructions and steps within this document require the use of tools. Only autho­rized personnel should ever perform any maintenance procedure on the dishmachine!
PREPARATION
1. Power must be secured to the unit at the service breaker. Tag or lock out the service breaker to prevent acci­dental or unauthorized energizing of the machine.
2. Ensure that incoming water to the machine is secured either by use of a shut-off valve or disconnecting the incoming water line.
3. The unit must be drained completely with the drain stopper removed.
TOOLS REQUIRED
STEPS
1. To access the assembly, you need to get access to the rear of the unit. This may require that water, drain and power lines be disconnected so that the unit can be moved for access.
Gain access to the rear of the machine.
2. Using the 5/16” nutdriver, loosen the clamps on the suction hose.
The following tools will be needed to perform this
maintenance evolution:
1. 1/4” Nutdriver
2. 5/16” Nutdriver
3. Needlenose Pliers
4. 7/16” Combination Wrench
5. (2) 9/16” Combination Wrench
TIME REQUIRED
It is estimated that it will take (1) person ninety min­utes per motor to perform this task, not including all of the items indicated in the section entitled “PREPARATION”.
IMPORTANT NOTES
1. Read these instructions thoroughly before attempt­ing this maintenance task. Become familiar with the parts and what actions need to be taken. This will save time in the long run!
Loosening the suction hose clamps.
3. Using the same nutdriver, loosen the disharge hose where it connects to the tub weldement.
4. Pull the discharge hose out and away from the tub.
5. Remove the motor assembly mounting nuts using the 7/16” combination wrench.
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
28
Page 34
SECTION 5: SERVICE PROCEDURES
WASH MOTOR REPLACEMENT (CONTINUED)
Loosening the discharge hose clamp.
Pulling the discharge hose out.
Lifting up on the motor.
6. With the nuts removed, grasp the motor assembly and lift up on it to clear the mounting studs.
Suction hose coming off when moving the assembly.
7. Turn the motor so that you will have access to the wiring cover on the back. Be careful not to pull or yank too hard as the motor is still connected to the unit by way of the power lines.
Removing the assembly mounting nuts.
8. Use the 1/4” nutdriver to remove the wiring cover.
9. Using the 1/4” nutdriver, remove the grounding screw.
10. Take the needlenose pliers and remove the power wires from the terminals within the motor.
11. Using the cutting jaws of the needlenose pliers, cut the ter­minasl off of the power wires. Cut as close to the terminals as possible (picture provided). Otherwise, you need to remove the conduit completely from the motor and pull it away.
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
29
Page 35
SECTION 5: SERVICE PROCEDURES
WASH MOTOR REPLACEMENT (CONTINUED)
Turn the motor so you can access the rear wiring cover.
Removing the wiring cover.
Removing the power wires.
Cutting the terminals off of the power wires.
Removing the grounding screw.
Removing the power wires.
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
30
Page 36
SECTION 5: SERVICE PROCEDURES
WASH MOTOR REPLACEMENT (CONTINUED)
12. Unscrew the conduit fitting from motor and pull out the wires. The assembly should be able to be removed from the unit and set on the floor.
18. Replace and secure the wire access cover and tighten down the conduit nut.
19. Place the disharge hose assembly back on the discharge of the pump and tighten down.
20. Lift the assembly into place within the unit, ensuring that the suction hose is attached and lines up. Move the assembly so the mounting bracket slides over the mounting studs. Position the assembly so that the suction hose is not kinked.
21. Replace and tightne down the nuts securing the bracket to the frame.
22. Tighten the clamps for the suction hose.
23. Connect the disharge hose to the tub and tighten down the hose clamp.
The assembly removed from the unit.
13. With the unit on the floor, remove the discharge hose assembly from the pump end.
Removing the mounting bracket.
14. Use the two 9/16” combination wrenches to remove the bracket from the assembly.
15. Dispose of the old assemby in accordance with proper warranty procedures if applicable.
16. Take the new motor assembly and attach to the mounting bracket.
AFTER MAINTENANCE ACTIONS
Verify the operation of the new wash motor and pump assembly by running the unit for approximately 15 minutes. Check for leaks and corredt as necessary.
SPECIAL NOTES
Work performed on Jackson dishmachines by unau ­thorized or unqualified personnel may void the warranty. Before beginning this or any other maintenance evolution on a unit under warranty, you should contact a certified Jackson technician or Jackson Technical Service. You can find a list of qualified service agencies in the back of you unit’s installation manual.
SPECIAL PARTS
Motor Bracket Replacment Kit:
06401-003-12-60*
Wash Motor Replacement Kit
06401-003-12-62**
*The kit contains a bracket and locknuts.
**The kit contains the wash motor, pump and hard­ware.
17. Run the power wires to the motor, strip the insulation off of the wire ends and add terminals. Rewire the motor in accor­dance with the machine schematic, which is located on the back of the door.
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
31
Page 37
SECTION 6:
PARTS SECTION
32
Page 38
SECTION 6: PARTS SECTION
CONTROL BOX ASSEMBLY R24
*2
3
*A relay was used on earlier models. If service is needed, replace with contactor.
1
8
7
2
6
4
5
ITEM QTY DESCRIPTION Mfg. No.
1 1 Electrical Box Cover Replacement Kit 06401-003-12-07
(Kit contains electrical boc cover, decals and mounting hardware) Decal, Warning-Disconnect Power 09905-100-75-93
Decal, Caution 09905-011-68-99 2 2 Contactor 05945-002-74-20 3 1 Terminal Board 05940-002-78-97 4 1 Relay 05945-111-47-51 5 1 Speed Control Board Replacement Kit 06401-003-12-11
(Kit contains the speed control board and decal)
Speed Control Board Bracket 05700-021-61-11
Speed Control Board Assembly Replacement Kit 06401-003-12-10
(Kit contains the speed control board, decal, bracket and mounting hardware) 6 1 Transformer 05950-011-61-67 7 1 Terminal Block Replacement Kit 06401-003-11-78
(Kit contains terminal block, spacer and hardware) 8 1 Ground Lug 05940-200-76-00 * 1 Decal, Power Connection 09905-011-62-72 * 1 Decal, Copper Conductors Only 09905-011-64-71
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
33
Page 39
SECTION 6: PARTS SECTION
ELECTRICAL BOX COVER ASSEMBLY R24
2
5
6
3
4
REFER TO PAGE ENTITLED “CHEMICAL FEEDER PUMP ASSEMBLY”
7
8
9
9 11 12 7 1 1710
ITEM QTY DESCRIPTION Mfg. No.
1 1 Tube, 1/8” x 35” Clear 05700-011-63-14 2 3 Switch, Prime 05930-011-49-54 3 1 Decal, Detergent Prime 09905-011-64-80 4 1 Decal, Rinse Prime 09905-011-64-81 5 1 Decal, Sanitizer Prime 09905-011-65-22 6 1 Electrical Box Cover Replacement Kit 06401-003-12-14
(Kit contains cover, decals and mounting hardware) 7 3 Tube, Stiffener 05700-002-94-47 8 1 Tube, Red 1/4” x 60” 05700-011-63-18 9 1 Tube, Clear 1/8” x 60” 05700-011-63-19 10 1 Tube, Clear 1/4” x 15” 05700-011-63-17 11 1 Tube, Blue 1/4 x 15 05700-011-63-15 12 1 Tube, Red 1/4” x 35” 05700-011-63-16
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
34
Page 40
SECTION 6: PARTS SECTION
CONTROL BOX ASSEMBLY R30
*A relay was used on earlier models. If service is
7
1
*3
4
5
2
needed, replace with contactor.
8
10, 11
1
9
34
ITEM QTY DESCRIPTION Mfg. No.
1 1 Terminal Block Replacement Kit 06401-003-11-78
(Kit contains terminal block, spacer and mounting hardware)
2 1 Electrical Box Cover Replacement Kit 06401-003-12-07
(Kit contains cover, decals and mounting hardware) * 1 Decal, Warning-Disconnect Power 09905-100-75-93 * 1 Decal, Caution 09905-011-68-99 3 2 Contactor 05945-109-03-69 4 1 Decal, Detergent Prime 09905-011-64-80 4 1 Decal, Rinse Prime 09905-011-64-81 4 1 Decal, Sanitizer Prime 09905-011-65-22 5 3 Switch, Prime 05930-011-49-54 6 1 Relay 05945-111-47-51 7 1 Terminal Board 05940-002-78-97 8 1 Ground Lug 05940-200-76-00 * 1 Decal, Power Connection 09905-011-62-72 * 1 Decal, Copper Conductors Only 09905-011-64-71 9 1 Transformer 05950-011-61-67 10 1 Liquid Level Control 06680-011-61-68 11 1 Speed Control Board Replacement Kit 06401-003-12-11
(Kit contains the speed control board and decal)
Speed Control Board Bracket 05700-021-61-11
Speed Control Board Assembly Replacement Kit 06401-003-12-10
(Kit contains the speed control board, decal, bracket and mounting hardware)
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
35
Page 41
SECTION 6: PARTS SECTION
ELECTRICAL BOX COVER ASSEMBLY R30
3
2
Refer to page entitled “CHEMICAL FEEDER PUMP ASSEMBLY”
1
4
5
6 8 9 44
6
10 107
ITEM QTY DESCRIPTION Mfg. No.
1 1 Top, Electrical Box 05700-002-15-28 2 1 Decal, Warning 09905-100-75-93 3 3 Motor, Chemical Feeder Pump, 14 RPM 04320-011-63-33 4 3 Tube, Stiffener 05700-002-94-47 5 1 Tube, Red 1/4” x 60” 05700-011-63-18 6 1 Tube, Clear 1/8” x 60” 05700-011-63-19 7 1 Tube, Clear 1/4” x 15” 05700-011-63-17 8 1 Tube, Blue 1/4 x 15” 05700-011-63-15 9 1 Tube, Red 1/4” x 35” 05700-011-63-16 10 1 Tube, 1/8” x 35” Clear 05700-011-63-14
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
36
Page 42
SECTION 6: PARTS SECTION
CHEMICAL FEEDER PUMP ASSEMBLY
Screw, 8-32 x 1/2” Phillips Flat Head
2 per
05305-011-37-06
Screw, 6-32 x 3/4” Phillips Pan Head
4 per
05305-011-37-05
Front Housing
04320-111-37-08
Screw, 8-32 x 3/8” Phillips Pan Head
2 per
05305-011-37-07
Rear Housing
04320-111-37-09
Motor, 14 RPM 24V
Rinse Aid Feeder Pump
04320-011-63-33
Roller, Black
04320-111-65-27
Roller, Red (Detergent/Sanitizer)
04320-111-36-70
R24/R30 Technical Manual 07610-002-24-72
Squeeze Tube, Cream, Neoprene, 1/8”
(Use with the black roller.)
05700-011-65-21
Squeeze Tube, Detergent/Sanitizer
(Use with the red roller.)
05700-111-35-29
Issued: 07-31-2006 Revised: N/A
37
Page 43
3*
SECTION 6: PARTS SECTION
DRIVE MOTOR ASSEMBLY
6*
1 2
4
5
7* 8
9
10
ITEM QTY DESCRIPTION Mfg. No.
1 1 Drive Hub Weldment 05700-002-15-29 2 1 Gear Box Weldment 05700-002-17-40 3* 1 Hair Pin, 1/8’’ S/S 05315-002-15-39 4 1 Space Sleeve 05700-002-16-83 5 1 Gearmotor, Clockwise Rotation 06105-002-15-41 5 1 Gearmotor, Counter Clockwise Rotation 06105-002-15-40 6* 2 O-Ring, 7/16” I.D. x 9/16” O.D. 05330-002-15-44 7* 1 Washer, Drive Hub 05700-002-17-97 8 1 Gasket, Gear Case 05330-001-99-64 9 4 Bolt, 5/16’’-18 x 5/8’’ Hex Head 05305-275-09-00 10 2 Connector, Liquid Tite, .27” to .48” 05975-011-59-50
NOTE: THIS STYLE OF ASSEMBLY APPLIES ONLY TO MACHINES WITH SERIAL NUMBERS 99E 1819 AND LOWER.
SERVICE NOTE: ONCE THE RACK HUB SLEEVE IS PRESSED IN, IT IS RECOMMENDED TO REAM/DRILL THE HOLE TO 5/16” DIAMETER.
Hub Sleeve Assembly Replacement Kit: 06401-003-12-36 (Includes the hub sleeve, hub plate and mounting hardware)
Hub Sleeve: 05700-011-61-07
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
38
Page 44
SECTION 6: PARTS SECTION
DRIVE ASSEMBLY RETRO FIT KIT NO. 1
NOTE: APPLIES TO UNITS WITH SERIAL NUMBERS 00B 2023 AND HIGHER ONLY.
*9
1
*10
17
18
19
2
3
*4
11 12
13
5
14
15
6
16
7 8
20
The complete Clockwise Drive Assembly Kit may be ordered using part number 05700-002-22-60. The complete Counter Clockwise Drive Assembly Kit may be ordered using part number 05700-002-22-79.
The only difference in these two kits is the directional motor that is chosen. *Represents an item not shown
ITEM QTY DESCRIPTION Mfg. No.
1 1 Drive Hub 05700-002-15-29 2 4 Screw, 1/4”-20 x 1/2" S/S Hex Head 05305-274-02-00 3 1 Sleeve Hub Weldment 05700-002-22-65 *4 1 Hair Pin, 1/8" S/S 05315-002-15-39 5 1 Spacer, Sleeve 05700-002-16-83 6 1 Gearmotor, Clockwise Rotation 06105-002-15-41 6 1 Gearmotor, Counter Clockwise Rotation 06105-002-15-40 7 1 Terminal, # 6 Ring, Red Insulated 05940-200-72-00 8 2 Terminal, BLT RECPT 05940-200-56-00 *9 1 Washer, Drive Hub 05700-002-17-97 *10 2 O' Ring, 7/16” I.D. x 9/16” O.D. 05330-002-15-44 11 4 Washer, 1/4”-20 I.D. S/S 05311-174-01-00 12 1 Housing Coupling Weldment 05700-002-22-64 13 1 Gasket, Rack Hub Plate 05330-011-61-09 14 4 Bolt, 5/16"-18 X 5/8" Hex Head 05305-275-09-00 15 2 Connector, Liquid Tite, .27” to .48” 05975-011-59-50 16 1 Voltex, 7/16" x 36" Long 05700-002-22-66 17 1 Decal, Detergent Prime 09905-011-64-80 18 1 Decal, Rinse Prime 09905-011-64-81 19 1 Decal, Sanitizer Prime 09905-011-65-22 20 1 Cover, Control Box 05700-002-22-78
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
39
Page 45
SECTION 6: PARTS SECTION
DRIVE ASSEMBLY RETRO FIT KIT NO. 2
NOTE: APPLIES TO UNITS WITH SERIAL NUMBERS 00B 2023 AND HIGHER ONLY.
14
15
*7
1
*8
2
9
*3
4
10
11
5
12
6
13
17
The complete Clockwise Drive Assembly Kit may be ordered using part number 05700-002-22-61. The complete Counter Clockwise Drive Assembly Kit may be ordered using part number 05700-002-22-80.
16
The only difference in these two kits is the directional motor that is chosen. *Represents an item not shown
ITEM QTY DESCRIPTION Mfg. No.
1 1 Drive Hub 05700-002-15-29 2 1 Gear Box Weldment 05700-002-17-40 *3 1 Hair Pin, 1/8" S/S 05315-002-15-39 4 1 Spacer Sleeve 05700-002-16-83 5 1 Gearmotor, Clockwise Rotation 06105-002-15-41 5 1 Gearmotor, Counter Clockwise Rotation 06105-002-15-40 6 1 Voltex, 7/16" x 36" Long 05700-002-22-66 *7 2 O' Ring, 7/16” I.D. x 9/16” O.D. 05330-002-15-44 *8 1 Washer, Drive Hub 05700-002-17-97 9 1 Gasket, Gear Case 05330-001-99-64 10 4 Bolt, 5/16"-18 X 5/8" Hex Head 05305-275-09-00 11 2 Connector, Liquid Tite, .27” to .48” 05975-011-59-50 12 2 Terminal, BLT RECPT 05940-200-56-00 13 1 Terminal, # 6 Ring, Red Insulated 05940-200-72-00 14 1 Decal, Detergent Prime 09905-011-64-80 15 1 Decal, Rinse Prime 09905-011-64-81 16 1 Decal, Sanitizer Prime 09905-011-65-22 17 1 Cover, Control Box 05700-002-22-78 *18 12 Screw, 1/4”-20 x 5/8" S/S Hex Head 05305-274-24-00 *19 24 Washer, 1/4”-20 I.D. S/S 05311-174-01-00 *20 12 Locknut, 1/4”-20 Hex w/Nylon Insert 05310-374-01-00
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
40
Page 46
SECTION 6: PARTS SECTION
DRIVE GEAR ASSEMBLY
NOTE: APPLIES TO UNITS WITH SERIAL NUMBERS
99E 1820 THROUGH 00B 2023 ONLY.
1
6
2
5
4
7
8
3
12
11
9
10
ITEM QTY DESCRIPTION Mfg. No.
1 1 Hub 05700-011-61-21 2 1 Hub Spacer 05700-011-61-07 3 1 Gear 06105-011-70-88 4 1 Screw, Set, 1/4"- 20 05305-002-10-14 5 4 Bolt, Hex, 10-32 x 3/8" Long 05306-011-63-29 6 1 Limit Switch 05930-011-61-65 7 1 Switch Box Weldment 05700-021-62-41 8 1 Gear Box Weldment 05700-002-02-45 9 1 Motor Mounting Box 05700-002-00-61 10 1 Gear Drive Motor 06105-011-70-80 11 4 Liquid Tight Fitting 05975-011-49-03 12 1 Liquid Tight Fitting 05975-011-65-51
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
41
Page 47
SECTION 6: PARTS SECTION
DRIVE MOTOR ASSEMBLY
NOTE: APPLIES TO UNITS WITH SERIAL NUMBERS 99E 1819 AND LOWER ONLY.
7
10
9
12
8
2
4
11
1
5
3
6 5
ITEM QTY DESCRIPTION Mfg. No.
1 1 Mounting Plate Cover 05700-011-70-20 2 1 Gearmotor, AC Unidirectional 06105-011-70-80 3 4 Screw, 8-32 x 3/8" Long, Round Head 05305-172-02-00 4 4 Lockwasher, #8, External Tooth 05311-272-01-00 5 4 Fitting, Liquid Tight, .231 ID x .394 OD 05975-011-49-03 6 1 Connector, Liquid Tight, .27” to .48” 05975-011-59-50 7 1 Cover, Motor Mounting 05700-021-62-40 8 1 Starwasher, #10-24, External Tooth 05311-273-02-00 9 1 Screw, 10-32 x 3/8" Long, Truss Hd. 05305-173-12-00 10 2 Terminal, Bullet, Red 05940-200-74-00 11 3 Terminal, Bullet, Recpt, Red 05940-200-56-00 12 1 AK Fastener, 10-32 05340-111-58-10
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
42
Page 48
SECTION 6: PARTS SECTION
INCOMING PLUMBING ASSEMBLY
4
3
2
9
1
8
7
6
5
ITEM QTY DESCRIPTION Mfg. No.
1 2 Coupling, 1/2" FNPT x 3/8" FNPT, Brass 04730-011-61-52 2 2 Tee, 3/8" x 3/8" x 3/8" MNPT, Brass 04730-011-61-53 3 2 S-45 Solenoid Valve, 240V 04730-011-61-54 4 2 Elbow, 3/8" MNPT x 90° to 1/2" Barb 04730-002-18-54 5 2 Check Valve, Flap, 3/8" FNPT x 3/8" FNPT 04820-011-61-56 6 3 Nipple, 3/8" MNPT x 2-1/2" Long 04730-011-61-57 7 1 Ball Valve, 3/8" FNPT x 3/8" FNPT 04820-011-61-58 8 2 3/8" Brass Coupling 04730-011-62-56 9 Kit, S-45 Valve Cover Replacement 06401-003-12-76
(Kit contains cover, mounting screws and decals)
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
43
Page 49
SECTION 6: PARTS SECTION
INJECTION MANIFOLD
Injection Manifold Replacement Kit
(Kit contains manifold, fittings and hardware)
06401-003-12-65
Note: Use thread tape when putting in new fittings.
Fitting, 1/4” NPT x 1/2” Barbed 04730-011-61-62
Fitting, Elbow, 1/4” NPT, Plastic 04730-111-48-87
Pressure Gauge
06685-011-64-29
Thermometer
06685-111-35-30
Injection Manifold Mounting Bracket Replacement Kit
(Kit contains bracket and mounting hardware)
06401-003-12-66
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
44
Page 50
SECTION 6: PARTS SECTION
VACUUM BREAKER ASSEMBLY/WASH FILL COMPONENTS
1
Vacuum Breaker Rinse Fill Hose Replacement Kit
(Kit contains hose and hose clamps)
R24: 06401-003-12-33 R30: 06401-003-12-72
2
3
Wash Fill Hose Replacement Kit
(Kit contains hose and hose clamps)
4
R24: 06401-003-12-34 R30: 06401-003-12-73
5
ITEM QTY DESCRIPTION Mfg. No.
1 1 Vacuum Breaker 3/8" 04820-011-61-43 2 2 Nipple, 3/8" NPT x 8" Long 05700-021-61-44 3 1 Plate, Vacuum Breaker 05700-011-61-46 4 2 Jam Nut 05310-011-61-45 5 2 3/8" NPT x 1/2" ID Hose Barb 04730-011-61-47
RINSE VACUUM ASSEMBLY
FILL VACUUM ASSEMBLY
Vacuum Breaker Assembly
2 per assembly
05700-021-61-42
Hold Down Clamp
05700-000-35-06
Plumbing Support Bracket
R24: 05700-003-19-99 R30: 05700-003-16-46
Wash Fill Tube
05700-021-63-01
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
45
Page 51
SECTION 6: PARTS SECTION
WASH TANK ASSEMBLY
7
6
5
4
9
1
12
11
2
3
11
ITEM QTY DESCRIPTION Mfg. No.
1 1 Wash Heater Replacment Kit 06401-003-12-23
(Kit contains wash heater, gasket, mounting hardware and instructions)
2 1 Thermostat Replacement Kit 06401-003-12-40
(Kit contains thermostat, imperial brass fitting and instructions) * 1 Decal, High Limit 09905-011-84-32 * 1 Bracket, Thermostat Mounting 05700-011-81-64 3 1 Thermometer 06685-111-35-30 4 1 Overflow Tube Weldment 05700-021-62-22 * 1 Overflow Support Bracket 05700-002-33-72 5 1 Wash Tank Weldment Replacement Kit (R24) 06401-003-13-31
1 Wash Tank Weldment Replacement Kit (R30) 06401-003-12-24
(Kits contains the wash tank weldment and a new O-ring) 6 1 Wash Strainer Weldment (R24) 05700-021-61-78 6 1 Wash Strainer Weldment (R30) 05700-001-98-86 7 1 Float Switch Replacement Kit 06401-003-11-76
(Kit contains float switch and mounting hardware) 9 1 Wash Heater Gasket 05330-011-61-34 11 1 O-Ring 05330-400-05-00 12 2 Heater Cover Weldment Replacement Kit 06401-003-12-78
(Kit contains the heater cover with warning decal and mounting hardware)
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
46
Page 52
SECTION 6: PARTS SECTION
RINSE SUMP ASSEMBLY/WASH AND RINSE ARMS
Rinse Strainer Weldment
R24: 05700-021-61-79 R30: 05700-001-98-88
Drain Weldment
R24: 05700-031-61-99 R30: 05700-001-98-78
R24 Wash Arm
2 Per Unit
05700-031-60-84
R24 Rinse Arm
2 Per Unit
05700-031-61-23
R30 Wash Arm
2 Per Unit
05700-001-99-06
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
R30 Rinse Arm
2 Per Unit
05700-001-99-07
47
Page 53
SECTION 6: PARTS SECTION
WASH MOTOR REPLACEMENT KITS
Motor Mounting Bracket Replacement Kit
(Contains the bracket and mounting locknuts)
06401-003-12-60
Upper Discharge Hose Replacement Kit (R24)
(Contains hose and hose clamps)
06401-003-12-32
Motor Replacement Kit
(Contains motor, pump and hardware for mounting to bracket)
06401-003-12-62
Upper Discharge Hose Replacement Kit (R30)
(Contains hose and hose clamps)
06401-003-12-67
Suction Hose Replacement Kit (R24)
(Contains hose and hose clamps)
06401-003-12-30
R24/R30 Technical Manual 07610-002-24-72
Suction Hose Replacement Kit (R30)
(Contains hose and hose clamps)
06401-003-12-31
Issued: 07-31-2006 Revised: N/A
48
Page 54
SECTION 6: PARTS SECTION
WASH MOTOR REPLACEMENT PARTS (CONTINUED)/OPERATION INSTRUCTIONS DECAL
Lower Discharge Hose Replacement Kit
(Contains the hose,barbed fitting and hose clamps)
06401-003-12-61
Operation Instruction Decal
09905-021-64-88
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
49
Page 55
SECTION 6: PARTS SECTION
WASH & RINSE MANIFOLDS
Kit, Wash Manifold Weldment Replacement 06401-003-13-50 (Kit contains the wash manifold weldment, gasket and mounting hardware.)
Rinse Feed Weldment Replacement Kit
(Contains weldment, gasket & hardware)
06401-003-12-27
Wash/Rinse Manifold Gasket
2 Per Unit
05330-111-42-81
Wash Feed Weldment Replacement Kit
(Contains weldment, gasket & hardware)
06401-003-12-26
Kit, Rinse Manifold Weldment Replacement 06401-003-13-45 (Kit contains the rinse manifold weldment, gasket and mounting hardware.)
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
50
Page 56
Rack Wrap Replacement Kit: R24: 06401-003-12-89 R30: 06401-003-12-25
SECTION 6: PARTS SECTION
RACK WRAP REPLACEMENT KITS/FRONT SHIELD WELDEMENT
Rack Support Rollers
05700-011-60-83
Plate, Diverter
05700-002-10-64
Support, Rack Wrap 05700-011-60-82
Front Shield Weldment (R24)
05700-003-03-23
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
51
Page 57
SECTION 6: PARTS SECTION
DRAIN BOARD ASSEMBLIES
Left Drain Board Replacement Kit
R24: 06401-003-12-90 R30: 06401-003-12-18
(Kit contains drain board and component mounting
hardware)
Right Drain Board Replacement Kit
R24: 06401-003-12-91 R30: 06401-003-12-87
(Kit contains drain board and component mounting
hardware)
Splash Guard Replacment Kit
06401-003-12-17
(Kit contains splash guard and mounting hardware)
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
Paddle Switch Limit Replacment Kit
06401-003-12-19
(Kit contains paddle switch limit and mounting hardware)
52
Page 58
SECTION 6: PARTS SECTION
DOOR ASSEMBLY/SWITCHES
The entire door assembly can be ordered using the following numbers:
R24: 05700-002-09-85 R30: 05700-002-00-42
R24 Door Weldment
05700-002-09-86
R30 Door Weldment
05700-002-00-43
Nylon Lift-Off Hinges 05340-021-62-04
Paddle-Latch Assembly
Switch, OFF/FILL/ON
05930-011-61-69
05340-001-96-30
Decal, OFF/FILL/ON
09905-011-61-70
OFF
FILL HEAT
ON
Liquid Tight Fitting 05975-011-49-03
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
53
Limit Switch Cover
05700-002-11-10
Screw, 10-24 x 3/8" Long, Ph. Truss Head 05305-173-03-00
Limit Switch
05930-011-61-65
Page 59
SECTION 6: PARTS SECTION
R30 Wash Curtain Replacement Kit
06401-003-12-81
CURTAIN/CURTAIN ROD
R24 Wash Curtain Replacement Kit 06401-003-12-79
Order the Curtain Rod separately: 05700-011-60-90
Order the Curtain Rod separately:
05700-002-00-63
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
54
Page 60
SECTION 6: PARTS SECTION
MISCELLANEOUS PARTS
Drain, Fitting Modified
1 per unit
05700-002-10-24
Glass Rack
R24: 05700-031-60-79
R30: 05700-031-92-11
Drain, Fitting1 per unit
05700-002-10-61
Hub Cylinder
1 per unit
05700-002-02-99
Limit Paddle Switch Assembly
1 Per Unit
05700-031-61-33
Actuator Assembly
1 Per Unit
05700-021-61-48
Splash Shield R24: 05700-021-63-37 R30: 05700-002-02-51
Drain Chute Replacement Kit
(Includes drain chute, gasket and
mounting hardware)
1 per unit (optional)
06401-003-12-28
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
55
Drain Chute Gasket
1 per unit (optional)
05330-002-15-38
Page 61
SECTION 7:
ELECTRICAL SCHEMATICS
56
Page 62
SECTION 7: ELECTRICAL SCHEMATICS
R24 & R30 (208-230 VOLT, 60HZ, SINGLE PHASE)
R24/R30 Technical Manual 07610-002-24-72
Issued: 07-31-2006 Revised: N/A
57
Page 63
Loading...
