Page 1
JABRA MINI
User Manual
jabra.com/mini
Page 2
© 2013 GN Netcom A/S. All rights reserved. Jabra® is a registered
trademark of GN Netcom A/S. All other trademarks included herein
are the property of their respective owners. The Bluetooth
mark and logos are owned by the Bluetooth SIG, Inc. and any use
®
word
of such marks by GN Netcom A/S is under license. (Design and
specifications subject to change without notice).
MADE IN CHINA
MODEL: OTE15
Declaration of Conformity can be found on
www.jabra.com/CP/US/declarations-of-conformity
Page 3
CONTENTS
1. WELCOME .......................................... 4
2. HEADSET OVERVIEW ......................... 5
3. HOW TO WEAR ................................. 6
3.1 CHANGE EARGELS
3.2 ATTACHING THE EARHOOK
4. HOW TO CHARGE THE BATTERY ....... 8
4.1 USB CHARGING
4.2 CAR CHARGING
5 HOW TO CONNECT ............................ 9
6. HOW TO USE ...................................10
6.1 MULTIPLE CALL HANDLING
6.2 LIST OF VOICE GUIDANCE
7. SOF TWA RE .......................................14
7.1 JABRA ASSIST
8. SUPPORT ..........................................15
8.1 FAQ
8.2 HOW TO CARE FOR YOUR HEADSET
9. TECHNICAL SPECIFICATIONS ...........17
english
jabra MINI
3
Page 4
1. WELCOME
Thank you for using the Jabra Mini. We hope you
will enjoy it!
JABRA MINI FEATURES
Voice guidance
Battery and pairing status display
HD voice
Long talk time – Up to 9 hours
Power Nap feature
New comfort pack
Wireless freedom - Up to 30m/98ft
english
jabra MINI
4
Page 5
2. HEADSET OVERVIEW
Micro-USB Port
jabra
Answer/End
button
On/Off switch
Small earhook Large earhook Car charger
Eargel Looped argel USB cable
Earhook
Volume up/
down bottons
english
jabra MINI
5
Page 6
3. HOW TO WEAR
The headset can be worn on the left or right ear.
english
jabra MINI
6
Page 7

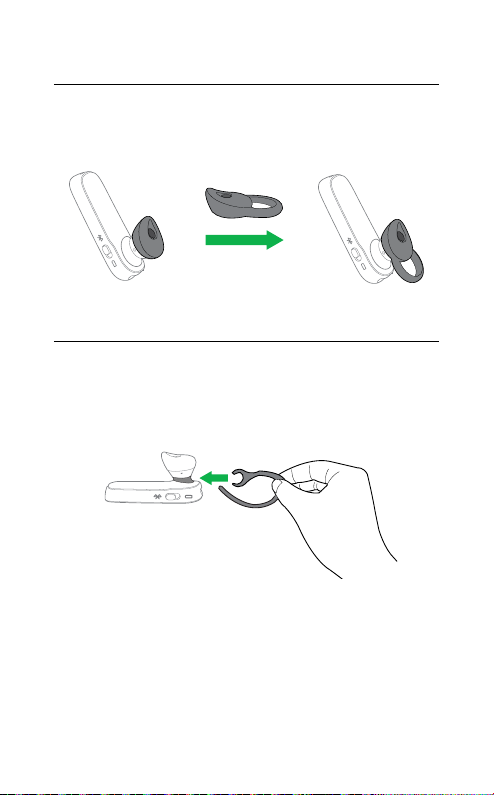

3.1 CHANGE EARGELS
Choose between 2 ergo-designed eargels for
optimal fit and comfort.
3.2 ATTACHING THE EARHOOK
The earhook can be attached to the headset for a
more secure fit, and can be worn with or without
the eargel.
english
jabra MINI
7
Page 8

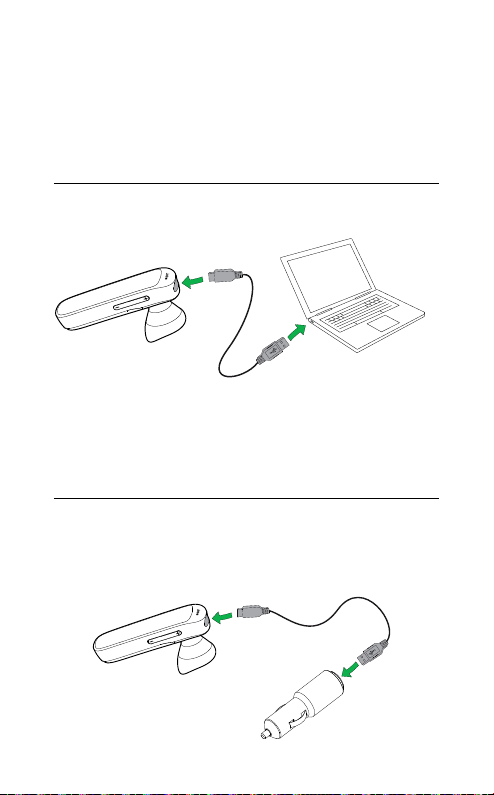

4. HOW TO CHARGE THE BATTERY
4.1 USB CHARGING
Plug the headset into any available USB port using
the USB cable.
It takes approx. 2 hours to fully charge the headset.
4.2 CAR CHARGING
Connect the USB cable to the car charger, and
plug the headset into the car’s power supply
using the car charger.
english
jabra MINI
8
Page 9
5. HOW TO CONNECT
1. Turn the headset on (set the On/Off switch to
the On position).
2. Press and hold (3 secs) the
until the Bluetooth indicator flashes blue, and
pairing mode is announced in the headset.
3. Follow the voice-guided pairing instructions to
pair to your Bluetooth device.
Answer/end button
english
jabra MINI
9
Page 10
6. HOW TO USE
Battery indicator
On/Off switch
Bluetooth indicator
Volume down
Volume up
english
Answer/End button
jabra MINI
10
Page 11
FUNCTION ACTION
Answer call Tap the Answer/end button
End call Tap the
Activate voice
dialing (phone
dependent)
Reject call
Redial last
number
Adjust speaker
volume
Mute/un-mute
microphone
Press and hold (2 secs) the
Answer/end button when not
on a call
Double-tap the
button
Double-tap the
button when not on a call
Tap the Volume up or
Volume down button
Tap both the
Volume down to mute/un-mute.
Answer/end button
Answer/end
Answer/end
Volume up and
english
jabra MINI
11
Page 12
6.1 MULTIPLE CALL HANDLING
The headset can accept and handle multiple calls
simultaneously.
FUNCTION ACTION
End current call and
answer incoming call
Switch between held call
and active call
Put current call on hold
and answer incoming call
Reject incoming call
Tap the Answer/end
button
Press and hold
(2 secs) the
Answer/end button
Press and hold
(2 secs) the
Answer/end button
Double-tap the
Answer/end button
english
jabra MINI
12
Page 13
6.2 LIST OF VOICE GUIDANCE
CLICK TO LISTEN WHAT YOU HEAR
Connected
Battery low
Redialling
Disconnected
To connect your headset, go to the
Bluetooth menu on your phone and
select it from the list
english
jabra MINI
13
Page 14
7. SOFTWARE
7.1 JABRA ASSIST
Jabra Assist is a smartphone app that enables GPS
tracking of the headset, pairing assistance, and
headset battery status.
Android download - Google Play
iOS download - App Store
english
jabra MINI
14
Page 15
8. SUPPORT
8.1 FAQ
View the comprehensive FAQ on Jabra.com/mini.
Q Why do I hear crackling noises?
A Bluetooth is a radio technology that is sensitive to
objects between the headset and the connected
device. Ensure the headset and the connected device
are within range (up to 30 meters or 98 feet).
Q What is the range of the headset?
A The Jabra Mini supports the following maximum
Q Why do I not hear anything?
A You might need to increase the speaker volume, or
Q I am having Bluetooth connection problems
A Check your mobile device’s Bluetooth menu and
30m/98ft.
ranges:
ensure that the headset is connected to a device.
delete/forget the headset. Re-connect the headset to
your Bluetooth device following the Bluetooth
connection instructions.
english
jabra MINI
15
Page 16
8.2 HOW TO CARE FOR YOUR HEADSET
Always store the headset with the power off
and safely protected
Avoid storage at extreme temperatures (above
35°C/95°F or below -20°C/-4°F). This can shorten
battery life and may affect headset operation.
Do not expose the headset to rain or other
liquids
english
jabra MINI
16
Page 17
9. TECHNICAL SPECIFICATIONS
JABRA MINI HEADSET SPECIFICATION
Weight: under 10g
Dimensions:
Microphones: Omni-directional microphone
Speaker: 11 mm dynamic speaker
Operating range: 30m/98ft (phone dependent)
Bluetooth version: 4.0
Paired devices:
Supported Bluetooth
profiles:
Talk time: Up to 9 hours
Standby time: Up to 9 days
Operating temperature: -10°C to 55°C (14°F to 131°F)
Storage temperature: -20° C to 35° C (- 4 F to 95 F)
AC power supply 100-240 V, 50-60 Hz
Pairing passkey or PIN: 0000
L 47.1 mm x W 14.7 mm x
H 9.9 mm
Up to 8, connected to two at
the same time (MultiUse™)
A2DP(v1.2), Hands Free Profile
(v1.6), Headset profile(v1.2)
english
jabra MINI
17
Page 18
english
www.jabra.com/mini
jabra MINI
18
REV B
