JABRA SPORT COACH WIRELESS

User Manual

jabra.com/sportcoachwireless

© 2015 GN Netcom A/S. All rights reserved. Jabra® is a registered
trademark of GN Netcom A/S. All other trademarks included herein
are the property of their respective owners. The Bluetooth
mark and logos are owned by the Bluetooth SIG, Inc. and any use

®

word

of such marks by GN Netcom A/S is under license. (Design and
specifications subject to change without notice).

MADE IN CHINA
MODEL: OTE20

Declaration of Conformity can be found on

www.jabra.com/CP/US/declarations-of-conformity

CONTENTS

1. WELCOME .......................................... 4

2. HEADSET OVERVIEW ......................... 5

2.1 INCLUDED ACCESSORIES

3. HOW TO WEAR .................................. 7

3.1 CHANGING EARGELS

3.2 CHANGING EARWINGS

3.3 WEARING THE FITCLIP

3.5 HOWTOWEAR VIDEOS

4. HOW TO CHARGE THE EARPHONES 11

5. HOW TO CONNECT ...........................12

5.1 CONNECT TO A NEW OR SECOND MOBILE PHONE

5.2 CONNECT TO AN NFC DEVICE

6. JABRA SPORT LIFE APP ..................14

7. HOW TO USE ................................... 15

7.1 CALLS & MUSIC

7.2 WORKOUT

7.3 MULTIPLE CALL HANDLING

8. SUPPORT ..........................................19

8.1 FAQ

8.2 HOW TO CARE FOR YOUR HEADSET

ENGLISH

9. TECHNICAL SPECIFICATIONS .......... 20

JABRA COACH WIRELESS

3

1. WELCOME

Thank you for using the Jabra Sport Coach Wireless.
We hope you will enjoy it!

JABRA SPORT COACH WIRELESS FEATURES

 Wireless Sports earphones with Dolby

enhancement

 TrackFit Motion Sensor for tracking your indoor

running distance, speed and cadence

 Connects to all Bluetooth

®

Smart devices –

phones, computers, tablets and more
 NFC for easy pairing
 Jabra Sport Life app for integrated training

management
 Control music and calls directly from the

headphones
 IP55 Certified, drop, strength, dirt, temperature

& humidity tested

®

sound

ENGLISH

JABRA COACH WIRELESS

4

2. HEADSET OVERVIEW

TrackFit Motion
Sensor

Sports
button

Indicator
light

Eargel

Microphone

FitClip (optional
wearing style)

EarWing

USB charging
port
(remove
EarWing)

Volume
up

Multi-function
button

Volume
down

ENGLISH

JABRA COACH WIRELESS

5

2.1 INCLUDED ACCESSORIES

Eargels Earwings

Large

Medium

Small

Extra small

Micro-USB cable

Large

Medium

Small

Protective pouchFitclips

ENGLISH

JABRA COACH WIRELESS

6

3. HOW TO WEAR

3.1 CHANGING EARGELS

For the optimal audio experience, try the different
eargel sizes. The fit should feel tight and secure in
your ear.

ENGLISH

JABRA COACH WIRELESS

7

3.2 CHANGING EARWINGS

For the most secure fit during your workout, try
each of the different EarWing styles.

1. Remove the current EarWing and pull the new
EarWing onto the earbud, as shown. You may
have to stretch the EarWing into position.

2. The top of the EarWing should fit tight into the
ridge of the ear.

ENGLISH

JABRA COACH WIRELESS

8

3.3 USING THE FITCLIP

Attach the Fitclip to the cable, and adjust for
optimal fit.

REGULAR FITCLIP STYLE

OPTIMAL FITCLIP STYLE

SIMPLE FITCLIP STYLE

ENGLISH

JABRA COACH WIRELESS

9

3.4 HOWTOWEAR VIDEOS

You can watch how-to-wear videos on
jabra.com/sportcoachwireless.

ENGLISH

JABRA COACH WIRELESS

10

4. HOW TO CHARGE THE

EARPHONES

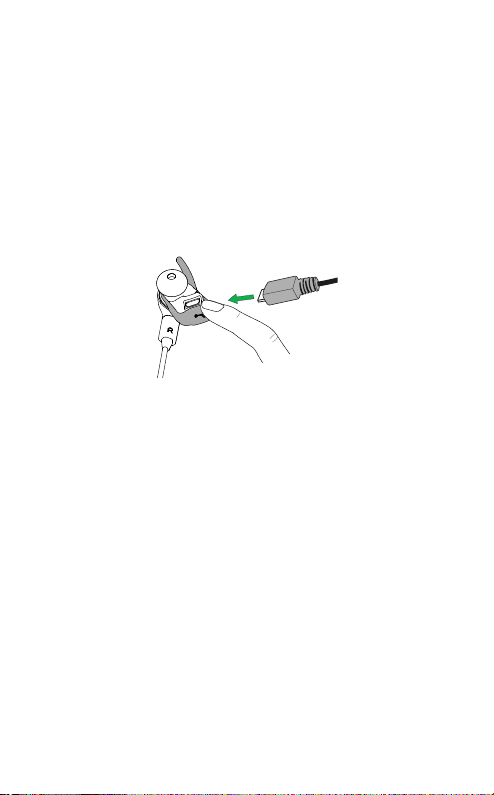

Pull back the EarWing on the right earphone to
expose the USB charging port. Plug any USB cable
or charger into the USB charging port and connect
to power to begin charging.

It takes approx. 2 hours to fully charge the
earphones.

NOTE: When charging the earphones using a PC, ensure the PC
supports USB charging.

ENGLISH

JABRA COACH WIRELESS

11

5. HOW TO CONNECT

The first time the Jabra Sport Coach Wireless is
turned on it will automatically attempt to connect
to any mobile phone that has Bluetooth turned on.

5.1 CONNECT TO A NEW OR SECOND

MOBILE PHONE

1. Turn on Bluetooth on your mobile phone.

2. Press and hold the Multi-function button on the
controller until the indicator light on the right
earbud flashes blue. Release the button.

3. Follow the voice-guided connection instructions
to connect to your mobile phone.

NOTE: If two mobile phones have been connected to the Jabra
Sport Coach Wireless, you may need to select which phone will
be used for calls/music/workout. Simply open the Bluetooth
menu on the mobile phone you wish to use and select the Jabra
Sport Coach Wireless from the list of devices.

JABRA COACH WIRELESS

ENGLISH

12

5.2 CONNECT TO AN NFC DEVICE

1. Turn on NFC on your mobile phone.

2. Ensure the earphones are turned on.

3. Slowly slide the NFC zone of the earphones
(back side of the controller) directly against the
NFC device until a connection is confirmed.

To disconnect, repeat the process.

ENGLISH

JABRA COACH WIRELESS

13

6. JABRA SPORT LIFE APP

The Jabra Sport Life app is a free app that enables
you to create, track and personalize your workouts,
listen to on-the-go workout status updates,
monitor your heart rate and much more.

Android download - Google Play

iOS download - App Store

ENGLISH

JABRA COACH WIRELESS

14

7. HOW TO USE

Sports
button

ENGLISH

Volume
up

Multi-function
button

Volume
down

JABRA COACH WIRELESS

15

7.1 CALLS & MUSIC

FUNCTION ACTION

Turn on/off

Play/pause
music

Answer/end
call

Reject call

Redial last
number

Adjust volume

Mute

Skip track

Battery status

Press and hold (3 sec) the
Multi-function button until the
indicator light flashes

Multi-function button

Tap the

Multi-function button

Tap the

Double-tap the
button

When not on a call, double-tap

Multi-function button

the

Tap the
down button

Tap both the
Volume down button at the
same time

Press and hold (2 secs) the
Volume up or Volume down
button

Tap the
down button when not on a call
or listening to music

Multi-function

Volume up or Volume

Volume up and

Volume up or Volume

ENGLISH

JABRA COACH WIRELESS

16

7.2 WORKOUT

When the earphones are used with the Jabra Sport
Life app (or your regular sport app) you can control
your workout and listen to on-the-go workout
updates using the Sports button.

BEFORE WORKOUT

Start Sport app Tap the Sports button

ENGLISH

Start workout

DURING WORKOUT

Pause/resume
workout

Listen to On-the-go
updates

Disable/enable
On-the-go updates

JABRA COACH WIRELESS

Press and hold (1 sec) the
Sports button

Press and hold (1sec) the

Sports button

Sports button

Tap the

Double-tap the
button

Sports

17

7.3 MULTIPLE CALL HANDLING

The headset can accept and handle multiple calls
at the same time.

FUNCTION ACTION

End current call and
answer incoming call

Switch between held call
and active call

Put current call on hold
and answer incoming call

Reject incoming call,
when on a call

Tap the Multi-
function button

Press and hold
(2secs) the
function button

Press and hold
(2secs) the
function button

Double-tap the

Multi-function

button

ENGLISH

Multi-

Multi-

JABRA COACH WIRELESS

18

8. SUPPORT

8.1 FAQ

View the FAQs on Jabra.com/sportcoachwireless

8.2 HOW TO CARE FOR YOUR HEADSET

 Always store the headset with the power off

and safely protected.

 Avoid storage at extreme temperatures (above

65°C/149°F or below -10°C/14°F). This can
shorten battery life and may affect the headset.

ENGLISH

JABRA COACH WIRELESS

19

9. TECHNICAL

SPECIFICATIONS

JABRA SPORT COACH
WIRELESS

Weight: 16g (0.56oz)

Dimensions: H 18mm x W 21mm x D 32mm

Microphones: MEMS microphone

Speaker: 6mm dynamic speaker

Operating range: 10m/33ft (phone dependent)

Bluetooth version: 4.0

Paired devices:

Supported Bluetooth
profiles:

Talk/music time: Up to 5.5 hours

Standby time: Up to 10 days

Operating temperature: -10°C to 55°C (14°F to 131°F)

Storage temperature: -10°C to 65°C (14°F to 149°F)

Pairing passkey or PIN: 0000

SPECIFICATION

Up to 8, connected to two at
the same time (MultiUse™)

A2DP (v1.2), Hands Free Profile
(v1.6), Headset profile (v1.2),
AVRCP (v1.4)

ENGLISH

JABRA COACH WIRELESS

20
