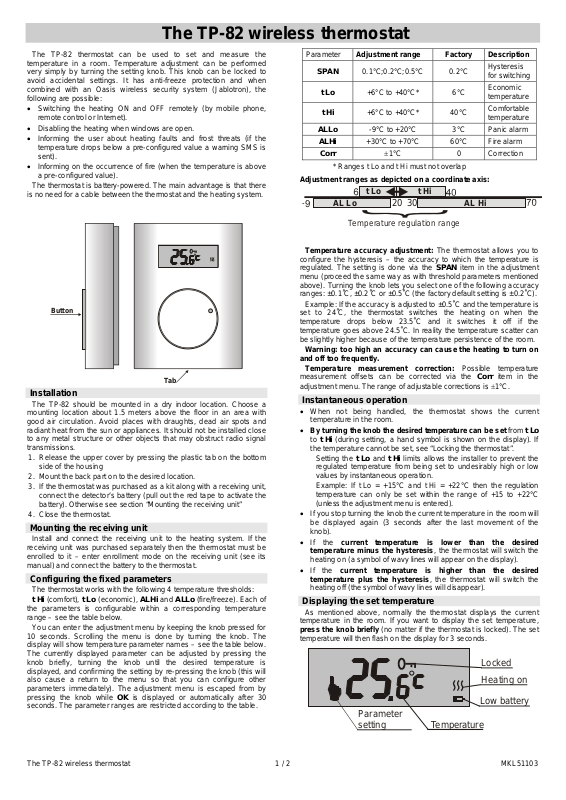

The TP-82 wireless thermostat

The TP-82 thermostat can be used to set and measure the
temperature in a room. Temperature adjustment can be performed
very simply by turning the setting knob. This knob can be locked to
avoid accidental settings. It has anti-freeze protection and when
combined with an Oasis wireless security system (Jablotron), the
following are possible:

• Switching the heating ON and OFF remotely (by mobile phone,

remote control or Internet).

• Disabling the heating when windows are open.

• Informing the user about heating faults and frost threats (if the

temperature drops below a pre-configured value a warning SMS is
sent).

• Informing on the occurrence of fire (when the temperature is above

a pre-configured value).

The thermostat is battery-powered. The main advantage is that there
is no need for a cable between the thermostat and the heating system.

Button

Tab

Installation

The TP-82 should be mounted in a dry indoor location. Choose a
mounting location about 1.5 meters above the floor in an area with
good air circulation. Avoid places with draughts, dead air spots and
radiant heat from the sun or appliances. It should not be installed close
to any metal structure or other objects that may obstruct radio signal
transmissions.

1. Release the upper cover by pressing the plastic tab on the bottom
side of the housing

2. Mount the back part on to the desired location.

3. If the thermostat was purchased as a kit along with a receiving unit,
connect the detector’s battery (pull out the red tape to activate the
battery). Otherwise see section “Mounting the receiving unit”

4. Close the thermostat.

Mounting the receiving unit

Install and connect the receiving unit to the heating system. If the
receiving unit was purchased separately then the thermostat must be
enrolled to it – enter enrollment mode on the receiving unit (see its
manual) and connect the battery to the thermostat.

Configuring the fixed parameters

The thermostat works with the following 4 temperature thresholds:

t Hi (comfort), t Lo (economic), ALHi and ALLo (fire/freeze). Each of
the parameters is configurable within a corresponding temperature
range – see the table below.

You can enter the adjustment menu by keeping the knob pressed for
10 seconds. Scrolling the menu is done by turning the knob. The
display will show temperature parameter names – see the table below.
The currently displayed parameter can be adjusted by pressing the
knob briefly, turning the knob until the desired temperature is
displayed, and confirming the setting by re-pressing the knob (this will
also cause a return to the menu so that you can configure other
parameters immediately). The adjustment menu is escaped from by
pressing the knob while OK is displayed or automatically after 30
seconds. The parameter ranges are restricted according to the table.

Parameter Adjustment range Factory Description

SPAN 0.1°C;0.2°C;0.5°C 0.2°C

t Lo +6°C to +40°C* 6°C

t Hi +6°C to +40°C* 40°C

ALLo -9°C to +20°C 3°C Panic alarm

ALHi +30°C to +70°C 60°C Fire alarm

Corr

* Ranges t Lo and t Hi must not overlap

Adjustment ranges as depicted on a coordinate axis:

-

AL Lo

t Lo

±1°C

t Hi

3020

0

Hysteresis
for switching

Economic
temperature

Comfortable
temperature

Correction

AL Hi

Temperature regulation range

Temperature accuracy adjustment: The thermostat allows you to
configure the hysteresis – the accuracy to which the temperature is
regulated. The setting is done via the SPAN item in the adjustment
menu (proceed the same way as with threshold parameters mentioned
above). Turning the knob lets you select one of the following accuracy
ranges: ±0.1˚C, ±0.2˚C or ±0.5˚C (the factory default setting is ±0.2˚C).

Example: If the accuracy is adjusted to ±0.5˚C and the temperature is

set to 24˚C, the thermostat switches the heating on when the
temperature drops below 23.5˚C and it switches it off if the
temperature goes above 24.5˚C. In reality the temperature scatter can
be slightly higher because of the temperature persistence of the room.

Warning: too high an accuracy can cause the heating to turn on
and off too frequently.

Temperature measurement correction: Possible temperature

measurement offsets can be corrected via the Corr item in the
adjustment menu. The range of adjustable corrections is ±1°C.

Instantaneous operation

• When not being handled, the thermostat shows the current

temperature in the room.

• By turning the knob the desired temperature can be set from t Lo

to t Hi (during setting, a hand symbol is shown on the display). If
the temperature cannot be set, see “Locking the thermostat”.

Setting the t Lo and t Hi limits allows the installer to prevent the
regulated temperature from being set to undesirably high or low
values by instantaneous operation.

Example: If t Lo = +15°C and t Hi = +22°C then the regulation

temperature can only be set within the range of +15 to +22°C
(unless the adjustment menu is entered).

• If you stop turning the knob the current temperature in the room will

be displayed again (3 seconds after the last movement of the
knob).

• If the current temperature is lower than the desired

temperature minus the hysteresis, the thermostat will switch the

heating on (a symbol of wavy lines will appear on the display).

• If the current temperature is higher than the desired

temperature plus the hysteresis, the thermostat will switch the

heating off (the symbol of wavy lines will disappear).

Displaying the set temperature

As mentioned above, normally the thermostat displays the current
temperature in the room. If you want to display the set temperature,
press the knob briefly (no matter if the thermostat is locked). The set
temperature will then flash on the display for 3 seconds.

Locked
Heating on

Low battery

Parameter
setting

Temperature

The TP-82 wireless thermostat 1 / 2 MKL51103

Locking the thermostat

• To prevent the accidental changing of the set temperature the
thermostat can be locked by pressing and holding the knob (for
about 2 seconds, the lock symbol will appear on the display).

• To unlock the thermostat simply press and hold the turning knob
(for about 2 seconds, the lock symbol will disappear on the display).

Integration into the OASIS system

• The thermostat can also be enrolled to a control panel as a
detector. If the temperature decreases below ALLo a panic alarm
will be triggered = frost threat (heating failure).

• If the temperature exceeds ALHi then a fire alarm will be triggered.

• An AC-82 receiving unit has two output relays (X and Y). TP-82

thermostats can be enrolled separately to each relay (in enrollment
mode 4) in order to control two independent heating circuits.

• To operate a heating system the Oasis control panel can also
be enrolled (sequence 299) to the same relay as the thermostat is
enrolled to. A thermostat enrolled to the X relay can be operated
via the PGX programmable output, and a thermostat enrolled to
the Y relay operated via PGY. If the programmable output of the
control panel is switched on, the thermostat maintains the set
temperature. If the control panel’s output is switched off the
thermostat only triggers heating if the temperature drops below
InLo (anti-freeze protection).

• To operate the heating, RC-80 or RC-88 remote controls can
also be enrolled to a receiving unit (AC-82). The heating can be
switched on by remote controls to heat to the desired temperature
and also switched off where it only heats when the temperature
is below ALLo.

• To disable heating when windows are open JA-80M or JA-82M
detectors can also be enrolled to the same relay as the thermostat

is enrolled to. If the windows are closed it heats to the desired
temperature and if windows are open it heats only when
temperature is below ALLo.

• Up to 8 thermostats can be enrolled to a single relay. If at least
one thermostat transmits a heat command then the relay will be
switched on.

Battery replacement

Replace the battery when the low-battery symbol is displayed (or the
thermostat stops working). If the thermostat is enrolled to the control
panel, then a low battery will be indicated by the control panel (to the
user and installer). Use only AA 1.5V alkaline batteries.

RESET

The RESET function allows you to reset the device to factory defaults
listed in the table. You can perform RESET by selecting Res in the
adjustment menu and pressing and holding the knob for 5 seconds.

Specification

Power supply: 1x AA 1.5 V alkaline battery
Battery lifetime typically 1 year
Temperature measurement: +6°C to +40 ˚C
Temperature accuracy: adjustable: ± 0.1, ± 0.2 or ± 0.5 ˚C
Freeze alarm (panic transmission) temperature threshold: <ALLo
configurable from –9°C to +20°C
Fire alarm temperature threshold: >ALHi
configurable from 30°C to 70°C
Operational frequency: 868 MHz, Oasis protocol
Operational radio range: up to 100 m (open area)
Operational temperature range: -10°C to + 70°C (low humidity)
Dimensions: 65 x 88 x 20 mm
Can be operated according to VO-R/10/05.2006-22

Jablotron Ltd. hereby declares that the TP-82 is in
compliance with the essential requirements and other
relevant provisions of Directive 1999/5/ES. The original of
the conformity assessment can be found on the web site

www.jablotron.com

Note: Dispose of batteries safely depending on battery type
and local regulations. Although this product does not contain
any harmful materials we suggest you return the product to
the dealer or directly to the manufacturer after use.

, Technical Support section.

20

32.5 32.5
65

19

44

25

88
