The JA-63ST Wireless combined smoke and heat detector
{
The JA-63ST is a wireless component of the JABLOTRON
ALARMS PROFI and MAESTRO alarm systems. It is used to
detect fire hazards in the interior of residential or commercial
buildings. The detector can be installed in mobile homes or
caravans. The product is not designed to be installed in industrial
premises. The JA-63ST detector uses wireless communication and
it is powered with three AA batteries.
The detector indicates a fire hazard using the built-in LED
indicator and acoustic signalling.
The JA-63ST consists of two independent detectors – an optical
smoke detector and a heat detector. The optical smoke detector
works on the principle of scattered light. It is very sensitive to large
dust particles which are present in dense smoke. It is less sensitive
to smaller particles generated by the combustion of liquids such as
alcohol. That is why the fire detector also contains a built-in heat
detector which has a slower reaction but is much better at detecting fire
which generates only a small amount of smoke.
Detector range and location
The smoke detector must be installed so that any smoke easily
drifts into the detector owing to natural thermal currents, e.g. on the
ceiling. It is suitable for residential buildings but not suitable for free
spaces, outdoor environments or interiors with extremely high
ceilings (above 5 m) where fire by-products can disperse over a
large area – the smoke would not reach the detector position.
The detectors should be installed by a trained technician with a
valid manufacturer’s certificate.
Detectors should be installed in the building according to the
project documentation. If such documentation is not available, their
position should comply with the effective standards for fire alarm
signalling systems.
The detector must always be placed in the section leading to the
exit of the building (escape route), see Fig. 1. If the building has a
floor area greater than 150 m
in some other suitable place is required, see Fig.2.
Fig 1
Fig 2
2
, installation of an additional detector
1. kitchen,
2. living room,
3. – 6. bedrooms
y / basic coverage
{
/ recommended
coverage
Fig 4
centre of the room, best location
acceptable location
0,9 m
Fig 5
Walls, partitions, barriers and lattice ceilings
The JA-63ST detector must not be installed closer than 0.5 m
from any wall or partition. A narrow room with a width of less than
1.2 m requires the detector(s) to be placed at a distance of at least one
third of the room’s width away. In a case when a room is separated
into sections with walls, semi partition walls or furniture which do
not reach the ceiling, the space is considered as a fully separated if
the gap between the top of these and the ceiling does not exceed
0.3 m are performed as a single rooms. A free space of at least 0.5 m
is required under and around the detector. Any irregularities of the ceiling
(e.g. girders) exceeding 5 % of the ceiling height should be considered a
wall and the above mentioned limitations should apply.
Ventilation and air circulation
The detectors must not be installed directly by ventilation or air
conditioning vents. In the case of air being supplied through a
perforated ceiling, each detector must be placed so that no
perforation hole occurs within 0.6 m of the detector.
Avoid installing the detector in the following
locations:
x places with poor air circulation (niches, corners, apexes of
A-shaped roofs, etc.)
x places exposed to dust, cigarette smoke or steam
x places with over-intense air circulation (close to ventilators,
heat sources, air conditioning outlets, etc.)
x in kitchens and other cooking places (because steam, smoke or
oily fumes can cause false alarms or reduce detector sensitivity).
x beside fluorescent lights or energy-saving light bulbs (electrical
interference can cause a false alarm)
x in areas with lots of small insects
Warning: Most false alarms are caused by improper detector
location.
See CEN/TS 54-14 standards for detailed installation guidelines.
Installation
When installing the detector, abide by the procedures
recommended in the previous paragraphs.
a.s.
||
|
JABLOTRON ALARMS
Pod Skalkou 4567/33 46601 Jablonec n. Nisou
Czech Republic www.jablotron.com
Fig 3
In multi-storey flats and family houses the detector should be installed
above the stairs. It is recommended to place additional detectors in
rooms where people sleep. See Fig 3
.
Installation on level ceilings
Place the detector in the centre of the room if possible. The
detector must not be recessed into the ceiling due to the possible
existence of a cool air layer on the ceiling. Never place the
detector in the corner of the room (always keep at least 0.5 m
distance from the corner - see Fig 4). There is an insufficient
circulation of air in the corners.
Installation on sloping ceilings
If the ceiling is not suitable for mounting on a level surface (e.g. a
room under a roof ridge), the detector can be installed as in Fig. 5.
The JA-63ST Wireless combined smoke and heat detector 1 / 2 MLW56403
Fig 1: 1 – detector cover opening; 2 – detector cover closing; 3 – optical
status signalling; 4 – arrow showing where to insert the detector;
5 – production code; 6 – configuration terminals; 7 – battery holders
1.
Open the detector cover, by turning it anti-clockwise (1)
2.
Attach the plastic base to the selected place using screws
3. Use the terminals (6) to set the required detector function – see
the table below
Page 2
The JA-63ST Wireless combined smoke and heat detector
Siren disabled
ON
1
2
OFF
ON
OFF
Siren enabled
(EN 14604)
Memory disabled
Memory enabled
(EN 54-7 and EN 54-
5)
Caution: When the detector is installed in caravan trailers, use only
the “smoke only“ or “both smoke and heat” settings.
SIR enables deactivating the built-in siren.
MEM alarm memory signalling – if enabled, the detector LED
remains active for an additional 24 hours. Signalling can also be
terminated by pressing the detector body against the base.
SMOKE and TEMP the combination of these terminals defines
whether the detector will react to smoke and heat.
INST alarm mode jumper sets the reaction of the system. ON –
the detector behaves like the other detectors, in an unset system
an alarm is not triggered. The fire warning will be indicated locally
by the detector. When the system is set an instant alarm is
triggered. OFF – the control panel always reacts and triggers a fire
alarm (24hrs).
4. Proceed according to the control panel installation manual.
a.
Launch the enrollment mode on the control panel.
b. When you insert all batteries into the detector, an enrollment code
is sent to the system – its sending is confirmed with a short flash
of the LED indicator (3).
c. Successful enrolling is confirmed by the lit up Battery LED on the
system keypad at the particular position.
5. Insert the detector into the plastic base. The detector can be
inserted into the plastic base in one position only. It is marked
with arrows (4) on both plastic parts. Close the detector cover
by turning it clockwise (2).
Note: Detector cover closing is blocked unless all 3 batteries
are inserted!
The mounting base must not be replaced by bases meant for
detectors without the test button consisting of pressing the body of the
detector.
Fire alarm
A fire alarm is signalled both acoustically and optically.
When the conditions for fire alarm triggering are met (smoke is
detected in the room, the alarm temperature is reached, or both
conditions are met), the detector signals the danger by sounding
the siren and quick flashing of the LED indicator (3). The alarm
information is concurrently sent to the system control panel.
Silencing the siren during an alarm: The siren can be silenced
by pressing the detector body against the base. The siren is
inactive for 10 minutes. If the detector still detects smoke or heat
then, the siren is activated again.
When the need arises (e.g. in the case of detector failure), it is
possible to postpone siren reactivation by up to 12 hours. This can
be done by pressing the detector again for 5 s after silencing the
siren. When the detector chirps, you have to release the pressure
within 1s. The switchover to postponed siren mode is confirmed
with 5 chirps. The detector LED flashes repeatedly all the time
during the postponement.
Alarm memory: If it is enabled, LED indication continues even
when the smoke clears or when the temperature decreases. The
slow-flashing indication lasts 24 hours unless it is terminated by
pressing the detector body.
Tamper alarm: When the detector cover is opened, the detector
sends a tamper signal to the control panel.
ON
OFF
3 OFF
4 OFF
3 OFF
4 ON
3 ON
4 OFF
3 ON
4 ON
5
Smoke (EN 14604 or
EN 54-7) or heat (EN
54-5)
Smoke only (EN 14604
or EN 54-7) (not heat)
Heat only (EN 54-5)
(not smoke)
Both smoke and heat
(both conditions at the
same t ime )
Immediate alarm
ON
Fire alarm
OFF
Detector testing and maintenance
The detector should be tested at least once per month. To
test the detector press the detector against the base and wait until
an LED indicator switches on. The LED flashing signals switchover
to the test mode. The LED flashes for the whole duration of the test.
When the test is complete, the LED switches off. The detector then
signals the result. If the detector beeps once, the test has been done
successfully. If a failure is discovered, the LED flashes and beeps
three times. If the battery is low, there is no acoustic signalling but
just one flash when the test is completed. The complete functioning
of the optical part of the detector can be tested with a test spray
(e.g. SD- TESTER). The heat sensor can be tested with heated air
(e.g. with a hair dryer).
Warning: never test the detector with fire.
Fault indication
The detector checks its functioning. If it discovers a fault, it chirps
and flashes the LED three times and then flashes shortly three
times every 30 s.
A detector test can be carried out when a fault is signalled, see
paragraph Detector testing and maintenance. When the detector is
fixed the detector beeps once briefly.
If you have not managed to fix the fault, the detector must be sent to
a service centre.
Battery replacement
The detector checks the battery status and if the batteries are running
low, the detector signals that they need replacing by short flashes
repeated every 30 s. The information is also sent to the control panel.
Replace the batteries as soon as possible. Always replace all three
batteries with the same type and manufacturer.
Use only high-quality 1.5 V AA alkaline batteries.
Do not throw used batteries into ordinary household waste.
Deposit them at authorized collection points.
Removal of the detector from the system
The system reports any possible detector loss. If you have
removed it on purpose, you also have to erase it from the
corresponding address in the control panel memory.
Technical specifications
Power 3 x Alkaline batteries type LR6 (AA) 1.5 V
Please note: Batteries are not included
Typical lifetime approx. 3 years
Smoke detection optical light scattering
Smoke detector sensitivity m = 0.11 - 0.13 dB/m
pursuant to EN 14604:2005, EN 54-7
Heat detection class A1 according to EN 54-5
Alarm temperature + 60 °C to +65 °C
Communication band 433,92 MHz, JABLOTRON protocol
Communication range approx. 100 m (unrestricted area)
Dimensions diameter 126 mm, height 50 mm
Weight 150 g
Operating temperature range -10 to +65
Also complies with EN 54-25,
ETSI EN 300 220, EN 60950-1, EN 50130-4 and EN 55022.
Can be operated according to ERC REC 70-03
14
1293
JABLOTRON ALARMS a.s. hereby declares that the JA-63ST
is in a compliance with the relevant Union harmonisation legislation:
Directives No:
The original of the conformity assessment can be found at
www.jablotron.com - Section Downloads.
Note: Although this product does not contain any harmful
materials we suggest you return the product to the dealer or
directly to the producer after use.
2014/53/EU, 2014/35/EU, 2014/30/EU, 2011/65/EU.
Ԩ
1293-CPR-0395

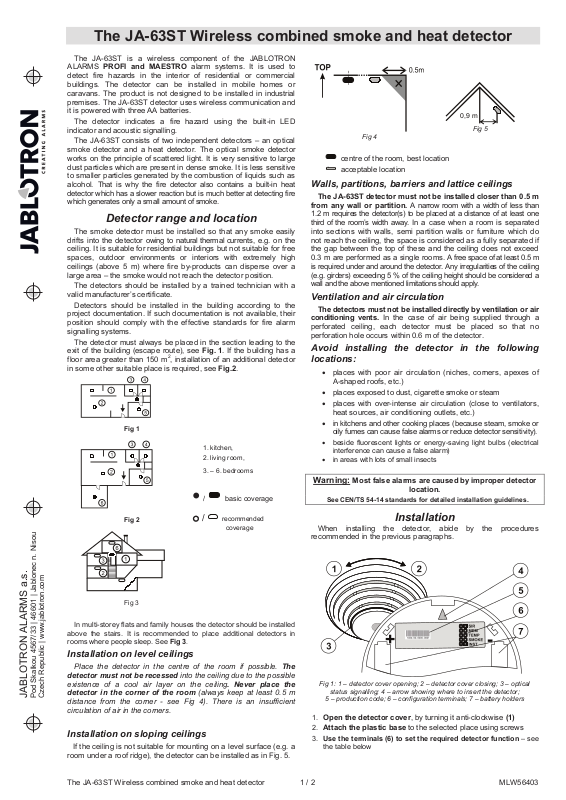

The JA-63ST Wireless combined smoke and heat detector 2 / 2 MLW56403
Loading...
