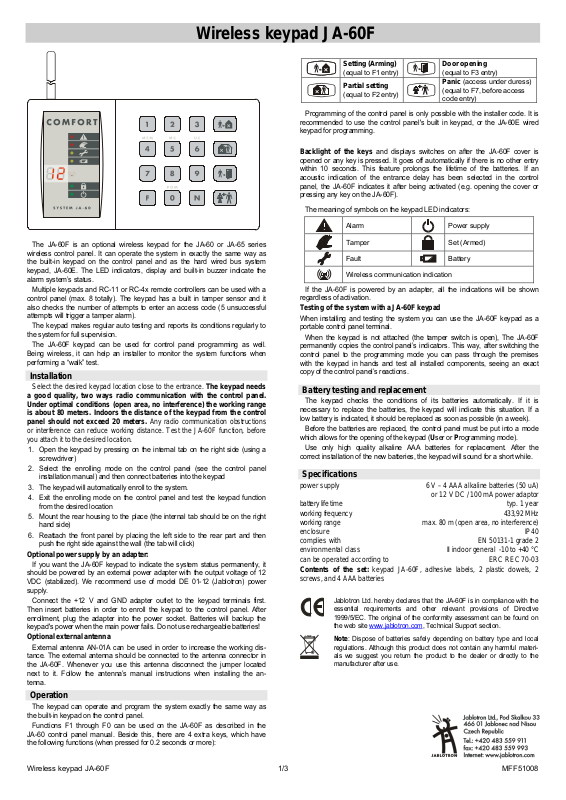

Wireless keypad JA-60F
Setting (Arming)
(equal to F1 entry)
Partial setting
(equal to F2 entry)
Door opening
(equal to F3 entry)
Panic (access under duress)
(equal to F7, before access
code entry)
Programming of the control panel is only possible with the installer code. It is
recommended to use the control panel's built in keypad, or the JA-60E wired
keypad for programming.
Backlight of the keys
and displays switches on after the JA-60F cover is
opened or any key is pressed. It goes off automatically if there is no other entry
within 10 seconds. This feature prolongs the lifetime of the batteries. If an
acoustic indication of the entrance delay has been selected in the control
panel, the JA-60F indicates it after being activated (e.g. opening the cover or
pressing any key on the JA-60F).
The meaning of symbols on the keypad LED indicators:
The JA-60F is an optional wireless keypad for the JA-60 or JA-65 series
wireless control panel. It can operate the system in exactly the same way as
the built-in keypad on the control panel and as the hard wired bus system
keypad, JA-60E. The LED indicators, display and built-in buzzer indicate the
alarm system’s status.
Multiple keypads and RC-11 or RC-4x remote controllers can be used with a
control panel (max. 8 totally). The keypad has a built in tamper sensor and it
also checks the number of attempts to enter an access code (5 unsuccessful
attempts will trigger a tamper alarm).
The keypad makes regular auto testing and reports its conditions regularly to
the system for full supervision.
The JA-60F keypad can be used for control panel programming as well.
Being wireless, it can help an installer to monitor the system functions when
performing a “walk” test.
Installation
Select the desired keypad location close to the entrance.
The keypad needs
a good quality, two ways radio communication with the control panel.
Under optimal conditions (open area, no interference) the work ing range
is about 80 meters. Indoors the dista nce of the keypad from the control
panel should not exceed 20 meters.
Any radio communication obstructions
or interference can reduce working distance. Test the JA-60F function, before
you attach it to the desired location.
1. Open the keypad by pressing on the internal tab on the right side (using a
screwdriver)
2. Select the enrolling mode on the control panel (see the control panel
installation manual) and then connect batteries into the keypad
3. The keypad will automatically enroll to the system.
4. Exit the enrolling mode on the control panel and test the keypad function
from the desired location
5. Mount the rear housing to the place (the internal tab should be on the right
hand side)
6. Reattach the front panel by placing the left side to the rear part and then
push the right side against the wall (the tab will click)
Optional power supply by an adapter:
If you want the JA-60F keypad to indicate the system status permanently, it
should be powered by an external power adapter with the output voltage of 12
VDC (stabilized). We recommend use of model DE 01-12 (Jablotron) power
supply.
Connect the +12 V and GND adapter outlet to the keypad terminals first.
Then insert batteries in order to enroll the keypad to the control panel. After
enrollment, plug the adapter into the power socket. Batteries will backup the
keypad's power when the main power fails. Do not use rechargeable batteries!
Optional external antenna
External antenna AN-01A can be used in order to increase the working distance. The external antenna should be connected to the antenna connector in
the JA-60F. Whenever you use this antenna disconnect the jumper located
next to it. Follow the antenna’s manual instructions when installing the antenna.
Operation
The keypad can operate and program the system exactly the same way as
the built-in keypad on the control panel.
Functions F1 through F0 can be used on the JA-60F as described in the
JA-60 control panel manual. Beside this, there are 4 extra keys, which have
Alarm
Tamper
Fault
Wireless communication indication
If the JA-60F is powered by an adapter, all the indications will be shown
regardless of activation.
Testing of the system with a JA-60F keypad
When installing and testing the system you can use the JA-60F keypad as a
portable control panel terminal.
When the keypad is not attached (the tamper switch is open), The JA-60F
permanently copies the control panel’s indicators. This way, after switching the
control panel to the programming mode you can pass through the premises
with the keypad in hands and test all installed components, seeing an exact
copy of the control panel’s reactions.
Battery testing and replacement
The keypad checks the conditions of its batteries automatically. If it is
necessary to replace the batteries, the keypad will indicate this situation. If a
low battery is indicated, it should be replaced as soon as possible (in a week).
Before the batteries are replaced, the control panel must be put into a mode
which allows for the opening of the keypad (
Use only high quality alkaline AAA batteries for replacement. After the
correct installation of the new batteries, the keypad will sound for a short while.
Specifications
power supply 6 V – 4 AAA alkaline batteries (50 uA)
or 12 V DC / 100 mA power adaptor
battery life time typ. 1 year
working frequency 433,92 MHz
working range max. 80 m (open area, no interference)
enclosure IP40
complies with EN 50131-1 grade 2
environmental class II indoor general -10 to +40 °C
can be operated according to ERC REC 70 - 0 3
Contents of the set:
screws, and 4 AAA batteries
Jablotron Ltd. hereby declares that the JA-60F is in compliance with the
essential requirements and other relevant provisions of Directive
1999/5/EC. The original of the conformity assessment can be found on
the web site www.jablotron.com, Technical Support section.
Note
regulations. Although this product does not contain any harmful materials we suggest you return the product to the dealer or directly to the
manufacturer after use.
keypad JA-60F, adhesive labels, 2 plastic dowels, 2
: Dispose of batteries safely depending on battery type and local
Power supply
Set (Armed)
Battery
U
ser or Programming mode).
the following functions (when pressed for 0.2 seconds or more):
Wireless keypad JA-60F 1/3 MFF51008
