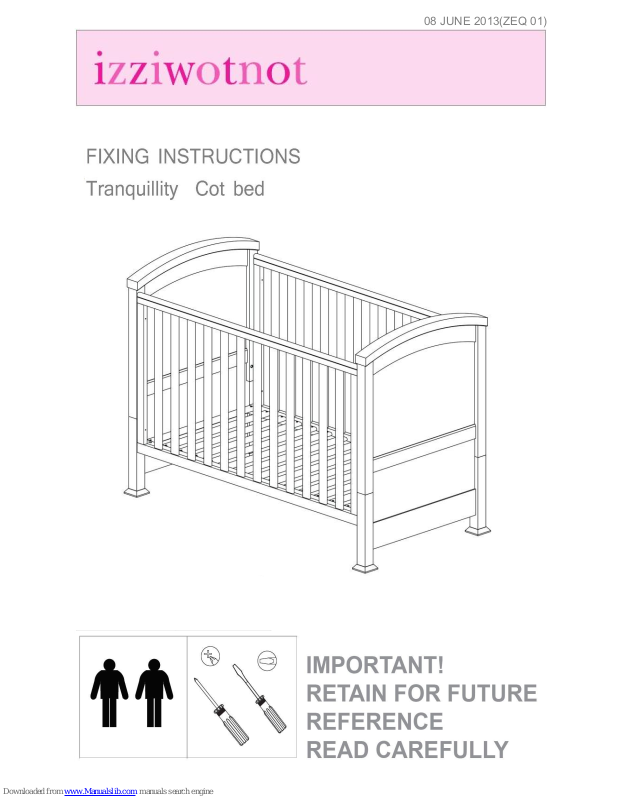

08 JUNE 2013(ZEQ 01)
The Tranquillity cot bed is designed to be used from birth to approximately 4 years.
The base can be fixed in 3 positions. The lowest position being the safest. (refer to safety notes).
This cot can be converted into a toddler size bed (approximately from 18 months to 4 years of age).
Please be careful when moving the cotbed ends!
The bottom section may separate from the top if not held in place.
Do not discard any packaging until you have checked the parts against the list below.
Please take a few minutes to read through the assembly instructions.
Unpack your cot bed carefully onto a soft level surface such as a carpeted floor.
Familiarise yourself with the parts by comparing them with the checklist below.
The recommended mattress size for this cot bed is 1400 x 700 x 100 mm.
The base can be fixed in 3 positions.
The toddler sized bed conforms to BS8509 : 2008 + A1:2011 - Safety Standards for children beds.
Ref Part Description Qty
A Barrel nut 8
B Barrel Bolt 8
C Bolt(30mm) 4
D Bolt(40mm) 4
E Bolt(60mm) 8
F Allen Key 1
G Dowel(30mm) 4
H Dowel(40mm) 4
I Bolt for bed base 4
J Foot nail 4
1
Important Notes
Parts Checklist
Introduction
These lines determine the maximum height of the mattress when the base is in the highest position.
There is a line engraved on each of the side rails(see diagram on page 3).
The engraved line should face the inside of the cot bed.
(refer to safety notes)
This cot conforms to BS EN716-1 : 2008 + A1:2013 - Safety Standards for cots.
Item Name Qty
1 End 2
2 Side Rail 2
3 Bed Base 1
4 Apron 2
5 Feet 4
2
Parts checklist
1. Attaching dowels to feet and securing feet to bed ends.
Cx4 Gx4 Fx1
2. Attaching a side rail to bed ends.
Ex4
Notice:
Please do not tighten the bolts fully from this stage until stage 4 is
finished!
3
Assembly
3. Attaching bed base to bed ends.
Dx4 Ix4
Notice:
The bed base can be fixed in 3 positions, the lowest base position is the
safest and the only one you should use once your baby can sit unaided.
4. Attaching another side rail to bed ends.
Ex4
Notice:
Please tighten all of bolts
fully at this stage but not
overtightened.
The cot is now fully assembled. Please make sure all of fixings are
secured again before use.
4
Assembly
5. Converting the cot to a bed.
Note:
Dismantle all of compopnents taking care not to damage whilst
dismantling.
6. Securing aprons to bed ends.
Ax8 Bx8 Hx4 Jx4
Fix foot nails(Jx4) before attaching aprons.
5
Assembly
7. Securing bed base to bed ends.
Dx4 Ix4
The bed is now fully assembled. Please make sure all of fixings are
secured again before use.
Notice:
Please Keep all of parts and fixings that are not used in a safe place.
You will need them again to convert the bed into a cot bed.
6
Assembly
SAFETY NOTES :
Excessive chewing may damage the wood and cause splintering. If any part is damaged, stop using
the cot bed until the correct replacement part has been obtained from Izziwotnot.
Do not allow children to climb on the furniture. The safety of your child is your responsibility.
Before use, please ensure each item of furniture is on a stable, level surface.
Never use the item of furniture if any parts are broken or missing.
To avoid the risk of suffocation, keep all plastic bags and packaging out of reach of babies and young
children.
All assembly fittings should always be tightened properly. Care should be taken that no fittings are
loose, because the child could trap parts of the body or clothing which could pose a risk of
strangulation.
Warning: Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires,
gas fires etc., in the near vicinity of the cot.
Warning: .Do not use the cot if any part is broken, torn or missing and use only spare parts approved
by the manufacturer.
Warning: Do not leave anything in the cot or place the cot close to another product, which could
provide a foothold or present a risk of suffocation or strangulation, e.g. strings, blind/curtain cords etc.
Warning: Do not use more than 1 mattress in the cot.
The lowest base position is the safest and should always be used as soon as baby is old enough to
sit up.
The thickness of the mattress chosen must not reduce the internal depth (from mattress surface to top
of the side) to less than 500mm with the base in the lowest position or 200mm with the base in the
highest position. The cot bed sides have an engraved line on the inside indicating this height.
The mattress to be used with this cot should be no more than 30mm shorter or narrower than the
internal length or width of the cot bed.
Never pivot or drag the item of furniture when moving. The item of furniture must always be lifted by at
least two people.
To prevent injury from falls, when a child is able to climb out of the cot the cot shall no longer be used
for that child.
Children are likely to play, bounce, jump and climb on beds, therefore the child’s bed should not be
placed too close to other furniture or windows, and should be placed either tight to any wall or
have a gap of 300mm between the wall and the side of the bed.
When cot is converted into a bed, it is to be used by one child aged 18 months to 4 years.
WARNING : Do not place this child’s bed near heat sources, windows and other furniture.
WARNING : Do not use this child’s bed if any part is broken, torn or missing.
This product is designed to be dismantled for storage or transportation.
CARE OF YOUR PRODUCT :
Periodically check all fittings to ensure that none have come loose. Any loose fittings must be
tightened using the correct tool.
Your cot bed can be cleaned by wiping with a damp cloth and drying with a soft dry cloth.
Never clean with abrasives, ammonia based, bleach based or spirit type cleaners.
Take care when handling or moving the cot bed. Careless handling can damage wooden furniture.
7
Care and Safety
CUSTOMER SERVICE:
If you need assistance please contact our Customer Service Team on 0161 830 1919.
Alternatively please contact the retailer from whom you made your purchase.
GUARANTEE - CUSTOMER COPY
All our products are made using the highest quality materials and are manufactured to
British Standards, some of the highest quality standards in the world.
We guarantee all our products or part thereof, for a period of six months from the date of delivery
against faulty manufacture. This guarantee is not effective against damage caused as a result of
incorrect use or accidental damage. This in no way affects your statutory rights.
To validate this guarantee, please fill in the coupon and retain for future reference:
IZZIWOTNOT, 520 Metroplex, Broadway, Salford Quays, Manchester, M50 2UE
Title(Mr/Mrs/Miss/Ms)
Address
Daytime Telephone Number
Product Purchased
Purchased Date
Where Purchased
First Name
Email
Price
Surname
Postcode
If you would like to receive further information regarding new products, promotions and special offers from IZZIWOTNOT please tick
the box provided:
Post
Email
www.izziwotnot.com / sales@izziwotnot.com
GUARANTEE
All our products are made using the highest quality materials and are manufactured to
British Standards, some of the highest quality standards in the world.
We guarantee all our products or part thereof, for a period of six months from the date of delivery
against faulty manufacture. This guarantee is not effective against damage caused as a result of
incorrect use or accidental damage. This in no way affects your statutory rights.
To validate this guarantee, please fill in the coupon and return to:
IZZIWOTNOT, 520 Metroplex, Broadway, Salford Quays, Manchester, M50 2U
E
Title(Mr/Mrs/Miss/Ms)
Address
Daytime Telephone Number
Product Purchased
Purchased Date
Where Purchased
First Name
Email
Price
Surname
Postcode
If you would like to receive further information regarding new products, promotions and special offers from IZZIWOTNOT please tick
the box provided:
Post
Email
