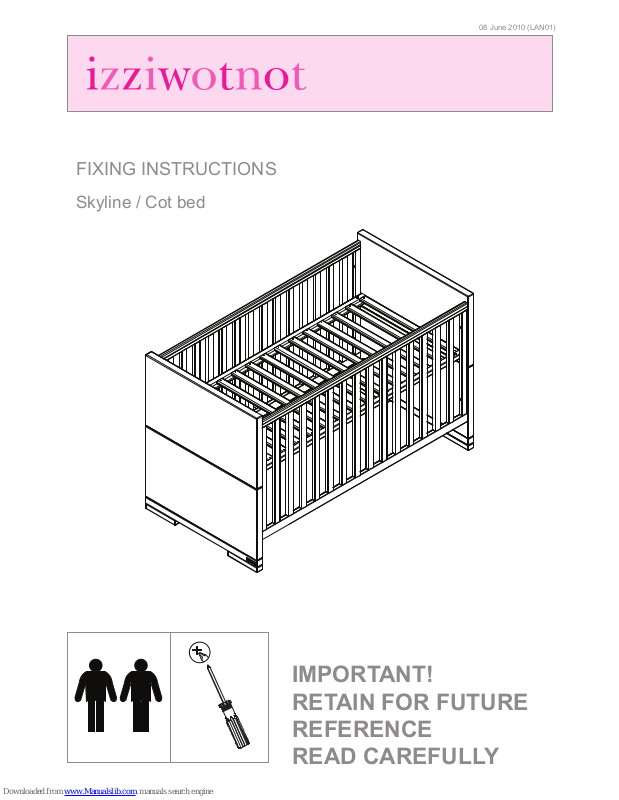

FIXING INSTRUCTIONS
Skyline / Cot bed
IMPORTANT!
RETAIN FOR FUTURE
REFERENCE
READ CAREFULLY
08 June 2010 (LAN01)
Important notes
Do not discard any packaging until you have checked the parts against the list below.
Please take a few minutes to read through the assembly instructions. Unpack your cot bed carefully
onto a soft level surface such as a carpeted floor. Familiarise yourself with the parts by comparing
them with the checklist provided below.
The recommended mattress size for this cot bed is 140 x 70 cm.
The Skyline cot bed is designed to be used from birth to approximately 4 years.
The base can be fixed in 3 positions. The lowest position being the safest (refer to safety notes).
The cot can be converted into a toddler size bed (approximately from 18 months to 4 years of age).
Please be careful when moving cot-bed ends.
The bottom section may separate from the top if not held in place.
There is a line engraved on each of the cot bed sides. These should face the inside of the cot bed.
These lines determine the maximum height of the mattress when the base is in the highest position.
(refer to safety notes).
Please make sure that all assembly fittings shall always be correctly tightened and checked regularly.
This cotbed is designed to BSEN716-1 2008 Safety Standards for cots
This bed is designed to BS 8509 : 2008 Safety Standards for Childrens Beds
Parts checklist
Ref
4
4
8
Bed base fixing
C
B
A
D
Barrel Bolt
Bolt (35mm)
QtyDescription
Part
Barrel nut & Grub screw
8
1
E
1
Allen Key
F
8
4
Dia 8x40Dowel
Capping Bolts
Bolt ( 50mm)
G
H
8
Parts checklist
2
Item
1a
1b
2
3
4
End (Top)
End (Bottom)
Side Rail
Bed Base
Bed aprons
Name Qty
2
2
2
1
2
1a
1a
1b
1b
3
2
2
4
4
Assembly
3

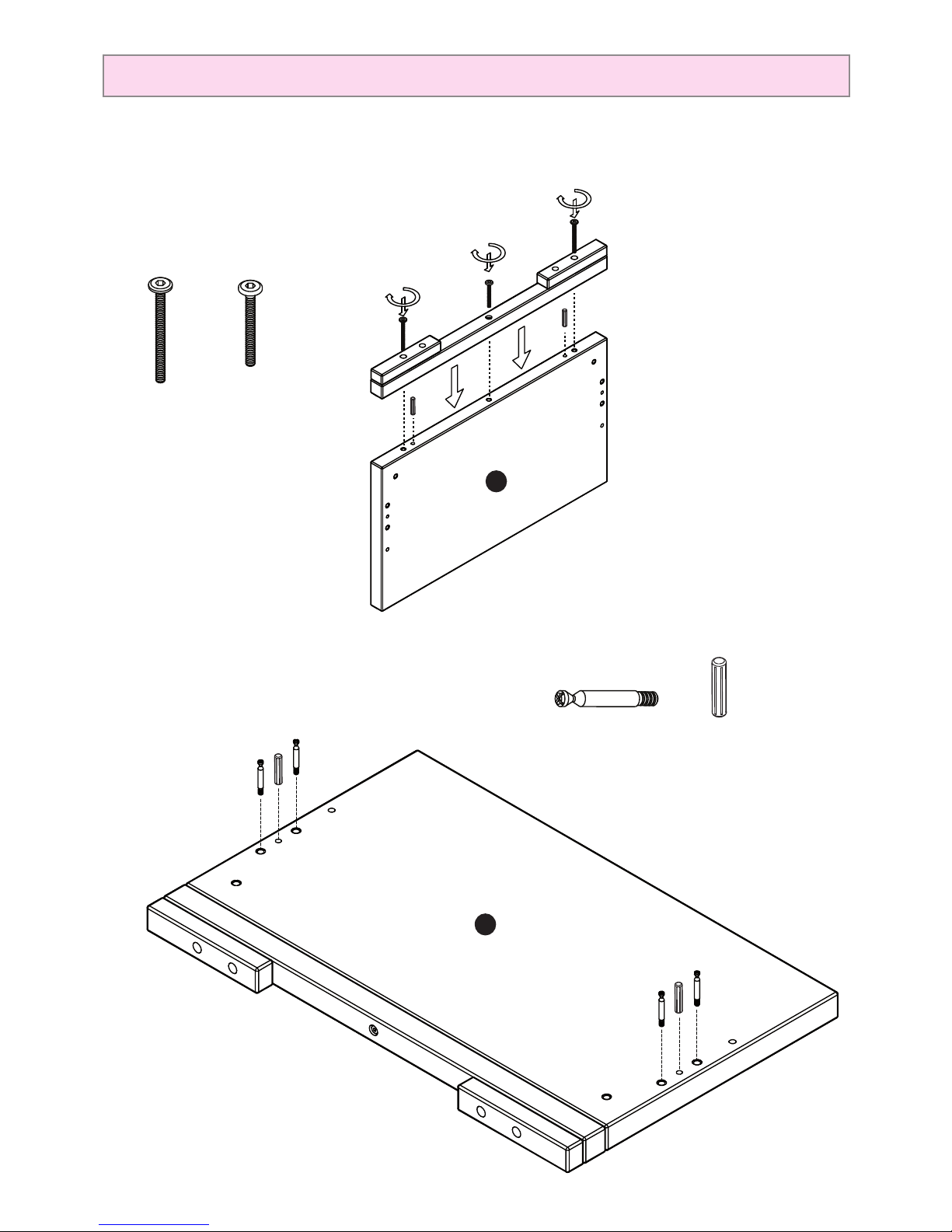

1. Assembling the bed ends. (Take care not to scratch the product - Lay panels on carpeted surface).
C X 4
G X 4
2. Attaching the ends to the side rails.
E X 8
NB : To allow the fitting of the bed base do not tighten fully at this stage.
The base can be fixed in 3 positions, the lowest base position is the safest
and is the only one you should use once your baby can sit unaided.
These instructions show the base being fixed in the highest position.
High
Mid
Low
1a
1a
1a
1a
1b
1b
1b
2
2
Be careful when lifting ends as they may separate.
Mattress Height indicator
on inside of cot.
Assembly
3. Attaching the base.
D X 4
4

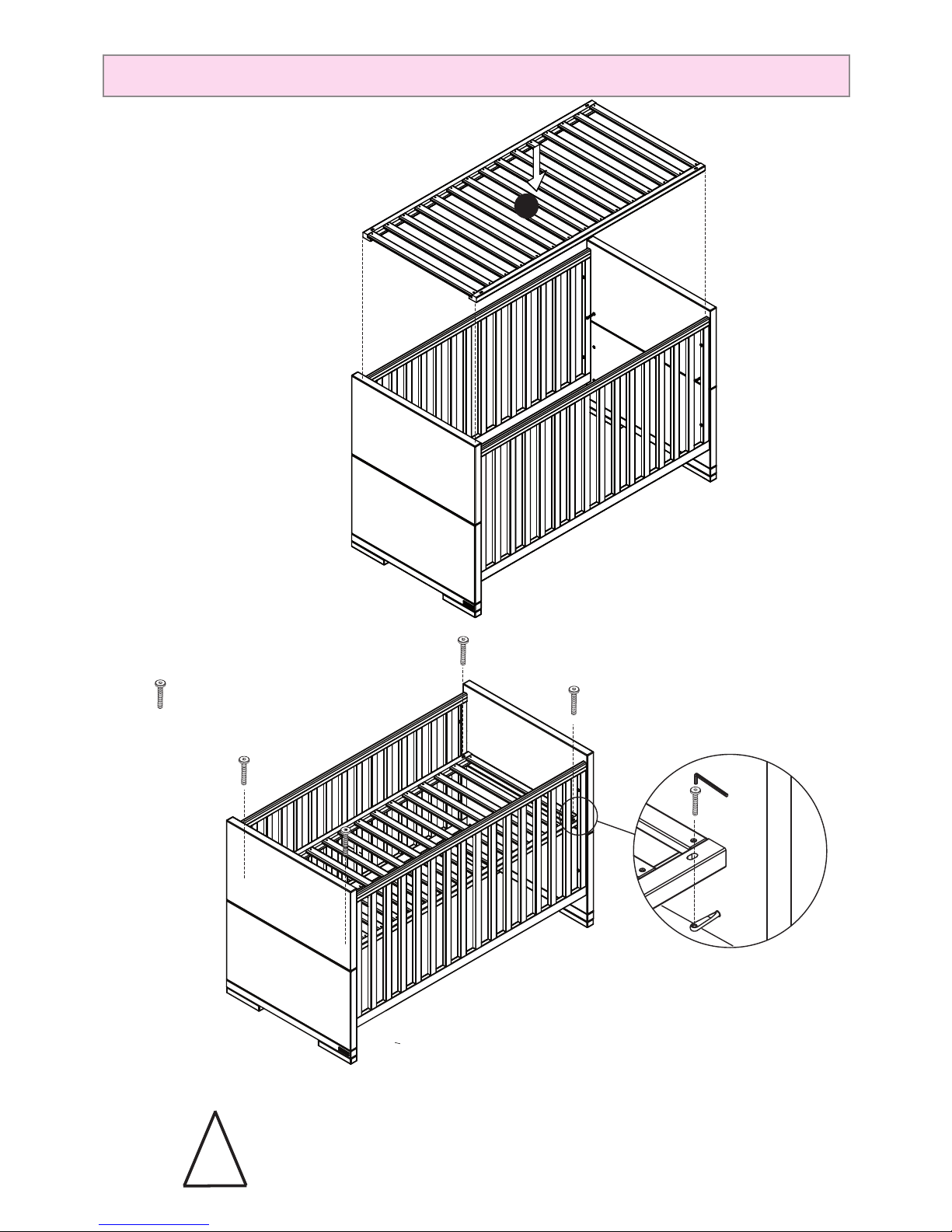

4. Securing the base with bolts.
NB : Fully tighten the 8 side rail bolts from step 2 after the base has been secured.
Please keep all parts, fixings and that are not used in a safe place.
You will need them to convert the cot into a cot bed.
!
3
Assembly
5
5. Changing cot into bed.
6. Detaching the cot ends.
Please note that the bolts illustrated are not included in the parts check list on page 1
as they are used in the pre-assembly of the cot end.
Separate panel 1a from 1b. Then using the allen key provided, remove the 3 bolts from the
underside of the cot end and detach panel 1b.
Remove dowels x2
You will need to dismantle the cot in order to convert into toddler bed.
1a
1a
1b
1a
1a
1a
1b
1b
Assembly
6
7. Re-assemble bed ends, using bolts and dowels removed in step 6.
8. Attaching fittings to bed ends and aprons.
A X 8
A
A
A
G
G
A
G X 4
65mm
65mm
65mm
50mm
50mm
1a
1a
Assembly
7
9. Push in barrel nut
10. Attach aprons to bed ends.
Remove grub screw
B x4
4
4
4
4
4
1a
Assembly
8
10. Attach aprons to bed ends.
11. Fix capping bolts and place bed base onto strips.
Finished assembly
H x4
3
3
4
4
1a
1a
4
Care and Safety
9
SAFETY NOTES :
Do not use more than one mattress.
Excessive chewing may damage the wood and cause splintering. If any part is damaged,
stop using the cot bed until the correct replacement part has been obtained from Izziwotnot.
Do not allow children to climb on the furniture. The safety of your child is your responsibility.
Before use, please ensure each item of furniture is on a stable, level surface.
Never use the item of furniture if any parts are broken or missing.
To avoid the risk of suffocation, keep all plastic bags and packaging out of reach of babies
and young children.
All assembly fittings should always be tightened properly. Care should be taken that no
fittings are loose, because the child could trap parts of the body or clothing which could
pose a risk of strangulation.
Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires
etc. in the vicinity of the cot bed.
The lowest base position is the safest and should always be used as soon as baby is old
enough to sit up.
Never leave anything inside the cot that could provide a foothold or present a risk of
suffocation or strangulation.
The thickness of the mattress chosen must not reduce the internal depth (from mattress
surface to top of the side) to less than 500mm with the base in the lowest position or
200mm with the base in the highest position. The cot bed sides have an engraved line on the
inside indicating this height.
The mattress to be used with this cot should be no more than 30mm shorter or narrower
than the internal length or width of the cot bed.
Never pivot or drag the item of furniture when moving. The item of furniture must always be
lifted by at least two people.
To prevent injury from falls, when a child is able to climb out of the cot the cot shall no longer
be used for that child.
Children are likely to play, bounce, jump and climb on beds, therefore the child’s bed should
not be placed too close to other furniture or windows, and should be placed either tight to any
wall or have a gap of 300mm between the wall and the side of the bed.
WARNING : Do not place this child’s bed near heat sources, windows and other furniture.
WARNING : Do not use this child’s bed if any part is broken, torn or missing.
CARE OF YOUR PRODUCT :
Periodically check all fittings to ensure that none have come loose. Any loose fittings must
be tightened using the correct tool.
Your cot bed can be cleaned by wiping with a damp cloth and drying with a soft dry cloth.
Never clean with abrasives, ammonia based, bleach based or spirit type cleaners.
Take care when handling or moving the cot bed. Careless handling can damage wooden
furniture.
?
CUSTOMER SERVICE:
If you need assistance please contact our Customer Service Team on 0161 830 1919.
Alternatively please contact the retailer from whom you made your purchase.
We guarantee all our products or part thereof, for a period of six months from the date of delivery
against faulty manufacture. This guarantee is not effective against damage caused as a result of
incorrect use or accidental damage. This in no way affects your statutory rights.
To validate this guarantee, please fill in the coupon and retain for future reference:
IZZIWOTNOT, 520 Metroplex, Broadway, Salford Quays, Manchester, M50 2UW
