Page 1

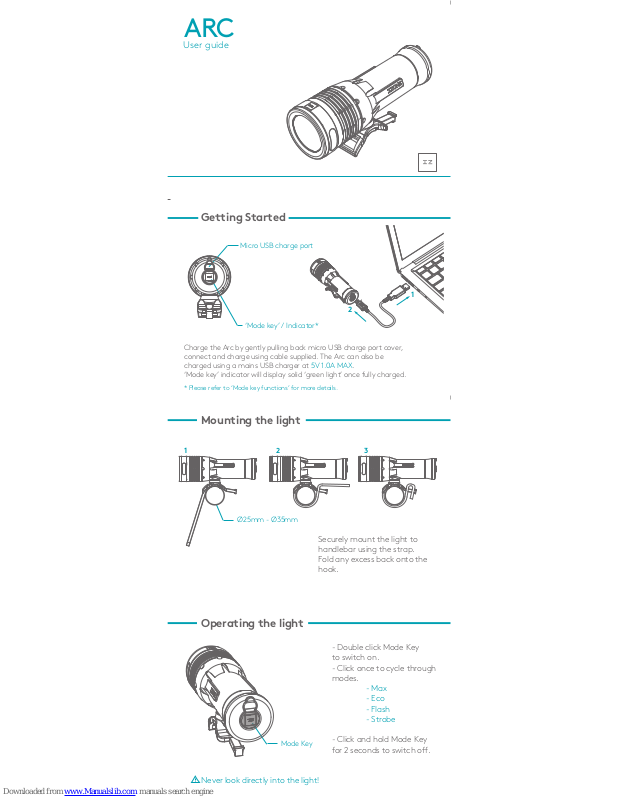

Charge the Arc by gently pulling back micro USB charge port cover,
connect and charge using cable supplied. The Arc can also be
charged using a mains USB charger at 5V 1.0A MAX.
‘Mode key’ indicator will display solid ‘green light’ once fully charged.
1
Ø25mm - Ø35mm
Mode Key
- Double click Mode Key
to switch on.
- Click once to cycle through
modes.
- Max
- Eco
- Flash
- Strobe
- Click and hold Mode Key
for 2 seconds to switch off.
Never look directly into the light!
Getting Started
Mounting the light
Operating the light
ARC
Micro USB charge port
‘Mode key’ / Indicator*
1
2
* Please refer to ‘Mode key functions’ for more details.
Securely mount the light to
handlebar using the strap.
Fold any excess back onto the
hook.
User guide
2 3
Page 2
1
2
3
4
5
6
8
7
1. Optically engineered collimator
2. Patented cooling system
3. Precision casing
4. ‘Mode key’, On/Off Switch
5. Waterproof, IPX4
6. Patented air cooling ports
7. Low profile, tool free bracket
8. Bright side visibility
9. High capacity Li-ion power cell
Mode Key Functions
Features
IZONE Arc is a highly sophisticated light with multiple modes, functions,
protection and charge circuits. The ‘Mode key’ / Indicator accesses all
features and displays real-time battery status.
IZONE LED lighting products carry a two (2) year warranty from the original
date of purchase to the original owner (proof of purchase is required). This
warranty covers materials and manufacturing defects on LED, electronics,
housing and hardware. IZONE RECHARGEABLE batteries carry a six (6)
month warranty against manufacturing defect. Normal wear and tear,
improper installation, modification, damage or failure due to accident,
misuse, abuse and neglect are not covered under the warranty. All warranty
claims must be processed through the original point of purchase.
Never modify the light or electronic circuit.
Please be sure to attach the light to the handlebar securely before riding.
Please do not mount the light where it may interfere with controls.
Never look directly into the light when switching on.
When used for cycling, this light should be used in conjunction with a
British Standard 6102/3 cycle light.
Warranty
Warnings
Charging
100%
70% - 90%
30% - 70%
Low - 30%
Solid Green
Flashing Green
Flashing Amber
Flashing Red
-
-
-
-
Real-time battery monitor
Optimum performance
Extended run time mode
Reserve, requires charging
Solid Green
Solid Amber
Solid Red
-
-
-
©AL 2013 IZONE, Thirsk Business Park, York Road, Thirsk, YO7 3BX.
+44 (0) 1845 521700 www.zyro.co.uk/izone Designed in the UK, Made in China.
