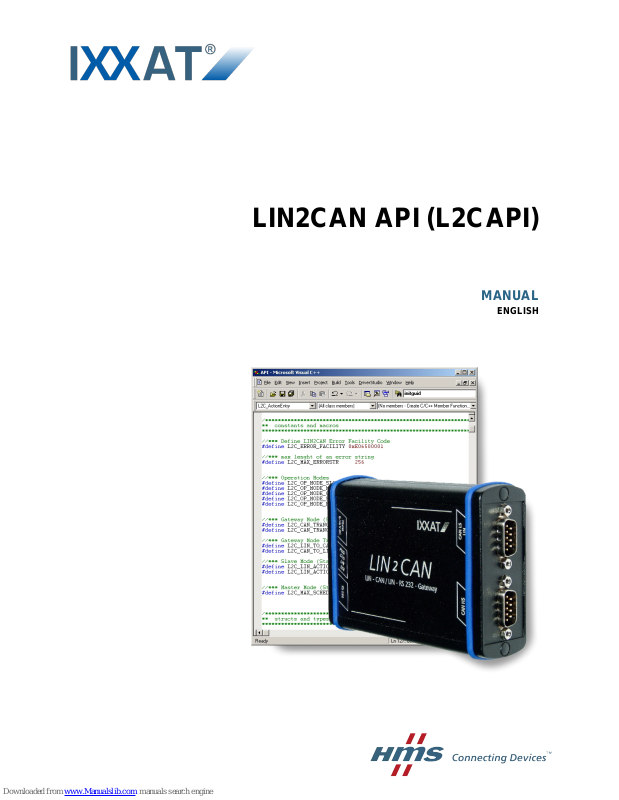

IXXAT LIN2CAN Api Manual

LIN2CAN API (L2CAPI)

MANUAL

ENGLISH

HMS Technology Center Ravensburg GmbH

Helmut-Vetter-Straße 2
88213 Ravensburg
Germany

Tel.: [phone]
Fax: [phone]
Internet: www.hms-networks.de

E-Mail: [e-mail]

Support

For problems or support wi th this product or other HMS pr oducts please

request support at www.ixxat.com/support.

Further international support contacts can be found on our webpage
www.ixxat.com

Copyright

Duplication (copying, printi ng, m icrof ilm or other form s) and t he elect ronic
distribution of this document is only allowed with explicit permission of HMS

Technology Center Ravensburg GmbH. HMS Technology Center
Ravensburg GmbH reserves the right to change technical data without

prior announcement. The general business conditions and the regulations

of the license agreement do apply. All rights are reserved.

Registered trademarks

All trademarks mentioned in this document and where applicable third

party registered are absolutely subject to the conditions of each valid label
right and the rights

of particular registered proprietor. The absence of
identification of a trademark does not automatically mean that it is not
protected by trademark law.

Document number: 4.01.0130.20100
Version: 1.6

Content

3

L2C-API Manual, Version 1.6

1 Introduction .................................................................................... 5

2 LIN-CAN-RS232 Gateway API (L2CAPI) ........................................ 6

2.1 Basic structure ........................................................................ 6

2.2 Creating the API object ........................................................... 6

2.3 Overview of interfaces ............................................................ 7

2.4 Interface IUnknown ................................................................. 8

2.5 Interface IL IN2CAN_API_Ctrl ................................................. 9

2.6 Interface ILIN2CAN_GeneralConfig2 ................................... 10

2.7 Interface ILIN2CAN_GatewayConfig2 .................................. 12

2.8 Interface ILIN2CAN_SlaveConfig ......................................... 14

2.9 Interface ILIN2CAN_MasterConfig2 ..................................... 15

2.10 Interface ILIN2CAN_LINMsgQueue2 .................................... 16

2.10.1 Error overview ...................................................................... 17

2.11 Interface ILIN2CAN_Master_Slave2 ..................................... 18

2.12 Overview: Permitted API calls / operation mode ................ 19

2.13 B rief overview of API ............................................................ 20

2.13.1 Interface: ILIN2CAN_GeneralConfig2 .................................. 20

2.13.2 Interface: ILIN2CAN_GatewayConfig2 ................................. 22

2.13.3 Interface: ILIN2CAN_SlaveConfig ........................................ 23

2.13.4 Interface: ILIN2CAN_MasterConfig2 .................................... 23

2.13.5 Interface: ILIN2CAN_LINMsgQueue2 .................................. 24

2.13.6 Interface: ILIN2CAN_Master_Slave2 ................................... 25

2.13.7 Data type definitions ............................................................. 26

Introduction

5

L2C-API Manual, Version 1.6

1 Introduction

The LIN2CAN Gateway API (in s hort: L2CAPI) serves as an interface for the
configuration and controlling of the LIN2CAN Gateway hardware and for the
access to the LIN message traffic. All functions of the LIN2CAN de vice can be
used in own programs with the LIN2CAN gateway API. Specific test applications
or PC based network simulations can be realized. (For further infor mati on r ead
the LIN2CAN Gateway manual.) The LIN2CAN d evice with the L2CA PI can b e
used as a developer platform. The functions ar e divided into function groups
according to type of function or operation mode.

LIN-CAN-RS232 Gateway API (L2CAPI)

6

L2C-API Manual, Version 1.6

2 LIN-CAN-RS232 Gateway API (L2CAPI)

2.1 Basic structure

The structure of the API is similar to that of a COM object. The API is sub-divided
into interfaces and has a reference counter used for releasing the API. If an
interface is requested, the counter is increased by one. If an interface is no
longer required, it must be rele ased with

Release

. If the counter reaches 0, the

L2CAPI object is deleted. E ach i n terfac e is derived from the int erface

IUnknown

.

This interface contains the methods

QueryInterface, AddRef

and

Release

.

Every method of the API (except

AddRef

and

Release

) returns an

HRESULT

value

as an error code.

S_OK (0)

stands for success.

2.2 Creating the API object

The following files are required to be able to work with the API:

• L2CAPI.lib

• L2CAPI.dll

• L2CAPI.hpp

The LIB file must be integr ated in the program t o be created. It loads the DLL
file when the program is started. The methods of the API are defined in the HPP
file.

In addition, the line

#define INITGUID

must be contained in a CPP file of the
project. This serves to provide memory space for the GUIDs (Global Unique
Identifiers). Every interface of the API has one of these 128-bit IDs for
unambiguous definition.

First the API object must be created with

L2CAPI_CreateInstance()

. The hand-off
parameters are the ID for the req uired interface and a pointer for the required
interface. The call is as follows:

HRESULT hResult = E_FAIL;
IUnknown* pIUnknown = NULL;
hResult = L2CAPI_CreateInstance(IID_IUnknown, (void**)&pIUnknown);

If successful, every other interface of the API can now be called with this
interface pointer. If unsuccessful, the error code can be converted into a
readable string by calling

L2CAPI_FormatError()

. If the interface is no longer

required, it is released again by the following call.

if(pIUnknown != NULL)
{
pIUnknown->Release();
pIUnknown = NULL;
}

A project example (L2CAPI_CONSOLE_APP) and a project template
(L2CAPI_App- Template) is included for t he easier beginning to implement an
own application.

LIN-CAN-RS232 Gateway API (L2CAPI)

7

L2C-API Manual, Version 1.6

2.3 Overview of interfaces

The API implements the following interfaces:

• ILIN2CAN_API_Ctrl
Serves to connect the API with the device or to disconnect the
connection and query the connection status.

• ILIN2CAN_GeneralConfig2
Serves to query or make the basic settings of the device such as
name, LIN baud rate and startup operation.

• ILIN2CAN_GatewayConfig2
Serves to make the settings that are required for the gateway mode.
These include the CAN baud rate and the CAN transceiver mode and
the translation table for translating LIN to CAN objects and vice versa.

• ILIN2CAN_SlaveConfig
Defines the response to a LIN identifier.

• ILIN2CAN_MasterConfig2
Defines the schedule table for the master operation mode.

• ILIN2CAN_LINMsgQueue2
Serves to read out messages from the LIN message queue and query
their status.

• ILIN2CAN_Master_Slave2
With this interface it is possible to place LIN IDs and LIN objects on
the LIN bus by PC call and to connect a wakeup signal to the BUS.

The methods of the interfaces can only be called if the device is either in
L2C_OP_MODE_SLAVE_PC or L2C_OP_MODE_MASTER_PC mode!

LIN-CAN-RS232 Gateway API (L2CAPI)

8

L2C-API Manual, Version 1.6

2.4 Interface IUnknown

The interface provides the following methods:

• HRESULT QueryInterface([in] REFIID riid, [out] LPVOID *ppvObj)
With QueryInterface, one of the interfaces listed in 2.3 can be

queried. The call is the same as for L2CAPI_CreateInstance, the only
difference being that here no new instance of the class is created, but
a pointer of the required interfaces is returned. By calling
QueryInterface, the referenc e counter is automatically increased by
one.

• ULONG AddRef()
AddRef increases the reference counter of the object by one. The

return value is the new status of the reference counter. This method
must be called if an interface pointer itself is cloned.

• ULONG Release()
With Release, an interface that is no longer required is released

again. The new reference counter status is returned.

LIN-CAN-RS232 Gateway API (L2CAPI)

9

L2C-API Manual, Version 1.6

2.5 Interface ILIN2CAN_API_Ctrl

This interface provides the following methods:

• Connect([in] PCHAR pszName, [in] PCHAR pszMode)
With Connect the API is connected to the device by the stated

interface. The name of the int erface to be used is given i n psz Name
e.g. “COM1” or “COM2”. In pszMode, “baud=115200 parity=N data=8
stop=1” must always be transmitted. If the connection was made
successfully, S_OK is re turned, ot herwise an error co de that can be
converted into a readable string with L2CAPI_FormatError().

• Disconnect()
With Disconnect the connection to the device is disconnected again.

• IsConnected()
IsConnected is used to query whether the de vice is still connected.

This function checks the status of the DSR line. In this way
disconnection of the device can also be detected during operation.

LIN-CAN-RS232 Gateway API (L2CAPI)

10

L2C-API Manual, Version 1.6

2.6 Interface ILIN2CAN_GeneralConfig2

This interface implements the following method s:

• GetDeviceName([out] PSTRING psDeviceName)

• SetDeviceName([in] PSTRING psDeviceName)

Get/SetDeviceName serves to give the device a name. 16 characters
are permitted including “\0”.

•

GetVersionInformation([out] PL2C_VersionInformation pVersionInfo);

GetVersionInformation querie s the versi o n information of the device.
The structure is as follows:

struct
{
char strFirmwareVersion[8];
char strHardwareVersion[8];
}L2C_VersionInformation, *PL2C_Ve rsio nInf ormation ;

Each string is terminated with 0.

• GetLINBaudrate([out] PWORD pwBaudrate);

• SetLINBaudrate([in] WORD wBaudrate);

Get/SetLINBaudrate defines the baud rate of the LIN bus. The
following values are possible: 2400, 9600 and 19200 bauds.

•

GetOperationMode([out] PL2C_OperationMode pnOperationMode);

•

SetOperationMode([in] L2C_OperationMode nOperationMode);

Define the current operation mode of the device. The following modes
are possible:

 L2C_OP_MODE_SLAVE_PC
 L2C_OP_MODE_MASTER_PC

•

GetStartUpOpMode([out] PL2C_OperationMode pnOperationMode);

• SetStartUpOpMode ([in] L2C_OperationMode nOpera tionMode) ;
These functions define the startup behavior of the device if the serial

cable is not connected to the PC. The following startup operation
modes are permitted:

 L2C_OP_MODE_SLAVE
 L2C_OP_MODE_MASTER
 L2C_OP_MODE_GATEWAY_SLAVE
 L2C_OP_MODE_GATEWAY_MASTER

• GetStandbyTime([out] PWORD pwStandbyTime);

• SetStandbyTime([in] WORD wStandbyTime);

Here it is possible to define after how much time (in seconds) without
bus traffic the device switches to standby mode (LIN and CAN). If the
device is connected to the PC, it always remains “awake”. If the value
0xFFFF is transmitted, the device never goes into standby mode.

LIN-CAN-RS232 Gateway API (L2CAPI)

11

L2C-API Manual, Version 1.6

• GetSystemTime([out] PDWORD pdwSystemTime);

• SetSystemTime([in] DWORD dwSystemTime);

These functions serve to set and query the system time of the device.
The system time is a counter value in millisecond steps that is used
for the timestamp of the LIN messages of the message queue.

• GetLinMessageCo nfig ([out] PL2C_Message Config p MsgConfig) ;

• SetLinMessageConfig ([in] PL2C_MessageConfig pMsgConfig);

These functions set or query the length and CRC calculation mode of
the LIN message packages. The structure is as follows:

struct
{
BYTE bMsgLen[64];
L2C_MessageCrcType nMsgCrcType[64];
}L2C_MessageConfig, *PL2C_MessageConfig;

• LoadSettingsFromFlash();
This reads out the setting from the flash. Settings that a re not sa ved

are lost.

• SaveSettingsToFlash;
With this the current settings are stored non-volatile in the flash. This

applies to the settings of GeneralConfig without system time,
GatewayConfig, SlaveConfig and MasterConfig.

LIN-CAN-RS232 Gateway API (L2CAPI)

12

L2C-API Manual, Version 1.6

2.7 Interface ILIN2CAN_GatewayConfig2

Here the following settings can be made:

• GetCANConfig([out] PL2C_CAN_Config pCANConfig);

• SetCANConfig([in] PL2C_CAN_Config pCANConfig);

This defines the setting of the CAN controller. The following structure
is used:

struct
{
DWORD dwBaudrate;
L2C_CANTransceiverMode nTransceiverMode;
}L2C_CANConfig, *PL2C_CANConfig;

The following baud rates in kilobauds are permitted:

 10
 20
 50
 100
 125
 250
 500
 1000

The CAN transceiver can be set to one of the following modes:

 L2C_CAN_TRANSCEIVER_LOWSPEED
 L2C_CAN_TRANSCEIVER_HIGHSPEED

• GetGatewayTranslation([out] PL2C_Translation Config 2
pTranslationConfig2)

• SetGatewayTranslation([in] PL2C_TranslationConfig2
pTranslationConfig2)

These two functions are use d for the conf iguration of the tr anslation
table from LIN to CAN and vice versa. A CAN ID can be stored here
for each LIN ID. The LIN ID corresponds to the index of
IdentifierTranslation. In addition it i s possible to send a LIN error on
the CAN bus, to store a CAN ID that activates the gateway (data bytes
of the CAN message not equal to 0) or deactivated (data bytes equal
to 0) and to store a CAN ID that switches the active schedule table in
gateway master mode (data byte 0 specifies the number of the
schedule table). The following structure is used:

LIN-CAN-RS232 Gateway API (L2CAPI)

13

L2C-API Manual, Version 1.6

struct
{

L2C_IdentifierTranslation stLIN_IdentifierTranslation[64];
L2C_IdentifierTranslation stLIN_ErrorTranslation;
L2C_IdentifierTranslation stGatewayActivation;
L2C_IdentifierTranslation stScheduleSwitching;

}L2C_TranslationConfig2, *PL2C_Tr ansl atio nConfig2 ;

Each of the 66 entries has the following structure:

struct
{

BOOL bValid;
L2C_TranslationDirection nTranslationDir;
BOOL b29BitIdentifier;
DWORD dwCANID;

}L2C_IdentifierTranslation, *PL2C_IdentifierTranslation;

With bValid it is possible to define whether the entry is valid (TRUE
for valid).

nTranslationDir defines the direction of the translation:

 L2C_LIN_TO_CAN_TRANSLATION
 L2C_CAN_TO_LIN_TRANSLATION

b29BitIdentifier defines whether it is a 29Bit CAN ID (TRUE for
29bit).

dwCANID defines the CAN identifier. Make sure, that a CAN ID is
not assigned twice.

LIN-CAN-RS232 Gateway API (L2CAPI)

14

L2C-API Manual, Version 1.6

2.8 Interface ILIN2CAN_SlaveConfig

This interface serves to confi gure the action table. The follo wing methods are
provided:

• GetLINIDAction([in/out] PL2C_ActionEntry pActionEntry);

• SetLINIDAction([in] PL2C_ActionEntry pActionEntr y);

The methods serve t o query or set an entry of the action table. T he
following structure is used:

struct
{
BYTE bLINID;
L2C_LINIDAction nAction;
BYTE pbAddInfo[64];
BYTE bAddInfoLen;
}L2C_ActionEntry, *PL2C_ActionEntry;

bLINID is always an [in] parameter, which defines for which LIN ID
the action is set or queried.

nAction defines the action to be executed. The following settings are
valid:

 L2C_CAN_ACTION_IGNORE
 L2C_CAN_ACTION_SEND_LINDATA

If the action is set to Ignore, no AddInfo data may be sent.
If Send_LINData is selected, the data to be sent must be present in

AddInfo with suitable length according to the LIN ID. The length is
transmitted in bAddInfoLen.

LIN-CAN-RS232 Gateway API (L2CAPI)

15

L2C-API Manual, Version 1.6

2.9 Interface ILIN2CAN_MasterConfig2

The Master Schedule table can be edited here. The following methods are
available for this:

• GetScheduleTable([in] BYTE bNumberScheduleTable, [out]
PL2C_ScheduleEntry pScheduleTable, [out] PBYTE
pbNumberEntries);

• SetScheduleTable([in] BYTE bNumberScheduleTable, [in]
PL2C_ScheduleEntry pScheduleTable ,[in] BYTE
bNumberEntries);

The schedule table to read or to write is specified with
bNumberScheduleTable. T he number of supported schedule tables
can be retrieved by a call of GetScheduleTableCount.

Up to 64 entries can be written in the schedul e table. The following
structure is used, which is transferred in a field. When fetching, the
field must have 64 entries (L2C_MAX_SCHEDULETABLE_SIZE).
pbNumberEntries gives the number of entries that were present.
When setting, the number of entries must correspond to the size of
the field and there must not be more than 64 entries.

struct
{
BYTE bLINID;
BYTE bWaitingTime;
} L2C_ScheduleEntry;

• GetScheduleTableCount([out] PBYTE pbScheduleTableCount);
With this method the number of schedule tables supported by the

device can be queried.

LIN-CAN-RS232 Gateway API (L2CAPI)

16

L2C-API Manual, Version 1.6

2.10 Interface ILIN2CAN_LINMsgQueue2

This interface serves to access the LIN message queue. The following functions
are provided:

• GetLINMsgQueueStatus([out] L2C_ QueueStatus pQu eueStatu s);
The status of the LIN queue can be queried here.

struct
{

BOOL bOverrun;
BYTE bQueueSize;
BYTE bUsedEntries;

}L2C_QueueStatus, *PL2C_QueueStatus;

If an overrun has occurred in the LIN me ssage queue, bOverrun is
set to TRUE. The queue size is returned in bQueueSize and the
currently used entries in bUsesEntries.

• ResetLINMsgQueueOverrun();
The function must be called to reset the overrun status of the queue.

• GetLINMsgQueueEntry([out] PL2C_LINMessage pLINMessage);
The function must be called to read out a message. The following

structure is filled:

struct
{
DWORD dwTimeStamp;
BYTE bLINID;
BYTE pbData[8];
BYTE bDataLen;
L2C_MessageCrcType nMsgCrcType;
}L2C_LINMessage2, *PL2C_LINMessage2;

dwTimeStamp contains the receiving time of the LIN object in [ms].
The timestamp is based on the system time of the device, which
overruns every 48 days.

bLINID contains the received LIN ID or 0x40 if it is an error code.
pbData together with bDataLen contain the LIN data and the length if

it is a valid LIN message.
nMsgCrcType contains the C RC type with which the LIN message

was transmitted on the LIN network.
If a LIN error has occurred, this is signaled by the ID 0x40. Any LIN

ID received is then found in data byte 0 (otherwise 0xFF) and the
error code in data byte 1.

LIN-CAN-RS232 Gateway API (L2CAPI)

17

L2C-API Manual, Version 1.6

2.10.1 Error overview

data byte 1

data byte 2

Description

FF

01

Received data is not a valid sync field.

FF

02

Received data is not a valid ID field.

FF

03

Only sync break detected before timeout.

FF

04

Only sync break and sync field detected before

timeout.

LIN-ID

05

Only sync break, sync field and ID field de tect ed

before timeout. (Slave does not respond!)

LIN-ID

06

Only sync break, sync field, ID field and at least

one data byte detected before timeout.

LIN-ID

07

Calculated checksum does not match the

received checksum. If the LIN2CAN GW is
operating in LIN Spec. 2.0 mode, this error may
occur due data collision or invalid CRC mode
setting.

LIN-ID

08

Received data does not match the sent data.

The error may occur due data collision in LIN
Spec. 2.0 mode.

FF

09

UART error, received byte does not match

UART standard (e.g. StopBit missing).

FF

0A

Dominant level transmitted on the LIN BUS

(Wakeup signal)

FF

0B

Dominant level received on the LIN BUS, but it

is too short to be a sync-break. (Note: This error
code is only available in slave operation mode
after at least one valid sync break was received.
If another error code was received before, this
error code has no relevance.)

LIN-CAN-RS232 Gateway API (L2CAPI)

18

L2C-API Manual, Version 1.6

2.11 Interface ILIN2CAN_Master_Slave2

This interface enables a master emulation by PC. The follo wing functions are
provided:

• SendLINID([in] BYTE bLINID);
The function sends the specified LIN ID on the bus. The LIN ID must

be between 0x00 and 0x3F.

• SendLINIDandData([in] PL2C_LINMessage2 pLINMessage2);
The function sends a complete LIN object to the bus. The structure is

described in 2.10 GetLINMsgQueueEntry. The timestamp has no
significance for the transmission.

• SendWakeup([in] BYTE bSignalDuration);
The functio n connects a domi nant level to the LIN bus according to

the specified time. The duration bSignalDuration is given in [ms]
between 1 and 255.

LIN-CAN-RS232 Gateway API (L2CAPI)

19

L2C-API Manual, Version 1.6

2.12 Overview: Permitted API calls / operation mode

Operation mode

Function

Slave with PC Master with PC Slave Stand Alone Master Stand Alone Gateway Slave Gateway Slave

GetDeviceName

x x - - -

-

SetDeviceName

x x - - -

-

GetVersionInformation

x x - - -

-

GetLINBaudrate

x x - - -

-

SetLINBaudrate

x x - - -

-

GetOperationMode

x x x x x

x

SetOperationMode

x x - - -

-

GetStartUpOpMode

x x - - -

-

SetStartUpOpMode

x x - - -

-

GetStandbyTime

x x - - -

-

SetStandbyTime

x x - - -

-

GetSystemTime

x x - - -

-

SetSystemTime

x x - - -

-

GetLinMessageConfig

x x - - -

-

SetLinMessageConfig

x x - - -

-

LoadSettingsFromFlash

x x - - -

-

SaveSettingsToFlash

x x - - - - GetCANConfig

x x - - -

-

SetCANConfig

x x - - -

-

GetGatewayTranslation

x x - - - - SetGatewayTranslation

x x - - -

-

GetLINIDAction

x x - - -

-

SetLINIDAction

x x - - - - GetScheduleTable

x x - - -

-

SetScheduleTable

x x - - -

-

GetScheduleTableCount

x x - - - - GetLINMsgQueueStatus

x x - - -

-

ResetLINMsgQueueOverrun

x x - - -

-

GetLINMsgQueueEntry

x x - - - - SendLINID

- x - - -

-

SendLINIDandData

- x - - -

-

SendWakeup

- x - - -

-

X  Call permit ted in this mode.

-  Call not permitted in this mode.

LIN-CAN-RS232 Gateway API (L2CAPI)

20

L2C-API Manual, Version 1.6

2.13 Brief overview of API

All methods return an HRESULT error code  S_OK in the event of success,
otherwise a Windows error code

2.13.1 Interface: ILIN2CAN_GeneralConfig2

• GetDeviceName([out] PSTRING psDeviceName)
Name of the device: pointer to a string with max. 16 characters.
The last valid character is “\0”.

• SetDeviceName([in] PSTRING psDeviceName)
Name of the device: pointer to a string with max. 16 characters.
The last valid character must be “\0”.

• GetVersionInformation([out] PL2C_VersionInformation

pVersionInfo);

struct
{

char strFirmwareVersion[8];
char strHardwareVersion[8];

}L2C_VersionInformation, *PL2C_VersionInformation;

• GetLINBaudrate([out] PWORD pwBaudrate);
Baud rates: 2400, 9600, 19200

• SetLINBaudrate([in] WORD wBaudrate);

• GetOperationMode([out] PL2C_OperationMode

pnOperationMode);

typedef BYTE L2C_OperationMode;
#define L2C_OP_MODE_SLAVE_PC 1
#define L2C_OP_MODE_MASTER_PC 2

LIN-CAN-RS232 Gateway API (L2CAPI)

21

L2C-API Manual, Version 1.6

• SetOperationMode([in] L2C_OperationMode

nOperationMode);

• GetStartUpOpMode([out] PL2C_OperationMode pnOpe-

rationMode);

#define L2C_OP_MODE_SLAVE 4
#define L2C_OP_MODE_MASTER 5
#define L2C_OP_MODE_GATEWAY_SLAVE 3
#define L2C_OP_MODE_GATEWAY_MASTER 3

• SetStartUpOpMode ([in] L2C_OperationMode

nOperationMode);

• GetStandbyTime([out] PWORD pwStandbyTime);
Resolution in [s]
0xFFFF for never

• SetStandbyTime([in] WORD wStandbyTime);

• GetSystemTime([out] PDWORD pdwSystemTime);

Time in [ms]

• SetSystemTime([in] DWORD dwSystemTime);

• GetLinMessageConfig([out] PL2C_MessageConfig pMsgConfig)

struct
{
BYTE bMsgLen[64];
L2C_MessageCrcType nMsgCrcType[64];
}L2C_MessageConfig, *PL2C_MessageConfig;

• SetLinMessageConfig([in] PL2C_MessageConfig pMsgConfig)

• LoadSettingsFromFlash();

• SaveSettingsToFlash;

LIN-CAN-RS232 Gateway API (L2CAPI)

22

L2C-API Manual, Version 1.6

2.13.2 Interface: ILIN2CAN_GatewayConfig2

• GetCANConfig([out] PL2C_CAN_Config pCANConfig);
struct
{
DWORD dwBaudrate;
L2C_CANTransceiverMode nTransceiverMode;
}L2C_CANConfig;

CAN transceiver baud rate
10, 20, 50, 100, 125, 250, 500, 1000

CAN transceiver modes
#define L2C_CAN_TRANSCEIVER _LOW SPEED 0
#define L2C_CAN_TRANSCEIVER_HIGHSPEED 1

• SetCANConfig([in] PL2C_CAN_Config pCANConfig);

• GetGatewayTranslation([out] PL2C_TranslationConfig2

pTranslationConfig2)
struct
{

L2C_IdentifierTranslation stLIN_IdentifierTranslation[64];
L2C_IdentifierTranslation stLIN_ErrorTranslation;
L2C_IdentifierTranslation stGatewayActivation;
L2C_MessageCrcType nMsgCrcType;

}L2C_TranslationConfig2, *PL2C_TranslationConfig2;

struct
{

BOOL bValid;
L2C_TranslationDirection nTranslationDir;
BOOL b29BitIdentifier;
DWORD dwCANID;

}L2C_IdentifierTranslation, *PL2C_IdentifierTranslation;

• SetGatewayTranslation([in] PL2C_TranslationConfig2
pTranslationConfig2)

LIN-CAN-RS232 Gateway API (L2CAPI)

23

L2C-API Manual, Version 1.6

2.13.3 Interface: ILIN2CAN_SlaveConfig

• GetLINIDAction([in/out] PL2C_ActionEntry pActionEntry);
[in] pActionEntry->bLINID
[out] “remaining”

struct
{
BYTE bLINID;
L2C_LINIDAction nAction;
BYTE pbAddInfo[64];
BYTE bAddInfoLen;
}L2C_ActionEntry;

//*** Slave Mode (Standalone) LIN ID Actions
#define L2C_CAN_ACTION_IGNORE 4
#define L2C_CAN_ACTION_SEND_LINDATA 5

• SetLINIDAction([in] PL2C_ActionEntry pActionEntry);

2.13.4 Interface: ILIN2CAN_MasterConfig2

• GetScheduleTable([out] PL2C_ScheduleEntry pScheduleTable,

[out] PBYTE pbNumberEntries);

struct
{
BYTE bLINID;
BYTE bWaitingTime;
} L2C_ScheduleEntry;
pbNumberEntries out  number of entries in the schedule table

//*** Master Mode (Standalone) Schedule Table Size
#define L2C_MAX_SCHEDULETABLE_SIZE 64

• SetScheduleTable([in] PL2C_ScheduleEntry pScheduleTable,

[in] BYTE bNumberEntries);

• GetScheduleTableCount ([out] PBYTE pbScheduleTableCount);

LIN-CAN-RS232 Gateway API (L2CAPI)

24

L2C-API Manual, Version 1.6

2.13.5 Interface: ILIN2CAN_LINMsgQueue2

• GetLINMsgQueueStatus([out] L2C_QueueStatus pQueue-

Status);

struct
{

BOOL bOverrun;
BYTE bQueueSize;
BYTE bUsedEntries;

}L2C_QueueStatus;

• ResetLINMsgQueueOverrun();

• GetLINMsgQueueEntry([out] PL2C_LINMessage2 pLIN-

Message2);

struct
{
DWORD dwTimeStamp;
BYTE bLINID;
BYTE pbData[8];
BYTE bDataLen;
L2C_MessageCrcType nMsgCrcType;
}L2C_LINMessage2, *PL2C_LINMessage2;

If a LIN error has occurred, this is signaled by the ID 0x40. Any LIN
ID received is then found in data byte 0 (otherwise 0xFF) and the
error code in data byte 1.

LIN-CAN-RS232 Gateway API (L2CAPI)

25

L2C-API Manual, Version 1.6

2.13.6 Interface: ILIN2CAN_Master_Slave2

• SendLINID([in] BYTE bLINID);
bLINIDLIN ID between 0x00 and 0x3F

• SendLINIDandData([in] PL2C_LINMessage2 pLINMessage2);
pLINMessagedwTimeStamp not used

• SendWakeup([in] BYTE bSignalDuration);
bSignalDuration Duration of the wakeup signals in [ms], value

between 1 and 255

LIN-CAN-RS232 Gateway API (L2CAPI)

26

L2C-API Manual, Version 1.6

2.13.7 Data type definitions

/*****************************************************************************
** constants and macros
*****************************************************************************/

//*** Define LIN2CAN Error Facility Code
#define L2C_ERROR_FACILITY 0xE0670000

//*** max lenght of an error string
#define L2C_MAX_ERRORSTR 256

//*** LIN Message CRC Types
#define L2C_MSG_CRC_TYPE_DEFAULT 0
#define L2C_MSG_CRC_TYPE_SPEC_1_3 1
#define L2C_MSG_CRC_TYPE_SPEC_2_0 2

//*** Operation Modes
#define L2C_OP_MODE_SLAVE_PC 1
#define L2C_OP_MODE_MASTER_PC 2
#define L2C_OP_MODE_SLAVE 4
#define L2C_OP_MODE_MASTER 5
#define L2C_OP_MODE_GATEWAY_SLAVE 3
#define L2C_OP_MODE_GATEWAY_MASTER 6

//*** Gateway Mode (Standalone) CAN Transceiver Modes
#define L2C_CAN_TRANSCEIVER_LOWSPEED 0
#define L2C_CAN_TRANSCEIVER_HIGHSPEED 1

//*** Gateway Mode Translation Direction
#define L2C_LIN_TO_CAN_TRANSLATION 0
#define L2C_CAN_TO_LIN_TRANSLATION 1

//*** Slave Mode (Standalone) LIN ID Actions
#define L2C_LIN_ACTION_IGNORE 4
#define L2C_LIN_ACTION_SEND_LINDATA 5

//*** Master Mode (Standalone) Schedule Table Size
#define L2C_MAX_SCHEDULETABLE_SIZE 64

/*****************************************************************************
** structs and types
*****************************************************************************/

//*** LIN Message CRC type
typedef BYTE L2C_MessageCrcType, *PL2C_MessageCrcType;

//*** Operation Mode type
typedef BYTE L2C_OperationMode, *PL2C_OperationMode;

//*** Gateway Mode (Standalone) Transceiver Mode type
typedef BYTE L2C_CANTransceiverMode, *PL2C_CANTransceiverMode;

//*** Gateway Translation Mode
typedef BYTE L2C_TranslationDirection, *PL2C_TranslationDirection;

//*** Slave Mode (Standalone) Action type
typedef BYTE L2C_LINID_Action, *PL2C_LINID_Action;

LIN-CAN-RS232 Gateway API (L2CAPI)

27

L2C-API Manual, Version 1.6

//*** Version Information Structure
typedef struct
{
char strFirmwareVersion[8]; //Firmware Version String
char strHardwareVersion[8]; //Hardware Version String
}L2C_VersionInformation, *PL2C_VersionInformation;

//*** LIN Message Config
typedef struct
{
BYTE bMsgLen[64]; //LIN Data Length: 0 - 8 Bytes
L2C_MessageCrcType nMsgCrcType[64]; //LIN CRC calculation type
}L2C_MessageConfig, *PL2C_MessageConfig;

//*** Gateway Mode (Standalone) CAN Controller Configuration Structure
typedef struct
{
DWORD dwBaudrate; //CAN Baudrate in [kBaud]
L2C_CANTransceiverMode nTransceiverMode; //Mode of CAN Transceiver
//(High or Lowspeed)
}L2C_CANConfig, *PL2C_CAN_Config;

//*** Gateway Mode (Standalone) Identifier Translation
typedef struct
{
BOOL bValid; //Translation valid? (Valid = TRUE)
L2C_TranslationDirection nTranslationDir; //Translation Direction (LIN 2 CAN |
CAN 2 LIN)
//only valid for LIN Identifier
Translation
BOOL b29BitIdentifier; //Is CAN ID a 29 Bit Identifier
// (29bit = TRUE)
DWORD dwCANID; //CAN ID (0 - 2047 [11bit])
// (0 - 536870911 [29bit])
}L2C_IdentifierTranslation, *PL2C_Identif ierTransl atio n;

LIN-CAN-RS232 Gateway API (L2CAPI)

28

L2C-API Manual, Version 1.6

//*** Gateway Mode (Standalone) Translation Configuration
typedef struct
{
L2C_IdentifierTranslation stLIN_IdentifierTranslation[64]; //Field for Identifier
Translation
//(LIN ID = Index)
L2C_IdentifierTranslation stLIN_ErrorTranslation; //LIN Error to CAN ID
Translation
L2C_IdentifierTranslation stGatewayActivation; //Gateway Activation
CAN ID
L2C_IdentifierTranslation stScheduleSwitching; //Master Schedule
table switching
CAN ID
}L2C_TranslationConfig2, *PL2C_TranslationConfig2;

//*** Slave Mode (Standalone) LINID Action Table entry Structure
typedef struct
{
BYTE bLINID; //LIN ID (0 - 63)
L2C_LINID_Action nAction; //Action to perform on LINID
BYTE pbAddInfo[64]; //Additional Info for Action
// LIN Data for instance
BYTE bAddInfoLen; //Length of pbAddInfo
}L2C_ActionEntry, *PL2C_ActionEntry;

//*** Master Mode (Standalone) Schedule Table entry Structure
typedef struct
{
BYTE bLINID; //LIN ID (0 - 63)
BYTE bWaitingTime; //Time to wait before sending the next LIN Identifier
}L2C_ScheduleEntry, *PL2C_ScheduleEntry;

//*** Slave Mode (with PC) Queue Status Structure
typedef struct
{
BOOL bOverrun; //Indicates a LIN Queue Overrun (TRUE = Overrun)
BYTE bQueueSize; //Size of the LIN Message Queue
BYTE bUsedEntries; //Used Entries of the LIN Message Queue
}L2C_QueueStatus, *PL2C_QueueStatus;

//*** Master / Slave Mode (with PC) LIN Message Structure
typedef struct
{
DWORD dwTimeStamp; //Timestamp of LIN Message in [ms]
BYTE bLINID; //LIN ID (0 - 63) LIN Error (64)
BYTE pbData[8]; //LIN Data
BYTE bDataLen; //Length of pbData
L2C_MessageCrcType nMsgCrcType; //LIN CRC calculation type
}L2C_LINMessage2, *PL2C_LINMessage2;

LIN-CAN-RS232 Gateway API (L2CAPI)

29

L2C-API Manual, Version 1.6

//*** Error List Lookup Table Structure
typedef struct
{
BOOL fIdValid; //Flag if ID is valid
BYTE bErrorCode; //Error Code
char strErrorMessage[512]; //Human readable error string
}L2C_LINErrorLookupTable, *PL2C_LINErrorLookupTable;

//*** Error List Lookup Table Structure
#define L2C_LIN_ERROR_LOOKUP_TABLE_ENTRY_COUNT 12
const L2C_LINErrorLookupTable

L2C_k_stLINErrorLookupTable[L2C_LIN_E RROR _LOOKUP_T ABLE _ENTR Y_CO UNT] =
{
{
FALSE,
0x00,
""
},
{
FALSE,
0x01,
"Received data is not a valid sync-field."
},
{
FALSE,
0x02,
"Received data is not a valid ID-field."
},
{
FALSE,
0x03,
"Only sync-break detected before timeout."
},
{
FALSE,
0x04,
"Only sync-break and sync-field detected before timeout."
},
{
TRUE,
0x05,
"Only sync-break, sync-field and ID-field detected before timeout.
(Slave does not respond!)"
},
{
TRUE,
0x06,
"Only sync-break, sync-field, ID-field and at least one data byte detected
before timeout."
},

LIN-CAN-RS232 Gateway API (L2CAPI)

30

L2C-API Manual, Version 1.6

{
TRUE,
0x07,
"The calculated checksum does not match the received checksum. If the LIN2CAN
GW is operating in LIN Spec. 2.0 mode, this error may occur due data collision
or invalid CRC mode setting."
},
{
TRUE,
0x08,
"The received data does not match the sent data. this error may occur due data
collision in LIN Spec. 2.0 mode."
},
{
FALSE,
0x09,
"UART error, received byte was not like UART standard (\"StopBit missing\" for
instance)."
},
{
FALSE,
0x0A,
"A dominant level was transmitted on the LIN BUS. (Wakeup signal)"
},
{
FALSE,
0x0B,
"A dominant level was received on the LIN BUS, but it was to short to be a
sync-break. (Note: This error code is only available in slave operation mode
after at least one valid sync-break was received. If an other error code was
received before, this error code has no relevance.)"
}
};

LIN-CAN-RS232 Gateway API (L2CAPI)

31

L2C-API Manual, Version 1.6

/*****************************************************************************
** LIN Error (LIN ID 0x40)
**
** An Error is signaled if bLINID is set to 0x40
** The LIN ID of the error message (if available) is stored in pbData[0]
** else it is 0xFF, while the errorcode is stored in pbData[1]
**
** Error Overview!
** - 0x01 Received data is not a valid sync-field.
** - 0x02 Received data is not a valid ID-field.
** - 0x03 Only sync-break detected before timeout.
** - 0x04 Only sync-break and sync-field detected before timeout.
** - 0x05 Only sync-break, sync-field and ID-field detected before timeout.
** (Slave does not respond!)
** - 0x06 Only sync-break, sync-field, ID-field and at least one data byte
** detected before timeout.
** - 0x07 The calculated checksum does not match the received checksum.
** If the LIN2CAN GW is operating in LIN Spec. 2.0 mode, this error
** may occur due data collision or invalid CRC mode setting.
** - 0x08 The received data does not match the sent data. this error may
** occurre due data colission in LIN Spec. 2.0 mode.
** - 0x09 UART error, received byte was not like UART standard
** ("StopBit missing" for instance).
** - 0x0A A dominant level was transmitted on the LIN BUS. (Wakeup signal)
** - 0x0B A dominant level was received on the LIN BUS, but it was to short
** to be a sync-break.
** (Note: This error code is only available in slave operation
** mode after at least one valid syncbreak was received. If an other
** error code was received before, this error code has no relevance.)
*****************************************************************************/
